UVSegNet: Semantic Boundary-Aware Neural UV Parameterization for Man-Made Objects

TL;DR

UVSegNet is a new framework for UV parameterization that improves texture quality and seam placement on 3D models of man-made objects.

Contribution

UVSegNet introduces a boundary-aware guided UV mapping module and cylindrical supervision for better UV parameterization.

Findings

UVSegNet improves angular distortion by 24.1% compared to Nuvo.

Seam compactness is enhanced by 60.5% with UVSegNet.

The framework outperforms baselines in texture and seam quality.

Abstract

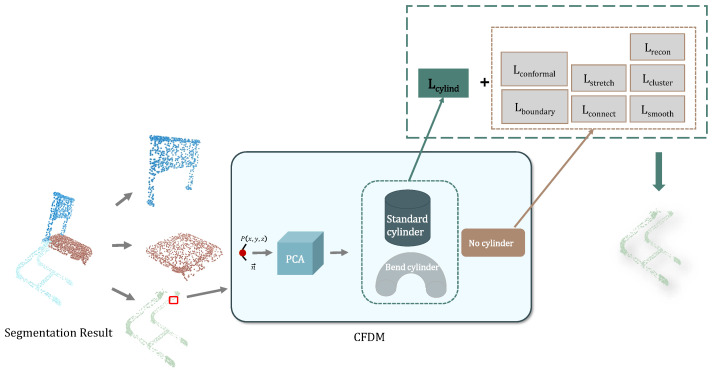

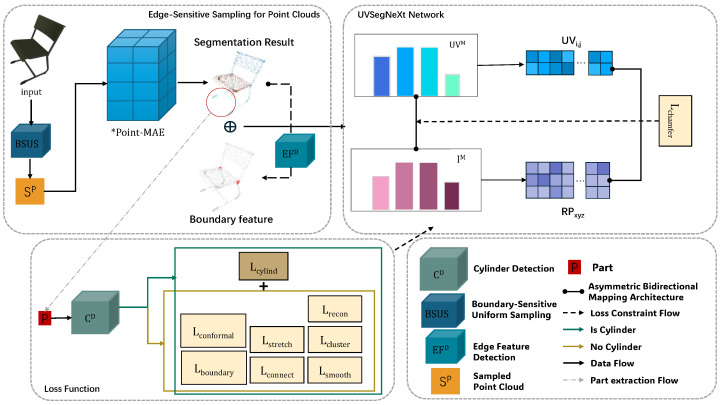

UV parameterization is a fundamental step in building textured 3D models, but minimizing texture distortion and ensuring seams are placed along meaningful boundaries remains a challenge. This paper proposes UVSegNet, a novel semantic boundary-aware UV parameterization framework that combines part-level segmentation with geometry-aware parameterization. To address the common seam placement issues in parameterization, we introduce a boundary-aware guided UV mapping module that jointly optimizes geometric accuracy and seam layout. Furthermore, to better handle the cylindrical structures common in man-made objects, we introduce a cylindrical supervision strategy to reduce misalignment and unfolding distortion. Experiments on representative object categories show that UVSegNet outperforms other excellent baseline models in both texture quality and seam quality. Compared to Nuvo, UVSegNet improves the angular distortion (conformality) metric by 24.1% and seam compactness by 60.5% by generating a more compact seam layout. Experimental results demonstrate that UVSegNet outperforms baseline methods in both mapping quality and seam quality, thanks to the complementary mechanism of boundary constraints and geometry-driven modeling.

Figures
