Assessment of Early Breast Cancer Response to Chemotherapy with Ultrasound Radiomics

TL;DR

This study explores using ultrasound radiomics to assess early breast cancer response to chemotherapy, showing promising noninvasive results.

Contribution

A novel 3D score map classification method is introduced for interpreting ultrasound radiomic data in cancer treatment monitoring.

Findings

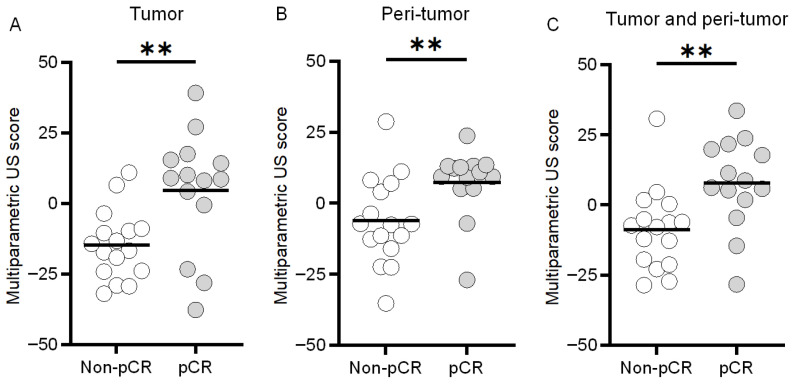

Multiparametric US with peri-tumoral data improved AUC to 0.81 for predicting chemotherapy response.

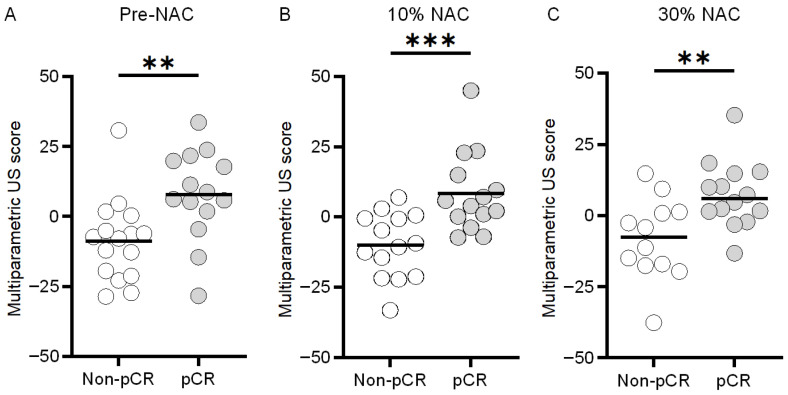

Early data after the first chemotherapy cycle achieved an AUC of 0.86, indicating significant early response detection.

The 3D score map enhanced interpretation of treatment-induced changes in US measurements.

Abstract

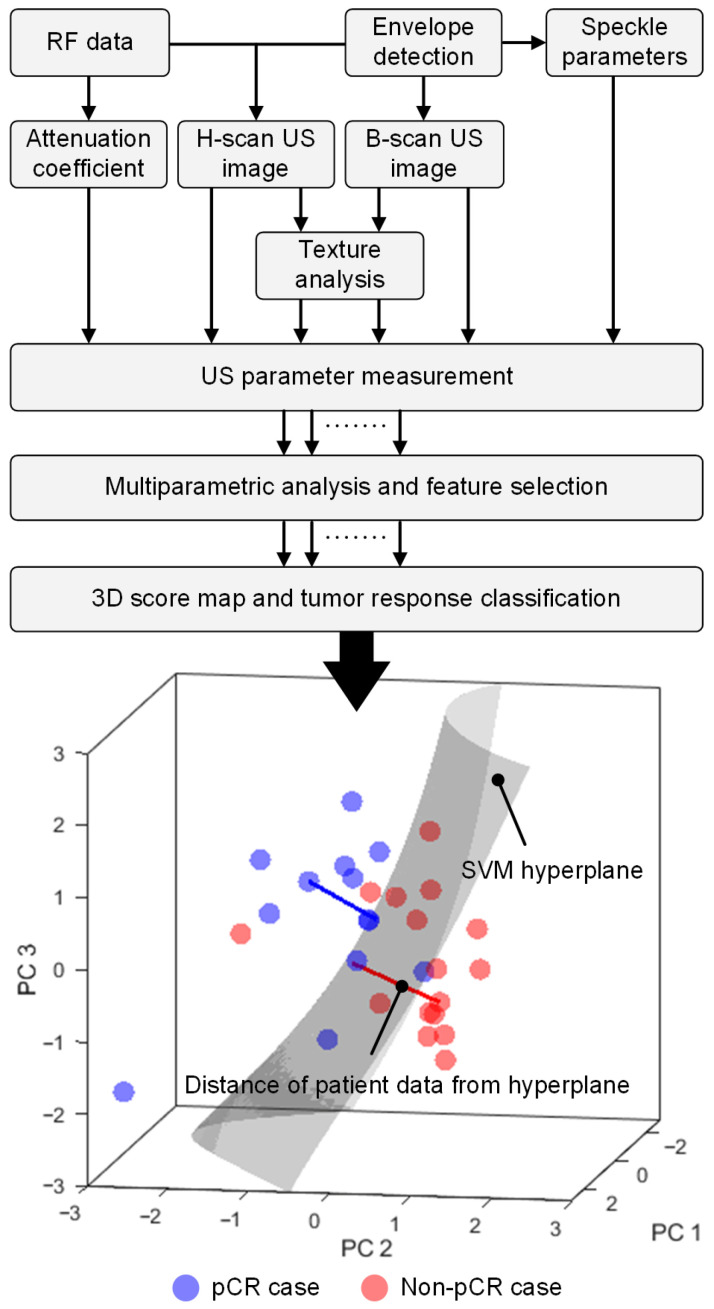

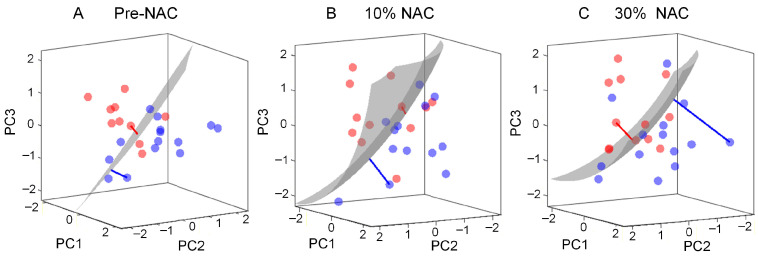

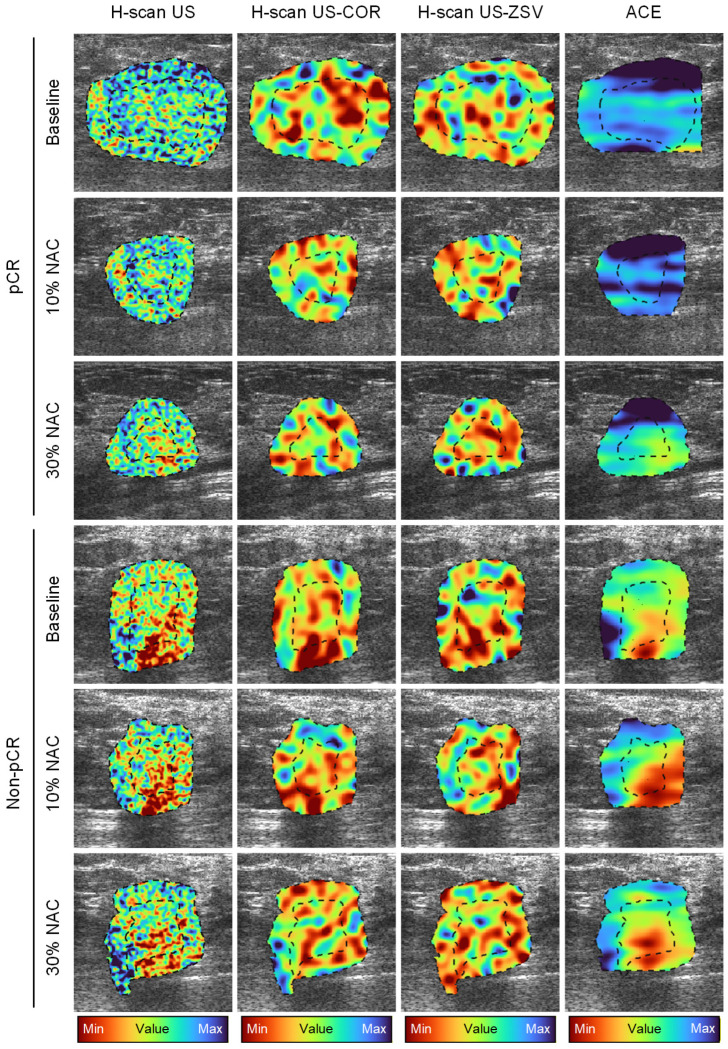

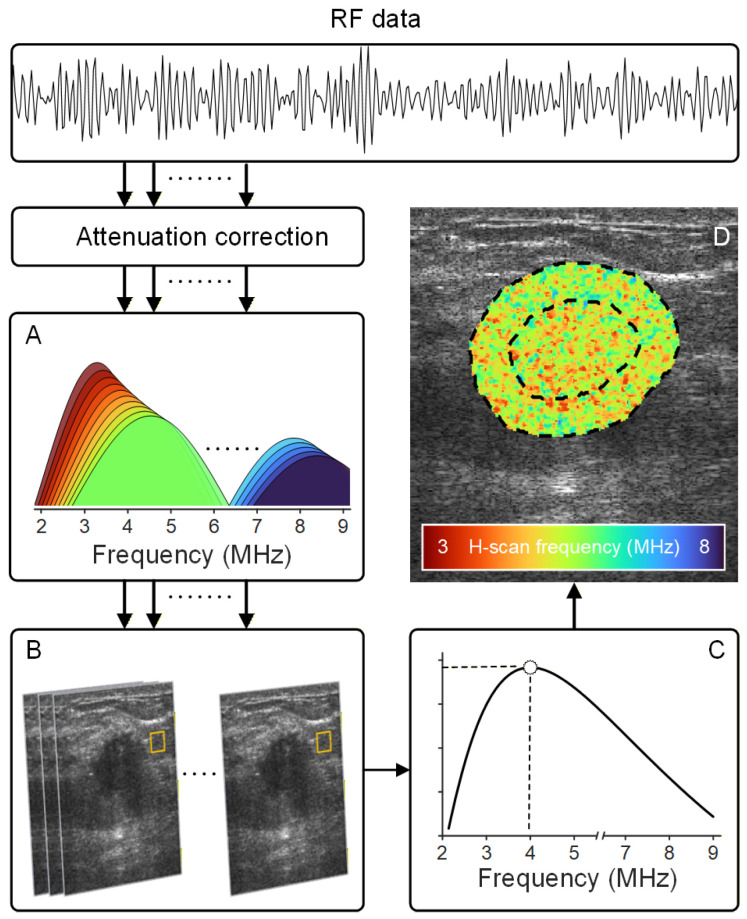

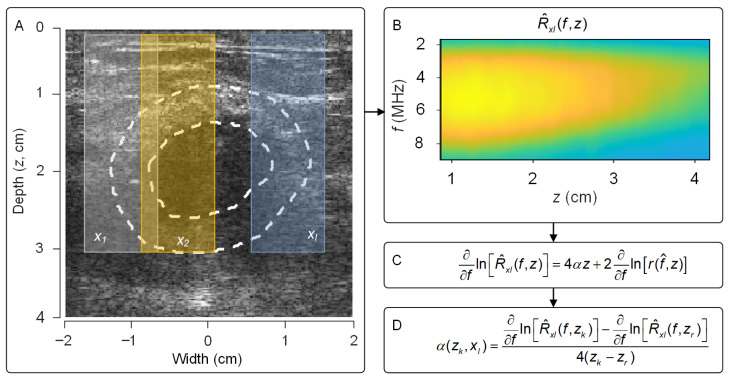

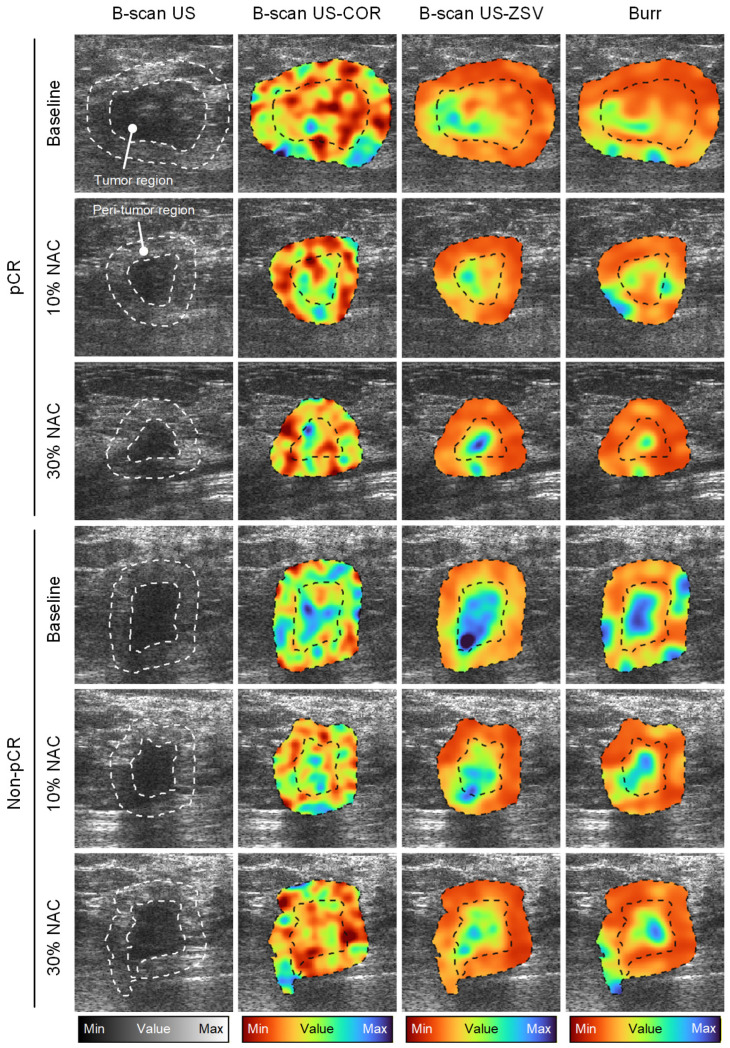

Objective: This prospective study investigated the use of H-scan ultrasound (US) imaging as a novel component of a multiparametric radiomic analysis framework for characterizing human breast cancer response to neoadjuvant chemotherapy (NAC) before and early after treatment initiation. Methods: Thirty breast cancer patients scheduled for NAC were scanned using a clinical US system (Logiq E9, GE HealthCare) equipped with a 9L-D linear array transducer. Radiofrequency (RF) data was obtained at baseline (pre-NAC) and after 10% and 30% of the complete dose of chemotherapy. The RF data was analyzed by a bank of 256 frequency-shifted bandpass filters to form H-scan US frequency images. Grayscale texture features were extracted from both B-scan and H-scan US images. In addition, US attenuation coefficient and speckle statistics based on the Nakagami and Burr distributions were estimated from the RF data. Data classification of tumor and peri-tumoral regions was performed using a novel three-dimensional (3D) score map based on support vector machine (SVM) modeling. Unlike conventional classifiers that report only a single prediction score, a 3D score map provides a visual representation of the classifier decision space, enabling interpretation of class separation and treatment-induced shifts in multiparametric US measurements. Results: The dataset was split into 10 disjoint partitions (90% training, 10% testing) to compute area under the receiver operating characteristic curve (AUC), sensitivity, specificity, and accuracy measures. Actual patient response to NAC was assessed at surgery and categorized as either pathologic complete response (pCR) or non-pCR. Multiparametric US and data classification results at pre-NAC found AUC values of 0.78 after using only tumor information (p < 0.01), which increased to 0.81 with inclusion of peri-tumoral information (p < 0.01). Significant differences in multiparametric US measures from both cancer response types was found after integration of patient data collected at 10% completion of the NAC regimen (i.e., first NAC cycle), yielding an improved AUC of 0.86 (p < 0.001). Conclusions: Multiparametric US imaging with radiomic features from both the tumor and peri-tumoral regions is a promising noninvasive approach for monitoring early breast cancer response to NAC.
