Synthesis and Characterization of a Marine Collagen–Chitosan/HA–SiO2-Based Bioink
Andrea Cazares-Tafoya, Marcos Valenzuela-Reyes, Solange Rivera-Manrique, Carlos Martínez-Pérez, Odin Ramírez-Fernández, Esmeralda Zuñiga-Aguilar
TL;DR
This paper describes the creation and testing of a new bioink using marine collagen, chitosan, and silica-doped hydroxyapatite for 3D bioprinting.
Contribution
The novel contribution is the development and characterization of a marine collagen–chitosan/HA–SiO2-based bioink suitable for extrusion-based bioprinting.
Findings

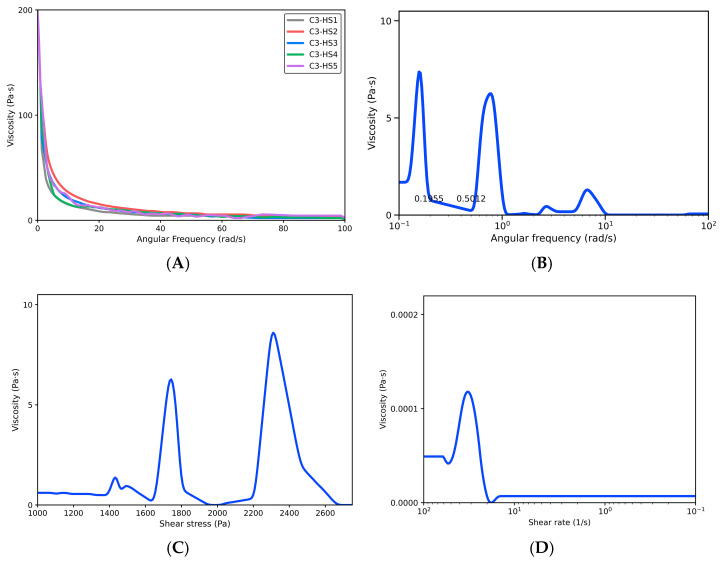

The bioink showed elastic dominance and shear-thinning behavior suitable for pneumatic extrusion.

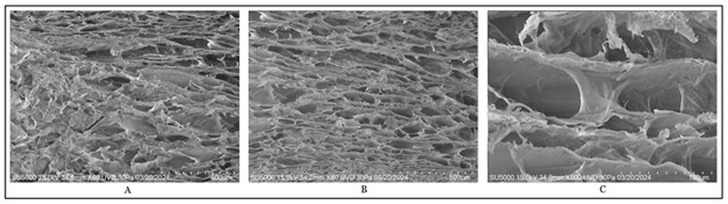

SEM analysis revealed an interconnected porous microstructure.

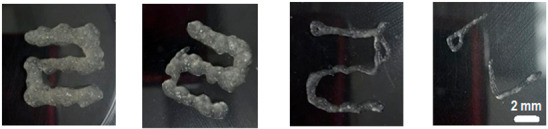

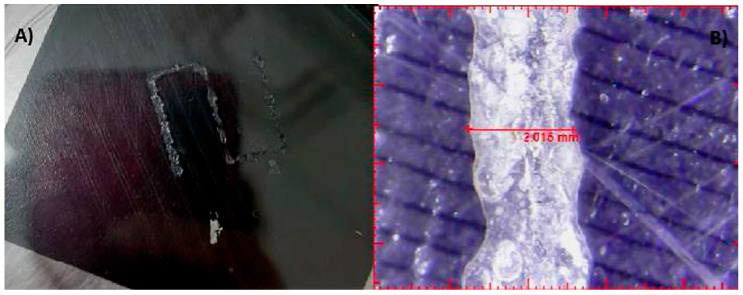

Filament continuity was limited, indicating preliminary printability and a narrow operating window.
Abstract

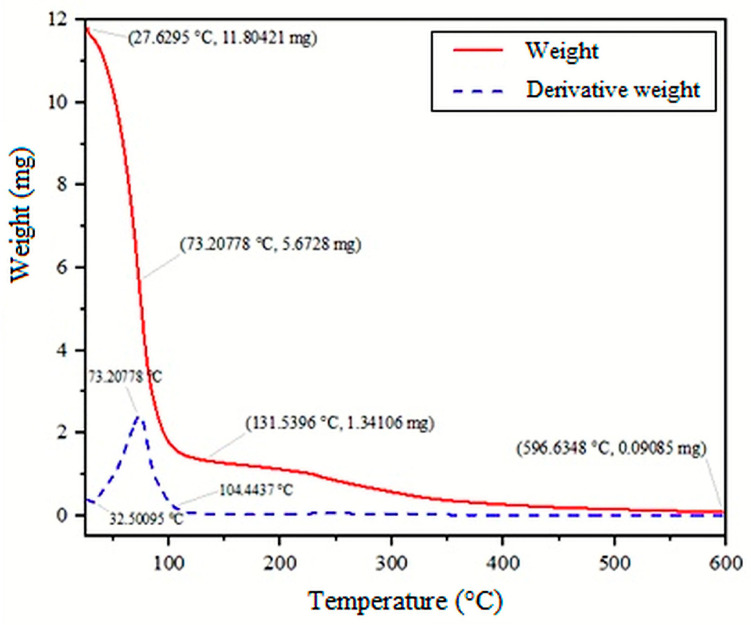

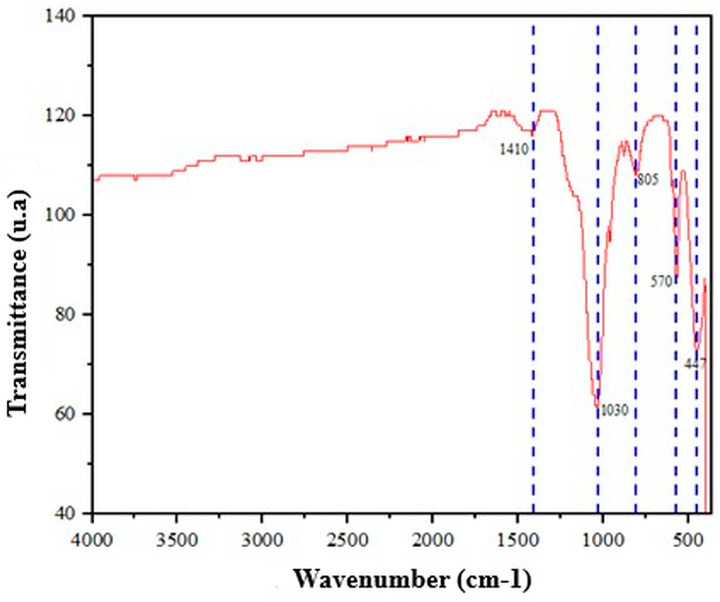

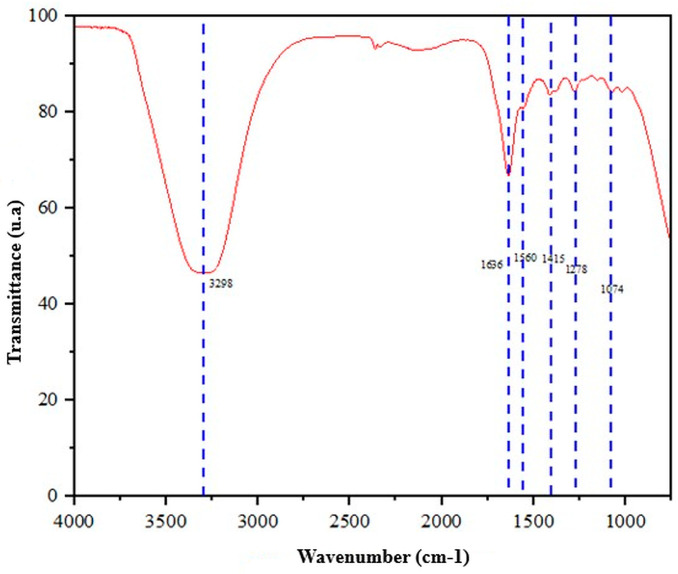

In this work, we report the synthesis and evaluation of a bioink based on marine collagen, chitosan, and silica-doped hydroxyapatite (HA–SiO2) for extrusion-based 3D bioprinting. FTIR spectroscopy confirmed amide (I–III) and phosphate/siloxane signals, TGA showed initial dehydration and degradation stages compatible with the process’s thermal handling, and SEM revealed an interconnected porous microstructure. Rheologically, the ink exhibited elastic dominance (G′ > G″) within the linear range and pseudoplastic, shear-thinning behavior—consistent with pneumatic extrusion. Process evaluation on a BIO X printer (14 G nozzle, low print speeds, moderate pressure, cartridge at 37 °C to 45 °C, and a cooled build platform) enabled deposition of strands with local shape retention. However, filament continuity was limited and line width varied, indicating only preliminary printability and a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

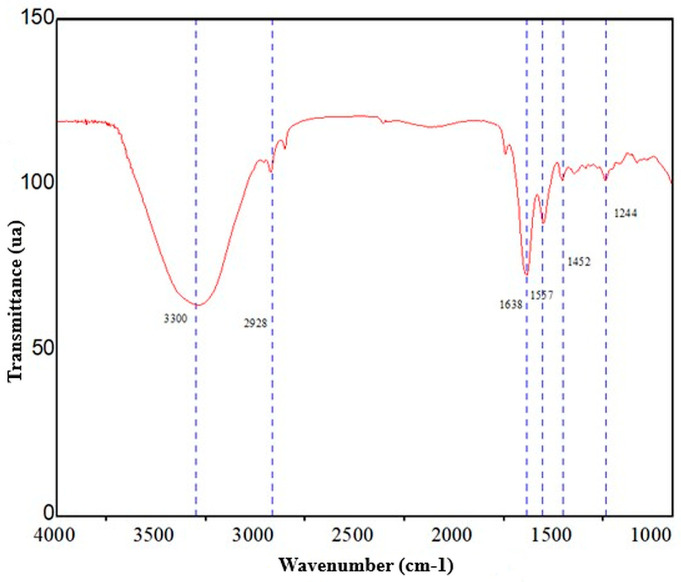

Figure 2
