Compact and low mutual coupling 4 × 4 wideband MIMO antenna design for 5G millimeter-wave applications
Mohamed Edries, Hesham A. Mohamed, Dalia N. Elsheakh, Sherif Hekal
TL;DR
This paper introduces a compact, low-coupling MIMO antenna design for 5G millimeter-wave communication systems.
Contribution
The novel contribution is a 4 × 4 MIMO antenna system with reduced mutual coupling and high performance in the 24–32 GHz range.
Findings
The antenna achieves an 8 GHz impedance bandwidth with peak gain of 6 dBi at 27.5 GHz.
Mutual coupling levels reach −25 dB and −20 dB at 25 GHz and 29 GHz, respectively.

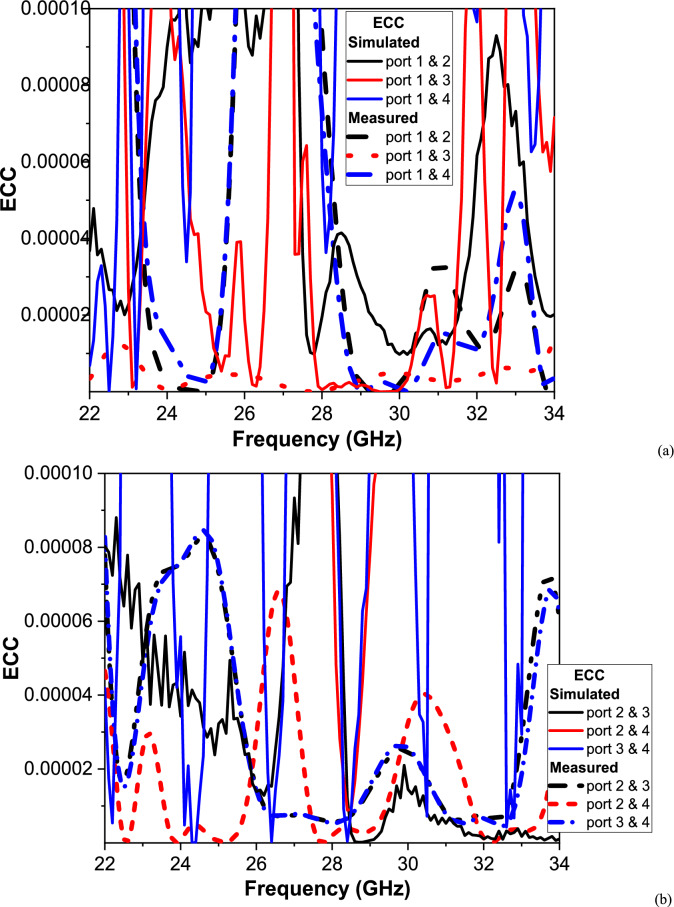

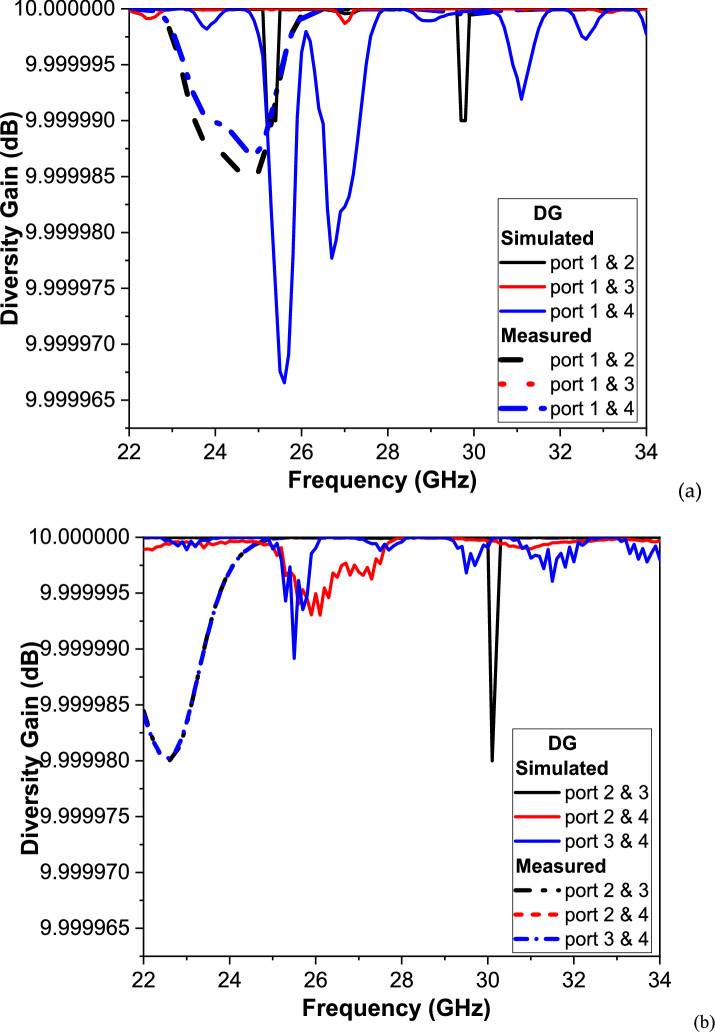

The design shows ECC < 0.001 and DG ~ 10 dB across the operational band.
Abstract

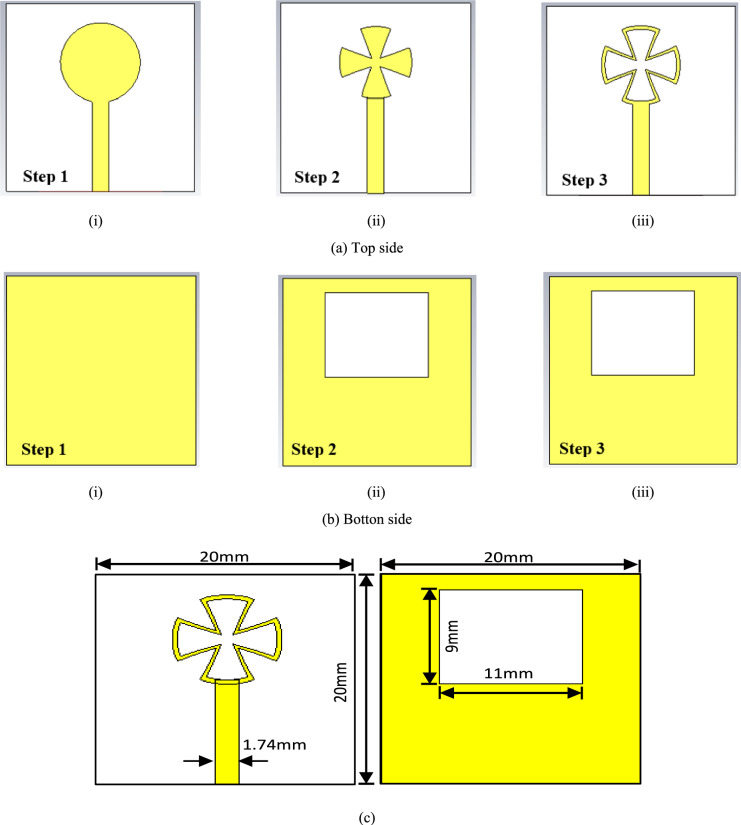

This paper presents a wideband 4 × 4 Multiple-Input-Multiple-Output (MIMO) antenna system operating within the 5G millimeter-wave (mmWave) Frequency Range 2 (FR2). The design targets enhanced mobile broadband (eMBB) applications and features four orthogonally arranged Greek cross-shaped slot antenna (GCSA) elements fed by microstrip lines to effectively reduce mutual coupling and ensure high isolation. Circular edges on the radiating elements are introduced to enhance the impedance bandwidth, while a strategically placed quadrilateral slot in the ground plane optimizes the radiation characteristics. The antenna is fabricated on a Rogers RT/Duroid 4003C substrate (εr = 3.55, thickness = 0.8 mm), resulting in a compact 40 × 40 × 0.8 mm3 structure. The proposed MIMO system achieves a measured impedance bandwidth of approximately 8 GHz, spanning 24 to 32 GHz at |S11|≤ − 10 dB, with a peak…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17

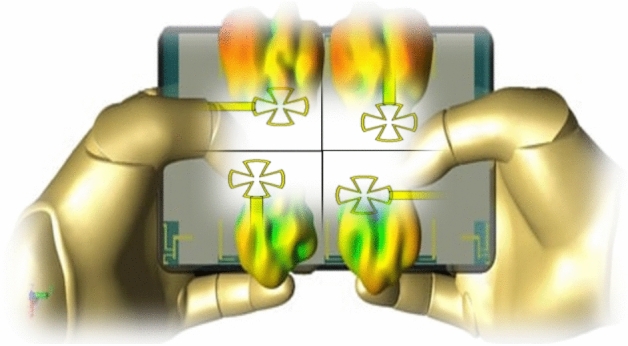

Figure 1

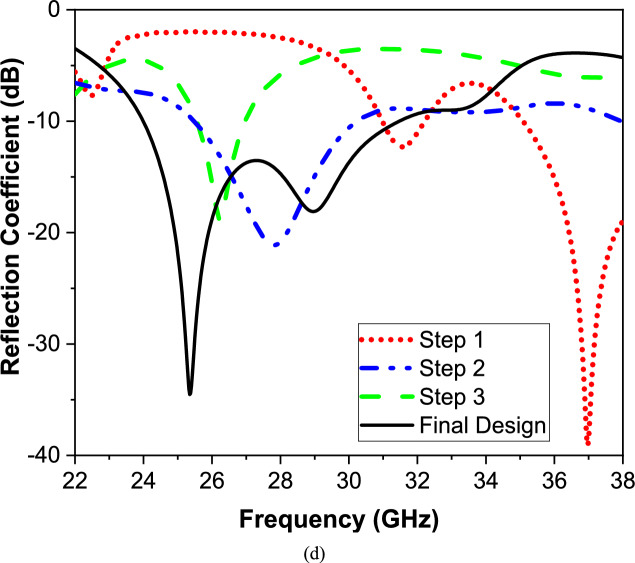

Figure 2
Figure 2
Figure 3
Figure 4
Figure 5

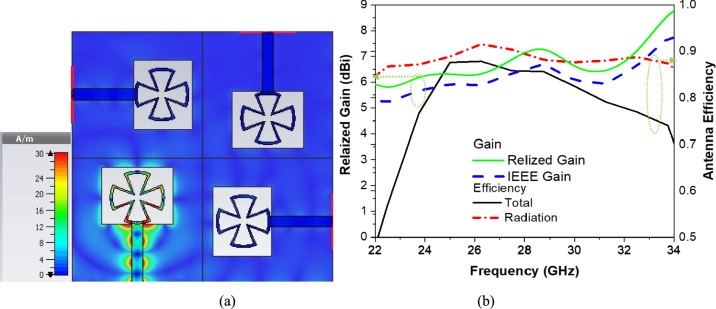

Figure 6
