Kinematic and aerodynamic modeling of flexible wings with wing root adjustment for flapping wing micro aerial vehicles
Ziming Liu, Xiaoya Zhang, Zihao Wang, Ruiqi Ye
TL;DR
This paper presents a new method for modeling and simulating flexible wings in insect-like flying robots to improve control and aerodynamic performance.
Contribution
A novel aerodynamic simulation method using multi-rigid-plane fitting for flexible wings with wing-root adjustment is proposed.
Findings
The kinematic model accurately predicts aerodynamic moment variations in flexible wings.
Multi-rigid-plane fitting improves aerodynamic simulation accuracy compared to single-plane methods.

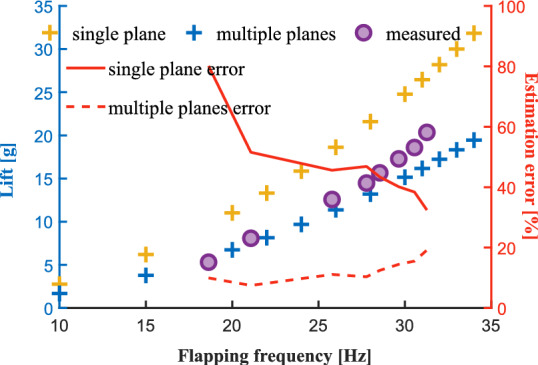

Lift estimation errors are within 20%, offering practical guidance for controller design.
Abstract
In the field of insect-like flapping-wing micro aerial vehicle (FWMAV) research, this study focuses on a specific type of FWMAV that is tailless and possesses hovering capabilities. The most common method for generating aerodynamic moment in these vehicles is wing-root adjustment. By varying the twist of the wing root, an uneven or asymmetric aerodynamic distribution is created, which generates control moments. This study develops a kinematic model of flexible wings based on wing-root adjustment for aerodynamic design of insect-like FWMAVs and proposes a new aerodynamic simulation method based on multi-rigid-plane fitting to validate the kinematic model. The complete modeling framework for insect-like FWMAVs is first established, which includes the drive system transmission model, the kinematic model of wing motion under wing-root adjustment, an aerodynamic model based on a quasi-steady…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10

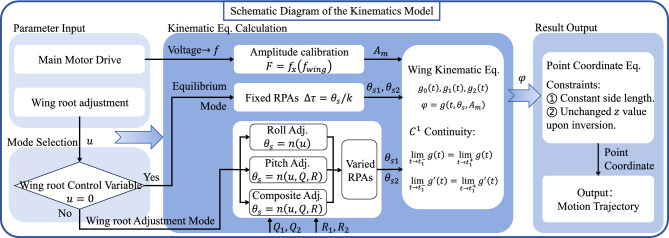

Figure 11

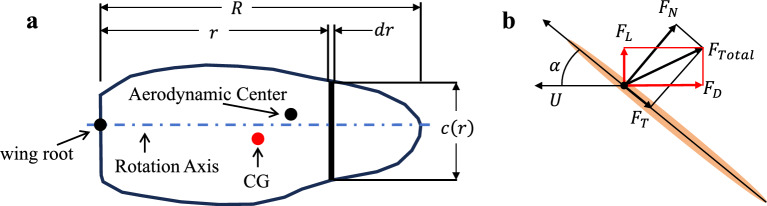

Figure 12

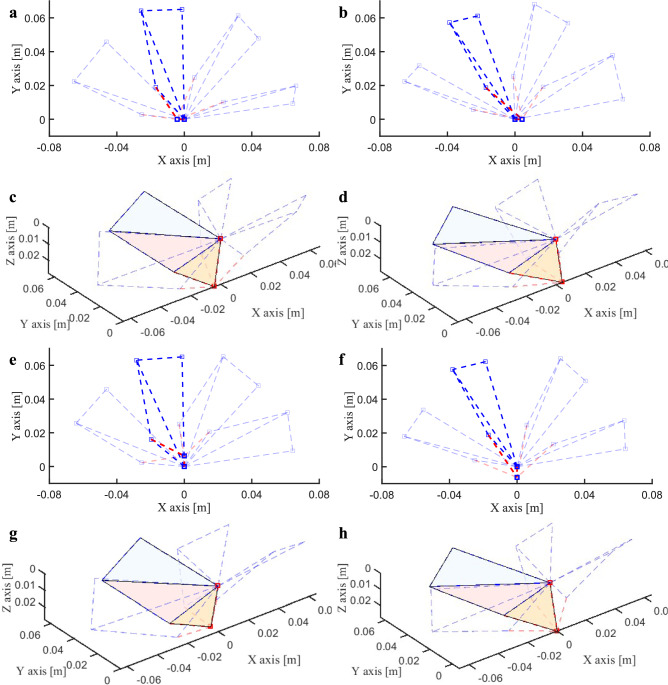

Figure 13

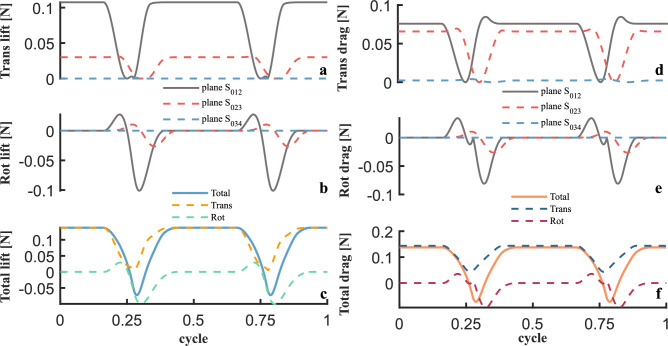

Figure 14
Figure 15
Figure 16
Figure 17

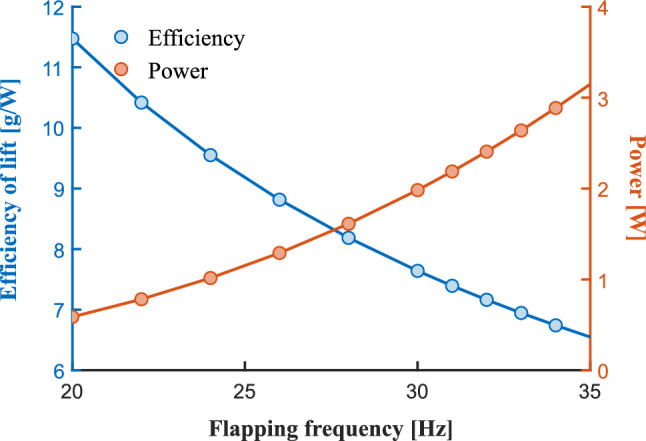

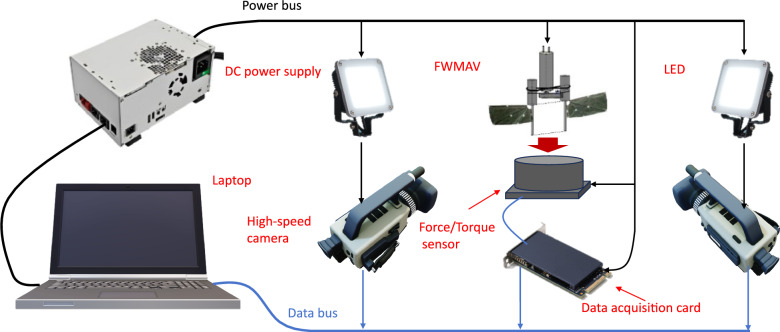

Figure 18
Figure 19

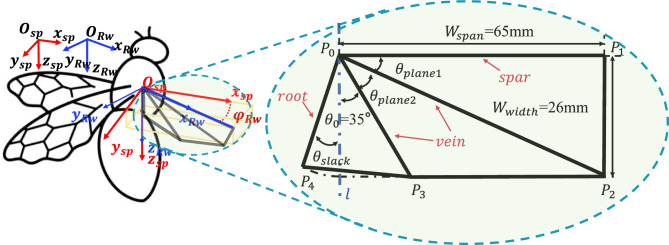

Figure 1

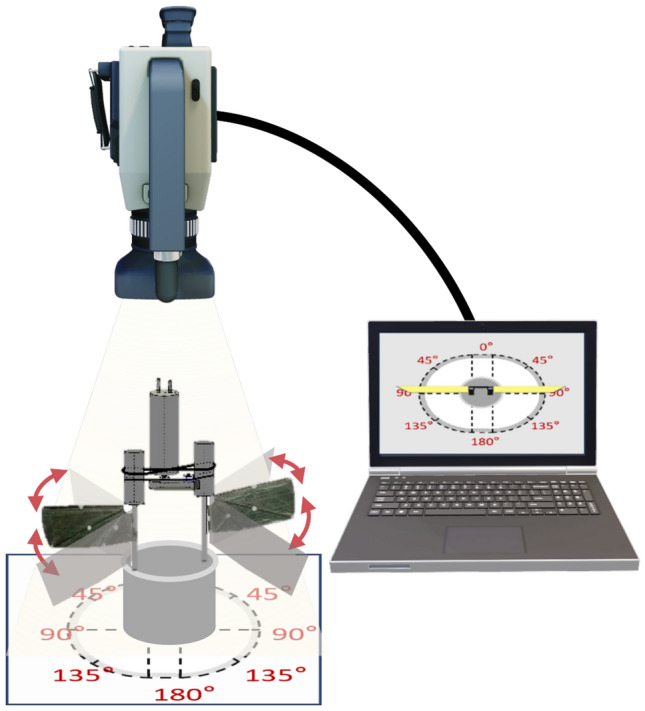

Figure 20

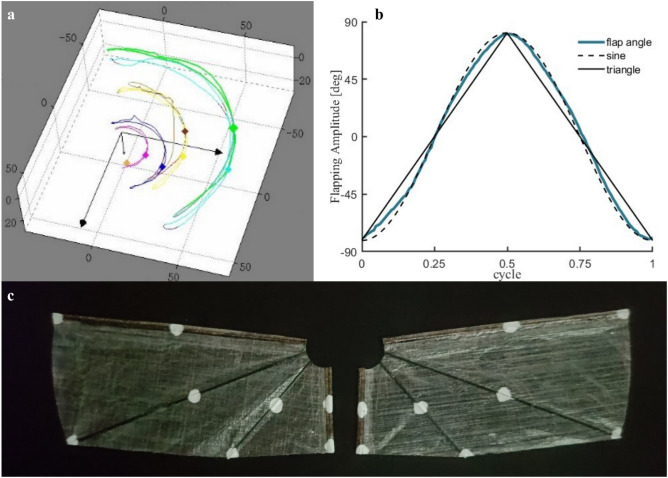

Figure 21

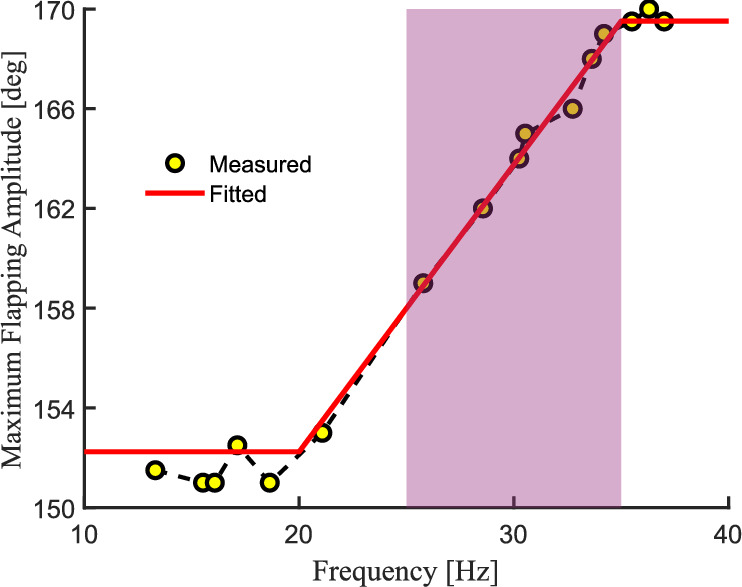

Figure 22

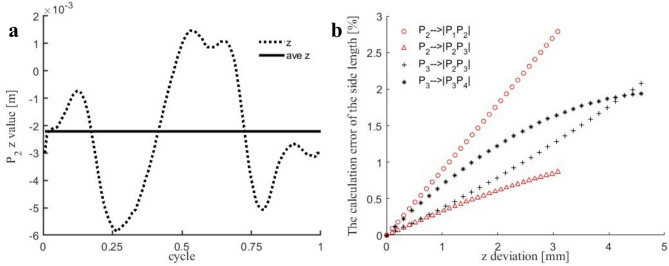

Figure 23

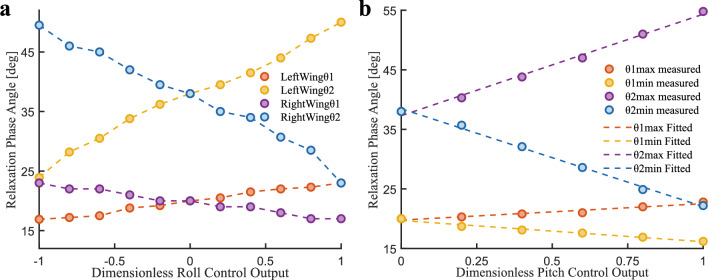

Figure 24
Figure 25

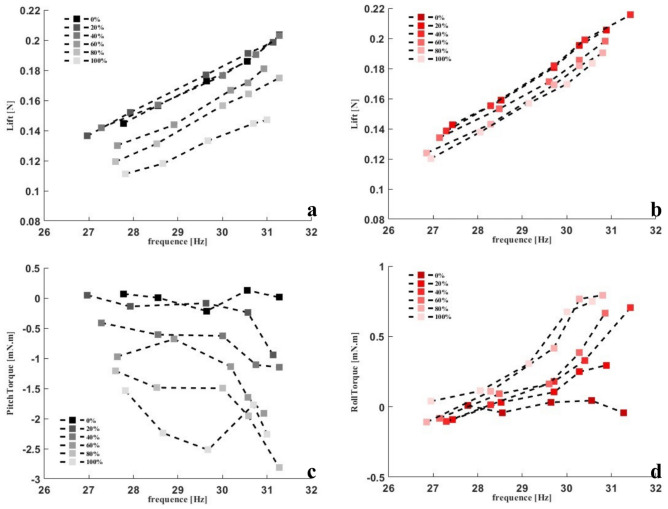

Figure 26
Figure 2
Figure 3
Figure 4

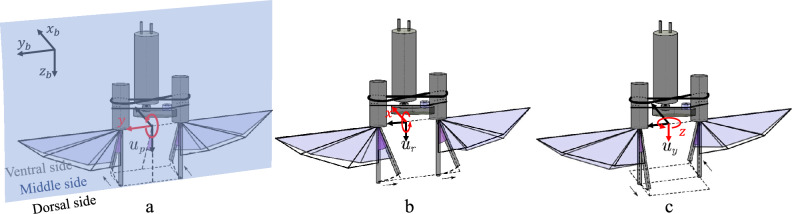

Figure 5

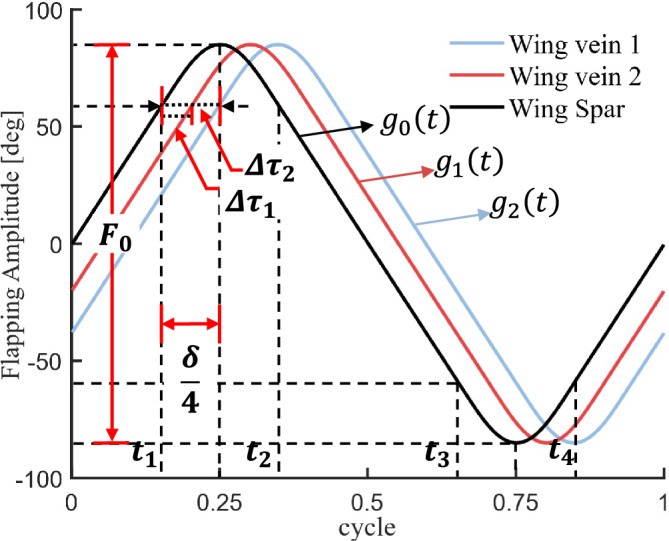

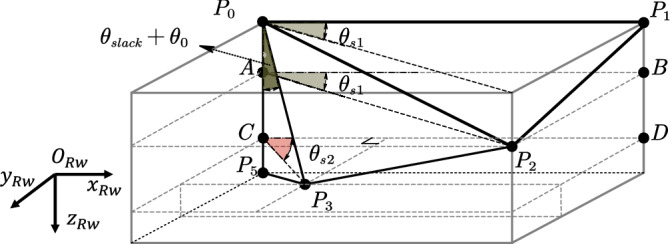

Figure 6
Figure 7

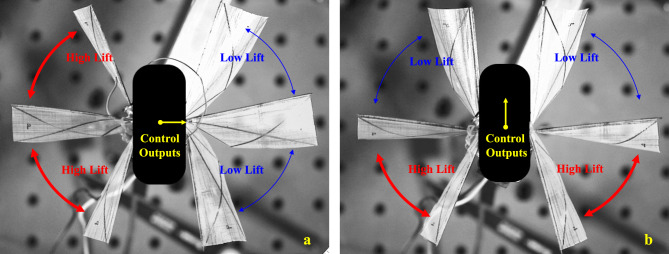

Figure 8

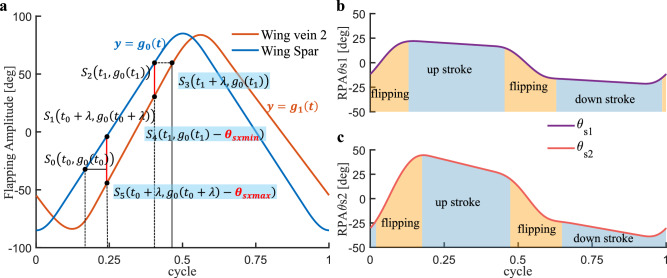

Figure 9Peer Reviews
