EduSCARA: An open source RRPR educational SCARA platform
Alex Clark, Uriel Martinez-Hernandez, Tareq Assaf
TL;DR
EduSCARA is an affordable, open-source SCARA robot platform designed for educational use, offering a hands-on way to learn industrial robotics at a low cost.
Contribution
The novelty lies in providing a low-cost, customizable SCARA robot with industrial-like features for educational purposes.
Findings
EduSCARA achieves ±3.5 mm repeatability at high speeds.

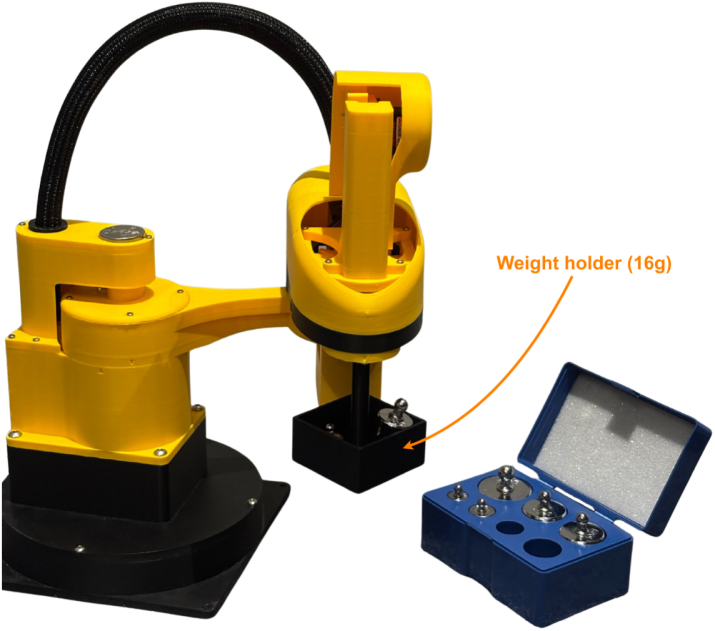

The platform supports a 100 g payload, suitable for small-scale educational tasks.

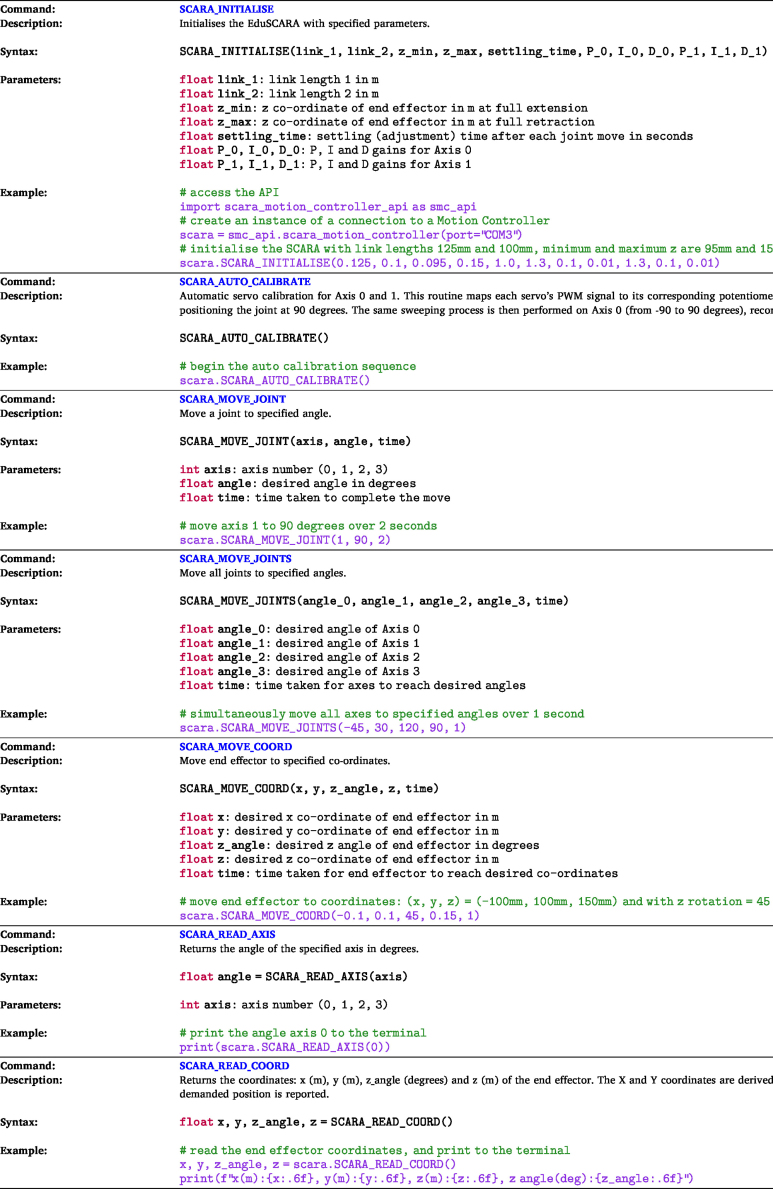

It offers a Python API for experimentation and customization.
Abstract

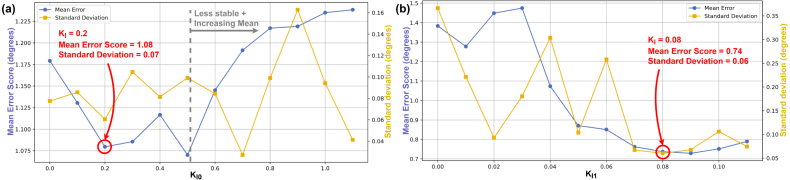

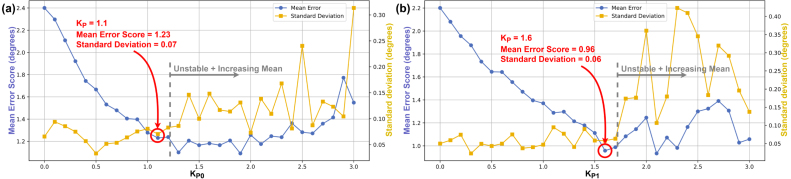

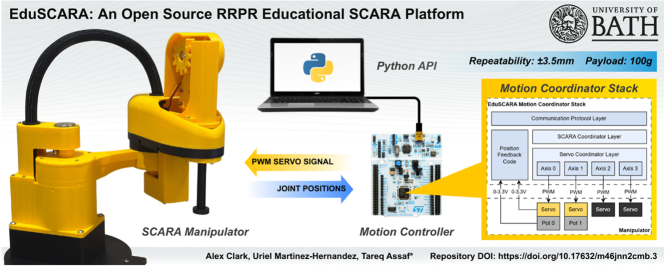

This paper presents EduSCARA, an affordable and industrially relevant Selective Compliance Assembly Robot Arm (SCARA) development platform. Designed to lower the barrier to industrial robotics, EduSCARA provides a complete, hands-on environment that closely replicates the architecture and challenges of professional systems without the prohibitive cost or complexity. The manipulator features a 3D-printed RRPR design actuated by hobby-grade servomotors, with PID-tunable closed-loop control on the planar axes. Its modular and transparent design supports both hardware and firmware customisation, while the Python API gives learners a versatile platform for experimentation. Validation of the system shows ± 3.5 mm repeatability at high speeds and a 100 g payload capacity, supporting small-scale educational and practical tasks. In contrast to traditional industrial robots, often costing tens of…
Click any figure to enlarge with its caption.
Figure 1

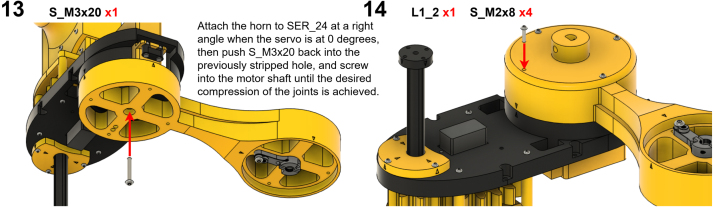

Figure 2
Figure 3

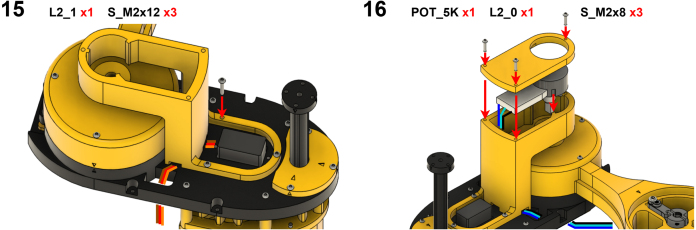

Figure 4

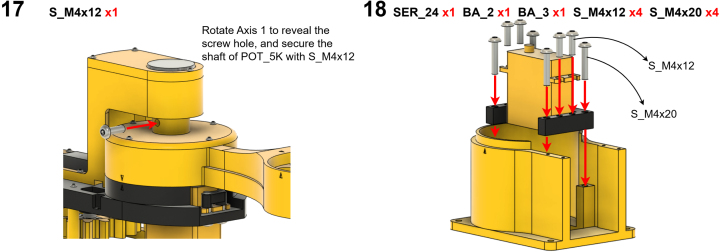

Figure 5
Figure 6

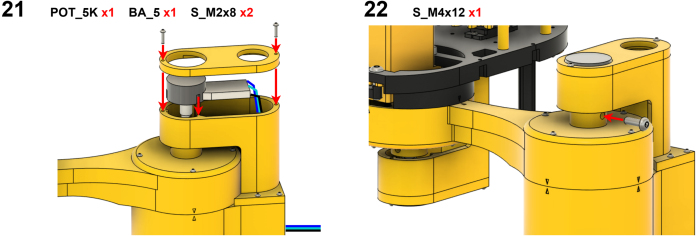

Figure 7
Figure 8

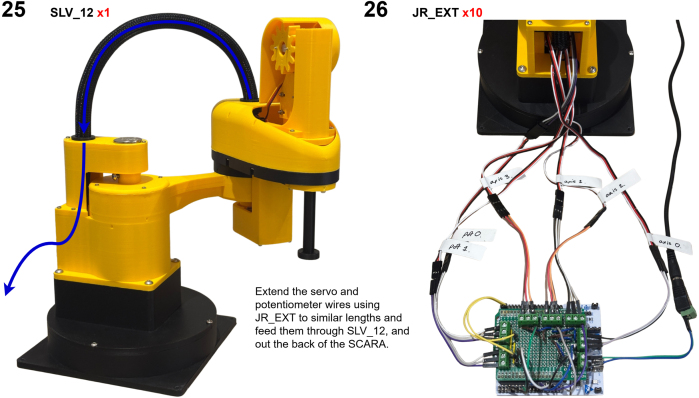

Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21

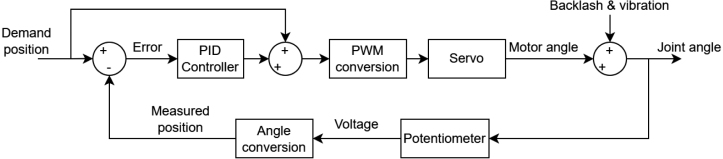

Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27

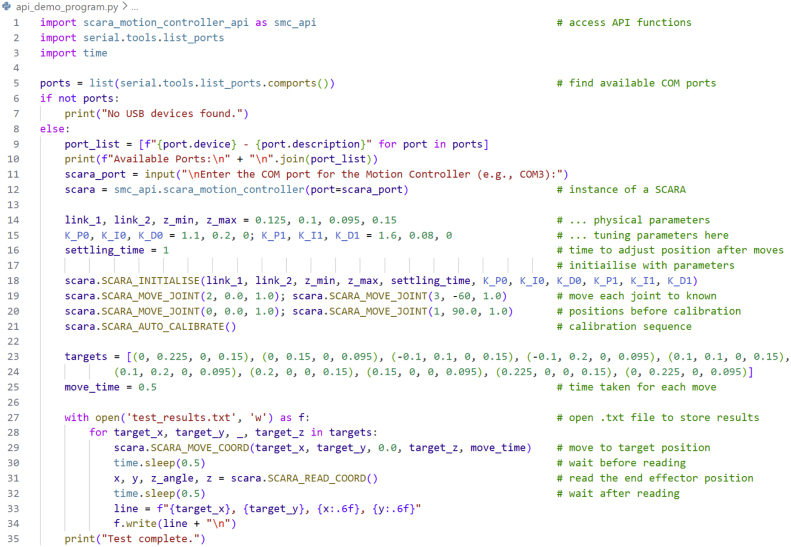

Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34

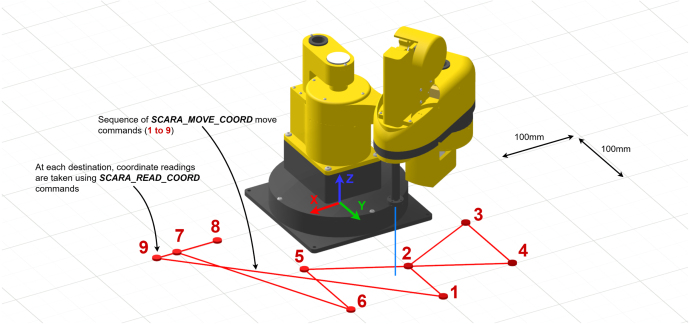

Figure 35
Figure 36
Figure 37
Figure 38
Figure 39
Figure 40
Figure 41
Figure 42

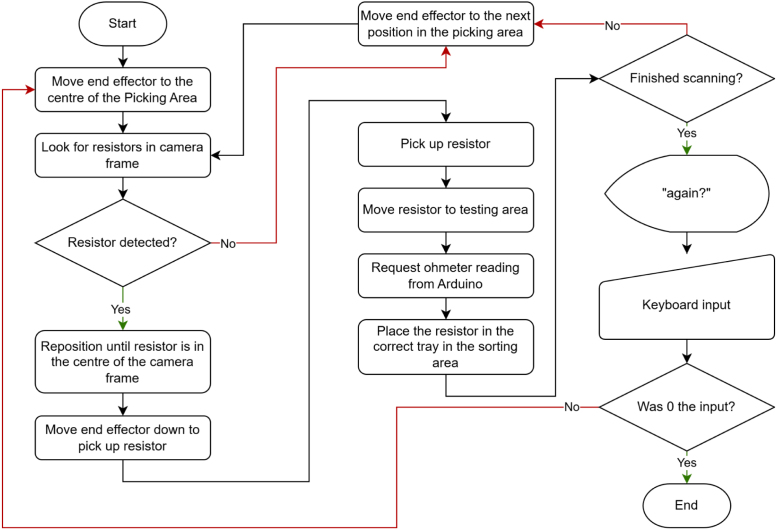

Figure 43
Figure 44
Figure 45
Figure 46
Figure 47
Figure 48
Figure 49Peer Reviews
