Structural Constraints Acting on the SARS-CoV-2 Spike Protein Reveal Limited Space for Viral Adaptation

TL;DR

This study shows that the SARS-CoV-2 spike protein has limited ability to adapt due to strict structural constraints, despite rapid mutations.

Contribution

The paper introduces a machine learning model combining structural and evolutionary constraints to assess substitution viability in SARS-CoV-2.

Findings

Structural constraints on the SARS-CoV-2 spike protein have changed little despite significant phenotypic evolution.

Signature mutations in variants of concern remain under constant structural constraints.

A machine learning model confirms that substitution viability is largely unaffected by variant structure differences.

Abstract

The SARS-CoV-2 pandemic resulted in an unprecedented scientific response. The scale of global genome sequencing, protein structural determination, and targeted studies of variant dynamics has resulted in a unique dataset, providing a valuable resource for studying viral evolutionary dynamics. Previous analysis of SARS-CoV-2 evolution has revealed apparently saltatory dynamics, with viral variants arising following evolutionary jumps without genetic intermediates represented in the sequence database. We utilize rich SARS-CoV-2 datasets to interrogate the role of protein structural constraint in SARS-CoV-2 evolution and whether saltatory dynamics result from the spike protein accessing previously nonviable sequence space. We apply multiple computational predictors of structural constraint across different structural backgrounds and assess how constraint has changed during SARS-CoV-2 variant evolution. These predictions are validated using substitution data from the SARS-CoV-2 global sequence database. We find that the structural constraint experienced by specific sites has undergone limited change, despite significant phenotypic evolution of the SARS-CoV-2 S protein. The structural constraints acting on signature mutations of variants of concern remain constant regardless of which viral variant structure is used to make predictions. We also develop a machine learning model to assess substitution viability, combining predictors of evolutionary constraint with information about local structural context. This confirms our conclusions, with model performance largely unaffected by the use of different viral variant structures. These results suggest that despite its rapid rate of mutation, the SARS-CoV-2 S protein is subject to strict structural constraints and exhibited limited genomic plasticity following zoonotic transmission into the human population.

Figures

Distribution of constraint predictor scores on the SARS-CoV-2 S protein. Distribution of scores are shown for PSSM log likelihoods (a), ESST probability (b), FoldX ΔΔG c) and Rosetta ΔR (d). Putatively functional substitutions observed in VOCs and their reversions are highlighted. Points are colored by their classification in observed SARS-CoV-2 sequences deposited in the 6-month period covering the emergence and initial predominance of each variant. Sequences used to validate WT predictions were drawn from the 6 months immediately preceding the emergence of the first VOCs. FoldX and Rosetta scores are normalized preserving rank order to ensure all scores are positive. FoldX and ESST scores are shown on a log scale for clarity.

a) Shows the confusion matrix for the validation set of substitutions from the WT dataset. A random forest model was trained on 60% of substitutions from this dataset and tested on the remaining 40%. b) Shows the ROC curves resulting from application of this model to the Alpha, Delta, and Omicron datasets. c) Shows performance of the model in the RBD region only when trained with data labels based on frequency in the GISAID database (solid lines) or data labels based on experimental deep scan data (dashed lines)..

a) Shows the outcomes of ML predictions of substitution class. Notably, the use of S protein variant structures resulted in almost no difference in model performance. b) Shows the proportion of substitutions with the same predicted classification between every time period studied, calculated using the WT structure..

a) Shows the local structure of C336 in the SARS-CoV-2 WT S protein (PDB: 6VXX). b) Shows the local structure of C336 in the SARS-CoV-2 Omicron S protein (PDB: 7WP9). Colors show oxygen (blue), nitrogen (red) and sulfur (yellow) atoms. The loss of the disulfide bond and changes to surface charge caused by the G339D substitution can be seen in the Omicron S protein structure. c) Shows the observed frequency of C336H and G339H/D in the sequence database. The points are colored to show the observed class of the substitution in each training dataset. The classification threshold is shown by a dashed line. Frequency of all other substitutions are shown by pale gray lines. Note that the experimental Omicron S protein structure used (PDB: 7WP9) does not feature the C336H substitution. Amino acid numbering in the Omicron structure has been harmonized to the WT numbering; C336 is amino acid 333 in the 7WP9 PDB file..

Tables

Table 1. Features used for random forest modeling

Feature	Description
WTAA	WT amino acid
Replacement AA	Replacement amino acid
Predictive methods
ESST_probability	ESST predicted probability
LogLikelihood	PSSM predicted log likelihood
total_score	Rosetta-predicted ΔR
pred_epitope_rank	T-cell epitope ranking determined by NetMHCpan 4.1 software
Local structural environment features
Ooi_number	Measure of protein packing density
FoldX energy terms
Backbone_Hbond	Contribution of backbone hydrogen bonds
Sidechain_Hbond	Contribution of sidechain−sidechain and sidechain−backbone hydrogen bonds
Van_der_Waals	Contribution of Van der Waals forces
Electrostatics	Contribution of electrostatic interactions
Solvation_Polar	Penalization for burying polar groups
Solvation_Hydrophobic	Contribution of hydrophobic groups
Van_der_Waals_clashes	Penalisation for Van der Waals' clashes
entropy_sidechain	Entropy cost for fixing the sidechain
entropy_mainchain	Entropy cost for fixing the mainchain
torsional_clash	Intraresidue Van der Waals' torsional clashes
backbone_clash	Penalization for backbone−backbone Van der Waals' clashes
electrostatic_kon	Electrostatic interactions between molecules in the precomplex
energy_Ionisation	Contribution of ionization energy
Rosetta energy terms
dslf_ss_dih	Dihedral score in current disulphide
fa_atr	Lennard-Jones attractive potential between atoms in different residues
fa_dun	Internal energy of sidechain rotamers
fa_pair	Statistics-based pairing term, favoring salt-bridges
fa_rep	Lennard-Jones repulsive potential between atoms in different residues
fa_sol	Lazaridis-Karplus solvation energy
hbond_bb_sc	Sidechain−backbone hydrogen bond energy
hbond_sc	Sidechain−sidechain hydrogen bond energy
p_aa_pp	Probability of amino acid at given ϕ/ψ angle
ref	Reference energy for each amino acid, used to balance internal energy of amino acid terms

Full text

Introduction

The SARS-CoV-2 pandemic was the worst pandemic of an infectious disease in recent decades, causing global mortality, economic damage, and social disruption. However, the response to the pandemic using contemporary technologies such as affordable mass sequencing has resulted in an unprecedented scientific dataset (Hill et al. 2023; Ladner and Sahl 2023). The quantity and temporal granularity of sequences available in SARS-CoV-2 global genome database, and the large number of viral protein structures solved from the earliest period of the pandemic (Arya et al. 2021) provides a unique opportunity to study viral evolutionary dynamics and any evolutionary constraints that may arise from protein structure.

SARS-CoV-2 has undergone several distinct phases of phenotypic evolution. An initial period of largely neutral diversification ended in late 2020 when multi-mutant variants began to arise (MacLean et al. 2020; Harvey et al. 2021; Martin et al. 2021). Those variants with suspected phenotypic characteristics, such as increased transmissibility or immune escape properties, were classified as variants of concern (VOCs) by the World Health Organization (WHO). The first VOCs were largely characterized by mutations in the SARS-CoV-2 spike (S) attachment glycoprotein associated with an increase in transmissibility (Campbell et al. 2021; Davies et al. 2021; Carabelli et al. 2023). In late 2021, a new VOC given the WHO designation Omicron arose, which was primarily characterized by greater antigenic distance from preceding variants and escape from natural- and vaccine-mediated immunity (Cao et al. 2022; Willett et al. 2022; Cao et al. 2023; Zhou et al. 2023).

SARS-CoV-2 VOCs with phenotypically distinct characteristics have arisen through apparently saltatory evolutionary dynamics, with novel variants rooted in ancestral sequences that are no longer predominant at the time of variant emergence and limited sequence coverage of intermediate genomes (Hill et al. 2022; Viana et al. 2022). All four major VOCs that emerged from late 2020 to early 2022 exhibit this property (Roemer et al. 2023). The current consensus suggests that this is likely to be due to intrahost viral evolution during chronic infections, in which relaxed selective environments and superinfections result in novel combinations of mutations, with phenotypic properties arising that could not readily arise during typical transmission (Kemp et al. 2021; Harari et al. 2022; Wilkinson et al. 2022). This raises the question of whether the acquisition of novel combinations of mutations distinctive of most VOCs to date occurs due to viral proteins accessing new areas of thermodynamically permitted sequence space, thereby permitting the acquisition of previously nonviable mutations with beneficial fitness effects.

Here, we assess the constraint experienced by the SARS-CoV-2 S protein in order to test whether the sequence space accessible to the S protein changed during variant evolution. Our analysis is enabled by the high sequence coverage and high-quality structures of viral variant S proteins. Many studies have characterized individual mutations (e.g. Jangra et al. 2021; Liu et al. 2022; Lubinski et al. 2022), particularly in the receptor binding domain (RBD) and experimental deep scans have been performed to assess mutation effect on viral binding and entry in the S protein RBD (Starr et al. 2022) and enzymatic activity in the main protease M^pro^ (Flynn et al. 2022). However, there has not been any systematic exploration of SARS-CoV-2 S protein structural constraints across different viral variants. We carried out this structural stability-focused analysis to assess the general importance of these constraints to SARS-CoV-2 evolutionary dynamics. We employ multiple computational predictors of constraint, conducting computational deep scans to assess the likely impact of every possible substitution across the SARS-CoV-2 S protein with each method. We also developed a supervised machine learning model using these predictors and additional features to explore whether combining different predictive methods improved predictions.

Despite the unprecedentedly rich and granular dataset, we find no evidence that structural constraints have changed substantially or played a role in the acquisition of mutations with confirmed phenotypic effects during SARS-CoV-2 S protein variant evolution. Our thorough investigation identified only a single substitution reaching notable frequency in the population which was plausibly enabled by changes to its structural viability relative to the Wuhan wildtype. We demonstrate that despite high mutation rates and strong selective pressure, the SARS-CoV-2 S protein was under strong structural constraints following spillover into human hosts and as a result was restricted to sampling from a limited set of substitutions.

Results

SARS-CoV-2 evolution is constrained by the necessity of maintaining thermodynamically stable and biologically functional proteins. To elucidate the importance of structural constraint to SARS-CoV-2 variant evolution, we used computational predictors of constraint to define an envelope of nonviable sequence space. We calculated several site-independent predictors of structural and functional constraint. Briefly, these predictors were:

Position-specific scoring matrices (PSSMs), providing a measure of phylogenetically derived constraint based on substitution patterns in related sequences, calculated using DELTA-BLAST (Boratyn et al. 2012).Environment-specific substitution tables (ESSTs), providing a measure of constraint based on the local structural environment (Overington et al. 1992).Empirical forcefield simulations with FoldX and Rosetta, providing estimates of the impact of substitutions on protein thermodynamic stability (Guerois et al. 2002; Alford et al. 2017).

These predictors were selected to capture constraints arising from the necessity of maintaining a stable, folded protein. In order to explore the spatial and temporal changes to this envelope of inaccessible sequence space, we examined predictions made by the constraint predictors across different periods of SARS-CoV-2 evolution. We validated predictions using binary classification of substitutions as either deleterious or non-deleterious. To classify substitutions, we leveraged the extremely large number of SARS-CoV-2 sequences available in the GISAID global database (Khare et al. 2021). For any given set of SARS-CoV-2 sequences deposited over a particular timeframe, consensus matrices were calculated for every amino acid position. The mean proportional frequency across all positions was then calculated and this mean frequency was used as a threshold to define amino acids as high or low frequency. By this approach, we aimed to distinguish deleterious substitutions, which would either not occur in the database or occur only at very low levels.

Assessing Structural Constraint Across Multiple Predictors

We made predictions using the four predictive methods described above for every possible substitution across four S protein structures. These were a wild type (WT) structure (PDB: 6VXX), and three VOC S protein structures (Alpha, PDB: 7LWS; Delta, PDB: 7V7N; Omicron, PDB: 7WP9), allowing us to identify differences in the structural permissibility of mutations on different epistatic backgrounds. To ensure the sequence data used to validate predictions was appropriate to these epistatic backgrounds, we used sequence data from four distinct periods for each variant structure, broadly aligned with the period of initial emergence and regional or global predominance for each variant. Results of the computational deep scan are shown in Fig. 1, with points showing the predicted constraint for every possible substitution and colors showing the substitution classification as low or high frequency according to observed sequence data. VOC substitutions are highlighted. Note that for FoldX ΔΔG positive scores imply a substitution is more destabilizing, while all other scores are positive correlated, with negative scores implying greater destabilization.

Distribution of constraint predictor scores on the SARS-CoV-2 S protein. Distribution of scores are shown for PSSM log likelihoods (a), ESST probability (b), FoldX ΔΔG c) and Rosetta ΔR (d). Putatively functional substitutions observed in VOCs and their reversions are highlighted. Points are colored by their classification in observed SARS-CoV-2 sequences deposited in the 6-month period covering the emergence and initial predominance of each variant. Sequences used to validate WT predictions were drawn from the 6 months immediately preceding the emergence of the first VOCs. FoldX and Rosetta scores are normalized preserving rank order to ensure all scores are positive. FoldX and ESST scores are shown on a log scale for clarity.

Both ESST and PSSM predictions (Fig. 1a and b) show a clear correlation between predictor score and observed substitution class, with the great majority of substitutions that are predicted as highly probable by these methods classified as high frequency based on the sequence data. Predictors based on empirical force fields did not show a similar clear correlation between predicted scores and representation in the sequence database. Plotted VOC substitutions generally have moderate predicted constraint scores by all methods across all epistatic backgrounds, with no VOC substitutions predicted as being under strong structural constraint even in the context of the WT structure, suggesting these substitutions were structurally viable immediately following SARS-CoV-2's jump into the human population. To quantify whether the constraint acting on VOC substitutions was unusual, we performed Mann−Whitney U test comparing the means of each predictor for VOC substitutions against either all substitutions or only those substitutions classified as high frequency. VOC substitutions were found to be under significantly different constraint than the mean value across the entire deep scan, as predicted by FoldX, PSSM, ESST, and Rosetta (P = 0.000031, 0.0011, 0.000036, 0.00014, respectively). However, these significant differences between VOC and non-VOC constraint predictions may be reflective of comparing any set of substitutions known to occur in nature with the full deep scan containing every theoretically possible substitution, which will include highly deleterious nonviable mutations. In the comparison of VOC substitutions to substitutions classified as high frequency, VOC FoldX and Rosetta scores were significantly different (P = 0.00037, 0.00396, respectively), but VOC PSSM and ESST scores were not (P = 0.108, 0.0573 respectively). Differences may also be due to the specific physicochemical environments of the primarily solvent exposed VOC substitutions sites, which would be expected to be under different structural constraint relative to e.g. highly conserved hydrophobic sites in the protein core. Overall, it is not clear that VOC substitutions are under measurably different structural constraint to the average viable substitution in a similar physicochemical environment.

All but two VOC substitutions are also classified as high frequency (blue points) according to the thresholding of the sequencing data. This is the case even during the earliest time period sampled (Fig. 1a); that is, functional substitutions associated with VOCs were occurring at moderate background levels prior to the emergence of any VOC. Additionally, VOC substitutions associated with the Alpha variant continue to be classified as high frequency and computational predictors do not assess them as destabilizing against the background of Omicron variant (Fig. 1d) and reversions of VOC-associated substitutions likewise remain structurally viable in the context of the VOC S protein structures. The only exceptions were K444T, which occurred below the classification threshold in both the WT and Alpha dataset, and G339H, which occurred below the classification threshold in the Delta dataset. The former is a key neutralizing antibody escape mutation present in many Omicron lineages while the latter is also a putative escape mutation which also enhances viral infectivity known from some Omicron lineages. However, while they occurred below the classification threshold in the sequence database during some periods, these substitutions were not assessed as destabilizing by any computational predictor. Their classification as low frequency may therefore reflect the limits of our data labeling strategy rather than be a true identification of these substitutions as deleterious in these specific evolutionary periods.

To ensure we were not underestimating the structural constraint experienced by the S protein due to its ability to undergo conformational change, we carried out an additional computational deep scan using FoldX and ESST predictions on open and closed conformation S protein structure. Fig. S1 shows that both methods predict the open conformation structure to be subject to reduced constraint on average, with particularly large differences in the S1 subunit. This suggests that the comparison between viral variant closed conformation structures shown in Fig. 1 will capture the majority of structural constraint, despite not assessing the constraint experienced by the S protein in the alternative conformation.

These results suggest that fixation of putatively functional VOC substitutions has not been driven by changes to their structural viability, as almost all of these substitutions are predicted to be structurally viable at the beginning of the pandemic and have remained so across different viral variants, and with few exceptions have also occurred above the mean classification threshold.

However, the limited time periods selected to investigate structural constraint may elide important changes in structural viability over the course of SARS-CoV-2 evolution. In order to investigate the consistency of these results over time, we trained a supervised machine learning (ML) model to identify low frequency substitutions. Machine learning should maximize the informativeness of our predictors and allow for detection of context-specific or nonlinear relationships between predictors.

Validating a Machine Learning Model of Structural Constraint

We next developed a ML model to enable detection of higher-order structural constraints that are not fully described by any individual method but emerge through interactions of multiple predictive features. To exploit the potential of a ML approach we expanded the feature set, with the full set of predictors used to inform the final ensemble random forest model comprising local structural contextual information, raw energy terms from FoldX and Rosetta, and predicted T cell epitopes in addition to the predictors already assessed in Fig. 1. Labels for supervised learning training data were established through the observed proportional frequency of substitutions at every locus in the GISAID sequence database as described above.

We initially trained a model using the wildtype structure and data labels established for the earliest time period used in Fig. 1a, prior to the emergence of any variants of concern. Random forest was selected as the optimal algorithm, outperforming generalized linear model-based approaches. Training on 60% of randomly sampled substitutions from the WT protein structure and testing on the remaining 40% showed the model had excellent discriminatory power for substitutions occurring in the same structural and temporal context (Fig. 2a). We then re-trained the model on the wildtype structure using all substitutions and tested its performance on the three variant structures using the same data labels as applied in Fig. 1. We found that the model was able to correctly assign the substitution viability for the majority of possible substitutions with areas under the receiver operating characteristic (ROC) curve (ROC AUC) of 0.81, 0.8, and 0.78 on the Alpha, Delta, and Omicron S proteins, respectively (Fig. 2b). In order to gauge the success of our data labeling strategy, we also trained the model using experimental deep scan data on the SARS-CoV-2 WT RBD as data labels (Starr et al. 2022). Deep scan protein expression data was used to generate binary classes in the same manner as substitution frequencies. Models trained to predict these data labels achieved superior performance to those using substitution frequency data labels, with ROC AUC values of 0.93, 0.92, 0.83 for Alpha, Delta, and Omicron S protein, respectively, compared to values of 0.86, 0.84, and 0.79 using substitution frequency data labels (Fig. 2c). While the superior performance indicates there is a stronger relationship between computational predictors and the experimentally derived labels, the limitation of deep scan data to the RBD and WT structure limits their value in training models applicable to the entire S protein.

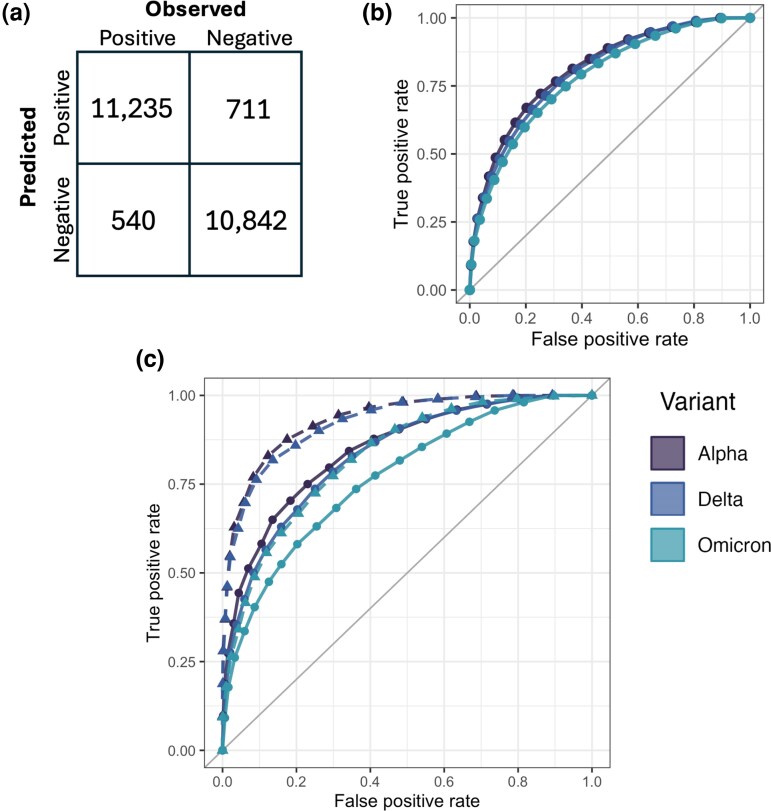

a) Shows the confusion matrix for the validation set of substitutions from the WT dataset. A random forest model was trained on 60% of substitutions from this dataset and tested on the remaining 40%. b) Shows the ROC curves resulting from application of this model to the Alpha, Delta, and Omicron datasets. c) Shows performance of the model in the RBD region only when trained with data labels based on frequency in the GISAID database (solid lines) or data labels based on experimental deep scan data (dashed lines)..

Overall, the model performed well and was able to correctly predict the frequency of substitutions in most cases. Performance of model predictions did decline slightly over evolutionary time, with predictions made on the Omicron structure and data labels showing somewhat weaker performance, although performance between variants was very similar across the whole S protein (Fig. 2b). We, therefore, aimed to conduct a more thorough and granular analysis to identify whether this reflects a change in structural constraints over S protein evolution. By training models on all variant structures and using data labels calculated from across the entire initial period of SARS-CoV-2 variant diversification, we aim to explore to what degree structural constraints changed during this period and how they may have influenced variant evolution.

Predicting Structural Constraint Across SARS-CoV-2 Variant Evolution

To ensure the substitution viability labels reflected more granular changes during variant evolution, cutoff dates were set at the 1st of every calendar month from December 2020 to December 2022 and models were retrained at every cutoff date. Training sets were sampled from all sequences deposited in the 3-month period prior to each cutoff date and test sets used all sequences deposited in the 3-month period subsequent to each cutoff date. Although no sequences appear in both training and test datasets, the majority of substitutions do not change class between the training and test periods, resulting in many identical feature/outcome pairs. To alleviate over-fitting to this majority case, we applied an ensemble model, sampling the training data to generate 10 subsamples, training models on each subsample and then establishing a final prediction based on majority vote of the individual models.

Aggregate performance of models trained using predictions calculated with WT and variant structures is shown in Fig. 3a. The area under the ROC curve is shown for models trained at every cutoff date using each of the four protein structures. The ML model correctly predicted substitutions that maintained their class between train and test sets in all cases, resulting in the strong aggregate model performance shown in Fig. 3a. However, the minority case of substitutions which change class between consecutive training and test sets, hereafter referred to as “class-switching substitutions’, were mostly incorrectly classified by our structural constraint-based model (Fig. S2). To identify whether this was due to these sites being under selection or undergoing changes to their thermodynamic viability between training and test sets we assessed the relative change in frequency for these class-switching substitutions between every consecutive training set. We found no statistically significant difference between the mean or median change in substitution frequency for these positions (paired t test, median P = 0.22, mean P = 0.44). These substitutions are not changing frequency at a greater rate than the general population and are therefore likely caused by stochastic movement around the classification threshold rather than genuine changes in their thermodynamic viability.

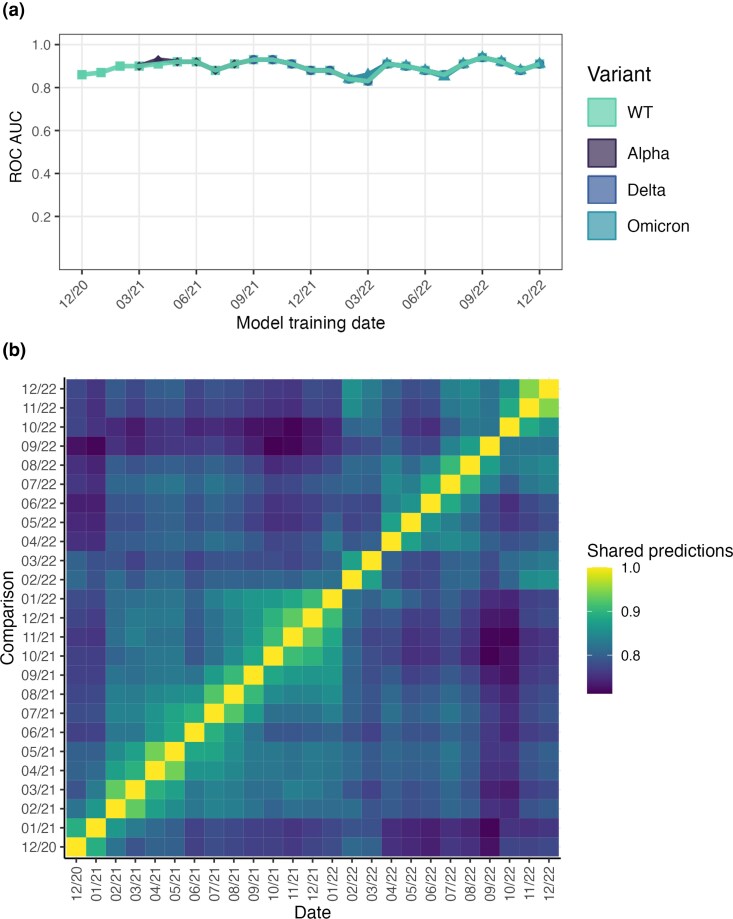

a) Shows the outcomes of ML predictions of substitution class. Notably, the use of S protein variant structures resulted in almost no difference in model performance. b) Shows the proportion of substitutions with the same predicted classification between every time period studied, calculated using the WT structure..

Both aggregate performance and performance on class-switching substitutions was nearly identical regardless of the S protein structure used, suggesting that structural constraint did not substantially change between different S protein VOCs. However, similar performance does not necessarily imply that the specific set of viable substitutions remained identical over time. We, therefore, assessed the proportion of substitutions that share the same model classification between every studied time-point. Results of this analysis are shown in Fig. 3b and reveal a temporally local increase in the proportion of substitutions with shared classifications, but no long-term directional change. This pattern was maintained regardless of the variant input structure used to calculate constraint predictors.

Finally, to identify effects of the length of the sampling period, we repeated modeling using test sets derived from 1-, 6- and 12-months of sequence data subsequent to the cutoff date. Performance over time was relatively consistent (see Fig. S3). Shorter test periods, which contain sequences with a lower average evolutionary distance from the training set, resulted in slightly superior but more erratic performance. This is reflected in the classification of VOC substitutions, with sampling of sequences from shorter time periods resulting in greater stochasticity, as shown in Fig. S4. Longer sampling periods result in almost all VOC substitutions being classified as high frequency, as shown in Fig. 1, but 1- and 3-month test samples resulted in numerous VOC substitutions being classified as low frequency for short periods. This short-term stochasticity in substitution frequency increases confidence that variability in our model predictions is reflective of variability in the data labels due to the mixed, complex fitness effects of many substitutions or phylogenetic factors rather than any genuine change to structural viability.

Identifying Sites With Shifting Constraints

We have established that the majority of positions have maintained similar degrees of structural constraint over the course of SARS-CoV-2 variant evolution, including positions implicated in phenotypic changes in S protein immunogenicity and antigenicity. We now aimed to identify any outlying sites at which structural constraints had changed by inspecting those substitutions for which model predictions changed over the period of variant evolution. Conducting a manual assessment of all of these substitutions is not feasible; we therefore conducted further filtering to identify any of these substitutions which underwent particularly large or consistent changes in frequency, which may indicate changes to their thermodynamic viability following the rapid expansion of a new viral lineage. We filtered identified substitutions with three criteria: those that had undergone consistent changes in frequency over several consecutive months, those which underwent particularly large changes between any two consecutive training periods, and those which reached a high frequency in the overall population of sequenced virus at any time during the studied period. We tuned these criteria to select arbitrary thresholds with the aim of manually assessing ∼100 sites, which was considered practicable, selecting final thresholds of 6 months consecutive change, magnitude of change in frequency between training sets in the 97.5th percentile and 0.8% total frequency in the database. We identified 118 substitutions at 103 unique sites with these criteria to analyze in more depth. We assessed the identified substitutions by inspecting the outputs of individual constraint predictors, their observed frequency over time in the sequence database and the local environment of the substitution in WT and variant protein structures. Through this process we identified only a single amino acid substitution, C336H, for which all assessed data suggested it may have been enabled by changes to local structural constraints during SARS-CoV-2 variant evolution. C336 forms a disulfide bond with the cysteine at position 361 (Fig. 4a) and replacement of C336 by histidine is predicted as highly thermodynamically unfavorable by both Rosetta and FoldX simulations in the WT structure.

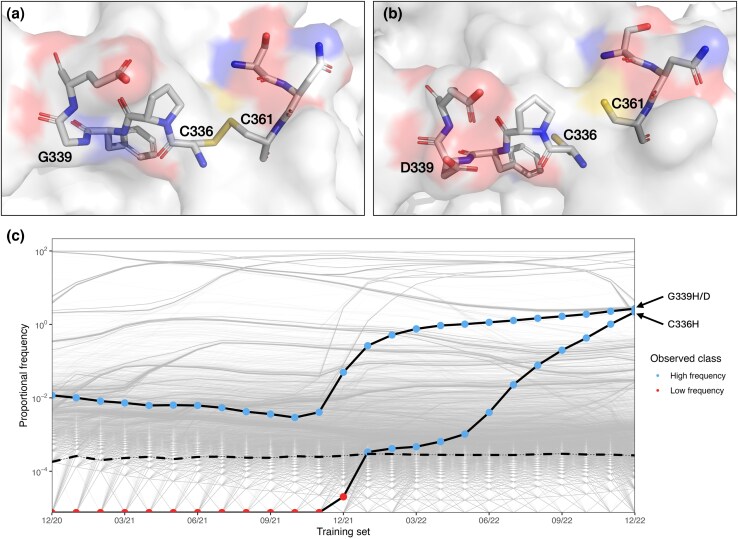

a) Shows the local structure of C336 in the SARS-CoV-2 WT S protein (PDB: 6VXX). b) Shows the local structure of C336 in the SARS-CoV-2 Omicron S protein (PDB: 7WP9). Colors show oxygen (blue), nitrogen (red) and sulfur (yellow) atoms. The loss of the disulfide bond and changes to surface charge caused by the G339D substitution can be seen in the Omicron S protein structure. c) Shows the observed frequency of C336H and G339H/D in the sequence database. The points are colored to show the observed class of the substitution in each training dataset. The classification threshold is shown by a dashed line. Frequency of all other substitutions are shown by pale gray lines. Note that the experimental Omicron S protein structure used (PDB: 7WP9) does not feature the C336H substitution. Amino acid numbering in the Omicron structure has been harmonized to the WT numbering; C336 is amino acid 333 in the 7WP9 PDB file..

However, in the Omicron structure Rosetta, FoldX, and ESST predict a large reduction in the destabilizing effect of these substitutions relative to the WT, although it is still assessed as destabilizing by FoldX (ΔΔG: 73.9 → 21.9; ΔR: −4.7 → 17.3; ESST probability: 0.24 → 1.26). Many Omicron lineages feature the G339H/D substitution which has been proposed to contribute to the Omicron S protein's improved infectivity (Pastorio et al. 2022), with evidence suggesting the increased surface charge plays a role in altering immunogenicity (Zhang et al. 2022). The changes to local structure in the Omicron S protein result in the loss of the 336 to 361 disulfide bond (Fig. 4b), and it is therefore plausible that replacing the glycine at position 339 with an amino acid with a charged side chain may partially alleviate the cost to protein stability of a histidine substitution at position 336, enabling the C336H replacement to occur. This conclusion is supported by the observed frequency of this substitution during variant evolution. C336H was not detected in any sequences until December 2021, at which point it rapidly increased in frequency (Fig. 4c). This increase tracks the increase of Omicron lineages generally and the G339H/D substitution specifically. This data therefore supports, although does not confirm, that the H336 was stabilized by structural changes in the Omicron S protein, enabling the substitution to arise through changes to structural constraint.

Discussion

We have found no evidence that changes to the thermodynamically viable sequence space of the S protein contributed to the phenotypic evolution of SARS-CoV-2 variants. The predictions of individual computational methods for VOC mutations (Fig. 1) and aggregate ML model performance (Fig. 3a) were consistent across different epistatic backgrounds. Furthermore, the proportion of substitutions with shared classification showed no directional temporal change (Fig. 3b), as would be expected if the S protein was moving through sequence space and sampling previously nonviable substitutions. Despite the strong selective pressure acting on the SARS-CoV-2 S protein to increase antigenic distance and avoid host immune responses (Cao et al. 2022; Willett et al. 2022), there has been no decrease in the shared set of viable substitutions over time; this strongly suggests that the SARS-CoV-2 S protein is subject to hard structural constraints that cannot easily be overcome over the evolutionary short term. While we did not investigate constraints in the antibody or receptor-bound forms of the S protein due to the associated modeling challenges, these alternative conformations are likely to introduce additional structural constraints that will only further restrict the viability of amino acid substitutions beyond what is captured by our predictors and therefore do not alter our conclusions.

Our approach of assigning substitution viability by thresholding of the proportional frequency of substitutions as represented in the global genome sequence database will result in some inherent variance and incorrect model predictions. Significant bias is known to exist in the global sequencing database (Wohl et al. 2023) and the SARS-CoV-2 S protein has positions under antagonistic pleiotropy (e.g. those with differing inter- and intra-host fitness effects; Lee et al. 2023 ), although it has been shown that only a small fraction of common intra-host single nucleotide variants rise to a high frequency and therefore their effect is likely to be limited (Hou et al. 2023). The impact of such biases is challenging to quantify, but it is clear that a substitution's frequency in the global database is not necessarily a true reflection of its viability in all cases. The improved performance of RBD predictions made using data labels based on experimental deep scan data (Fig. 2c) suggests that some information in the predictive computational features is lost due to noise present in the data labels based on substitution frequencies. Nonetheless, the clear correlation between predicted ESST and PSSM scores and classifications based on the sequence data in Fig. 1 suggest that despite these problems, a binary classification approach is able to distinguish at least strongly deleterious mutations. The majority of proteins can tolerate only minor decreases in stability before the fraction of partially or misfolded protein causes a significant fitness cost and loss of the mutant variant (Yue et al. 2005; Bershtein et al. 2006). Substitutions with substantial negative effect on thermodynamic stability are therefore likely to be highly deleterious and will be correctly classified as low frequency using this thresholding approach. Meanwhile, mutations with more complex fitness effects may show greater susceptibility to short-term fluctuations in viral lineage abundance and sequencing bias, as shown by the changing classifications of some VOC substitutions in Fig. S4.

Inspecting sites where model predictions changed over time identified one site where changes to thermodynamic viability may have enabled a novel substitution to arise. Our analysis of the S protein structure, C336H's frequency over time and the outputs of our computational predictors suggest that changes to the Omicron S protein structure may be prerequisite to substitution of the cysteine at position 336. The directionality of this relationship is revealed by the fact that C336H is not present in many Omicron sequences carrying G339H/D; C336H is evidently not a compensatory stabilizing mutation necessary for the fixation of G339H/D. Therefore, this site does not alter our conclusion that changes to structural constraints have played a very limited role in the phenotypic evolution of the S protein. Indeed, it appears that the inverse may have occurred: selection of a substitution with beneficial effects on S protein infectivity and immunogenicity enabled the only novel substitution we can ascribe to altered structural constraint with any confidence.

Our conclusion that the set of structurally viable substitutions has not substantially changed during the period of rapid SARS-CoV-2 variant evolution suggests that phenotypic evolution is instead driven by novel combinations of mutations with functional epistatic relationships. This is supported by evidence from experimental deep scans that has found strong functional epistasis between sites in the RBD involved in binding to the ACE2 receptor resulting in greatly increased receptor affinity in combination, but not individually (Moulana et al. 2022; Starr et al. 2022). Rosetta modeling carried out by Rochman et al. (2022) also supports our results, finding that the structural constraint acting on the RBD has been maintained across all VOCs and that the escape mutations present in Omicron strains likely represent the majority of structurally-viable substitutions in the RBD. We, therefore, propose that emergence of SARS-CoV-2 variants occurred through novel combinations of substitutions that were sampled from a limited region of structurally viable sequence space. Complex fitness effects and functional epistatic relationships result in fitness valleys that prevent stepwise acquisition of these substitutions in the course of typical transmission and evolution, regardless of their non-deleterious effects on protein thermodynamic stability. Relaxed constraints during chronic infections provide opportunities for the virus to cross these fitness valleys and acquire assortments of substitutions which result in new phenotypic properties (Lawrence et al. 2021; Nielsen et al. 2023; Smith and Ashby 2023). However, these relaxed constraints are insufficient to enable escape of the protein from a region of sequence space strictly limited by the necessity of maintaining thermodynamic stability. The SARS-CoV-2 S protein sits on a rugged fitness plateau surrounded by steep sides that cannot be crossed in the evolutionary short term.

This conclusion contributes more broadly to the view that, despite their high rates of mutation and ability to respond rapidly to evolutionary pressures, RNA viruses can be equally defined by their genomic fragility which limits longer term evolvability (Belshaw et al. 2008; Sanjuán 2010). In the case of the SARS-CoV-2 S protein, this may be partly attributable to the ACE2 receptor, which is highly conserved across vertebrate species (Damas et al. 2020). Adopting a niche-filling view of viral evolution as proposed by Simmonds et al. (2019), we can conceive of the SARS-CoV-2 S protein as highly adapted to an invariant ecological niche. This is supported by work carried out on SARS-1, the zoonotic transmission of which required only minor changes to the RBD of its S protein. Just six amino acid substitutions separate the human and civet isolates of SARS (Graham and Baric 2010), and recombinant virus in which the RBD of bat SARS-like CoV is replaced by the human equivalent have been shown to be infectious in primate cells (Becker et al. 2008). Human-adapted SARS-CoV-2 meanwhile has been transmitted to many mammalian species (Goldberg et al. 2024), including establishing chains of animal-to-animal transmission in mink and white-tailed deer with only minimal adaptation (Pickering et al. 2022; Tan et al. 2022). The conserved ACE2 may therefore enable the broad host range of SARS-like viruses without necessitating selection for a highly evolvable attachment protein, resulting in strong structural constraints.

Despite SARS-CoV-2's very large population size, rapid rate of mutation and a selective landscape that underwent major changes following initial zoonotic spillover, phenotypic change during the period of rapid viral variant emergence was driven by sampling of mutations from a limited set of substitutions which were structurally viable in the viral genotype that initially established infection in the human population. Where substitutions that were non-viable in the WT have occurred (C336H), they are downstream of changes to local RBD structure driven by phenotypic evolution of the Omicron variant. This suggests that over longer evolutionary time, the set of viable substitutions may shift; however, this is a slow and highly constrained process even under conditions of host switching and subsequent rapid evolution. This finding has clear relevance to the design of vaccines targeting the S protein of SARS-CoV-2 and potentially all ACE2-binding Betacoronaviruses. Larger evolutionary shifts meanwhile will likely depend on genomic reorganization or transfers of genetic information, events which have been identified as the major drivers of viral macroevolution (Kitchen et al. 2011; Shi et al. 2016; Koonin et al. 2022).

Methods

VOC Substitutions

VOC substitutions studied were those addressed by Carabelli et al. (2023) and Harvey et al. (2021). These are substitutions that have been described as impacting SARS-CoV-2 infectivity or transmissibility; they may also contribute to immune escape properties.

Constraint Predictors

PSSMs

PSSMs were generated using DELTA-BLAST as described in the BLAST manual (Camacho et al. 2021). All DELTA-BLAST searches were performed locally using the BLAST + software. Reference FASTA files for structures were downloaded for relevant structures from the PDB and used to generate PSSMs. PSSMs were generated with a single iteration of DELTA-BLAST.

ESSTs

Environment Specific Substitution Table (ESST) (Overington et al. 1992) probability values were calculated as described in Chelliah et al. (2004) after local structural environments were calculated for relevant PDB files using the JOY server (Mizuguchi et al. 1998).

Foldx

Structures were first repaired using the FoldX RepairPDB function with standard settings, which identifies and re-packs the sidechains of residues with high total energy due to e.g. bad torsion angles or stearic clashes. Substitutions were then performed using the repaired structures on all three chains simultaneously using the BuildModel function, giving the change in free energy of unfolding, with negative values implying stabilizing mutations. FoldX version 5 was used for all simulations.

Rosetta

Rosetta simulations were performed using the “soft’ repulsive potential functions. Soft-repulsive potential scales Van der Waals interactions to shorter distances, permitting shorter distance interactions between atoms without large clash scores. For more information, see Kellogg et al. (2011). The structure was first relaxed using the Rosetta Relax function with a fixed backbone, as described in Kellogg et al. (2011). Mutations were then performed using the Fixbb function with all sidechains optimized through repacking of sidechain rotamers followed by optimization of sidechain torsion angles through minimization. A final score was obtained by calculating the difference in arbitrary Rosetta Energy Units between the WT and mutated structure.

T Cell Epitope Prediction

A list of predicted SARS-CoV-2 T cell binding epitopes calculated by the netMHCpan1 software (Hoof et al. 2009) was taken from Saini et al. (2021). The sequence of the relevant S protein structure was searched for matching epitopes and all positions in a predicted binding epitope were flagged to give a binary feature.

SARS-CoV-2 Protein Structures

High-quality structures of the SARS-CoV-2 S protein were identified by a search of the RCSB PDB. Structures with high resolution, low clash scores, and low Ramachandran outliers were prioritized.

6VXX was identified and used for all analyses, unless otherwise specified. For analysis of open and closed conformation structures, the structures 6XM0 and 6XM5 were used respectively.

Viral variant structures used were 7LWS (Alpha), 7V7N (Delta), and 7WP9 (Omicron).

Amino acid residue numbering across all experimental structures was harmonized to the numbering of the WT structure (PDB: 6VXX). Residue numbering of VOC substitutions therefore may not match with their numbered positions in variant PDB files.

SARS-CoV-2 Sequence Data and Classification Thresholds

All SARS-CoV-2 S protein sequences were sourced from the Global Initiative on Sharing Avian Influenza Data (GISAID) database (Khare et al. 2021).

Sequences underwent simple filtering for quality. Sequences with an amino acid length of under 1271 were removed from the dataset; this cutoff was selected as it corresponds to the 25th percentile of sequence lengths in the dataset, preserving the majority of sequences while removing short and fragmentary entries. Sequence entries with >1% Ns were also excluded from the analysis.

Classification of Substitutions

Sequences were used to generate a set of validated outcomes by calculating a consensus matrix of the frequency of each substitution at every position in the sequence using the Biostrings package in R. The proportional contribution of every amino acid at every position was then calculated. The mean proportional frequency was calculated for every study period and this was set as the threshold. Any substitution exceeding the mean value was designated in the negative class, “high frequency’, any substitution with a proportion less than or equal to the mean value was designated in the positive class, “low frequency’. For the experimental deep scan RBD classification used in Fig. 2c, protein expression data was taken from Starr et al. (2022). The mean expression value was set as the threshold and substitutions classified using this threshold as described above.

Filtering by Deposition Date

Sequences deposited within the reported date range (inclusive) were included in these datasets.

The individual constraint predictions described in Fig. 1 classified substitutions using thresholds calculated from nonoverlapping 6-month periods of sequence depositions. Predictions made using the WT structure used sequences deposited between 01 July 2020 and 31 December 2020; this largely precedes the emergence of VOCs, with the first Alpha and Beta sequences identified in late October and not reaching significant proportion of total sequences until January 2021. Predictions made using an Alpha structure used sequences deposited between 1 January 2021 and 30 June 2021; this largely covers the entire period in which Alpha represented a substantial proportion of sequences globally. Predictions made using a Delta structure used sequences deposited between 1 July 2021 and 31 December 2021; this covers the period in which Delta was the globally dominant variant, with the first Omicron sequences detected in late November 2021. Predictions made using an Omicron structure used sequences deposited between 01 January 2022 and 30 June 2022, for which Omicron was the globally dominant lineage.

The test sets in Fig. S4 are reported as 1-, 3-, 6-, or 12-month test sets. These test sets were generated by filtering for all sequences deposited between the reported training cutoff date and exactly 1, 3, 6, or 12 calendar months subsequent to this date. The exact period of time from which sequences were sourced for test sets is therefore not identical, varying by the number of days of different calendar months.

Selecting Sites for Manual Assessment

Substitutions to be subjected to manual assessment were identified using the following criteria:

Substitutions that consistently increased or consistently decreased in frequency for 6 consecutive months.Substitutions for which the change in proportional frequency between any two consecutive training periods was in the 97.5th percentile of all frequency changes for that transition.Substitutions which reached a frequency >0.8% in the population of sequenced virus in any training period.

Only substitutions which met all three of these criteria were manually assessed.

Machine Learning

Random forest algorithms were implemented using the ranger package in R (Wright and Ziegler 2017). Models were trained with 25 repeats of 10-fold cross validation. Hyperparameter tuning was performed via a grid search with a tune length of 8. The modal optimal values of hyperparameter tuning on a limited initial training set were calculated and these values were then used for all future ML modeling. The selected values were mtry = 6, splitrule = ‘extratrees’ and minimum node size = 1.

A final feature set of 30 features was selected by recursive feature elimination, with rank aggregation used to select the final features based on a limited initial training set. The final list of features used with a brief description is shown in Table 1.

Samples for the ensemble modeling were generated as follows: consider a multiple sequence alignment of SARS-CoV-2 protein sequences S of length L. Sequences were read from S into a subsample T_i_ with every ith sequence dropped from the subsample. This process was repeated i times to give i subsamples. All modeling presented herein was carried out with i equal to 10, resulting in 10 subsamples. Subsamples were therefore each of length L − (L/i). These subsamples were then processed to generate 10 consensus matrices.

Individual models were trained using the proportional frequency of amino acid identities from each of these 10 consensus matrices. Final class predictions were calculated by simple majority vote of all 10 models, with hung votes resulting in an indeterminate prediction. However, the final predictions made by ensemble models did not feature any hung votes.

Class-switching substitutions were determined as those that were assigned a different class in any of the 10 training subsamples relative to the test sample.

Software and Packages

Unless otherwise stated, all analysis was performed in R version 4.1.1. Analysis and processing of biological sequences and structures was carried out with SeqKit2 (Shen et al. 2024) and the R packages biostrings v2.68.1 and bio3B v2.4.4.
