Nanophotonic neural probes for in vivo photostimulation, electrophysiology, and microfluidic delivery
Xin Mu, Homeira Moradi Chameh, Mandana Movahed, Fu Der Chen, John N. Straguzzi, Piyush Kumar, Andrei Stalmashonak, Hannes Wahn, Hongyao Chua, Xianshu Luo, Guo-Qiang Lo, Joyce K. S. Poon, Taufik A. Valiante, Wesley D. Sacher
TL;DR
This paper introduces a new type of neural probe that combines light, electricity, and fluid delivery to study and control brain activity in live animals.
Contribution
The novel contribution is a multifunctional neural probe with integrated nanophotonic, electrophysiological, and microfluidic capabilities.
Findings
The probe successfully delivered light, recorded brain activity, and administered drugs in vivo.
Local suppression of epileptic seizures was achieved using photostimulation after drug-induced seizures.
The design is scalable and compatible with foundry fabrication for broader neuroscience applications.
Abstract
Implantable silicon neural probes with integrated optical emitters and electrodes are emerging tools for simultaneous optogenetic stimulation and electrophysiological recording in deep brain regions. In parallel, neural probes with microfluidic channels have been developed for localized drug delivery and neurochemical sampling. However, thus far, such fluidic probes have lacked optical and electrical functionalities or been limited to a low number of optical emitters and/or electrodes, constraining their utility in multimodal investigations of neural circuits. Here, we introduce foundry-fabricated silicon nanophotonic neural probes with monolithically integrated microfluidics. Each probe has 16 silicon nitride grating coupler emitters, 18 titanium nitride microelectrodes, and one embedded microfluidic channel. We evaluate the photonic, electrophysiological, and microfluidic…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

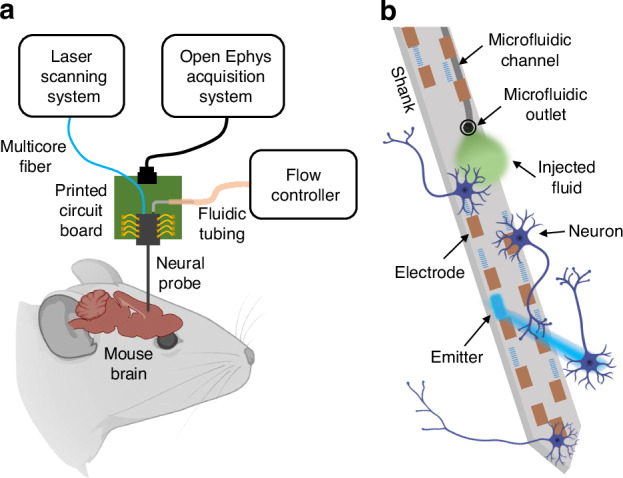

Figure 1

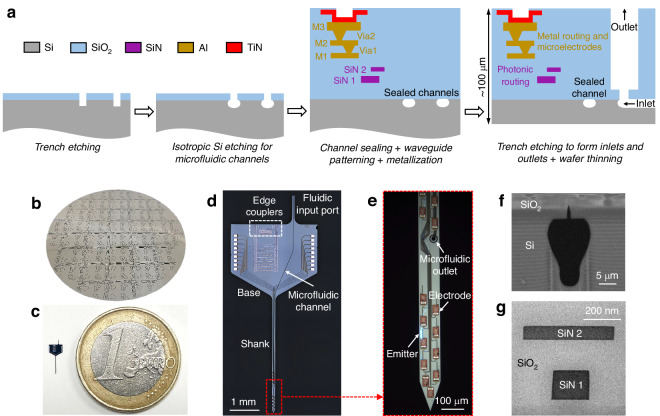

Figure 2

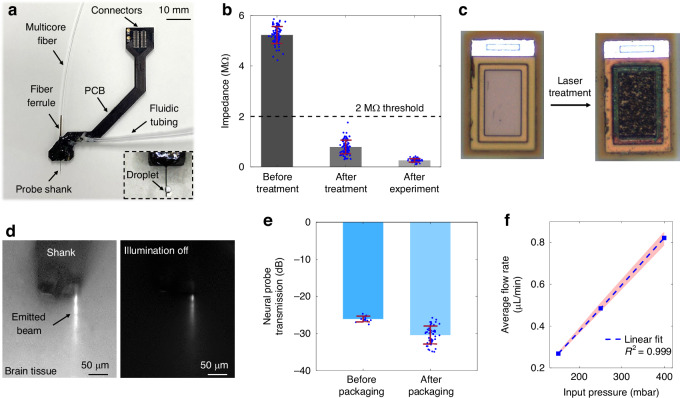

Figure 3

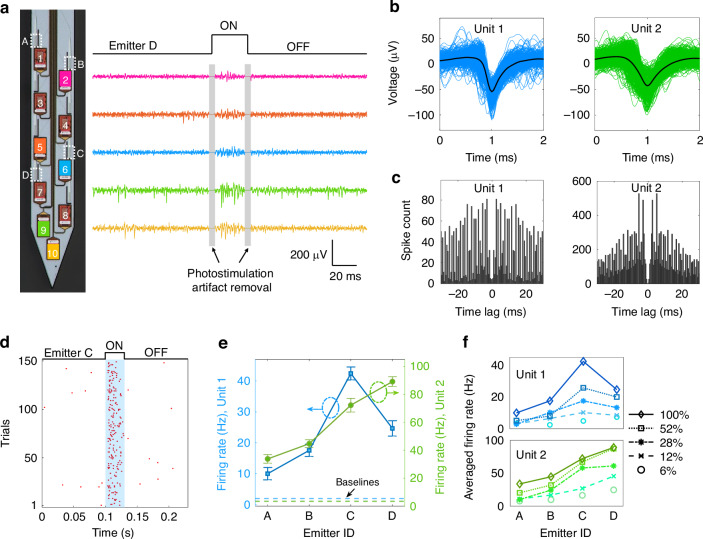

Figure 4

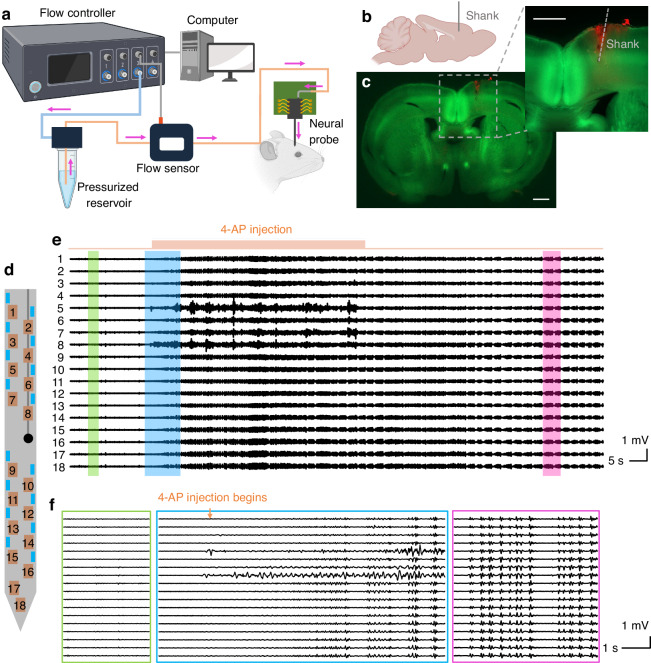

Figure 5

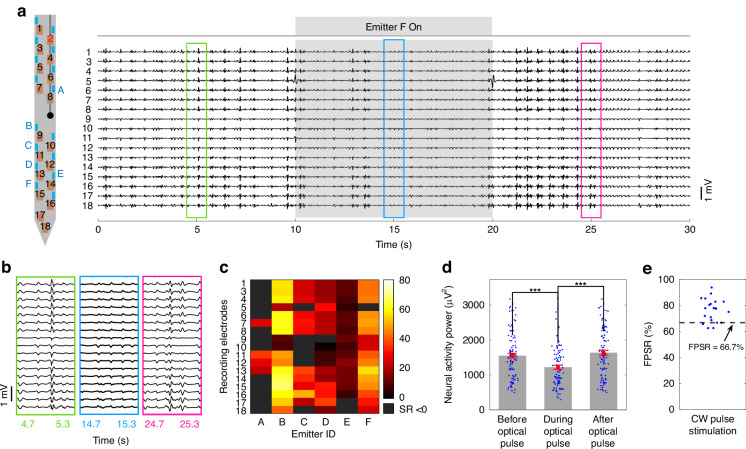

Figure 6

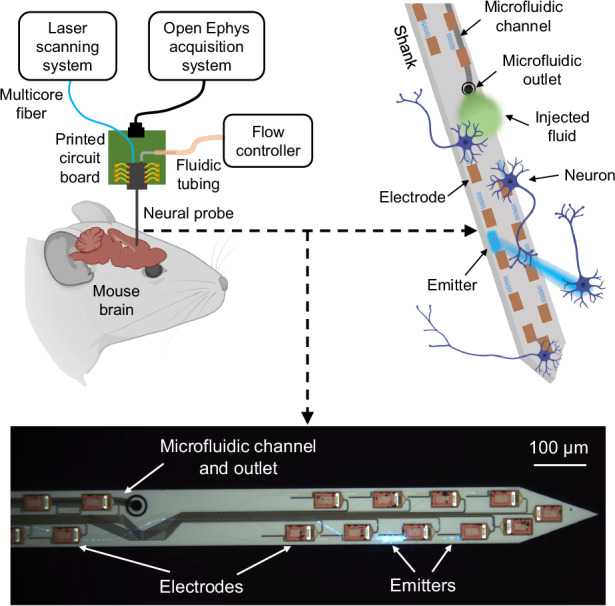

Figure 7Peer Reviews
