Ground penetrating radar observations of ancient large-scale deltaic structures in Jezero crater, Mars

TL;DR

Radar data from Mars reveals ancient deltaic structures in Jezero crater, suggesting a wetter and warmer past environment.

Contribution

The study presents the deepest radar observations of Martian subsurface features to date, revealing large-scale deltaic structures.

Findings

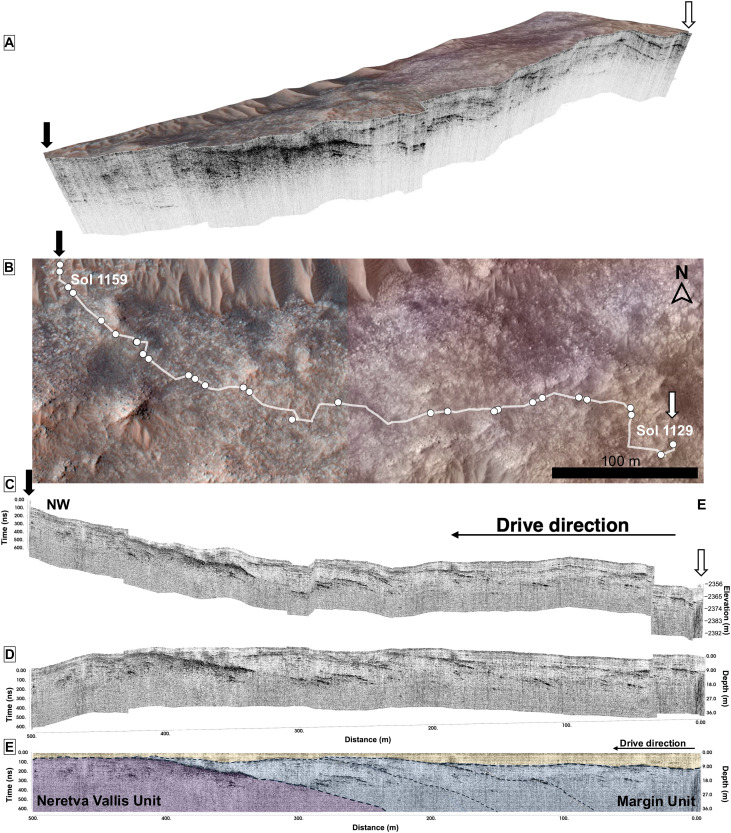

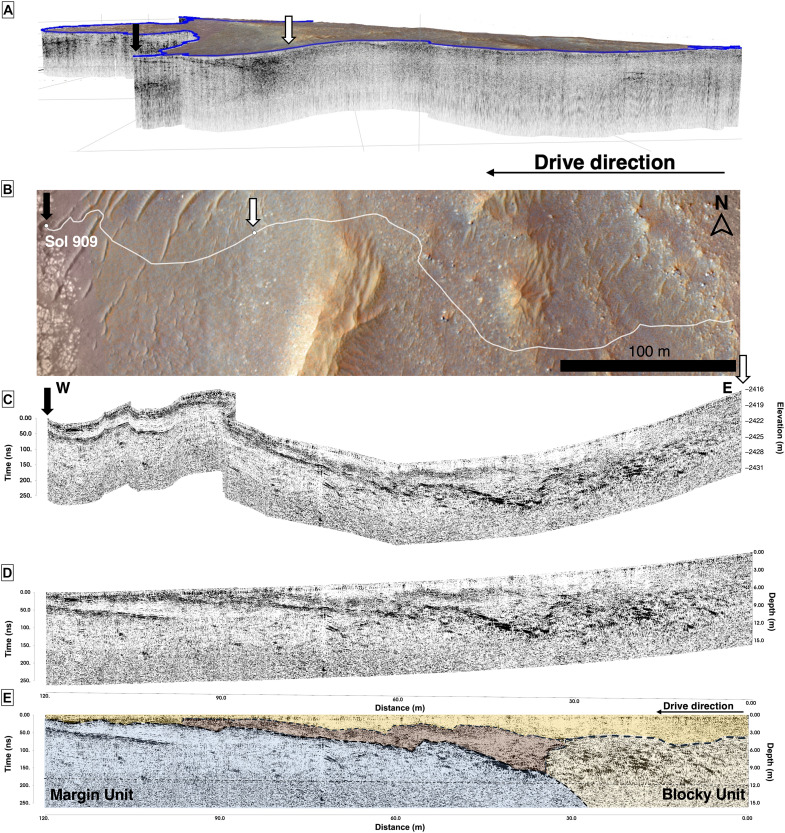

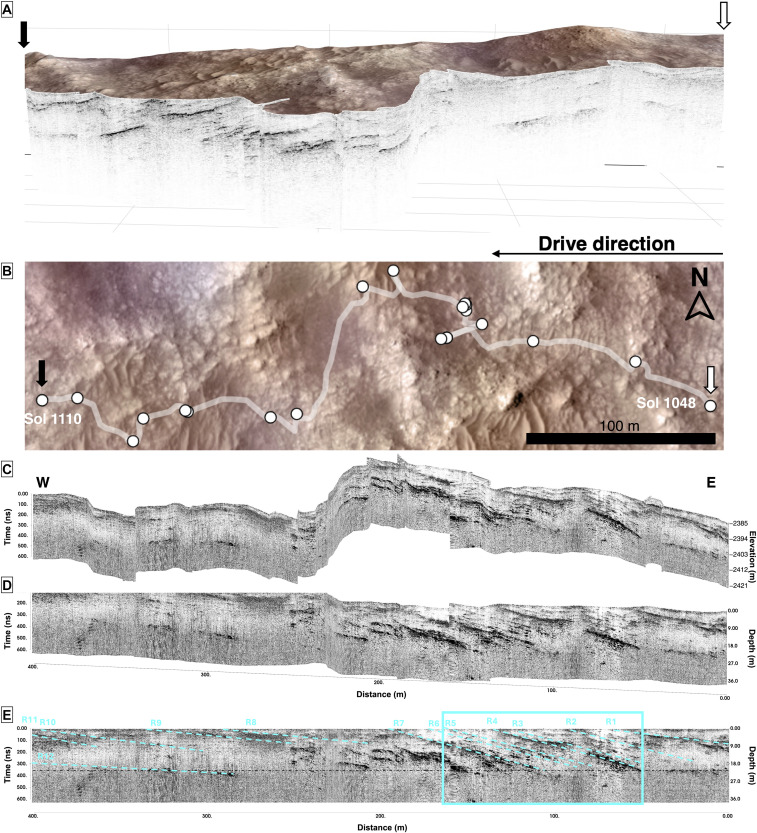

Subsurface radar data from Jezero crater shows layering up to 35 meters deep.

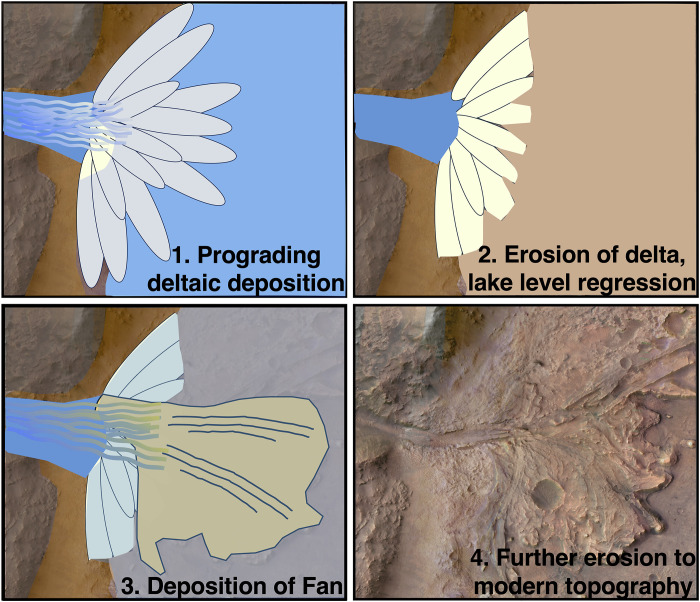

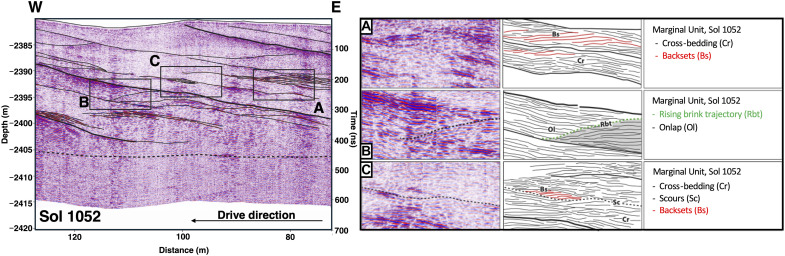

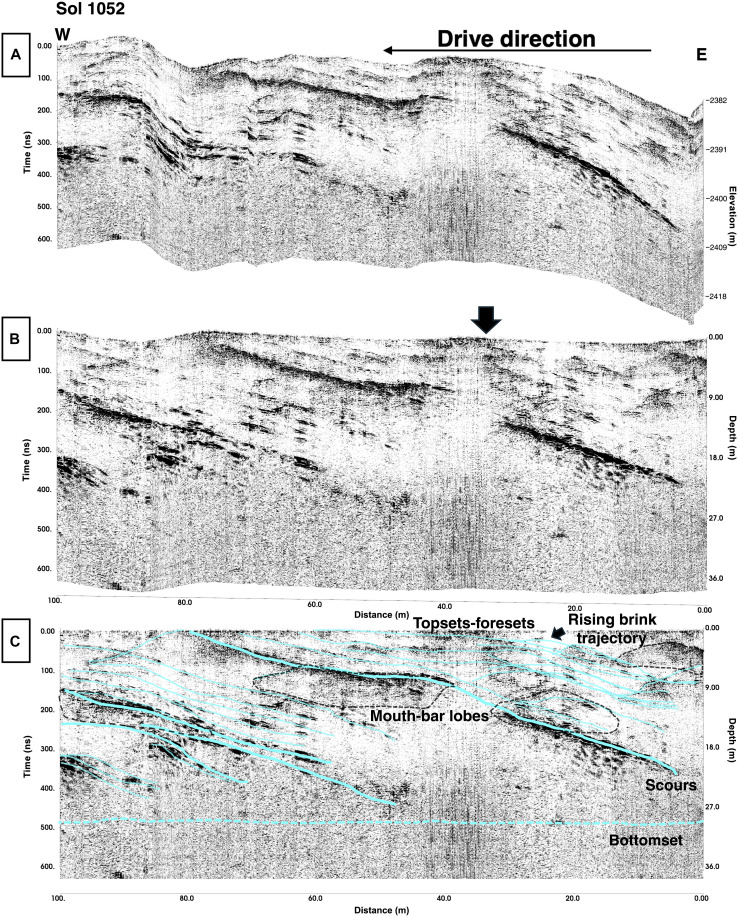

Buried fluvial features and deltaic foresets indicate multiple episodes of erosion and deposition.

The findings suggest a preserved paleolandscape from the Noachian period, over 3.7 billion years ago.

Abstract

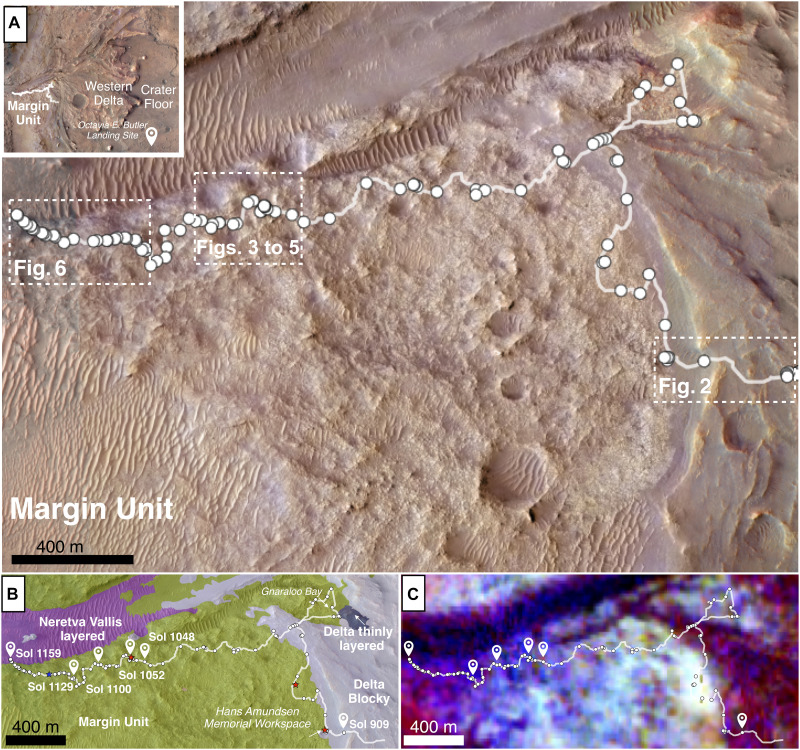

The surface of Mars once hosted flowing liquid water and a warmer climate than today, with past water-rock interactions recorded by the carbonate deposits found on its surface. Here, we analyze the depositional setting of the Margin unit, a major magnesium-carbonate deposit near the fluvial inlet to Jezero crater using ground penetrating radar data collected by the Mars 2020 Perseverance rover Radar Imager for Mars Subsurface Experiment (RIMFAX) instrument. We report soundings from more than 35 m belowground, ~1.75 times deeper than other Jezero geologic units explored to date. We identify numerous subsurface features and submeter to hundred-meter scale layering across an ~6.1-km rover traverse. We infer that subsurface reflectors are consistent with buried fluvial features and deltaic foresets, which have experienced multiple erosional-depositional episodes. This work illuminates a well-preserved paleolandscape wherein a deltaic environment developed prior to the formation of the Jezero Western Delta, as early as the Noachian (~4.2 to 3.7 billion years ago).

Ancient deltaic and fluvial structures detected with radar in Jezero crater, Mars hold implications for habitability.

Figures
