Photon-counting CT-guided bone biopsy with real-time bone marrow edema mapping
B. Alvarez de Sierra Garcia, C. Urtasun-Iriarte, P. Nieto, A. Alonso Burgos
TL;DR
Photon-counting CT with real-time bone marrow edema mapping helps improve the accuracy and safety of bone biopsies for diagnosing bone lesions.
Contribution
This study demonstrates the feasibility of using PCCT with real-time BME mapping for bone biopsy guidance.
Findings
The diagnostic yield was 70% with 87.5% accuracy for cases with a definitive reference standard.
Monoenergetic 70-keV imaging showed significant differences in HU values between lytic and sclerotic lesions.
PCCT-guided biopsy improved lesion visualization, procedural efficiency, and operator confidence.
Abstract
Computed tomography-guided biopsies are needed to diagnose bone lesions, but can sometimes be challenging. We evaluated the feasibility and usefulness of photon-counting computed tomography (PCCT)-guided bone biopsies, focusing on real-time bone marrow oedema (BME) mapping to optimise diagnostic yield. This retrospective single-centre study included procedures performed from September 2024 to May 2025 using a first-generation dual-source PCCT scanner with Quantum HD mode. Ten consecutive patients underwent PCCT-guided bone biopsy with real-time BME reconstructions. The reference standard was established using histopathology or microbiological confirmation when available; clinical and ≥ 3-month radiologic follow-up for nondiagnostic or discordant results. Statistical analysis included descriptive statistics, independent unpaired t-tests, and correlation analysis (SPSS v22.0, RStudio).…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHematological disorders and diagnostics · Advanced X-ray and CT Imaging · Orthopedic Infections and Treatments
Background
Photon-counting computed tomography (PCCT), first approved for clinical use by the USA Food and Drug Administration in 2021 [1], has marked a milestone in 21st-century radiology by incorporating a new acquisition technology. PCCT uses semiconductor-based detectors that directly convert x-ray photons into electrical signals, allowing for precise energy discrimination and the acquisition of pure multienergy data in a single scan. This contrasts with conventional spectral energy-integrating computed tomography (CT) detectors, which rely on scintillators to convert x-ray photons into visible light [2, 3]. PCCT equipment also eliminates interpixel septa within detectors, enabling ultrahigh (< 0.2 mm) spatial resolution acquisitions. In combination with energy thresholding technology, which removes electronic noise, this technology improves signal-to-noise ratios, increases radiation-use efficiency, and reduces dose [4].
Conventional CT-guided bone biopsy relies on anatomical landmarks and structural features (e.g., cortical destruction) to localise the target point. This approach, whilst adequate for some lesions, presents significant limitations when approaching complex osseous pathologies, particularly sclerotic or mixed lesions, where identifying viable diagnostic tissue remains challenging [5]. Traditional CT-guidance fails to differentiate between metabolically active regions and inactive or necrotic tissue, potentially leading to non-diagnostic sampling [5, 6]. Even though other imaging techniques allow it (magnetic resonance imaging or positron emission tomography-guided biopsy), they are not always available, technically possible or economically feasible.
Pathophysiologically, bone marrow oedema (BME) reflects the marrow’s response to a spectrum of insults, ranging from nonspecific reactive changes—such as trauma, microfractures, or transient vascular congestion—to active pathology, including infectious, inflammatory, and neoplastic conditions. In these scenarios, BME can be precisely assessed by spectral CT imaging [7–9]. Newly introduced PCCT pure multi-energy acquisition allows for real-time virtual non-calcium (VNCa) reconstructions by suppressing calcium attenuation whilst enhancing the visualisation of bone marrow, generating a colour-coded BME map that can be used to assess intramedullary pathologies [10, 11]. This guidance tool might potentially increase diagnostic precision, reduce procedure time, and boost the operator’s targeting confidence. However, real-time mapping of BME during the biopsy itself remains an unexplored frontier.
This study aims to evaluate the clinical usefulness and feasibility of PCCT-guided bone biopsies, specifically by integrating real-time BME mapping via VNCa reconstructions to optimise diagnostic yield and procedural efficiency.
Materials and methods
Study design
This retrospective study received approval from the institutional review board (CEIC 2025.016). From September 2024 to May 2025, a total of ten consecutive patients were referred to the Radiology Department to undergo PCCT-guided bone biopsy of suspected bone lesions identified on prior imaging techniques. Informed consent for undergoing the procedure was obtained from all participants. Patients were included if lesions were accessible for safe intervention, tolerated positioning, and had no bleeding disorders, were not taking anticoagulants, and had no active infections. Only one lesion per patient was included for analysis, and all outcomes (diagnostic yield, diagnostic accuracy, imaging metrics, and radiation dose) were calculated on a per-patient basis.
PCCT imaging
The bone biopsies were performed using a first-generation dual-source PCCT scanner (NAEOTOM Alpha, Siemens Healthineers). Scans were conducted in Quantum HD scan mode with a collimation of 96 × 0.2 mm. The system generated spectral imaging results, including single-photon processing, with standard reconstructions performed at slice thicknesses as low as 0.4 mm using kernels of up to 80. Additionally, Quantum HD reconstructions achieved a slice thickness of 0.2 mm. Systems A and B operated at different kilovolt peak (kVp) and threshold settings, with a thick tin filter and a tube voltage of 150 kV. The specific kVp configurations included 70/Sn150 kVp and 90/Sn150 kVp. Only the smallest collimation was employed to ensure ultrahigh resolution imaging, and only noncontrast scan protocols were used for this study. Reconstruction techniques included T3D reconstructions at full ultrahigh resolution, as well as additional spectral reconstructions for monoenergetic images, bone marrow analysis, and single-photon processing (Table 1).Table 1. Acquisition and reconstruction parametersScanner modelNAETOM alphaSource modeDual sourceTube voltage70/Sn150Pitch0.6Collimation96 × 0.2 mmQIRNonePixel spacing (in x- and y-axis)0.5 mmSeriesBoneSoft tissueBME mapping Slice thickness0.6 mm0.6 mm2 mm Slice interval0.4 mm0.4 mm2 mm Reconstruction filterBr80Br40Qr40 Matrix size768 × 768512 × 512512 × 512BME* Bone marrow oedema, QIR Quantum iterative reconstruction* To enable BME map processing, data acquisition must be performed in a specific vendor-defined multi-energy mode. This acquisition mode imposes certain technical limitations, such as the unavailability of QIR implementation
These advanced imaging techniques provided detailed visualisation of the suspect bone lesions, facilitating precise CT-guided biopsy procedures. In the evaluation of bone lesions by PCCT prior to biopsy, key parameters were evaluated to characterise the lesions and improve procedure planning. The analysis identified the number and anatomic location of lesions, predominantly in the iliac, sacral and femoral bones. Lesions were morphologically classified as lytic or sclerotic, measured in millimetres. For each lesion, HU values were recorded at a mean energy level of 70 keV, which closely approximates the attenuation characteristics of 120-kVp imaging while providing improved image quality through reduced noise and artefact levels, thereby enhancing assessment of tissue density and composition [12]. In addition, the presence of oedema was assessed on BME maps, suggesting lesion activity. These findings were instrumental not only in characterising the lesions but also in determining optimal puncture sites, thus improving the diagnostic yield of the biopsy procedure.
For intraprocedural bone-marrow analysis, BME maps were generated using a vendor-specific three-material decomposition model (water, fat, and calcium) applied to the spectral dataset. VNCa processing suppressed calcium attenuation to enhance marrow attenuation differences. The colour scale was vendor-calibrated, with yellow-green values representing increased VNCa attenuation (interpreted as pathological oedema) and blue-violet values representing normal marrow. BME maps were reconstructed using a 2-mm slice thickness and 2-mm increment with the Qr40 spectral kernel, whereas standard high-resolution diagnostic series were reconstructed at 0.6 mm (Br80/Br40) and ultra-high-resolution reconstructions at 0.2–0.4 mm. These parameters are now fully aligned with Table 1.
For each procedure, dose accumulation parameters were recorded in detail. The dose-length product (DLP) reflected the sum of all acquisitions performed during the intervention, including the planning scan, incremental checks during needle advancement, and the final post-biopsy control scan. All BME/VNCa reconstructions were derived from the same spectral dataset and did not require additional acquisitions. For each series, the scan range, collimation, and kVp/threshold settings (70/Sn150 or 90/Sn150 kVp) were documented.
PCCT-guided bone biopsy technique
The bone biopsy was performed using a battery-powered drill system [13]. Initially, a PCCT scan was conducted to identify the bone lesion. Based on a colour-coded scale of the real-time BME map, a qualitative analysis was performed to localise the most relevant area for biopsy. Shades of yellow-green were considered pathological, while shades of blue-violet were considered normal. The skin was marked, the cutaneous plane was sterilised, and local anaesthetic and intravenous analgesia were administered to ensure patient comfort. Access was achieved by contacting the periosteum, after which the drill was engaged to perforate the cortical bone and reach the lesion. The axial device was then replaced by removing the drill and introducing the bone biopsy system. Three passes were made for each lesion, directed towards the region with the most significant oedema. After the biopsy system was removed, a follow-up scan was performed to confirm no complications, utilising reconstructions of the oedema, bone window, and soft tissue.
A single pathologist with a decade of experience in bone lesions analysed both sclerotic and osteolytic samples.
Statistical analysis
The statistical analyses were conducted using IBM SPSS software (version 22.0; IBM). Quantitative parameters were evaluated for descriptive analysis by calculating the mean, standard deviation, and range. Continuous variables that followed a normal distribution were compared using an unpaired Student t-test. Radiation dose exposure was expressed as the DLP, measured in mGy·cm. To assess whether the HU values at monoenergetic 70 keV PCCT imaging associated with lytic bone lesions were significantly different from those associated with sclerotic bone lesions, an independent (unpaired) t-test was employed. RStudio (2023.06.0) was used to determine the correlation coefficient between lesion morphology (binary coding: sclerotic = 0; lytic = 1) and monoenergetic 70-keV attenuation values. Statistical significance was defined as p < 0.05. The primary endpoint was the feasibility of performing PCCT-guided bone biopsy with real-time BME mapping. Secondary endpoints included diagnostic yield, diagnostic accuracy, radiation dose parameters, and procedural time. An a priori feasibility criterion was established and defined as successful completion of the biopsy without requiring conversion to an alternative imaging guidance technique.
The final diagnosis (reference standard) was established using a predefined hierarchy: histopathology or microbiological confirmation when available; clinical and radiologic follow-up at ≥ 3 months for non-diagnostic or discordant biopsy results. A positive diagnostic yield is defined as successfully obtaining a definitive histological diagnosis from the biopsy specimens submitted. In contrast, a non-diagnostic yield refers to the failure to achieve a conclusive histological diagnosis. Diagnostic accuracy was measured by the level of agreement between the biopsy results and the final diagnosis and was calculated against this reference standard. A 2 × 2 contingency table (true positives, false positives, true negatives, false negatives) was used, and exact 95% confidence intervals were obtained using Wilson’s method.
Results

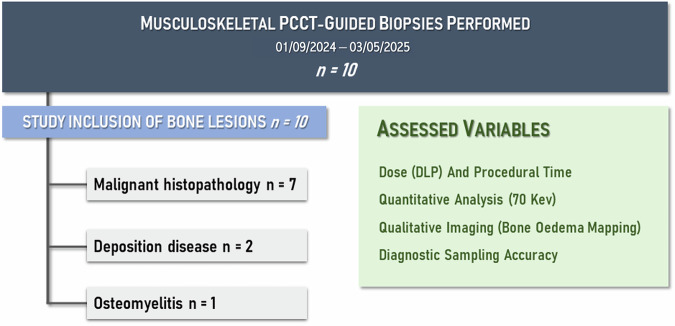

A total of ten patients referred for a PCCT-guided bone biopsy, aged 60.5 ± 13.5 years (mean ± standard deviation), five women and five men, were enroled in the study (Fig. 1). Each patient contributed a single target lesion to the analysis; therefore, diagnostic yield, accuracy, and morphologic classification (lytic versus sclerotic) were assessed per patient.Fig. 1. Study the inclusion process of PCCT-guided bone biopsies with exclusion criteria. DLP, Dose-length product; PCCT, Photon-counting computed tomography
The overall diagnostic yield for all bone lesions examined in this study stood at 70% (7/10), with an overall diagnostic accuracy of 87.5% (7/8).
There were 7 tumour bone metastases, 1 bone osteomyelitis, and 2 bone marrow infiltrative disease (Table 2). A per-patient reference standard was available in all cases: histopathology in eight patients and clinical/radiologic follow-up at ≥ 3 months in two patients. One nondiagnostic biopsy corresponded to a lesion subsequently confirmed as metastatic on follow-up (false negative), whereas another nondiagnostic biopsy remained stable on imaging, constituting a true negative. The corresponding 2 × 2 contingency table and 95% confidence intervals for diagnostic yield and accuracy are provided in the Supplementary material.Table 2. Per-lesion demographic and clinical dataAge (years)60.5 ± 13.5Sex Male5 (50%) Female5 (50%)Location Axial5 (50%) Appendicular5 (50%)Bone matrix Lytic5 (50%) Sclerotic5 (50%)Procedural average time (min)48.6 ± 8.6DLP (mGy·cm)644.5 ± 112.1Final diagnosis Malignant disease7 (70%) Osteomyelitis1 (10%) Deposition disease2 (20%)Data are given as mean ± standard deviation or absolute values (percentage)DLP Dose-length product
The mean operation time was 48.6 ± 8.6 min, ranging from 40 to 66 min per bone biopsy procedure.
A mean DLP of 644.5 ± 112.1 mGy·cm was found for PCCT-guided bone biopsy. The mean DLP for lytic lesions was 614.6 mGy·cm, while for sclerotic lesions, it was 674.4 mGy·cm.
Quantitative imaging: monoenergetic 70 KeV

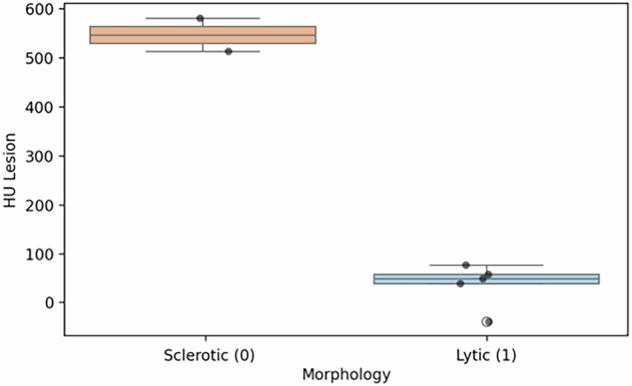

The t-test revealed a statistically significant difference between lytic and sclerotic lesions (p = 0.009): sclerotic lesions exhibited markedly higher values (mean 476.2 HU) compared with lytic lesions (mean 42.6 HU). The negative t-statistic (-4.55) indicates that the mean monoenergetic HU value for lytic lesions is significantly lower than that for sclerotic lesions. A strong negative correlation was observed between lesion morphology (binary coding: sclerotic = 0; lytic = 1) and monoenergetic 70-keV attenuation values (r = -0.84; p = 0.002) (Fig. 2).Fig. 2. Box-plot distribution of CT attenuation values by lesion morphology. Sclerotic lesions (coded 0; n = 5) clustered at much higher HU values, reflecting denser mineralised bone matrix. Conversely, lytic lesions (coded 1; n = 5) exhibit lower HU values, consistent with bone matrix destruction. The near-complete separation between the two groups (r = -0.84; p = 0.002). HU, Hounsfield Units
Qualitative imaging: bone marrow colour map

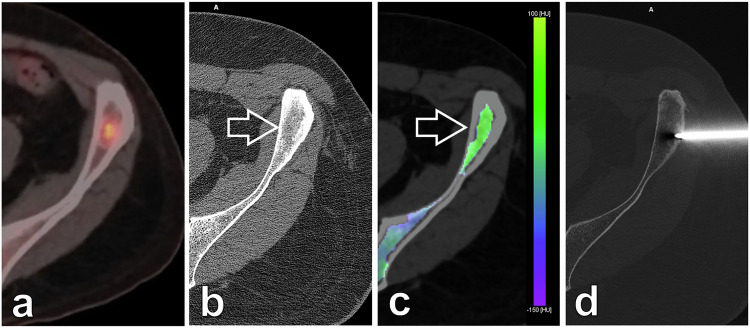

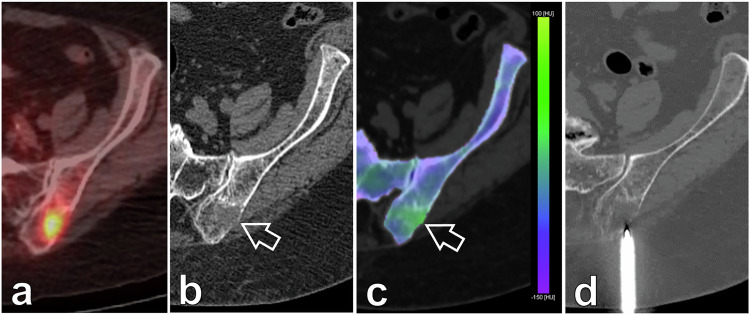

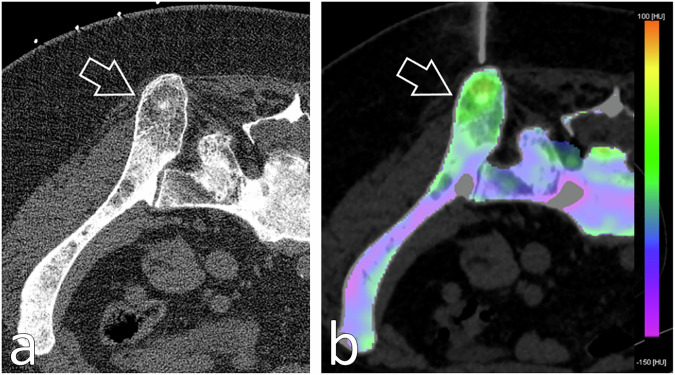

Evaluating BME through the real-time three-material decomposition of VNCa reconstructions allowed us to accurately assess the region of interest for the bone biopsy needle. Examples of lytic and sclerotic bone lesions are shown (Figs. 3–5).Fig. 3. An 89-year-old female patient with a history of stage IV breast cancer was referred for biopsy of a suspicious lesion after a follow-up positron emission tomography/CT (a). b Monoenergetic axial 70-keV bone algorithm reconstruction (0.6 mm thickness; Br80) PCCT-guided biopsy image confirmed the presence of a suspicious lesion (arrow) with a heterogeneous, ill-defined lytic matrix located within the posterior aspect of the left iliac blade. c Real-time BME mapping (2-mm thickness; Qr40) depicted increased and pathological values within the lesion, colour-coded in shades of yellow/green (arrow), while healthy marrow values are colour-coded in blue/violet as seen in the remote iliac bone. d Allowing for an accurate and precise intraprocedural bone biopsy guidance of the target oedematous region with a drilling system. Final diagnosis was breast metastatic disease. BME, Bone marrow oedema; PCCT, Photon-counting computed tomographyFig. 4A 47-year-old male patient with a history of locally advanced adenoid cystic carcinoma showed an abnormal uptake focus in the left iliac blade on a positron emission tomography/CT follow-up scan (a) for which a bone biopsy was requested. b Monoenergetic axial 70-keV bone algorithm reconstruction (0.6-mm thickness; Br80) PCCT-guided biopsy image demonstrated a subtle sclerotic area (arrow) in the left iliac blade with no apparent identifiable bone lesion. c Real-time BME mapping (2-mm thickness; Qr40) depicted increased and pathological values, colour-coded in shades of yellow/green (arrow), while healthy marrow values are colour-coded in blue/violet as seen in the remote bone. In cases where a lesion detected by other imaging techniques does not translate on CT, real-time BME mapping allows for a confident intraprocedural bone biopsy guidance (d) towards the pathologic region of interest, documenting that the obtained samples followed the desired trajectory. Final diagnosis was metastatic disease. BME, Bone marrow oedema; PCCT, Photon-counting computed tomographyFig. 5An 81-year-old patient with a history of locally advanced infiltrating ductal carcinoma treated by surgery and chemotherapy reported a new onset of pain during follow-up. a Monoenergetic axial 70-keV bone algorithm reconstruction (0.6-mm thickness; Br80) PCCT-guided biopsy image showed diffuse changes in trabecular bone microarchitecture with ill-defined lytic and sclerotic areas distributed throughout the pelvis, for which a bone biopsy was requested. b Real-time BME mapping (2-mm thickness; Qr40) displayed increased values (arrow), colour-coded in shades of yellow/green (arrow), which translates as a pathologic area; meanwhile, healthy marrow values are colour-coded in blue/violet as seen in the remote bone. In cases of mixed lesions, intraprocedural real-time BME mapping enables precise targeting of the region of interest, providing accurate guidance and confident sampling, thereby enhancing diagnostic yield. Final diagnosis was breast metastatic disease. BME, Bone marrow oedema; PCCT, Photon-counting computed tomography
