Detection of rare medical events in electronic health records using machine learning: Current practices and suggestions – A scoping review

TL;DR

This scoping review examines how machine learning is used to detect rare medical events in electronic health records and highlights gaps in current practices.

Contribution

The paper provides a comprehensive overview of current ML-based anomaly detection practices in EHRs and identifies areas needing improvement.

Findings

The median proportion of the anomalous class across studies was 0.079, with a wide range from 0.00045 to 0.23.

Many studies lacked detailed reporting on data preprocessing and handling of missing data.

Only a few studies considered the clinical implications of false positives and false negatives.

Abstract

Routine healthcare data are increasingly stored in electronic health records (EHRs), presenting an exciting opportunity to leverage machine learning (ML) for detecting and predicting medical events. While medical experts are optimistic about expanding its applications, several caveats exist which are often overlooked. Many medical outcomes are categorical (e.g., a diagnosis is present or absent) with categories being considerably unequal in size, which might significantly impact the performance of ML algorithms. Detecting small subgroups in EHR data, so-called anomaly detection, is an emerging approach, yet organized documentation on current practices remains scarce. This scoping review examines medical anomaly detection based on routine healthcare data stored in EHRs and formulated alternative approaches in case suboptimal practices were noticed.

PubMed and Web of Science were searched up to September 5, 2024. Peer-reviewed articles and conference papers on ML-based medical anomaly detection in EHR data were included. Fifty-two study characteristics were extracted and analyzed both quantitatively and qualitatively.

A total of 117 studies met the inclusion criteria. The cross-study median proportion of the anomalous class was 0.079 (range 0.00045–0.23). Key details, e.g., data preprocessing actions, were often incomplete; 14.5% (n = 17) provided no information on this aspect. Only four studies reported the underlying cause of missingness before deciding how to handle it, and just three considered the clinical implications of false positives and false negatives when evaluating anomaly detection performance.

We identified a need for greater attention in the current medical anomaly detection literature for reporting details on pre-processing, handling of missing data, and the use of performance metrics. With the increasing number of anomaly detection studies based on routine healthcare data stored in EHRs, more focus is needed on implementation and reporting practices to ensure relevance and reproducibility of future studies in this field.

Figures

Flow diagram showing the study selection process.

The number of medical anomaly detection articles based on EHR data by data accessibility.Dark grey = open, light grey = protected. Open = studies based on publicly accessible or accessible with request data (stated in the papers), protected = studies based on publicly inaccessible data (at the time of data extraction).

Data preprocessing actions described by the included studies.The figure presents the consecutive preprocessing actions from left to right: data split in training and test set (to be able to evaluate the performance of the algorithm on previously unseen data), detection of biologically implausible values (to be able to remove these from the dataset), scaling/normalization (to prevent bias due to the algorithm giving to much weight to variables with intrinsically larger numeric values), missing value handling (see methods and results), and variable selection (to use only those variables for predictions that have significant influence). ABC, Artificial bee colony; AUC, Area under the curve; CV, Cross validation, DBSCAN, Density-Based Spatial Clustering of Applications with Noise; ES, Evolutionary search; FSSMC, Feature selection via supervised model construction; HGPs, Hierarchical Gaussian processes, KDFS, Knowledge and data combined feature selection; k-NN, K-nearest neighbors, LOF, Local outlier factor; MICE, Multiple imputation by chained equations; missForest, a random forest–based imputation algorithm; ML, Machine learning; mRMR Minimum redundancy maximum relevance; MR-PB-PFS, Map reduce-based machine learning algorithms; OC-SVM, One class support vector machine; OOB PPI, Out-of-bag permuted predictor importance; PSO, Particle swarm optimization; REF, recursive feature elimination; RF, Random forest.

Performance metric co-occurrence among medical anomaly detection studies.The figure presents the co-occurrence of metrics when more than one performance metric was reported (each specific combination in a separate row, the respective metrics are shown in the column heads, n shows the number of studies with that specific combination). BS, Brier Score; FNR, False Negative Rate; FPR, False Positive Rate; MCC, Matthews Correlation Coefficient; NPV, Negative Predictive Value; PR AUC, Area Under the Precision Recall Curve; ROC AUC, area under the receiver operating characteristic curve; YI, Youden’s index.

Frequency of used supervised algorithms (left) and unsupervised algorithm categories (right) in the included articles.ANN, artificial neural network; BBHA, binary black hole algorithm; DA, discriminant analysis; DT, decision tree; LR, logistic regression; NB, naïve Bayes; SVM, support vector machine.

Full text

1. Introduction

These days, routine healthcare data are recorded and stored digitally in electronic health records (EHRs). This has resulted in a vast and rapidly expanding repository of patient data, including, e.g., diagnoses, histories, laboratory results, interventions, and medications. This wealth of data has paved the way for a wide range of innovations, particularly through the application of machine learning (ML), e.g., [1,2]. Early and current applications of ML have been proven to be successful in supporting various clinical tasks, including disease diagnosis [3], early detection of adverse drug reactions (ADRs) [4], and identifying underdose or overdose prescriptions [5], which sparked optimism for broader implementation.

The application of machine learning (ML) in healthcare comes with certain caveats. When predicting categorical outcomes such as the presence or absence of a diagnosis or ADR, the effectiveness of machine learning algorithms depends on availability of comparable sample sizes across each category. However, in practice, the distribution of these outcomes is often imbalanced (asymmetrical) i.e., with the number of patients harboring a certain outcome (the minority class) being considerably smaller than the number of patients without (the majority class). This is most pronounced in the case of rare medical events [6]. The detection of such small subgroups is generally called ‘anomaly detection’. Considering how often uncommon medical events occur, successful implementation of anomaly detection based on routine healthcare data stored in EHRs could enhance a broad range of clinical tasks.

Anomaly detection already holds a significant role in application areas such as intrusion detection and financial fraud detection. This experience is reflected in the literature in those domains, where various anomaly detection approaches on data level (such as undersampling of the majority class and oversampling of the minority class) and on algorithmic level (such as cost-sensitive learning, i.e., taking the costs of prediction errors into account) are proposed [7–11]. This knowledge should be and increasingly is being used to develop anomaly detection in the medical domain. Examples are anomalies in chest radiography images [12], sleep apnea and respiratory anomaly detection [13], behavior monitoring in independently living elderly [14], and clinical decision support systems to monitor the health of critically ill patients in ICUs [15].

There are many so-called ‘performance metrics’ available for measuring the success of ML-based predictions such as specificity, sensitivity, and area under the receiver operating characteristic curve (ROC AUC), which are metrics that are already often used in the medical literature also when unrelated to ML-based anomaly detection, and many others (see below). Accuracy is often used in ML as a standard first metric. For anomaly detection this is an issue, as any algorithm focusing on the majority class will predict most cases correctly by always choosing that class (which is by far the most likely outcome), resulting in excellent accuracy, but far too many false negatives. In medical anomaly detection, these ‘false negatives’ are un- or misdiagnosed patients being under- or mistreated and potentially suffering from decreased quality of life and unnecessary complications (with accompanying healthcare and societal costs). On the other hand, if algorithms are specifically trained to catch every case in the minority class, this will lead to a huge increase in false positives, a phenomenon known as the false positive paradox [4], leading to unjustified extra, often costly investigations and unnecessarily worried patients. Finding the right balance is a challenge [5].

As medical anomaly detection based on EHR data continues to emerge as a key approach, with a further growing number of papers expected in the future, it is crucial to document current practices and assess their suitability. The current literature reveals only limited organized information on this topic. Besides, available medical anomaly detection studies vary in focus, being either predominantly medically or methodologically oriented, and are conducted by authors with diverse backgrounds, with the influence of these factors remaining unexplored in the current literature. Therefore, we conducted a comprehensive scoping review of the currently available medical literature on this topic, and propose alternatives where suboptimal practices were identified. We believe that this review will enable doctors and medical researchers to have a better picture of existing and preferred practices and will also help them to make better decisions when the application of medical anomaly detection is required in their future work.

We developed the following main research question: which methods are used in ML-based medical anomaly detection studies, and what suboptimal practices (if present) do researchers need to be aware of? To explore the answer to the main research question, we formulated four sub-questions regarding the included articles:

(1)What are the characteristics of the datasets being used in medical anomaly detection studies based on EHR data?(2)What data preprocessing actions were taken and was there consistency in their reporting?(3)Which algorithms (individually and by category) were applied, and which metrics were used to evaluate the results?(4)What suboptimal practices were identified in the current medical anomaly detection studies based on EHR data, what should be done to avoid them, and are they influenced by the focus of the study (medical or methodological) and the authors’ backgrounds?

2. Methods

A brief definition of the technical terms used in this paper is given in Table 1.

Table 1: a brief explanation of the technical terms.

2.1. Approach

As the main aim of this study is to map existing medical anomaly detection studies based on EHR data in the literature and identify suboptimal practices, we opted for the scoping review methodology [16]. The review was done according to a set of recommendations provided by Arksey and O’Malley which has been further refined by Levac et al [17]. We applied the first five stages of this six-stage methodological framework: 1) identifying the research question; 2) identifying relevant studies; 3) study selection; 4) charting the data; 5) collating, summarizing, and reporting the results. For reporting, we have used the Preferred Reporting Items for Systematic Reviews and Meta-Analyses: Extension for Scoping Reviews (PRISMA-ScR) guidelines [18]. The completed PRISMA-ScR checklist can be found in S1 Table.

2.2. Information sources

Based on the research questions, studies eligible for inclusion should meet the following criteria: the focus of interest of the study is a medical event; the manuscript has to explicitly indicate the anomaly detection approach used, present the anomaly detection results, be published in a peer-reviewed journal or be a peer-reviewed conference paper, be published in English, and be available in full text. We excluded studies that were based on visual and audio data, and data generated from devices such as wearable sensors.

2.3. Search strategy

We conducted a systematic search of PubMed and Web of Science based on these criteria on September 5, 2024, without time restriction. The search strategy was developed around the two major features of the scoping review - ‘anomaly detection’ and ‘medical’. Keywords and keyword phrases were developed for the two major features and then combined using the ‘AND’ operator. First, we developed a search query for PubMed and then adapted the query to Web of Science. Keywords used to include or exclude studies based on data source type (e.g., EHR-based, sensor-generated, etc.) were not included in the search strategy to allow the identification of studies that provided limited information about their data source during the search stage. The full search strategy is available in S2 Table. In addition to the studies identified through database search, additional studies were identified through snowball and citation search.

2.4. Selection of sources of evidence

We deduplicated the initial search results using Rayyan [19]. Then, a title screening was conducted based on the inclusion criteria. In the title screening, the first author (BG) labeled each study as “Include”, “Exclude”, or “Maybe”; the same was performed in a blinded manner by one senior author each for each third of the retrieved articles (BK, KVD, and EdV). Thereafter, we conducted abstract screening in a similar fashion for all articles which at least one author had labeled as “Include” or “Maybe” in the title screening. Finally, full-text screening was conducted by the first author (BG) for studies labeled “Include” or “Maybe” by at least one of the abstract reviewers. All undecided results in the full-text screening were discussed within the research team until consensus was reached.

2.5. Charting the data

Data abstraction was performed on the final set of included studies. First, a data collection/abstraction protocol was developed to systematically collect all relevant information, as listed in Table 2. Then, a pilot data abstraction was performed on five studies by the first author (BG). All authors together then discussed the pilot data abstraction to evaluate whether the information collected was correct and in accordance with the research questions of the scoping review until discrepancies were solved. Thereafter, the data extraction was finalized by the first author (BG).

Table 2: Information extracted from the included studies.

2.6. Collecting, summarizing, and reporting results

The extracted dataset was summarized using both quantitative (e.g., percentages and frequency tables) and qualitative data analysis [20]. Categorical characteristics such as the name of the ML algorithm (k-nearest neighbors (kNN), support vector machine (SVM), logistic regression (LR), etc.) are presented using descriptive tools such as tables and graphs.

To describe preprocessing consistently across studies, we operationalized it as the presence of the following predefined steps before applying a ML algorithm: (1) data split in training and test sets, (2) detection of biologically implausible values, (3) scaling/normalization, (4) missing value handling, and (5) variable selection. The ML algorithms were first categorized into supervised (a labeled outcome variable is predicted), unsupervised (a pattern in the data is sought), and semi-supervised (a combination of both). To add more context to the approach unsupervised algorithms used to identify anomalous data points, we adopted a categorization defined in [21] and adapted by Goldstein & Uchida [22], with slight alteration. The six categories of unsupervised algorithms created were: nearest neighbor (NN)-based, clustering-based, subspace-based, statistical-based, classification-based, and other (see also below). The first four categories were adopted as they are and the last two categories were created by splitting the category ‘classification based/other’ in [22]. See S1 Text for the detailed description of the six categories of unsupervised algorithms.

3. Results

We present the results section in five parts. First, an overview of the literature search is presented (Section 3.1). Next, the characteristics of the datasets used are presented (Section 3.2), as well as the data processing actions described in the included articles (Section 3.3), and the resampling techniques, ML algorithm(s) used, and performance metrics reported (Section 3.4). The classification of studies by their focus and authors’ affiliations is presented in Section 3.5. Finally, suboptimal practices we noticed among the included studies are described (Section 3.6).

3.1. Overview of the search results

The literature search yielded 6,268 possibly relevant studies, including 5,998 from database searching and 270 from snowball and citation searching. After the removal of duplicates, 4,704 articles were assessed for eligibility based on consecutive title, abstract, and full-text screening, resulting in inclusion of 117 medical anomaly detection studies based on EHR data (details in Fig 1); the included studies showed an exponential increase in the course of time (Fig 2). The 117 studies included in this scoping review are listed in S3 Table.

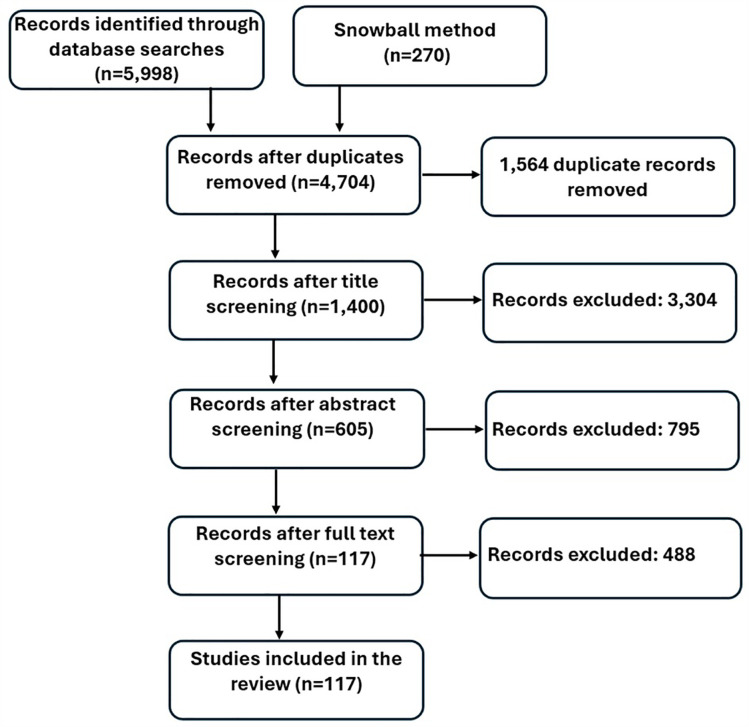

Flow diagram showing the study selection process.

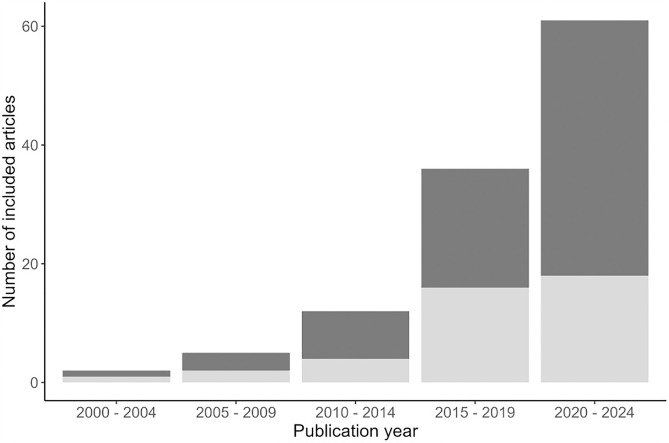

The number of medical anomaly detection articles based on EHR data by data accessibility.Dark grey = open, light grey = protected. Open = studies based on publicly accessible or accessible with request data (stated in the papers), protected = studies based on publicly inaccessible data (at the time of data extraction).

3.2. Characteristics of the datasets used in the included studies

Study populations in the articles included in this review mainly originated in three countries: the United States (n = 44), Brazil (n = 13), and China (n = 12) (details in S4 Table), probably because of the availability of certain open datasets that are frequently used by researchers such as a dataset provided by Hospital Israelita Albert Einstein [23].

All included studies represented anomalous and normal data as a binary outcome, with non-binary outcomes (e.g., multiclass outcomes) converted through binary recoding. The median proportion of the anomalous (minority) class in the included studies was 0.079 (range 0.00045–0.23). In the majority of the datasets used by the included studies (n = 90; 77%), the class imbalance resulted from the natural frequency of events, such as the proportion of patients who experience adverse outcomes vs. those who do not [24]. In the remaining studies, the causes of the class imbalance were purposely undersampling one of the classes to create an artificial anomalous class for research purposes (n = 26, examples in [25]), or the definition of the classes (n = 7, e.g., length of hospital stay above vs. below a certain number of days [26]).

3.3. Data preprocessing

The data preprocessing actions described in the included articles were very heterogeneous. Five articles reported five preprocessing actions, 17 reported four or more, 48 reported three or more, 74 reported two or more, and 100 reported at least one preprocessing action. The remaining 17 studies did not report on preprocessing. The studies reported the following data preprocessing actions: data split (n = 82; 70%), detection of biologically implausible values (n = 12; 10%), scaling/normalization (n = 44; 38%), missing value handling (n = 56; 48%), and variable selection (n = 55; 47%) in various combinations (details in Fig 3). A complete list of preprocessing methods for each study can be found in S5 Table.

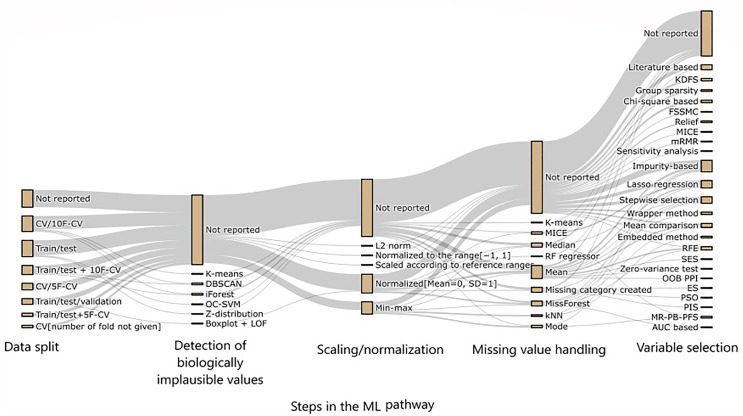

Data preprocessing actions described by the included studies.The figure presents the consecutive preprocessing actions from left to right: data split in training and test set (to be able to evaluate the performance of the algorithm on previously unseen data), detection of biologically implausible values (to be able to remove these from the dataset), scaling/normalization (to prevent bias due to the algorithm giving to much weight to variables with intrinsically larger numeric values), missing value handling (see methods and results), and variable selection (to use only those variables for predictions that have significant influence). ABC, Artificial bee colony; AUC, Area under the curve; CV, Cross validation, DBSCAN, Density-Based Spatial Clustering of Applications with Noise; ES, Evolutionary search; FSSMC, Feature selection via supervised model construction; HGPs, Hierarchical Gaussian processes, KDFS, Knowledge and data combined feature selection; k-NN, K-nearest neighbors, LOF, Local outlier factor; MICE, Multiple imputation by chained equations; missForest, a random forest–based imputation algorithm; ML, Machine learning; mRMR Minimum redundancy maximum relevance; MR-PB-PFS, Map reduce-based machine learning algorithms; OC-SVM, One class support vector machine; OOB PPI, Out-of-bag permuted predictor importance; PSO, Particle swarm optimization; REF, recursive feature elimination; RF, Random forest.

3.4. Machine learning applications

3.4.1. Resampling.

Four different resampling techniques (creating new samples based on the observed samples) were applied in 25 of the included studies, with eight of them applying two or more techniques. SMOTE was used in twenty studies, followed by undersampling (n = 7), oversampling (n = 4), and SMOTETomek (n = 3). Seven of these studies compared the change in the performance of anomaly detectors before and after the data was balanced. Overall, applying resampling resulted in better detection of true positives and worse detection of true negatives.

3.4.2. Reported performance metrics.

Seventeen different performance metrics were reported in the included studies to evaluate the performance of the anomaly detection algorithms: ROC AUC, accuracy, brier score (BS), F1 score, false negative rate (FNR), false positive rate (FPR), G-mean, Kappa, Matthews correlation coefficient (MCC), negative predictive value (NPV), area under the precision recall curve (PR AUC), precision, recall (=sensitivity), specificity, Youden’s index (YI), harmonic mean for subspace selection (HMSS), and balanced error rate (BER).

Thirty-one studies reported one performance metric, being ROC AUC (n = 25), recall (n = 3), F1 score (n = 1), and PR AUC (n = 2). Eighty-six studies reported more than one metric (details in Fig 4).

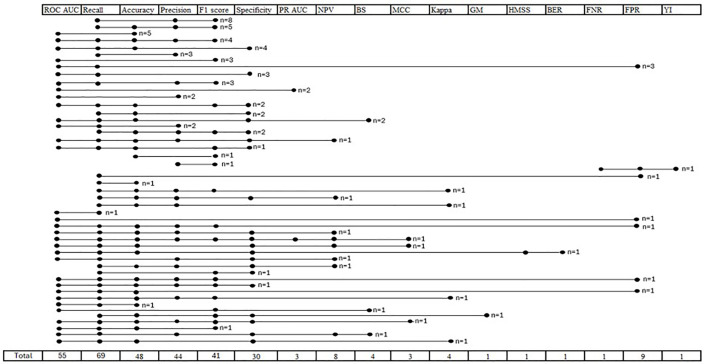

Performance metric co-occurrence among medical anomaly detection studies.The figure presents the co-occurrence of metrics when more than one performance metric was reported (each specific combination in a separate row, the respective metrics are shown in the column heads, n shows the number of studies with that specific combination). BS, Brier Score; FNR, False Negative Rate; FPR, False Positive Rate; MCC, Matthews Correlation Coefficient; NPV, Negative Predictive Value; PR AUC, Area Under the Precision Recall Curve; ROC AUC, area under the receiver operating characteristic curve; YI, Youden’s index.

3.4.3. Machine learning algorithms.

Anomaly detection in the included studies involved 188 algorithms in total, categorized as supervised (n = 63), unsupervised (n = 52), or semi-supervised (n = 2) (Fig 5; details in S6 Table).

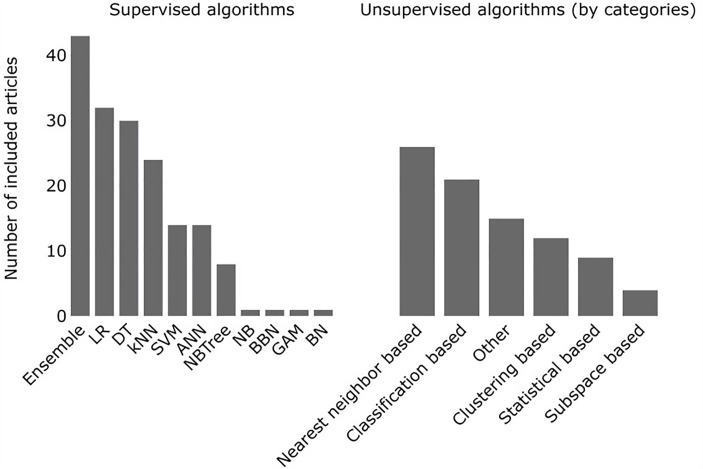

Frequency of used supervised algorithms (left) and unsupervised algorithm categories (right) in the included articles.ANN, artificial neural network; BBHA, binary black hole algorithm; DA, discriminant analysis; DT, decision tree; LR, logistic regression; NB, naïve Bayes; SVM, support vector machine.

Ensemble methods, which combine two or more algorithms to enhance predictive strength, were the most frequently used (n = 40) in supervised machine learning. They also outperformed non-ensemble algorithms in most studies where both were applied. Among the five categories of unsupervised learning, NN-based algorithms were the predominant approaches (n = 25). This can be explained by their multiple strengths, such as not having assumptions regarding the distribution of the dataset, and intuitiveness: the anomalous data points are located far from their neighbors as determined by a distance metric. Among the studies that applied NN or clustering based algorithms, 23 reported a distance metric. The reported choices were Euclidean distance (n = 19), Mahalanobis distance (n = 3), and cosine similarity (n = 1). None of the studies compared multiple distance metrics to identify a better-performing option.

We assessed the relative performance of supervised algorithms used for the same task in the same study. Ensemble (combined) methods were compared to non-ensemble (single algorithms) methods 170 times. In 116 of these (68%), ensemble methods outperformed single algorithms based on ROC AUC scores. The least performing algorithm was decision tree (DT) e.g., out of the 18 studies that used both DT and logistic regression (LR), in 17 of them (94%) LR outperformed DT. Detailed information is presented in S7 Table.

3.5. Classification of studies by their focus and authors’ affiliations

Of the included studies, 62 (53%) focused on medical applications, while 55 (47%) focused on ML methodology. According to the authors’ backgrounds, studies were grouped as medical (n = 4; 3%), multidisciplinary/combination (n = 50; 43%), and methodological (n = 62; 53%). Medically focused studies provided more detailed information on the application of anomaly detection algorithms and evaluated their performance using a wider range of metrics; the median number of metrics reported by medically focused studies was 4, compared to 2 for methodologically focused studies (details in S8-S11 Tables).

3.6. Issues identified in the included studies

We identified three areas of potential suboptimal practices in the included studies, being the level of detail in reporting preprocessing steps, handling missingness, and choice of performance metrics.

We observed significant underreporting of preprocessing steps in the included studies. This was partly due to the fact that open source datasets were used, where preprocessing steps had already been reported in the original publications (n = 75; 64%). Among the 75 studies utilizing open datasets, 24 used datasets with documented preprocessing steps provided by the dataset provider. However, 11 of these studies did not acknowledge this preprocessing in their report. Specifically, seven studies omitted reporting on the handling of missing data, another seven failed to mention normalization or scaling processes, and two did not disclose assessments for biologically implausible values.

However, it also concerned articles describing studies on newly obtained datasets (n = 42; 36%). As an example, out of 117 studies included, only 44 reported whether the data was normalized/scaled, of which 14 concerned datasets that had not been described in a publication before. See also Section 3.3 for further details.

Out of the 117 included studies, 56 (48%) described whether missing data were present and how they had handled this. For the 61 remaining studies, it was not clear whether missing data were simply absent or what methods were applied to address them if they were present. Regarding the 56 studies that reported on their handling of missing data, 52 studies did not report on the mechanism of missingness; 19 (34%) performed a complete case analysis (they excluded cases with missing values) but without reporting an assessment of the potential consequences thereof.

There are dozens of possible metrics to evaluate the performance of machine learning algorithms, yet not all are suitable for anomaly detection. Regarding the use and reporting of metrics, we noticed three issues: (1) studies reported metrics that could be subject to misinterpretation in the presence of class imbalance (e.g., accuracy); (2) only four studies employed metrics that are considerate of the potential consequence of false positive and false negative predictions, the remaining studies relied on metrics such as ROC AUC (25 studies solely relied on it); (3) across studies, the same metrics are referred to by different names, e.g., F measure, F score, and F1 score were used interchangeably. Given that authors favor different names, reporting how they were calculated is essential for reader clarity.

Discussion

This paper reports a scoping review on medical anomaly detection based on EHR data. Our aim was to conduct a comprehensive review of the currently available medical literature and to propose alternatives if suboptimal practices were identified. We could include 117 articles and conference papers. In supervised machine learning, ensemble methods were most frequently used, and they outperformed non-ensemble algorithms in most included studies where performance was compared within the same study, for the same task, and on the same dataset. However, in this study we did not aim to identify a single algorithm as the “best” or to draw definitive conclusions about the success of the applied anomaly detection algorithms, as the effectiveness of anomaly machine learning algorithms is context dependent and alternative algorithms may be more suitable for particular settings. Similar to other application domains [27], nearest neighbor-based algorithms were the predominant ones. That reliance on nearest neighbor-based approaches can be explained by their specific strengths, including not having assumptions regarding the distribution of the dataset, and intuitiveness (i.e., anomalous data points are those that are far from their neighbors as determined by a distance metric).

Prior medical research has highlighted concerns across various medical study categories, such as study bias [28], standard reporting [29], and ethical and integrity measures [30,31]. We identified several suboptimal practices in medical anomaly detection research on EHR data, which we discuss below. There was a marked increase in published medical anomaly detection studies based on EHR data in the past two decades. That increase underlines the importance of paying attention to the suboptimal practices we found to increase reproducibility, reliability, and the relevance of results to healthcare professionals who are generally not familiar with machine learning and its caveats when used for anomaly detection.

As described above, we identified three important caveats that were insufficiently addressed: (1) no or incomplete reporting of preprocessing steps, (2) failing to adequately address missing value issues, and, last but not least, (3) reporting of performance metrics that are inadequate for anomaly detection (or omitting discussion of their unreliability). Below, we discuss these three issues. We argue that future studies need to consider these issues while conducting medical anomaly detection studies.

When it comes to published articles, the written report is the sole medium of communication between researchers and their audience. As readers depend entirely on the written content, it is essential that all necessary methodological details are included. When essential details are missing, readers cannot adequately evaluate or replicate the work, reducing its scientific value. This issue is particularly concerning in rapidly growing fields (like medical anomaly detection based on EHR data), where incomplete reporting may set a poor precedent for future research. From the perspective of research integrity, failing to adequately report the methods of scientific research in any field is a form of questionable research practice as it delays discovery and understanding [32].

Inadequate reporting of preprocessing steps

The issue of under-reporting key information is also noted in other types of medical studies, such as incompleteness of reporting in systematic reviews [33], in human genome epidemiology association studies [34], and in the functional neuroimaging literature [35]. Incomplete reporting of studies can have considerable consequences in the progress of any scientific field. Several solutions have been proposed, ranging from raising awareness about the value of complete reporting to developing standardized reporting guidelines [33,36]. The studies included in this review revealed significant underreporting of critical information in the analysis of medical anomaly detection based on EHR data. For instance, 17 studies (15%) provided no information on data preprocessing. This is partly due to studies based on existing open datasets that fail to report the preprocessing performed by the dataset provider. Notably, 11 of these studies either partially or completely omitted details of the preprocessing carried out by the original source.

Handling missing data

The best strategy for handling missing data is to adopt a well-structured prospective study design and data collection process that minimizes the likelihood of missingness [37,38]. However, even among well-designed and carefully executed studies, missing data cannot always be avoided, also, missing data can intrinsically not be avoided when using routine healthcare data from the EHR (e.g., patients follow their own journeys through the hospital system). Several strategies have been developed to handle missing data such as only including participants/events without missing data (also known as complete case analysis [37,39]), imputation (estimating the missing values), and the missing indicator method (creating a new variable showing for each participant/event whether the variable under study has a value or not). The selection of an adequate approach to handle missing data mainly depends on the mechanism of missingness being MCAR, MAR, and MNAR (see above and Table 1). Identifying the mechanism of missingness is indispensable for deciding on the approach to handle missing data [40,41]. Complete case analysis is a common approach, and it is also the default approach in most statistical software packages [42]. However, this approach may result in biased findings if the missing data are not missing completely at random [43], on the other hand, it can be an effective strategy for supervised learning [44]. Anyway, discarding cases with missing data results in loss of statistical power [45]. In medical studies, it is generally unlikely that data are missing completely at random, especially when using EHR data [39] (e.g., healthier patients are more likely to have missing data such as blood sample results). In the included studies, 61 did not report on missingness, and 19 out of 56 that did address missing data used complete case analysis, but without reporting an assessment of the potential consequences thereof. Only 4 out of 56 reported whether they considered the mechanism of missingness. Studies that did address the missing data through imputation employed various methods such as the mean or median of the variable values in the dataset, or more complex algorithms (such as missForest, MICE) for estimating missing data. Several reviews are available that evaluate the current missing data handling techniques including for MNAR situations and provide guidance on selecting appropriate imputation.

Choosing performance metrics

Performance metrics used in anomaly detection should be able to handle imbalanced datasets appropriately. While there are many metrics available to evaluate anomaly detection algorithms, there is no uniform agreement on which specific metric or combination of metrics should be used in which cases. Metrics like accuracy and error rate are not suitable to evaluate anomaly detection tasks, as they cannot handle the severe class imbalance. Such metrics should preferably not be presented, but when they are, authors should be cautious and explicitly address their limitations to avoid misleading the readers. There are studies that suggest a specific metric is preferred above one or more alternatives (e.g., ROC AUC [46], adjusted geometric-mean [47], PR AUC [48]). However, every metric has its drawbacks and cannot be used as ‘gold standard’ in every situation. E.g., F1 score can generate inflated overoptimistic results [49], and the most commonly used metric, ROC AUC (exclusively reported in 25 of the included studies), still does not show the clinical utility [50], because the clinical implications of false positives and false negatives are rarely equal, neither for the individual patients concerned, nor for the healthcare professionals and their organizations. Depending on the study objective, the limitations of relying solely on ROC can be addressed through several means such as by supplementing it with additional performance metrics [51], or by using approaches that quantify net clinical benefit [52]. Since no algorithm results in perfect prediction performance, the likely optimal cutoff point on a confusion matrix (a 2x2 table that summarizes the counts of correct and incorrect predictions) is determined by the context in which it is applied (for an example see S12 Table).

Alternative approaches for suboptimal practices

For greater transparency, we recommend future studies include the list of features we propose in Table 3. Authors can incorporate these features, in addition to adopting a reporting guideline suitable for their study type and topic. Moving forward, we believe a standard reporting guideline for medical anomaly detection studies would be highly beneficial. Such a guideline would help authors adequately address class disparity while carrying out and reporting medical anomaly detection studies.

Table 3: A checklist of characteristics that are useful to report in publications on medical anomaly detection studies.

See Table 1 for definitions of the technical terms used in this table.

Given that most studies did not evaluate the missingness mechanism prior to imputation, that imputation may be based on assumptions that are not credible. We therefore suggest that authors describe the amount and structure of missingness, explore plausible mechanisms, and provide a rationale for the selected strategy. Several resources are available to assist authors and provide guidance on this matter [39,53–54].

With respect to metric selection, about a quarter of the included studies assessed anomaly detection performance using only one metric, with the vast majority relying on ROC AUC. We recommend against relying solely on ROC AUC, or any other single metric. ROC AUC does not indicate whether performance is acceptable at the operating thresholds used in practical settings. A high ROC AUC can still correspond to unacceptably high false-positive or false-negative rates. We therefore encourage authors to report additional threshold-specific measures at clinically meaningful cutoffs. Authors may also apply more analytic approaches, including decision curve analysis and net benefit, to quantify the clinical consequences of different threshold choices and the trade-off between false positives and false negatives.

Limitations of the study

Our study has some limitations. Firstly, we only included peer-reviewed studies published in English. While non-peer-reviewed articles are often considered less credible, this criterion may have led to the exclusion of potentially credible and sound studies that could offer valuable insights. Additionally, by including only English-language publications, the applicability of our conclusions may be limited to studies published in English. Finally, our chosen search terms might not have captured all relevant studies. Some studies addressing medical anomaly detection may not explicitly use the key terms we used to target such studies, potentially resulting in the omission of relevant research.

Conclusion

In conclusion, we conducted a scoping review of existing literature on medical anomaly detection based on routine healthcare data, highlighted current practices, and identified suboptimal practices that, if addressed properly, could enhance the reliability and reproducibility of future studies. Although the variety of machine learning algorithms and the growing number of studies signal a promising future for anomaly detection based on EHR data, several pitfalls in the implementation and reporting of these techniques impede their adequate use. We noted that more studies need to adhere to standard procedures while addressing the issue of missingness and be thorough in the utilization and reporting of performance metrics by selecting metrics that align with the study’s objectives, and by reporting the numbers of false positives and false negatives as well as discussing the preferred balance between them in the light of the clinical context of the study. Incorporating the consequences of false positives and false negatives is crucial as the usability of developed algorithms depends on their ability to support daily clinical tasks, which also have broader societal and economic impacts.

Supporting information

S1 TextDescription of the categories of unsupervised anomaly detection methods.(DOCX)

S1 TablePRISMA-ScR checklist.(DOCX)

S2 TableSearch strategy.(DOCX)

S3 TableList of studies included in the scoping review.(DOCX)

S4 TableThe number of included studies by country.(DOCX)

S5 TablePreprocessing actions reported in each included study.(DOCX)

S6 TableThe characteristics of the datasets in the included studies.(DOCX)

S7 TableThe metrics used to evaluate the anomaly detection algorithms (total count) by the included studies.(DOCX)

S8 TableThe metrics used as sole performance indicators in the included studies.(DOCX)

S9 TableSummary of the categorical features (frequency) among the extracted features.(DOCX)

S10 TableList of machine learning algorithms used in the included articles.(DOCX)

S11 TableSummary for pairwise comparison between ML algorithms according to ROC AUC.(DOCX)

S12 TableExample of adjusting machine learning output to control false positives and negatives.(DOCX)
