Endoscopic management of gallstone large bowel obstruction at a sigmoid diverticular stricture secondary to cholecystoduodenal fistula

TL;DR

A rare case of large bowel obstruction caused by a gallstone at a sigmoid stricture was successfully treated with endoscopic techniques, avoiding surgery.

Contribution

Demonstrates non-operative endoscopic management of gallstone-induced large bowel obstruction at a sigmoid diverticular stricture.

Findings

Multidisciplinary endoscopic intervention using mechanical lithotripsy successfully managed gallstone impaction.

Non-operative treatment was feasible in a high-risk patient with significant cardiac comorbidities.

The case adds to the limited literature on colonic gallstone ileus, especially in the context of diverticular disease.

Abstract

Gallstone ileus is a rare cause of mechanical bowel obstruction, typically involving the small intestine. Large bowel obstruction (LBO) due to gallstone impaction is exceedingly uncommon, particularly at a sigmoid stricture. We present the case of a 76-year-old male with significant cardiac comorbidities who was managed non-operatively for acute cholecystitis complicated by cholecystoduodenal fistula. He subsequently re-presented with LBO from an impacted gallstone at a sigmoid diverticular stricture. Multidisciplinary endoscopic intervention using mechanical lithotripsy avoided surgical resection. This case highlights the potential for nonoperative management of gallstone LBO in select patients and emphasizes the utility of advanced endoscopic techniques in the setting of challenging anatomy. It also contributes to the limited but growing body of literature describing colonic gallstone ileus, particularly in the context of diverticular disease.

Figures

CT image showing cholocystoduodenal fistula at initial presentation.

CT image showing 3 cm gallstone obstructing the sigmoid colon.

Endoscopic view of gallstone impacted at diverticular stricture.

Trapezoid basket used to engage the stone.

Fragmentation with mechanical lithotripsy.

Residual gallstone with evidence of central cleavage.

Full text

Introduction

Gallstone ileus is an uncommon cause of bowel obstruction; accounting for 1%–4% of mechanical cases overall, but up to 25% in elderly patients [1]. It most frequently involves the terminal ileum, where the lumen is narrowest [2]. Colonic gallstone obstruction is exceedingly rare, with < 5% of gallstone ileus cases involving the large bowel [3]. Obstruction typically arises when a large stone passes through a bilioenteric fistula—most commonly cholecystoduodenal—and lodges at a point of narrowing, such as a diverticular stricture [4]. While surgery remains the mainstay of treatment, endoscopic techniques including mechanical lithotripsy and electrohydraulic lithotripsy (EHL) are increasingly used in patients unfit for surgery [5].

To date, only a few dozen cases of colonic gallstone ileus have been reported in the literature, with sigmoid impaction at a diverticular stricture being among the rarest presentations [3, 5]. This highlights the clinical relevance of reporting successful nonsurgical management.

Case presentation

A 76-year-old male with coronary artery disease, diastolic heart failure, atrial fibrillation on apixaban, type 2 diabetes mellitus, and chronic kidney disease presented with acute cholecystitis. Imaging revealed emphysematous cholecystitis with a suspected cholecystoduodenal fistula (Fig. 1). Cardiac workup revealed reduced EF (35%–40%) with no obstructive coronary artery disease. He was treated non-operatively with antibiotics and discharged for interval cholecystectomy.

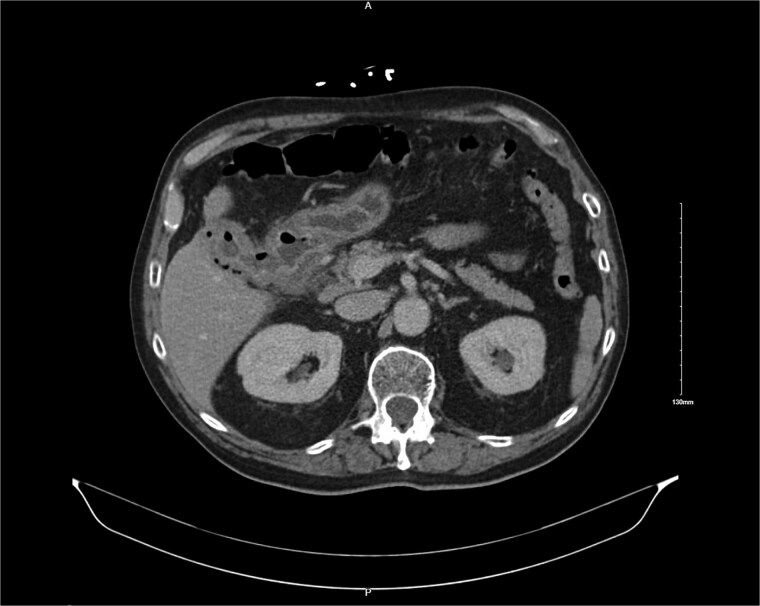

CT image showing cholocystoduodenal fistula at initial presentation.

He re-presented 10 days later with nausea, vomiting, and obstipation. CT imaging showed large bowel dilation and a 3–4 cm gallstone lodged in the proximal sigmoid colon (Fig. 2). Flexible sigmoidoscopy confirmed the presence of the stone at a diverticular stricture (Fig. 3). Initial endoscopic retrieval attempts using snare, Roth net, and EHL failed.

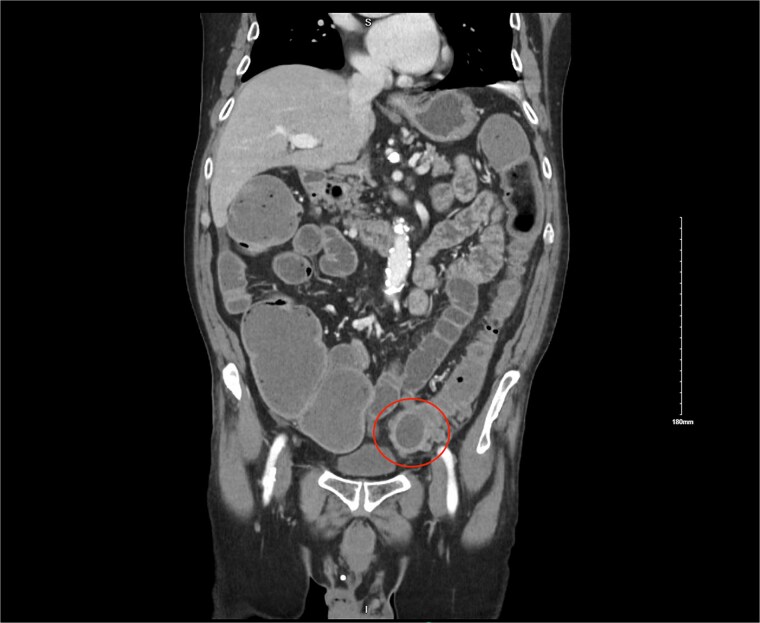

CT image showing 3 cm gallstone obstructing the sigmoid colon.

Endoscopic view of gallstone impacted at diverticular stricture.

A subsequent attempt with a dual-channel colonoscope allowed for mechanical lithotripsy via trapezoid basket, successfully fragmenting the stone (Figs 4–6). The patient resumed a regular diet, passed flatus and stool, and was discharged with outpatient follow-up for elective cholecystectomy.

Trapezoid basket used to engage the stone.

Fragmentation with mechanical lithotripsy.

Residual gallstone with evidence of central cleavage.

Discussion

Gallstone ileus remains a diagnostic and therapeutic challenge due to its rarity and the often non-specific presentation in elderly patients. While the classic radiologic Rigler’s triad—pneumobilia, ectopic gallstone, and bowel obstruction—is pathognomonic, it is not always present. The location of the gallstone determines both the clinical presentation and the treatment strategy. Involvement of the colon, especially the sigmoid segment, is particularly rare and frequently associated with underlying pathologic narrowing such as that seen in diverticulosis [3].

Traditional management has favored surgical enterolithotomy with or without cholecystectomy and fistula closure [6]. However, in high-risk patients or those with significant comorbidities, less invasive alternatives are increasingly pursued. Endoscopic management has emerged as a viable option in selected patients, particularly when the stone is accessible and the anatomy favourable [5]. In this case, the patient's cardiac status precluded major abdominal surgery, prompting an endoscopic-first approach. The use of mechanical lithotripsy allowed for fragmentation of the impacted stone, facilitating spontaneous passage and resolution of obstruction without colectomy.

This case is notable for several reasons. First, it involves a rare presentation of gallstone ileus in the colon. Second, it underscores the role of diverticular disease in predisposing to stone impaction. Finally, it demonstrates that with multidisciplinary collaboration and the use of advanced endoscopic tools, patients with significant comorbidities can be successfully managed without surgery.

Conclusion

Gallstone-induced large bowel obstruction is a rare but serious complication that requires a high index of suspicion, particularly in elderly patients with a history of gallbladder disease. While surgery remains the mainstay of treatment for most cases of gallstone ileus, endoscopic intervention should be considered in select patients with colonic involvement and high surgical risk. This case highlights the successful use of mechanical lithotripsy to relieve an obstructing gallstone at a sigmoid diverticular stricture, thus avoiding colectomy. As endoscopic tools and techniques continue to advance, the role of minimally invasive approaches in managing rare gastrointestinal obstructions is likely to expand. Reporting such cases contributes to the growing evidence base and may support future guidelines on the management of this uncommon entity.
