Stress-Controlled Torsional Fatigue Assessment of Selected Contemporary Endodontic Instruments
Kushagra Ohri, Philip Yuan-Ho Chien, Ove A. Peters
TL;DR
This study compares how well different endodontic instruments resist twisting fatigue at different temperatures, showing that their performance varies based on design and material.
Contribution
The study introduces stress-controlled torsional fatigue testing of modern endodontic instruments under varying temperatures.
Findings
ProTaper Ultimate (PTUL) showed the highest torsional fatigue resistance (TFR), while TruNatomy (TN) had the lowest.
Environmental temperature affected TFR differently depending on the instrument type and material.
Custom stress-controlled conditions revealed significant differences in TFR among the tested instruments.
Abstract
To compare stress-controlled torsional fatigue resistance of TruNatomy (TN), ProTaper Next (PTN), and ProTaper Ultimate (PTUL) instruments of comparable sizes at both room and body temperature. Torsional strength and related twist angles were determined at both temperatures in a torque testing fixture. Stress-controlled torsional fatigue resistance (TFR) was determined by cycling instruments in a custom fixture to pre-set twist angles corresponding to 90% torsional strength until fracture. Data were analyzed using two-way ANOVA and Tukey post-hoc tests with the significance level set at 0.05. Overall, mean (± standard deviation) TFR ranged from 192 (± 66) to 841 (± 201) cycles; PTUL had the highest TFR and TN the lowest; the differences among the three instruments were statistically significant. At 37 °C compared to room temperature, PTUL had a similar TFR, while PTN had a higher and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —The University of Queensland
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEndodontics and Root Canal Treatments · Dental materials and restorations · Dental Erosion and Treatment
Introduction
The use of nickel-titanium (NiTi) instruments is widespread globally, mainly due to their improved ability to prepare complex root canal systems [1]. Moreover, the motorization of NiTi instruments has played a role in reducing complications frequently associated with traditional stainless-steel files, such as the formation of ledges, zips, perforations and transportations within the root canal system [2]. However, NiTi instruments are not immune to fracture, and fractured instruments in the root canal can physically obstruct the ability to adequately perform cleaning and shaping. The biomechanics of NiTi instrument fractures have been recently reviewed with specific considerations of torsional fatigue resistance (TFR) [3].
In root canal preparation with engine-driven instruments and under the constraints of the specific canal anatomy, there is an interplay of torsional loading and fatigue with the process of crack nucleation [3]. Importantly, the two distinct types typically described for instrument fracture, namely torsional (ductile) failure and cyclic (brittle) fatigue failure [4], are not representative of clinical conditions [2].
In the engineering literature, three experimental modalities have been previously described for evaluating fatigue behavior of nickel-titanium: stress-controlled testing (stress-life), strain-controlled testing (strain-life) and damage-tolerant analysis [5, 6]. Stress-controlled experiments involve a cyclic test under fixed force amplitudes irrespective of the displacement, whilst strain-controlled tests are performed under fixed strain amplitudes, irrespective of the force required to achieve those displacements [7]. The damage-tolerant approach applies fracture mechanics to a distinct set of material properties and a pre-established crack size to provide a conservative prediction to fatigue life [8].
A strain-controlled design [9], based on twist angles and applied to a single instrument, may provide initial information for TFR. However, to compare different instrument designs a stress-controlled design [10, 11] is preferable because canal preparation is inherently a function of the stress developing in a instrument while cutting dentin [3]. Such as stress-controlled experiment would involve setting instrument- and location-specific torque thresholds in order to derive clinically applicable performance indicators.
Importantly, even recent studies testing TFR do not account for some important variables such as environmental temperature [12] and relevant differences in instrument design and alloys. Therefore, the present experiments aim to address this gap in knowledge by determining stress-controlled TFR of selected contemporary rotary instruments manufactured from different alloys tested at simulated body temperature. The null hypotheses were that there are no differences in TFR among the tested instruments and between temperatures.
Materials and Methods
The experiments described here included a total of 180 rotary instruments with 60 each of the following: TruNatomy (TN) Prime (tip size 0.26 mm), ProTaper Next (PTN) X2 (tip size 0.25 mm) and ProTaper Ultimate (PTUL) F2 (tip size 0.25 mm) (Dentsply Sirona, Charlotte, NC, USA).
Sample size estimates for the two experiments described below were based on previously published data for UTS [4] and for strain-controlled TFR [9], respectively. Specifically, the expected effect sizes (Cohen’s D) for UTS tests was estimated to be about 4.5 whilst in the absence of comparable stress-controlled data, strain-controlled comparisons suggested an effect size of about 3.5.
Twelve instruments from each of the 3 groups were randomly selected to determine the ultimate torsional strength (UTS) at 6 mm from the tip (D6). Six instruments per group were tested at 22 °C and 6 were tested at 37 °C (Table 1). Determination of UTS was broadly performed according to ISO 3630-1:2019 standards, with the exception that the level of fracture from the tip was at 6 instead of 3 mm. The torque testing device [4, 13] has been described in detail elsewhere; in brief, it consisted of a torque sensor and a motor, mounted on a metal base. A instrument was clamped in a soft brass chuck and rotated at 2 revolutions per minute (rpm); torque was continuously recorded (in Newton-centimeters, Ncm) over time (in milliseconds, ms), whilst twist angles were calculated off-line based on the rpm setting.
Table 1. Allocation of samples for each instrument, condition and test (see text for details)UTSTFRTotalRoom TemperatureTruNatomy Prime62430ProTaper Next X262430ProTaper Ultimate F262430Body TemperatureTruNatomy Prime62430ProTaper Next X262430ProTaper Ultimate F262430180
For the instruments tested at simulated clinical conditions, an ambient temperature of 37 °C (± 2 °C) was maintained with a fan heater. At the start and end of every test cycle, temperature at the surface of the instrument was confirmed by using a Ti9 infra-red thermal imager (Fluke Corp., Everett, WA, USA) with an accuracy of 5% and a temperature range of -20 °C to + 250 °C. Surface temperature of the instruments at room temperature measured approximately 22 °C. Since the emissivity of the Ti9 imager was fixed at 0.95 (95%), the shanks of the instruments were painted black to render the surface efficient in radiating energy. Data obtained from the torque testing platform for UTS and time to instrument fracture was recorded for off-line analysis. Subsequently, values for 90% of maximum torque before fracture (90% UTS) and the time taken to reach this value were calculated for each instrument. These values were then used to derive mean twist angles required by instruments from each group to reach 90% UTS at room temperature and at 37 °C.
Mean twist angles served as pre-sets of cyclic loading for a customized stress-controlled test to determine TFR. Each cycle was defined as starting in a clockwise direction from a start position of zero torque in the instrument to the pre-set angle and then back to start position in an anticlockwise direction. Therefore, the maximum amplitude in the cycle was when an instrument was subjected to a torque value equivalent of 90% UTS and the minimum amplitude was zero torque, both of which occurred at D6. Each instrument was tested for TFR at the manufacturer’s recommended speed of rotation (PTN-300 rpm, TN-500pm, PTUL-400 rpm).
The experimental setup for TFR test comprised of a custom designed motor assembly to which the shank of the instrument was attached using a specially made coupling (Fig. 1). The mounting assembly was made up of galvanized steel bracket plates with openings that accepted 6 instruments per run. These were placed such that the tip of a instrument protruded 2 mm through the perforated plate and 4 mm of shank was surrounded by a perforation in the plate. Flowable composite resin (Filtek Supreme, 3 M ESPE, North Ryde, NSW, Australia) was used to secure each instrument in a perforation of the bracket plate.

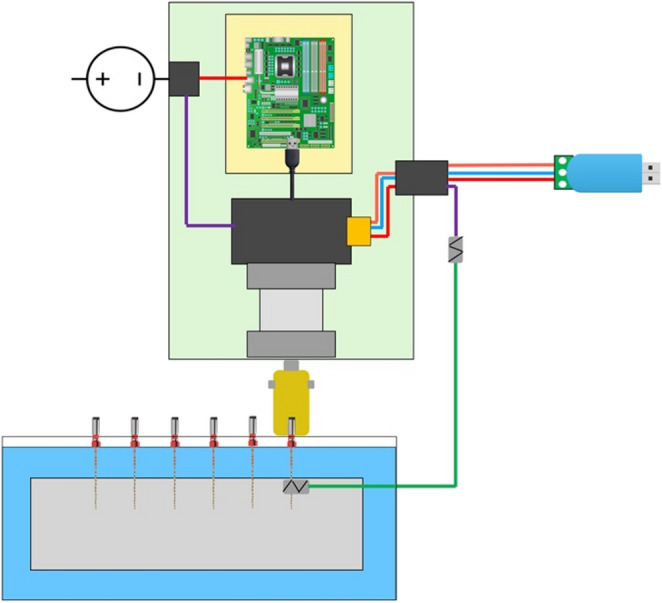

Fig. 1. Schematic diagram of motor assembly and testing set-up. Instruments were placed in the fixture as described and tested in random sequences in a water bath (blue shade) at room or body temperature, respectively. A lead connected the embedded instrument portion to the controller; its interruption stopped the cycle counter and motor after instrument fracture
Mounting was performed under 4.3X magnification using EyeMag loupes (Carl Zeiss, Oberkochen, Germany). To confirm the instrument mounting accuracy, photographs of mounted instruments were taken with a digital single-lens reflex camera Canon EOS100 D (Canon, Tokyo, Japan) and a macro-lens (Canon MP-E65mm f/2.8 1-5X Macro) and ring-light flash (Canon MR14-EX II) prior to being assessed using ImageJ (Public Domain license, U.S. National Institutes of Health, Bethesda, MD, USA) at 300x digital zoom. Mounting accuracy at D6 was ± 0.28 mm.
A stepper motor (17MDSI202S Anaheim Automation, Anaheim, CA, USA) with an accuracy of 0.9° in rotation was used for cycling the instruments. The motor was mounted in a waterproof case (Jaycar, Rydalmere, NSW, Australia) and connected to a USB RS-485 dongle (Core Electronics, Newcastle, NSW, Australia), which in turn connected the computer output to the motor (see Fig. 1). A total of 24 instruments were tested at each of the two temperatures and for each instrument type (Table 1).
Custom software was written in LabVIEW (National Instruments, Austin, TX, USA) for both controlling motor function, including stopping cycles at instrument fracture, and for counting cycles to fracture as a measure of TFR. Specifically, when the fatigue cycling started, the software was set to count the number of cycles in a way that a half cycle was when the instrument rotated clockwise to 90% UTS and another half was when it rotated back to the starting position. As a result of instrument fracture, a break in continuity occurred between the lead connecting the instrument holder with the remainder of the circuit, which then automatically stopped the motion of the motor. At this point, the program paused the cycle count and the number of cycles to fracture was recorded.
Data are presented as means and standard deviations (SD) for UTS and twist angle at fracture for stationary loading as well as number of cycles to fracture to as a measure of TFR. Comparisons were made between room temperature and body temperature among instruments.
The Shapiro-Wilk test was used to examine the data and confirmed normality for all data and variances were considered sufficiently homogenous based on Bartlett’s test. Subsequently, statistical analyses (Prism Version 9.5.1, Graph Pad, Boston, MA, USA) were performed with two-way analysis of variance (ANOVA) with Tukey’s post-hoc tests. The significance level was set at 0.05.
Results
Stationary Loading (UTS and Twist Angle)
The data from stationary loading at D6 is presented in Table 2 as well as in Fig. 2. ANOVA confirmed overall significant differences for UTS (F = 254.72; 2 DF; p < 0.0001) and twist angle (F = 131.43; 2 DF; p < 0.0001) at D6 among instruments, whilst there was no significant effect of temperature (F = 0.36; 1 DF; P = 0.553).
Table 2. Stationary fracture data for instruments tested at room and body temperature (n = 6 per group). Note fracture level was at D6. Both Ultimate Torsional Strength (UTS) and twist angles were significantly different among instruments (see text for details)UTS range [Ncm]Twist angle [degrees]Mean UTS [Ncm] (± SD)Mean twist angle [degrees] (± SD) Room temperature TruNatomy Prime1.32–1.63574–6601.52 (0.10)629 (33)ProTaper Next X22.14–2.58246–2752.40 (0.17)255 (11)ProTaper Ultimate F22.60–2.82376–6372.66 (0.13)505 (90) Body temperature TruNatomy Prime1.37–1.74542–6751.49 (0.14)631 (54)ProTaper Next X22.30 - 2.67192–3222.44 (0.13)249 (61)ProTaper Ultimate F22.47–2.68326–4822.57 (0.08)412 (61)

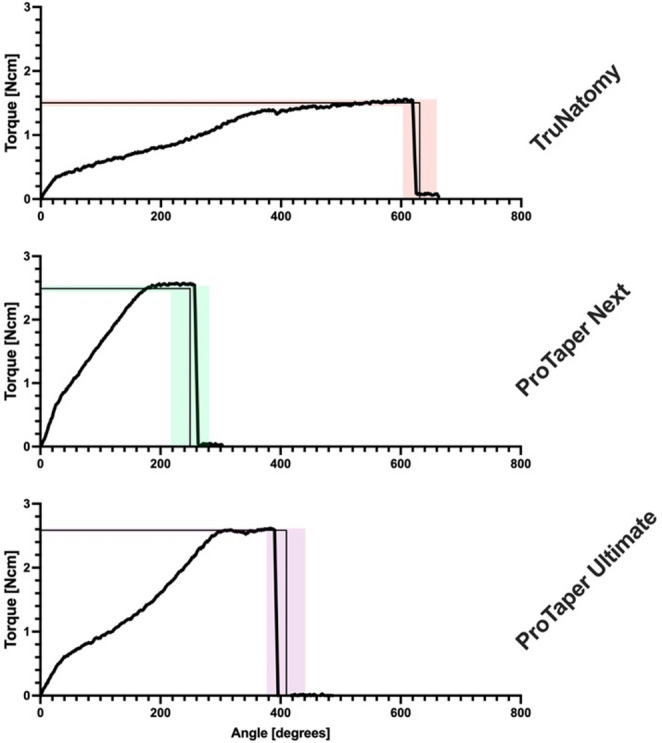

Fig. 2. Data for representative examples of stationary fracture for the three instruments tested at body temperature (lines indicate means for ultimate torsional strength and twist angle at fracture, while shaded areas represent ± SD, n = 6). Note torque to fracture was determined at D6
Post-hoc tests demonstrated that both at room and body temperature, UTS was ranked as: PTUL > PTN> TN (Table 2), with all pairwise comparisons showing significant differences (P < 0.01). Similarly, at both room temperature and body temperature, the twist angle to fracture was ranked as TN> PTUL > PTN (Table 2). Also in this case, all pairwise comparisions between instruments showed significant differences (P < 0.001).
At 90% UTS torque values for TN were in the extended plateau of the deformation phase for some instruments (Fig. 2) whereas for PTUL and PTN that level was always prior to the plateau phase. The presets for the cyclic loading test (90% UTS and corresponding twist angles) are listed in Table 3.
Table 3. Ultimate torsional strength (UTS) data used to calculate presets for torsional fatigue resistance (TRF) tests90% Max. Torque [range, Ncm]Time to 90% UTS [range, ms]Set twist angle [degrees]Predicted torque [Ncm]Room temperatureTruNatomy Prime1.19–1.4130,200 − 36,7004031.37ProTaper Next X21.93–2.3212,500 − 13,7001552.15ProTaper Ultimate F22.22–2.5422,200 − 25,7002912.40Body temperatureTruNatomy Prime1.23–1.5627,300 − 33,7003731.34ProTaper Next X22.07–2.4010,100 − 13,9001422.20ProTaper Ultimate F22.23–2.4121,900 − 22,6002682.31
Cyclic Loading (Torsional Fatigue Resistance)
The data for mean number of cycles to fracture in torsion are presented in Fig. 3. ANOVA confirmed significant differences among instruments (F = 190.9; 2 DF; P < 0.001). The effect of temperature alone (F = 0.03; 1 DF; P = 0.869) was not significant but there were significant interactions (F = 13.57; 2 DF; P < 0.001) for each instrument; the findings are summarized as follows according to Tukey’s post hoc tests. At both room and body temperature, TFR was ranked as PTUL > PTN> TN and the difference between the three was overall statistically significant (P < 0.001).
Compared to room temperature, TFR for TN decreased at body temperature; the difference was statistically significant (P < 0.01). Conversely, compared to room temperature, the TFR for PTN increased at body temperature and the difference was statistically significant (P<0.0.001). Tested at room and body temperature, PTUL had statistically similar TFR. Collectively the null hypotheses were therefore partially rejected.

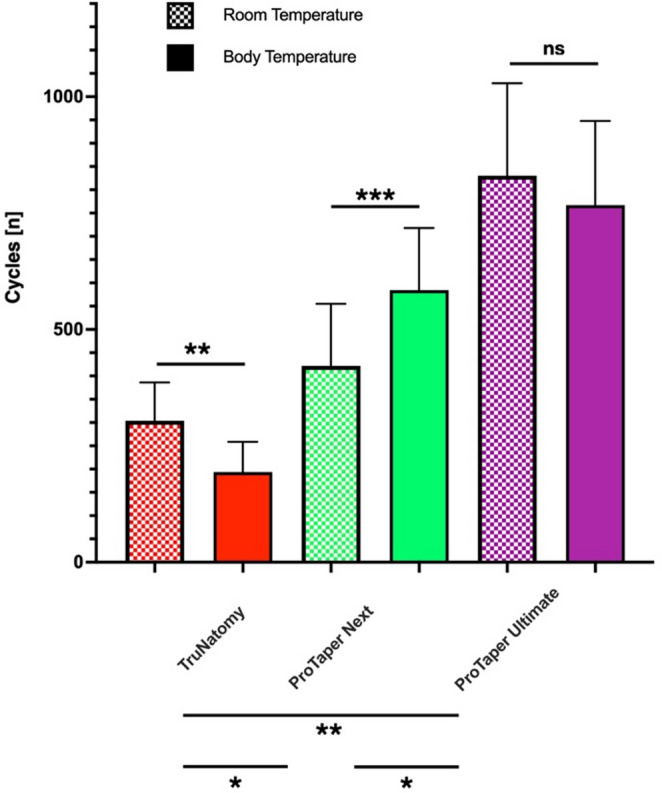

Fig. 3. Torsional resistance in stress-controlled conditions, expressed as numbers of cycles (±SD, n = 24) to fracture at room and body temperature. Significant differences using ANOVA and Tukey’s post-hoc tests are indicated by asterisks, ns (not significant)
