Study on Pitting Corrosion Simulation of Steel Plates Based on Cellular Automaton-Finite Element Coupling
Shizhong Liu, Wei Zhang
TL;DR
This study develops a model to simulate pitting corrosion in steel plates under harsh environmental conditions using a combination of experiments and simulations.
Contribution
The novel CAFE model integrates cellular automata and finite element analysis to simulate pitting corrosion under multi-field coupling conditions.
Findings
The CAFE model effectively captures pitting corrosion initiation and evolution under varying temperature and salinity.
Localized plastic deformation significantly accelerates pit propagation under current-driving conditions.
The model shows strong agreement between numerical predictions and experimental results.
Abstract
Pitting corrosion is a prevalent and highly detrimental form of localized corrosion, which can severely compromise the local load-bearing capacity of metallic materials and, in extreme cases, trigger structural failure. In response to the pronounced susceptibility of Q235 galvanized steel plates to localized pitting under the extreme service conditions of the South China Sea—characterized by high temperature, high salinity, high humidity, and coupled chemical corrosive effects—this study conducts a systematic investigation combining experimental characterization and numerical simulation. First, a novel accelerated pitting corrosion apparatus was designed and developed, and chloride ion cyclic corrosion (CICC) tests were performed on Q235 galvanized steel plates. The morphology and temporal evolution of pitting damage were comprehensively characterized. Subsequently, based on a coupled…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

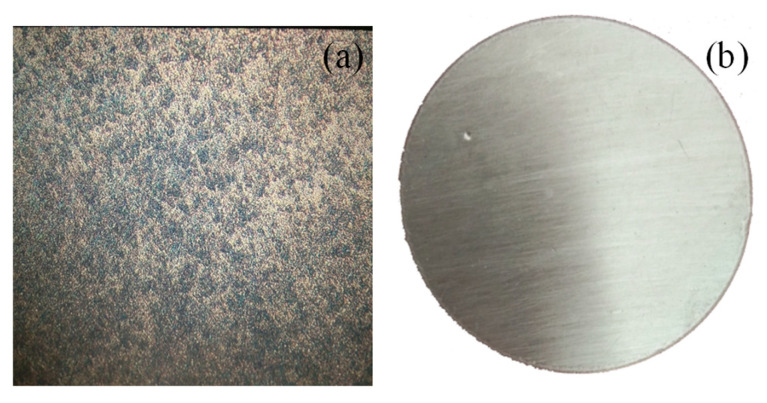

Figure 1

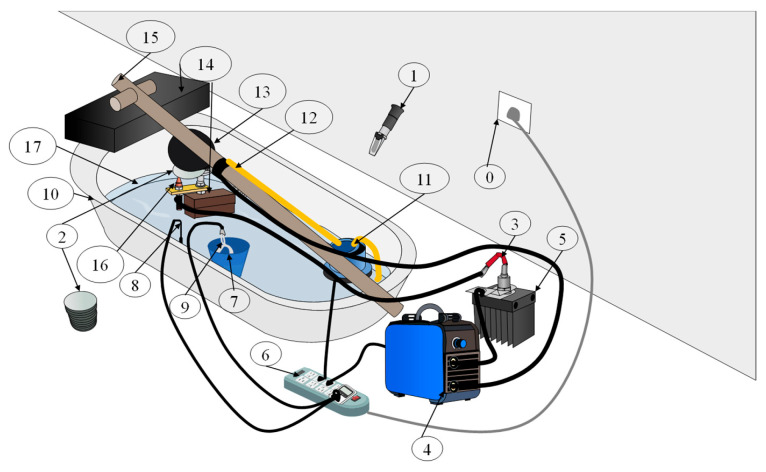

Figure 2

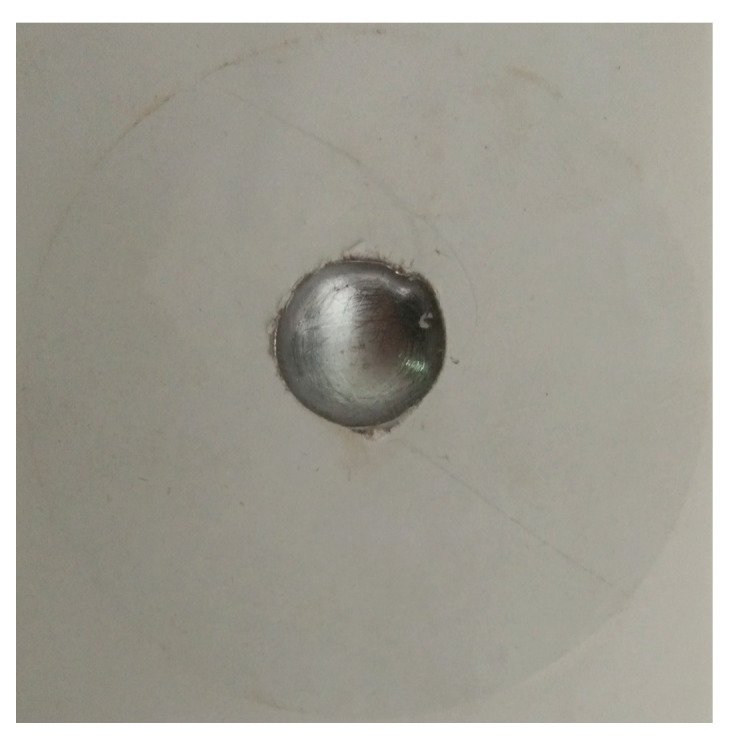

Figure 3

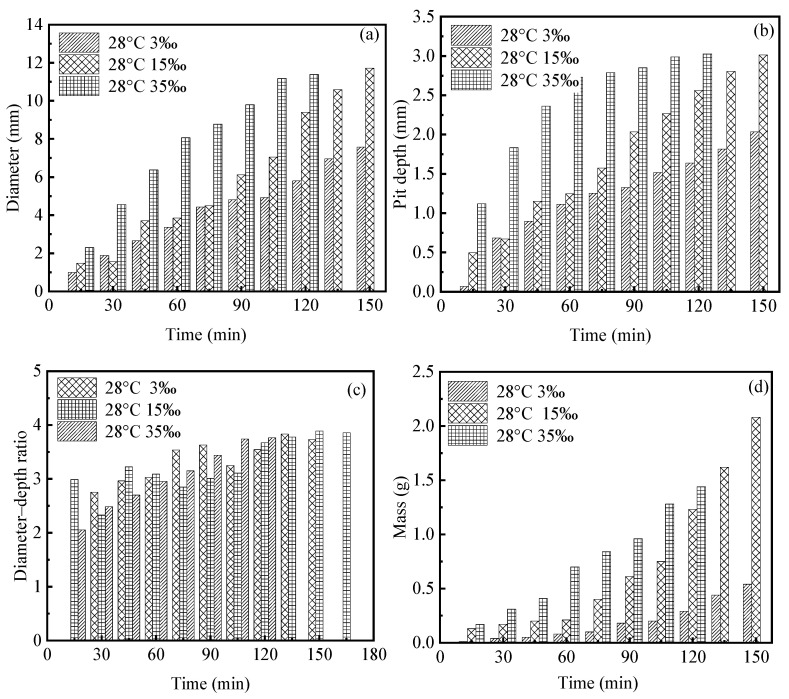

Figure 4

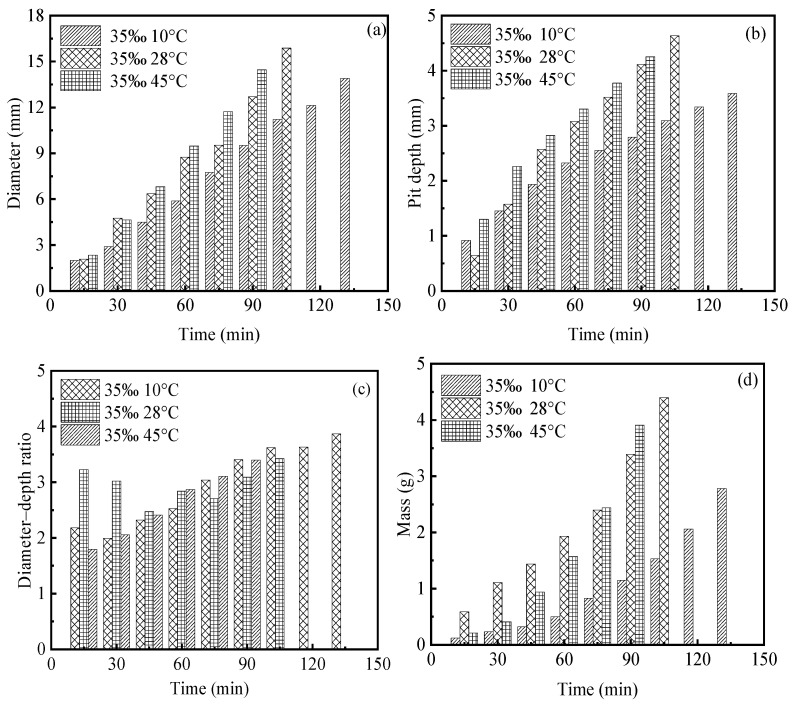

Figure 5

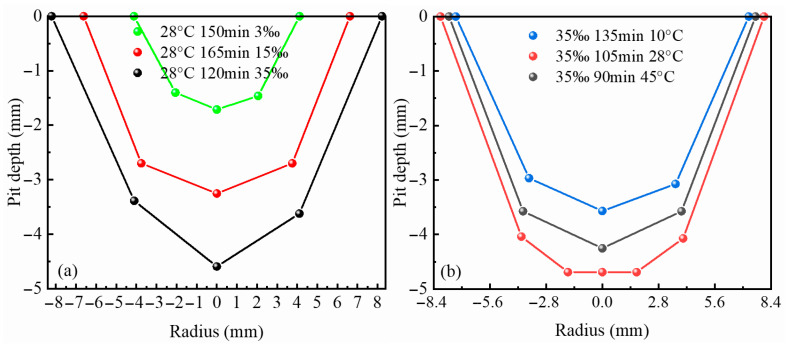

Figure 6

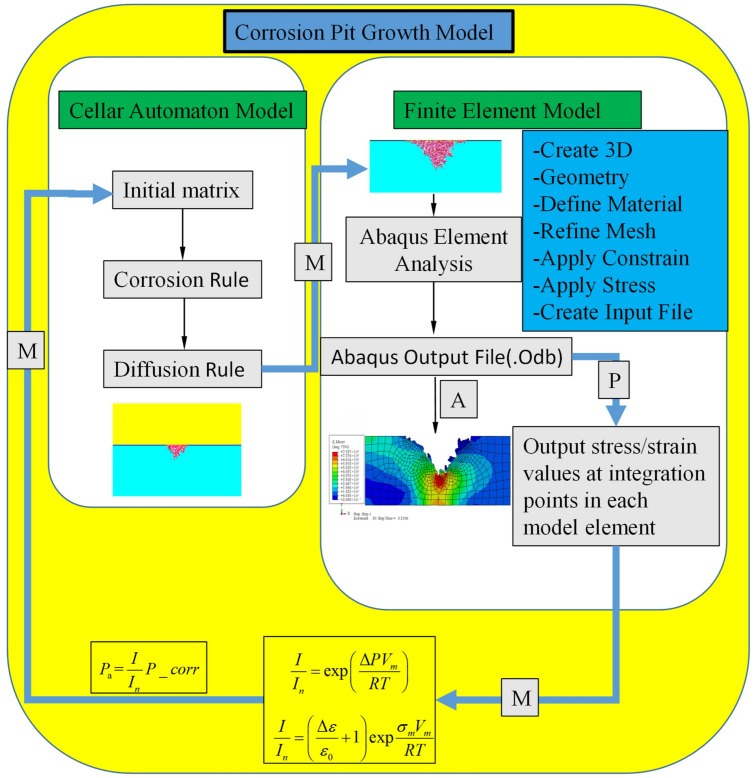

Figure 7

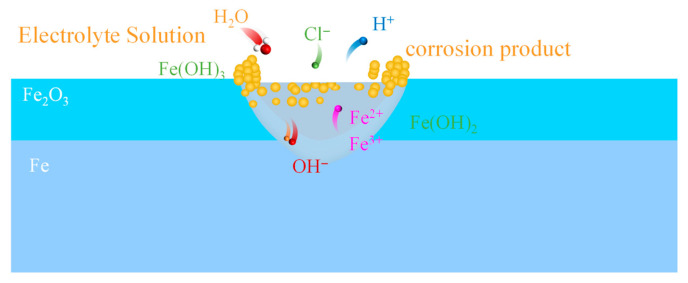

Figure 8

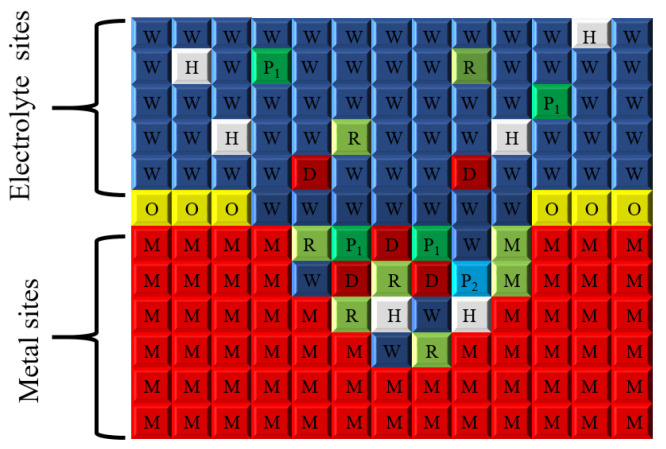

Figure 9

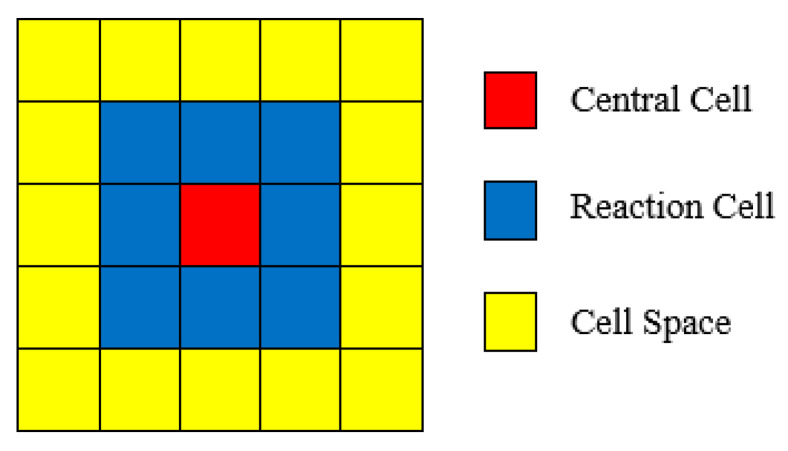

Figure 10

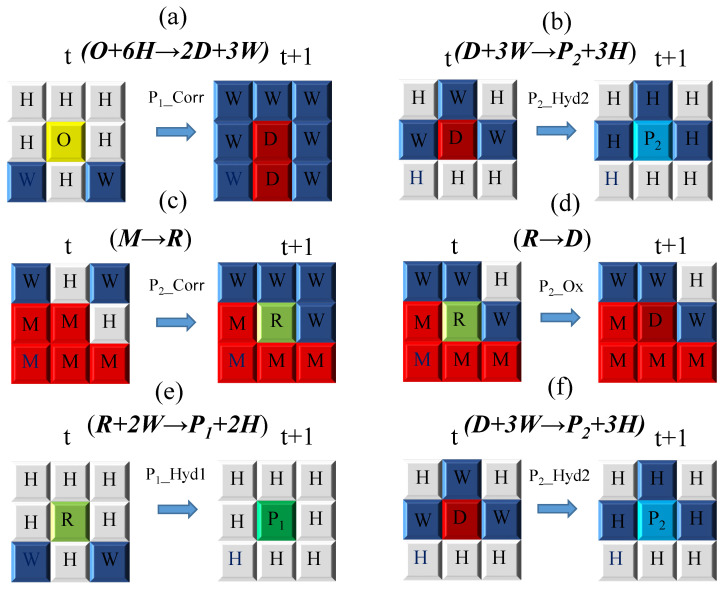

Figure 11

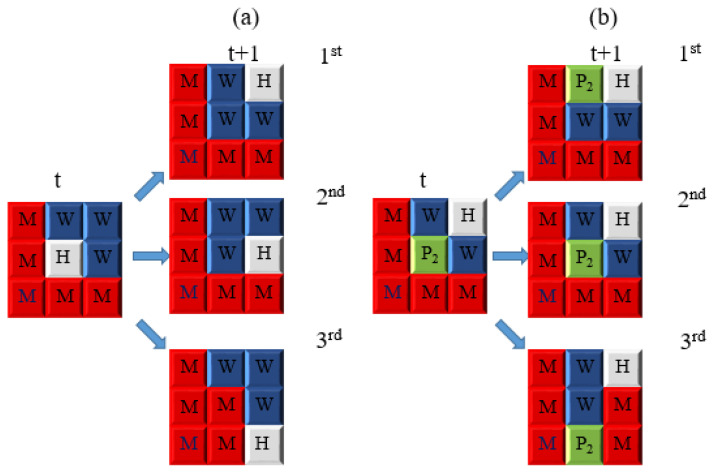

Figure 12

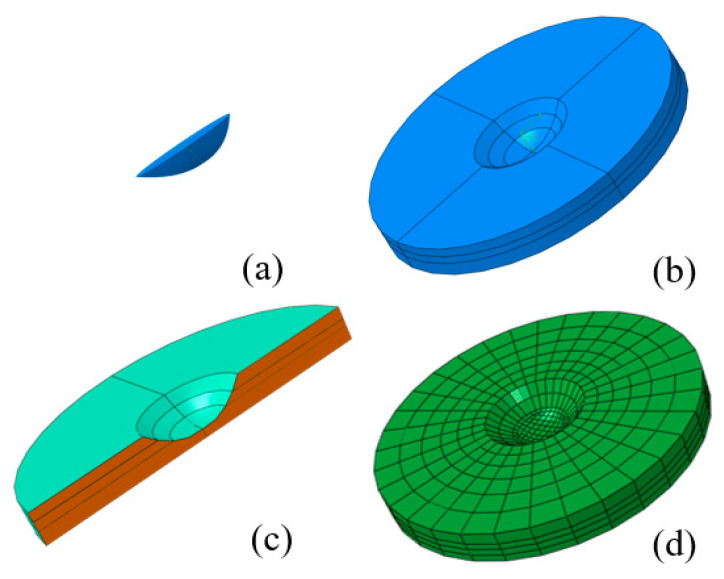

Figure 13

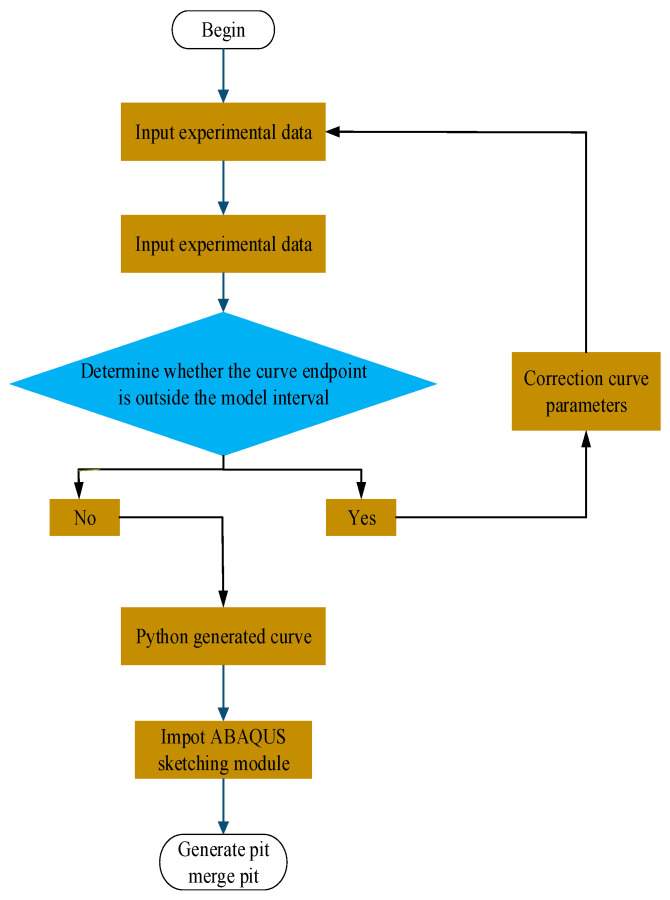

Figure 14

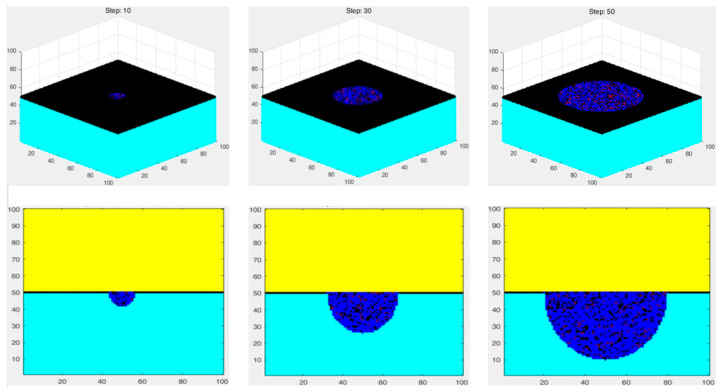

Figure 15

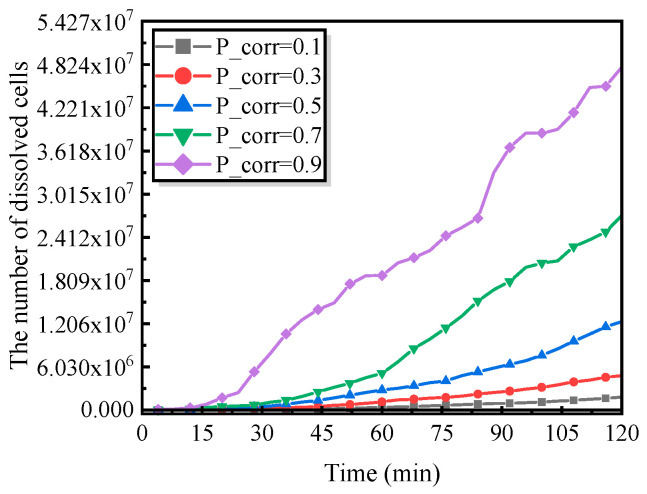

Figure 16

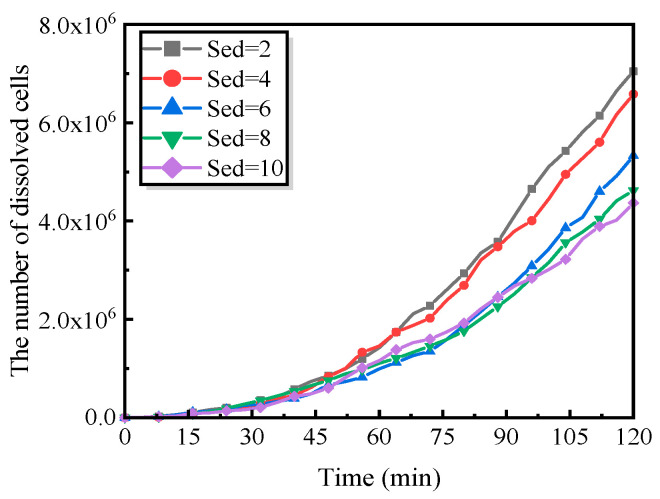

Figure 17

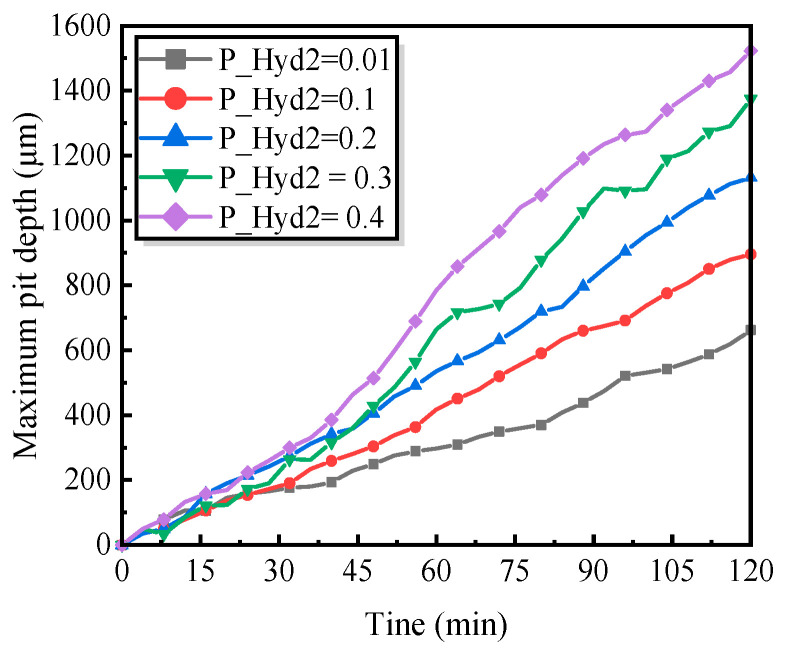

Figure 18

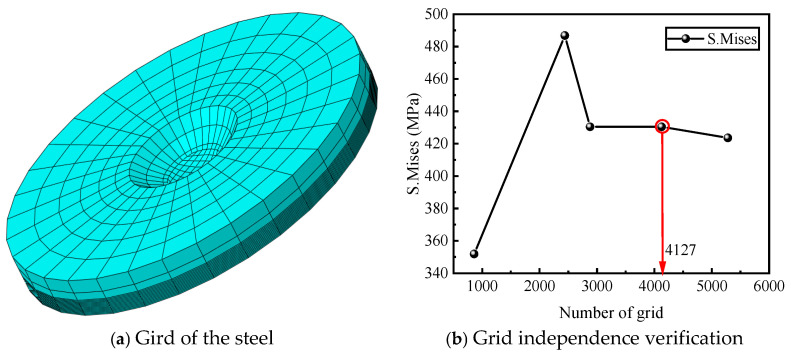

Figure 19

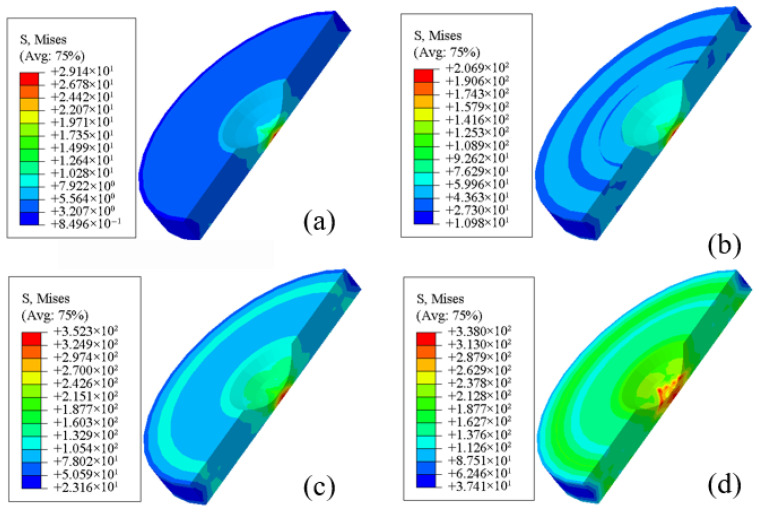

Figure 20

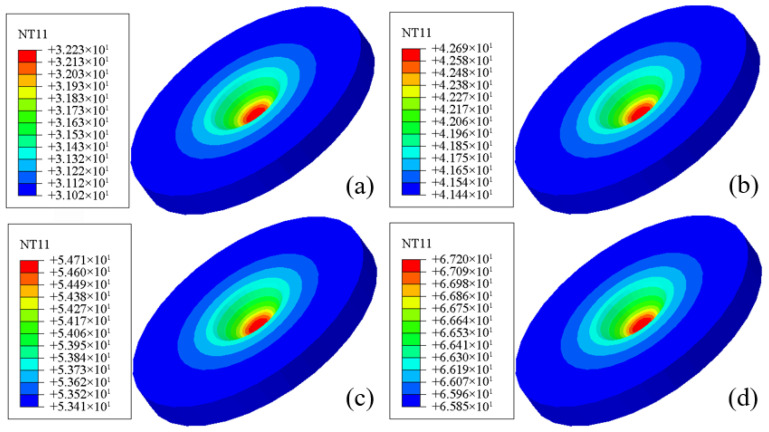

Figure 21

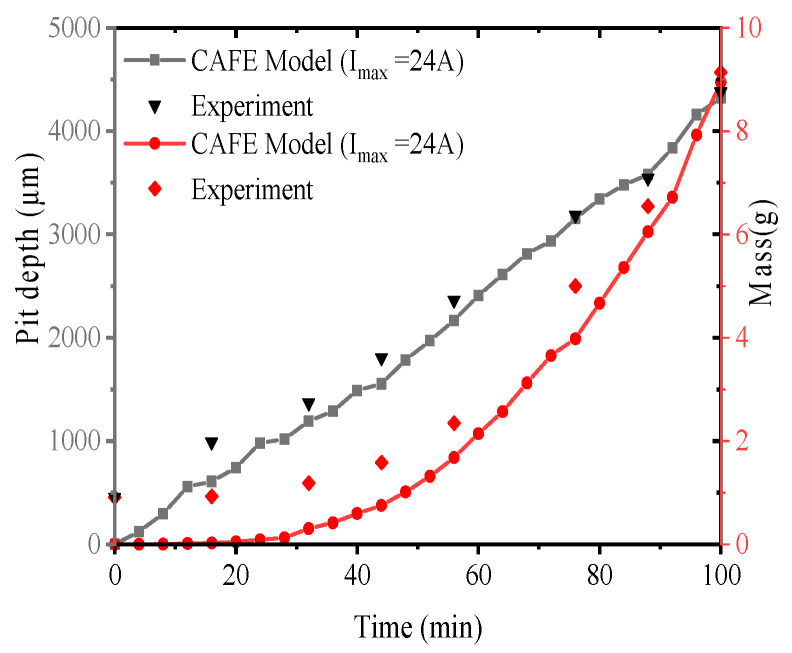

Figure 22Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsStructural Integrity and Reliability Analysis · Hydrogen embrittlement and corrosion behaviors in metals · Corrosion Behavior and Inhibition
