Low-Temperature Self-Healing Cement Mortar Enabled by Novel Composite Microcapsules: Performance, Mechanism, and Optimization
Yao Li, Yonggang Deng
TL;DR
A new type of self-healing cement mortar was developed to work effectively in cold environments by using composite microcapsules that enable crack healing and strength recovery.
Contribution
The novel composite microcapsules with ethyl cellulose shell and dual-core content enable self-healing performance in low-temperature conditions.
Findings
The optimal formulation achieved a crack surface healing ratio of up to 44.1% at −20 °C.
Compressive strength recovery reached up to 6.0% under the same low-temperature conditions.

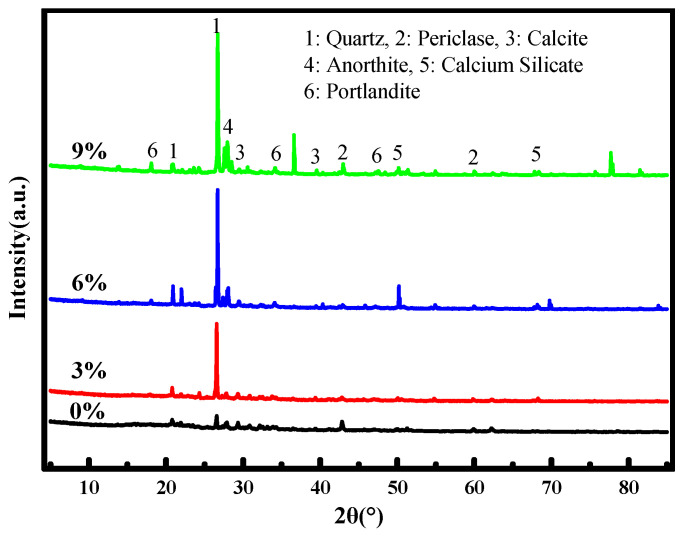

The healing mechanism involves calcium carbonate, C–S–H gel, and anorthite within a polymerized epoxy network.
Abstract
While self-healing concrete shows promise for infrastructure repair, its effectiveness is significantly compromised in low-temperature environments because of slowed reaction kinetics and the embrittlement of capsule shells. To address this limitation, novel composite microcapsules featuring an ethyl cellulose shell and a dual-core comprising expansive cement and epoxy resin were developed. These microcapsules were fabricated using a physical spheronization-coating method and subsequently incorporated into cement mortar. Response surface methodology was employed to identify the optimal system, which balances self-healing performance with the retention of mechanical properties: a microcapsule content of 3% (by mass of cement) and a particle size range of 1.4 to 1.7 mm. Under conditions of −20 °C, the optimal formulation achieved a crack surface healing ratio of up to 44.1% and a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

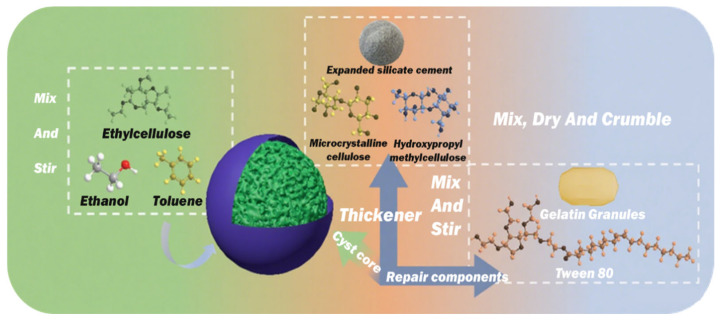

Figure 1
Figure 2

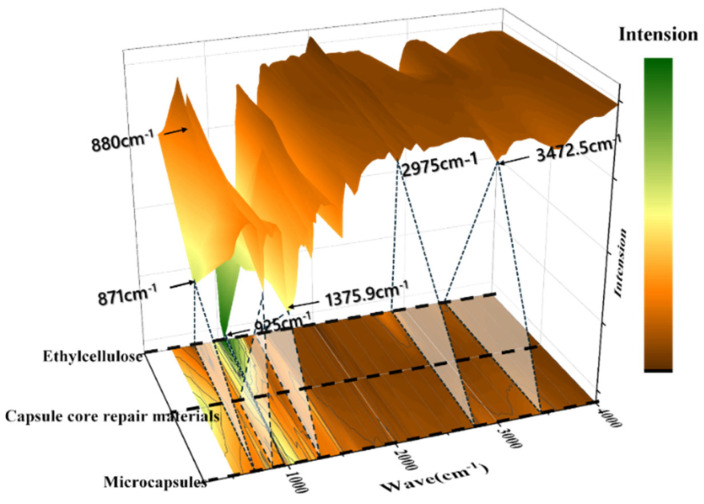

Figure 3

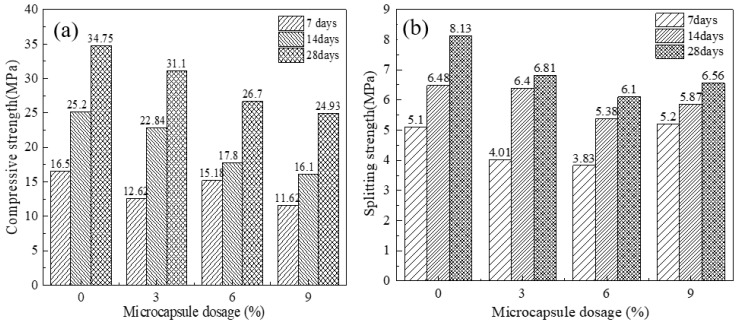

Figure 4

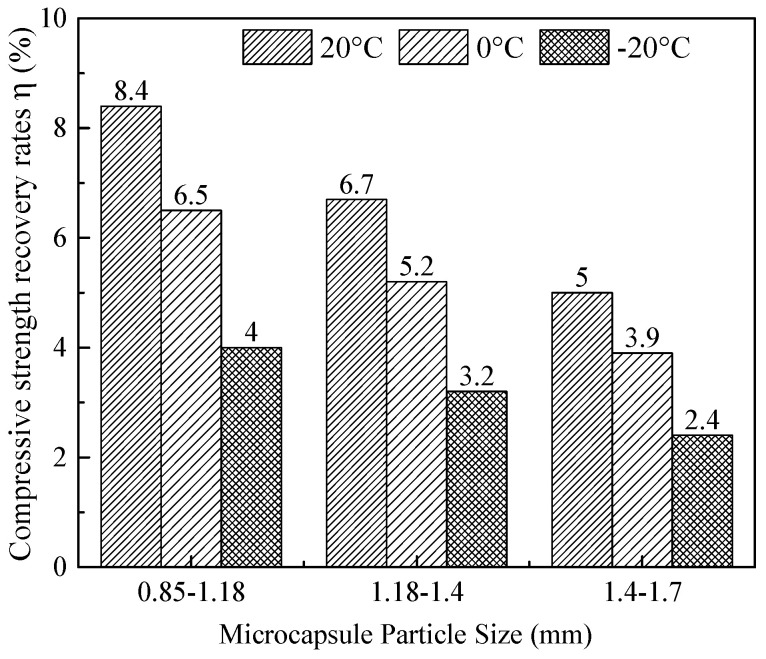

Figure 5

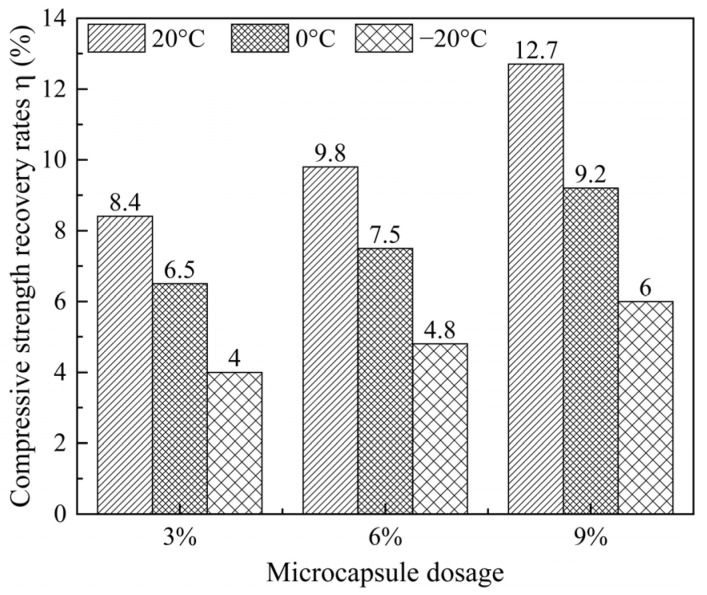

Figure 6

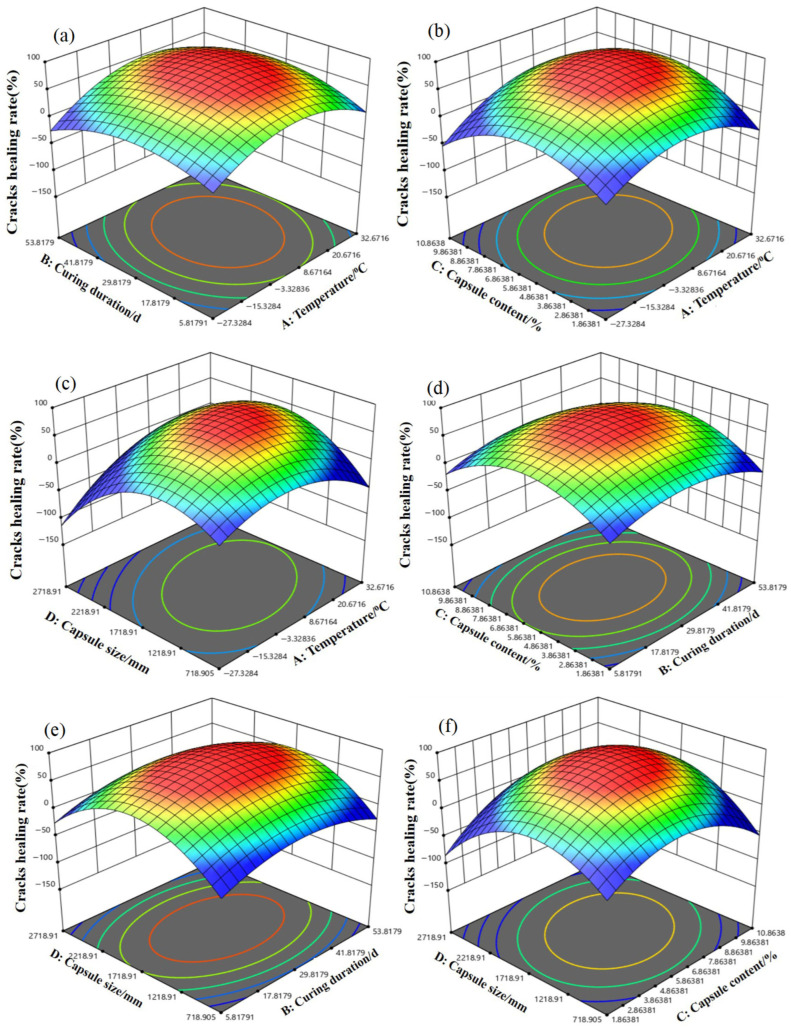

Figure 7

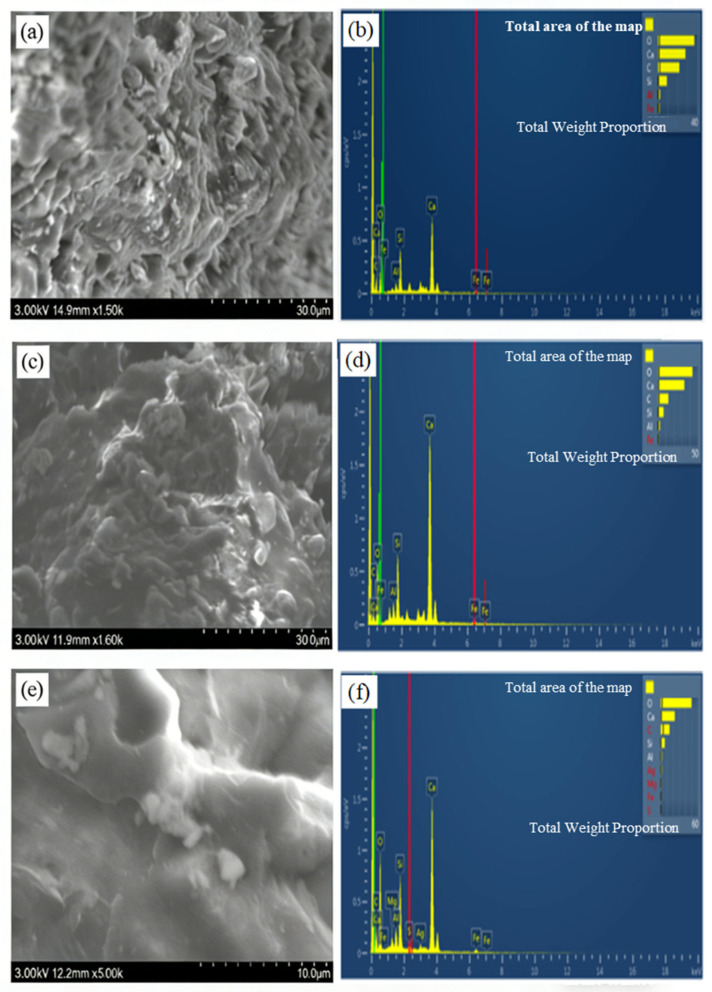

Figure 8

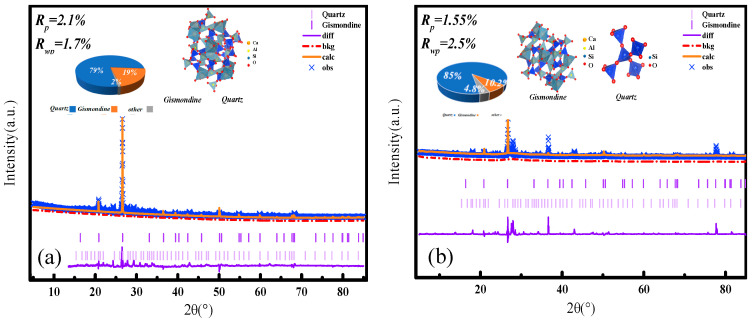

Figure 9

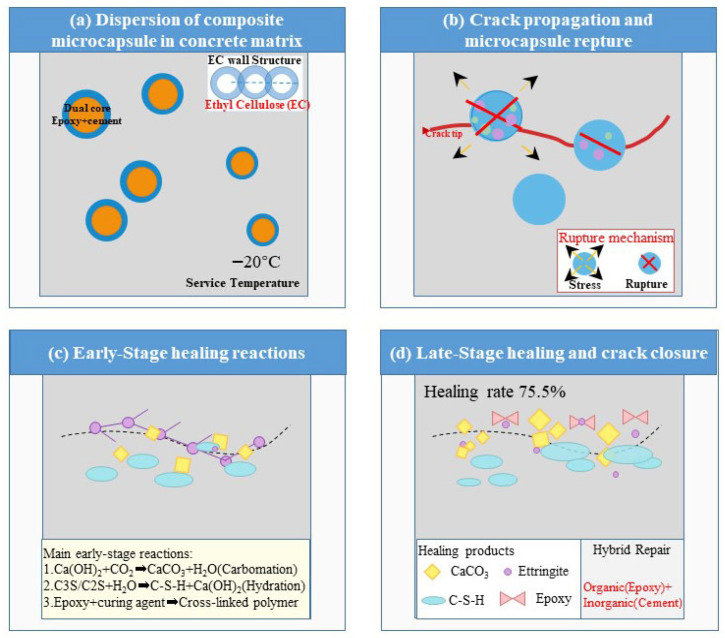

Figure 10
Figure 11Peer Reviews
