Bio-Inspired Voronoi-Based Porous Tubular Structure Design and Crashworthiness Properties
Mengfei Han, Qinxi Dong, Hui Wang
TL;DR
This paper presents a bio-inspired design for porous tubular structures that mimic luffa sponges, showing improved energy absorption and lightweight properties.
Contribution
A novel bio-inspired Voronoi Tube (BVT) design method is introduced, combining Voronoi tessellation and optimization for enhanced crashworthiness.
Findings
The BVT structure replicates the energy absorption behavior of natural luffa sponges.
Increasing the diameter from 0.6 mm to 1.0 mm boosts specific energy absorption by 78.32%.
Tailored geometry adjustments under identical mass conditions can enhance SEA by up to 34.57%.
Abstract
Porous tubular structures are of significant interest in engineering due to their exceptional potential for lightweight design, energy absorption, and multifunctional integration. Inspired by the unique net architecture of natural luffa sponges, this study introduces a novel design approach for such structure, namely bio-inspired Voronoi Tube (BVT). This design employs Voronoi tessellation patterns, parametrically controlled through the spatial distribution of seed points and integrates iterative optimization algorithms, to achieve precise coordinated regulation over the randomness and continuity of the resulting spatial network, closely mimicking the biological paradigm. Then, specimens are fabricated via additive manufacturing and then quasi-statically compressed axially, followed by systematic mechanical testing of the base material. The experimental results are analyzed to reveal…
Click any figure to enlarge with its caption.

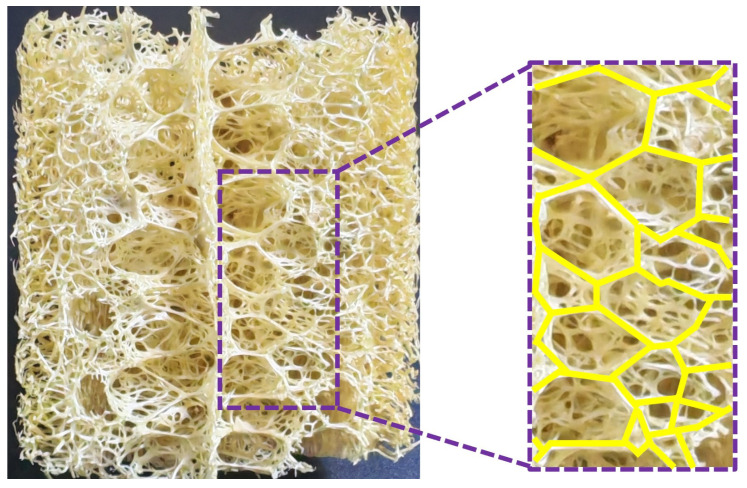

Figure 1

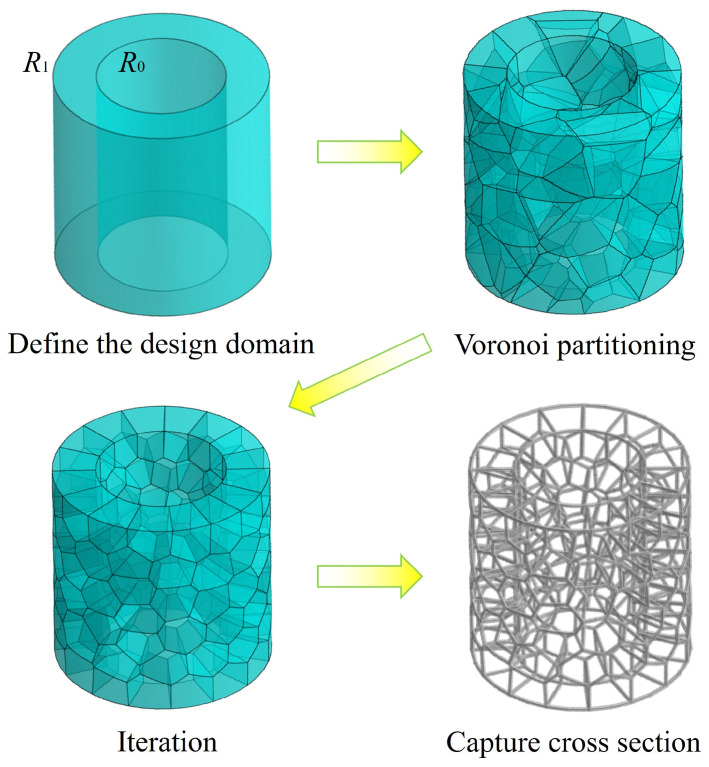

Figure 2

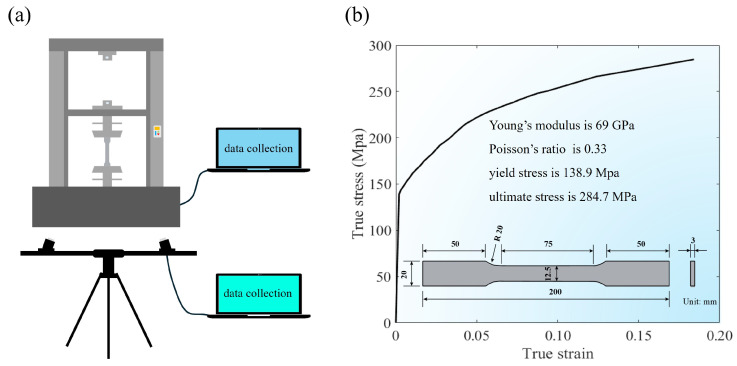

Figure 3

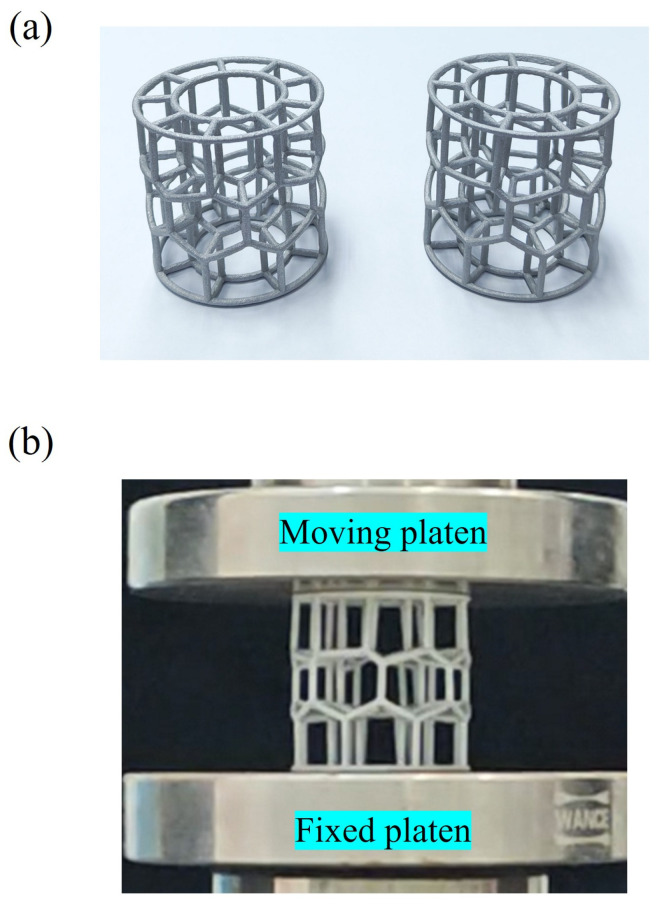

Figure 4

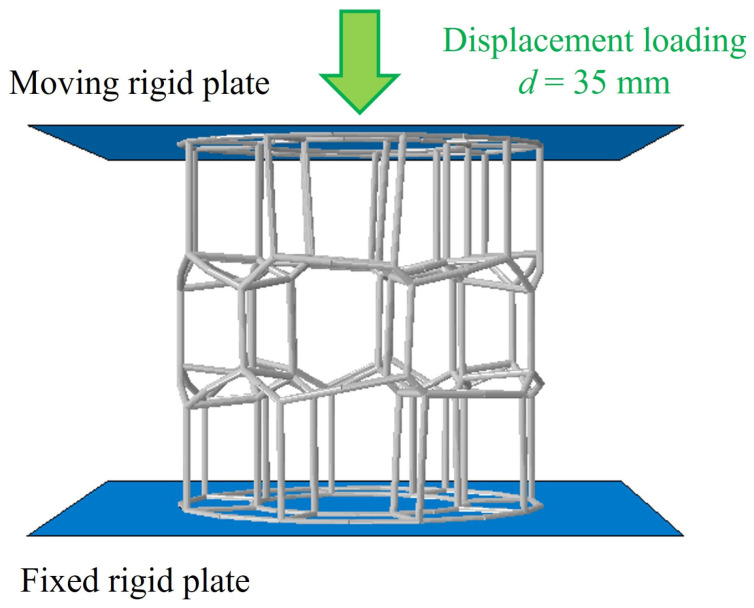

Figure 5

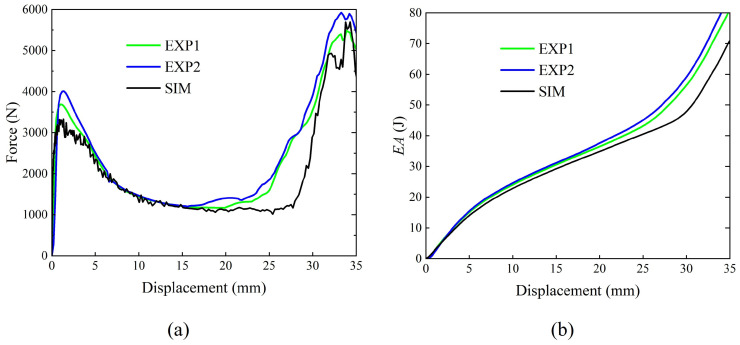

Figure 6

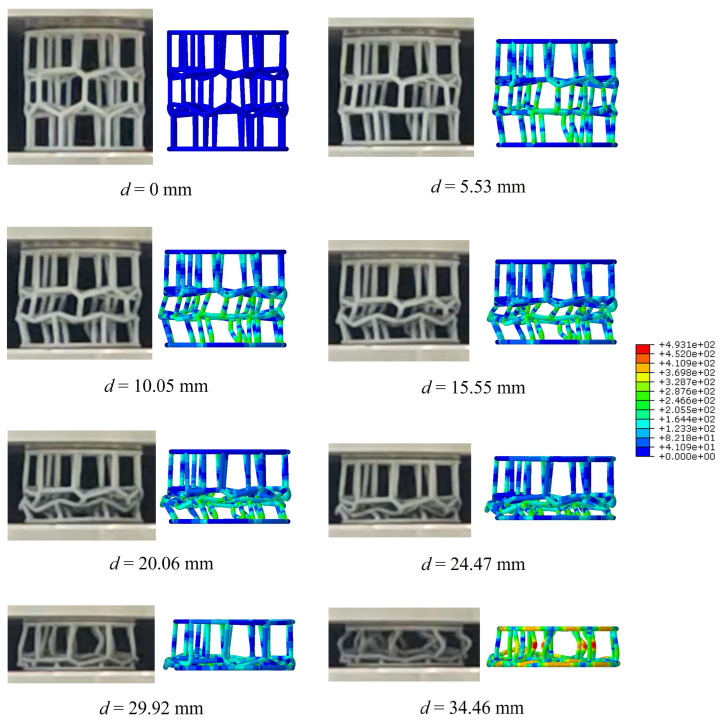

Figure 7

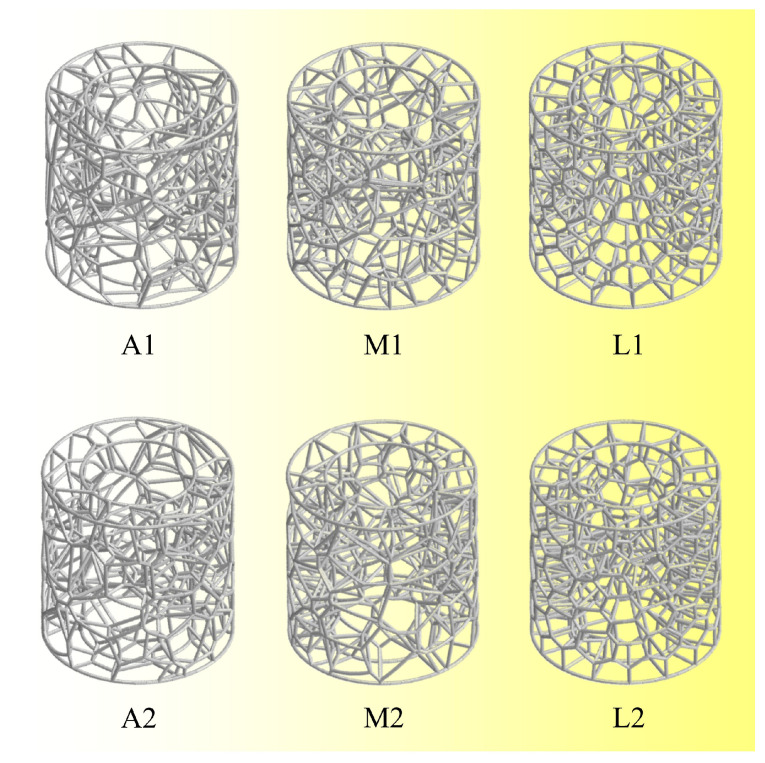

Figure 8

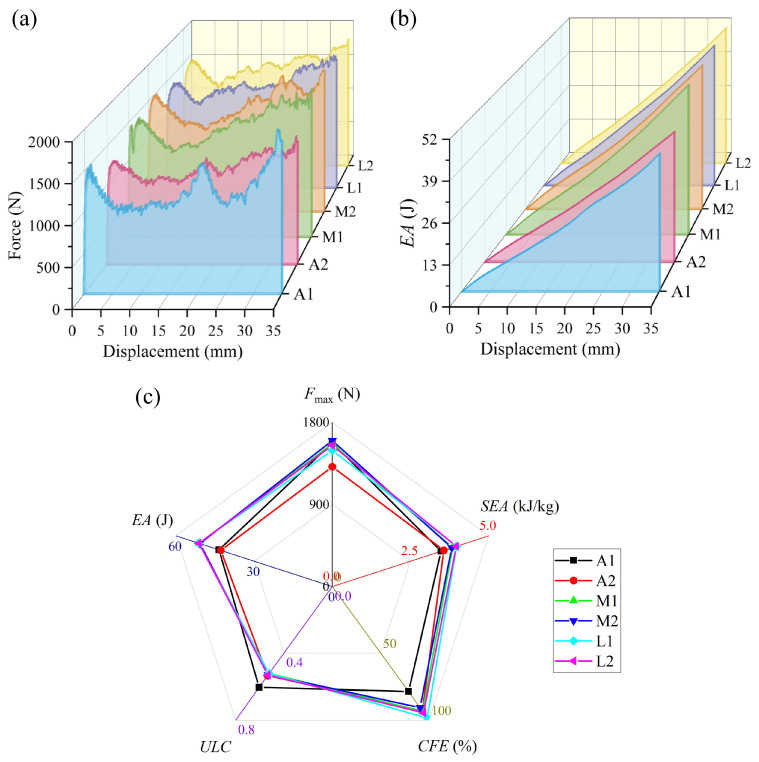

Figure 9

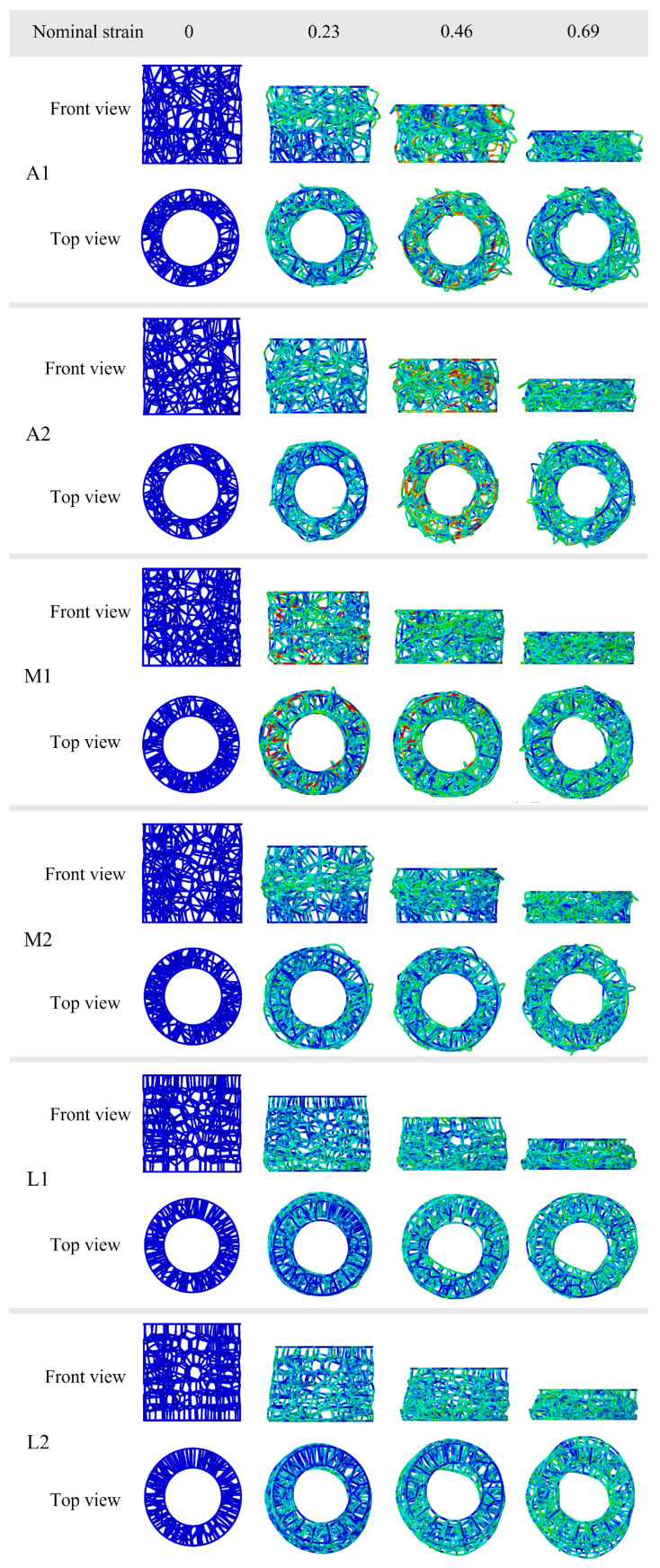

Figure 10

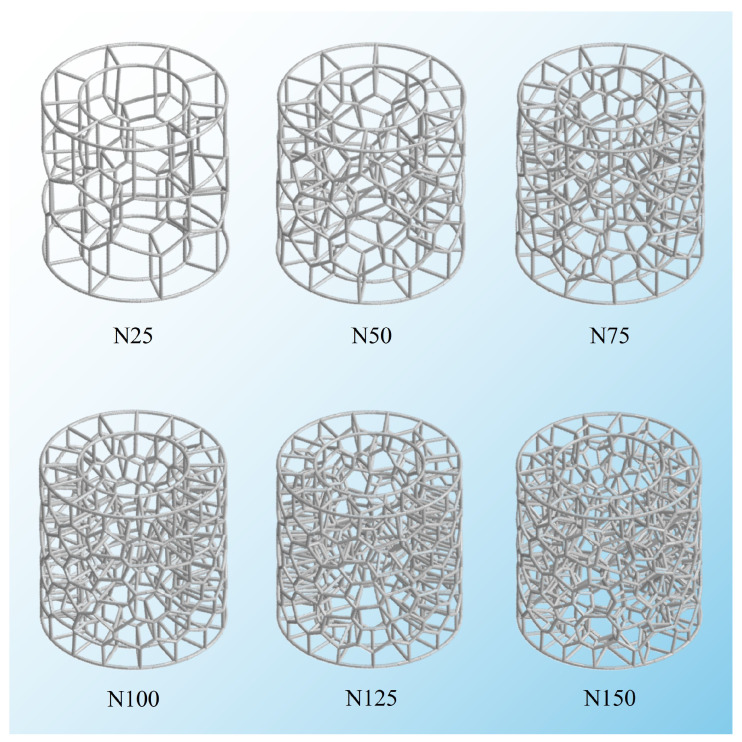

Figure 11

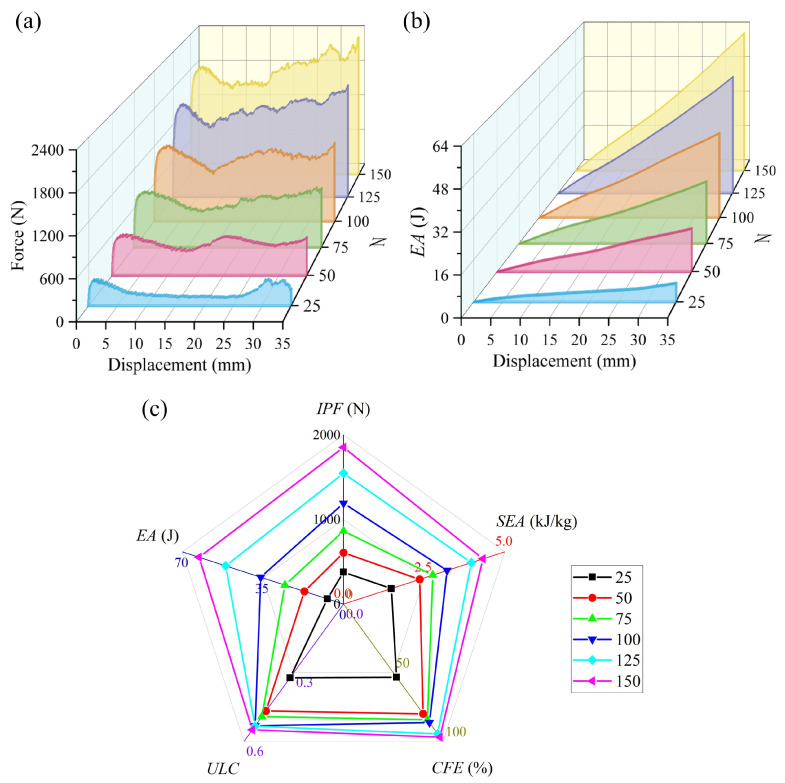

Figure 12

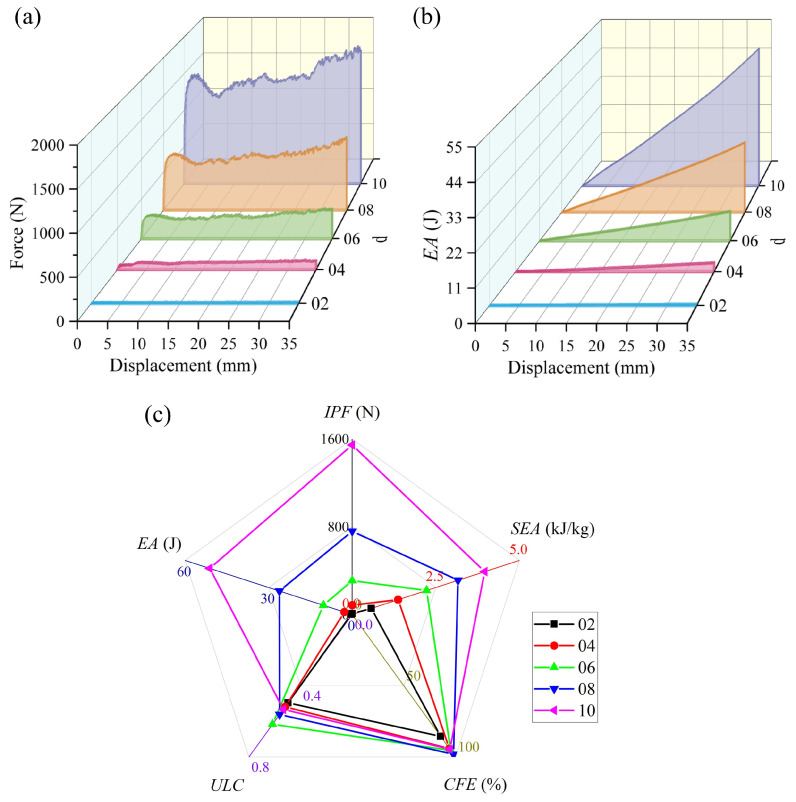

Figure 13

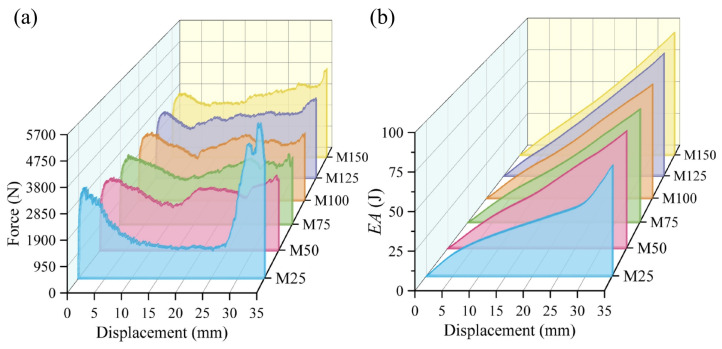

Figure 14

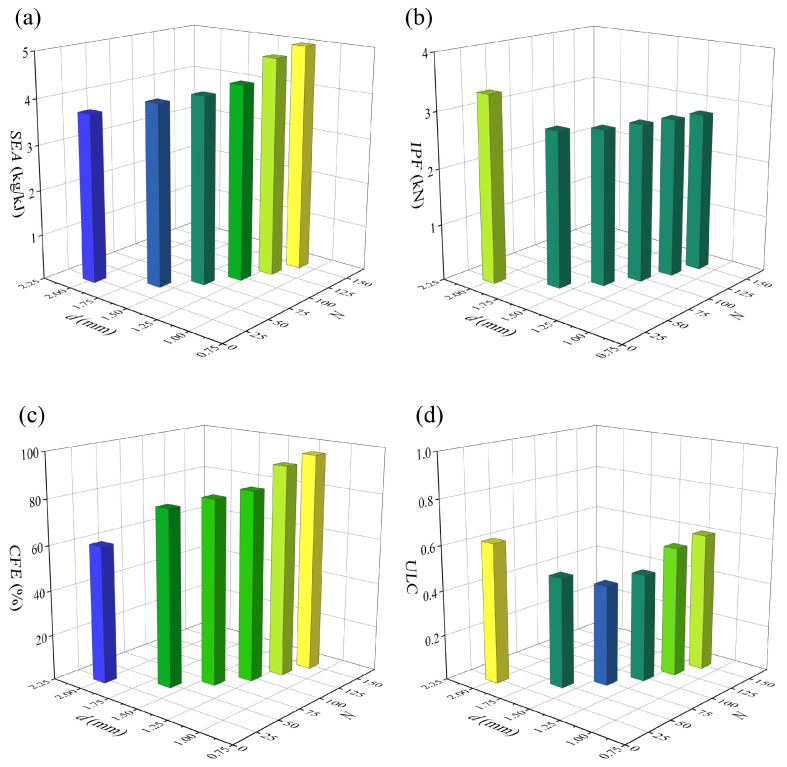

Figure 15

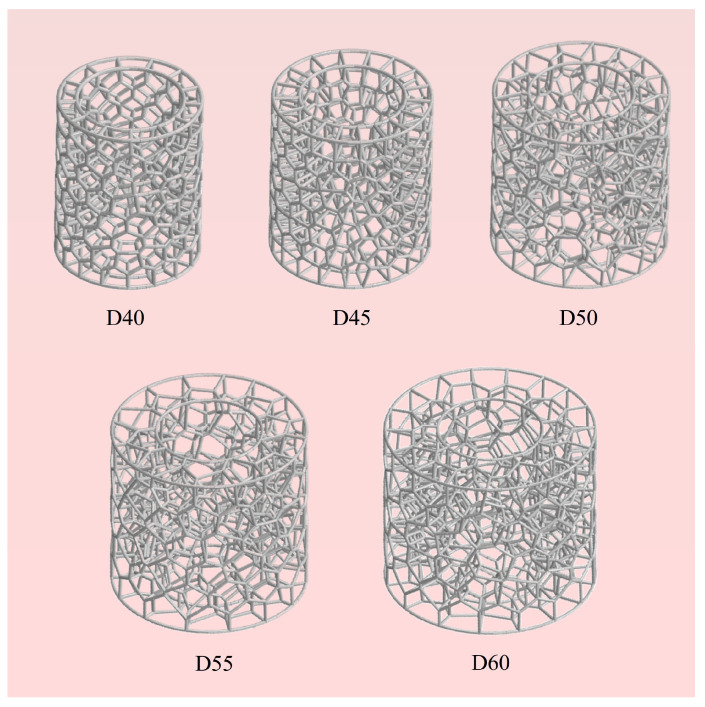

Figure 16

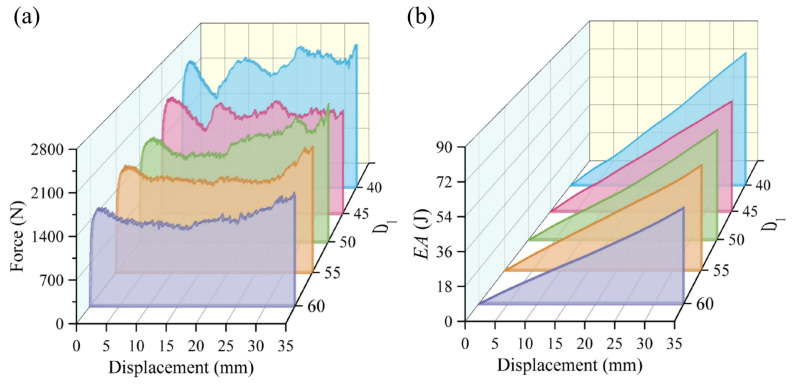

Figure 17

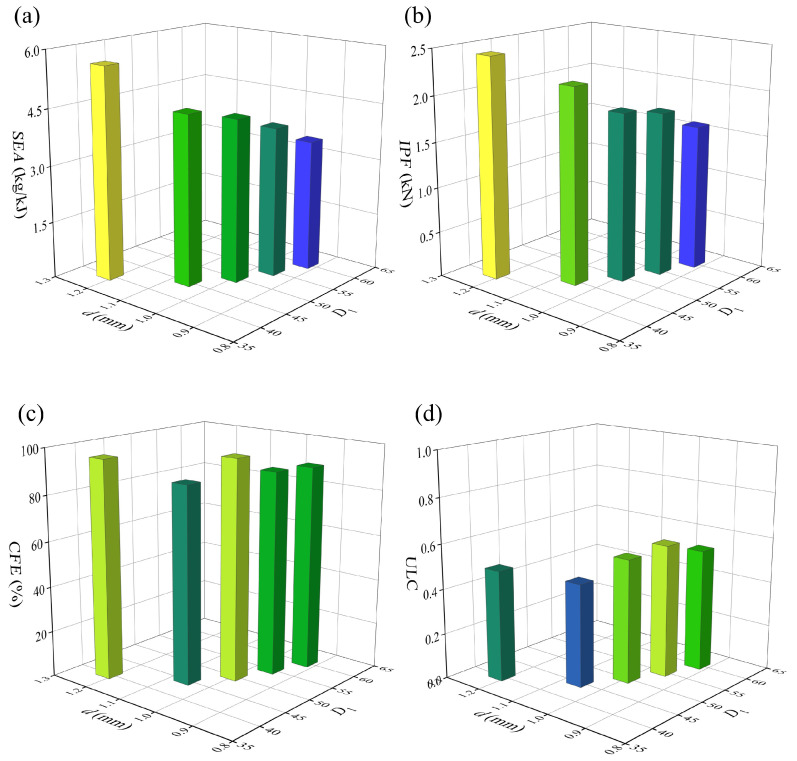

Figure 18

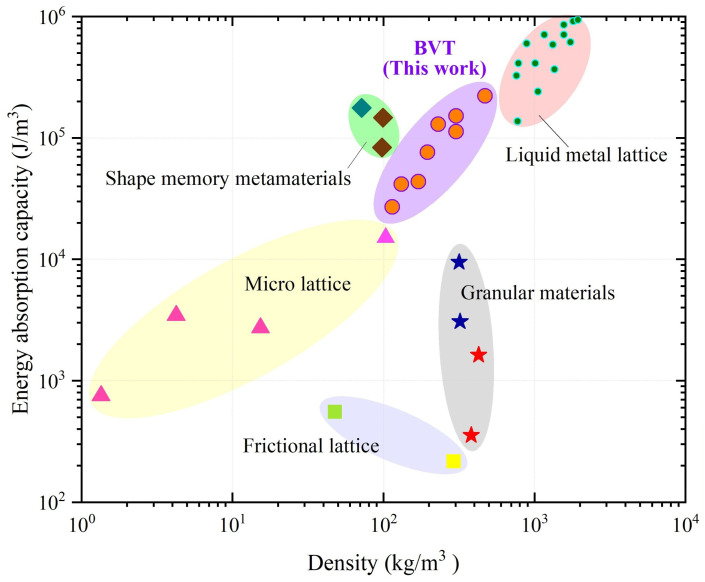

Figure 19Peer Reviews
