Influence of the Post-Processing on the Surface Quality and the Mechanical Properties of Alumina Parts Processed by Ceramic Material Extrusion Additive Manufacturing

TL;DR

This study explores how post-processing techniques affect the surface quality and strength of 3D-printed alumina parts, finding that dip-coating improves surface smoothness but reduces strength.

Contribution

The paper introduces and evaluates dip-coating and aerosol-treatment as post-processing methods for ceramic material extrusion.

Findings

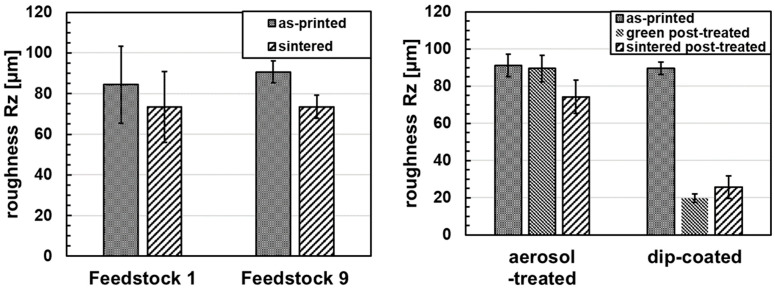

Dip-coating reduces surface roughness by 65% in sintered parts but decreases strength.

Aerosol-treatment does not improve surface quality or mechanical properties.

The developed feedstock and post-processing steps aim to produce dense ceramic parts with high surface quality.

Abstract

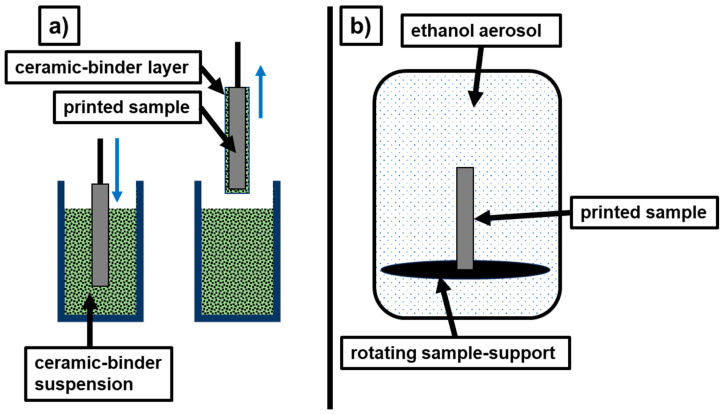

This paper presents an evaluation of two new approaches to improve the surface quality and the mechanical properties of ceramic parts printed by fused deposition of ceramic (FDC). Dip-coating and aerosol-treatment are performed in order to reduce the staircase effect in the vertical printing direction, which typically represents the weakest orientation in most additive manufacturing processes, particularly in fused filament fabrication (FFF). The post-treatments are applied on two highly filled alumina feedstocks. A commercial aerosol-treatment machine for fused deposition modeling is used with ethanol as solvent. A suspension composition for dip-coating is developed to reduce the surface roughness without compromising the printing resolution. The influence of these post-processing steps on the mechanical properties and surface roughness of the green and sintered parts is investigated using perthometer measurements and four-point bending tests in the vertical build direction on as-processed, aerosol-treated, and dip-coated samples. The mechanical results are compared to extruded strand samples. An improvement in surface quality is achievable by dip-coating despite reduction in the parts strength, with a reduction of 65% of the Rz values in the sintered state compared to untreated samples. Aerosol-treatment neither improves the surface quality nor the mechanical properties of the parts. The feedstock and post-processing steps developed in this research aim at printing dense ceramic parts with high surface quality, serving as a basis for developing ceramic parts with higher strength. This advancement will facilitate the utilization of FDC in structural and aesthetic design applications.
