Effect of Heat Input on the Hydrogen Embrittlement Sensitivity of CGHAZ of X60 Pipeline Steel
Longwei Zhang, Zhongwen Wu, Wenhao Zhou, Qingxue Zhang, Ba Li, Zhihui Zhang, Bing Wang, Qingyou Liu, Shujun Jia, Shubiao Yin
TL;DR
This study examines how welding heat input affects hydrogen embrittlement in X60 pipeline steel, finding that higher heat input can reduce embrittlement sensitivity.
Contribution
The study introduces a multi-dimensional approach to evaluate hydrogen embrittlement sensitivity in pipeline steel based on microstructural changes due to welding heat input.
Findings

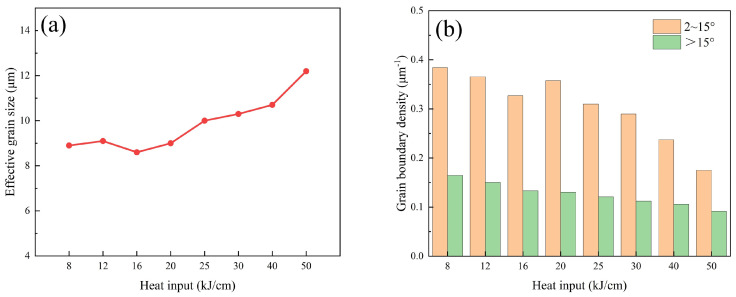

Higher heat input leads to coarser grains and a transition from bainitic ferrite to granular bainite and polygonal ferrite.

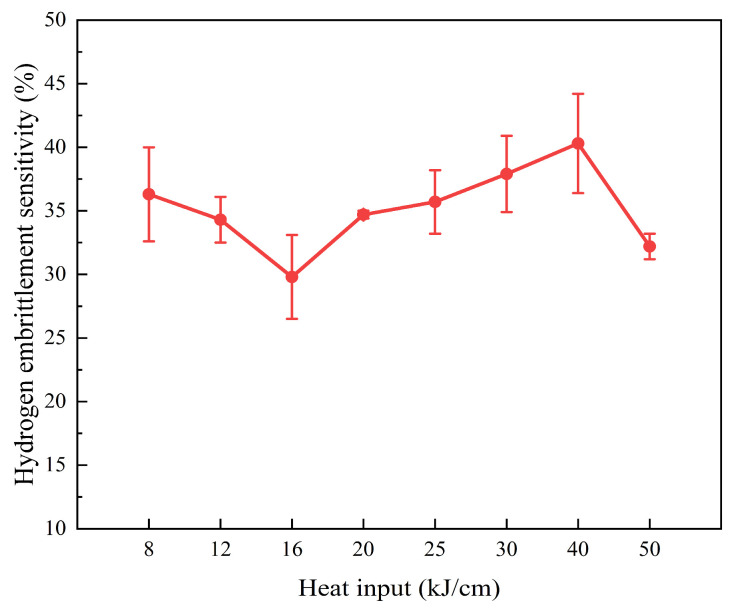

BF + GB composite structure showed the best resistance to hydrogen embrittlement with 29.8% sensitivity.

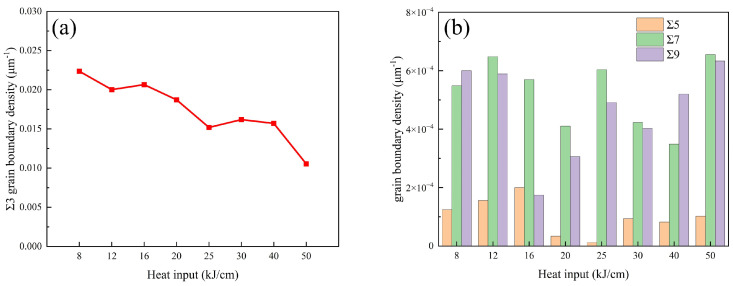

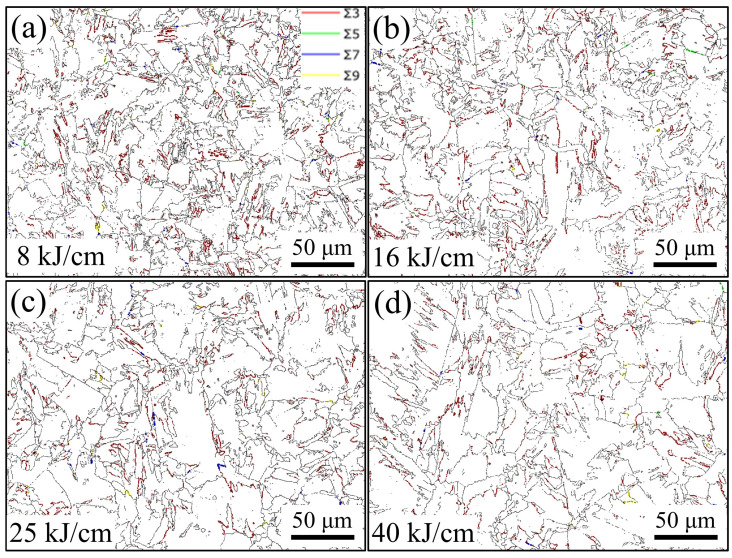

Increased Σ3 grain boundary density at 16 kJ/cm heat input reduced hydrogen enrichment and embrittlement sensitivity.
Abstract

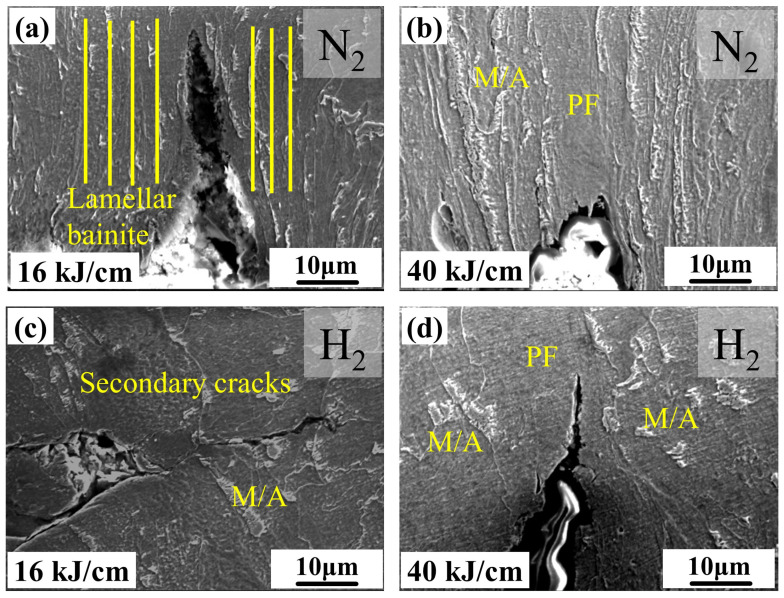

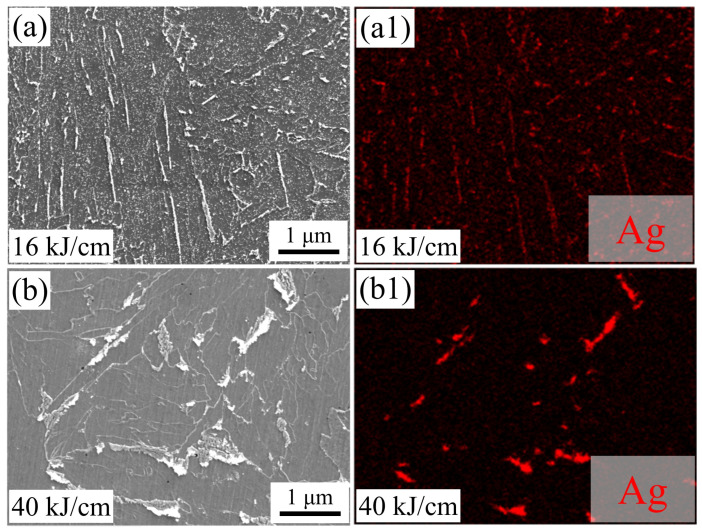

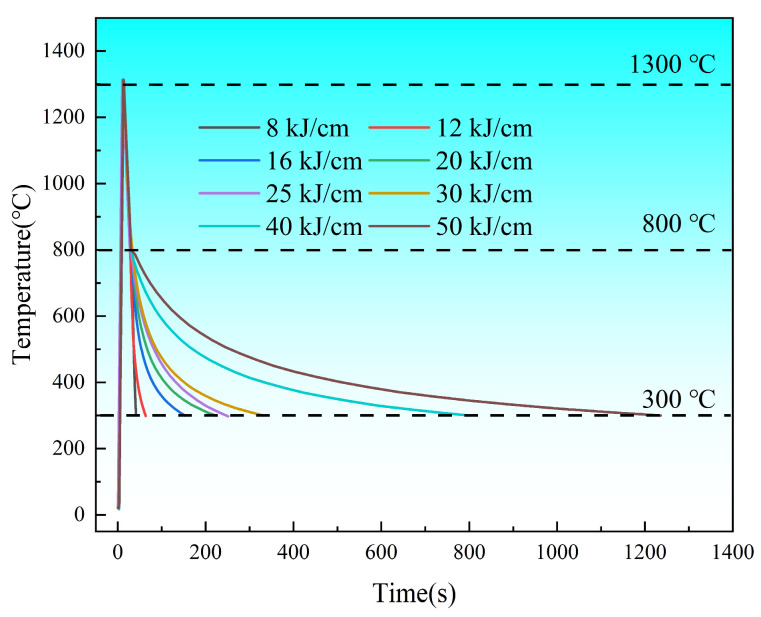

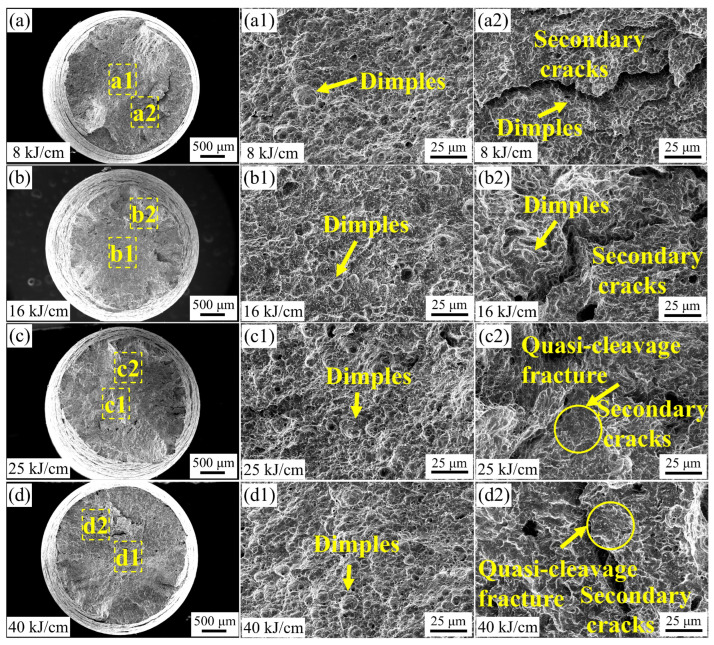

In the coarse grain heat-affected zone (CGHAZ) of welded pipe steel joints, hydrogen damage is a key factor limiting the high-pressure hydrogen transportation performance of the pipeline. This study employed multi-dimensional characterization methods (including microstructure, mechanical properties, and hydrogen distribution) to investigate the influence of welding heat input on the hydrogen embrittlement (HE) sensitivity of X60 pipeline steel in the CGHAZ. The results showed that as the heat input increased, the grains in the CGHAZ became coarser, and the microstructure changed from bainitic ferrite (BF) to granular bainite (GB) and polygonal ferrite (PF). Among them, the BF + GB composite structure had the best resistance to HE (HE sensitivity was 29.8%). At low heat input, the reversible hydrogen distribution occurred at the interfaces between the grain boundaries and the BF blocks,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

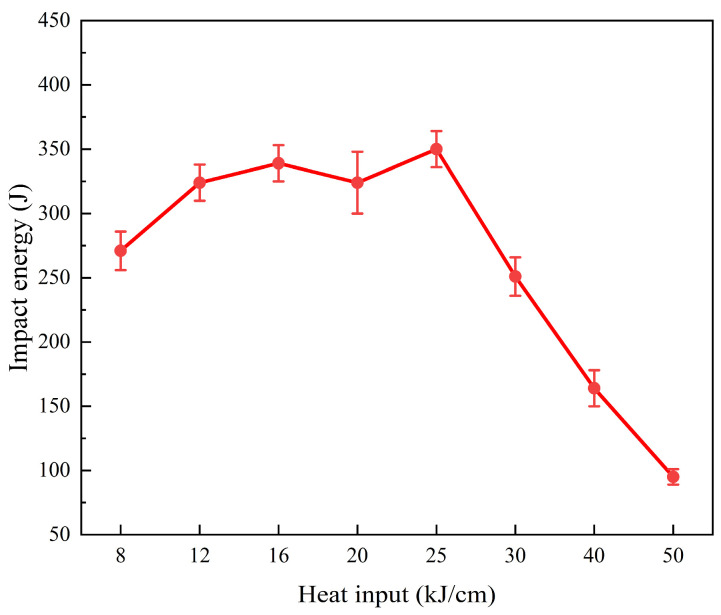

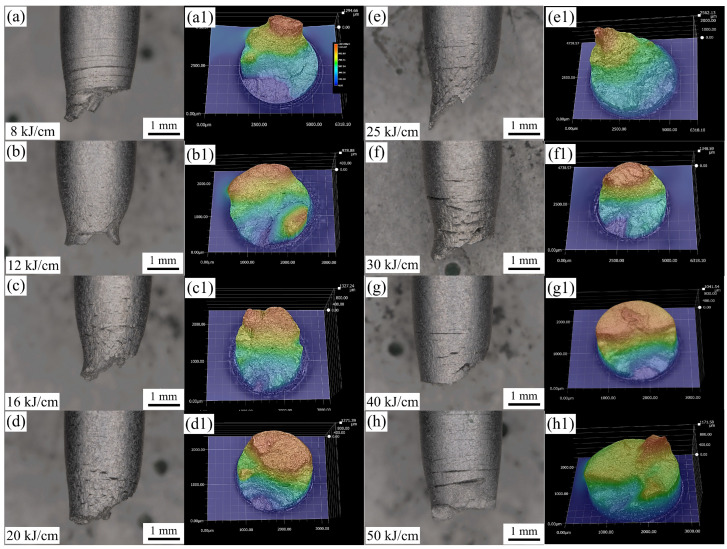

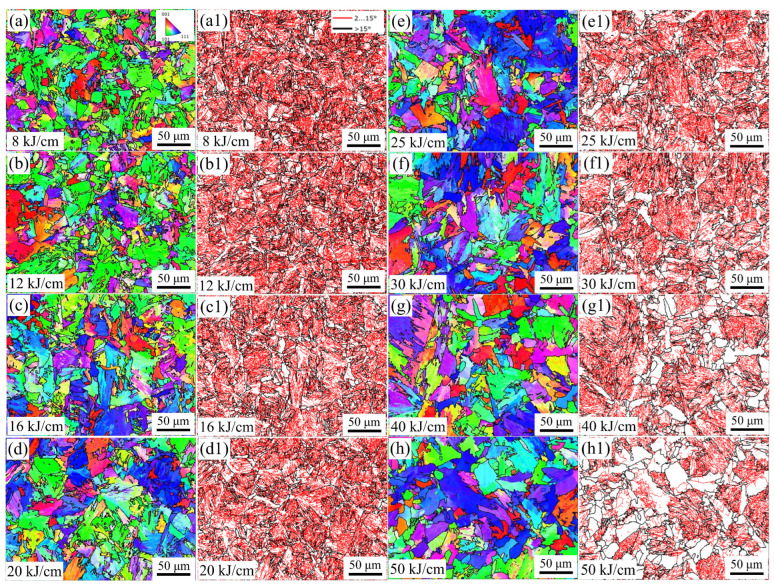

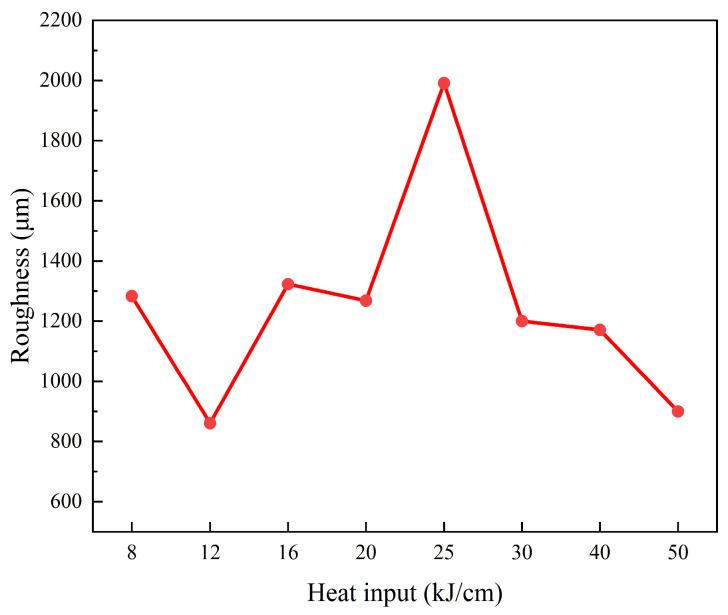

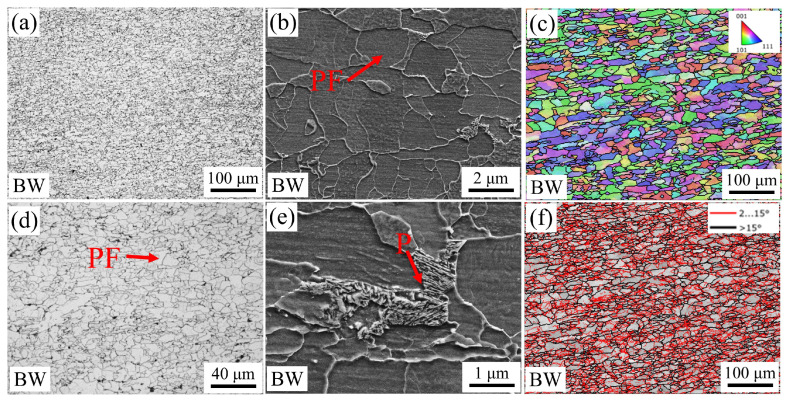

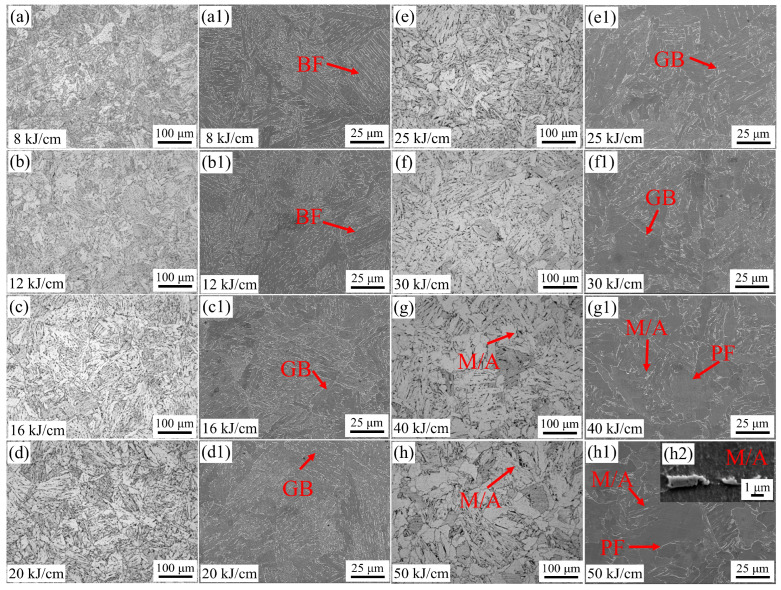

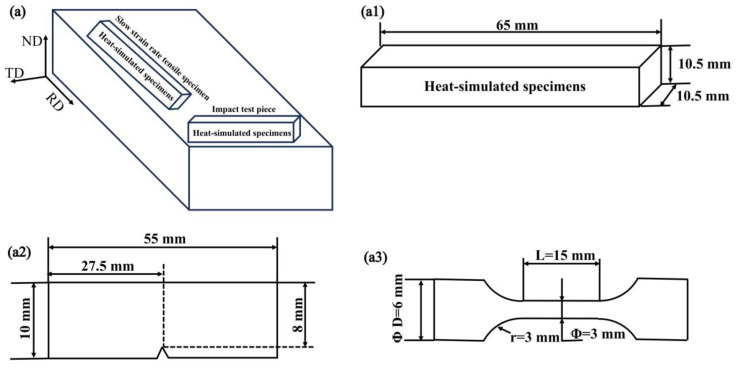

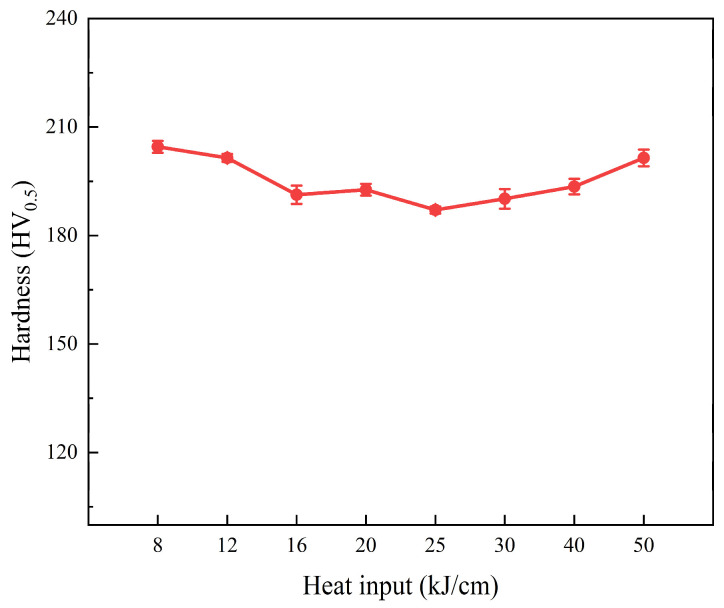

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHydrogen embrittlement and corrosion behaviors in metals · Material Properties and Failure Mechanisms · Corrosion Behavior and Inhibition
