Sustainable Innovations in Stone Matrix Asphalt: Integrating Recycled Materials and Low-Emission Production

TL;DR

This paper explores how Stone Matrix Asphalt can be made more sustainable through recycled materials and low-emission production methods while maintaining durability.

Contribution

The paper identifies key innovations in Stone Matrix Asphalt that enhance sustainability without compromising performance, and highlights critical research priorities for future development.

Findings

Incorporating recycled materials like RAP and WTTF improves sustainability without sacrificing SMA performance.

Warm-Mix Asphalt reduces production energy and CO2 emissions by 15–30%.

Nanomaterials and bio-based binders show promise but require further lifecycle assessment.

Abstract

What are the main findings?
SMA’s strength relies on a stone-on-stone skeleton and fiber stabilization.Polymers and crumb rubber greatly enhance rutting and fatigue resistance.Nanomaterials improve moisture resistance and aging performance.Recycled materials boost sustainability without sacrificing key properties.Warm Mix Asphalt tech lowers production energy and emissions significantly.

SMA’s strength relies on a stone-on-stone skeleton and fiber stabilization.

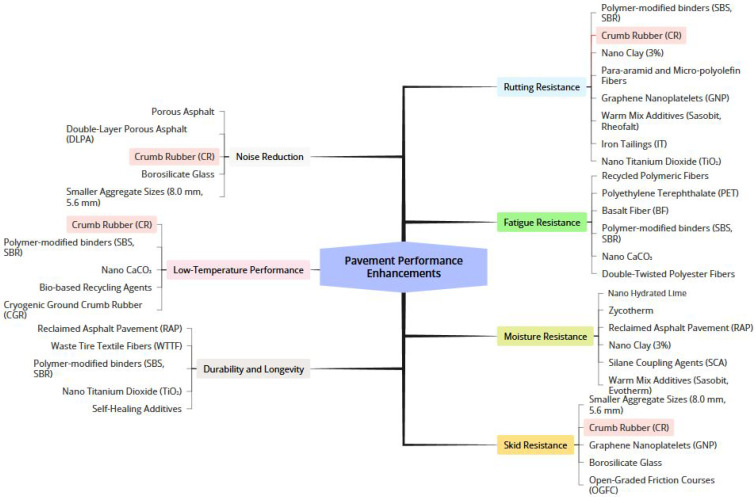

Polymers and crumb rubber greatly enhance rutting and fatigue resistance.

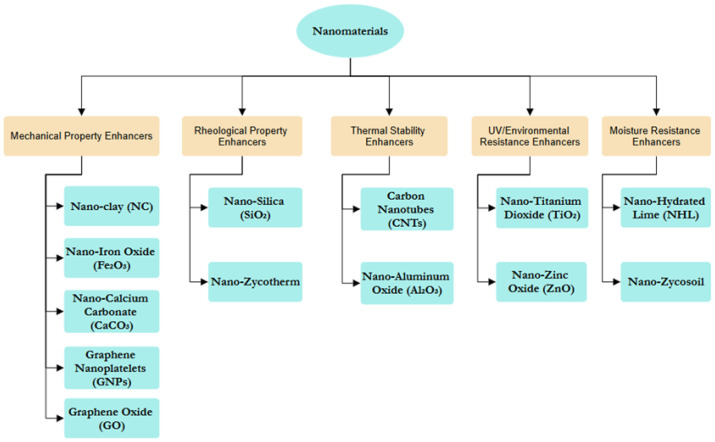

Nanomaterials improve moisture resistance and aging performance.

Recycled materials boost sustainability without sacrificing key properties.

Warm Mix Asphalt tech lowers production energy and emissions significantly.

What are the implications of the main findings?
Allows tailored pavement design for local climate and traffic conditions.Promotes sustainability by reducing landfill waste and carbon footprint.Enables cooler, safer construction via Warm Mix Asphalt practices.Prioritizes research on nano-modifiers, renewable binders, and self-repairing pavements.Calls for updated mix design standards to include new materials.

Allows tailored pavement design for local climate and traffic conditions.

Promotes sustainability by reducing landfill waste and carbon footprint.

Enables cooler, safer construction via Warm Mix Asphalt practices.

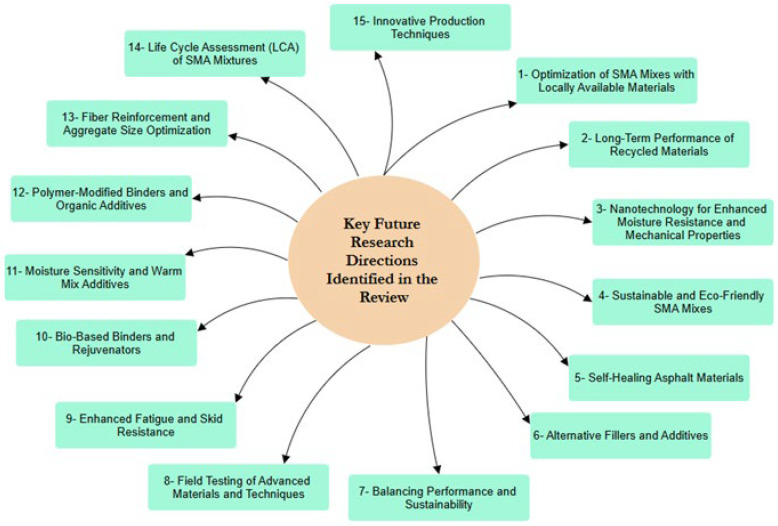

Prioritizes research on nano-modifiers, renewable binders, and self-repairing pavements.

Calls for updated mix design standards to include new materials.

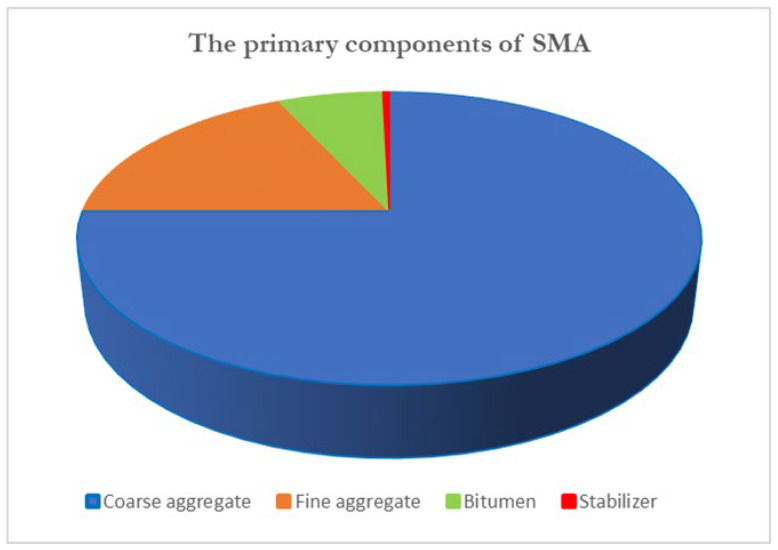

Stone Matrix Asphalt (SMA) has emerged as a premier high-performance paving solution for critical infrastructure applications. Its distinctive skeleton structure, composed of coarse aggregates bound by a fiber-stabilized bituminous mastic, delivers exceptional mechanical performance, including superior resistance to rutting (≤3 mm after 106 load cycles) and fatigue cracking (>500,000 cycles to failure). While proven in demanding service environments, research has increasingly focused on enhancing the sustainability of SMA through key innovations: (1) the incorporation of recycled materials, such as 30–40% Reclaimed Asphalt Pavement (RAP) and 0.3–0.5% waste tire textile fibers (WTTF); (2) the development of bio-based binders derived from renewable sources; and (3) the adoption of Warm-Mix Asphalt (WMA) technologies that reduce production temperatures by 20–30 °C. These advancements yield significant environmental benefits, including approximately 25% lower CO2 emissions and 15–20% reduced energy consumption compared to conventional SMA production. It is important to distinguish between these quantitatively demonstrated benefits, primarily from Life Cycle Assessment (LCA) studies of technologies like WMA and RAP, and the more qualitative sustainability claims associated with emerging materials like nanomaterials or novel bio-additives, which often lack comprehensive lifecycle inventories. Nevertheless, challenges persist, notably moisture susceptibility (manifesting as a 10–15% strength reduction after saturation) and uncertainties regarding the long-term performance of modified mixes. This review consequently identifies critical research priorities: optimizing mix designs with locally available materials to minimize transport emissions, employing nano-scale modifiers to enhance moisture resistance, and developing standardized lifecycle assessment protocols. Addressing these challenges is paramount to establishing SMA as a model sustainable pavement technology that robustly meets both structural performance benchmarks and ecological sustainability goals.
