Temporal Bone Fractures on High-Resolution CT: Bridging Radiologic Detail with Otologic Anatomy and Surgical Implications

TL;DR

This study examines how high-resolution CT scans can help understand and treat injuries to the temporal bone in Sudanese patients with head trauma.

Contribution

The study provides a detailed characterization of temporal bone fracture patterns and their clinical implications in a Sudanese population.

Findings

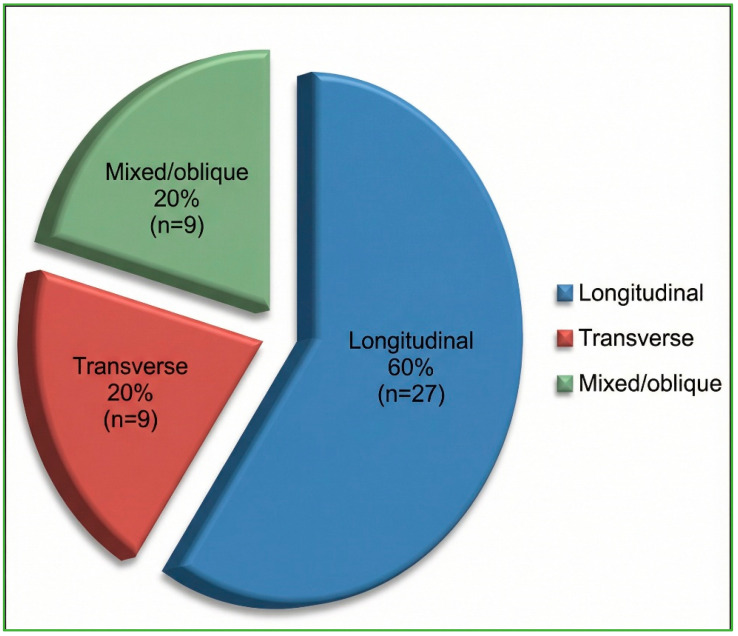

Longitudinal fractures were most common, but 27% breached the otic capsule.

Transverse/mixed fractures were strongly linked to complex mid-facial injuries.

Facial nerve palsy occurred in 58% of patients, with high inter-observer agreement on imaging assessments.

Abstract

Primary Objective: To characterize high-resolution computed tomography (HRCT) fracture patterns, namely orientation and otic capsule status, among Sudanese patients with acute temporal bone trauma. Secondary Objectives: (i) To quantify the prevalence and pattern of concomitant craniofacial fractures, (ii) to describe early audiologic outcomes, and (iii) to document facial nerve dysfunction. Methods: Prospective cross-sectional study of 45 consecutive patients (≥5 years) with HRCT-confirmed TBF sustained within 7 days of injury, managed at two tertiary otolaryngology centers in Khartoum (October 2022–March 2023). All imaging, clinical, and audiologic variables were recorded once at the index presentation (≤7 days after trauma); the study did not include longitudinal follow-up. Two blinded experts independently classified fracture orientation (longitudinal, transverse, mixed/oblique), otic capsule status (sparing [OCS] vs. otic capsule-violating [OCV]), and ancillary HRCT signs (ossicular chain disruption, tympanic plate fracture, pneumolabyrinth/CSF leak); inter-observer reliability was assessed with Cohen’s κ. Concomitant craniofacial fractures, pure-tone audiometry, and House–Brackmann facial nerve grades were recorded. Predictor–outcome associations were examined with χ2 statistics (p < 0.05). Results: Mean age 35.9 ± 17.4 years; 78% male. Road traffic accidents were associated with 58% of injuries. HRCT showed 60% longitudinal, 20% transverse, and 20% mixed/oblique fractures; 27% were OCV. Ossicular chain disruption, tympanic plate fracture, and ppneumolabyrinthCSF leak were present in 17.8%, 13.3%, and 8.9%, respectively. Concomitant craniofacial fractures occurred at 27%, chiefly Lefort III (15.6%) and Lefort II (8.9%). Transverse/mixed fractures were strongly associated with Lefort II–III injuries (χ2 = 16.2, p = 0.001); age (p = 0.21) and sex (p = 0.08) were non-significant. Conductive, sensorineural, and mixed hearing loss affected 69%, 13%, and 18%; facial nerve palsy occurred in 58%. Inter-observer agreement was substantial to almost perfect for all imaging variables (κ = 0.77–0.92). Conclusions: Although longitudinal fractures predominated, over one-quarter breached the otic capsule and one-fifth followed transverse/mixed planes, configurations associated with higher odds of conductive deafness, facial nerve palsy, and complex mid-facial fractures. HRCT provides reliable characterization and should underpin comprehensive head-and-mid-face trauma protocols. Enhanced road safety policies and multidisciplinary trauma care are vital for reducing neuro-otologic morbidity in resource-limited settings.

Figures
