Understanding strain localization in metallic materials: a review of high-resolution digital image correlation and related techniques
F. Briffod, T. E. J. Edwards, J. Quinta da Fonseca, J. -C. Stinville, D. Texier, T. Vermeij
TL;DR
This paper reviews how high-resolution digital image correlation helps study how metals deform at a microscopic level.
Contribution
The paper integrates HR-DIC with microstructure analysis, crystal plasticity, and machine learning to better understand strain localization in metals.
Findings
HR-DIC provides sub-micron resolution strain measurements in metallic materials.
Strain localization mechanisms are better understood through integration with crystal plasticity models.
Correlative analysis frameworks enhance the study of heterogeneous deformation processes.
Abstract
Plastic deformation in metallic materials is generally governed by highly localized and intrinsically heterogeneous deformation processes, including crystallographic slip banding, deformation twinning, phase transformation and grain-boundary sliding. These mechanisms operate at the sub-grain scale where they are competing, interacting, and are sometimes incompatible for short-range transmission due to deformation confinement within individual grains. The heterogeneous nature of irreversible deformation at the microstructure scale also applies at the mesoscale, i.e. the scale of the crystalline aggregate. Capturing experimentally the discrete and heterogeneous deformation processes at the microstructure scale is essential to understand elementary deformation processes involved for specific loading conditions, quantifying their intensity to finally achieve a better dialogue with numerical…
Click any figure to enlarge with its caption.

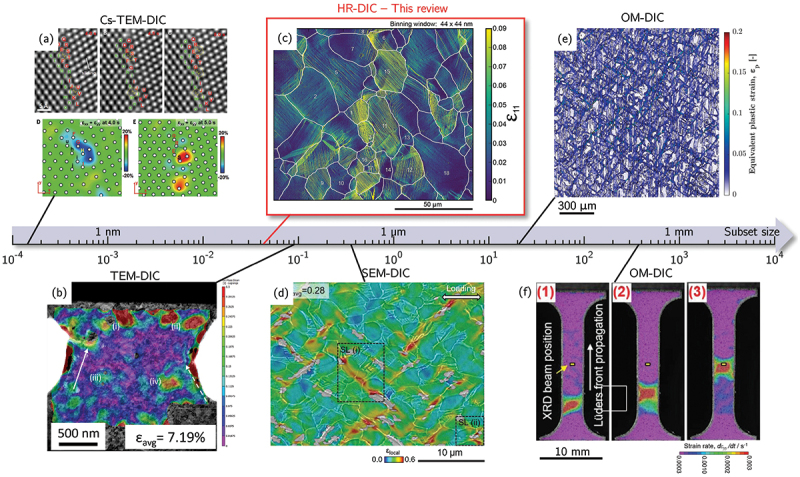

Figure 1

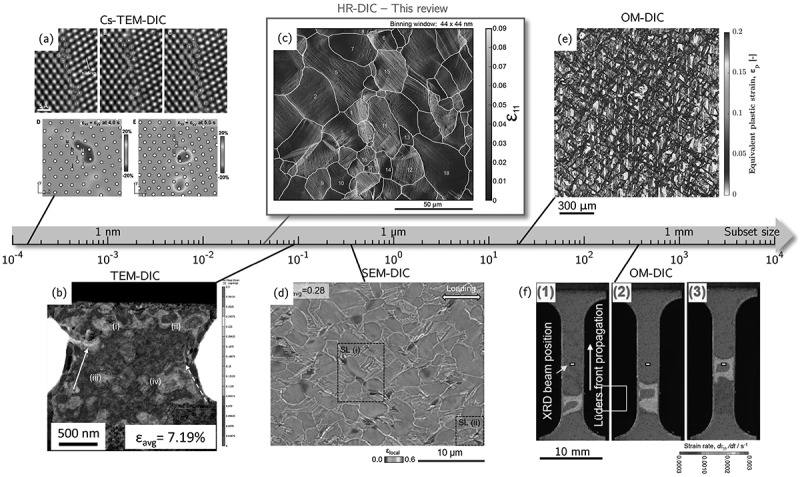

Figure 2

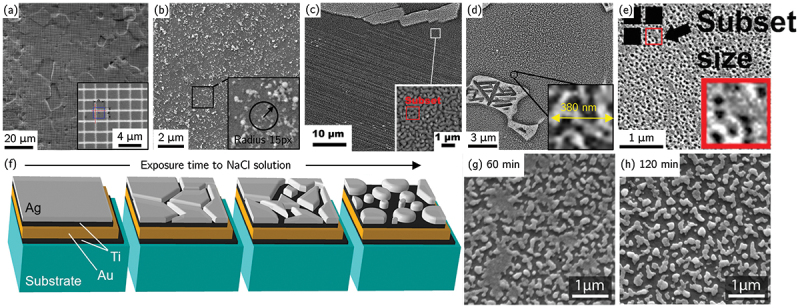

Figure 3
Figure 4

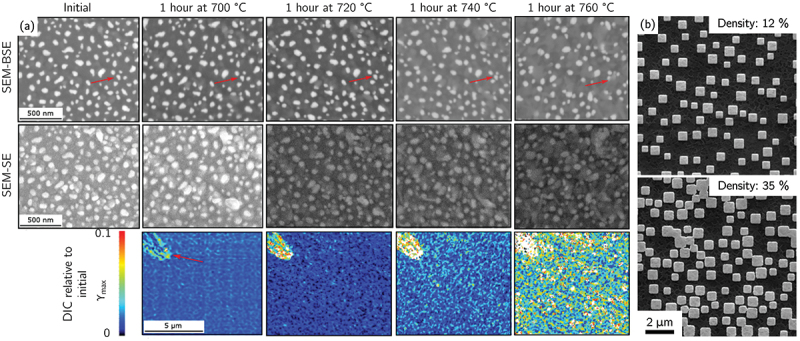

Figure 5
Figure 6

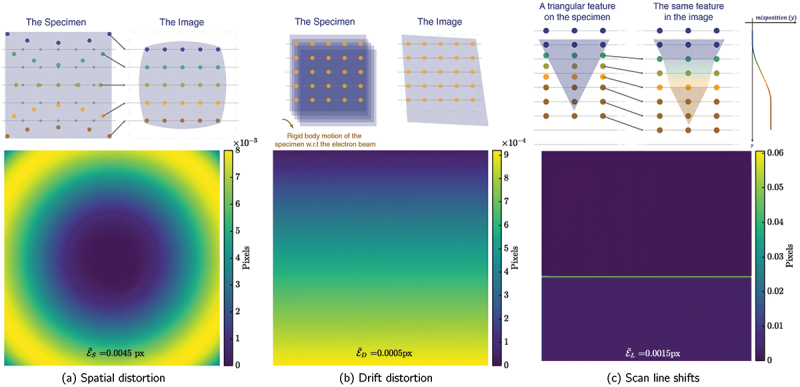

Figure 7

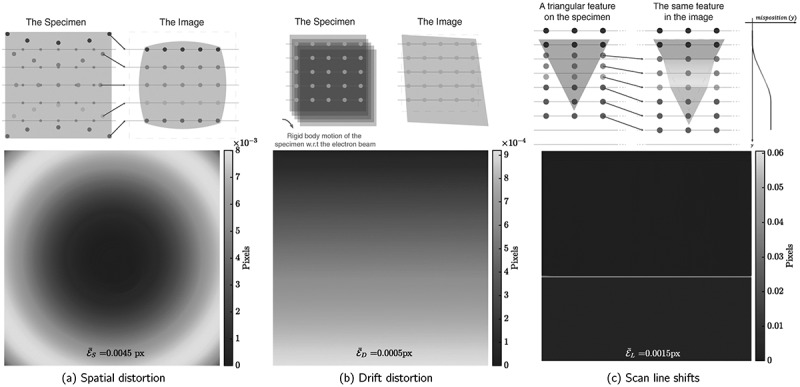

Figure 8

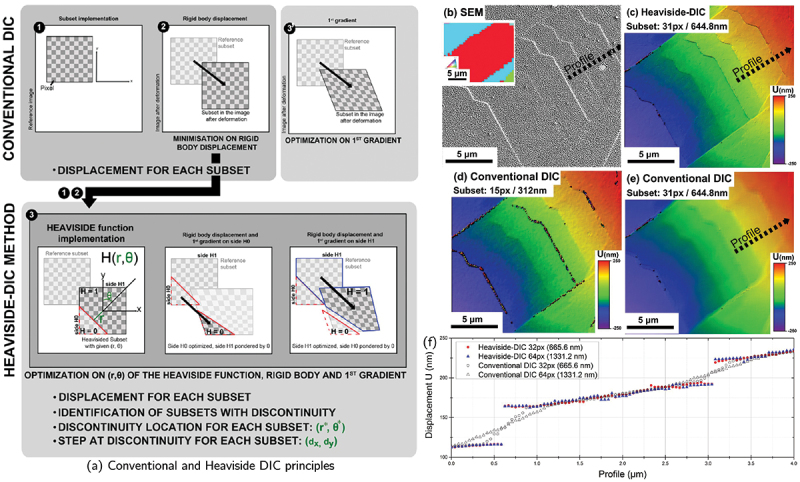

Figure 9

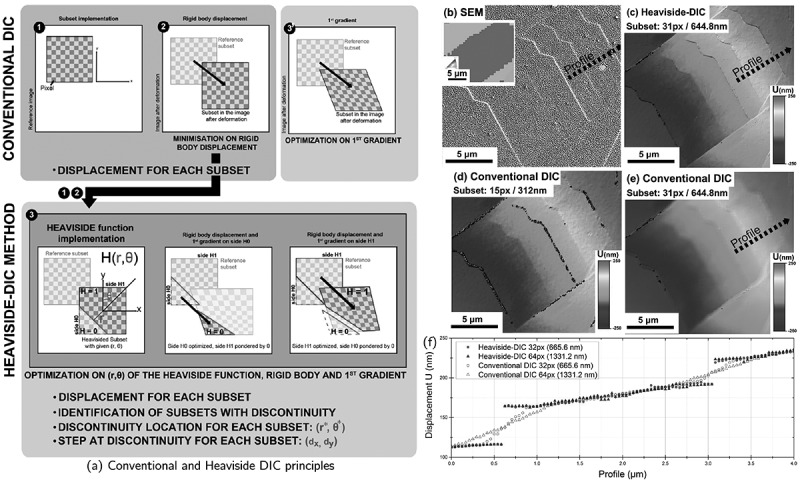

Figure 10
Figure 11
Figure 12

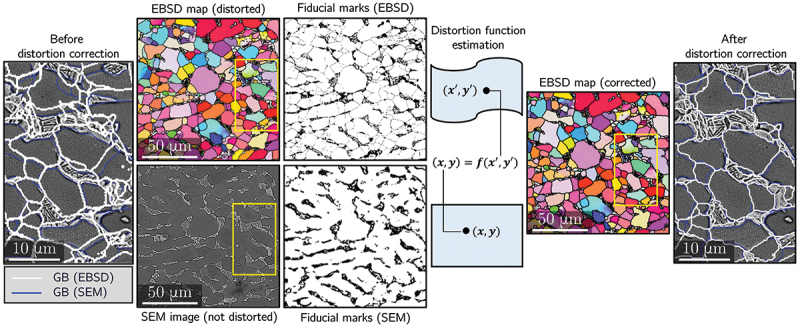

Figure 13

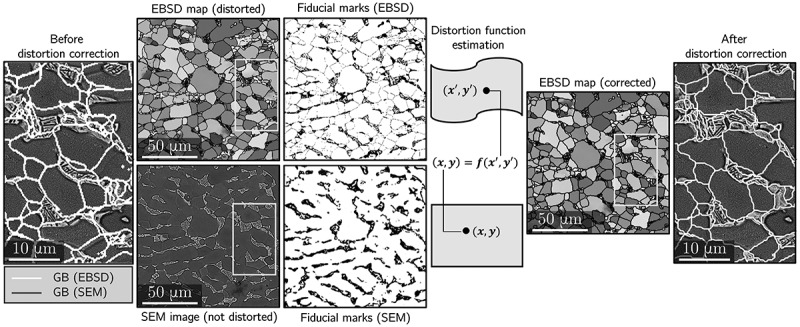

Figure 14
Figure 15
Figure 16

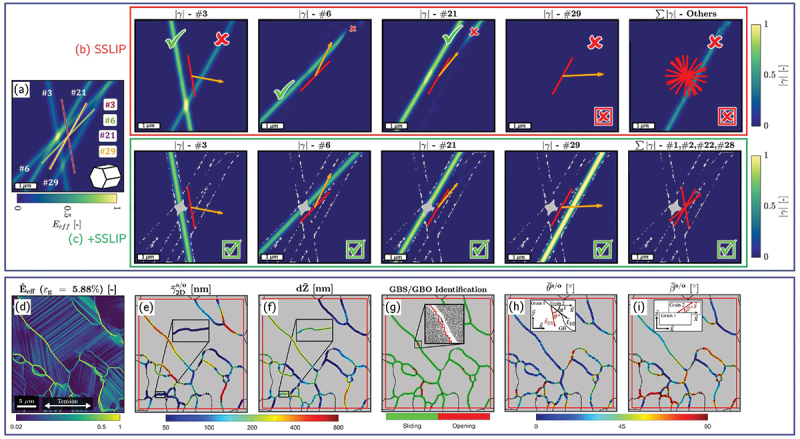

Figure 17
Figure 18
Figure 19

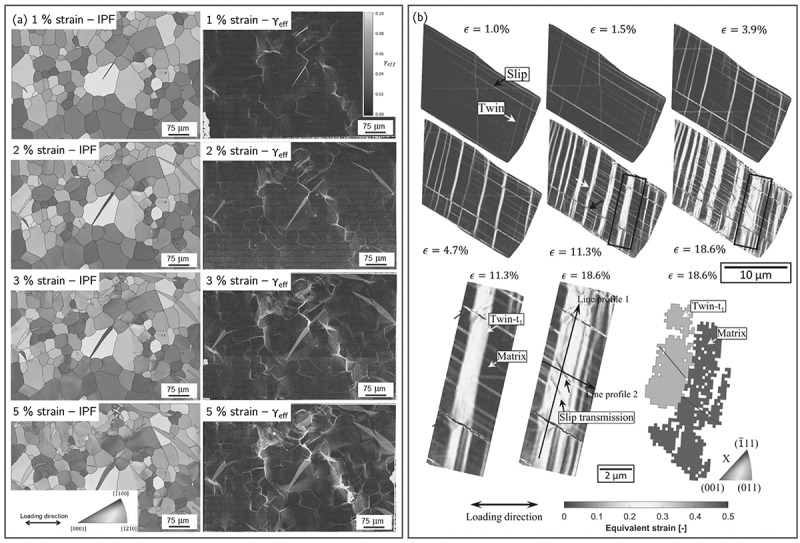

Figure 20

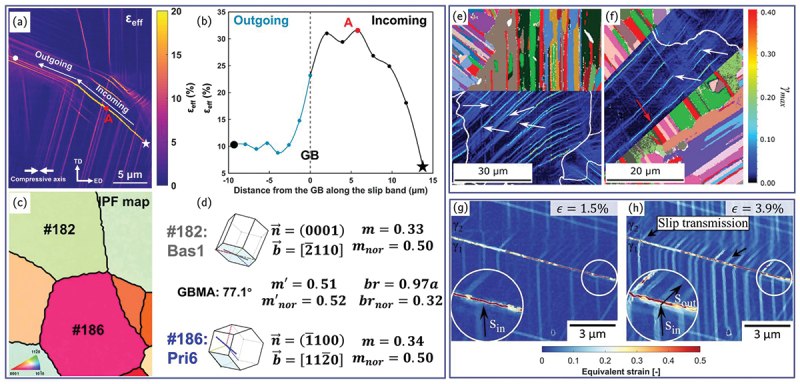

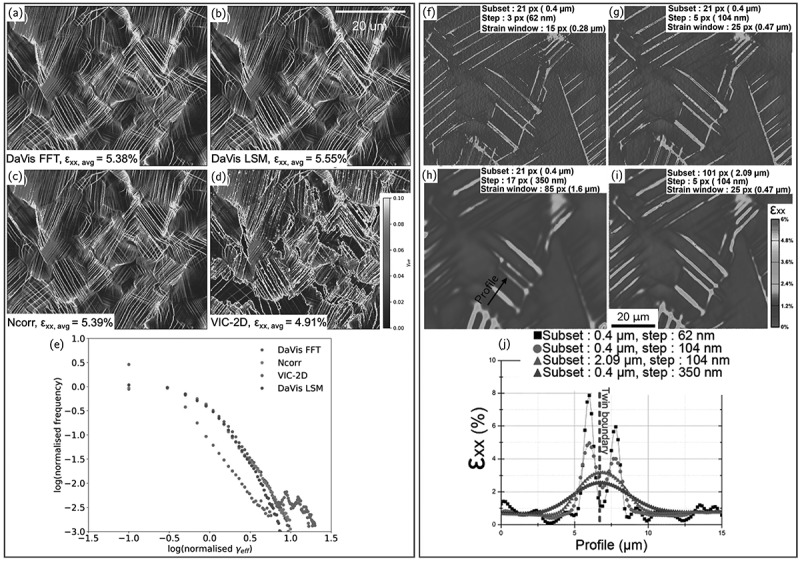

Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26

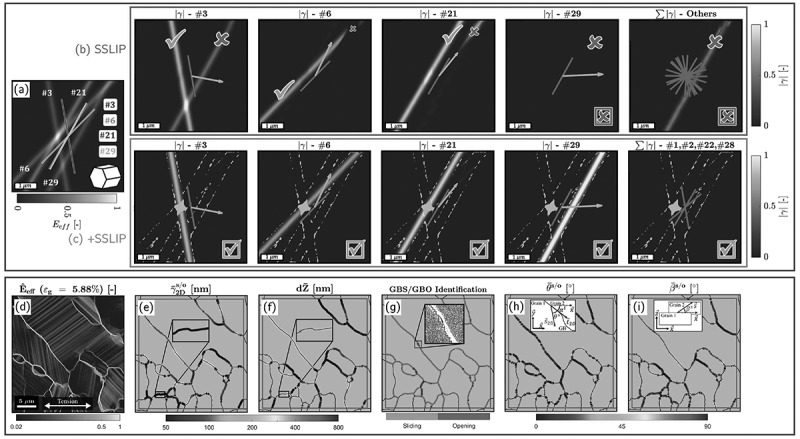

Figure 27
Figure 28
Figure 29
Figure 30

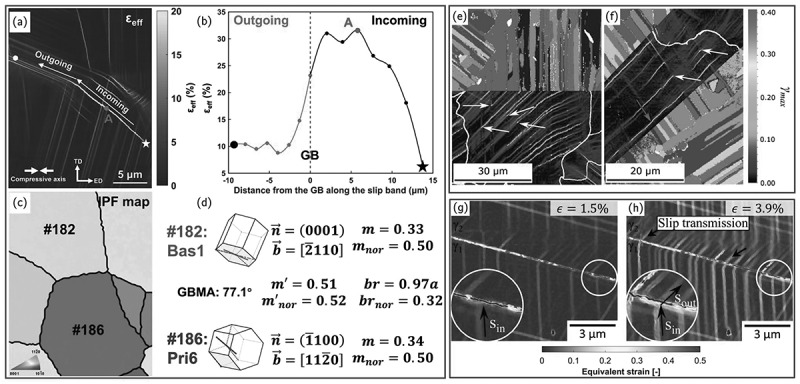

Figure 31
Figure 32

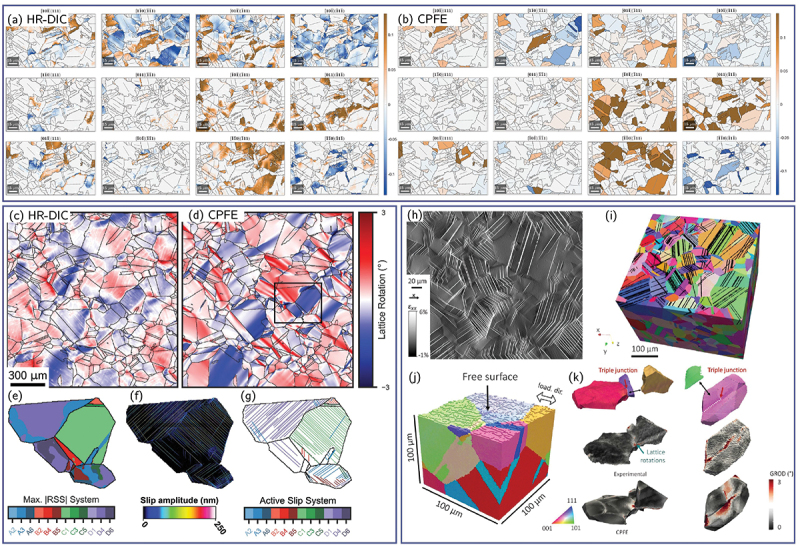

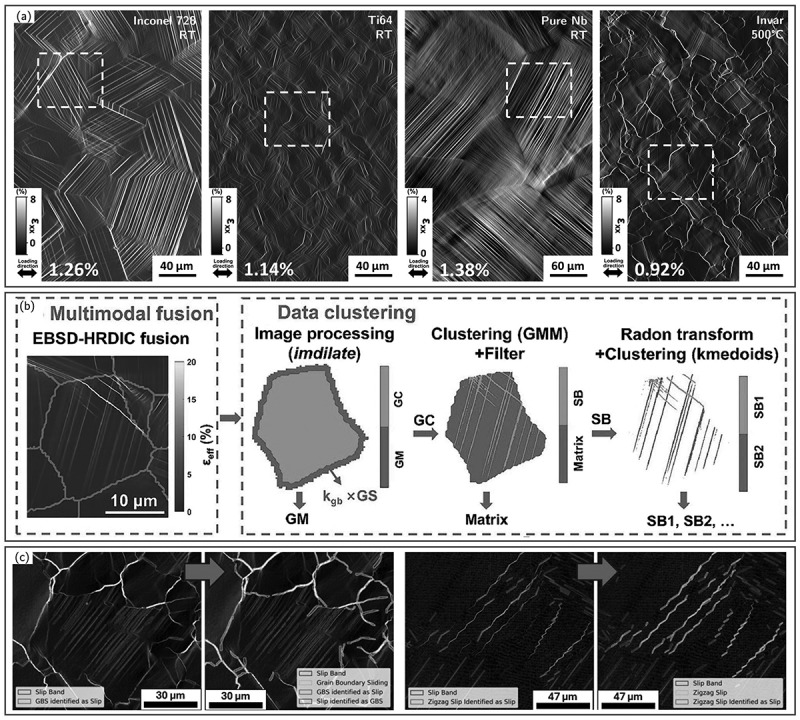

Figure 33

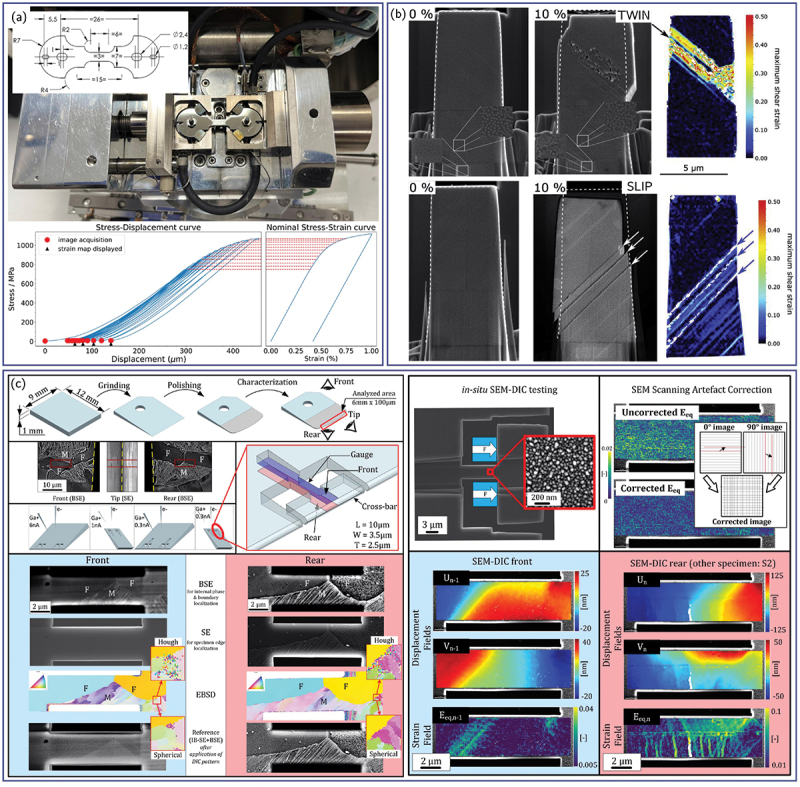

Figure 34

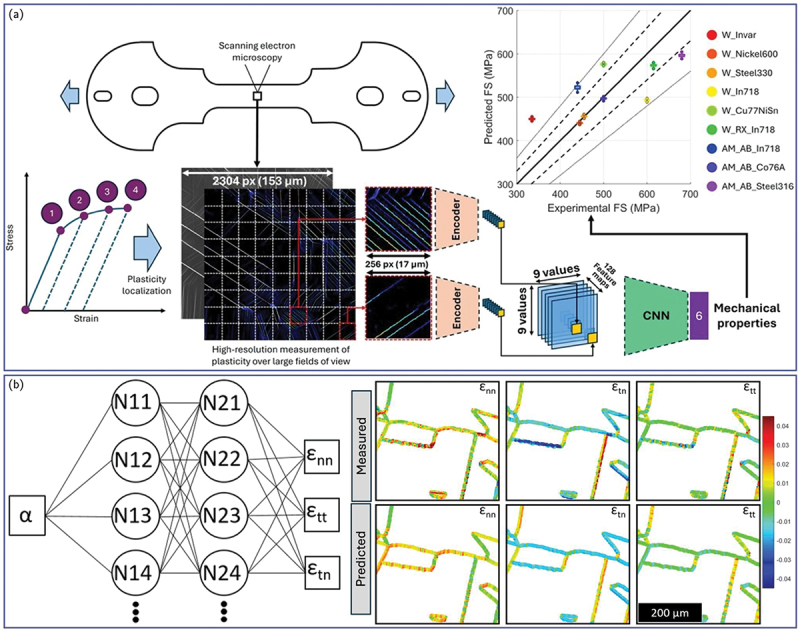

Figure 35
Figure 36

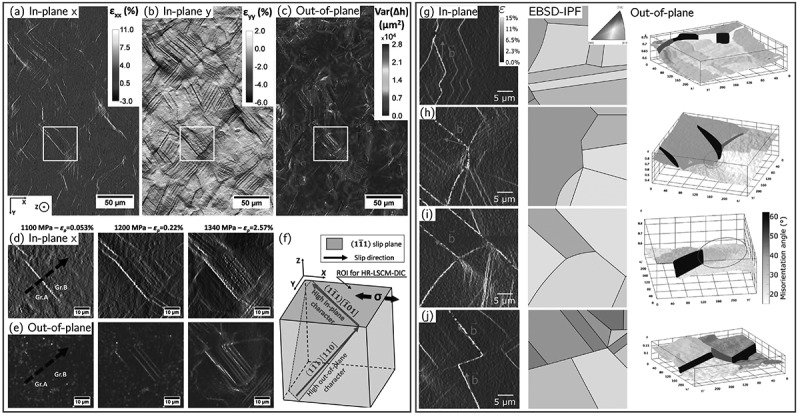

Figure 37

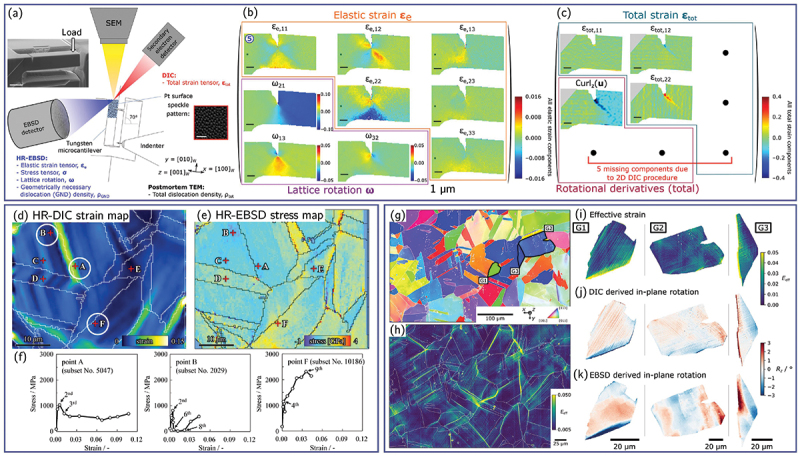

Figure 38
Figure 39
Figure 40
Figure 41
Figure 42

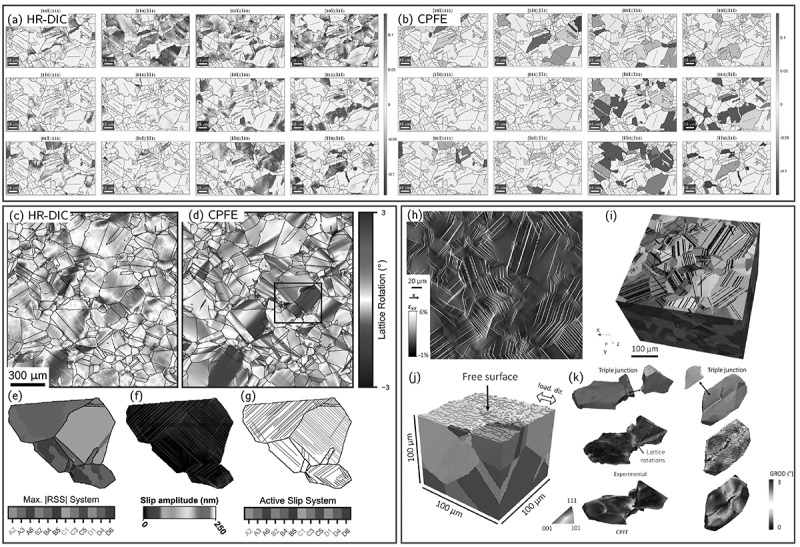

Figure 43
Figure 44
Figure 45
Figure 46
Figure 47
Figure 48
Figure 49
Figure 50Peer Reviews
