Zr6O4(OH)4(O2C-t-Bu)12 precursor uncovers how modulators govern supersaturation, nucleation, and growth of UiO-66 nanocrystals

TL;DR

A new zirconium-based precursor enables fast synthesis of UiO-66 nanocrystals, with modulators controlling their size and growth through supersaturation and surface energy.

Contribution

The study reveals how modulators govern nanocrystal formation, growth, and stability through supersaturation and surface energy mechanisms.

Findings

UiO-66 nanocrystals form rapidly (2–20 minutes) using a Zr6-Pivalate precursor.

Modulator concentration and temperature control nanocrystal size and growth kinetics.

Low surface energy of nanocrystals prevents Ostwald ripening under synthesis conditions.

Abstract

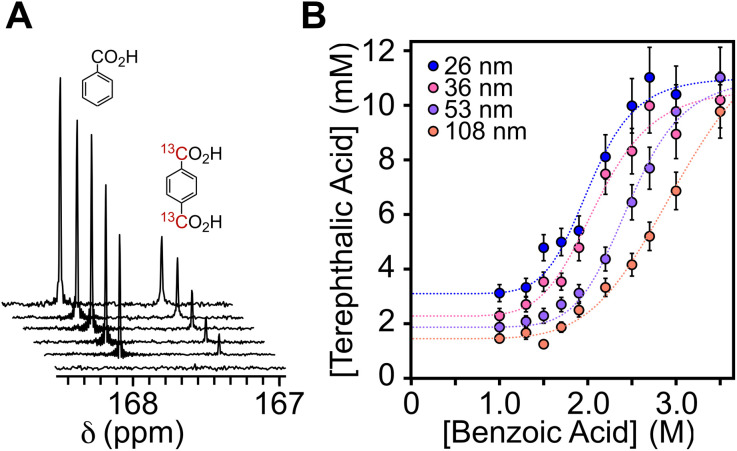

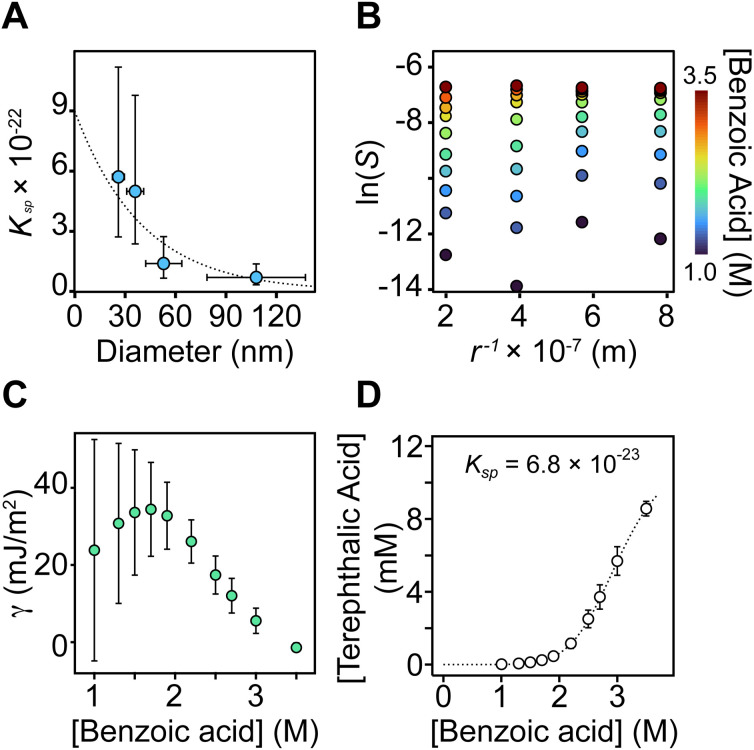

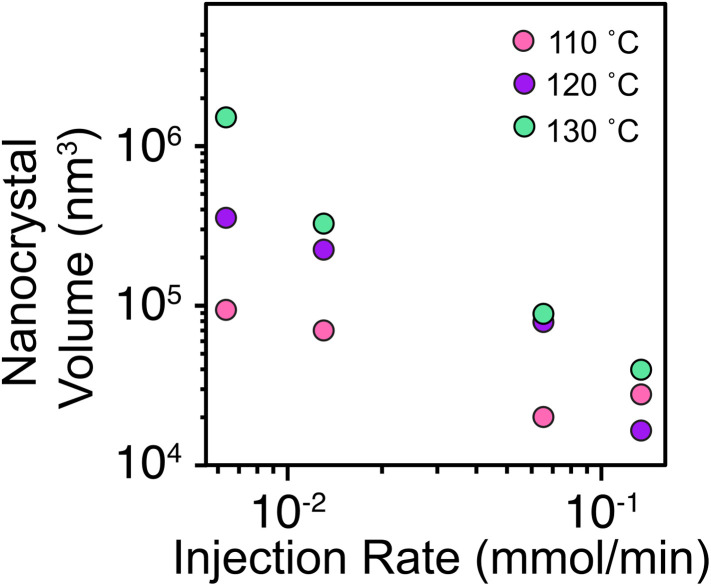

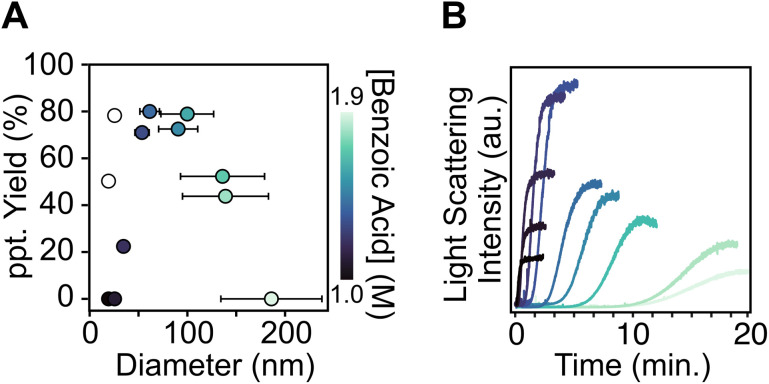

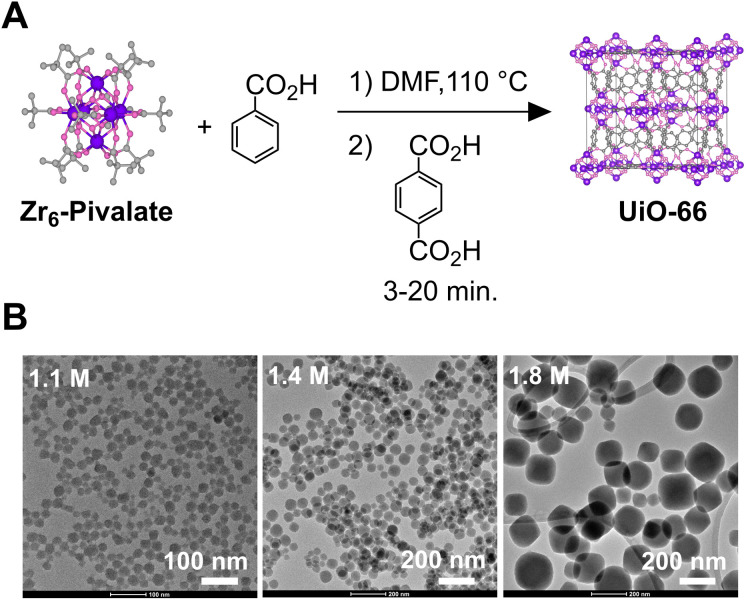

Pure Zr6O4(OH)4(O2C-t-Bu)12 (Zr6-Pivalate) is used to prepare UiO-66 nanocrystals (d = 19–186 nm, σ = 10–30%) in a hot injection synthesis. In situ dynamic light scattering (DLS) measurements show that nanocrystal formation is complete in 2–20 minutes, much faster than the 12–24 hours required by conventional syntheses from zirconyl chloride. The nanocrystal size monotonically increases as the benzoic acid modulator concentration and/or reaction temperature are increased and when solutes are supplied slowly. 13C labeled UiO-66 nanocrystals dissolve in benzoic acid modulator solution liberating terephthalic acid that is observed using nuclear magnetic resonance (NMR) spectroscopy. The solubility is size dependent (Ksp(d) = 0.7–5.7 × 10−22, d = 26–108 nm; Ksp(bulk) = 6.8 × 10−23), corresponding to a low surface energy (0.02 ± 0.03 to −0.001 ± 0.001 mJ m−2). The low surface energy explains the lack of Ostwald ripening under the synthesis conditions. The kinetics of MOF formation and the final nanocrystal size can be predicted using a homogeneous nucleation and growth mass balance model where the supersaturation is governed by a competition between the modulator and linker for the nodal cluster.

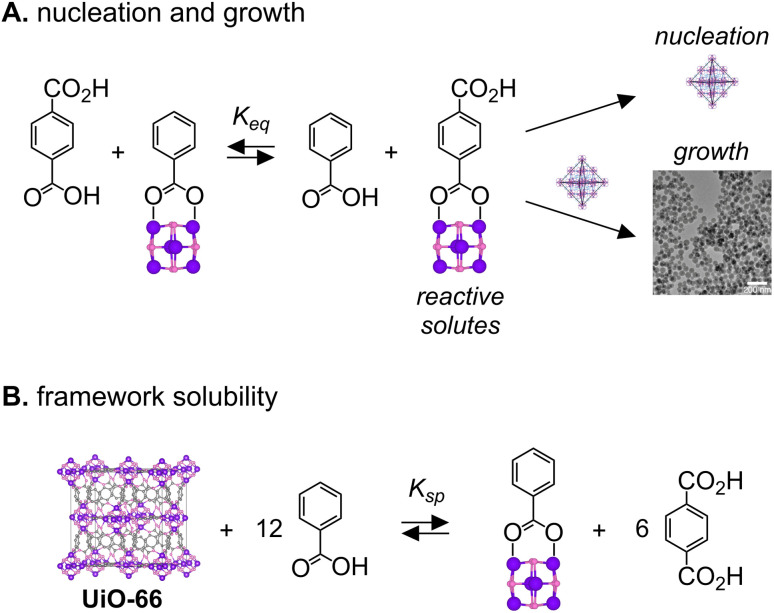

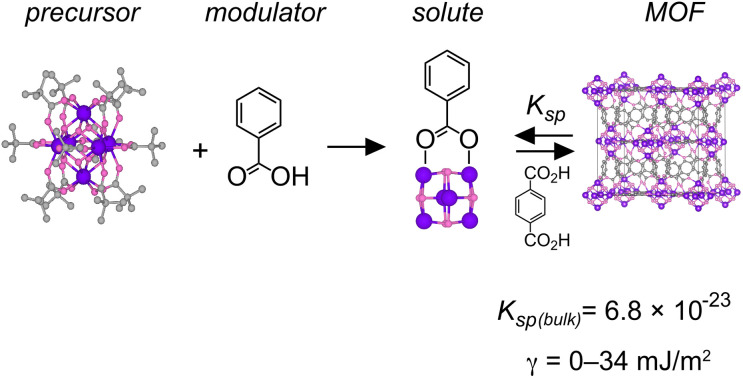

Modulator controls supersaturation, low surface energy, and slow ripening.
