Impact of Pulsed Field Ablation Dosing on Outcome After Pulmonary Vein Isolation Using a Pentaspline Ablation Catheter: A Prospective Comparison of 8 Versus 16 Applications
Katharina Ji‐Mi Yang, Maximilian Spieker, Stephan Angendohr, Carsten auf der Heiden, David Glöckner, Roberto Sansone, Malte Kelm, Alexandru Gabriel Bejinariu, Obaida Rana
TL;DR
This study compares two pulsed field ablation dosing strategies for treating atrial fibrillation, finding better outcomes with 16 applications per vein in persistent cases.
Contribution
The study introduces a novel comparison of 8 versus 16 pulsed field ablation applications per pulmonary vein for pulmonary vein isolation in atrial fibrillation treatment.
Findings
Freedom from atrial arrhythmia was significantly higher in the PFA-16 group compared to the PFA-8 group.
PFA-16 showed greater effectiveness in patients with persistent AF but not in those with paroxysmal AF.
Serious adverse events occurred in 2.7% of patients with no difference between groups.
Abstract
Pulsed field ablation (PFA) is a novel, non‐thermal ablation modality to achieve pulmonary vein isolation (PVI) for the treatment of atrial fibrillation (AF). For the pentaspline catheter, eight applications per pulmonary vein (PV) are considered standard, with four in basket configuration and four in flower configuration. The objective of the study is to investigate whether pentaspline PFA using 16 applications per PV is associated with an improved outcome compared with the standard procedure. The prospective study included a total of 292 patients with AF. According to the number of applications per PV, patients were assigned to group PFA‐8 (8 applications per PV; 4x basket configuration, 4x flower configuration; n = 130) or group PFA‐16 (16 applications per PV; 6x basket, 10x flower; n = 162). The primary endpoint was freedom from atrial arrhythmia (AA), i.e. AF, atrial flutter, and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Baseline characteristics | Overall ( | PFA‐8 ( | PFA‐16 ( |
|
|---|---|---|---|---|
| Age, years | 70 (61–77) | 71 (62–76) | 69 (61–77) | 0.473 |
| Sex (male), % | 169 (58%) | 69 (53%) | 100 (62%) | 0.137 |
| BMI, kg/m² | 28 (24–32) | 28 (24–32) | 27 (24–32) | 0.751 |
| CHA₂DS₂‐VASc score | 3 (2–4) | 3 (2–4) | 3 (2–4) | 0.256 |
| LAVI, ml/m² | 35 (28–44) | 35 (25–41) | 37 (30–44) | 0.053 |
| Type of atrial fibrillation, % | ||||
| Paroxysmal | 174 (60%) | 74 (57%) | 100 (62%) | 0.406 |
| Persistent | 118 (40%) | 56 (43%) | 62 (38%) | 0.443 |
| History of AF before ablation, days | 349 (97–1017) | 361 (132–691) | 332 (81–1127) | 0.993 |
| LVEF, % | ||||
| Normal | 233 (80%) | 103 (79%) | 130 (80%) | 0.830 |
| Mildly reduced | 13 (4%) | 5 (4%) | 8 (5%) | 0.653 |
| Moderately reduced | 27 (9%) | 13 (10%) | 14 (9%) | 0.691 |
| Severely reduced | 19 (7%) | 9 (7%) | 10 (6%) | 0.796 |
| Heart failure, % | 107 (37%) | 50 (38%) | 57 (35%) | 0.564 |
| Hypertension, % | 178 (61%) | 81 (62%) | 97 (60%) | 0.672 |
| Diabetes mellitus, % | 48 (16%) | 18 (14%) | 30 (19%) | 0.284 |
| Coronary artery disease, % | 99 (34%) | 40 (31%) | 59 (36%) | 0.311 |
| History of stroke or TIA, % | 29 (10%) | 13 (10%) | 16 (10%) | 0.972 |
| Obstructive sleep apnea, % | 36 (12%) | 12 (9%) | 24 (15%) | 0.149 |
| eGFR, mL/min | 70 ± 21 | 70 ± 19 | 70 ± 22 | 0.971 |
| Beta blockers, % | 257 (88%) | 116 (89%) | 141 (87%) | 0.566 |
| Antiarrhythmic drugs, % | ||||
| Class I | 22 (8%) | 6 (5%) | 16 (10%) | 0.090 |
| Class III | 26 (9%) | 11 (8%) | 15 (9%) | 0.812 |
| Procedural data | Overall ( | PFA‐8 ( | PFA‐16 ( |
|
|---|---|---|---|---|
| Procedure time, min | 52 (44–67) | 44 (37–52) | 58 (50–72) | < 0.001 |
| Fluoroscopy time, min | 15 (12–19) | 12 (10–15) | 17 (14–22) | < 0.001 |
| Fluoroscopy dose, cGy×cm² | 553 (380–777) | 498 (369–684) | 608 (425–904) | 0.005 |
| Safety endpoints | Overall ( | PFA‐8 ( | PFA‐16 ( |
|
|---|---|---|---|---|
| Cardiac tamponade | 2 (0.7%) | 1 (0.8%) | 1 (0.6%) | 0.876 |
| Major bleeding | 1 (0.3%) | 0 (0%) | 1 (0.6%) | 0.370 |
| Pneumonia | 2 (0.7%) | 1 (0.8%) | 1 (0.6%) | 0.876 |
| Stroke or TIA | 1 (0.3%) | 0 (0%) | 1 (0.6%) | 0.370 |
| Phrenic nerve palsy | 0 (0%) | 0 (0%) | 0 (0%) | — |
| Death | 0 (0%) | 0 (0%) | 0 (0%) | — |
| Other | 2 (0.7%) | 2 (1.5%) | 0 (0%) | 0.113 |
| Total | 8 (2.7%) | 4 (3.1%) | 4 (2.5%) | 0.752 |
| Changes in hemoglobin | Overall ( | PFA‐8 ( | PFA‐16 ( |
|
|---|---|---|---|---|
| Hemoglobin (T0), g/dL | 14.14 ± 1.59 | 14.16 ± 1.46 | 14.13 ± 1.68 | 0.887 |
| Hemoglobin (T2), g/dL | 12.94 ± 1.62 | 13.05 ± 1.57 | 12.86 ± 1.66 | 0.376 |
|
| < 0.0001 | < 0.0001 | ||
| ΔHemoglobin 1–2, % | 101 (43.3%) | 39 (41.1%) | 62 (44.9%) | 0.558 |
| ΔHemoglobin 2.1–3, % | 30 (12.9%) | 8 (8.4%) | 22 (15.9%) | 0.092 |
| ΔHemoglobin > 3, % | 8 (3.4%) | 3 (3.2%) | 5 (3.6%) | 0.848 |
| Changes in renal function | Overall ( | PFA‐8 ( | PFA‐16 ( |
|
|---|---|---|---|---|
| Serum creatinine (T0), mg/dL | 0.99 (0.81–1.20) | 0.96 (0.78–1.18) | 1.01 (0.83–1.22) | 0.199 |
| Serum creatinine (T2), mg/dL | 0.99 (0.84–1.18) | 0.99 (0.81–1.23) | 1.01 (0.85–1.19) | 0.370 |
|
| 0.574 | 0.828 | ||
| eGFR (T0), mL/min | 70 ± 21 | 70 ± 19 | 70 ± 22 | 0.974 |
| eGFR (T2), mL/min | 70 ± 21 | 69 ± 20 | 70 ± 22 | 0.715 |
|
| 0.235 | 0.864 | ||
| KDIGO AKI stage 1, % | 7 (3.0%) | 4 (4.2%) | 3 (2.2%) | 0.371 |
| KDIGO AKI stage 2, % | 0 (0%) | 0 (0%) | 0 (0%) | — |
| KDIGO AKI stage 3, % | 0 (0%) | 0 (0%) | 0 (0%) | — |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAtrial Fibrillation Management and Outcomes · Cardiac Arrhythmias and Treatments · Microbial Inactivation Methods
Clinical Perspective
What Is Known
- Pulsed field ablation (PFA) is a novel ablation modality for treating atrial fibrillation based on irreversible electroporation of cardiac tissue.
- The current standard for PFA using a pentaspline catheter is eight applications per pulmonary vein (PV), with four in basket and four in flower configuration.
What the Study Adds
- This study is the first to compare the efficacy of pulmonary vein isolation using a novel pentaspline PFA protocol (16 applications per PV) with the standard pentaspline PFA protocol (8 applications per PV).
- The novel pentaspline PFA protocol was associated with significantly higher freedom from atrial arrhythmia at 1 year compared with the standard pentaspline PFA protocol (73.9% vs. 62.3%; p < 0.05).
- Patients with persistent atrial fibrillation may benefit more from the novel protocol (66.1% vs. 45.3%; p < 0.05) than patients with paroxysmal atrial fibrillation (78.8% vs. 75.7%; p = ns).
- Serious adverse events were comparable in both groups (p = ns).
Introduction
1
Pulmonary vein isolation (PVI) is an established treatment option for both paroxysmal atrial fibrillation (PAF) and persistent atrial fibrillation (PersAF). Thermal ablation techniques such as cryoballoon ablation (CBA) and radiofrequency ablation (RFA) are considered standard procedures for performing PVI [1, 2].
Pulsed field ablation (PFA) has been introduced as a non‐thermal ablation modality, causing irreversible damage of cardiac tissue through the application of high‐amplitude electrical pulses [3, 4]. PFA with the pentaspline catheter may offer a more favorable safety profile than thermal ablation, as the risk of damage to extracardiac tissue is lower [5, 6] while offering efficacy comparable to CBA and RFA [7, 8, 9, 10].
The current standard for PFA with the pentaspline catheter (FARAWAVE, Boston Scientific Corp., Marlborough, MA) is eight applications (four in basket and four in flower configuration) per pulmonary vein (PV) [11]. Other ablation protocols with a reduced number of four PFA applications per PV [12] or additional two PFA applications per PV using a different catheter configuration [13] showed no significant improvement in the rate of atrial arrhythmia (AA) after ablation compared to the standard protocol.
The efficacy of standard pentaspline PFA using an increased number of applications per PV has not yet been investigated in patients undergoing PVI for atrial fibrillation (AF). We therefore conducted a prospective study to evaluate the efficacy, i.e., freedom from AA after 1 year, and safety of using 8 additional applications per PV compared with the standard pentaspline PFA protocol.
Methods
2
Study Design
2.1
This single‐center study was prospective, open‐label, and non‐randomized to evaluate the efficacy of additional PFA applications in patients undergoing PVI with a pentaspline catheter. A total of 292 consecutive patients with PAF or PersAF who underwent PFA‐PVI at University Hospital Düsseldorf, Düsseldorf, Germany, were included.
The first 50 patients treated with pentaspline PFA were excluded from the analysis to account for the learning curve. Additionally, patients with a history of PVI or those requiring additional ablation beyond PVI were excluded. Patients were divided into two groups based on the number of applications delivered per PV. From January to November 2023, patients were treated with 16 applications per PV (group PFA‐16; 6 x basket configuration, 10x flower configuration). Subsequently, from December 2023 to June 2024, patients were treated with 8 applications per PV (group PFA‐8; 4 x basket configuration, 4x flower configuration).
The study was approved by the Ethics Committee of the University of Düsseldorf (number 2019‐555_5) and complies with the Declaration of Helsinki. All study participants provided their written consent.
Procedure
2.2
The procedural techniques and methods for pentaspline PFA have been described in detail previously [14, 15]. On the day of ablation, oral anticoagulation was discontinued until evening in accordance with the minimally interrupted anticoagulation strategy [16]. All procedures were performed under deep sedation using propofol, midazolam and, if appropriate, opiates. Left atrial thrombus was excluded by transesophageal echocardiography (TEE). Femoral vein access was performed under ultrasound guidance. An octopolar steerable catheter (Inquiry, Abbott Medical, Green Oaks, IL, USA) was subsequently placed in the coronary sinus. After administration of heparin (target clotting time 300–350 s), a single transseptal puncture was performed under TEE guidance using the FARADRIVE sheath (Boston Scientific Corp., Marlborough, MA). The pentaspline PFA catheter (FARAWAVE 31 mm, Boston Scientific Corp., Marlborough, MA) was inserted into the left atrium through the FARADRIVE sheath, and PV angiography was performed in the standard projections in all patients. At each PV, four applications were performed in basket configuration and four in flower configuration (group PFA‐8) or six applications in basket configuration and ten in flower configuration (group PFA‐16). This approach was chosen to ensure optimal coverage of the PV antrum. In both groups, the pentaspline PFA catheter was rotated by 36° after each pair of applications. Adequate catheter‐tissue contact was assessed by the operator through fluoroscopically visible indentation of the splines and by haptic feedback. PVI was defined as a complete elimination of PV signals and assessment of exit block.
Periprocedural management, including anesthesia strategy, anticoagulation regimen, vascular access, and postprocedural care, was standardized and remained unchanged throughout the entire study period.
Follow‐Up
2.3
Immediately after the procedure, patients were monitored by ECG telemetry for at least 48 h. Follow‐up visits including a 12‐lead ECG and a 48‐h Holter ECG were scheduled at 3 and 12 months after the procedure. Outside of scheduled follow‐up visits, a 12‐lead ECG and a 24‐h Holter ECG were performed in the outpatient clinic when symptoms recurred.
The primary endpoint was defined as freedom from AA, i.e., atrial fibrillation, atrial flutter, or atrial tachycardia, after a 90‐day blanking period. Recurrence was defined as any documented AA episode lasting > 30 s, confirmed by a 12‐lead ECG or a Holter ECG. Antiarrhythmic drugs (AAD) were discontinued after the blanking period per protocol; any use of AAD post‐blanking or repeat ablation during the blanking period was considered a recurrence.
Secondary endpoints comprised procedural characteristics, changes in laboratory values (hemoglobin, serum creatinine, and eGFR), changes in myocardial injury markers (creatine kinase and high‐sensitivity cardiac troponin T), and serious adverse events (cardiac tamponade, bleeding necessitating transfusion, pneumonia, stroke or transient ischemic attack, phrenic nerve palsy, death).
Measurement of Hemolysis Parameters
2.4
For measurement of the parameters hemoglobin (Hb) and serum creatinine (SCr), blood samples were taken from the peripheral vein before ablation (T0) and on the first day after ablation (T2). Hb levels were determined using the Sysmex XN‐9000 analyzer (Sysmex Corp., Kobe, Japan). The reference range for Hb was 11.9–14.6 g/dL for women and 13.5–16.9 g/dL for men. SCr levels were determined using a standardized UV kinetic assay with photometric detection on the Cobas 8000 analyzer, module C701 (Roche Diagnostics, Basel, Switzerland). The reference range for SCr was < 0.9 mg/dL for women and < 1.2 mg/dL for men. For the calculation of the estimated glomerular filtration rate (eGFR), the Chronic Kidney Disease Epidemiology Collaboration (CKD‐EPI) equation was used [17]. AKI was defined and staged according to the Kidney Disease: Improving Global Outcomes (KDIGO) guidelines [18].
Measurement of Myocardial Injury Markers
2.5
To determine the parameters creatine kinase (CK) and high‐sensitivity cardiac troponin T (hs‐cTnT), blood samples were taken from the coronary sinus before ablation (T0), immediately after ablation (T1), and from the peripheral vein on the first day after ablation (T2). CK and hs‐cTnT levels were quantified using tests from Roche Diagnostics (Basel, Switzerland). CK levels were determined using a standardized UV kinetic assay with photometric detection on the Cobas 8000 analyzer, module C701. The reference range for CK was ≤ 145 U/L for women and ≤ 171 U/L for men [19]. Hs‐cTnT was measured using the Elecsys immunoassay, which has a coefficient of variation of ≤ 10% at the upper reference limit of 99% (14 ng/L) [20].
Statistical Analysis
2.6
Sample size estimation was based on the anticipated difference in freedom from AA at 12 months between two groups receiving different numbers of PFA applications per PV with the pentaspline catheter. Assuming a moderate effect size of approximately 15 percentage points [21], with a two‐sided alpha of 0.05 and a desired power of 80%, a total sample size of slightly more than 290 patients was considered sufficient to detect a clinically meaningful difference between groups. The assumed effect size of 15% was based on previously published clinical data from prospective PFA studies, including the inspIRE trial [21], which demonstrated clinically meaningful differences in AA freedom depending on lesion delivery strategy. Given the emerging nature of PFA technology, this difference was considered a reasonable and conservative estimate for sample size calculation.
Statistical analyses were performed using IBM SPSS Statistics 30 (IBM Corp., Armonk, NY, USA) and GraphPad Prism 10.3.1 (GraphPad Software Inc., Boston, MA, USA). Continuous variables were expressed as mean ± SD or median with interquartile ranges (IQR), as appropriate. Normal distribution was assessed using the Kolmogorov–Smirnov test. The unpaired t‐test or Mann–Whitney U test was used for comparison of continuous variables), as appropriate. Nominal parameters were presented as absolute numbers and percentages and compared using Pearson's chi‐squared test. Arrhythmia‐free survival was estimated using Kaplan–Meier curves, and comparisons between groups were made using the log‐rank test. A multivariable Cox proportional hazards regression model adjusted for baseline covariates was used to evaluate predictors of arrhythmia‐free survival. Laboratory parameters were analyzed with the Friedman test. A p‐value < 0.05 was considered significant.
Results
3
A total of 292 patients (median age: 70 [61–77] years; 58% male) were included in the study, 130 patients in group PFA‐8 and 162 patients in group PFA‐16, respectively. An overview of the participant inclusion process is provided in the study flow chart (Figure 1).

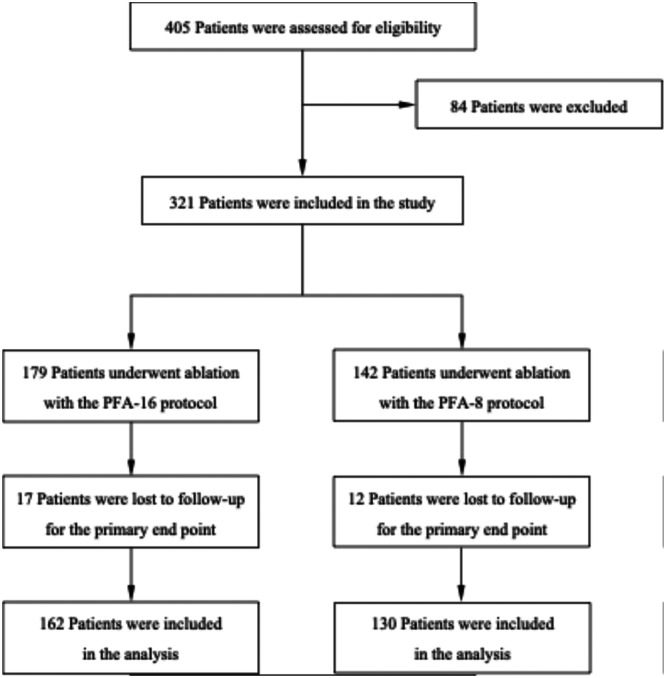

Study flow chart.
Overall, 174 patients (60%) had PAF, whereas the remaining 118 patients (40%) had PersAF. Of the patients with PersAF, one patient (1%) in group PFA‐8 and seven patients (4%) in group PFA‐16 had long‐term PersAF (*p *= ns). There were no significant differences between the two groups (Table 1). Median left atrial volume index (LAVI) was significantly higher in PersAF compared with PAF (39 [32–49] mL/m² vs. 32 [25–42] ml/m²; p < 0.001).
Primary Endpoint: Freedom From AA
3.1
The median follow‐up period was 371 (341–465) days. At 12 months, the Kaplan‐Meier estimate of freedom from AA was significantly higher in the PFA‐16 group compared with the PFA‐8 group (73.9% vs. 62.3%; log‐rank p < 0.05) (Figure 2).

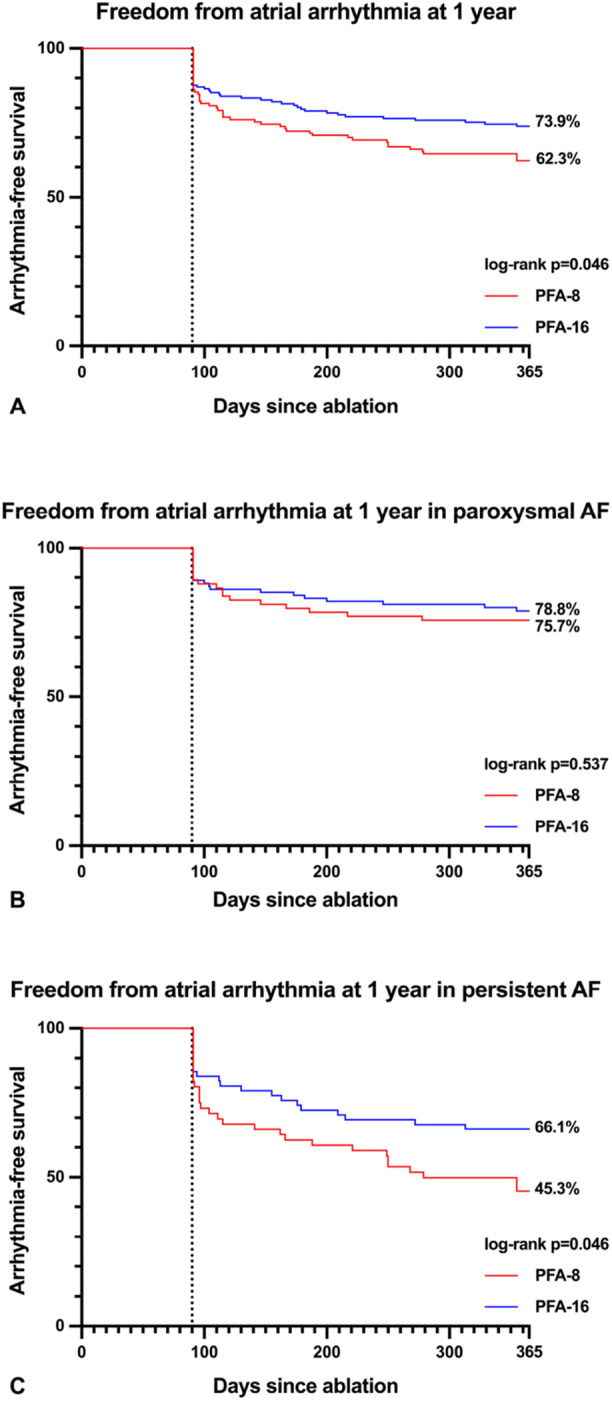

Freedom from atrial arrhythmia at 1 year. Kaplan‐Meier analysis of freedom from atrial arrhythmia in group PFA‐8 and group PFA‐16: (A) All patients, (B) Patients with paroxysmal atrial fibrillation, (C) Patients with persistent atrial fibrillation. AF atrial fibrillation.
Subgroup analysis showed differing outcomes between patients with PAF and those with PersAF. Patients with PAF had a comparable freedom from AA (75.7% in group PFA‐8 vs. 78.8% in group PFA‐16; p = ns), whereas in patients with PersAF, freedom from AA was significantly higher in group PFA‐16 (66.1% vs. 45.3% in group PFA‐8; p < 0.05) (Figure 2).
Multivariable Cox proportional hazards regression adjusted for baseline covariates (age, sex, LAVI, type of AF, and history of AF) showed that none of these covariates were significantly associated with arrhythmia‐free survival (*p *= ns) (Supporting Information S1, Table S1).
Secondary Endpoint: Procedural Characteristics
3.2
Complete PVI was achieved in all patients. The median procedure time was significantly shorter in group PFA‐8 (44 [37–52] minutes) compared with group PFA‐16 (58 [50–72] minutes; p < 0.001). Both median fluoroscopy time and fluoroscopy dose were significantly lower in group PFA‐8 than in group PFA‐16. The procedural characteristics are summarized in Table 2.
A total of eight serious adverse events (2.7%) were observed, with four events (3.1%) in group PFA‐8 and four events (2.5%) in group PFA‐16. In the PFA‐8 group, serious adverse events included cardiac tamponade (n = 1 [0.8%]) and pneumonia (n = 1 [0.8%]). Other adverse events (n = 2 [1.5%]) included third‐degree atrioventricular block requiring permanent pacemaker implantation (n = 1 [0.8%]) and femoral nerve injury (n = 1 [0.8%]). In group PFA‐16, serious adverse events included cardiac tamponade (n = 1 [0.6%]), major bleeding (n = 1 [0.6%]), pneumonia (n = 1 [0.6%]), and a transient ischemic attack (n = 1 [0.6%]). No cases of stroke, phrenic nerve palsy, or death occurred. The rate of serious adverse events did not differ significantly between both groups (Table 3).
Secondary Endpoint: Hemolysis Parameters
3.3
There were no significant differences in baseline Hb, SCr, or eGFR between the two groups. Hb levels decreased significantly in both groups (p < 0.0001) (Table 4). However, the delta values did not differ significantly between the two groups (Figure 3). There were no significant changes in SCr or eGFR levels compared with baseline in either group, or significant differences between the two groups. A total of seven instances (3.0%) of an SCr increase consistent with stage 1 AKI were observed, with no differences between the two groups. No cases of stage 2 or stage 3 AKI were observed (Table 5). In 4 of these instances, baseline SCr levels were elevated (Supporting Information, Table S2).

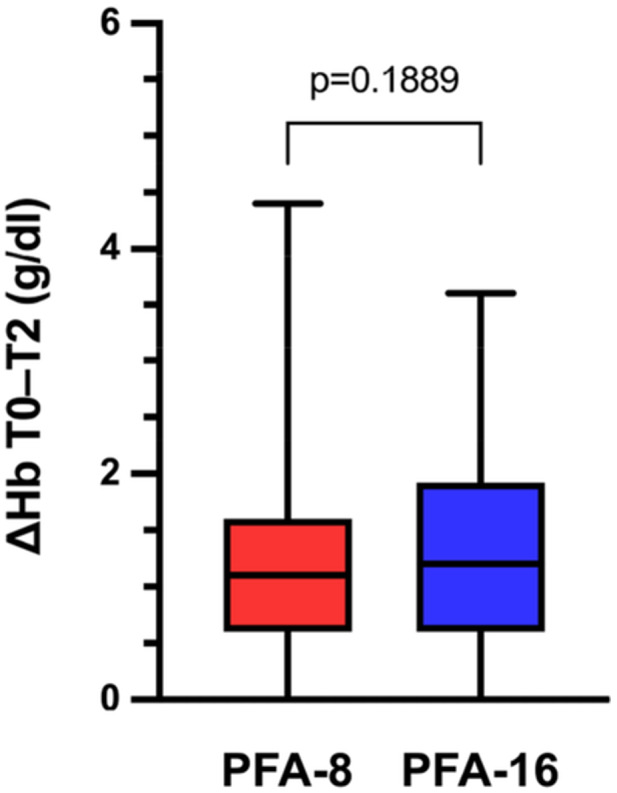

Differences of hemoglobin before and after ablation in group PFA‐8 and group PFA‐16. ΔHb (T0 to T2). Values are presented as median with minimum and maximum ranges. Hb hemoglobin; T0 pre‐ablation; T2 first day post‐ablation.
Secondary Endpoint: Myocardial Injury Markers
3.4
Compared with baseline values, both CK and hs‐cTnT levels increased significantly in both groups (p < 0.001) (Figure 4). However, the increases were more pronounced in group PFA‐16, resulting in significantly higher delta values for both parameters compared with group PFA‐8 (p < 0.05) (Figure 5).

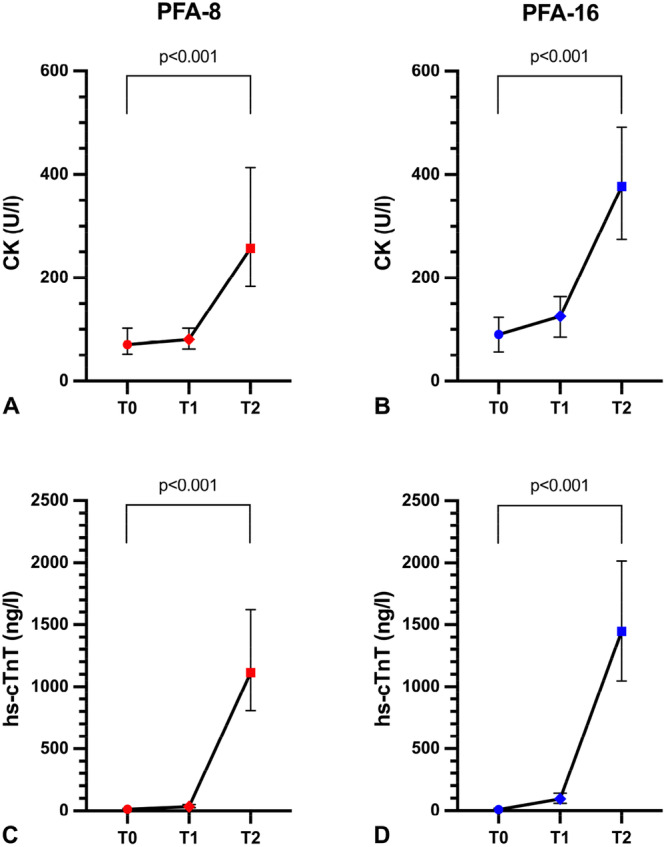

Changes in myocardial injury markers. CK and hs‐cTnT levels were measured before ablation (T0), on the same day after ablation (T1), and on the first day post‐ablation (T2): (A) CK levels in group PFA‐8, (B) CK levels in group PFA‐16, (C) hs‐cTnT levels in group PFA‐8, (D) hs‐cTnT levels in group PFA‐16. Values are presented as median with interquartile ranges. CK creatine kinase; hs‐cTnT high‐sensitivity cardiac troponin T.

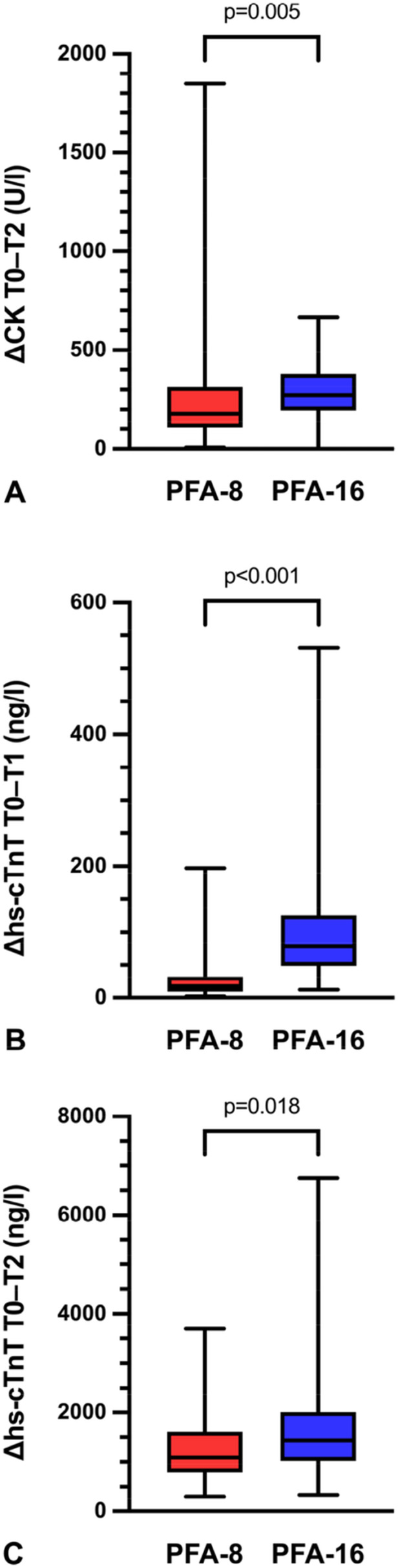

Differences of myocardial injury markers before and after ablation in group PFA‐8 and group PFA‐16. (A) ΔCK (T0 to T2), (B) Δhs‐cTnT (T0 to T1), (C) Δhs‐cTnT (T0 to T2). Values are presented as median with minimum and maximum ranges. CK creatine kinase; hs‐cTnT high‐sensitivity cardiac troponin T; T0 pre‐ablation; T1 same day post‐ablation; T2 first day post‐ablation.
Discussion
4
This study is the first to compare the efficacy of PFA using 16 applications per PV (6 x basket, 10 x flower) with the standard PFA protocol (4 x basket, 4 x flower) in patients undergoing PVI with the pentaspline catheter.
The main findings of our study are that pentaspline PFA with 16 applications per PV significantly improved freedom from AA at 1 year compared with standard pentaspline PFA, both in the overall cohort (73.9% vs. 62.3%; p < 0.05) and in the subgroup of patients with PersAF (66.1% vs. 45.3%; p < 0.05). Notably, the rate of serious adverse events did not differ significantly between the two groups. Changes reflecting hemolysis (Hb, SCr, and eGFR), as well as the incidence of AKI, did not differ significantly between the two groups. As expected, pentaspline PFA using 16 applications per PV was associated with a significantly greater increase in myocardial injury markers (CK and hs‐cTnT).
Potential Benefits of Additional PFA Applications
4.1
Antral fibrosis is a recognized contributor to the maintenance of atrial fibrillation [22]. The DECAAF II study [22] demonstrated that patients with PersAF exhibit increased fibrosis in the PV region. A meta‐analysis by Proietti et al. [23] suggested that RFA‐PVI using wide antral circumferential ablation (WACA) is associated with improved long‐term rhythm control compared to RFA‐PVI with ostial ablation.
Our data suggest that sustained antral ablation may be more difficult to achieve in PersAF due to larger atria and wider antra, and that patients with PersAF may benefit from additional applications to achieve circumferential coverage. However, it can be speculated that anatomy‐guided lesion delivery may achieve comparable results.
The present study was based on the hypothesis that PVI with eight additional PFA applications, including six in the flower configuration, may improve clinical outcome by extending lesions into the surrounding antral myocardium, thereby more effectively targeting antral fibrosis. Accordingly, extended lesion formation may be reflected by the pronounced increase of CK and hs‐cTnT in the PFA‐16 group.
Tilz et al. [24] demonstrated that the addition of 2 PFA applications in the flower configuration (“WACA‐PFA”) resulted in significantly larger lesion areas compared with the conventional pentaspline PFA. At 1 year, arrhythmia‐free survival was numerically higher in patients treated with WACA‐PFA compared to standard pentaspline PFA (94% vs. 87%; p = 0.68). This difference was not statistically significant, which may be attributed to the small sample size (n = 30; PersAF 33%). In contrast, our study included a total of 292 patients, of whom 118 had PersAF.
Recently, Schaack et al. [13] introduced a novel pentaspline PFA protocol including two additional applications in a modified basket configuration referred to as the olive configuration. Although the olive strategy showed no significant improvement in freedom from AA compared with the standard pentaspline PFA procedure, it might be associated with a lower rate of reconnected PVs. The main difference between our study and the olive strategy lies in the ablation approach, while Schaack et al. performed ostial ablation, our strategy involved antral ablation.
Badertscher et al. [12] have shown that pentaspline PFA using a reduced number of 4 applications per PV (2 x basket, 2 x flower) may be as efficient and safe as the standard pentaspline PFA protocol. The inclusion of two additional applications at the right‐sided carina in all patients may limit the comparability of this study to both our study and the olive study. Moreover, the study did not present a subgroup analysis investigating outcomes in patients with PersAF, who may benefit the most from an extended ablation protocol.
Safety
4.2
Our study shows that pentaspline PFA‐PVI with 16 applications per PV is a safe procedure. There was a total of eight serious adverse events (2.7%), with no significant differences between both groups. The absence of phrenic nerve palsy in our study is consistent with the high tissue specificity of pentaspline PFA [3, 4]. However, recent studies have reported hemolysis as a pentaspline PFA‐related adverse event, with the severity likely being dose‐dependent [25, 26, 27].
There were concerns that pentaspline PFA could cause significant hemolysis in patients undergoing PVI. However, the incidence of hemolysis‐associated significant anemia was low, suggesting that the clinical consequences of hemolysis during pentaspline PFA are usually minor and possibly dose‐dependent [25, 26, 27]. The MANIFEST‐17K study showed that hemolysis‐related acute kidney injury (AKI) was very rare (0.03%) and may be related to the number of PFA applications (≥ 96 applications per patient) [28].
In a previous study of our institution, pentaspline PFA using up to 16 applications per PV was associated with a significant increase in hemolysis markers. However, no cases of AKI were reported [29]. Notably, hemolysis‐related AKI has been reported predominantly after pentaspline PFA with an extensive number of applications (≥ 100 applications) [26, 28] which exceeds the number of applications used in our study (64 applications per procedure). In addition to the previous study, we analyzed changes in Hb, SCr, and eGFR from baseline in this study cohort. These changes did not differ significantly between the two groups. In seven patients, an increase in SCr consistent with stage 1 AKI was observed, with no differences between both groups. No cases of higher‐grade AKI were observed. Elevated baseline SCr levels and decreased baseline GFR may be associated with an increased risk of developing AKI [28, 30]. In this study, baseline SCr was elevated in four of the seven patients, including two patients with chronic kidney disease.
Limitations
4.3
The study was conducted in a non‐randomized, single‐center setting, which may have introduced potential bias related to patient selection, temporal effects, and institution‐specific procedural protocols.
Furthermore, the absence of a standardized PVI confirmation protocol with systematic assessment of entrance block, exit block, and electroanatomical mapping represents a limitation and should be considered when interpreting the findings.
Assessment of AA recurrence relied on intermittent Holter ECG monitoring rather than continuous rhythm monitoring with implantable loop recorders, which may underestimate the true burden of recurrence, especially for asymptomatic or short‐lasting episodes. Although follow‐up was conducted in line with guideline‐based recommendations, the absence of blinding may have introduced observational bias. Further randomized studies with continuous ECG monitoring may be necessary to confirm these results.
Conclusion
5
This study demonstrates that a novel pentaspline PFA protocol using 16 applications per PV offers superior efficacy compared with the standard pentaspline PFA protocol (8 applications per PV), particularly in patients with PersAF. The improved clinical outcome was not associated with an increase in serious adverse events. These findings suggest that the use of additional pentaspline PFA applications may be associated with an improved outcome in patients with PersAF undergoing PVI. Further studies using 3D mapping may be necessary to further evaluate the role of higher dose delivery in PersAF.
Conflicts of Interest
The authors declare no conflicts of interest.
Supporting information
Table S1: Multivariable Cox proportional hazards regression adjusted for baseline covariates. Table S2: Case descriptions of acute kidney injury.
