Binding properties of sulfur to enable solvent-free fabrication of high-performance polymer-free sulfur-carbon positive electrodes
Yuhui An, Kyungbae Kim, Yun-Jeong Lee, Soyeon Ko, Faizan Ejaz, Yongming Liu, Beomjin Kwon, Seung-Ho Yu, Yoon Hwa
TL;DR
This paper introduces a new method to make high-performance sulfur-carbon electrodes without solvents or binders, improving battery sustainability and cost.
Contribution
The novel contribution is using sulfur's natural binding properties to fabricate electrodes without solvents or polymer binders.
Findings
Binder-free electrodes achieved 932 mAh g⁻¹ after 500 cycles at 1.0 C rate.
The process eliminates hazardous solvents and reduces fabrication costs by 2.1 times.
Abstract
The development of a scalable, cost-effective and environmentally benign manufacturing of binder-free sulfur positive electrodes can make substantial advance for lithium-sulfur (Li | |S) batteries as sustainable competitors to lithium-ion systems. Here we show a solvent- and binder-free method to fabricate sulfur-carbon composite electrodes directly on aluminum foil via thermal-assisted dry pressing. A key finding is the role of sulfur as a structural binder, where its softening, distribution, and adhesion properties enable the formation of mechanically robust electrodes without polymer binders. Systematic experimental characterizations and computational modeling reveal the underlying mechanisms governing electrodes formation and electrochemical performance. The developed binder-free positive electrodes achieve a reversible capacity of 932 mAh g⁻¹ after 500 cycles at 1.0 C rate; for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —https://doi.org/10.13039/501100003725National Research Foundation of Korea (NRF)
- —LG Energy Solution Battery Innovation Contest
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Battery Materials and Technologies · Advancements in Battery Materials · Synthesis and properties of polymers
Introduction
The relentless pursuit of advanced energy storage systems stands at the forefront of modern scientific inquiry, driven by the urgent need for sustainable, efficient, and high-energy density solutions. Among the various contenders, lithium-sulfur (Li||S) batteries have gained significant attention due to their high theoretical specific energy (2600 Wh kg^−1^) and cost-effectiveness, primarily attributed to the abundance of sulfur, used as a positive electrode active material^1,2^. Despite the problematic issues associated with poor electronic conductivity of sulfur, soluble lithium polysulfide (Li-PS) intermediates such as Li-PS shuttling^3^ and repeated changes in the porous structure of sulfur positive electrodes^4^, diminishing cycling stability of Li||S batteries, significant progress in enhancing the performance of Li||S batteries accomplished by researchers have positioned Li||S batteries to be one of promising future energy storage options^5–8^.
Li||S batteries typically employ the conventional slurry casting method to fabricate a sulfur positive electrodes with the incorporation of polymer binders (about 10 wt.% in general)^9^. The slurry casting process requires a processing solvent, typically N-Methyl-2-Pyrrolidone (NMP) to dissolve the binder and disperse the solid constituents uniformly. However, the use of solvent introduces environmental challenges and increases production costs due to the energy-intensive solvent evaporation and vapor recovery process, thereby undermining the sustainability and economic viability of Li||S batteries^10,11^. Note that the electrode manufacturing process is the most energy-intensive part of battery manufacturing^12^, with the wet-slurry coating, drying, and NMP solvent recovery making up ~50% of total electrode manufacturing costs^13,14^. The drying step accounts for about 39% of energy consumption, releasing ~1000 kg CO_2_-equivalent emissions for every 10 kWh of batteries produced^15,16^. Eliminating the NMP recovery system could yield substantial benefits for battery manufacturing facilities, such as reducing capital costs by up to 38.4 per kg of sulfur in the positive electrodes) is less than half the cost of a slurry-cast sulfur positive electrodes ($80.91 per kg of sulfur in the positive electrodes). Although aqueous binders such as styrene–butadiene rubber-carboxymethyl cellulose^18^ and polyacrylic acid^19^ can partially mitigate the environmental and economic impacts of electrode fabrication process, they introduce other challenges. For instance, aqueous binders often lead to electrode cracking during the slurry drying process^20^, and leave residual water in positive electrodes. This residual water is challenging to remove through vacuum drying at the elevated temperature (typically 120–150 °C for conventional non-sulfur electrodes) due to low melting point of sulfur, which negatively impacts the performance of Li||S batteries^20^. Recent reviews have highlighted growing interest in dry-fabrication of sulfur positive electrodes for Li||S batteries as a means to improve manufacturing efficiency and interface control^21–24^. Moreover, although the role of binders is crucial in enhancing the mechanical durability of electrode films, binders increase the resistance in positive electrodes as they are generally electronic and ionic insulators^25^. Efforts to eliminate binders from sulfur positive electrodes have explored the use of three-dimensional porous carbon structure^26–29^ and metal foam^30,31^ as current collectors. However, prior binder-free strategies often rely on specialized or nonstandard current collectors that are incompatible with scalable manufacturing methods such as roll-to-roll coating, ultimately increasing production costs. In some cases, high-temperature melt-infiltration of sulfur into carbon substrates is also required^29^, adding to process complexity and material expenses. Moreover, these approaches typically involve rigid or pre-structured porous carbon architectures where precise control over bulk porosity is difficult to achieve. These limitations make it challenging to implement such methods in high-throughput, cost-sensitive manufacturing environments, thereby restricting their scalability.
Building on this background, our research introduces a polymer binder- and solvent-free method for fabricating sulfur-carbon (S-C) composite positive electrodes using a conventional aluminum (Al) foil current collector. In this approach, sulfur serves a dual function as both the active material and an inherent binder, eliminating the need for conventional binders. By removing binders and processing solvents, our process provides an environmentally friendly, cost-effective alternative for electrode fabrication. The method is based on dry powder formation on Al foil followed by roll-pressing, both of which are compatible with continuous processing and allow control over key processing parameters such as areal loading and electrode porosity, highlighting its potential for scalable and tunable manufacturing. We conducted a comprehensive analysis of the structural, compositional, and electrochemical properties of the binder-free S-C composite positive electrodes using advanced techniques such as X-ray imaging, and in situ optical microscopy (OM). Our findings reveal the mechanisms driving the improved electrochemical performance, including structural features of binder-free sulfur positive electrodes that boost electrochemical activity. This study demonstrates significantly enhanced electrochemical performance using inexpensive commercial porous carbon as a sulfur host in S-C composites, comparable to previous reports that relied on more expensive or complexly synthesized S-C composite active materials and conventional slurry-cast electrodes containing ~10 wt.% polymer binder. The binder-free S-C electrodes achieve a reversible capacity of 932 mAh g^−1^ after 500 cycles, which is among the higher values reported in Table S2. These insights pave the way for more sustainable manufacturing practices for high-performance Li||S batteries.
Results and discussion
Thermally-assisted consolidation of elemental sulfur

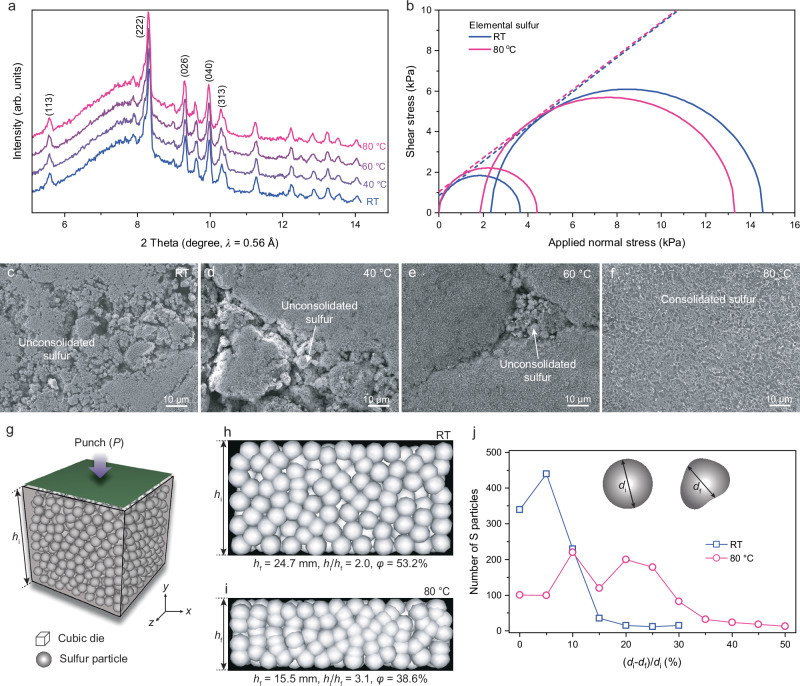

Substituting sulfur for a polymer binder in binder-free sulfur electrodes requires sulfur particles to bind together effectively. Given a low melting temperature of sulfur (112–120 °C)^32^, there is potential for partial sulfur powder sintering or densification to occur at relatively low temperatures, facilitating the direct lamination of the sulfur powder bed under controlled temperature and pressure conditions. To investigate the thermal characteristics of sulfur, operando X-ray diffraction (XRD) was conducted, showing thermal lattice expansion (diffraction peak shifting to lower angle) above 60 °C (Figs. 1a and S1 and Table S3). Powder rheology tests of elemental sulfur at room temperature (RT, 25 °C) and 80 °C (Fig. 1b and Table S4) revealed increased softening and interparticle bonding of sulfur particles at higher temperatures^33,34^. Scanning electron microscopy (SEM) images (Fig. 1c−f) visualize that as the sulfur powder bed (SEM image of sulfur raw powder is shown in Fig. S2) roll-pressed at various temperatures (RT, 40, 60, and 80 °C). At RT and 40 °C (Fig. 1c, d), the sulfur particles retain their original granular structure with visible inter-particle gaps, indicating minimal particle deformation or contact. As the temperature increases to 60 °C (Fig. 1e), the particles begin to show signs of localized deformation and slightly improved inter-particle contact, though some void spaces persist. Notably, at 80 °C (Fig. 1f), the sulfur powder bed undergoes significant morphological transformation. The particles exhibit pronounced deformation and a substantial reduction in inter-particle voids, resulting in a highly compact and smooth surface texture. This densification indicates a critical threshold where thermal softening, combined with applied pressure, facilitates extensive surface diffusion or solid-state sintering. The substantial contrast between 60 and 80 °C highlights the temperature-dependent consolidation mechanism, suggesting that 80 °C induces sufficient particle plasticity to promote extensive particle reorganization and bonding, even without sulfur melting.Fig. 1. Temperature-dependent structural and mechanical evolution of elemental sulfur.a Operando XRD patterns of elemental sulfur under heating conditions. The temperature was elevated from room temperature (RT) to 80 °C with a ramping temperature of 1 °C per minute. b Mohr circle of elemental sulfur obtained at RT and 80 °C. SEM images of roll-pressed sulfur powder at different temperatures of c RT, d 40 °C, e 60 °C, and f 80 °C. Computational modelling of elemental sulfur powder bed compaction behavior at RT and 80 °C. g 3D schematic of the computational domain. xy-planar view of the compressed powder bed at h RT and i 80 °C. j Comparison of the number of powder particles as a function of a deformation rate at RT and 80 °C. (φ, porosity; hi, initial powder bed height; hf, final powder bed height; di, initial particle diameter; df, final particle diameter).
To understand the pronounced morphological transformation observed at 80 °C, the thermal compression behavior of elemental sulfur particles under conditions mimicking the roll-pressing process was simulated. The initial height of the powder bed (hi) of 50 mm, P = 50 MPa, and t = 1.0 s at RT (25 °C for the simulation) and 80 °C (Fig. 1g−j). The simulation provides insights into particle-level deformation and densification under thermal and mechanical stresses, illustrating how elevated temperatures influence sulfur particle rearrangement, deformation, and packing efficiency. Note that the simulation is designed for qualitative insights into bulk deformation and densification during powder compaction. To balance accuracy and efficiency, we used millimeter-scale particles, which capture bulk mechanical responses acceptable computational cost, whereas a quantitative comparison with experimental data would require micrometer-scale particles that account for adhesive forces. At RT, the particles exhibited elastic and plastic deformation, with a final height (hf) of 24.7 mm, yielding a compaction ratio (hi/hf) of 2.1. The porosity is 53.2%, estimated as the ratio of empty space to particle volume. At 80 °C, plastic deformation becomes more prominent due to reduced stiffness and increased Poisson’s ratio (ν), resulting in hf of 15.5 mm, a compaction ratio of 3.1, and porosity of 38.6%. Figure 1j compares the number of particles undergoing plastic deformation at RT and 80 °C. The final particle diameter (df) is calculated from the minor axial length. At RT, most particles showed moderate deformation, with an average df of 4.0 ± 0.5 mm and a 5–10% variation in di due to higher stiffness at low temperatures. At 80 °C, df decreased by 20−30%, averaging 3.0 ± 0.7 mm, confirming that sulfur particles exhibited ductile plastic deformation, forming a dense powder bed at higher temperatures. To achieve similar compactness of sulfur powder bed between RT and 80 °C, approximately four times higher pressure is needed at RT (Fig. S3). This behavior forms the basis of our next section on heat- and pressure-assisted compression of S-C composites, where the role of sulfur in achieving high-density, cohesive electrode structures will be further explored.
Polymer binder-free S-C composite electrode fabrication
The cohesive nature of sulfur at elevated temperatures, as previously demonstrated, enhances the mechanical integrity of the compressed powder bed. Consequently, when thermally assisted compression effectively facilitates the distribution of sulfur within the S-C composite powder bed, enabling inter-particle bonding, the fabrication of S-C composite electrodes through solvent-free processes without the need for a polymer binder becomes feasible. Conventional designs of S-C composites generally focus on confining sulfur in nanosized carbon pores to prevent sulfur agglomerates, which helps reduce resistance and mitigate the Li-PS shuttling effect^35^. Our approach, however, combines nano-confined sulfur within porous carbon with micron-sized sulfur particles embedded in S-C secondary particles to facilitate polymer binder-free electrode fabrication. A two-step melt diffusion method was used to synthesize the S-C composite with Ketjen black as the carbon host, and the powder was ground and sieved for uniformity.

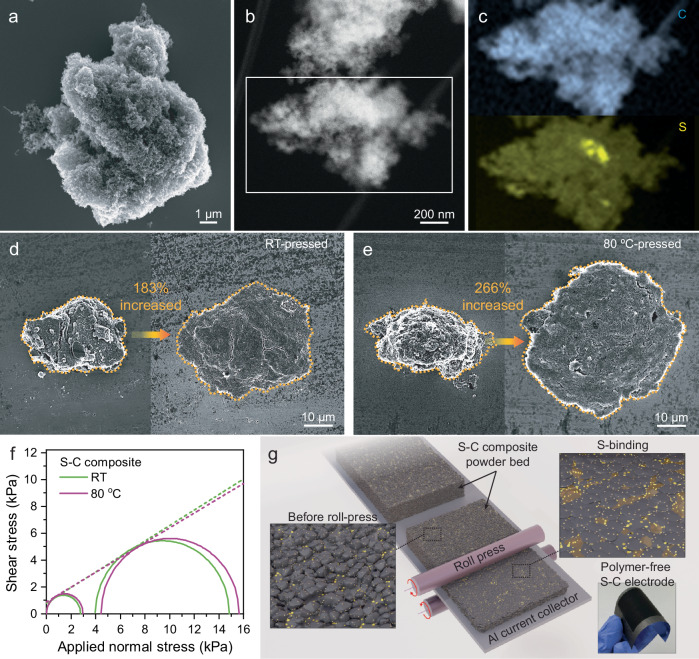

SEM (Fig. 2a) with energy-dispersive spectroscopy (EDS) elemental mapping (Fig. S4), bright field transmission electron microscopy (TEM, Fig. S5), high-angle annular dark-field (HAADF, Fig. 2b), and energy loss spectroscopy (EELS) mapping (Fig. 2c) images in the synthesized S-C composites reveal a highly porous morphology, typical of Ketjen black, with sulfur likely confined within the porous structure. The HAADF and EELS image provides further insight into the internal structure of the composite, confirming the hybrid structure where nano-confined sulfur coexists with micron-sized sulfur in S-C composite secondary particles. XRD (Fig. S6) shows crystalline α-sulfur (JCPDS 08-0247) in the composite, and to further investigate local structural features, including non-crystalline sulfur, we performed pair distribution function (PDF) analysis for elemental sulfur and S-C composite (Fig. S7). Compared to elemental sulfur, the S-C composite exhibited broadened features in I(Q) and S(Q)^36,37^, along with diminished long-range correlations in G(r)^38,39^, indicating the presence of amorphous sulfur domains. The preservation of nearest-neighbor S–S distances further suggests that local sulfur bonding is retained despite structural disorder induced by confinement within the porous carbon matrix. Sulfur content in S-C composite of ~70 wt.% was confirmed by thermogravimetric analysis (TGA, Fig. S8). From the integrated peak areas of XRD patterns shown in Fig. S9, the crystalline sulfur fraction in the S-C composite was estimated to be approximately 44 wt.% of the total composite, corresponding to about 63 % of the total sulfur content. This partial amorphization suggests effective sulfur dispersion and confinement within the carbon matrix. The particle size distribution and morphology analysis of the S-C composite (Fig. S10 and Table S6) indicates that most of the particles fall within the size range of 30.4 µm and their morphology is relatively well-rounded (circularity of 0.896), which is advantageous for uniform formation of S-C composite powder bed. SEM (Fig. 2d, e) shows a 266% larger flattened area in particles compressed at 80 °C compared to RT (186%), indicating greater compressibility, corresponding to rheological data of S-C composite (Fig. 2f and Table S7), confirming improved cohesion at higher temperatures. Higher-magnification SEM images (Fig. S11) show that RT-pressed samples exhibit uneven sulfur distribution with particles remaining outside aggregates, while 80 °C-pressed samples exhibit more uniform morphology and sulfur distribution.Fig. 2. Sulfur-carbon (S-C) composite microstructure and temperature-dependent mechanics enabling binder-free casting.a scanning electron microscopy image (SEM) of S-C composite powder at low magnification. b high-angle annular dark-field scanning transmission electron microscopy images of S-C composite particles and c electron energy-loss spectroscopy elemental mapping for carbon and sulfur. SEM images of S-C composite particle before (left) and after (right) compressed at d room temperature (RT) and e 80 °C. f Mohr circle of S-C composite obtained at RT and 80 °C. g Schematic illustration of the developed dry and binder-free casting method.
Using the developed S-C composite containing both nano-confined and micron-sized sulfur, a polymer binder-free S-C electrode was fabricated through a solvent-free manufacturing process. In this approach, the S-C composite powder bed was directly deposited onto a carbon-coated Al foil current collector and laminated via thermally assisted compression. A heat-roll press enables precise pressure control by adjusting the gap, roll temperature, and feeding speed. This process, illustrated in Fig. 2g, uses elevated temperatures to soften sulfur in S-C composites, promoting powder bed consolidation and inter-particle bonding. Micron-sized sulfur serves as a natural binder, while both micron-sized and nano-confined sulfur function as active materials. This dual role eliminates the need for additional binders or conductive agents, facilitating the formation of a binder-free S-C composite network. The heat-roll pressing of a Ketjen black powder bed under identical compression conditions fails to form a mechanically stable film on the Al current collector (Fig. S12a). In contrast, the sulfur–Ketjen Black mixture formed a coherent film, highlighting the critical role of sulfur as a binder (Fig. S12b).
In this work, positive electrodes with an areal sulfur loading of 3 mg_S_ cm^−2^ and porosity of 51–56% were prepared at 80 °C (referred to as 80 °C-pressed), with another set prepared at RT (referred to as RT-pressed) for comparison (Table S8). Due to the higher stiffness of S-C composite at RT, a narrower roll press gap was used for RT-compression process. The XRD patterns (Fig. 3a) of the RT-pressed and 80 °C-pressed electrodes show structural changes with distinct peak differences, indicating better structural reorganization and compaction at 80 °C. The compression at RT leads to some structural disorder of α-sulfur phase, as evidenced by peak broadening, but lacks the more pronounced crystallographic changes (i.e., peak shifting) seen at 80 °C. The shift and associated peak shape distortion of α-sulfur in 80 °C-pressed electrodes suggest thermomechanical strain or local lattice distortion within α-sulfur, likely facilitating improved particle–particle cohesion and mechanical integrity in the composite electrode. Peel force measurements (Fig. S13) confirm that 80 °C-pressed electrodes exhibit enhanced mechanical stability over the RT-pressed electrodes.Fig. 3. Multimodal characterization of binder-free sulfur-carbon (S-C) composite electrodes prepared at room temperature (RT) and 80 °C.a XRD patterns of the S-C composite powder and binder-free S-C composite positive electrodes with aluminum (Al) foil substrate prepared via the solvent-free process at RT and 80 °C. b X-ray micro computed tomography (μ-CT) analysis and c top-view SEM, and d cross-sectional SEM images of the RT-pressed electrodes, e X-ray μ-CT analysis and f top-view SEM, and g cross-sectional SEM images of the 80 °C-pressed electrodes. Porosity distribution along the electrode thickness, as revealed by X-ray μ-CT, is shown adjacent to the cross-sectional SEM images.

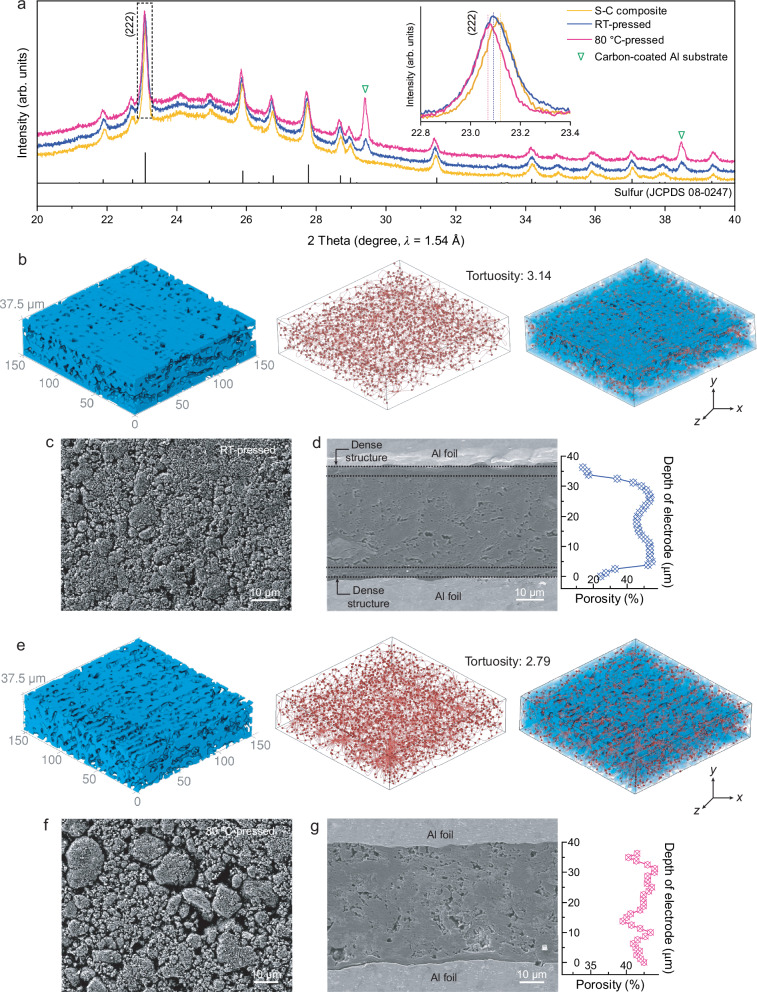

To gain deeper insight into the process, a structural analysis of the RT-pressed and 80 °C-pressed electrodes was performed using X-ray micro-computed tomography (µ-CT), SEM, and OM with surface profilometry. Despite the fact that RT-pressed and 80 °C-pressed electrodes have approximately the same bulk porosity, the X-ray µ-CT results in Fig. 3b (RT) and 3e (80 °C) reveal key differences: the RT-pressed electrode shows a non-uniform void structure with more complex pore pathways (tortuosity: 3.14), while the 80 °C-pressed electrode has a more uniform structure with direct pore pathways (tortuosity: 2.79). The reduction in tortuosity is expected to facilitate more efficient Li-ion migration by shortening diffusion paths, which can contribute to improved rate capability and electrochemical uniformity during cycling. Top and cross-sectional view SEM images and porosity distribution analysis by X-ray µ-CT of the RT-pressed (Fig. 3c, d) and 80 °C-pressed electrodes (Fig. 3f, g) indicate uniform porosity for the 80 °C-pressed electrode, while the RT-pressed electrode has lower porosity at the top and bottom. SEM and OM with surface profilometry results (Figs. 3c, f and S14 and Table S8) reveal the 80 °C-pressed electrode has a higher surface void fraction (49%) and greater roughness (S_pc_ of 1612.7 mm^−1^) compared to the RT-pressed electrode (40% void fraction, S_pc_ of 1192.0 mm⁻¹). Although the S-C composite deforms and compresses more effectively at 80 °C than at RT, the 80 °C-pressed electrode exhibits a rougher surface, interestingly. This difference arises from how pressure is distributed to achieve the same bulk porosity (51–56%) at varying temperatures. At RT, higher pressure was given to the powder bed to address the higher stiffness of the S-C composite particles, resulting in higher pressure concentrated at the top and bottom of the powder bed. This uneven pressure leads to smoother surfaces but non-uniform porous structures, as seen in cross-sectional images and X-ray µ-CT. In contrast, at 80 °C, the S-C composite compresses more uniformly due to increased compressibility, requiring lower pressure for the same porosity, creating a rougher surface and more consistent porous structure. This effect becomes more pronounced as the areal mass loading increases from 1 to 5 mg_S_ cm^−^² (Table S8 and Figs. S15−S17). At low loadings, pressure transfers more uniformly throughout the powder bed, but with higher loadings, thicker beds show greater inhomogeneity, especially at RT, leading to a more non-uniform structure.
X-ray μ-CT analysis results of the slurry-cast S-C composite electrodes (Fig. S18) reveal significant differences between binder-based and binder-free S-C composite electrodes, particularly in terms of tortuosity and structural integrity. The slurry-cast electrodes display a more tortuous pore network with pronounced microscale defects than the RT and 80 °C-pressed electrodes, as evident from the top-view SEM and OM and surface topology analysis (Fig. S19 and Table S9) and the 3D reconstructed X-ray μ-CT images (Fig. S18). High-speed camera observations reveal that the electrolyte absorptivity of the electrodes differ significantly between the binder-free and slurry-cast S-C composite electrodes. The binder-free electrodes display more rapid and uniform electrolyte absorption, with contact angles of 17° and 14° after 0.02 s for RT-pressed and 80 °C-pressed samples, respectively, compared to 23° for the slurry-cast S-C composite electrode. This enhanced wettability is attributed to their more homogeneous porosity and structural integrity (Fig. S20). This faster absorptivity ensures improved wetting of the electrode and enhanced ion transport pathways, which could contribute to the enhancement in the electrochemical performance of the binder-free electrodes. In contrast, the binder-containing slurry-cast electrodes, with their more tortuous pore network and the presence of a polymer binder, exhibit slower and less uniform electrolyte absorption, leading to poorer wetting. After 2 s, the RT-pressed electrode shows surface swelling and irregularity (Fig. S20), indicating localized expansion and reduced mechanical stability. In contrast, the 80 °C-pressed and slurry-cast electrodes maintain flat, intact surfaces, suggesting better structural resilience. These findings, in conjunction with the X-ray µ-CT and SEM observations, emphasize the critical role that microstructural uniformity and electrolyte accessibility play in the overall performance of S-C composite electrodes.
Electrochemical tests

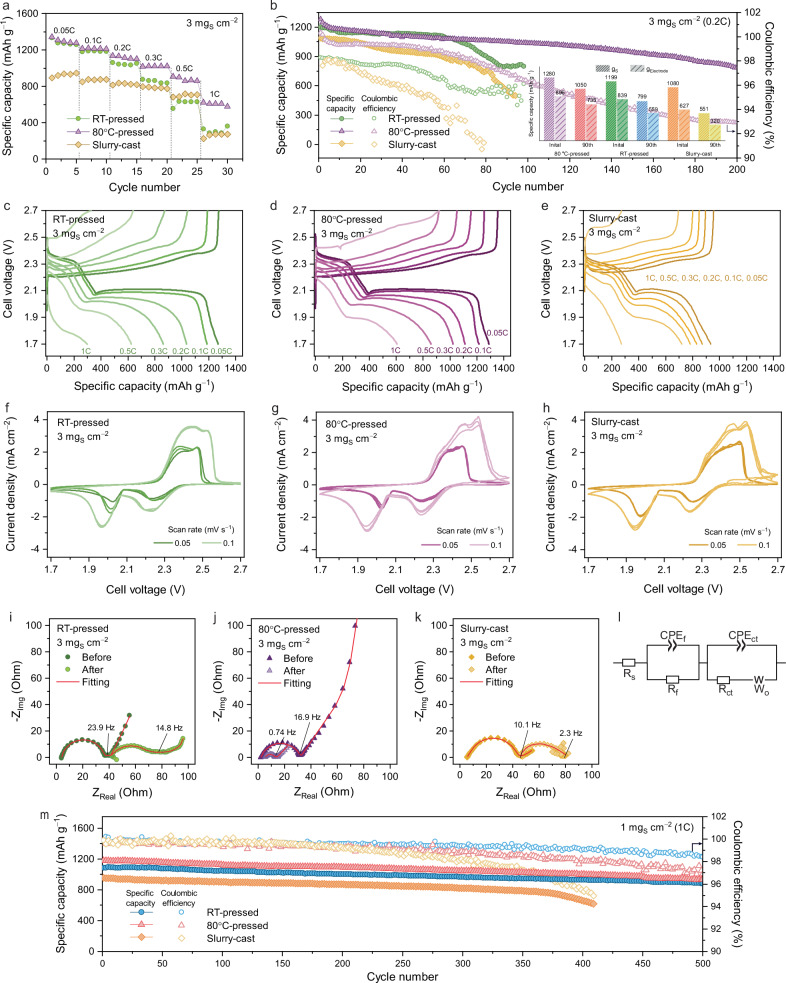

The electrochemical performance of the S-C composite positive electrodes (3 mg_S_ cm^−^²) was systematically evaluated through a series of tests, including rate capability, cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and galvanostatic charge-discharge cycling. While pouch cells are important for assessing practical energy metrics^40–42^, coin cells were used to enable controlled evaluation of the intrinsic properties of the sulfur positive electrodes developed in this work. The rate capability test (Figs. 4a and S21) demonstrates that the 80 °C-pressed electrodes exhibit higher rate performance across a wide range of C-rates with specific capacities of approximately from 1300 to 600 mAh g^−1^ from 0.05 to 1.0 °C, respectively, whereas the RT-pressed electrodes (70 wt.% sulfur) show a dramatic reduction in capacity as the C-rate increases, particularly above 0.5 °C rate. The cycling tests (Fig. 4b) validate these improvements, with the 80 °C-pressed electrodes retaining significantly more capacity over 200 cycles compared to the RT-pressed electrodes, which decayed after 60 cycles. The slurry-cast electrode containing a polymer binder prepared for comparison (3 mg_S_ cm^−^², 58 wt.% sulfur) showed even worse cycle performance and rate performance with rapid capacity decay and early failure than both binder-free positive electrodes. The inset chart in Fig. 4b shows that the slurry-cast electrode exhibited a specific capacity of only 627 mAh g_electrode_⁻¹ (based on the mass of the electrode film vs. 896 mAh g_electrode_⁻¹ for 80 °C-pressed electrodes) during the initial cycle. This performance declined substantially by the 90th cycle, decreasing to 320 mAh g_electrode_⁻¹. A gradual decline in Coulombic efficiency was observed during extended cycling (Fig. 4b), particularly in the RT-pressed and slurry-cast samples, indicating increasing interfacial resistance. Figure 4c−e highlight the more stable voltage profile of the 80 °C-pressed electrodes with lower charge and discharge overpotentials, compared to the RT-pressed electrodes. The CV results (Fig. 4f−h) align with previous findings, showing sharper and more distinct redox peaks for the 80 °C-pressed electrodes, indicating better electrochemical reversibility and more efficient sulfur redox reactions. EIS analysis performed at the charged state after 30 cycles (Fig. 4i−k and Table S10) revealed distinct trends for each electrode type. The 80 °C-pressed electrodes maintained low impedance, while both the RT-pressed and slurry-cast electrodes exhibited showed clear increases in ohmic resistance (R_s_). The rise in R_s_ for the RT-pressed electrode suggests compromised structural integrity, likely due to mechanical degradation during cycling^43–45^, whereas the thermally compressed 80 °C-pressed electrode retained a stable architecture. Similarly, the increase in R_s_ for the slurry-cast electrode is consistent with previous reports that conventional slurry processing can lead to solvent-induced inhomogeneity and poor interfacial stability issues^46–48^. The 80 °C-pressed electrodes was further evaluated in a single-layer pouch cell (1.5 × 1.5 cm^2^, 3 mg_S_ cm^−2^, Fig. S22), which delivered an initial capacity of 1000 mAh g^−1^ and maintained 897 mAh g^−1^ after 30 cycles, demonstrating the applicability of the binder-free S-C electrodes to a more practical cell form factor and consistent electrochemical behavior with the corresponding coin-cell results.Fig. 4. Electrochemical characterization of sulfur-carbon (S-C) composite positive electrodes (1 C = 1675 mA g_S_^−^^1^, testing temperature: 25 °C).a Rate capability and b galvanostatic charge-discharge cycling at 0.2 C for the room temperature (RT)-pressed and 80 °C-pressed, and slurry-cast S-C composite positive electrodes (areal sulfur loading: 3 mg_S_ cm^−2^). Voltage profiles of c RT-pressed, d 80 °C-pressed, and e slurry-cast electrodes at various C-rate. Cyclic voltammetry (CV) curves of the f RT-pressed, g 80 °C-pressed h slurry-cast electrodes (areal sulfur loading: 3 mg_S_ cm^−2^). Nyquist plots of i RT-pressed, j 80 °C-pressed, and k slurry-cast electrodes measured at the fully charged state before and after 30 cycles, with l) the corresponding equivalent circuit model (areal sulfur loading: 3 mg_S_ cm^−2^, (CPE, constant phase element; Rs, solution/electrolyte resistance; Rf, film resistance; Rct, charge-transfer resistance; Wo, finite-length Warburg element). m Galvanostatic cycling at 1.0 C for the RT- and 80 °C-pressed, and slurry-cast electrodes (areal sulfur loading: 1 mg_S_ cm^−2^).
In the cycling tests (Fig. 4l) conducted at a lower mass loading of 1 mg_S_ cm^−2^, both the binder-free positive electrodes demonstrated stable cyclability at 1 C. However, the 80 °C-pressed electrodes sustained a higher capacity of approximately 1000 mAh g^−1^ over 500 cycles. In contrast, the slurry-cast positive electrode failed after 400 cycles, despite showing slightly low charge and discharge overpotentials across various C-rates, comparable to those of the binder-free positive electrodes (Fig. S23). The improved performance of the binder-free positive electrodes highlights the limitations of conventional slurry casting processes in achieving the necessary structural and electrochemical stability, as demonstrated by the underperformance of the slurry-cast S-C composite positive electrodes compared to both the RT- and 80 °C-pressed electrodes. This is also featured at a higher mass loading of 5 mg_S_ cm^−^^2^ (Fig. S24) as well. While consistently delivering higher capacities across all C-rates in the rate performance test and at 0.1 °C during cycling, the 80 °C-pressed electrodes (5 mg_S_ cm^−2^) exhibited Coulombic efficiency values slightly above 100%, likely due to delayed activation of isolated sulfur domains within the sulfur positive electrodes, unlike the consistently lower Coulombic efficiency observed in the RT-pressed and slurry-cast S-C positive electrodes. EIS analysis for the 1 and 5 mg_S_ cm^−2^ electrodes revealed trends consistent with those observed at 3 mg_S_ cm^−2^, reinforcing the generality of the impedance behavior across various loadings (Figs. S23 and S24 and Table S10). The electrochemical analyses reveal that the S-C composite positive electrodes pressed at 80 °C exhibit significantly enhanced performance compared to those pressed at RT. This improvement can be directly attributed to the optimized microstructure achieved during compression at elevated temperatures, as demonstrated in the previous characterization results. The more uniform porosity distribution, low tortuosity, and enhanced structural integrity of the 80 °C-pressed electrodes facilitate efficient ion transport and electron conduction, resulting in reduced polarization and improved electrochemical kinetics^49,50^. In contrast, the RT-pressed electrodes suffer from inhomogeneous compression and lower porosity at the electrode surface, which impedes their overall performance. These findings are further supported by the structural differences observed, where the more uniform compression of the 80 °C-pressed electrodes leads to better contact between the active material and the conductive matrix. The enhanced structural and compositional uniformity at higher processing temperatures results in lower interfacial resistance, attributed to improved adhesion between the active materials and the current collector, as well as better particle-to-particle contact within the positive electrode. This uniform microstructure contributes to improved cycling stability, minimizing electrode degradation, sulfur loss, and active material disconnection during repeated charge-discharge cycles. In contrast, the RT-pressed electrodes exhibit faster capacity fading due to their less stable and inhomogeneous structure.
In situ and ex situ characterizations

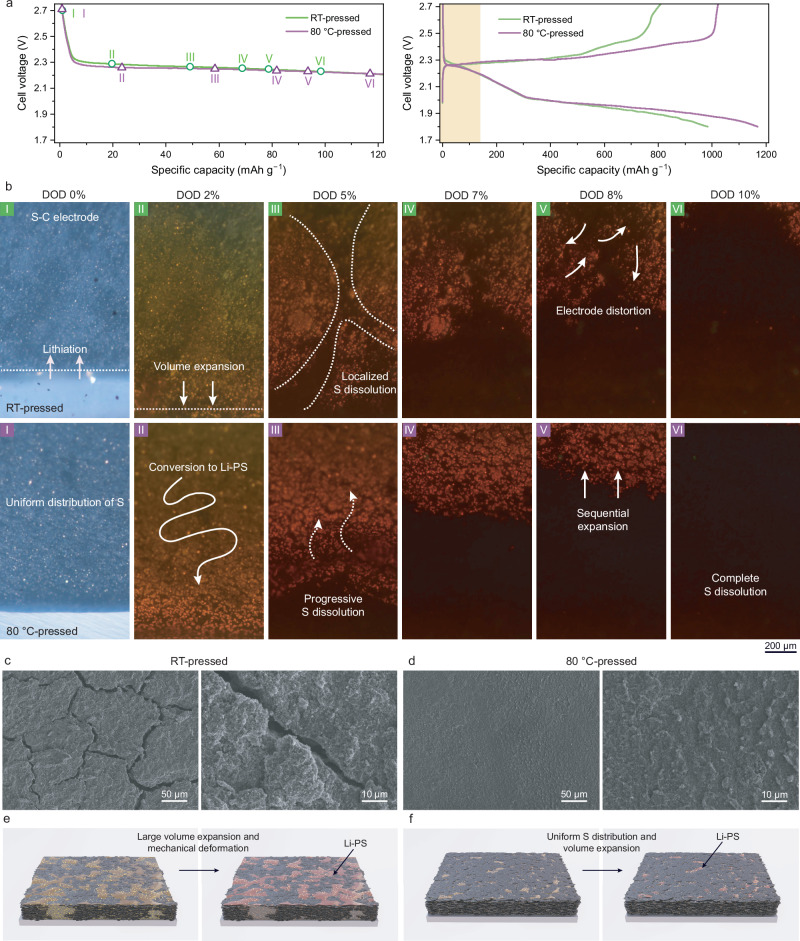

In situ OM conducted during the initial discharge provides complementary insights into the dynamic behavior of the positive electrodes (Fig. 5 and Supplemental Movies 1 and 2). At the onset of lithiation, both the RT-pressed and 80 °C-pressed electrodes exhibit the formation of Li-PS, indicated by the color change of the electrolyte to light orange. As discharge progresses, both positive electrodes undergo volume expansion due to sulfur lithiation, accompanied by a darkening of the electrolyte color, reflecting an increased concentration of Li-PS^51^. Due to the spacer-free design of the in situ OM cell, the larger interelectrode gap results in higher polarization than in conventional coin cells. While no evidence of particle detachment was observed, the volume expansion behavior differed significantly between the two electrodes. During the initial 10% depth of discharge (DOD), the RT-pressed electrodes exhibit localized and uneven volume changes, with specific regions of the electrode expanding disproportionately, resulting in uneven mechanical deformation (Fig. 5b). In contrast, the 80 °C-pressed electrodes display a more uniform volume expansion across the electrode, consistent with improved structural cohesion and more uniform sulfur distribution in the 80 °C-pressed electrodes. Comparative OM images during both discharge and charge at various DOD and states of charge, as shown in Fig. S25, further clarify these differences. The fully charged positive electrode pressed at 80 °C exhibits a uniform reformation of sulfur from Li-PS, returning to its original microstructure. Conversely, the RT-pressed electrode shows a sulfur structure largely confined within the carbon matrix, resulting from microstructural deformation.Fig. 5. Microstructural deformation of room temperature (RT)-pressed and 80 °C-pressed sulfur-carbon (S-C) composite electrodes during electrochemical cycling (areal sulfur loading: 3 mg_S_ cm^−2^, 1 C = 1675 mA g_S_^−^^1^, testing temperature: 25 °C).a Voltage profiles of the initial charge-discharge processes at 0.1 °C within a cell voltage range of 1.8–2.7 V at 25 °C during the in situ optical microscopy (OM) experiment, with an enlarged view of the first 10% Depth of discharge (DOD) highlighted (yellow). b OM images captured during the first discharge at DOD 0, 2, 5, 7, 8, and 10%. Ex situ scanning electron microscopy (SEM) images of c the RT-pressed and d 80 °C-pressed positive electrodes after five cycles at 0.2 °C, highlighting structural differences. Schematic illustrations depicting the structure of e the RT-pressed and f 80 °C-pressed positive electrodes before and after cycling.
