Multi-source harmonic estimation method for distribution networks based on variational modal decomposition
Hongjian Zuo, Hongyan Xu, Zekun Wang, Zeping Yu, Zhiqiang Wu
TL;DR
This paper introduces a new method to estimate harmonics in power networks using data analysis and image-based machine learning techniques.
Contribution
A novel multi-source harmonic estimation method using variational mode decomposition and an improved PSRGAN model for distribution networks.
Findings
The method effectively maps power signals into images for improved harmonic estimation.
Simulation and field tests confirm the method's accuracy in multi-source harmonic scenarios.
The approach uses easily accessible data, showing strong potential for real-world applications.
Abstract

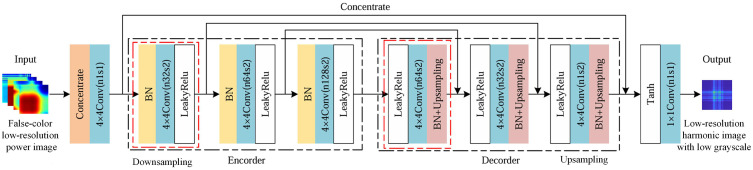

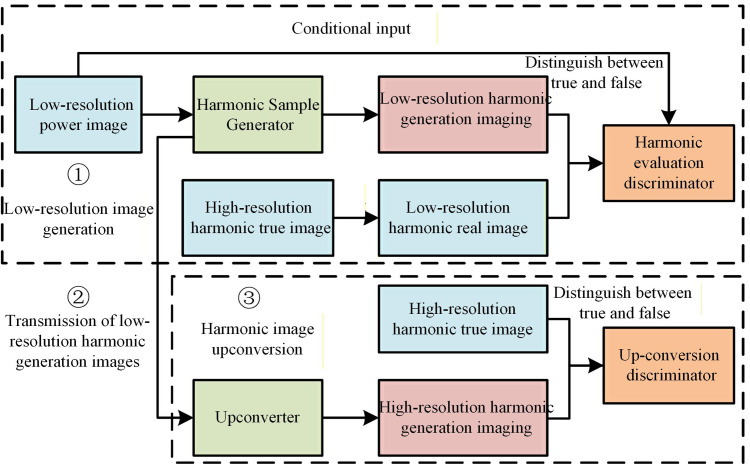

To address the limitation of harmonic monitoring on the low-voltage side of distribution networks, this paper proposes a multi-source harmonic estimation method based on variational mode decomposition. The method integrates short-term test data with long-term power data. First, dominant harmonic users are identified through a strategy that combines Fisher optimal segmentation and derivative dynamic time warping. Second, an electrical data transformation approach is designed by combining variational mode decomposition with Gramian angular fields, which maps the power signals of dominant harmonic users and low-voltage side harmonic signals into pseudo-color Gramian power images and grayscale Gramian harmonic images, respectively. Finally, an improved PSRGAN (pix2pix-super-resolution generative adversarial network) model is constructed to train and learn from these images, establishing the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33Peer Reviews
