Numerical investigation on the torsional improvement of reinforced concrete beams strengthened with various techniques
M. A. Yusuf, M. S. Zahran, A. Osman, Nabil. M. Nagy
TL;DR
This study uses digital modeling to evaluate how different reinforcement techniques improve the torsional strength of reinforced concrete beams.
Contribution
A validated finite element model is developed to optimize torsional reinforcement techniques in RC beams.
Findings

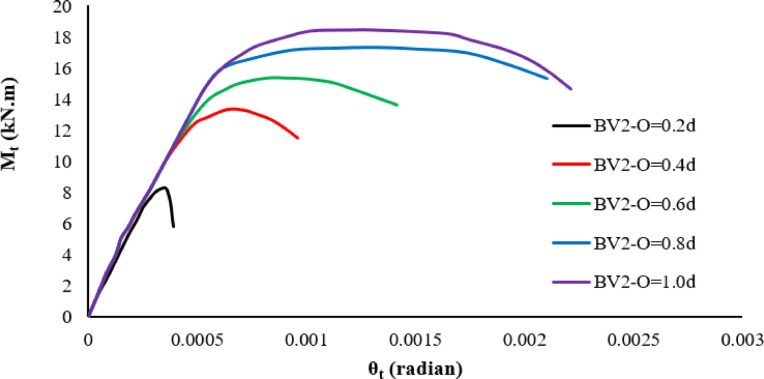

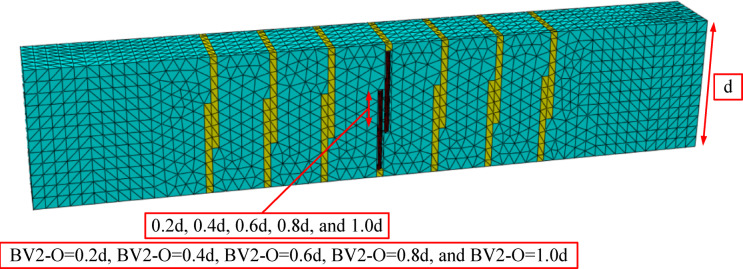

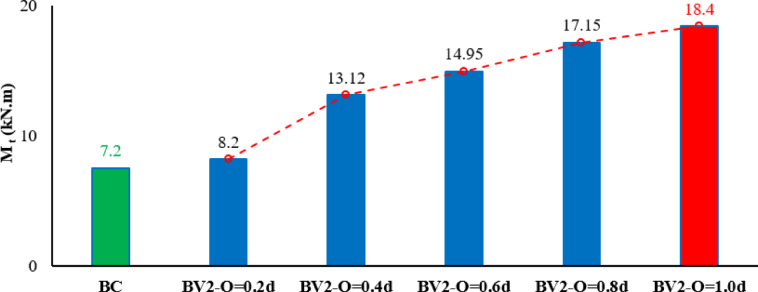

NSM stirrups with overlap lengths of 0.6d to 0.8d increased ultimate moment by 110–138%.

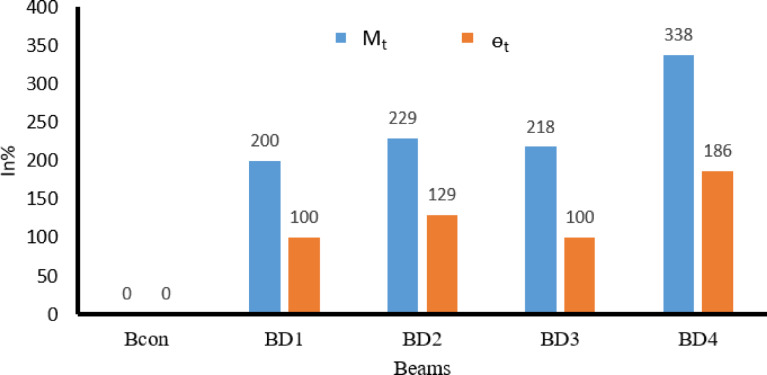

Inclined bracing showed 338% efficiency in resisting torsional stress compared to vertical bracing.

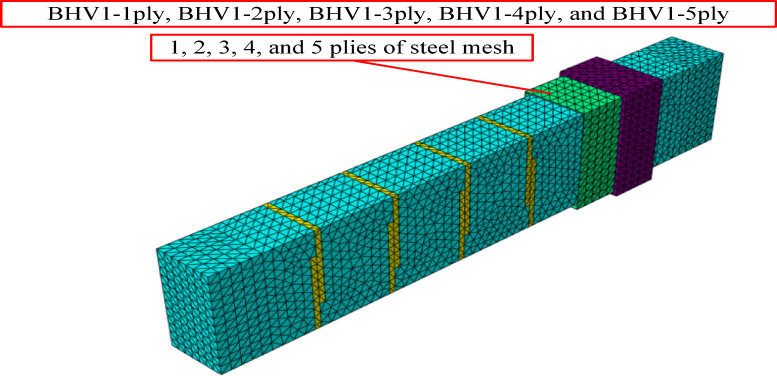

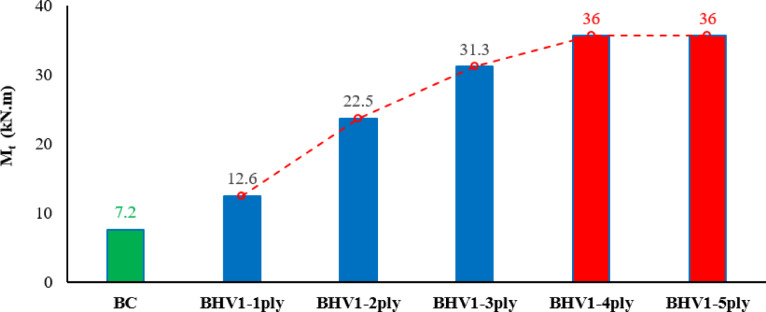

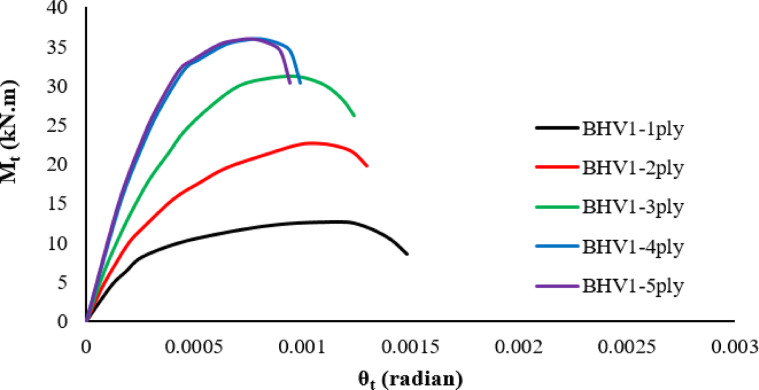

Combining NSM stirrups with up to three layers of steel mesh maximized torsional performance.
Abstract

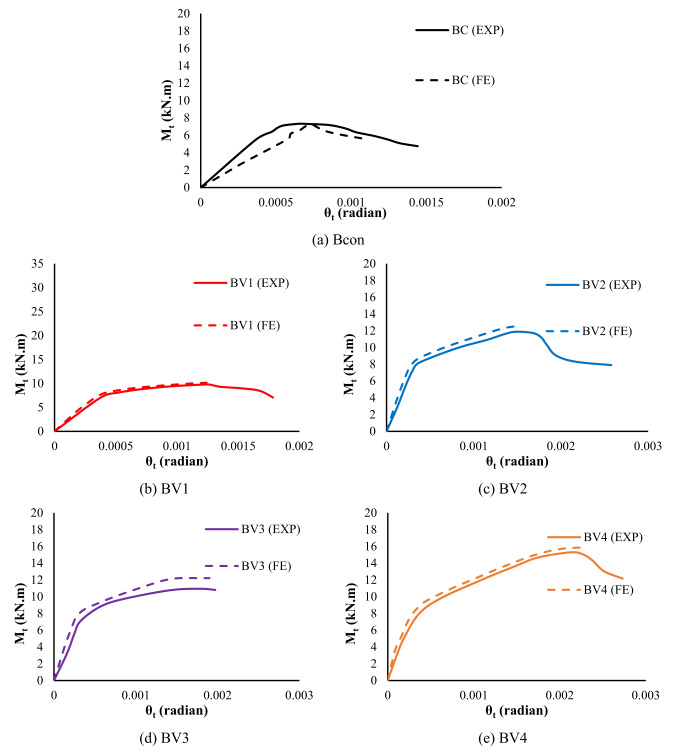

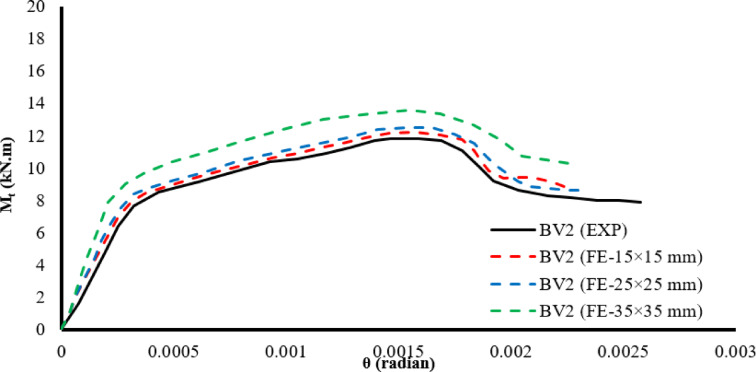

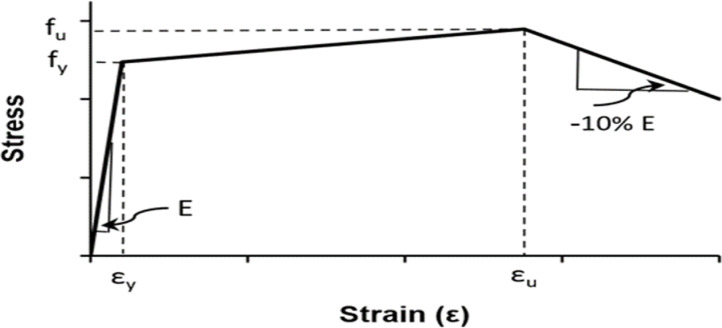

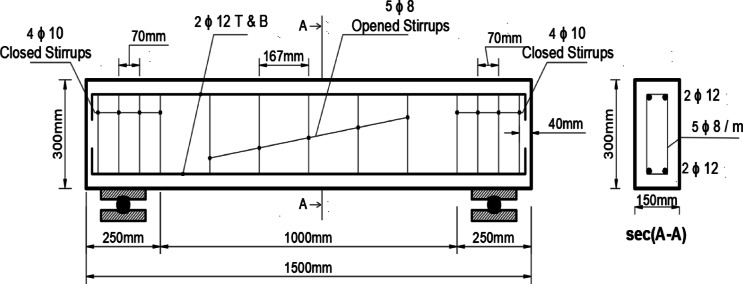

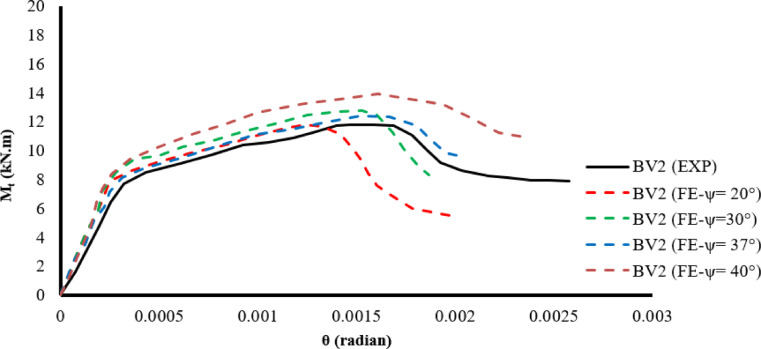

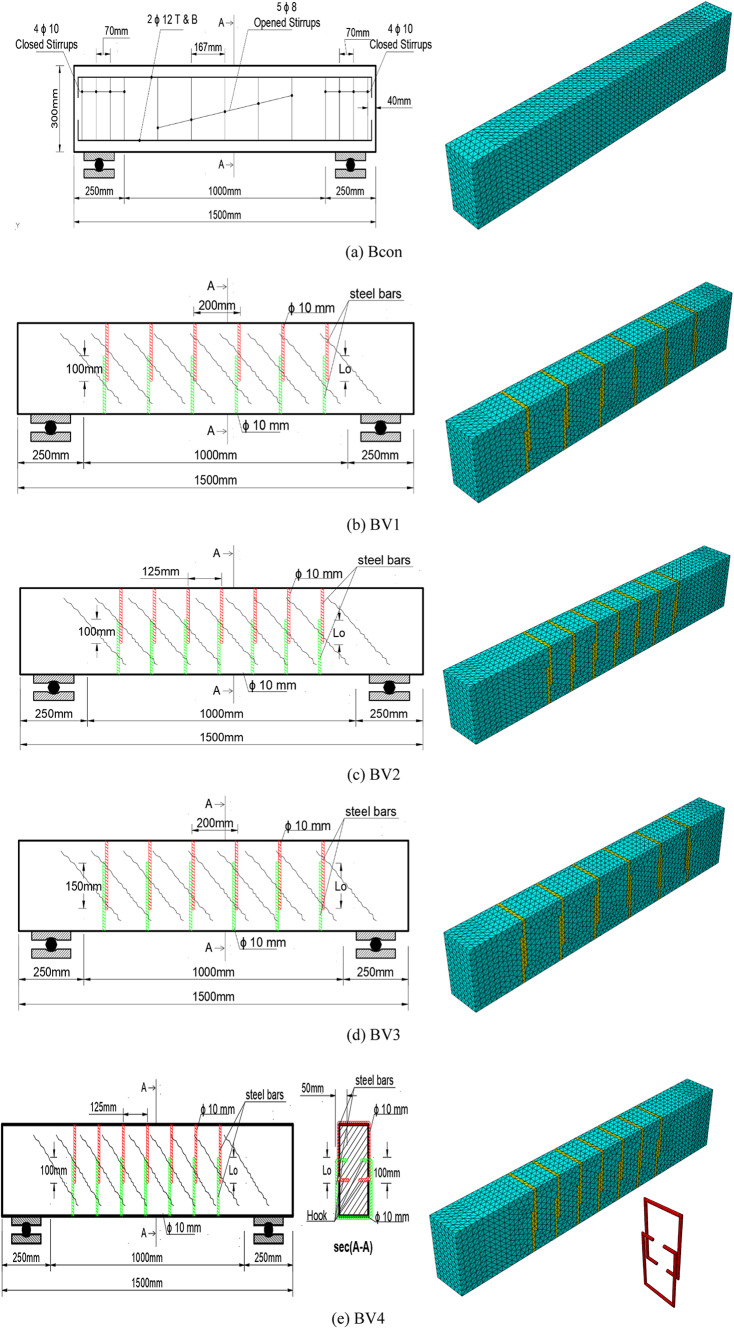

This study digitally investigates the torsional behavior of reinforced concrete (RC) beams strengthened with near-surface bracing (NSM) and external bracing using Abaqus/CAE software. Finite element analysis (FE) was developed based on a previously validated experimental program, encompassing five tested beams, thus providing a realistic basis for model validation. The numerical results showed strong agreement with experimental trends, with deviations of less than 5%, confirming the model’s accuracy and reliability. The analysis utilized the concrete deterioration plasticity (CDP) model, realistic surface bonding properties, and the elastic steel behavior to effectively monitor cracking and stiffness degradation. The grid sensitivity indicated that a 25 × 25 mm element size achieved optimal accuracy and efficiency, while an extension angle of ψ = 37° best represented the torsional…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10

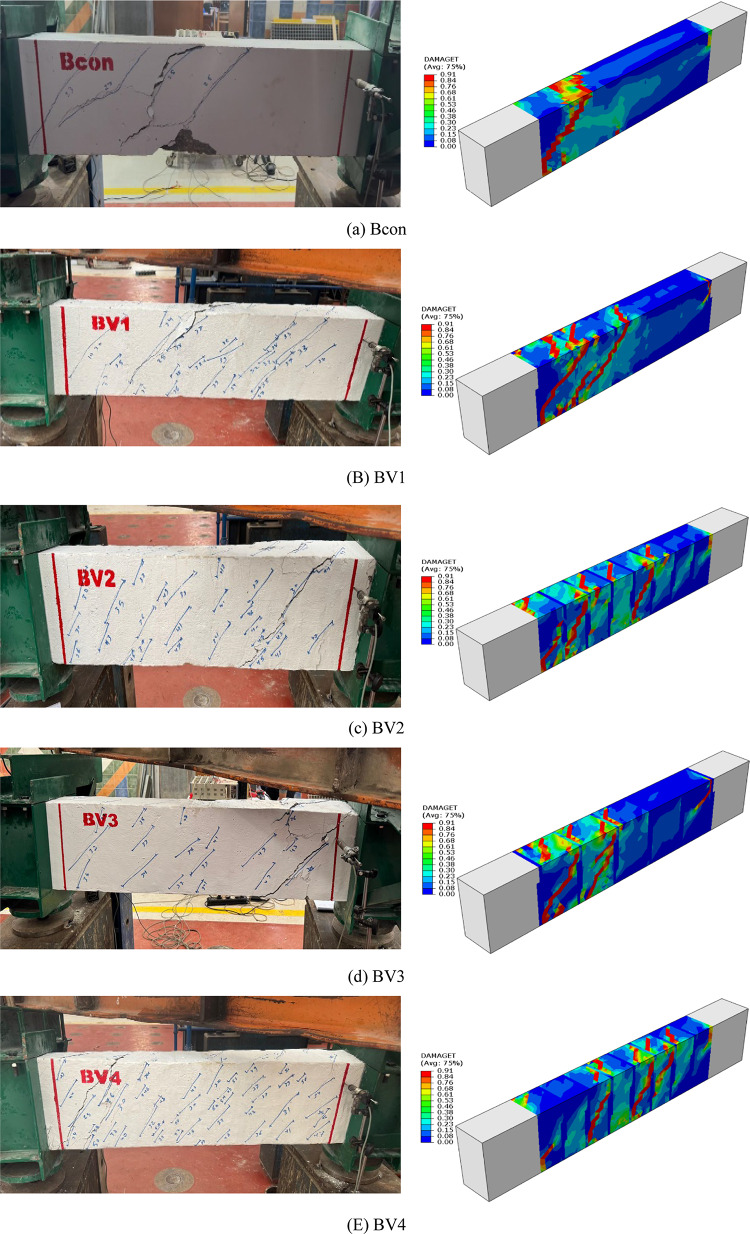

Figure 11
Figure 12
Figure 13
Figure 14
Figure 15

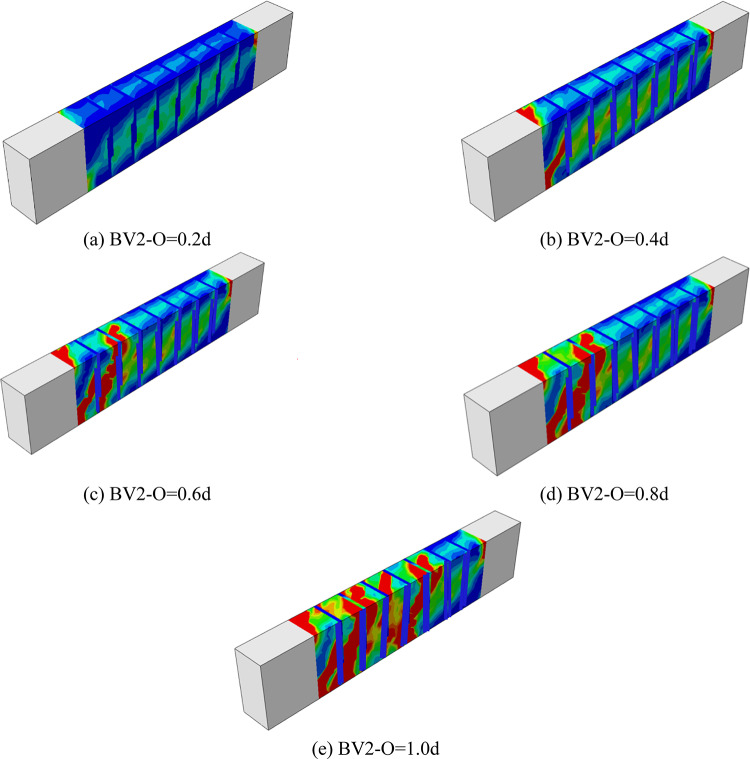

Figure 16
Figure 17
Figure 18
Figure 19
Figure 1
Figure 20

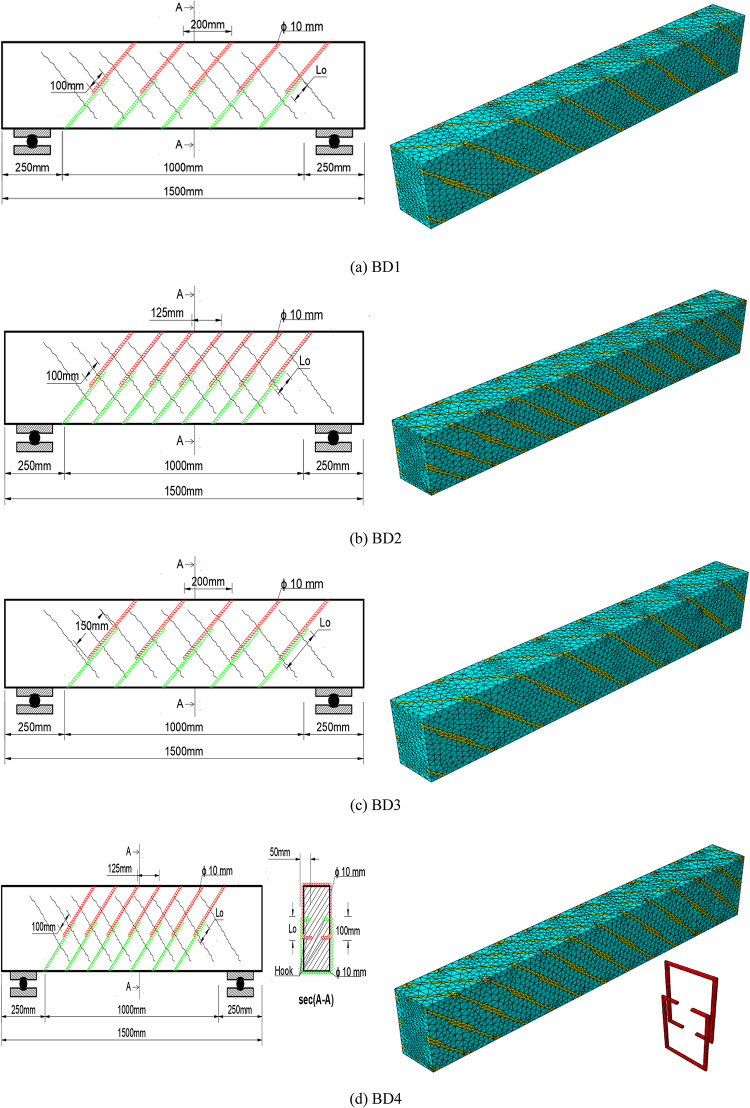

Figure 21
Figure 22
Figure 23
Figure 24

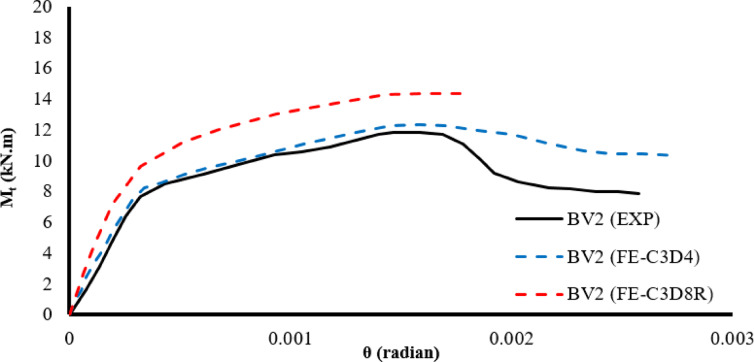

Figure 2

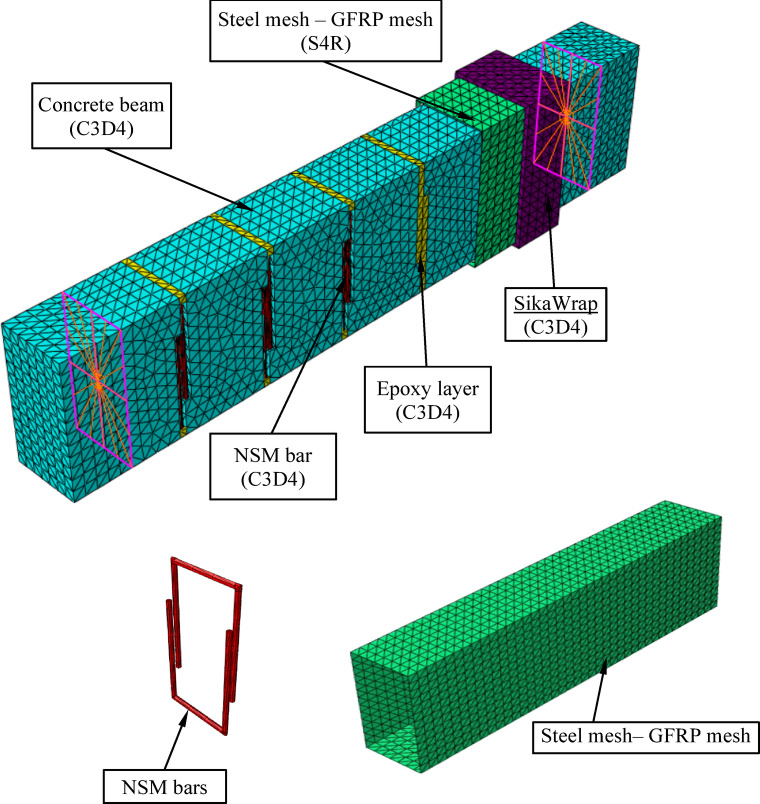

Figure 3
Figure 4
Figure 5

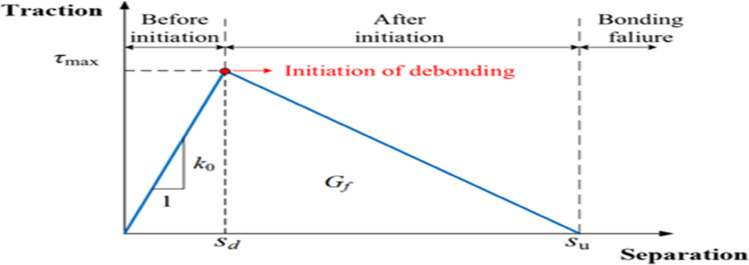

Figure 6

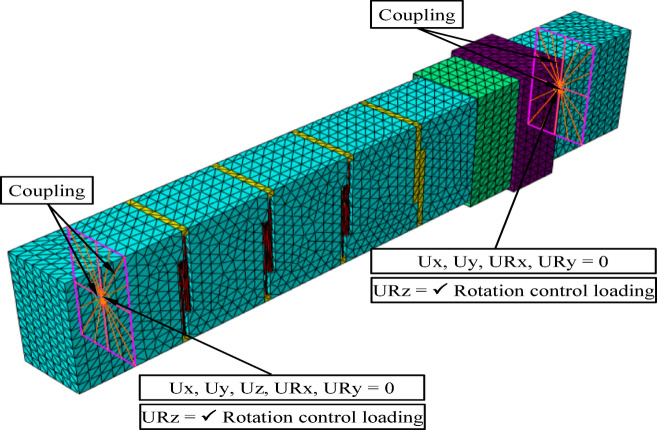

Figure 7
Figure 8
Figure 9Peer Reviews
