Visible-light-assisted degradation of crystal violet using CuO- and ZnO-incorporated (Am-co-BA)@PVA hydrogel nanocomposites

TL;DR

This study develops hydrogel nanocomposites with CuO and ZnO to efficiently degrade the dye crystal violet under visible light, offering a sustainable solution for wastewater treatment.

Contribution

The novel contribution is the synthesis of CuO- and ZnO-doped hydrogel nanocomposites with high photocatalytic efficiency for visible-light-driven dye degradation.

Findings

CuO-doped hydrogel achieved 94.21% CV degradation in 110 minutes under visible light.

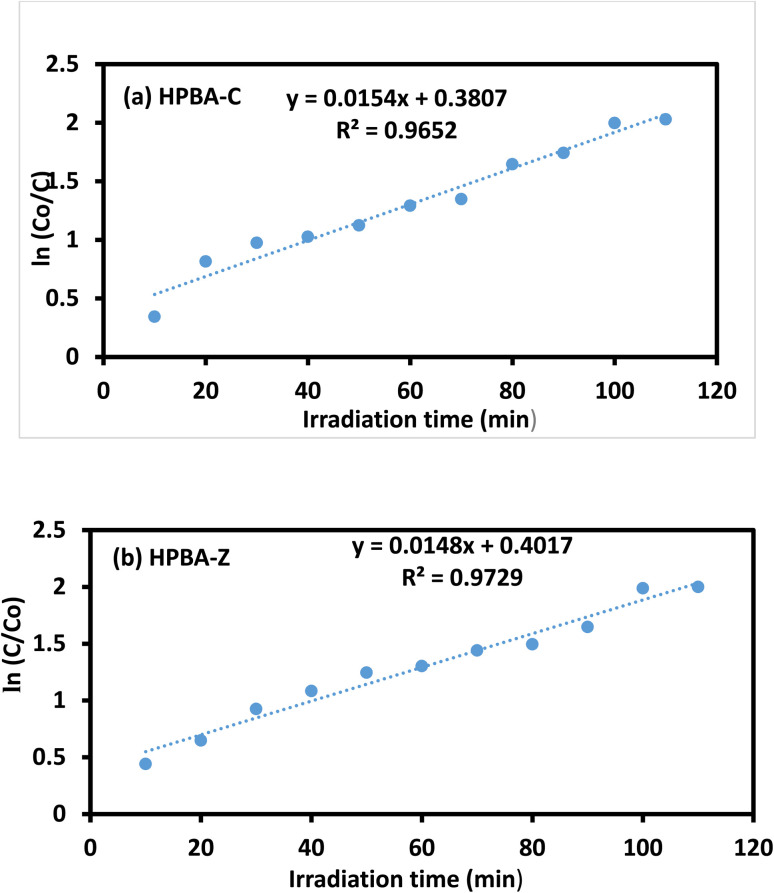

ZnO-doped hydrogel showed 92.86% CV removal efficiency with pseudo-first-order kinetics.

Hydrogel nanocomposites demonstrated enhanced surface area and efficient charge separation.

Abstract

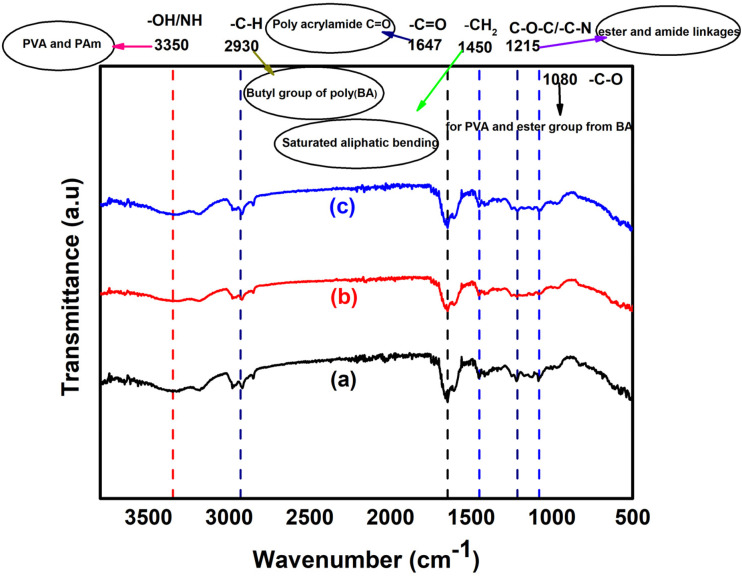

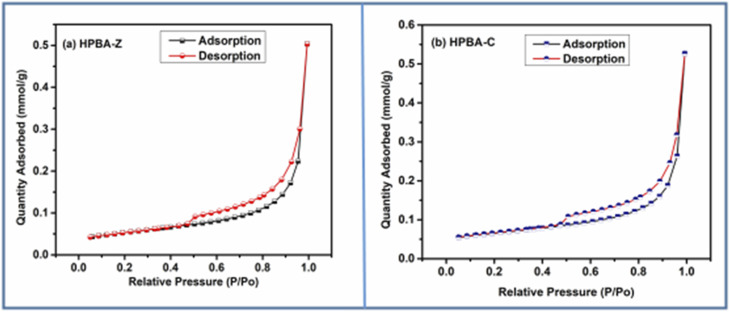

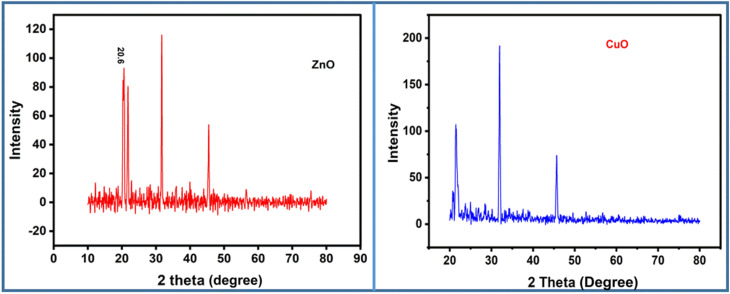

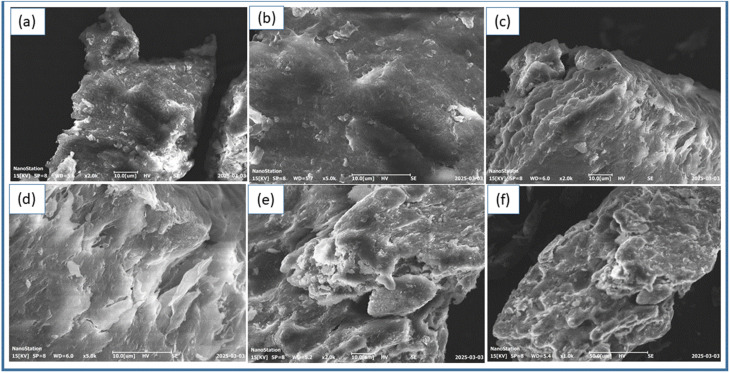

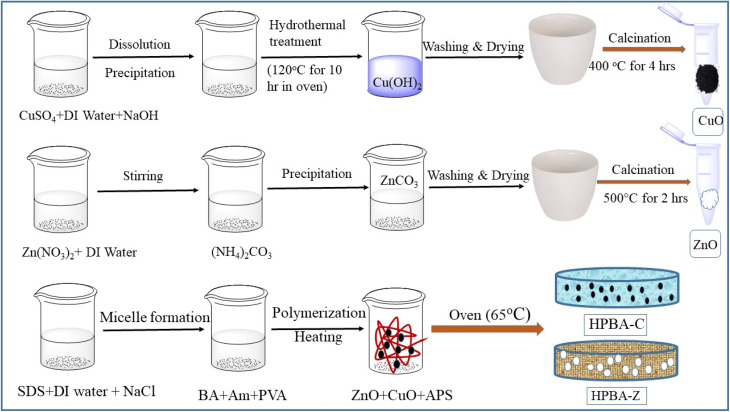

Industrial effluents containing dyes such as crystal violet (CV) have adverse environmental effects due to their chemical inertness, toxicity and nonbiodegradability. Conventional separation techniques used to remove these pollutants are often inefficient; however, photocatalytic degradation using hydrogel photocatalysts is an effective and sustainable approach for wastewater treatment. CuO and ZnO nanoparticles (NPs) were successfully synthesized via a common co-precipitation method. The prepared metal oxide NPs were then incorporated into the hydrogel matrix to form hydrogel nanocomposites. For hydrogel preparation, polyvinyl alcohol (PVA) was used as a polymer, acrylic amide (Am) and butyl acrylate (BA) were used as monomers, and ammonium persulphate (APS) was used as an initiator. The successful fabrication of the hydrogel nanocomposite was verified using FTIR spectroscopy, XRD, SEM, and Brunauer–Emmett–Teller (BET) analysis. From FTIR spectroscopy data, the interaction and cross-linking of monomers and the polymer matrix were confirmed. The average crystallite size and uniform incorporation of metal oxide NPs into the hydrogel network were studied using XRD parameters. SEM images showed that after the integration of spherical-shaped metal oxide NPs into the hydrogel network, the surface of the hydrogel nanocomposite became rough and stratified, and the BET results indicated that the specific surface areas of ZnO- and CuO-doped hydrogel composites were 4.0835 cm2 g−1 and 4.9142 cm2 g−1, respectively. The photocatalytic activity of the synthesized hydrogel nanocomposites was investigated using an initial crystal violet (CV) concentration of 5 ppm to evaluate their degradation efficiency under visible light irradiation. The results showed that within an irradiation time of 110 min, the photocatalytic removal efficiency of CV reached 92.86% for the ZnO-doped hydrogel nanocomposite and 94.21% for the CuO-doped hydrogel nanocomposite at pH 9 using 0.01 g of the photocatalyst under visible light irradiation. The photocatalytic activity followed pseudo-first-order kinetics with rate constants of 0.0154 min−1 and 0.0148 min−1 for CuO- and ZnO-doped hydrogel nanocomposites, respectively. Furthermore, scavenging experiments showed that ˙OH radicals were the prominent species responsible for the degradation of CV. In this study, metal oxide-doped hydrogel nanocomposites were explored as sustainable and efficient photocatalysts for environmental remediation. The synthesized materials exhibited promising efficacy for the treatment of dye-contaminated wastewater.

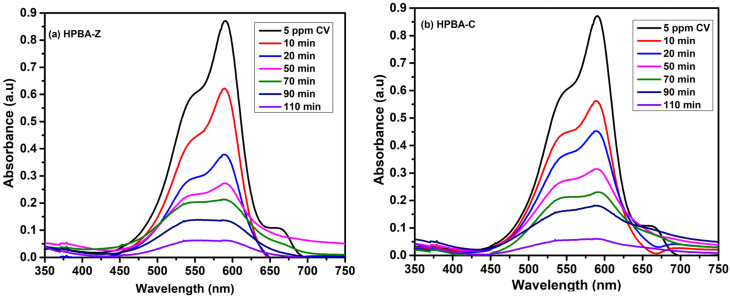

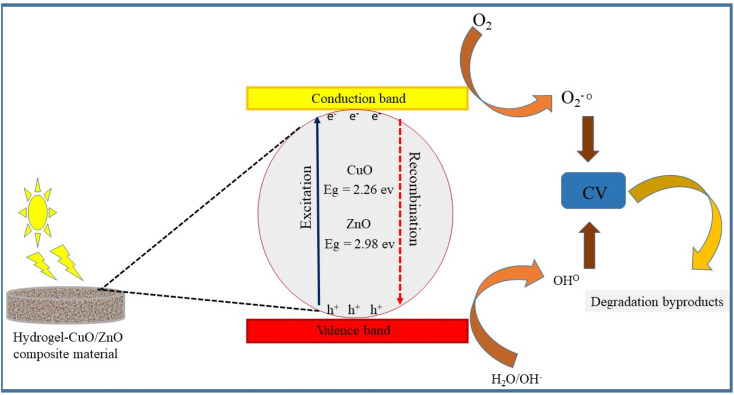

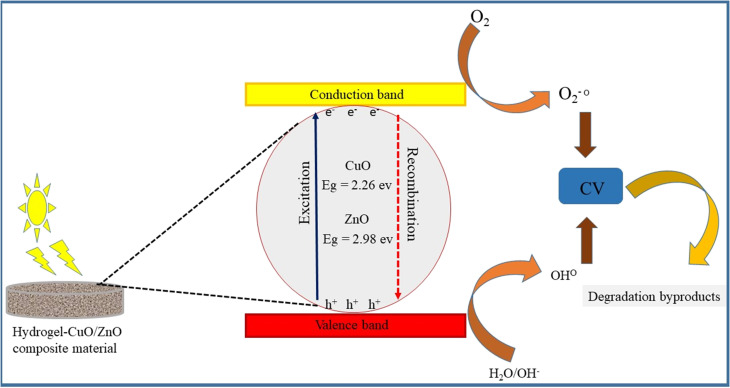

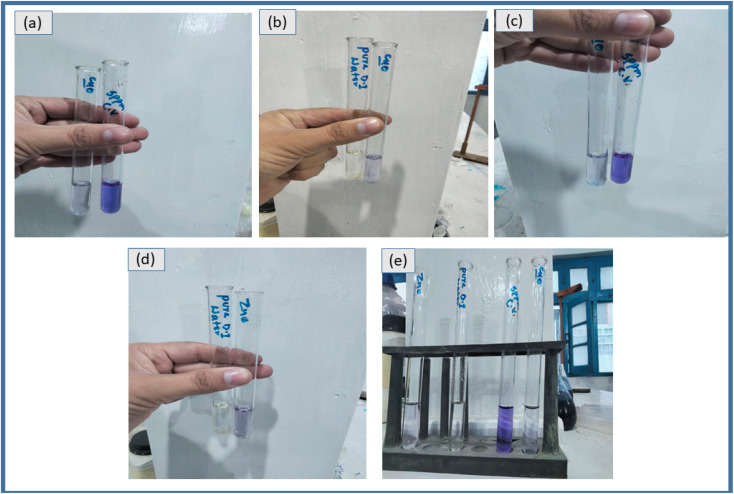

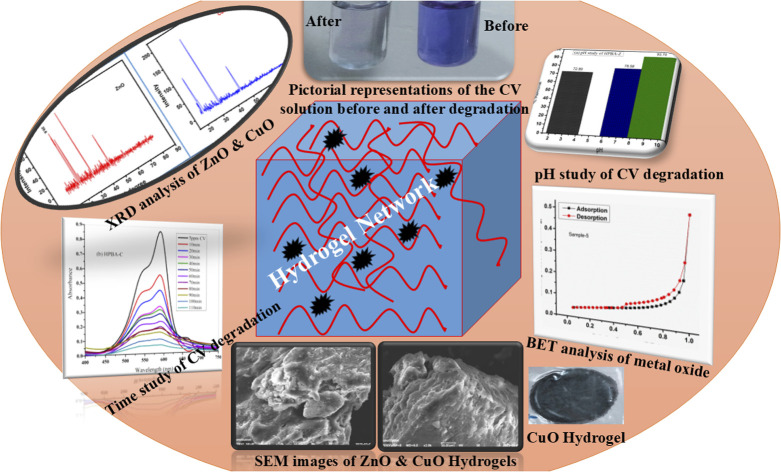

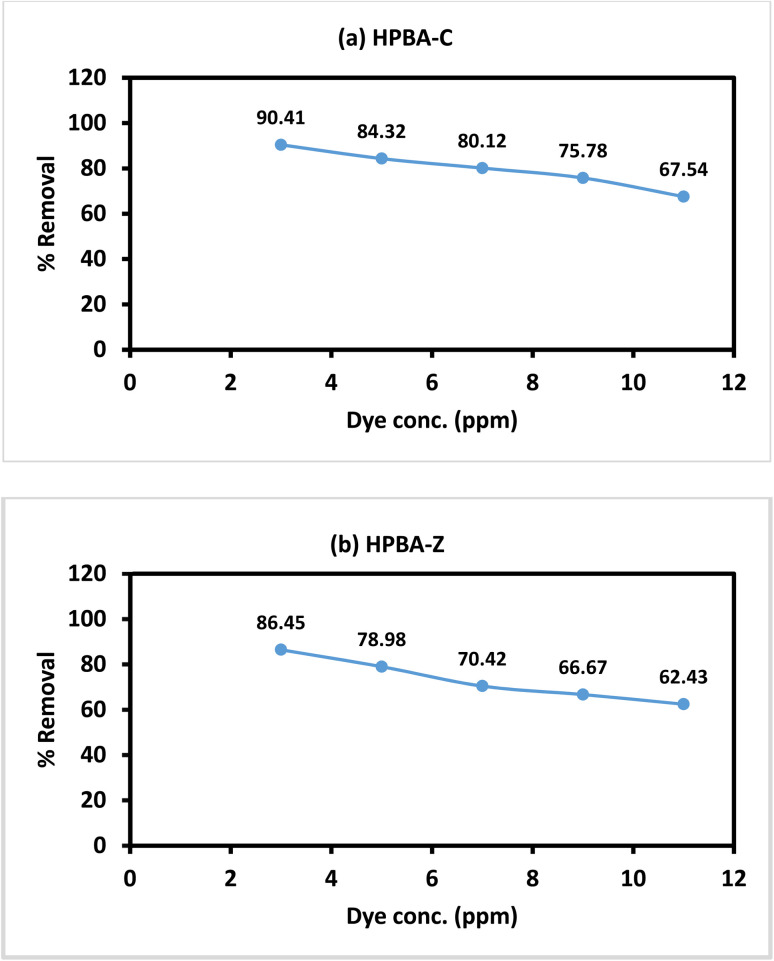

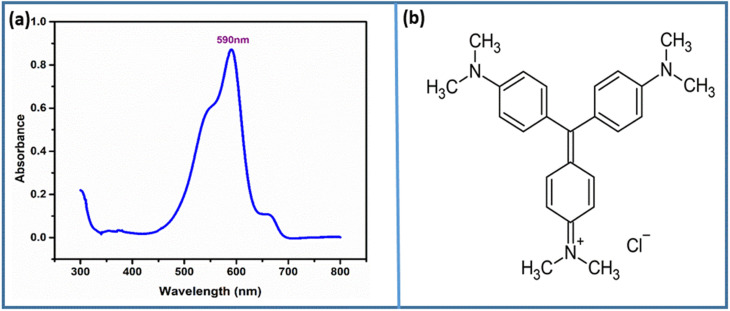

Degradation of crystal violet dye was carried out using CuO-/ZnO-incorporated (Am-co-BA)@PVA hydrogel nanocomposites under visible light. The hydrogels exhibited enhanced surface area, efficient charge separation and superior photocatalytic activity.

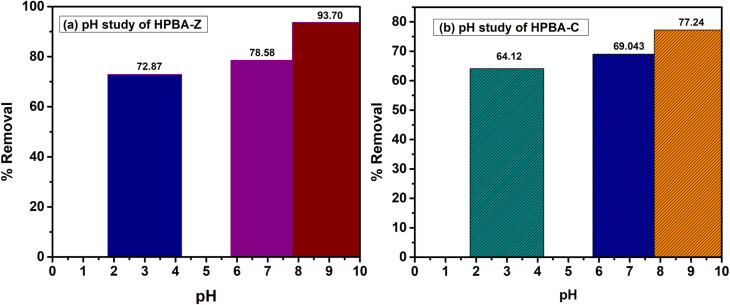

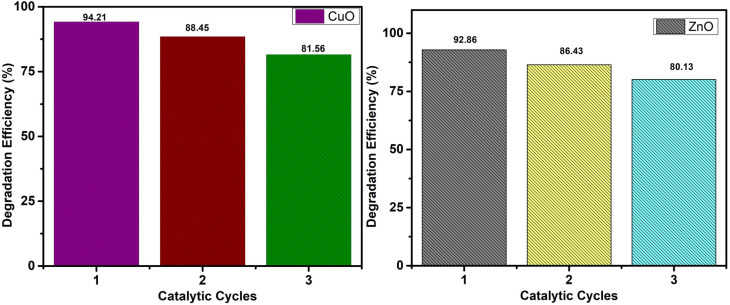

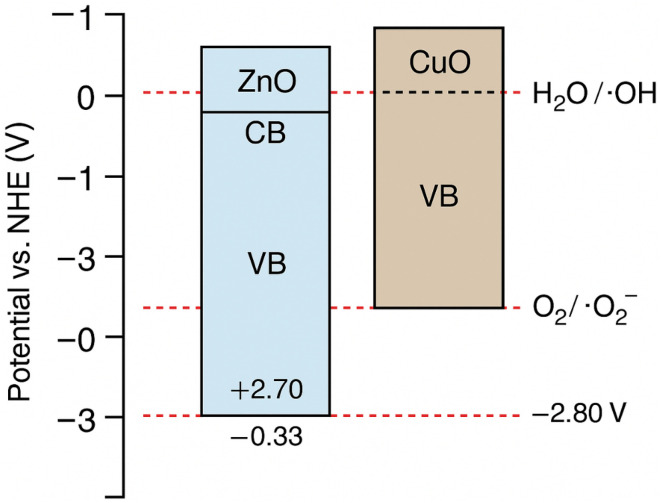

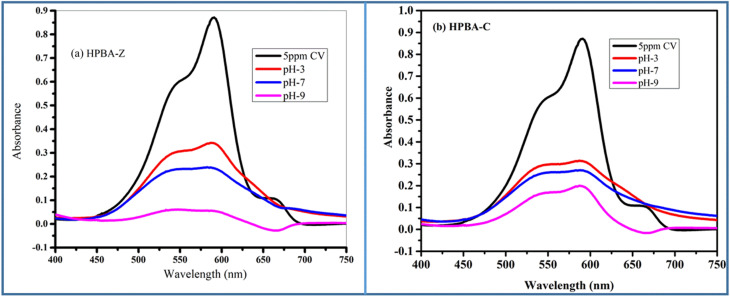

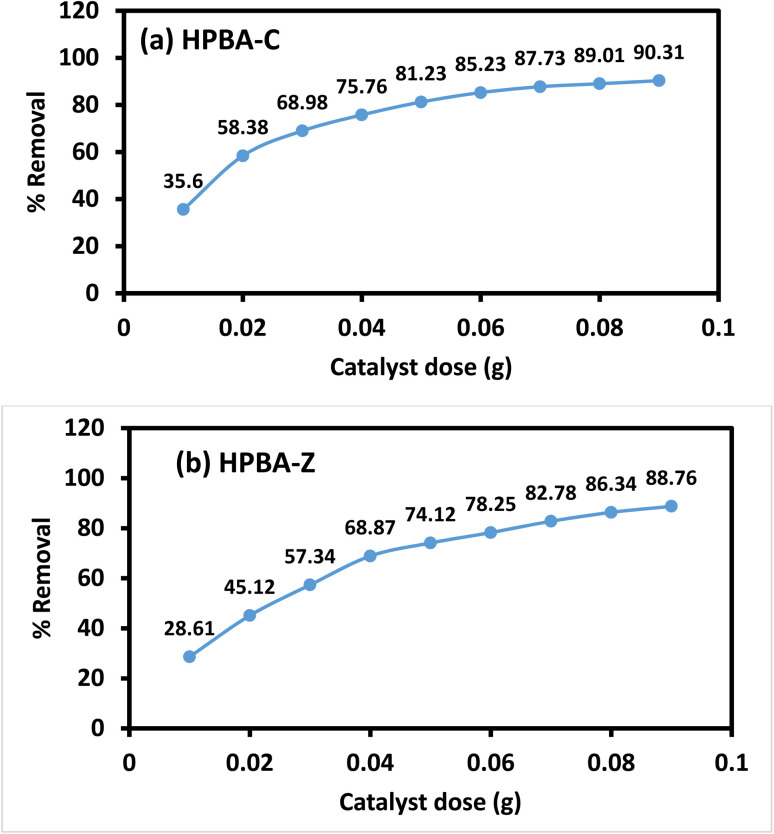

Figures
