Enhancing the Outcome of Crystallographic Fragment Screening by Choosing the Optimal Protein Crystal Form
Tatjana Barthel, Jan Wollenhaupt, Laila S. Benz, Patrick Reinke, Linlin Zhang, Melanie Oelker, Frank Lennartz, Helena Taberman, Uwe Mueller, Alke Meents, Rolf Hilgenfeld, Manfred S. Weiss
TL;DR
Choosing the right protein crystal form can greatly improve the success rate of drug discovery screening.
Contribution
The study shows that crystal form significantly affects hit rates in crystallographic fragment screening.
Findings
Orthorhombic crystals of SARS-CoV-2 protease had a 16% hit rate compared to 3% in monoclinic crystals.
Larger solvent channels in orthorhombic crystals correlate with higher hit rates in fragment screening.
Abstract
Improving health and quality of life in our society is a key focus of drug development. Methods for drug discovery are being optimized in multiple ways to reduce costs and timelines. Crystallographic fragment screening (CFS) is increasingly being employed as an early screening method in drug discovery projects. Here, we demonstrate that selecting the optimal protein crystal form can significantly impact hit rates. Two CFS campaigns are carried out against the two crystal forms of the SARS‐CoV‐2 main protease, using the same fragment library and an almost identical experimental setup. Although both crystal forms exhibit similar diffraction properties, the observed hit rates in the two campaigns differ significantly. A hit rate of 3% is determined for the monoclinic crystals, while a hit rate of 16% is observed for the orthorhombic crystals. These findings are consistent with the more…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6
FIGURE 7
FIGURE 8| Monoclinic form | Orthorhombic form | |
|---|---|---|
|
| C2 | P212121 |
|
|
113.57, 53.75, 44.66, 90, 101.64, 90 |
67.84, 99.55, 103.68 90, 90, 90 |
|
| 1 | 2 |
|
| 38 | 52 |
|
| 2.0 | 2.5 |
| C2 ligand B08 |
| |
|---|---|---|
|
| 3.6 | 7.6 |
|
| 1.9 | 2.6 |
|
| 2.3 | 3.9 |
|
| 2.3 | 7.6 |
| C2 monoclinic |
| |||
|---|---|---|---|---|
|
|
|
|
| |
|
| 96 | — | 96 | — |
|
| 36 | — | 40 | — |
|
| 194 | — | 98 | — |
|
| 230 | — | 138 | — |
|
| 230 | 100 | 138 | 100 |
|
| 228 | 99.1 | 138 | 100 |
|
| 210 | 91.3 | 137 | 99.2 |
|
| 201 | 87.4 | 137 | 99.2 |
|
| 201 | 87.4 | 136 | 98.6 |
- —BMBF Collaborative Research Project STOP‐CORONA
- —Horizon 202010.13039/100010661
- —European Commission10.13039/501100000780
- —DFG10.13039/501100001659
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEnzyme Structure and Function · Crystallography and molecular interactions · Crystallization and Solubility Studies
Introduction
1
Within the past 5 years, the SARS‐CoV‐2 pandemic has caused over 778 million infections and over 7 million deaths (https://covid19.who.int/, 20.08.2025). While the rapid development of several mRNA vaccines has helped to reduce the number of severe disease progressions, antiviral compounds still play a key role in helping those who are already infected, in particular with more and more immune escape virus variants on the horizon [1, 2]. One of the few drugs being administered against SARS‐CoV‐2 is Paxlovid, which contains nirmatrelvir, an active site inhibitor of the main protease of SARS‐CoV‐2 (MPro) [3, 4]. MPro is responsible for virus maturation by processing the viral polypeptide chain at eleven sites, including its own N‐ and C‐termini. Since MPro is essential for the viral life cycle, inhibiting the protease stops the virus from replicating. MPro is a particularly promising target because there are no human orthologues of the protease, reducing the risk of off‐target effects [5]. Although MPro has a relatively low mutation rate, increased selection pressure from nirmatrelvir and natural mutations have already led to the emergence of nirmatrelvir‐resistant MPro variants, as shown in recent reports [6, 7, 8]. This highlights the urgent need for new potent anti‐SARS‐CoV‐2 drugs, as well as preparedness strategies for future pandemics involving related coronaviruses.
Especially in cases like the SARS‐CoV‐2 pandemic, but also in general, efficient drug discovery is essential. In the last decades fragment screening was established as a beneficial method to lower costs and increase chemical diversity [9, 10, 11]. Crystallographic fragment screening (CFS) has been shown to be an effective method to find initial starting points for drug development and allows the rapid design of follow‐up compounds by structure‐based design [12, 13, 14]. CFS was also applied intensely in the last 5 years for the search of potent SARS‐CoV‐2 antivirals, the major example being the COVID Moonshot consortium [15]. Within the consortium, over 150 active participants from different technological backgrounds combined their expertise and were able to generate huge amounts of open‐source data toward an anti‐SARS‐CoV‐2 drug. Over 18 000 compounds were designed, over 840 crystallographic data sets of bound compounds were collected and over 2400 novel compounds were synthesized. This effort has resulted in a candidate for clinical trials, providing a great example of an open and collaborative scientific effort and highlighting the benefits of CFS [16].
For a successful screening campaign, the crystal packing of the protein must ensure the accessibility of the sites of interest via the solvent channels. Large solvent channels and accessible binding sites are highly preferred, if not indispensable for success. In order to obtain an optimal crystal system, it may be advantageous to test different crystal forms of the target protein [17].
For MPro, which is the target of this study, two crystal forms have been reported, a monoclinic and an orthorhombic crystal form [18, 19]. Most CFS campaigns against MPro have been carried out with crystals in the monoclinic space group [20, 21], although it has been discussed in the literature that the more open orthorhombic space group may have advantages for crystallographic and virtual screening [19, 22, 23]. Several fragment libraries have been applied to MPro, with hit rates typically not exceeding 5% [19]. This is relatively low compared to the capabilities of CFS yielding 20%–30% hit rates [23] or even over 40% for certain targets [24]. A CFS campaign against the orthorhombic crystal form had been performed beforehand, though it did not yield the expected increase in hit rate [18]. As all screenings were done with various parameters differing in the experimental set up, it is unclear how much the crystal packing played a role.
Here, we present the first direct comparison of two crystallographic fragment screening campaigns using the F2X‐Entry Screen [23] against the two reported MPro crystal forms. In line with previous results, we achieved a relatively low hit rate of 3% for the monoclinic system but could obtain a significantly higher success rate of 16% for the orthorhombic system. This observation is vital for future fragment‐based drug design projects to reach high‐quality starting points more efficiently.
Results
2
Comparison of the Two Space Groups
2.1
For MPro, two crystal systems have been reported: a monoclinic system of space group C2 and an orthorhombic system of space group P2_1_2_1_2_1_. The respective crystal metrics as well as the unit cell content are given in Table 1. A comparison of the molecular packing in both crystal forms reveals the vastly differing accessibility of the MPro active site (Figure 1). In the monoclinic space group, the active site is partially obstructed, leaving little room for compounds to bind and side chains to move. In the orthorhombic space group, the active site is much more accessible, allowing compounds to diffuse into the active site more easily and side chains to accommodate compounds binding.

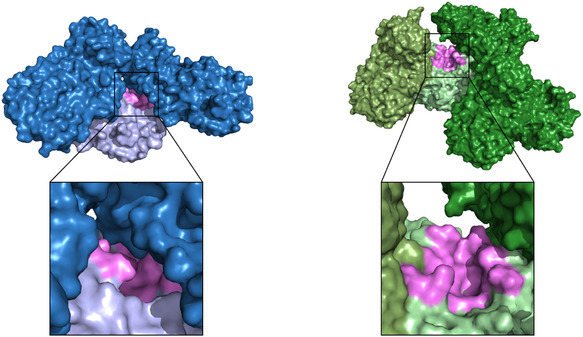

Comparison of the crystal packing and active site accessibility in the two crystal forms of MPro. The protein structures for the monoclinic space group C2 are shown in blue colors. The protein structures for the orthorhombic space group P212121 are shown in green colors. The central MPro monomer is always presented in a light color, while the crystal mates are shown in darker colors. In case of the orthorhombic space group, a dimer is present in the asymmetric unit, therefore a third color tone was chosen to indicate the second monomer. The active site is in both cases colored in pink. A zoom in into the active site is given, highlighting the accessibility of the active site in both crystal forms. The same color scheme (blue for C2 structures and green for P212121 structures) is used throughout the manuscript.
This comparison raises the question of which of the two crystal systems is more suitable for a CFS campaign. Assessing this suitability involves the rather time‐consuming characterization of the diameter of each of the available solvent channels in the crystal. Also, the accessibility of the active site needs to be checked, which requires a closer look at dynamic loops and residues, nearby symmetry mates and other molecules binding to the active site. Using the recently published tool LifeSoaks, the size and shape of crystal solvent channels as well as their constriction sites can be analyzed easily automatically [27]. Since LifeSoaks was not yet available at the time of the here described CFS campaigns, a LifeSoaks analysis was carried out in retrospect. LifeSoaks was applied to one ligand‐bound dataset from each of the two CFS campaigns. As shown in Table 2, the orthorhombic P2_1_2_1_2_1_ crystal form has an overall bottleneck radius more than twice as large than the monoclinic C2 crystal form, and the inner and outer active site radius is 1.7 and 3.3 times larger, respectively. These differences are likely the cause of the observed higher success rate using the orthorhombic crystals. Furthermore, the difference in active site openness could potentially facilitate subsequent fragment growing or merging.
Many of the initial crystallization conditions reported for the P2_1_2_1_2_1_ crystal form in the PDB could not be reproduced in our lab or yielded again crystals in the C2 crystal form (data not shown). It turned out to be necessary to add P2_1_2_1_2_1_ seeds (kindly provided by Paul Scherrer Institute colleagues) to the initial crystallization to enable the growth of the orthorhombic crystals.
Comparison of the MPro Active Site Structures in the Two Space Groups
2.2
In addition to the metrics and the size of the solvent channels, the active site structures of MPro were investigated in the two space groups with respect to conserved water networks and other buffer components. It turned out that the MPro active site in the monoclinic crystal system features a more conserved water network than in the orthorhombic. In contrast, in the orthorhombic crystal form, a DMSO molecule was found to bind in the S1 pocket. It is conceivable that the highly conserved water network results in a lower hit rate, because low‐affinity binders might not be able to replace such tightly bound water molecules. The bound DMSO could also lead to false negatives because DMSO is present in high concentrations and might compete with low‐affinity binders for its binding site.
Overall Comparison of the Two Fragment‐Screening Campaigns
2.3
Both crystal systems described above were then optimized for CFS and the two CFS campaigns were carried out under nearly identical conditions. In both cases, the F2X‐Entry Screen fragment library was used [23]. Overall, the C2 campaign resulted in data sets exhibiting a slightly lower median resolution (2.2 Å) and a larger range (1.0–3.9 Å) than the data sets from the P2_1_2_1_2_1_ campaign (median 1.9 Å, range 1.7–2.7 Å). The completeness is on average similar in both campaigns with a median completeness of over 98% in both cases. The ISa values of the datasets from the C2 campaign were slightly higher (median 24) than for the P2_1_2_1_2_1_ campaign (median 20). Overall, both campaigns show a similar data quality based on the metrics presented. Figure 2 shows an overview of the main quality indicators for the campaigns. The crystallographic Table 1 for each data set with a fragment bound is given in the supplementary data as Table S1.

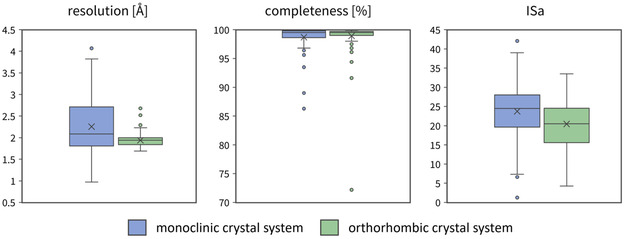

Data quality indicators for both crystal forms (monoclinic in blue and orthorhombic in green) shown as boxplots. Each boxplot shows the 25th and 75th percentile as a box, with the median as a line in the middle. Whiskers show the range of data within 1.5‐fold interquartile range. Data outside this range are considered outliers and depicted as dots. The boxplots were made using Microsoft Office Excel (Version 2507).
The robustness of the two crystal forms for CFS was assessed by looking at the attrition rates (Table 3). In case of the monoclinic CFS campaign, duplicates of the fragment soaks were soaked and harvested. In contrast, due to time limitations at the time, only one crystal per fragment was soaked and harvested for the orthorhombic CFS campaign. The final percentage of data sets analyzed via PanDDA is 87.4% for the monoclinic crystal system and 98.6% for the orthorhombic one. The step at which the largest loss of data sets occurred in the monoclinic campaign is between collected and processed data sets. Apparently, it was the soaking by the fragments that led to a higher degree of damage to the crystals in the monoclinic case. Overall, the attrition rates are relatively low, but they do show that the orthorhombic crystal system is more robust than the monoclinic one.
Fragment Hits Identified From Monoclinic C2 Screening
2.4
For the C2 campaign, three fragment hits and four binding events were identified. This translates to a hit rate of 3%. Fragments B08 and D08 bound to the active site, while fragment B07 yielded two binding events: one at the active site and one at a remote binding site. Figure 3 shows an overview of the binders. A clustering analysis using cluster4x did not result in well‐defined separate clusters. Therefore, the entire dataset was used as a single cluster [28].

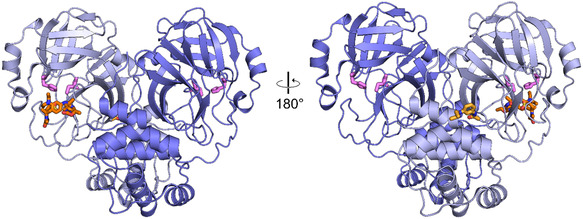

Overview of hits identified in the CFS campaign of the monoclinic C2 crystal form. The monomer of the asymmetric unit is shown in light blue and a symmetry related protein molecule in dark blue, to illustrate the biological dimeric form of MPro. The bound fragment hits are presented as orange sticks. The two catalytic side chains His41 and Cys145 are depicted as spheres colored pink. The fragments bound are only shown for the monomer of the asymmetric unit. The front and back view are depicted.
The active site binders overlap marginally and bind in different specificity pockets of MPro (Figure 4A). Compound B08 binds to S1, compound D08 binds to S2 and S4, and compound B07 bridges from S1 to S2, also covering S3. The overlapping structural features of the active site binders do not show similar interactions in the specificity pockets (Figure 4B,C,E–H). The remote binding site of B07 is close to a crystal contact (Figure 4D).

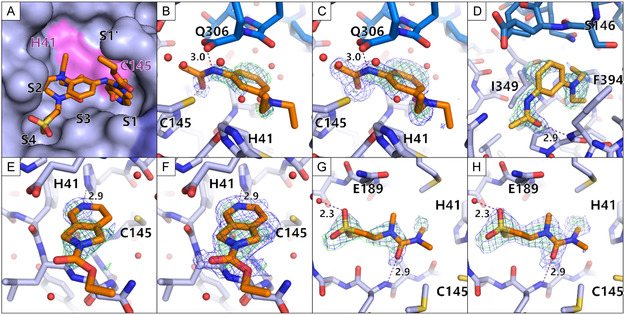

Enlarged views of the bound fragment hits in the monoclinic crystal form. The fragments are colored orange, the active site binders in a darker orange and the remote binders in a light orange. Water molecules are depicted as red spheres. Hydrogen bonds are depicted as purple dashed lines with their respective length written beside the line. The electron density is presented for the fragments (PanDDA event map is shown in blue (σ = 2 for B,D,E and G; σ = 1 for C,F, and H) and the PanDDA Z map is shown in green (σ = 3)). (A) A zoom in view of the active site with indicated specificity pocket positions. The protein is shown in a surface view while the fragments are shown as sticks. The active site His41 and Cys145 are shown in pink. (B,C) The fragment B07 is shown with different sigma levels for the PanDDA event map for clear interpretation. The C‐terminus of the second monomer, making up the dimer is shown in darker blue. (D) The second binding site of fragment B07 is shown at a remote binding site close to a crystal contact. (E,F) The fragment B08 is shown with different sigma levels for the PanDDA event map for clear interpretation. (G,H) The fragment D08 is shown with different sigma levels for the PanDDA event map for clear interpretation.
Fragment Hits Identified From Orthorhombic P212121 Screening
2.5
For the P2_1_2_1_2_1_ campaign, 11 fragment hits could be identified binding to the protein. Out of these fragment hits, two bind at remote binding sites (G03, H03) and 7 fragments bound at the active site (B05, B08, C10, D04, D08, F04, G09). One fragment hit bound twice to the protein, once in the active site and once at a remote binding site (C02). One fragment hit binds three times to the protein, twice in the active site and once at a remote site (D11). This amounts to 14 binding events overall and a hit rate of 10%. The analysis of this dataset was further improved using cluster4x for picking more homogenous datasets for the analysis [28]. This step had been shown before to increase homogeneity of the dataset, which is crucial for a PanDDA‐based hit identification [29]. Clustering of the dataset resulted in three distinct clusters. For each of the clusters, a separate PanDDA run was performed. The application of this step resulted in five additional fragment hits. Taken together, this campaign resulted in 16 fragments overall, 19 binding events and a hit rate of 16%. Out of the 16 fragment hits, three fragments bound at remote sites (G03, H03, plus H11). 11 fragments bound at the active site (B05, B08, C10, D04, D08, F04, G09, plus C07, E11, G04, G10). One fragment bound twice, once at the active site and once at a remote binding site (C02). One fragment hit bound three times to the protein, twice in the active site, but with different binding poses in the two active sites present in the asymmetric unit and once at a remote site (D11). An overview of the binders is depicted in Figure 5.

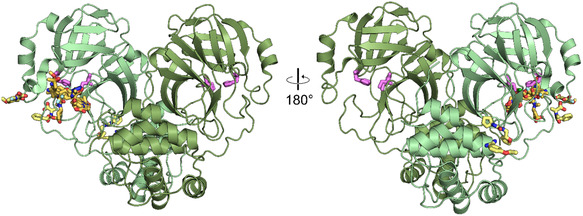

Overview of hits identified in the CFS campaign of the P212121 crystal form. The monomers are shown in green colors as cartoon and the bound fragment hits are presented as yellow sticks. The two catalytic side chains His41 and Cys145 are depicted as sticks colored pink. The fragments bound are shown in one monomer's active site as the binding mode was similar in both active sites. The front and back view are depicted.
The active site binders B08, D08, and D11 bind in both active sites (chain A and chain B). In case of B08, the positions of the ether and hydroxyl groups are ambiguous and may be switched based on little electron density evidence. Because of this, it was once modeled in chain A, as shown in Figure 6D and in chain B with both groups switched. In case of D08, the binding is almost identical. Because of the high similarity in binding, they were not investigated individually, but as one binding event. In case of D11, there was a different electron density visible and thus it was also modeled differently (Figure 6K,L). The remaining active site binders were only identified in chain A, which could be because chain A has a slightly more open active site than chain B.

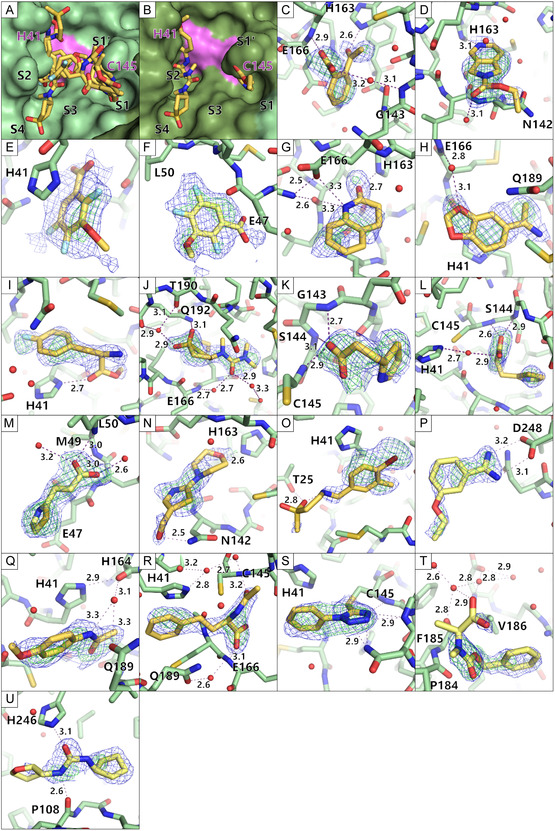

Enlarged view of the bound fragment hits in the orthorhombic crystal form. The fragments are colored in yellow, the active site binders in a darker yellow and the remote binders in a lighter yellow. Water molecules are depicted as red spheres. Hydrogen bonds are depicted as purple dashed lines with their respective length written beside the line. The electron density is presented for the fragments (PanDDA event map is shown in blue (σ = 2) and the PanDDA Z map is shown in green (σ = 3)). (A–B) A zoom in view of the active site with indicated specificity pocket positions. The protein is shown in a surface view while the fragments are shown as sticks. The active site His41 and Cys145 are shown in pink. (C–U) Each fragment bound to the protein is shown as sticks. The protein is shown as sticks too. (C = B05, D = B08, E = C02 in active site, F = C02 at remote site, G = C07, H = C10, I = D04, J = D08, K = D11 in monomer 1, L = D11 in monomer 2, M = D11 at remote site, N = E11, O = F04, P = G03, Q = G04, R = G09, S = G10, T = H03, U = H11).
The active site binders cover the specificity pockets S1, S2, S3, and S4 (Figure 6A,B). The fragments B05, B08, C07, D11, and E11 bind in the S1 pocket (Figure 6C,D,G,K,L,N). G09 reaches over several pockets from between S1’ and S1 to S3 and S2 (Figure 6R). G10 covers a similar area to G09 but is much shorter and does not reach deep into the pockets. G10 differs from all other fragments as it is bound covalently to the active site Cys145 based on the electron density evidence (Figure 6S). D08 bound in S4 reaching into S2 (Figure 6J). C02, C10 bind mainly in S2 (Figure 6E,H), while D04, F04, G04 bind in S2 and reach along the active site, though not into one of the specificity pockets (Figure 6I,O,Q).
The remote binders G03 and H11 bind the protein at solvent‐exposed surfaces (Figure 6P,U). This binding site of G03 has not been seen before to the best of our knowledge and merits further investigation. The second binding events of C02 and D11 remote from the active site were close to crystal contacts (Figure 6F,M). Additionally, H03 also bound close to a crystal contact (Figure 6T). These events must be studied critically to determine if they are crystal artifacts or interesting binding sites.
Comparison of the Two Campaigns
2.6
Combining both campaigns, 17 unique fragments of the F2X‐Entry Screen could be identified. Fragments B08 and D08 were the only two overlapping hits. Both fragments bind in both campaigns in a similar binding pose (Figure 7), providing mutual pose validation. B08 is bound in almost the exact binding pose (Figure 7A,C,E). The position of D08 differed slightly, probably due to the more constricted packing of the protein in the monoclinic crystal form. The loop containing T190 and A191 can move upwards as indicated by a magenta arrow (Figure 7B,D,F). The higher flexibility in the orthorhombic crystal form allows for the fragment to position itself in a way that a more elaborate hydrogen bond network can be established, facilitated by water molecules.

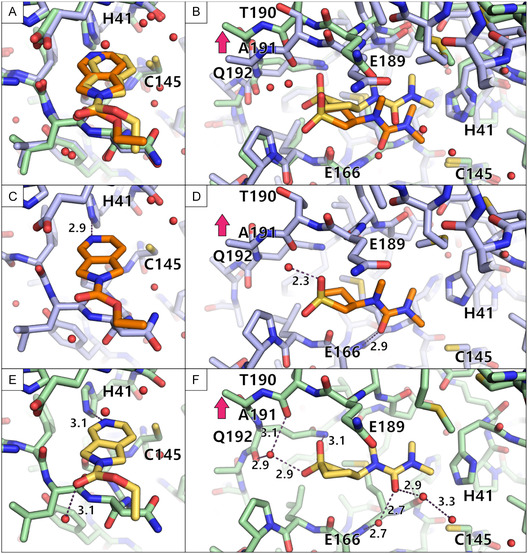

Comparison of the binding events of B08 and D08 from both campaigns. The binding pose from the monoclinic campaign is colored orange while the binding pose from the orthorhombic campaign is shown in yellow. The protein is shown in blue for the monoclinic campaign and in green for the orthorhombic campaign. Water molecules are depicted as red spheres and hydrogen bonds are shown as purple dashed lines with their distance written next to them. (A–B) An overlay is shown for B08 (A) and D08 (B) of both campaigns. (C–D) The binding pose of both fragments in the monoclinic space group is highlighted. (E–F) The binding pose of both fragments in the orthorhombic space group is depicted.
Fragment B07 had been found to bind in the monoclinic C2 campaign but not in the orthorhombic P2_1_2_1_2_1_ campaign. Upon closer investigation of the B07 binding to the protein, additional density of the C‐terminus of a symmetry‐related molecule became visible in the C2 crystal form (Figure 8). Starting from the residue Ser301, the C‐terminus adopts a different conformation in the bound state of B07. The C‐terminus interacts with the fragment by stacking of the aromatic benzene ring with the peptide backbone and a hydrogen bond between the amide nitrogen of the fragment with the terminal carboxyl group of Gln306 (Figure 4B,C). The C‐terminus also engages in hydrogen bonds with N142.

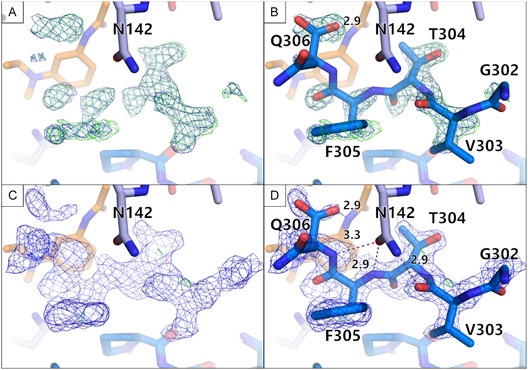

The C‐terminus of a symmetry‐related molecule binding to the B07 binding site became visible in the C2 crystal form. The MPro monomer of the asymmetric unit is shown in light blue sticks. A symmetry related monomer is shown in darker blue sticks. Fragment B07 is shown in orange sticks. The maps are only shown surrounding the C‐terminus. (A) The PanDDA event map is depicted in blue (σ = 2) and the Z map in green (σ = 3). (B) The same maps are shown as in A, but with the placed C‐terminus. (C) The electron density after one round of refinement is shown; (2mFo−DFc, α c) maps contoured at σ = 1 (blue) and the (mFo−DFc, α c) maps contoured at σ = 3 (green). (D) The same electron density is shown as in C, but with the placed C‐terminus.
For the remaining fragments that have only been found in the orthorhombic crystal system but not in the monoclinic one, all cases were checked to see whether data could be collected in both campaigns. For the fragments C02, G09, and H03, no dataset could be collected in the monoclinic campaign. An explanation could be that both C02 and H03 exhibit at least one binding event close to a crystal contact and therefore might disrupt the crystal lattice. In case of G09, it is unclear what exactly led to the loss of the crystals.
Comparison to a Previously Performed Orthorhombic CFS Campaign
2.7
The F2X‐Entry Screen had been previously used to perform a CFS campaign against MPro in the orthorhombic crystal system [18]. Based on the cell metric, the crystal system described by Noske et al. (2021) is the same as the one described here. However, upon a closer look, it is revealed that Noske et al. (2021) used a slightly different construct (immature MPro) as well as different crystallization conditions and slightly different soaking parameters (Table S2, Supporting Information). As a result of their campaign, Noske et al. (2021) reported three fragment hits and a hit rate of only 3%. Interestingly, the observed hits (E03, E06, G05) are different from the ones observed in either campaign here (B05, B07, B08, C02, C10, D04, D08, D11, E11, F04, G03, G04, G09, G10, H03, H11). This comparison shows that a superficial look at space group and cell metrics is not sufficient to ensure comparability. Since a CFS experiment is close to the limit of detection of binding, differences in the protein construct and experimental parameters may result in different outcomes.
Discussion
3
Comparison of the Screening Campaigns Using the Monoclinic and Orthorhombic Crystal Form of MPro
3.1
The success of a CFS campaign depends on a well‐established and optimized crystal system. This includes reproducible crystal growth, solvent tolerance of the crystals, and most importantly, consistent high‐resolution diffracting crystals. The importance of crystal packing as a success factor in CFS campaigns has been studied before. Schuller et al., 2021, screened another SARS‐CoV‐2 protein, NSP3, in two different space groups (P2 and P4_3_) and achieved a higher hit rate of 8.8% in the favored space group compared to 5.6% hit rate in the unfavored space group [30]. Other earlier studies on the influenza A nuclease also focused on the identification of new crystal forms of the target protein because of the otherwise occluded active site [17, 31]. However, this factor is still underappreciated.
Here, we present the first systematic study, keeping all parameters consistent besides the space group and crystallization conditions. Both screens were conducted with the same protein construct, the same soaking conditions, using the same fragment library and a highly similar computational workflow for data analysis.
The CFS campaign against the orthorhombic crystal system resulted in an over fivefold increase in hit rate and higher coverage of the active site compared to the campaign with the monoclinic crystal form. Next to the highly consistent experimental set up, the achieved data quality of the two screens is comparable, even though the orthorhombic crystal form seems to be slightly more robust. The CFS campaign against the orthorhombic crystal form resulted in a slightly better median resolution (better by 0.25 Å), but this alone likely does not explain the significantly increased hit rate. Our experimental findings are further supported by the in silico analysis of the solvent channels and the active site using LifeSoaks [27]. The analysis highlights the increased radius of the active site and the larger overall bottleneck radius for the orthorhombic crystal form.
The crystal packing not only influenced the hit rate, but also the potential relevance of the hits. For instance, the fragment B07 binding to the active site in the monoclinic MPro form is likely only a crystallization artifact, because it clearly interacts with the C‐terminus of a symmetry related protein molecule. It probably did not bind in the orthorhombic campaign as the C‐terminus cannot interact in the same way in the orthorhombic crystal system. The fragment would thus probably not bind to the enzyme in its native dimeric state in solution.
It should be kept in mind, that not only the crystal packing affects the outcome of a CFS campaign. The protein construct and the soaking protocol employed are further important parameters, that need to be considered for the success of a CFS campaign.
Although most of the reported screening activities have been directed at the monoclinic crystal system [15, 19, 20], the orthorhombic system appears to be much better suited for CFS approaches. The LifeSoaks analysis supports our experimental findings and would be a useful tool at the start of a fragment screening campaign to choose a suitable crystal form. Our findings highlight the importance of choosing the correct crystal system for crystallographic fragment screening to maximize the chance of success.
Conclusion
4
Taken together, a systematic comparison of two CFS campaigns on two crystal forms of MPro, this work underpins the importance of crystal packing for performing successful CFS campaigns. 14 fragments were found binding to the active site of MPro and can serve as starting points for new fragment‐based drug design or provide novel ideas for optimized binding in the different sub pockets to improve existing compounds. In general, the presented work exemplifies the need to investigate and optimize the crystal packing of the target protein for future crystallographic screening campaigns.
Experimental Section/Methods
5
Protein Expression and Purification
5.1
The MPro gene was cloned into a pGEX‐6‐1 vector with a C‐terminal His_6_‐tag [25]. The plasmid (provided by Lin Zhang from the Hilgenfeld group) was transformed into E. coli strain BL21‐Star (DE3). An overnight culture was inoculated from transformed clones and transferred the next day into auto‐induction medium [32]. The cells were grown at 37°C until OD = 0.6, and then the temperature was lowered to 18°C for overnight expression. Cells were harvested the next day through centrifugation at 10 000 × g for 10 min. Cell pellets were flash‐frozen in liquid nitrogen until purification. For purification, the cells were thawed and resuspended in 20 mM Tris, pH 7.8, 150 mM NaCl, 5 mM imidazole, 0.05% (v/v) Tween. The cells were lysed via sonication and centrifuged at 40 000 × g for 45 min at 4°C. The supernatant was loaded onto a Ni‐NTA affinity chromatography column, and the protein was eluted with a stepwise imidazole gradient up to 500 mM imidazole. The protein was dialyzed overnight with addition of 1:10 w/w PreScission protease into 20 mM Tris, pH 7.8, 150 mM NaCl, 1 mM DTT. The next day the cleaved protein was subjected to a Ni‐NTA affinity chromatography column to remove the cleaved His_6_‐tag. The final purification step was size exclusion chromatography using a Superdex 75 column equilibrated in 20 mM Tris, pH 7.8, 150 mM NaCl, 1 mM TCEP, 1 mM EDTA. The fractions with the purified protein were pooled, concentrated to 5 mg/ml, and flash‐frozen in liquid nitrogen before storage at −80°C.
Crystallization
5.2
MPro was crystallized in the orthorhombic space group in 23.5% (w/v) PEG 1,500, 0.2 M MIB, pH 7.7, 5% (v/v) DMSO, 1 mM DTT, and 0.025 mM EDTA, pH 7.0, using the NT8 pipetting robot (Formulatrix) and MRC 3‐lens 96‐well low‐profile plates. The final drops consisted of 200 nl protein, 100 nl reservoir and 50 nl 1:50 seed stock dilution and were equilibrated at 20°C against 40 µl reservoir. Initial seeds for the orthorhombic space group were kindly provided by Deniz Eris (Macromolecular Crystallography group, Paul Scherrer Institute, Villigen, Switzerland). Based on the crystals grown from the initial seeds, new seeds were prepared in the following way. Crystals from one drop were crushed and transferred into 50 µl reservoir solution. The mixture was vortexed four times for 30 s with 30 s on ice in between with a Seed Bead (Hampton Research). The final seed stock was diluted to 1:50, aliquoted and flash‐frozen in liquid nitrogen. Crystals grew within 2 days.
Protein crystals grown in the monoclinic space group were produced as described before in Günther et al., 2021 [20]. Therefore, the crystallization condition was 25% (w/v) PEG 1,500, 0.1 M MIB, pH 7.5, 5% (v/v) DMSO, with a mix of 250 nl protein solution, 220 nl reservoir and 50 nl protein crystal seeds.
Crystallographic Fragment Screening—Soaking and Data Collection
5.3
The F2X‐Entry Screen was screened against MPro in both space groups [23]. The library is presented as dried‐on fragments on an MRC 3‐lens 96‐well low‐profile plate. The fragments are dissolved first as a 500 mM DMSO stock, then spotted onto the first 2 lenses and dried, so no DMSO is present anymore. For more details, see Wollenhaupt et al., 2020. For both campaigns, the following soaking buffer was used: 23.5% (w/v) PEG 1,500, 0.2 M MIB, pH 7.7, 5% (v/v) DMSO, 1 mM DTT, and 0.025 mM EDTA, pH 7.0. A soaking plate was prepared with 40 µl crystallization solution as reservoir and a 0.4 µl drop of the respective soaking solution onto the dried‐on fragments. The crystals were transferred from the crystallization plate into the soaking drops. After the transfer the plate was sealed with crystallization foil and incubated overnight at 20°C. The next day, the crystals from each soaking drop were harvested, flash‐cooled in liquid nitrogen, and stored until measurement. Each fragment soak was named according to the fragment's placement on the F2X‐Entry Screen plate (A01 – H12). Due to the collection of duplicates, the samples also received indicators to achieve unique names for each sample/dataset (A01a, A01b – H12a, H12b).
Data collection was performed at BL14.1 (HZB BESSY II, Berlin, Germany) [33]. Diffraction data from crystals belonging to the monoclinic space group was collected with 1500 images in 0.2° increments, an exposure time of 0.1 s, a 100 µm aperture, detector distance corresponding to 1.35 Å maximum resolution at the detector edge and at an X‐ray energy of 13.5 keV. The data of the orthorhombic space group CFS campaign was collected with 800 images in 0.2° increments, an exposure time of 0.1 s, a 100 µm aperture, detector distance to 1.35 Å maximum resolution at the detector edge and at an energy of 13.5 keV.
Crystallographic Fragment Screening—Data Analysis
5.4
The collected data was then subjected to FragMAXapp [34] and processed automatically via XDSAPP [35] and afterwards automatically refined with fspipeline [12]. The PDB structure 6Y2E [25] for the monoclinic space group C2 and 7BB2 [21] for the orthorhombic space group P2_1_2_1_2_1_ were used as input models for molecular replacement. PanDDA [36] was performed for both campaigns and fragments were fitted into the event maps. Both campaigns were subjected to clustering using cluster4x [28]. In case of the monoclinic space group, no well‐defined clusters could be identified and therefore the entire dataset was used as a single cluster. In case of the orthorhombic space group by clustering the data with cluster4x, three clearly defined separate clusters could be identified and thus subjected to separate PanDDA runs. To run PanDDA for each cluster, but at the same time consider all available datasets, PanDDA was run in a specialized way. For each cluster, a PanDDA run was performed, where only the datasets associated with that cluster were used for the ground state calculation. Each fragment‐bound structure of both space groups was subjected to manual building in pandda.inspect using the PanDDA event maps as the main readout. Afterwards, the data was exported via pandda.export and the ensembles were split into their bound and ground state via the giant.split_conformations script. The bound state models were built with the help of the PanDDA event and Z map using Coot [37]. The ground state models for each bound fragment were built with the help of the average map calculated by PanDDA for the respective cluster run. The final models were merged again via the giant.merge_conformations script and then a pandda.quick_refine script was applied for the final refinement of the ensemble. Due to the way PanDDA merges the data, alternative conformations are sometimes created with almost the same position. A script was created to delete all conformations, which differ by less than 0.2 Å. The occupancy value of the deleted alternative conformation is added to the remaining one, so each residue will add up to 100% occupancy in the end. All refined data was deposited in the PDB with the following IDs: monoclinic space group: group deposition ID G_1002326, 7HUC, 7HUD, 7HUE, orthorhombic space group: group deposition ID G_1002335, 7I13, 7I14, 7I15, 7I16, 7I17, 7I18, 7I19, 7I1A, 7I1C, 7I1D, 7I1E, 7I1F, 7I1G, 7I1H, 7I1I, 7I1J. The PanDDA maps were added to the structure factor data. To separate the files, we made a script which is available on github: https://github.com/hzb‐mx/unpack_F2X_sf_mmcif. Table 1 for each dataset is given as supplementary data.
Supporting Information
Additional supporting information can be found online in the Supporting Information section. Supporting Table S1: Crystallographic data for all fragment‐bound structures after PanDDA quick refinement. Supporting Table S2 : Comparison between orthorhombic MPro crystals between Noske et al. (2021) and this study.
Author Contributions
Tatjana Barthel: formal analysis (lead), investigation (lead), methodology (lead), visualization (lead), writing – original draft (lead), writing – review and editing (lead). Jan Wollenhaupt: conceptualization (lead), formal analysis (equal), investigation (equal), methodology (lead), project administration (lead), supervision (equal), writing original draft (lead), writing – review and editing (lead). Laila S. Benz: investigation (supporting), writing – original draft (equal), writing – review and editing (supporting). Patrick Reinke: investigation (supporting), resources (equal). Linlin Zhang: investigation (supporting), resources (supporting). Melanie Oelker: data curation (lead), software (lead). Frank Lennartz: investigation (supporting). Helena Taberman: investigation: (supporting). Uwe Mueller: investigation: (supporting), writing – review and editing (supporting). Alke Meents: resources (supporting), supervision (supporting). Rolf Hilgenfeld: resources (supporting), supervision (supporting). Manfred S. Weiss: conceptualization (supporting), funding acquisition (lead), supervision (supporting), writing – review and editing (equal).
Funding
This work was supported by the BMBF Collaborative Research Project STOP‐CORONA (project no. 05K20CB1), iNext Discovery, funded by the Horizon 2020, project No. 871037, program of the European Commission; the German Research Foundation (DFG) via the project NECESSITY (FE2166/1‐1); the Helmholtz Gemeinschaft via the Innovation Pool projects FISCOV and FISVIR and the Joint Berlin MX Laboratory.
Conflicts of Interest
The authors declare no conflicts of interest.
Supporting information
Supplementary Material
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1A. S. Lauring , Mark W. Tenforde , James D. Chappell , et al., “Clinical Severity of, and Effectiveness of m RNA Vaccines against, Covid‐19 from Omicron, Delta, and Alpha SARS‐Co V‐2 Variants in the United States: Prospective Observational Study,” BMJ 376 (2022): e 069761, 10.1136/BMJ-2021-069761.35264324 PMC 8905308 · doi ↗ · pubmed ↗
- 2D. Ao , X. He , W. Hong , and X. Wei , “The Rapid Rise of SARS‐Co V‐2 Omicron Subvariants with Immune Evasion Properties: XBB.1.5 and BQ.1.1 Subvariants,” Med Comm 4, no. 2 (2023): e 239, 10.1002/MCO 2.239.36938325 PMC 10015854 · doi ↗ · pubmed ↗
- 3D. R. Owen , C. M. N. Allerton , A. S. Anderson , et al., “An Oral SARS‐Co V‐2 Mpro Inhibitor Clinical Candidate for the Treatment of COVID‐19,” Science 374, no. 6575 (2021): 1586–1593, 10.1126/SCIENCE.ABL 4784.34726479 · doi ↗ · pubmed ↗
