OmpK35/36 absence does not confer carbapenem-resistance alone nor ceftazidime-avibactam resistance with one blaKPC-2

TL;DR

This study explores how the absence of OmpK35/36 porins in Klebsiella pneumoniae affects resistance to certain antibiotics like carbapenems and ceftazidime-avibactam.

Contribution

The study reveals that OmpK35/36 loss contributes to, but does not solely cause, antibiotic resistance in Klebsiella pneumoniae.

Findings

OmpK35/36 absence increases resistance to β-lactams, especially when combined with blaKPC-2.

OmpK36 plays a more significant role than OmpK35 in conferring resistance.

Loss of OmpK35/36 is not sufficient alone to confer carbapenem resistance.

Abstract

Investigate the genetic background of porin OmpK35/36 in Klebsiella pneumoniae and their influence on antimicrobial susceptibility, particularly carbapenems and ceftazidime-avibactam (CZA).

1407 K. pneumoniae genomes in GenBank were selected for analyzing outer membrane protein-related genes through BLAST method, including ompK35, ompK36, ompK26, ompK37, ompA, ompR, and carbapenemase genes, including blaKPC, blaVIM, blaIMP, blaNDM, blaOXA-48. Using MEGA 11.0, OmpK35/36 and ompK35/36 phylogenetic trees were built among serotypes K1 and K2 strains. Further, serotype K1 NTUH-K2044 and blaKPC-2 were used to construct mutants to elucidate impacts of OmpK35/36 on drug-resistance.

The rates of ompK35, ompK36, ompK26, ompK37, ompA, and ompR in K. pneumoniae strains were 97.5%, 99.3%, 99.5%, 99.4%, 99.9%, and 100.0% respectively. The sequence similarities of OmpK35/36 and ompK35/36 were both over 90.0%. K. pneumoniae strains with abnormal ompK35/36 presented higher rates of carbapenemase genes than those with normal ompK35/36. As to ΔompK36, the minimum inhibitory concentrations (MICs) of piperacillin, cefoxitin, cefazolin, cefuroxime, and imipenem increased to 4, 4, 4, 8, and 4 times respectively compared with those against NTUH-K2044; the MICs of piperacillin, cefoxitin, cefazolin, cefuroxime, imipenem, and meropenem increased to 8, 32, 32, 16, 8, and 8 times in ΔompK35/36 respectively. The deletions of ompK35/36, especially the double deletion, would greatly help NTUH-K2044+blaKPC-2 induce resistance to certain β-lactams. Further, the absence of ompK35/36 elevated the MIC of CZA against NTUH-K2044+blaKPC-2.

Highly conserved ompK35/36 are widely present in K. pneumoniae strains. The loss of OmpK35/36 confers increased resistance to certain β-lactams, with OmpK36 being dominant. Moreover, OmpK35/36 loss is a contributor but not a determinant in the formation of carbapenem-resistance under the absence of blaKPC-2, as well as in the formation of CZA-resistance with one blaKPC-2.

Figures

Genetic backgrounds of ompK35/36 in K. pneumoniae strains. (A) Distribution of OMP-related genes; (B) Distribution of similarity percentages of ompK35/36; (C) Distribution of carbapenemase genes; (D) Percentages of carbapenemase genes in K. pneumoniae strains harboring normal and abnormal ompK35/36 In (D), normal group included 1346 strains while abnormal group included 61 strains; Chi square test was used. *p < 0.001.

Homologies of ompK35/36 and OmpK35/36 in K1/2 K. pneumoniae strains. (A) The phylogenetic tree of ompK35 in K1/2 K. pneumoniae strains; (B) The phylogenetic tree of OmpK35 in K1/2 K. pneumoniae strains; (C) The phylogenetic tree of ompK36 in K1/2 K. pneumoniae strains; (D) The phylogenetic tree of OmpK36 in K1/2 K. pneumoniae strains; Each strain name is plotted and K1 strains are shown in red while K2 strains are in blue. The analysis software is MEGA 11.0.

OmpK-related genes expression in NTUH-K2044. (A) Expression of ompK36, ompK35, ompK26, and ompK37 in NTUH-K2044; (B) Expression of ompK36, ompK35, and ompR in NTUH-K2044 incubated with culture medium with 1.0% and 2.5% NaCl. The expression of ompK36 was used as control in (A) while those of ompK36, ompK35, and ompR under 1.0% NaCl were used as controls respectively in Figure 3B. One-way ANOVA was used in (A) while two-way ANOVA was used in (B). The error bars in figure are standard deviations. p < 0.01. *p < 0.001. p < 0.0001.

Tables

Table 1. Primers used in this study.

Primer	Sequence (5'-3')	Purpose
ompK35 up F	GTCACCGGCGTGCAGAACGT	ompK35 upstream homologous arm
ompK35 up R	TATTTATTACCCTCATTAAT
ompK35 down F	ATTAATGAGGGTAATAAATATCTGCAGTACACCCCTTCGT	ompK35 downstream homologous arm
ompK35 down R	AGTATGCGTATTCGCGCACT
ompK36 up F	GAAACCGCGCCGGGAAGGTT	ompK36 upstream homologous arm
ompK36 up R	GTTATTAACCCTCTGTTTGT
ompK36 down F	ACAAACAGAGGGTTAATAACGTTGCAAGCTGCATAACAAA	ompK36 downstream homologous arm
ompK36 down R	CTCTGATTAATAACCTGCAG
ompK35-N20-g F	GGTactagtACCGTTGTCGAACGCGTAGGGTTTTAGAGCTAGAAATAGCAAGTT	g-RNA fragment of ompK35
gRNA R	GCCGCTCTAGAAGTAGTGGA
ompK36-N20-g F	GGTactagtGCCGAATTCCGGCAGAACGTGTTTTAGAGCTAGAAATAGCAAGTT	g-RNA fragment of ompK36
gRNA R	GCCGCTCTAGAAGTAGTGGA
c-ompK35 F	CTCCATACCCGTTTTTTTGGATGATGAAGCGCAATATTCT	ompK35 complement sequence
c-ompK35 R	TCTCATCCGCCAAAACAGCCTTAGAACTGGTAAACGATAC
c-ompK36 F	CTCCATACCCGTTTTTTTGGATGAAAGTTAAAGTACTGTC	ompK36 complement sequence
c-ompK36 R	TCTCATCCGCCAAAACAGCCTTAGAACTGGTAAACCAGGC
c-ompK35/36 F	GTATCGTTTACCAGTTCTAAATGAAAGTTAAAGTACTGTC	ompK35/36 complement sequence
c-ompK35/36 R	TTAGAACTGGTAAACGATAC
pBAD24 F	GGCTGTTTTGGCGGATGAGA	Plasmid pBAD24 sequence
pBAD24 R	CCAAAAAAACGGGTATGGAG
ompK35 F(YZ)	CTCCAGCTCTAACCGTAGCG	internal sequence of ompK35 gene
ompK35 R(YZ)	CAGCCGCTTTGGTGTAATCG
ompK36 F(YZ)	CAGGCCTGAAATTTGGCGAC	ompK36 internal sequence
ompK36 R(YZ)	TCGTCGGTACGTTTGGAGTG
ompK35 F(CX)	TTACCCGCACATCTTGC	ompK35 bidirectional sequencing
ompK35 R(CX)	ATCGATGCCCAGATAGTTT
ompK36 F(CX)	TTTCCCTGACCATTTTGCGG	ompK36 bidirectional sequencing
ompK36 R(CX)	GGAGTGGTAGCTGAATCGCA
ompK35-RT F	TATGCGGCCGTCATGTACTC	ompK35 RT-PCR primers
ompK35-RT R	GGTCTGTACGTAGCCGATGG
ompK36-RT F	CAACCTACCGTAACTCTGAT	ompK36 RT-PCR primers
ompK36-RT R	GATGCCATCCCAAATATCGT
ompK26-RT F	CGCTCGCTATCGCTATGAGT	ompK26 RT-PCR primers
ompK26-RT R	GCTGCGGGCATAGACATAGT
ompK37-RT F	GGCGACTCCTACACCTATGC	ompK37 RT-PCR primer
ompK37-RT R	GCGTTCTGGCCTTCGTTTTT
ompR-RT F	GAGCGTTATCTGACCGAGC	ompR RT-PCR primers
ompR-RT R	AGAGAGACCATCTTCGCCC
16S rRNA F	TACCGCATAACGTCGCAAGA	internal reference
16S rRNA R	TTCCAGTGTGGCTGGTCATC
blaKPC-2 F(YZ)	TCGCTAAACTCGAACAGG	internal sequence of blaKPC-2
blaKPC-2 R(YZ)	TTACTGCCCGTTGACGCCCAATCC
p-rmpA F(YZ)	GAGTAGTTAATAAATCAATAGCAAT	p-rmpA internal sequence of p-rmpA
p-rmpA R(YZ)	CAGTAGGCATTGCAGCA

Table 2. MICs of antimicrobials against knockouts and complemented mutants of NTUH-K2044.

Antimicrobials	MICs (mg/L)
	NTUH-K2044	ΔompK35	ΔompK36	ΔompK35/36	ΔompK35 +ompK35	ΔompK36 +ompK36	ΔompK35/36 +ompK35/36
Piperacillin	2; S	4; S	8; S	16; SDD	2; S	4; S	16; SDD
Cefoxitin	1; S	2; S	4; S	32; R	2; S	4; S	16; I
Cefazolin	0.5; S	0.5; S	2; S	16; S	0.5; S	2; S	8; S
Cefuroxime	0.5; S	1; S	4; S	8; S	1; S	2; S	4; S
Ceftazidime	<0.125; S	0.125; S	<0.125; S	0.125; S	0.125; S	<0.125; S	0.125; S
Cefepime	<0.064; S	<0.064; S	0.064; S	0.125; S	<0.064; S	0.064; S	0.125; S
Cefotaxime	<0.125; S	<0.125; S	<0.125; S	0.125; S	<0.125; S	<0.125; S	0.125; S
Ceftriaxone	<0.064; S	<0.064; S	<0.064; S	0.064; S	<0.064; S	<0.064; S	0.064; S
Imipenem	0.064; S	0.125; S	0.25; S	0.5; S	0.125; S	0.25; S	0.25; S
Meropenem	<0.016; S	<0.016; S	0.016; S	0.064; S	<0.016; S	0.016; S	0.064; S
Amikacin	0.5; S	0.5; S	0.5; S	0.5; S	0.25; S	0.25; S	0.5; S
Ciprofloxacin	0.016; S	0.016; S	0.016; S	0.032; S	0.016; S	0.016; S	0.032; S
Chloramphenicol	4; S	8; S	4; S	8; S	4; S	4; S	4; S
Tetracycline	1; S	2; S	1; S	2; S	1; S	1; S	2; S
Polymyxin B	0.5; I	0.5; I	0.5; I	0.5; I	0.5; I	0.5; I	0.5; I

Table 3. MICs of different antimicrobials against transconjugants.

Antimicrobials	MICs (mg/L)
	NTUH-K2044+blaKPC-2	ΔompK35+blaKPC-2	ΔompK36+blaKPC-2	ΔompK35/36+blaKPC-2
Ticarcillin-clavulanic acid	≥128/2; R	≥128/2; R	≥128/2; R	≥128/2; R
Piperacillin-tazobactam	≥128/4; R	≥128/4; R	≥128/4; R	≥128/4; R
Ceftazidime	4; S	16; R	16; R	16; R
Cefoperazone-sulbactam	16/8; S	16/8; S	≥64/32; R	≥64/32; R
Cefepime	0.5; S	1; S	2; S	≥32; R
Aztreonam	2; S	8; I	16; R	≥64; R
Imipenem	8; R	8; R	8; R	≥16; R
Meropenem	≥16; R	≥16; R	≥16; R	≥16; R
Amikacin	≤2; S	≤2; S	≤2; S	≤2; S
Tobramycin	≤1; S	≤1; S	≤1; S	≤1; S
Ciprofloxacin	≤0.25; S	≤0.25; S	≤0.25; S	≤0.25; S
Levofloxacin	≤0.12; S	≤0.12; S	≤0.12; S	≤0.12; S
Doxycycline	1; S	1; S	1; S	1; S
Tigecycline	≤0.5; S	≤0.5; S	≤0.5; S	≤0.5; S
Colistin	≤0.5; I	≤0.5; I	≤0.5; I	≤0.5; I
Trimethoprim-sulfamethoxazole	≤2/38; S	≤2/38; S	≤2/38; S	≤2/38; S
*Ceftazidime-avibactam	0.25/4; S	0.5/4; S	0.5/4; S	1/4; S

Full text

Introduction

1

Klebsiella pneumoniae, a Gram-negative bacterium of Enterobacterale, is ubiquitously distributed in natural environment. It is typically armed with a polysaccharide capsule along with type 1 and 3 fimbriae, but lacks flagella. As an opportunistic pathogen, K. pneumoniae is associated with a range of infections including endocarditis, and sepsis (Navon-Venezia et al., 2017). Hypervirulent K. pneumoniae (HvKP) strains can even cause fatal invasive syndromes such as necrotizing, lung abscess, pyogenic liver abscess, and endogenous endophthalmitis (Paczosa et al., 2016).

The first carbapenem-resistant K. pneumoniae (CRKP) strain was reported in the United States in 1996 (Yigit et al., 2008), which has become increasingly prevalent worldwide. At present, the proportion of carbapenem resistance in clinical K. pneumoniae strains is around 25.0% in China mainland (Li et al., 2023). CRKP commonly exhibits multidrug-resistance, including resistance to quinolones, aminoglycosides, and cephalosporins. These resistance profiles confer prolonged hospital stay, increased healthcare cost, and elevated mortality (Xu et al., 2017), which prompts the World Health Organization to classify CRKP as a priority pathogen.

The convergence of antimicrobial abuse and the continual evolution of K. pneumoniae have facilitated the emergence of superbugs with carbapenem resistance and hypervirulence (Martin and Bachman, 2018). In China mainland between 2015-2017, over 5.0% of carbapenem-resistant isolates demonstrated the dual risks, with a rising trend (Zhang et al., 2020). This ‘superbug’ poses a formidable challenge for clinicians. Drug resistance may be developed by K. pneumoniae through various mechanisms, such as hydrolytic enzymes, loss of outer membrane proteins (OMPs), over-expression of efflux pumps, topoisomerases, lipopolysaccharide modifications and so on (Hennequin and Robin, 2016; Aguilar et al., 2025; Uehara et al., 2025b). Among these, the absence or reduced expression of the porins OmpK35 and OmpK36 significantly restricts the penetration of carbapenems into the cell, thereby conferring resistance (Zhang et al., 2015; Park et al., 2025; Xie et al., 2025). There are also studies indicating that mutations, defects, or loss of function in OmpK35/36, if further combined with KPC or CTX-M, may even lead to an increase in the minimum inhibitory concentration (MIC) of ceftazidime-avibactam (CZA) (Nelson et al., 2017; Shen et al., 2017; Castanheira et al., 2020; Gaibani et al., 2020; Zhao et al., 2024).

OmpK35 and OmpK36 are major trimeric β-barrel porins in the outer membrane of K. pneumoniae and facilitate the passive diffusion of small hydrophilic molecules, including nutrients and certain antibiotics like β-lactams (Brunson et al., 2019). They share structural and functional similarities with OmpF and OmpC in Escherichia coli respectively, and play critical roles in maintaining membrane integrity alongside peptidoglycan and lipopolysaccharide layers (Sugawara et al., 2016; Davin-Regli et al., 2024). However, despite their importance, a systematic review of OmpK35/36 impact on K. pneumoniae lacks.

To address this gap, an epidemiological analysis of OmpK35/36 sequences available in the GenBank database was conducted in this paper. Furthermore, the serotype K1 strain NTUH-K2044 was used to elucidate the impacts of OmpK35/36 on its drug-resistance, particularly resistance to carbapenems and CZA.

Materials and methods

2

Strains, plasmids, and primers

2.1

A total of 1407 K. pneumoniae genomes (Supplementary Table S1) were downloaded from GenBank (https://www.ncbi.nlm.nih.gov/datasets/genome/?Taxon=573; as of August 30, 2022). K1 K. pneumoniae strain NTUH-K2044 is a typical strain of hypervirulence with accession number AP006725.1. It belongs to sequence type 23. HS11286 is a typical CRKP with accession number CP003200.1. It belongs to sequence type 11 and contains blaKPC-2 on the plasmid pKPHS1. The plasmids pCAS (apramycin resistance, used for gene deletion), pSGKP (rifampicin resistance, used for gene knockout), and pBAD24 (apramycin resistance, used for gene complementation) are from the authors’ medical laboratory. The competent DH5α is a product of Shanghai Yisheng Company, China.

The primers used in this study are shown in Table 1.

Genetic backgrounds of ompK35/36

2.2

Based on the gene sequences of NTUH-K2044 and the standard sequences of carbapenemase gene (Supplementary Table S2), the distribution of OMP-related genes including ompK35, ompK36, ompK26, ompK37, ompA, ompR, and carbapenemase genes including blaKPC, blaVIM, blaIMP, blaNDM,blaOXA-48 in K. pneumoniae was predicted through the NCBI-BLAST website (https://blast.ncbi.nlm.nih.gov/Blast.cgi?Program=blastn&PAGETYPE=BlastSearch&LINK_LOC=blasthome) (coverage ≥ 80% and similarity ≥ 80%), and the similarities of ompK35/36 sequences were compared. Then the serotype K1 and K2 were determined through the Pasteur website (https://bigsdb.pasteur.fr/cgi-bin/bigsdb/bigsdb.pl?db=pubmlst_klebsiella_seqdef&page=sequenceQuery). Phylogenetic trees of omp35/36 and OmpK35/36 sequences from all K1/2 strains were built by MEGA 11.0 using the Neighbor Joining method and Bootstrap method (repeated 1000 times).

Knockout of ompK35/36 in NTUH-K2044

2.3

On the basis of the wild strain NTUH-K2044, CRISPR-Cas9 gene deletion method (Hao et al., 2020) was utilized to construct such variants: ΔompK35, ΔompK36, and ΔompK35/36. Primers ompK35 up F, ompK35 up R, ompK35 down F and ompK35 down R (Table 1) were used to construct the homologous fragment of ompK35 while ompK36 up F, ompK36 up R, ompK36 down F and ompK36 down R (Table 1) were used to construct that of ompK36.

NTUH-K2044 was cultured to logarithmic growth phase in Luria-Bertani (LB) broth under 37°C and aerobic condition. The suspensions were then centrifuged at 4°C and 14000 round per minute for 10 minutes. The pallets were washed with 10% glycerol (Sigma, St. Louis, MO, USA) and re-dispersed gently at 4°C. After such triplicate washing, the 100 μl of re-dispersed NTUH-K2044 was electrotransformed with 5.0 μl of pCAS plasmid. The transformant was screened on LB agar plates with 50 μg/ml apramycin at 30°C, followed by regular PCR and electrophoresis.

Subsequently, competent cells with the pCAS plasmid were prepared, and electrotransformation of the constructed pSGKP plasmid (Primers: ompK35-N20-g F, ompK36-N20-g F, and gRNA R; Table 1) and clone verification were conducted again. Finally, the pCAS and pSGKP plasmids were eliminated using LB agar plates with 50% sucrose at 37°C, and verification was performed once more. The successful knockouts were confirmed through regular PCR, electrophoresis, and sequencing.

Complementation of ompK35/36

2.4

Fragments of ompK35, ompK36, ompK35/36, and pBAD24 plasmid were amplified using high-fidelity enzyme (NEB, MA, USA) according to the manufacturer’s protocol. Construction of pBAD24+ompK35 (primers: pBAD24 F, pBAD24 R, c-ompK35 F, and c-ompK35 R), pBAD24+ompK36 (primers: pBAD24 F, pBAD24 R, c-ompK36 F, and c-ompK36 R), and pBAD24+ompK35/36 (primers: pBAD24 F, pBAD24 R, c-ompK35/36 F, and c-ompK35/36 R) were performed using NEBuilder (NEB, MA, USA) and electrotransformed into competent DH5α cells. The successful clones were screened using LB agar plates with 100 μg/ml rifampin at 37°C. The harvested pBAD24+ompK35, pBAD24+ompK36, and pBAD24+ompK35/36 were then electrotransformed in their corresponding mutants: ΔompK35, ΔompK36, and ΔompK35/36. The complementation was confirmed using regular PCR, electrophoresis, and sequencing (Supplementary Figure S1).

Expressions of ompK35, ompK36, ompK26, and ompK37

2.5

The tested strains were cultured to logarithmic growth phase in LB broth under 37°C and aerobic condition. Total RNAs of tested strains were extracted using test kit (MolPure® Bacterial RNA Kit) (Yisheng, Shanghai, China) and reversely transcribed into cDNA using test kit (Hifair® V one-step RT-gDNA digestion SuperMix for qPCR) (Yisheng, Shanghai, China). Real-time quantitative PCR was conducted on an Applied Biosystems 7500 system to evaluate the expressions of ompK35, ompK36, ompK26, and ompK37, with 16S rRNA being the reference gene (Supplementary Table S3-Supplementary Table S5) (Primers: ompK35-RT F, ompK35-RT R, ompK36-RT F, ompK36-RT R, ompK26-RT F, ompK26-RT R, ompK37-RT F, ompK37-RT R, 16S rRNA F, and 16S rRNA R) (Table 1). The analysis was performed in line with the manufacturer’s protocol of the SYBR Green qPCR Mix (catalogue number: FS-Q1002; FOREVER STAR, Beijing, China).

Conjugation assay

2.6

NTUH-K2044+pCAS and HS11286 were chosen as the recipients and donors respectively. Both donors and recipients were cultured to logarithmic phase at 30°C. Further, 200 μl of donor cells and 800 μl of recipient cells were mixed and inoculated on the LB agar plate at 30°C overnight. Next, the transconjugants were selected with the meropenem (4 μg/ml) and apramycin (100 μg/ml). The transconjugants was determined by PCR using blaKPC-2 and p-rmpA as marker genes [Primers: blaKPC-2 F(YZ), blaKPC-2 R(YZ), p-rmpA F(YZ), and p-rmpA R(YZ)] (Table 1). The yielded transconjugant was NTUH-K2044+pCAS +blaKPC-2. HS11286 also served the donor to yield ΔompK35+blaKPC-2, ΔompK36+blaKPC-2, and ΔompK35/36+blaKPC-2.

Antimicrobial susceptibility tests

2.7

The broth microdilution (Kangtai, Wenzhou, China) method was performed to determine the MICs of various antibiotics against knockout and complementation mutants of NTUH-K2044 (Supplementary Table S6), as shown in Tables 2, 3 (CZA). The experiments were conducted in accordance with the latest CLSI M100 (35^th^ edition). VITEK-2 compact (bioMérieux, Marcy l’-Étoile, France) and GN335 card (Supplementary Table S7) were used to determine the MICs of various antibiotics against the transconjugants, as shown in Table 3. Antimicrobial susceptibility tests were all performed in triplicate.

Statistical analysis

2.8

The data analysis was conducted using GraphPad Prism 10.0 between two or more groups. The difference was considered significant while p < 0.05. Chi square test, one-way ANOVA, and two-way ANOVA were employed in statistics.

Results

3

The genetic backgrounds of ompK35/36 in K. pneumoniae strains

3.1

Among the 1407 K*. pneumoniae* genomes from the GenBank database, the positive rates of OMP-related genes ompK35, ompK36, ompK26, ompK37, ompA, and ompR were 97.5%, 99.3%, 99.5%, 99.4%, 99.9%, and 100.0%, respectively (Figure 1A). In order to further determine the similarity of ompK35/36 sequences in 1407 K*. pneumoniae* strains, they were compared based on the ompK35/36 sequences of NTUH-K2044. As shown in Figure 1B, similarity percentage of ompK35 was mainly distributed at 99%, while those of ompK36 were majorly at 95% and 92%. Among all the 1407 K. pneumoniae strains, 61 strains were found with abnormal ompK35/36 sequences, including insertions, truncations, deletions and so on, as shown in Figure 1B (identity < 80%). The rates of carbapenemase genes blaKPC, blaVIM, blaIMP, blaNDM, and blaOXA-48 in K. pneumoniae strains were 28.7%, 1.3%, 1.1%, 12.7%, and 14.7% respectively (Figure 1C). As shown in Figures 1D, K. pneumoniae strains with abnormal ompK35/36 sequences were found to present a significantly higher rate of the aforementioned carbapenemase genes.

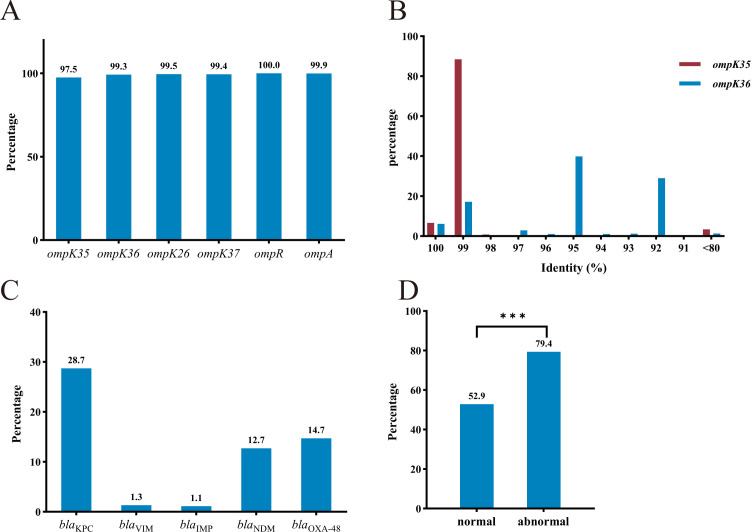

*Genetic backgrounds of ompK35/36 in K. pneumoniae strains. (A) Distribution of OMP-related genes; (B) Distribution of similarity percentages of ompK35/36; (C) Distribution of carbapenemase genes; (D) Percentages of carbapenemase genes in K. pneumoniae strains harboring normal and abnormal ompK35/36 In (D), normal group included 1346 strains while abnormal group included 61 strains; Chi square test was used. **p < 0.001.

Homologies of ompK35/36 and OmpK35/36 in K1/2 K. pneumoniae strains

3.2

Among the 1407 K*. pneumoniae* strains, 65 K1 and 80 K2 strains were identified. To further analyze the similarity of OmpK35/36 between K1/2 strains, comparison of ompK35/36 and OmpK35/36 were both conducted. As Figure 2 shows, both ompK35/36 and OmpK35/36 presented a high degree of consistency between K1/2 strains, especially OmpK35.

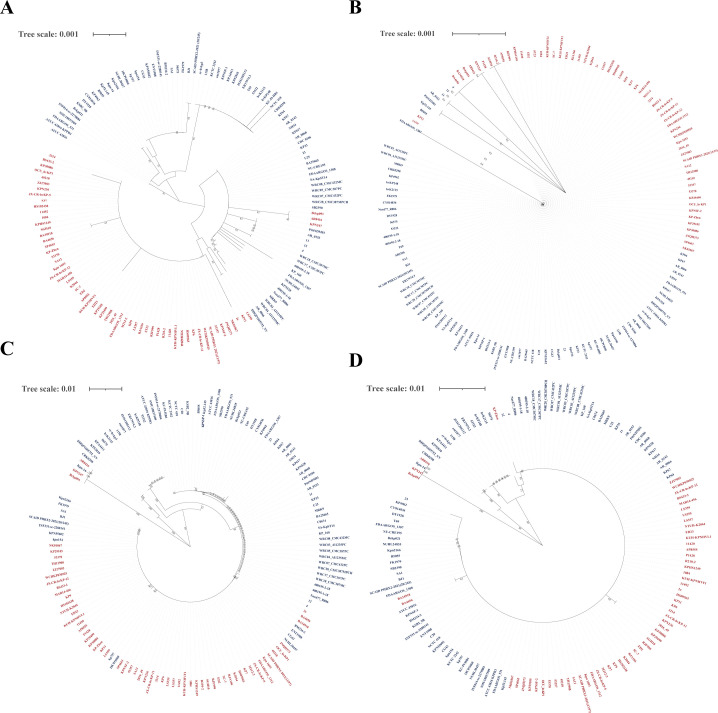

Homologies of ompK35/36 and OmpK35/36 in K1/2 K. pneumoniae strains. (A) The phylogenetic tree of ompK35 in K1/2 K. pneumoniae strains; (B) The phylogenetic tree of OmpK35 in K1/2 K. pneumoniae strains; (C) The phylogenetic tree of ompK36 in K1/2 K. pneumoniae strains; (D) The phylogenetic tree of OmpK36 in K1/2 K. pneumoniae strains; Each strain name is plotted and K1 strains are shown in red while K2 strains are in blue. The analysis software is MEGA 11.0.

OMP-related genes expressions in NTUH-K2044

3.3

The ‘basal’ expression levels of ompK35, ompK36, ompK26, and ompK37 in NTUH-K2044 were not consistent (Figure 3A) with each other: ompK36 expression was dominant and ompK35 expression was less than 1/50 of that of ompK36. The expression of ompK26 and ompK37 equaled only about 1/1000 and 1/10000 of that of ompK36, respectively.

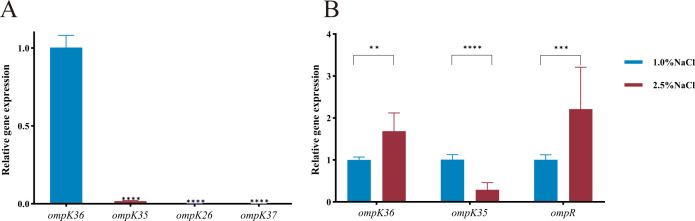

*OmpK-related genes expression in NTUH-K2044. (A) Expression of ompK36, ompK35, ompK26, and ompK37 in NTUH-K2044; (B) Expression of ompK36, ompK35, and ompR in NTUH-K2044 incubated with culture medium with 1.0% and 2.5% NaCl. The expression of ompK36 was used as control in (A) while those of ompK36, ompK35, and ompR under 1.0% NaCl were used as controls respectively in Figure 3B. One-way ANOVA was used in (A) while two-way ANOVA was used in (B). The error bars in figure are standard deviations. **p < 0.01. ***p < 0.001. ***p < 0.0001.

Compared with the isotonic environment (1.0% NaCl), the expressions of ompK35 and ompK36 were found to change in the hypertonic environment (2.5% NaCl). The expression of ompK35 significantly decreased while the expression of ompK36 increased (Figure 3B). The expression level of ompR also increased.

The impacts of OmpK35/36 on the drug-resistance of NTUH-K2044

3.4

As shown in Table 2, the change of MICs in OmpK36-absent strains were greater than those in OmpK35-absent strains. After the deletion of ompK36, the MICs of piperacillin, cefoxitin, cefazolin, cefuroxime, imipenem and meropenem increased to 4, 4, 4, 8, 4, and 2 times respectively, in comparison with those of the wild type NTUH-K2044; after the dual deletions of ompK35/36, the MICs of piperacillin, cefoxitin, cefazolin, cefuroxime, imipenem and meropenem reached to 8, 32, 32, 16, 8, and 8 times respectively. Changes were also found in MICs of cefotaxime and cefepime, and some complementated strains showed a recovery in susceptibilities to these antimicrobials. Moreover, OmpK35/36 were found to exert different effects on different β-lactams. Deletion of ompK36 conferred higher MICs of imipenem and meropenem than that of ompK35 but no carbapenem-resistance.

The impacts of OmpK35/36 on the drug-resistance of NTUH-K2044+blaKPC-2

3.5

As shown in Table 3, the MICs of ceftazidime, cefepime, and aztreonam against ΔompK35+blaKPC-2 reached to 4, 2, and 4 times respectively in comparison with those against NTUH-K2044+blaKPC-2. For ΔompK36+blaKPC-2, the MICs of ceftazidime, cefoperazone-sulbactam, cefepime and aztreonam achieved 4, ≥4, 4 and 8 times respectively. As to ΔompK35/36+blaKPC-2, the MICs were 4, ≥4, ≥64 and ≥32 times respectively. Moreover, it was also observed that the MICs of CZA increased to 2, 2, and 4 times in ΔompK35+blaKPC-2, ΔompK36+blaKPC-2, and ΔompK35/36+blaKPC-2, respectively but were all within susceptibility breakpoint.

Discussion

4

As confirmed in the study, OmpK35 and OmpK36 and their corresponding genes exhibited distinct characteristics in K. pneumoniae. OmpK35/36 loss is a contributor but not determinant in the formation of carbapenem-resistance without blaKPC-2, as well as in the formation of CZA-resistance with one blaKPC-2.

Gene ompK35/36 was widely present in K. pneumoniae strains (Figure 1A). Given the high sequence similarity of OmpK35 and OmpK36 (Figure 2) in K. pneumoniae strains, they may become potential targets for antibacterial drugs and vaccine development. A notable proportion of K. pneumoniae strains with defect in ompK35/36 were found to carry carbapenemase genes (Figure 1D). Since this analysis was conducted at the genomic level without assessing transcription or translation, the actual prevalence of such defects may be substantially underestimated. Previous studies have reported that CRKP frequently harbors point mutations, insertions, or truncations in ompK35/36, leading to reduced or absent porin expression, which in turn enhances resistance to β-lactam antibiotics (Bongiorno et al., 2023; Hamzaoui et al., 2018; Joshi et al., 2021; O'Neill et al., 2025). The deficiency of OmpK35/36 in K. pneumoniae, combined with the production of diverse β-lactamases (including carbapenemases), has posed a great challenge to the therapy based on carbapenems. Although the genomic data from GenBank may be influenced by regional research biases and may not fully reflect actual clinical distribution, a deep survey of ompK35/36 prevalence can provide a foundational understanding, which is essential for subsequent functional investigation. It is noted that antibiotics and phages drive region-specific diversity of OmpK36 in K. pneumoniae and such diversity confers some influence on drug-resistance of K.pneumoniae (Cai et al., 2018; Dunstan and Bamert, 2023; Royer et al., 2025a). However, structure variations of OmpK36 were not included in this study.

Functional studies were conducted using the reference strain NTUH-K2044 to elucidate the role of OmpK35/36 in antimicrobial resistance. In this strain, expression level of porin genes varied considerably: ompK36 was predominant, and ompK35 was moderately expressed, while ompK26 and ompK37 remained largely silent. Under hyperosmotic stress (2.5% NaCl), the expression balance of ompK35/36 in K. pneumoniae shifted, indicating that the expression of porins was regulated by osmotic pressure. It was consistent with the research results of porins in Escherichia coli: the two-component system of EnvZ/OmpR could participate in the regulation of bacterial response to external osmotic pressure stimuli, by regulating the expression of OmpF and OmpC (Kenney and Anand, 2020). In the high-osmolarity intestinal environment, ompK36 expression was favored. Since OmpK35 formed a larger pore than OmpK36 (Sugawara et al., 2016), its downregulation would help bacteria maintain osmotic homeostasis. Clinically, many isolates exhibited a shift from OmpK35 to the smaller-pored OmpK36, reducing antibiotic uptake and enhancing bacterial survival (Bongiorno et al., 2023; Rocker et al., 2020).

Antibiotic susceptibility tests revealed that OmpK35/36 loss primarily affected resistance to β-lactams (Table 2). Deficiency in one or both porins increased MICs of various β-lactams (Srinivasan et al., 2012; Asare Yeboah et al., 2025; Birgani et al., 2025). The impact was found more in ΔompK36 than in ΔompK35, which was consistent with the dominant expression of OmpK36 (Yasmin et al., 2024) in NTUH-K2044. But if ompK35 was further deleted, it would result in even higher drug-resistance compared to single mutants, meaning that ΔompK35/36 exhibited higher antibiotic resistance than ΔompK35 or ΔompK36. For ΔompK35/36, the MICs of cefoxitin, cefazolin, and meropenem reached 8, 8, and 4 times compared to those of ΔompK36 respectively. Complementation only partially restored susceptibility, which was likely due to limited OmpK36 re-expression (20 ~ 30% of wild-type levels, see Supplementary). The different effect of OmpK35/36 on various β-lactams may stem from difference in antibiotic size, structure and charged properties, which would influence passage through the porin channels (Matovina et al., 2021; Acharya et al., 2024; Royer et al., 2025b). Therefore, significant difference in molecular weights, three-dimensional structures and charged properties among various β-lactams may be the core reasons for the varying degrees of impacts of OmpK35/36 deficiencies on drug-resistance.

Moreover, the loss of OmpK35/36 had a very limited impact on resistance to carbapenems and did not result in the formation of CRKP (Table 2). The antimicrobial susceptibility tests of conjugants are shown in Table 3. Firstly, it should be emphasized that the interaction between HvKP and drug-resistance plasmids after conjugation is not discussed here. Some literature suggests that HvKP strains carrying blaKPC-positive plasmids (K1/K2 HvKP strains acquire carbapenem-resistance plasmids) were difficult to simultaneously possess hypervirulence and carbapenem-resistance, and both may decrease when the two were combined (Tian et al., 2022). In this paper, the restoring sensitivity of conjugant NTUH-K2044+blaKPC-2 to aztreonam, cefepime, and so on, seemed to verify this. However, this study was conducted under the same basic conditions for antimicrobial susceptibility tests of the conjugants, with the only difference being whether OmpK35/36 exists. Then, it can be concluded from Table 3 that the deletion of OmpK35/36, particularly the double deletion, greatly helped NTUH-K2044+blaKPC-2 induce resistance to β-lactams. It can be also observed that the absence of OmpK35/36 can increase the MIC of CZA against NTUH-K2044+blaKPC-2; single OmpK35/36 loss doubled the MIC and double loss quadrupled the MIC, which is different from another study (Nelson et al., 2017). Nevertheless, the MIC of CZA against ΔompK35/36+blaKPC-2 (1/4 mg/L) was far away from resistance breakpoint (16/4 mg/L). Recent study (Uehara et al., 2025a) investigated the impact of porin deletions on cefepime-taniborbactam activity against K. pneumoniae and found taniborbactam didn’t have a strong dependence on OmpK35 or OmpK36 for periplasmic accumulation. In all, the deficiency of porin proteins has a promoting effect on other resistance mechanisms of K. pneumoniae but it is not a determinant of carbapenem or CZA resistance.

In summary, the conservation of the ompK35/36 and OmpK35/36 provided a possible molecular basis for the development of new targeted antibacterial drugs and vaccines, which was beneficial for better prevention and treatment of K. pneumoniae infections. The absence of OmpK35/36 could lead to increased resistance of strains to certain β-lactams. Although OmpK36 was the dominant porin, OmpK35 could play a synergistic role in the drug-resistance of K. pneumoniae while they were both absent. The absence of OmpK35/36 alone or both cannot determine the formation of carbapenem or CZA resistance, which only plays an auxiliary role in such formation.
