The telovelar approach reshaped: a new perspective from inside the fourth ventricle
Pierluigi Longatti, Alessandro Fiorindi, Francesca Siddi, Alessandro Boaro, Giuseppe Canova, Alberto Feletti
TL;DR
This paper presents a new anatomical model for the telovelar surgical approach based on endoscopic views of dilated fourth ventricles, improving clinical realism.
Contribution
The study provides a revised anatomical model of the telovelar approach using in vivo endoscopic data from dilated fourth ventricles.
Findings
Endoscopic views revealed anatomical landmarks on the roof of dilated fourth ventricles.
Redesigned cutlines for telovelar procedures align better with clinical realities.
The new model identifies safer surgical tracks for the telovelar approach.
Abstract
In recent decades, trans-cerebellomedullary fissure (trans-CMF) approaches have gained prominence in fourth ventricle surgery and are largely based on cadaveric anatomical studies of normally sized ventricles. In clinical practice, however, the fourth ventricle is often dilated and distorted by tumor growth. Recent endoscopic in vivo anatomical studies depicting the internal surfaces of both normal and enlarged fourth ventricles have prompted a reassessment of traditional schematic representations of trans-CMF approaches. This refinement does not introduce new surgical strategies but aims to provide neurosurgeons with a realistic in vivo perspective of the ventricular roof prior to its incision across different ventricular sizes. Very selected panoramic endoscopic views of the inner roof of twelve cases of both hydrocephalic dilated and normal fourth ventricles were reviewed and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

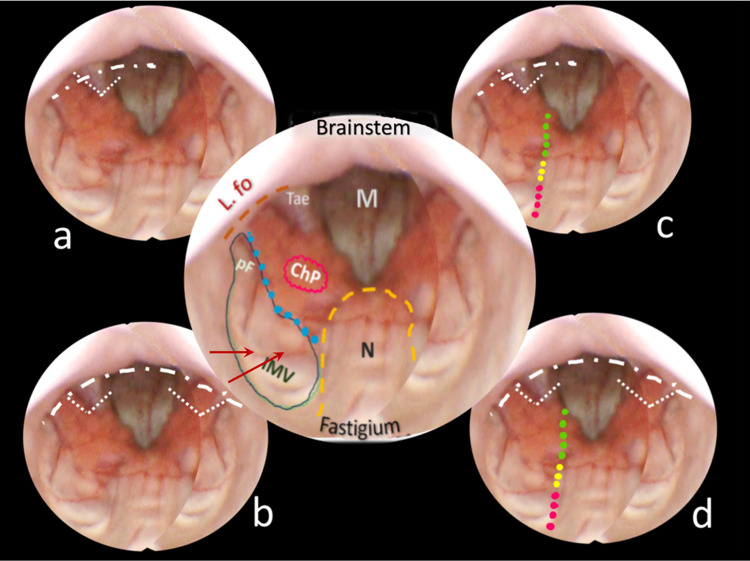

Figure 1

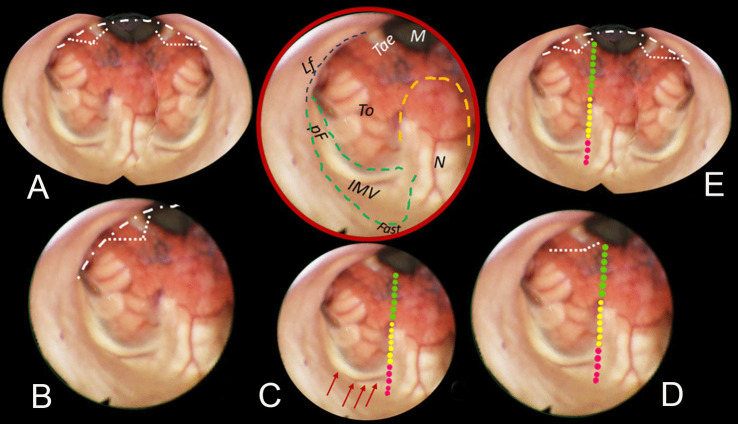

Figure 2

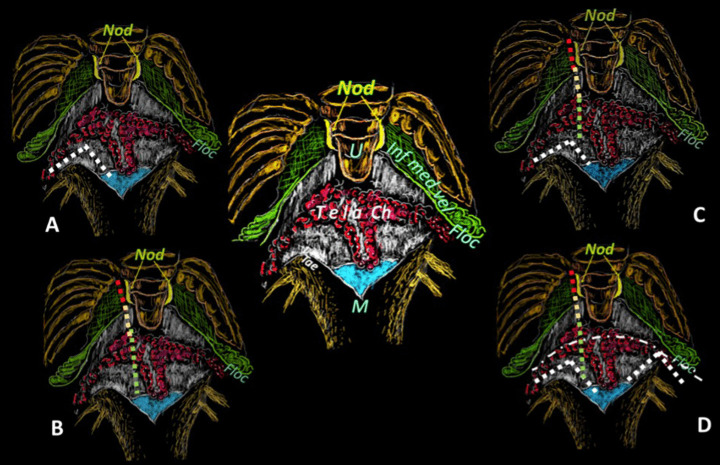

Figure 3

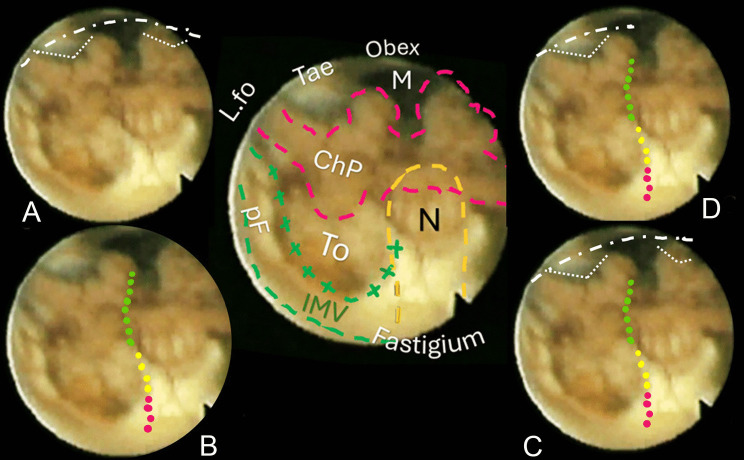

Figure 4

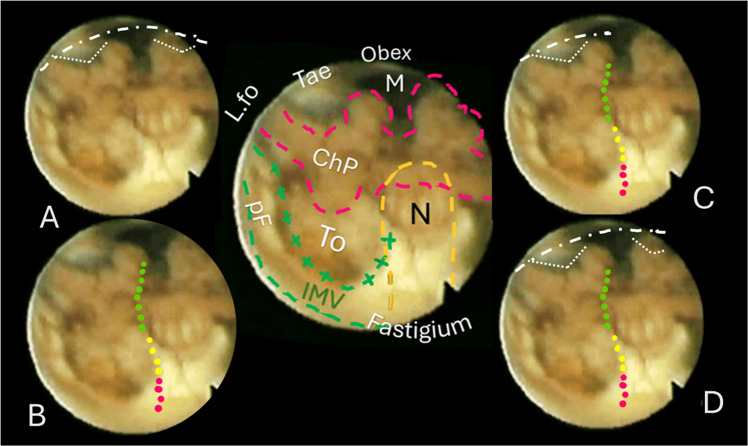

Figure 5

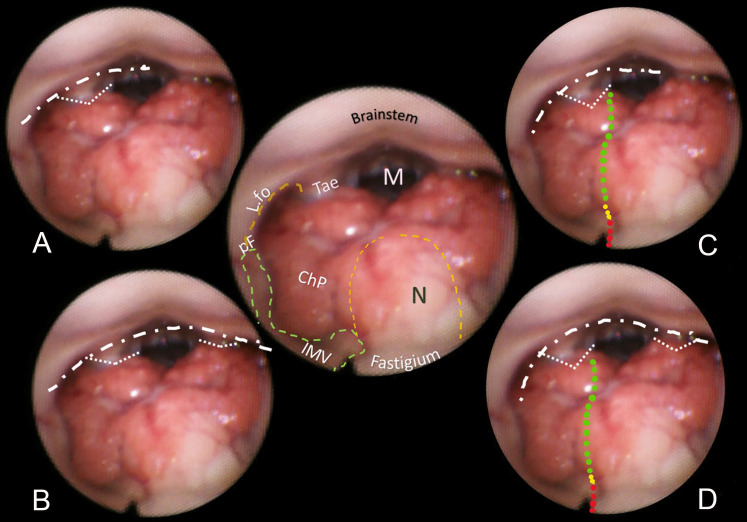

Figure 6

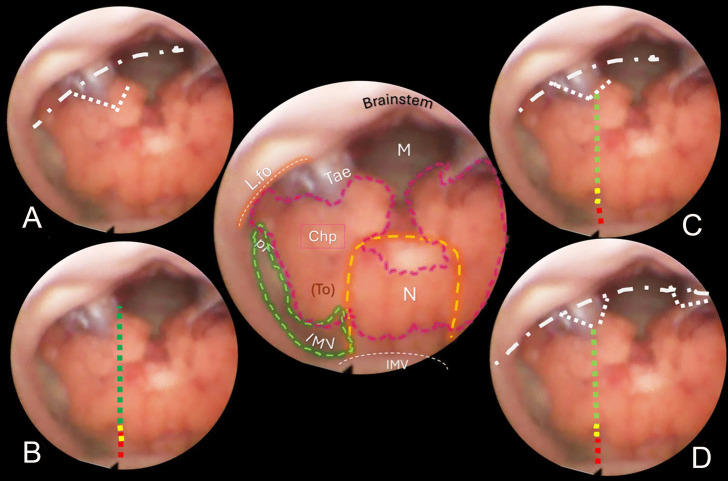

Figure 7- —Università degli Studi di Verona
