Multi-scale triglyceride crystal network analysis using a benchtop ultra-small-angle X-ray scattering instrument
Kenneth Q. K. Truong, Alejandro G. Marangoni
TL;DR
This paper shows how a benchtop X-ray instrument can reliably study fat crystal structures by defining clear measurement limits and handling technical challenges.
Contribution
The study establishes a reliable analysis window and best practices for benchtop USAXS in hierarchical fat crystal research.
Findings
A valid q-range (qmin ≈ 3.4 × 10−4 Å−1 to qmax ≈ 1.4 × 10−2 Å−1) was defined for reliable benchtop USAXS analysis.

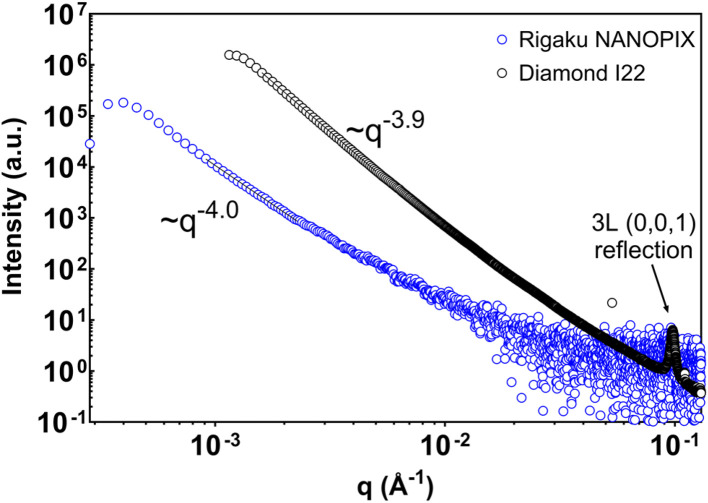

Benchtop USAXS captures consistent scattering trends comparable to synchrotron SAXS within the defined q-range.
Slit-smearing effects were addressed using structural model smearing in SASView software.
Abstract

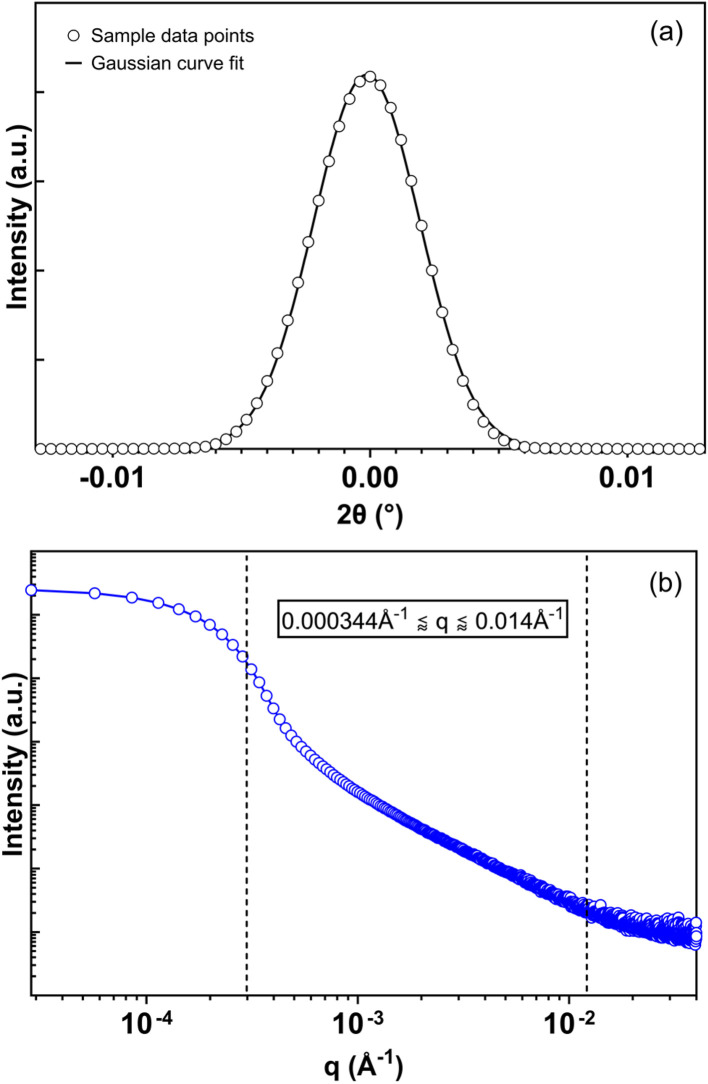

Benchtop ultra-small-angle X-ray scattering (USAXS) offers a practical route to probing micron-scale structural features in soft-matter systems, provided that instrumental limitations are explicitly defined and respected. In this work, a Rigaku NANOPIX mini USAXS instrument is used to characterize hierarchical fat crystal networks, with emphasis on establishing a reliable analysis window and appropriate treatment of slit-geometry effects. Analyzer crystal rocking curves are employed to define a lower bound for quantitative analysis (qmin ≈ 3.4 × 10−4 Å−1), while counting-statistics considerations define an upper bound (qmax ≈ 1.4 × 10−2 Å−1). Data outside this window are shown to be strongly influenced by direct-beam and noise artifacts and are therefore excluded from interpretation. Within the valid q-range, slit-smearing effects inherent to Bonse–Hart geometries are addressed by…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4

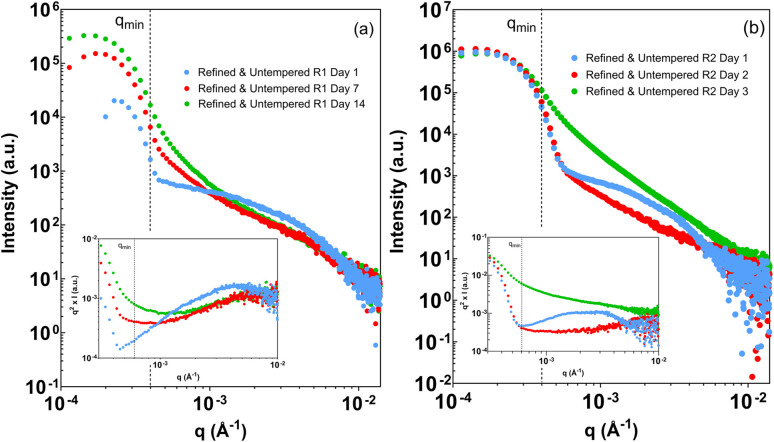

Figure 5
