Femoral Component Position Can Affect Patellar Congruency After Medial Unicompartmental Knee Arthroplasty
Koichi Nakagawa, Kotaro Yamagishi, Akihiro Moritake, Teruaki Hashimoto, Koji Goto
TL;DR
This study shows that the placement of a femoral implant in knee surgery can affect how well the kneecap aligns afterward.
Contribution
The study demonstrates a correlation between femoral component positioning and patellar congruency changes after unicompartmental knee arthroplasty.
Findings
Lateral and distal femoral component placement worsens patellar congruency.
Changes in femoral component position correlate with changes in patellar alignment parameters.
Anatomical reconstruction of the femoral condyle is needed to prevent patellar misalignment.
Abstract
Purpose The aim of this study was to clarify whether femoral component positions can affect the postoperative patellar congruency. Methods The preoperative and postoperative radiographic data at 1, 3, 6, and 12 months for all medial unicompartmental knee arthroplasties (41 knees in 35 patients) performed from November 2013 to December 2016 were analyzed. Standardized knee radiographs included standing anteroposterior and Merchant’s views. Component positions were evaluated according to the lateral shift of the medial condyle (LSMC) and femoral valgus angle (FVA). Congruency was evaluated according to the patellar congruence angle (PCA), lateral patellar displacement (LPD), and lateral patellar tilting angle (LPTA). Changes in congruence after the operation and correlations between the component positions and congruence were assessed. Results PCAs in 22 knees, LPD in 27, and the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4| Category | Parameter | Preoperative | Postoperative (one year) | p-value |
| Knee alignment | FTA (°) | 181.2 ± 3.2 | 176.6 ± 3.3 | <0.0001 |
| Component position | LSMC (mm) | 25.6 ± 3.2 | 23.3 ± 3.7 | <0.0001 |
| FVA (°) | 8.6 ± 1.7 | 8.8 ± 2.1 | >0.05 | |
| Patellar congruency | PCA (°) | -0.39 ± 9.6 | 3.3 ± 11.4 | <0.05 |
| LPD (mm) | 0.3 ± 2.5 | 1.9 ± 3.9 | <0.001 | |
| LPTA (°) | 9.7 ± 5.2 | 10.5 ± 5.3 | >0.05 |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTotal Knee Arthroplasty Outcomes · Osteoarthritis Treatment and Mechanisms · Lower Extremity Biomechanics and Pathologies
Introduction
Unicompartmental knee arthroplasty (UKA) is becoming an increasingly used alternative to total knee arthroplasty (TKA) [1]. Potential advantages of UKA over TKA include faster recovery time, lower cost, lower rate of serious complications, more favorable functional outcomes, with better range of motion, more normal kinematics, and greater patient satisfaction [2-7].
Despite the potential benefits of UKA, some researchers have expressed concerns about the postoperative progression of osteoarthritis (OA) in the patellofemoral (PF) joint, which causes the need for revision surgery and may substantially limit the effectiveness of the long-term results of UKA [8-10]. The rates of PF OA progression in reported series of the fixed-bearing medial UKA range from 17% to 60% [8,11-14]. Progression has been attributed to the ongoing disease process in the lateral facet of the patella and postoperative impingement of the femoral component against the unresurfaced medial facet. Hernigou et al. reported that the OA in the PF and medial PF impingement were observed in 24% and 35% of knees with UKA, respectively, after >10 years of follow-up. These authors stated that OA in the PF joint after medial UKA caused poorer functional outcomes of the procedure and revision surgery, and that medial impingement, which is noted as a notch of subchondral bony erosion in the axial radiographic view of the patella, could be attributable to anterior placement of the femoral component beyond the transitional zones between the trochlea and the condyles [9]. Berger et al. investigated the frequency of PF complications after medial UKA at 11- to 15-year follow-up and reported that the frequency of PF symptoms increased markedly, affecting 10% of patients after >10 years [8]. They concluded that progressive OA of the PF joint is the primary mode of failure of UKA.
Despite its long history and the renewed acceptance of UKA, uncertainty and concerns about the progression of OA in the PF joint after UKA have continued [15,16]. A recent two-year follow-up study reported that the mean patellar congruency angle (PCA) was significantly larger after medial UKA compared with the preoperative mean PCA [17]. Similarly, other authors have reported that the patellar alignment can worsen after medial UKA [18,19]. However, there are few reports of the factors that can affect patellar alignment after medial UKA, and whether there is an association between the femoral component position and patellar alignment after medial UKA remains unclear.
The purpose of this retrospective observational study was to evaluate how femoral component positioning during medial UKA affects postoperative patellar congruency and PF alignment.
Materials and methods
This study protocol was fully reviewed and approved by our institutional review board (protocol identification number: 23-087). In this study, the radiographic data of all UKAs performed for cases of medial compartment OA between November 2013 and December 2016 were analyzed. Surgical indications for medial UKA included medial compartment OA of the knee, no significant joint space narrowing in the lateral compartment, an intact anterior cruciate ligament (ACL), correctable varus deformity, and fixed-flexion deformity of <10°. Contraindications included the presence of Kellgren-Lawrence (K-L) [20] grade IV or greater, OA of the lateral compartment, PF joint-related pain symptoms, or inflammatory arthritis. One case of UKA with incomplete radiographic records was excluded due to incomplete radiographic records. Based on these inclusion and exclusion criteria, 41 medial UKAs in 35 patients were enrolled in this study.
The mean age of the patients was 71 years (range: 50-91 years), and 13 knees were in men and 28 knees were in women. Thirty-six knees were diagnosed with primary medial OA and five knees with spontaneous osteonecrosis of the medial femoral condyle. The mean follow-up of the patients was 2.3 years (minimum 1.0 year).
In all procedures, a fixed-bearing UKA (TRIBRID Unicompartmental Knee System, Kyocera Corp, Osaka, Japan) was implanted through a medial mini-skin incision. The operation was performed using the so-called “tibia-cut first and spacer-block technique.” The ACL status was checked to ensure that it was functioning well in each knee. The medial collateral ligament was carefully protected throughout the procedure, and no soft-tissue release was performed along the medial side. Anterior placement of the femoral component beyond the transitional zones between the trochlea and the condyles was carefully avoided [9].
All patients were followed up at postoperative intervals at 1, 3, 6, and 12 months. Radiographic evaluations that included standing AP radiography and standing Merchant’s view radiography were performed preoperatively and postoperatively using standardized knee radiographs with a measurement scale for distance [21]. The knee alignment in the frontal plane was evaluated by measuring the femorotibial angle (FTA), which is the lateral angle between the axis of the femoral shaft and that of the tibial shaft. The femoral component positions were evaluated using two parameters. The first was a lateral shift of the medial condyle (LSMC), which was defined as the distance between the apex of the medial femoral condyle and a line passing through the apex of the femoral intercondylar fossa and perpendicular to the joint line (Figure 1A)
The parameters to evaluate femoral component positionsThe radiographic images show two parameters to evaluate femoral component positions. The apex of the medial femoral condyle was defined as the lowest point of a circle fitted to the condyle (▼). (A) Lateral shift of the medial condyle is defined as the distance between the apex of the condyle and a line passing through the apex of the intercondylar fossa and perpendicular to the joint line. (B) Femoral valgus angle (FVA) is defined as the angle between the line connecting the medial and lateral femoral condylar apexes and the femoral shaft axis. FVA1 and L1 represent preoperative values, and FVA2 and L2 represent postoperative values.
The second was the femoral valgus angle (FVA), which was defined as the angle between the line connecting the medial and lateral femoral condylar apexes and the femoral shaft axis (Figure 1B).
To determine the position of the apex of the medial condyle on the preoperative and postoperative AP radiographs of the knee, a circle was fit to the preoperative medial femoral condyle on the fully magnified X-ray image and a circle with the same radius was fit to the postoperative medial condyle. The lowest point of the circle was defined as the apex of the condyle.
Patellar congruency was evaluated using three parameters. The first was the PCA, which was defined as the angle between the line from the apex of the trochlear groove bisecting the sulcus angle and the line from the apex of the trochlear groove to the apex of the patella. The second was the lateral patellar displacement (LPD), which was defined as the distance from the medial edge of the patella to a line drawn perpendicular to the anterior condylar line and passing through the anterior-most point on the medial femoral condyle. The third was the lateral patellar tilting angle (LPTA), which was defined as the angle between the line intersecting the widest part of the bony patella and the line passing the anterior surfaces of the femoral condyles tangentially [21-25].
Changes in the three measures of patellar congruency during the postoperative follow-up (1, 3, 6, and 12 months after surgery) were assessed. Pearson’s correlational analyses were performed to examine the relationships between changes (differences from before to 12 months after surgery) in the two measures of femoral condylar shapes and changes (differences from before to 12 months after surgery) in the three measures of patellar congruency.
Results
The mean preoperative FTA was 181.2° ± 3.2°, and this angle decreased to a mean of 176.6° ± 3.3° after medial UKA (p < 0.0001). The mean preoperative LSMC was 25.6 mm ± 3.2 mm, and this decreased significantly to a mean of 23.3 mm ± 3.7 mm after UKA (p < 0.0001). The mean preoperative and postoperative FVA did not differ significantly (8.6° ± 1.7° and 8.8° ± 2.1°, respectively; p > 0.05) (Table 1).
The mean preoperative PCA was -0.39° ± 9.6°, and the mean PCAs at 1, 3, 6, and 12 months after UKA were 2.6° ± 11.3°, 3.3° ± 11.3°, 3.3° ± 11.7°, and 3.3° ± 11.4°, respectively (Table 1 and Figure 2A).

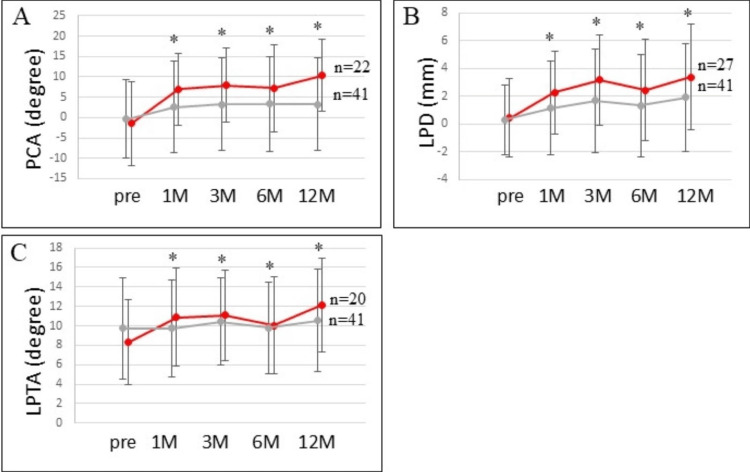

The changes in the three measures of patellar congruency(A) PCA, (B) LPD, and (C) LPTA. The mean PCA in the 22 knees, the mean LPD in the 27 knees, and the mean LPTA in the 20 knees among the total of 41 knees increased significantly at the early postoperative period (red lines and dots). Gray lines and dots indicate the mean values of PCA, LPD, and LPTA among the total of 41 knees. Asterisks indicate statistical significance as compared to the preoperative values (p < 0.05).LPD, lateral patellar displacement; LPTA, lateral patellar tilting angle; PCA, patellar congruence angle.
The mean preoperative LPD was 0.3 mm ± 2.5 mm, and the mean LPD values at 1, 3, 6, and 12 months after UKA were 1.2 mm ± 3.4 mm, 1.7 mm ± 3.7 mm, 1.3 mm ± 3.7 mm, and 1.9 ± 3.9 mm, respectively (Table 1 and Figure 2B). The mean preoperative LPTA was 9.7° ± 5.2°, and the mean LPTAs at 1, 3, 6, and 12 months after UKA were 9.8° ± 5.0°, 10.4° ± 4.5°, 9.8° ± 4.7°, and 10.5° ± 5.3°, respectively (Table 1 and Figure 2C).
The PCA in 22 knees, LPD in 27 knees, and LPTA in 20 knees among the total of 41 knees were worse at the one-year follow-up compared to the respective preoperative alignment. The mean preoperative PCA in these 22 knees was -1.4° ± 10.2°, and the mean PCAs at 1, 3, 6, and 12 months after UKA were 7.0° ± 8.8°, 7.9° ± 9.1°, 7.3° ± 10.7°, and 10.4° ± 8.9°, respectively. The mean PCAs in these knees were significantly larger at 1 and >3 months after surgery compared with before the operation (p < 0.01, Figure 2A). The mean preoperative LPD in these 27 knees was 0.4 mm ± 2.8 mm, and the mean LPD values at 1, 3, 6, and 12 months after UKA were 2.3 mm ± 3.0 mm, 3.2 mm ± 3.2 mm, 2.4 mm ± 3.6 mm, and 3.4 mm ± 3.8 mm, respectively. The mean LPDs in these knees were significantly larger at 1 and >3 months after surgery compared with before the operation (p < 0.01, Figure 2B). The mean preoperative LPTA in these 20 knees was 8.3° ± 4.4°, and the mean LPTAs at 1, 3, 6, and 12 months after UKA were 10.9° ± 5.0°, 11.1° ± 4.6°, 10.1° ± 5.0°, and 12.2° ± 4.8°, respectively. The mean LPTAs in these knees were significantly larger at 1 and >3 months after surgery compared with before the operation (p < 0.01, Figure 2C).
Pearson’s correlational analyses were performed to identify associations between changes (differences from before to 12 months after surgery) in the two measures of femoral condylar shapes and changes (differences from before to 12 months after surgery) in the three measures of patellar congruency. The following were significant positive correlations: (a) between changes in LSMC and changes in PCA (r = 0.58, p < 0.0001, Figure 3A), (b) between changes in LSMC and changes in LPD (r = 0.40, p = 0.009, Figure 3B), and (c) between changes in LSMC and changes in LPTA (r = 0.49, p = 0.001, Figure 3C). Pearson’s correlational analysis also showed the following significant positive correlations: (a) between changes in FVA and changes in PCA (r = 0.32, p = 0.039, Figure 4A), (b) between changes in FVA and changes in LPD (r = 0.32, p = 0.041, Figure 4B), and (c) between changes in FVA and changes in LPTA (r = 0.32, p = 0.042, Figure 4C).

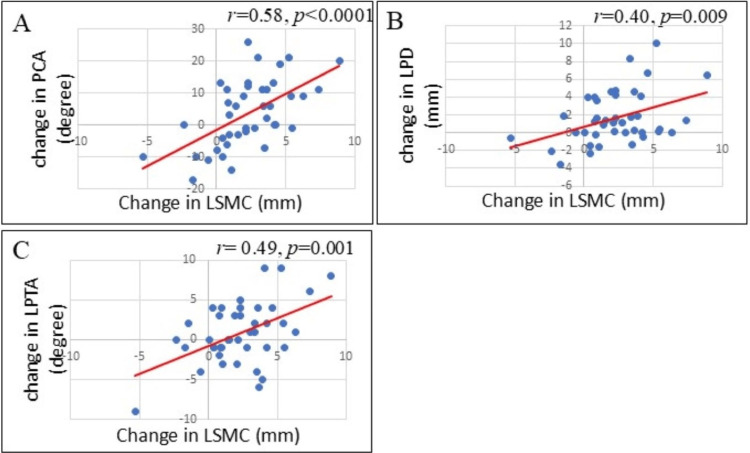

The relationships between the changes in the LSMC and the changes in the three measures of patellar congruency(A) Relationship between LSMC and PCA. (B) Relationship between LSMC and LPD. (C) Relationship between LSMC and LPTA. All three correlations were positive and significant.LPD, lateral patellar displacement; LPTA, lateral patellar tilting angle; LSMC, lateral shift of the medial condyle; PCA, patellar congruence angle.

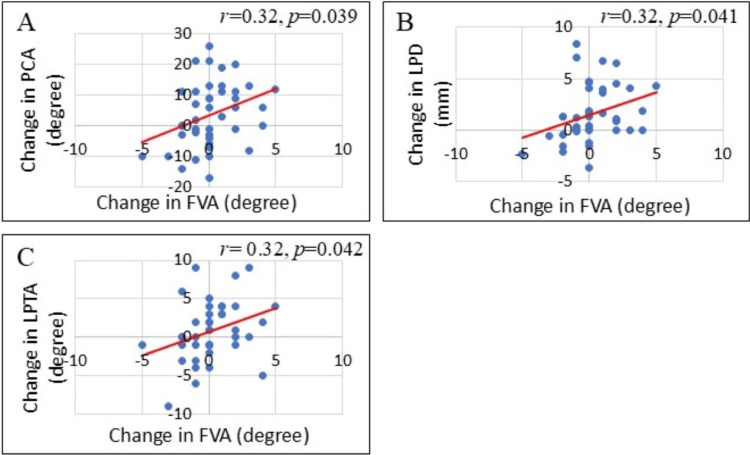

The relationships between changes in the FVA and changes in the three measures of patellar congruency(A) Relationship between FVA and PCA. (B) Relationship between FVA and LPD. (C) Relationship between FVA and LPTA. All three correlations were positive and significant.FVA, femoral valgus angle; LPD, lateral patellar displacement; LPTA, lateral patellar tilting angle; PCA, patellar congruence angle.
