Successful Management of Iatrogenic Aortocoronary Dissection Induced by a Guide Extension Catheter Using Intravascular Ultrasound Guidance
Yu Sugawara, Tamio Nakajima
TL;DR
A rare aortocoronary dissection caused by a guide extension catheter was successfully managed using intravascular ultrasound guidance.
Contribution
Demonstrates the effective use of IVUS in managing a rare complication caused by a guide extension catheter.
Findings
IVUS identified the dissection entry point and intramural hematoma, guiding stent placement.
Post-procedural imaging confirmed the dissection was sealed without propagation into the aorta.
The patient had uneventful recovery with complete healing observed at 10-month follow-up.
Abstract
Iatrogenic aortocoronary dissection is an uncommon but potentially life‑threatening complication of percutaneous coronary intervention. We describe a case caused by a guide extension catheter, in which intravascular ultrasound (IVUS) enabled precise assessment and successful percutaneous management. A 79-year-old female with exertional chest pain underwent percutaneous coronary intervention after persistent symptoms despite optimal medical therapy. Severe, heavily calcified stenosis in the distal right coronary artery required balloon dilatation with a guide extension catheter. Following dilatation, a National Heart, Lung, and Blood Institute (NHLBI) type F dissection with contrast staining in the sinus of Valsalva was detected. The patient remained hemodynamically stable, and the guidewire was in the true lumen. IVUS identified the dissection entry point and extensive intramural…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAortic Disease and Treatment Approaches · Coronary Interventions and Diagnostics · Aortic aneurysm repair treatments
Introduction
Aortocoronary dissection is a critical complication due to the restricted coronary flow, leading to cardiac ischemia. If the dissection spreads widely, it becomes fatal. It is mainly induced by the diagnostic catheter or guiding catheter tip [1]. When we perform percutaneous coronary intervention (PCI), we often use a guide extension catheter to enhance the backup support. Though a guide extension catheter is convenient, it occasionally injures the coronary artery intima [2], resulting in retrograde dissection [3]. Contrast injection after tip injury may worsen the situation [4] as local intimal injection increases intraluminal pressure. Intravascular ultrasound (IVUS) is a useful device for evaluating the injured coronary artery and detecting the dissection entry site [5]. Furthermore, it provides valuable information about the vessel diameter and extent of the hematoma. To address this critical complication, maintaining coronary flow before the occurrence of a circulatory collapse is essential [1]. In cases of iatrogenic coronary dissection, therapeutic decision‑making should be directed by the patient’s overall clinical status, including hemodynamic stability and the extent and severity of the dissection, as classified by the angiographic systems of the National Heart, Lung, and Blood Institute (NHLBI) and Dunning et al. [6,7]. The NHLBI system divides the dissection of the coronary artery into six types based on angiographic appearances of the intimal disruption and contrast clearance: type A dissection represents radiolucent areas within the coronary lumen during contrast injection, with minimal or no persistence of contrast; type B dissection represents parallel tracts or double lumen separated by radiolucent area during contrast injection, with minimal or no presence; type C dissection appears as contrast outside lumen with persistence of contrast in the area after clearance of contrast from the coronary lumen; type D dissection represents spiral luminal filling defects, frequently with extensive contrast staining of the vessel; type E dissection appear as new, persistent filling defects; and type F dissection represents those that lead to total occlusion of the coronary artery, without anterograde flow [6]. Dunning et al. proposed classifications based on the extent of the dissection. Class I is defined as focal dissection restricted to the coronary cusp, class II extends to the ascending aorta up to 40 mm, and class III extends to >40 mm from the ascending aorta [7]. Management options include conservative treatment, coronary stent placement, or aortic root repair, with or without coronary artery bypass surgery [8]; however, the best bail-out strategy is not fully understood. The incidence of iatrogenic aortocoronary dissection is in the range of 0.02-0.15% [8], with aortic involvement occurring in 0.021% of the cases [4]. Generally, this rare complication is caused primarily by diagnostic or guiding catheters. Moreover, when it occurs, there is usually insufficient time to assess the coronary artery with IVUS. In the present case, however, the aortocoronary dissection was induced by a guide extension catheter, and we were able to evaluate the injured artery using IVUS because the patient remained hemodynamically stable. The guide extension catheter-induced aortocoronary dissection was successfully treated with IVUS‑guided stent implantation; therefore, we report this case.
Case presentation
A 79-year-old female with hypertension, hypercholesterolemia, cerebrovascular disease, and atrial fibrillation presented with exertional chest pain. Electrocardiography revealed atrial fibrillation with ST-segment depression in the limb leads I, II, and aVL (Figure 1A), as well as in the precordial leads V3-V6 (Figure 1B).

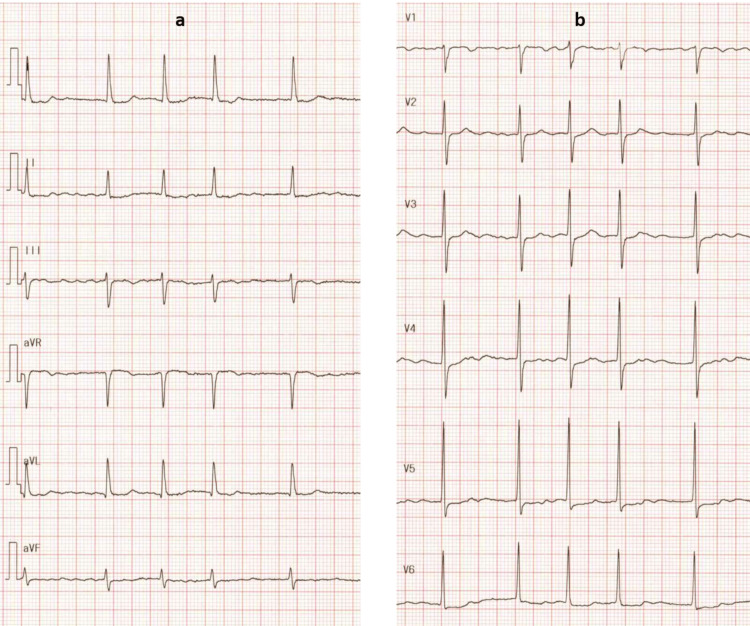

Electrocardiography showing atrial fibrillation.a: Limb leads demonstrating ST-segment depression in leads I, II, and aVL.b: Precordial leads demonstrating ST-segment depression in leads V3-V6.
Echocardiography showed an ejection fraction of 53%, and left atrium dilatation with basal inferior wall motion hypokinesis. The low-density lipoprotein cholesterol level was 104 mg/dL. The patient was treated with amlodipine (5 mg), valsartan (80 mg), hydrochlorothiazide (12.5 mg), rosuvastatin calcium (2.5 mg), clopidogrel sulfate (75 mg), and rivaroxaban (10 mg). Despite optimal medical therapy, her symptoms persisted, and she underwent coronary computed tomography (CT) angiography, which revealed severe calcification in both coronary arteries (Figure 2).

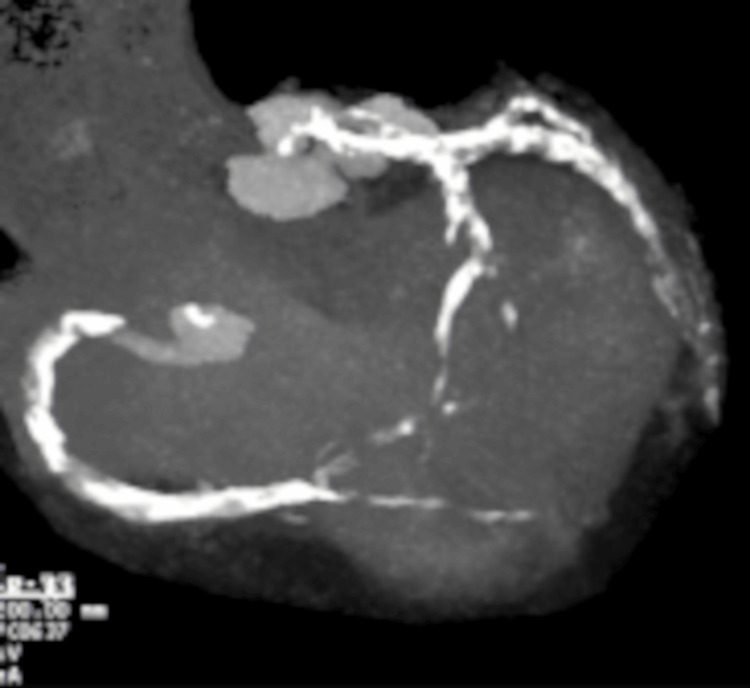

Coronary computed tomography angiography showing severe calcification in the right and left coronary arteries.
The stenosis could not be clearly evaluated; thus, coronary angiography (CAG) was performed. It showed stenosis in the distal part of the right coronary artery (Figure 3, white arrowheads); therefore, PCI was performed. At that time, the patient’s blood pressure was 136/94 mmHg, and the heart rate was 88 beats per minute. We used a 6 F Mac1 Amplatz Left 0.75 guiding catheter (Boston Scientific, Marlborough, MA) and crossed the lesion with a 0.014-inch Sion blue guidewire (Asahi Intecc, Aichi, Japan). The guiding catheter was not engaged coaxially, and poor support impeded the smooth performance of PCI. The balloon or stent cannot cross the lesion; thus, we used a guide extension catheter (Hikyaku, Kaneka Medix, Osaka, Japan; Figure 4, orange arrowhead). After introducing the guide extension catheter, we performed IVUS (OptiCross, Boston Scientific, Marlborough, MA). Based on the IVUS findings, we dilated the lesion with a 3.0 x 12 mm balloon (Hiryu Plus, Terumo, Tokyo, Japan; Figure 4, white arrowheads) using inflation twice, at 12 atm for 15 seconds each, while the arterial pressure was normal. After scoring balloon angioplasty, CAG revealed NHLBI type F aortocoronary dissection extending to the sinus of Valsalva (Figure 5, yellow line, and Video 1).

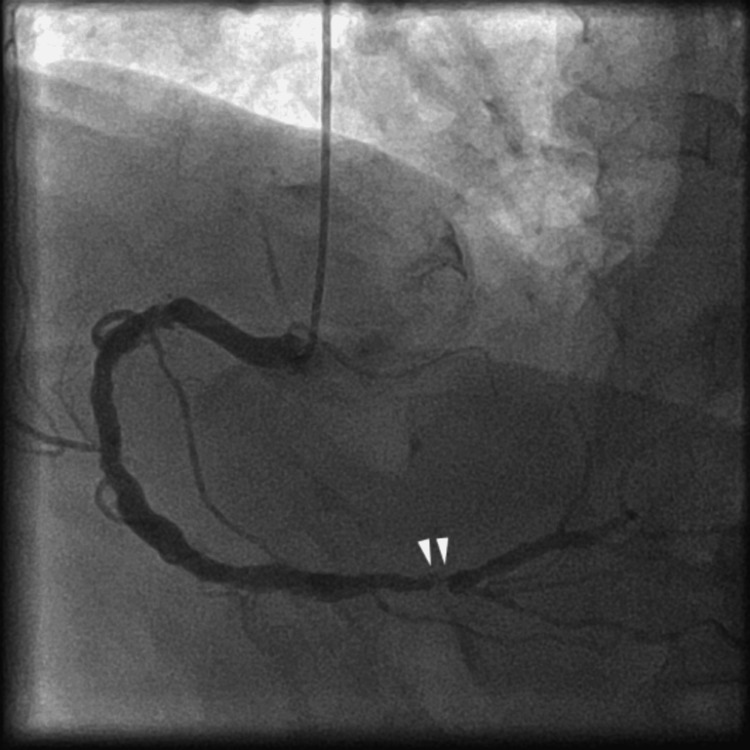

Right coronary angiography showing stenosis in the distal segment (white arrowheads).

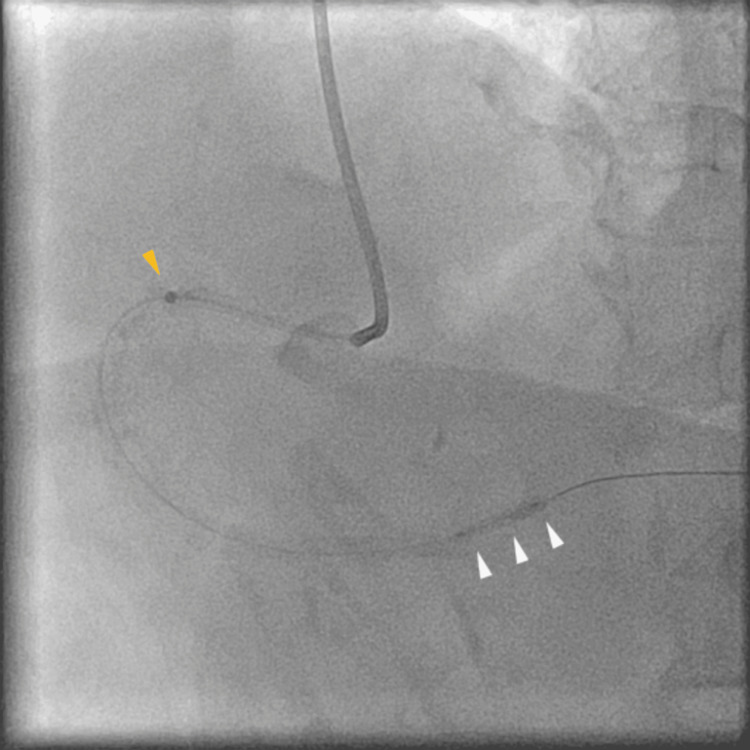

Balloon angioplasty with guide extension catheter support.For additional support, a guide extension catheter was advanced (orange arrowhead), and the lesion was subsequently dilated using a balloon (white arrowheads).
National Heart, Lung, and Blood Institute type F dissection, extending to the sinus of Valsalva.After plain old balloon angioplasty, a coronary angiography showed a National Heart, Lung, and Blood Institute type F dissection, extending to the sinus of Valsalva (yellow line).

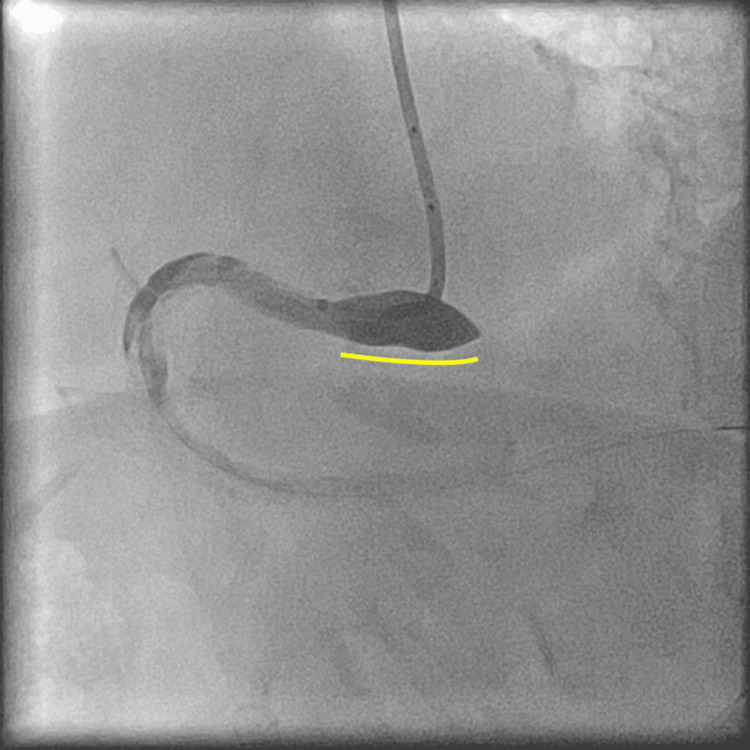

National Heart, Lung, and Blood Institute type F dissection, extending to the sinus of Valsalva.
At that time, a guidewire was placed in the distal true lumen, the patient’s blood pressure was 135/54 mmHg, and the heart rate was 105 beats per minute. IVUS was then advanced approximately 2 mm distally to identify the entry site of the coronary dissection. IVUS showed a pseudo-lumen with intimal dissection (Figure 6B and Video 2), located approximately 10 mm from the ostium, along with an entirely intramural hematoma with coronary ostium involvement; therefore, we deployed a Xience Skypoint 4.0 x 28 mm stent (Abbott Laboratories, Chicago, Illinois), with three inflations at 12 atm for 10 seconds each, to treat the dissection and seal the flap under IVUS guidance. Post-dilatation was not performed. Final CAG demonstrated complete resolution of the dissection with restoration of antegrade coronary flow (Video 3); however, residual contrast staining was still present in the sinus of Valsalva (Figure 7, yellow line), and the target lesion had been dilated (Figure 7, white arrowheads).

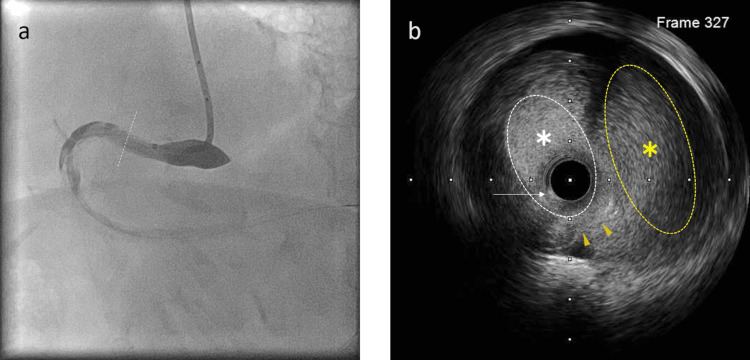

Right coronary angiography and cross-sectional intravascular ultrasound image.a: The white dotted line in the right coronary angiography indicates the location of the corresponding cross-sectional intravascular ultrasound image.b: Cross-sectional intravascular ultrasound image showing the true lumen (white asterisk) and pseudo-lumen (yellow asterisk). The guidewire is located in the true lumen (white arrow). Intimal dissection is also visible (orange arrowheads).
Intravascular ultrasound (IVUS) video demonstrating a National Heart, Lung, and Blood Institute type F coronary artery dissection.
Final coronary angiography.

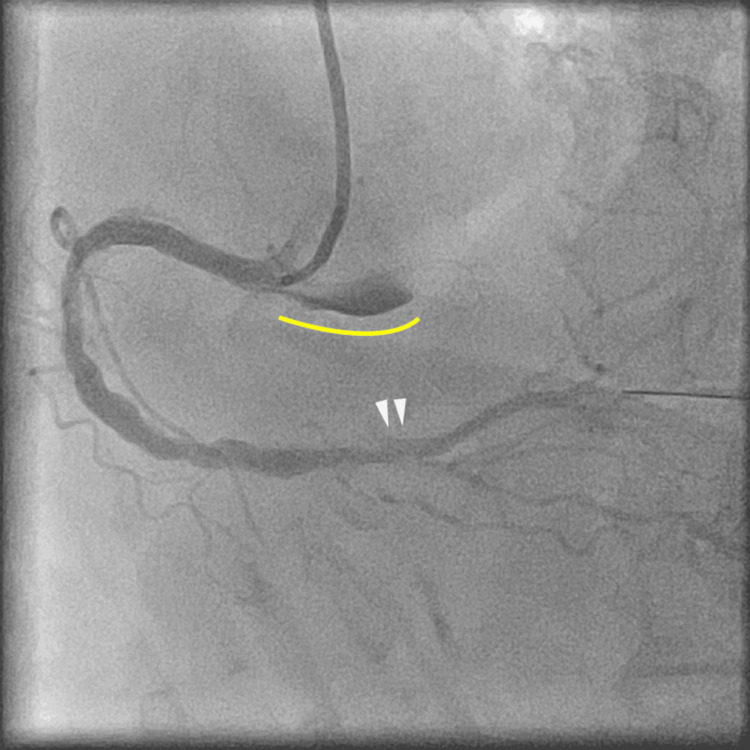

Final coronary angiography showing resolution of the dissection and recovery of antegrade coronary flow, although residual contrast staining remained in the sinus of Valsalva (yellow line). Dilation of the distal right coronary artery is noted (white arrowheads).
Final IVUS demonstrated that the minimal cross-sectional stent area was 8.36 cm^2^, with a maximum diameter of 3.66 mm and a minimum diameter of 2.91 mm. At the dissection site, the stent cross-sectional area was 12.06 cm^2^, with a maximum diameter of 4.20 mm and a minimum diameter of 3.81 mm, and the hematoma remained entirely around the stent (Figure 8B and Video 4).

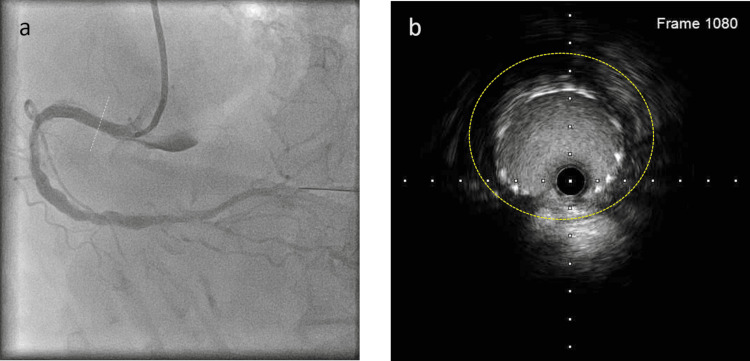

Final coronary angiography and cross-sectional intravascular ultrasound image.a: The white dotted line in the right coronary angiography indicates the location of the corresponding cross-sectional intravascular ultrasound image.b: Cross-sectional intravascular ultrasound image showing the stent was deployed roundly; however, a hematoma remained entirely around the stent (yellow dots).
Intravascular ultrasound after stent implantation.
The total contrast volume was 180 ml, the fluoroscopy time was 18.6 minutes, and the total fluoro exposure was 1,360 mGy. The total procedure time was 1 hour and 45 minutes.
We performed cardiac CT after PCI, which showed that the contrast remained in the sinus of Valsalva, but the dissection did not progress in the ascending aorta (Figure 9, yellow line and orange line).

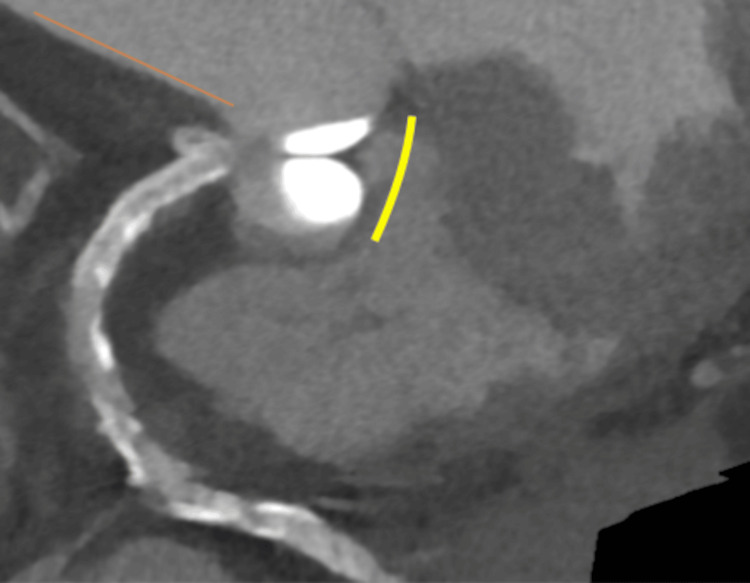

Postprocedural contrast-enhanced computed tomography.Axial contrast-enhanced CT imaging demonstrates retained contrast within the sinus of Valsalva (yellow line) without evidence of ascending aortic dissection (orange line).
After careful observation, the patient did not experience chest pain, and at that time, her blood pressure was 121/81 mmHg, and her heart rate was 100 beats per minute. ECG one day after PCI revealed atrial fibrillation with the limb leads demonstrating ST-segment depression in leads I, II, and aVF, and the precordial leads demonstrating ST-segment elevation in V1 and V2; ST-segment depression in V4-V6; and T-wave inversion in V1-V6 (Figure 10).

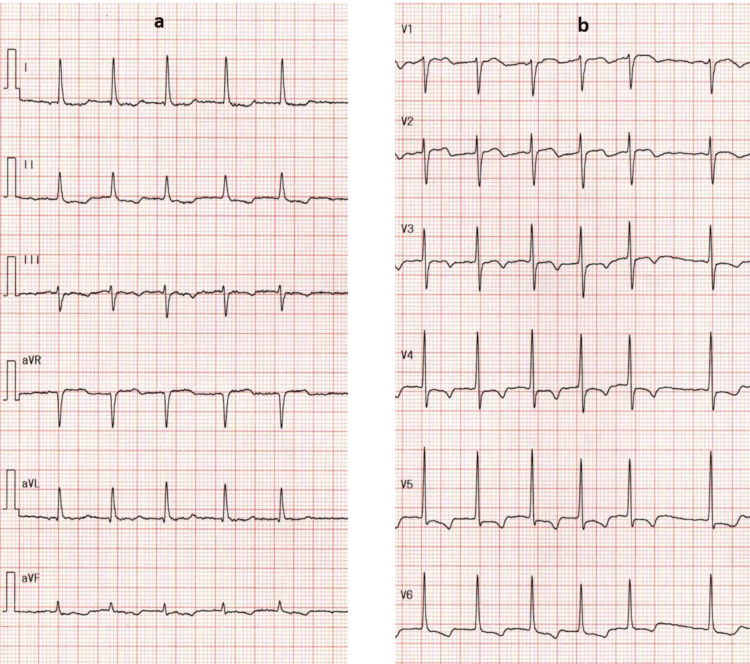

Electrocardiography one day after percutaneous coronary intervention.ECG showing atrial fibrillation.a: Limb leads demonstrating ST-segment depression in leads I, II, and aVF.b: Precordial leads demonstrating ST-segment elevation in V1 and V2, ST-segment depression in V4-V6, and T-wave inversion in V1-V6.
