Mechanisms underlying superior outcomes of transcatheter aortic valve implantation with the latest balloon expandable valve
Juri Iwata, Masanori Yamamoto, Ryo Arita, Tomonari Moriizumi, Toshinobu Ryuzaki, Hikaru Tsuruta, Shinichi Shirai, Yusuke Watanabe, Toru Naganuma, Futoshi Yamanaka, Masahiko Noguchi, Hiroshi Ueno, Yohei Ohno, Masaki Izumo, Hidetaka Nishina, Masahiko Asami, Gaku Nakazawa
TL;DR
A newer heart valve implant (S3UR) shows better outcomes than an older version (S3), especially in patients with smaller valves.
Contribution
Demonstrates superior clinical and hemodynamic outcomes of the SAPIEN 3 Ultra RESILIA valve over its predecessor in TAVI procedures.
Findings
S3UR showed lower mortality, stroke, and heart failure rehospitalization rates compared to S3 at 1 year.
S3UR had better hemodynamic performance, including lower pressure gradients and less leakage.
Benefits of S3UR were more pronounced in patients receiving smaller valves (20–23 mm).
Abstract
Transcatheter aortic valve implantation (TAVI) using SAPIEN 3 Ultra RESILIA (S3UR) offers improved hemodynamic performance than its former generation, SAPIEN 3 (S3). This study compared 1-year clinical outcomes after TAVI using S3UR and S3. Among 2,369 patients from the OCEAN-TAVI registry (UMIN000020423), a 1:1 propensity score-matched analysis identified 775 matched pairs. One-year post-TAVI, S3UR showed significantly lower all-cause mortality (10.3% vs. 13.4%, p = 0.026), stroke (0.9% vs. 3.4%, p = 0.001), and heart failure rehospitalization (1.4% vs. 2.7%, p < 0.001) than S3. These differences were pronounced in patients receiving smaller valves (20–23 mm). S3UR demonstrated a larger effective orifice area, lower mean pressure gradient, and lower incidence of paravalvular leakage than S3 at discharge. At 1 year, S3UR showed significantly reduced paravalvular leakage and lower…
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiac Valve Diseases and Treatments · Cardiovascular Function and Risk Factors · Aortic Disease and Treatment Approaches
Introduction
The excellent clinical outcomes of transcatheter aortic valve implantation (TAVI), especially with balloon-expandable (BE) transcatheter heart valves (THVs), are well established^1,2^. The SAPIEN 3 Ultra RESILIA (S3UR) is the fifth-generation valve in the SAPIEN series (Edwards Lifesciences, Irvine, CA, USA), the most commonly used BE-THV. Recent advancements in BE-THVs have led to significant clinical improvements, including reduced paravalvular leakage (PVL) and enhanced echocardiographic parameters of valve hemodynamics^3–5^. Additionally, surgical bioprosthetic valves incorporating RESILIA tissue have demonstrated similar favorable hemodynamic profiles on echocardiographic assessments^6^. S3UR, which exhibits more favorable post-procedural echocardiographic hemodynamics, was associated with improved 1-year clinical outcomes compared with the SAPIEN 3 (S3) or S3 Ultra^4^. However, whether these improvements in device performance translate to better clinical outcomes in more general populations remains to be broadly investigated. Herein, we assessed the 1-year clinical outcomes and hemodynamic performance of S3UR compared with those of S3, focusing on its impact on patients with small THVs and aortic annulus sizes, using data from a nationwide multicenter registry.
Results
Study population and baseline characteristics

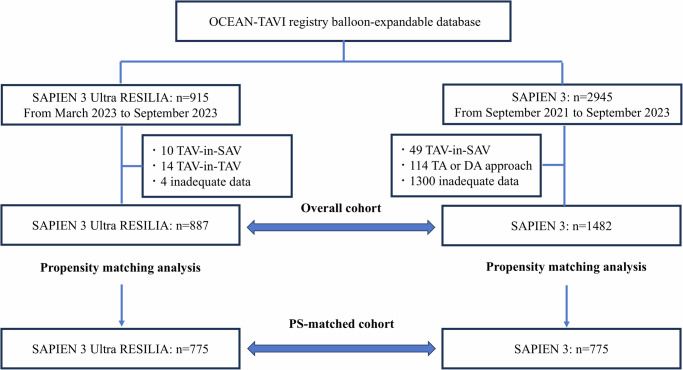

Among the 915 and 2945 patients who underwent TAVI with S3UR and S3, 887 and 1482 met the inclusion criteria, respectively, and were included herein. A 1:1 propensity score matching resulted in 775 patients each in the S3UR and S3 groups (Fig. 1). The baseline characteristics of the unmatched and matched cohorts are presented in Table 1. Before propensity score matching, the groups differed in several parameters, including clinical frailty scale scores and other comorbidities. In echocardiographic assessments, patients in the S3UR group exhibited a larger aortic valve area (0.69 ± 0.19 cm² vs. 0.67 ± 0.19 cm², p = 0.002) and higher left ventricular ejection fraction (59.3 ± 12.3% vs. 57.6 ± 13.4%, p = 0.004) compared with those in the S3 group. After propensity score matching, patient characteristics of the S3UR and S3 groups were well balanced, with absolute standardized differences <0.10 across all measured baseline characteristics.Fig. 1. Study flow chart.OCEAN-TAVI Optimized transcatheter vAlvular iNtervention – Transcatheter Aortic Valve Implantation, TAV transcatheter aortic valve, SAV surgical aortic valve, TA transapical, DA direct aorta.Table 1. Baseline characteristics of unmatched and matched cohortsPre-matched cohortMatched cohortS3URS3S3URS3N = 887N = 1482p**N = 775N = 775pASDAge, years83.8 ± 6.183.5 ± 6.30.17783.6 ± 6.083.7 ± 6.40.4850.085Sex (male)356 (40.1)657 (44.3)0.046320 (41.3)314 (40.5)0.7570.016Body mass index, kg/m²22.3 ± 3.922.2 ± 3.80.52122.4 ± 3.922.4 ± 3.90.6730.017STS-PROM score, %6.0 [4.0–9.1]6.1 [3.8–9.5]0.7695.9 [4.0–8.9]5.7 [3.7–9.4]0.540Clinical frailty scale ≥4195 (22.0)365 (24.6)<0.001175 (22.6)188 (24.3)0.5160.041NYHA III or IV289 (32.6)454 (30.6)0.081233 (30.1)253 (32.6)0.2740.056Hemoglobin, g/dL11.5 [10.4–12.7]11.4 [10.4–12.6]0.57211.5 [10.5–12.8]11.5 [10.3–12.7]0.3850.055Brain Natrium Peptide, pg/ml194 [82–554]312 [125–827]<0.001190 [80–534]270 [110–705]0.0010.144Concomitant diseasesHypertension716 (80.7)1183 (80.0)0.687626 (80.8)648 (83.6)0.1440.025Diabetes mellitus296 (33.4)456 (30.8)0.101251 (32.4)238 (30.7)0.4770.036Dyslipidemia463 (52.2)749 (50.7)0.484413 (53.3)390 (50.4)0.2530.058Chronic kidney disease (GFR < 60 mL/min/1.73 m²)672 (75.8)1141 (77.3)0.407582 (75.1)586 (75.6)0.8140.012Dialysis181 (20.4)411 (27.8)<0.001166 (21.4)177 (22.8)0.5010.034COPD89 (10.0)127 (8.6)0.23767 (8.6)67 (8.6)10Atrial fibrillation197 (22.2)321 (21.8)0.799159 (20.5)176 (22.7)0.2940.053Coronary artery disease293 (33.0)545 (36.8)0.065262 (33.8)263 (33.9)0.9570.003Peripheral artery disease142 (16.0)261 (17.7)0.298119 (15.4)121 (15.6)0.8880.007Carotid stenosis58 (6.5)69 (4.7)0.05047 (6.1)40 (5.2)0.4360.04Previous historySmoking246 (28.2)462 (31.9)0.064213 (28.1)242 (31.9)0.1040.083History of PCI158 (17.8)333 (22.5)0.006143 (18.5)167 (21.6)0.1240.078History of CABG32 (3.6)56 (3.8)0.83128 (3.6)22 (2.8)0.3880.044History of myocardial infarction47 (5.3)119 (8.0)0.01143 (5.5)55 (7.1)0.210.064History of stroke91 (10.3)194 (13.1)0.02285 (11.0)90 (11.6)0.5610.02Previous pacemaker47 (5.3)84 (5.7)0.14940 (5.2)41 (5.3)0.9090.034Echocardiographic data1.1480.968–1.3600.113Aortic valve area, cm²0.69 ± 0.190.67 ± 0.190.0020.69 ± 0.190.68 ± 0.190.2920.035Index aortic valve area, cm²/m²0.47 ± 0.130.45 ± 0.13<0.0010.47 ± 0.130.46 ± 0.130.4060.028Peak flow velocity, m/s4.3 ± 0.654.3 ± 0.710.9894.3 ± 0.654.3 ± 0.680.6280.013Aortic valve peak gradient, mmHg74.9 ± 22.675.1 ± 25.20.92274.4 ± 22.774.7 ± 23.70.6930.012Aortic valve mean gradient, mmHg43.3 ± 14.443.5 ± 15.60.69243.1 ± 14.443.4 ± 14.70.3350.018Left ventricular ejection fraction, %59.3 ± 12.357.6 ± 13.40.00459.4 ± 12.359.3 ± 12.30.5940.011Preserved ( ≥ 50%)716 (80.7)1121 (75.6)0.005623 (80.4)630 (81.3)0.8650.016Mid-range ( ≥ 40, <50%)86 (9.7)166 (11.2)77 (9.9)71 (9.2)Reduced ( < 40%)85 (9.6%)186 (12.6)75 (9.7)74 (9.5)Aortic regurgitation ≥moderate109 (12.3)197 (13.3)0.03786 (11.1)86 (11.1)10Mitral regurgitation ≥moderate93 (10.5)305 (20.6)<0.00191 (11.7)95 (12.3)0.7550.016Tricuspid regurgitation ≥moderate58 (6.5)164 (11.1)<0.00150 (6.5)56 (7.2)0.5460.031Computed TomographyAnnulus Area, mm^2^424 ± 78420 ± 740.426423 ± 76421 ± 770.5720.026Area <430 mm^2^, %523 (59.0)886 (59.8)0.006456 (58.8)488 (63.0)0.096Perimeter, mm74.4 ± 6.874.0 ± 6.60.11774.2 ± 6.673.3 ± 6.70.4440.032Data are depicted as means with standard deviations (±SD) or counts with percentages (%).S3UR SAPIEN 3 Ultra RESILIA, S3 SAPIEN 3, STS-PROM Society of Thoracic Surgeons-predicted risk of mortality, NYHA New York Heart Association, GFR Glomerular Filtration Rate, COPD Chronic Obstructive Pulmonary Disease, PCI percutaneous coronary intervention, CABG coronary artery bypass grafting, ASD absolute standardized difference.P-values are from Fisher’s test (2 × 2 comparison), chi-squared test (n x 2 comparisons), or t-tests (continuous parameters).
Procedural characteristics, complications, and echocardiographic outcomes

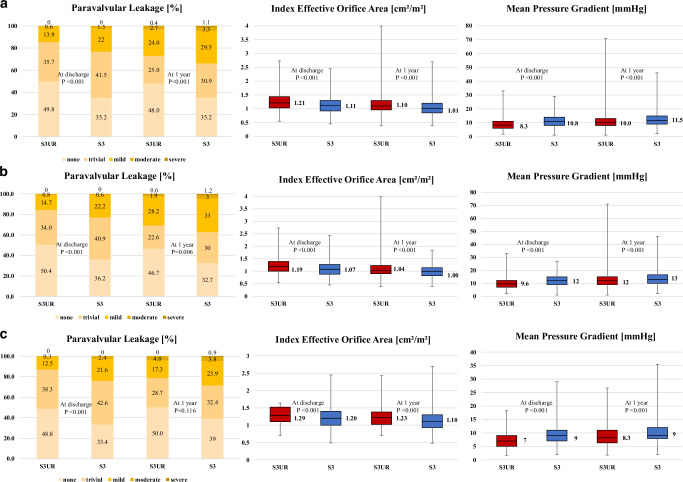

The procedures, complications, and echocardiographic outcomes are shown in Table 2. After matching, no significant differences were observed in the incidence of procedural complications, including in-hospital death, stroke, or conversion to open surgery, between the S3UR and S3 groups (all p > 0.05). Post-procedural echocardiography revealed a larger EOA (1.88 ± 0.49 cm^2^ vs. 1.68 ± 0.45 cm^2^), lower peak flow velocity (2.0 ± 0.45 m/s vs. 2.3 ± 0.45 m/s), and lower mPG (9.0 ± 4.1 mmHg vs. 11.3 ± 4.5 mmHg) in the S3UR group compared with the S3 group (all p < 0.001, Fig. 2a). Patients in the S3UR group had a lower incidence of PPM (moderate: 46 [5.9%] vs. 84 [10.8%], severe: 3 [0.4%] vs. 24 [3.1%]) and a lower incidence of PVL (none: 384 [49.8%] vs. 270 [35.2%], trivial: 275 [35.7%] vs. 319 [41.5%], mild: 107 [13.9%] vs. 169 [22.0%], moderate: 5 [0.6%] vs. 10 [1.3%], severe: 0% vs. 0%) than those in the S3 group (all p < 0.001). The prevalence of NYHA III or IV was significantly lower in the S3UR group than in the S3 group (11 [2.5%] vs. 20 [5.0%], p < 0.001). These results were similar for both small and large valve sizes (Fig. 2b,c).Fig. 2. Echocardiographic data at discharge and 1 year after transcatheter aortic valve implantation comparing the S3UR and S3 valves.S3UR, SAPIEN 3 Ultra RESILIA; S3, SAPIEN 3. a Overall (b) Small valve size (20 mm or 23 mm) (c) Large valve size (26 mm or 29 mm)Table 2. Procedure, complications, and echocardiographic outcomesPrematched cohort: overallMatched cohort: overallMatched: small (20 mm or 23 mm)Matched: large (26 mm or 29 mm)S3URS3S3URS3S3URS3S3URS3N = 887N = 1482p**N = 775N = 775pASDN = 471N = 477p**N = 304N = 298pTransfemoral844 (95.2)1420 (95.8)0.447739 (95.4)741 (95.6)0.8070.012491 (96.5)488 (96.4)0.986302 (93.8)306 (94.2)0.845Valve size 20 mm70 (7.9)73 (4.9)0.00353 (6.8)56 (7.2)0.9770.01253 (11.3)56 (11.7)0.814 23 mm476 (53.7)775 (52.3)418 (53.9)421 (54.3)418 (88.7)421 (88.3) 26 mm276 (31.1)540 (36.4)250 (32.3)243 (31.4)250 (82.2)243 (81.5)0.825 29 mm65 (7.3)94 (6.3)54 (7.0)55 (7.1)54 (17.8)55 (18.5)Local anesthesia651 (73.4)1009 (68.1)0.012569 (73.4)507 (65.4)<0.0010.174345 (73.7)303 (63.5)0.001224 (73.7)204 (68.5)0.157Pre-dilatation141 (15.9)196 (13.3)0.077115 (14.8)124 (16.0)0.5270.03272 (15.3)88 (18.4)0.19443 (14.1)36 (12.1)0.453Post-dilatation101 (11.4)260 (17.6)<0.00194 (12.1)111 (14.3)0.2020.06568 (14.4)74 (15.5)0.64226 (8.6)37 (12.4)0.122Echocardiographic dataEffective orifice area, cm²1.87 ± 0.491.67 ± 0.47<0.0011.88 ± 0.491.68 ± 0.45<0.0011.73 ± 0.421.52 ± 0.37<0.0012.12 ± 0.501.92 ± 0.45<0.001Index effective orifice area, cm²/m²1.27 ± 0.331.13 ± 0.30<0.0011.27 ± 0.331.13 ± 0.29<0.0011.23 ± 0.321.08 ± 0.27<0.0011.34 ± 0.341.22 ± 0.30<0.001Peak flow velocity, m/s2.0 ± 0.452.3 ± 0.44<0.0012.0 ± 0.452.3 ± 0.45<0.0012.2 ± 0.442.4 ± 0.44<0.0011.9 ± 0.382.1 ± 0.40<0.001Mean pressure gradient, mmHg9.0 ± 4.211.4 ± 4.6<0.0019.0 ± 4.111.3 ± 4.5<0.00110.2 ± 4.312.5 ± 4.6<0.0017.3 ± 3.09.4 ± 3.8<0.001Mean pressure gradient ≥20 mmHg20 (2.3)78 (5.3)<0.00116 (2.1)39 (5.0)0.00216 (3.4)33 (6.9)0.0340 (0)6 (2.0)0.017Prosthesis-patient mismatch none820 (92.4)1199 (80.9)<0.001718 (92.6)644 (83.1)<0.001428 (90.9)376 (81.7)<0.001290 (96.3)268 (91.8)0.047 moderate55 (6.2)167 (11.3)46 (5.9)84 (10.8)35 (7.4)63 (13.7)11 (3.7)21 (7.2) severe3 (0.3)52 (3.5)3 (0.4)24 (3.1)3 (0.6)21 (4.6)0 (0)3 (1.0)Paravalvular leakage ≥mild126 (14.3)308 (20.8)<0.001112 (14.5)179 (23.1)<0.00173 (15.5)108 (22.9)0.01439 (12.8)71 (24.0)0.002Mitral regurgitation ≥moderate70 (7.9)189 (12.8)<0.00161 (7.9)66 (8.5)0.75435 (7.5)42 (8.9)0.57426 (8.6)24 (8.1)0.976Tricuspid regurgitation ≥moderate79 (9.0)144 (9.7)0.01266 (8.5)45 (5.8)0.05440 (8.5)31 (6.6)0.32226 (8.6)14 (4.9)0.12Ent days6 [4–9]6 [4–8]0.4006 [4–9]6 [4–8]0.7025 [4–9]6 [4–8]0.3826 [4–9]6 [4–8]0.636In-hospital death12 (1.4)32 (2.2)0.15912 (1.5)17 (2.2)0.3498 (1.7)15 (3.1)0.1484 (1.3)2 (0.7)0.426Open surgery0 (0)1 (0.1)0.1220 (0)1 (0.1)0.1340 (0)1 (0.2)0.2260 (0)0 (0)NALife-threatening and major bleeding57 (6.4)99 (6.7)0.80943 (5.5)50 (6.5)0.45422 (4.7)33 (6.9)0.13921 (6.9)17 (5.7)0.544Disabling stroke6 (0.7)15 (1.0)0.3996 (0.8)10 (1.3)0.3154 (0.8)8 (1.7)0.2542 (0.7)2 (0.7)0.984Major vascular complication14 (1.6)26 (1.8)0.74811 (1.4)15 (1.9)0.4296 (1.3)11 (2.3)0.2315 (1.6)4 (1.3)0.76Tamponade2 (0.2)3 (0.2)0.9702 (0.3)2 (0.3)0.9142 (0.4)2 (0.5)0.940 (0)0 (0)NANew pacemaker implantation45 (5.1)77 (5.2)0.22040 (5.2)44 (5.1)0.15720 (4.2)26 (5.4)0.20520 (6.6)14 (4.7)0.33Discharge NYHA III or IV17 (2.0)52 (4.0)0.01114 (1.8)28 (3.6)<0.00111 (2.5)20 (5.0)<0.0013 (1.0)8 (3.0)0.003Data are depicted as means with standard deviations (±SD) or counts with percentages (%).S3UR SAPIEN 3 Ultra RESILIA, S3 SAPIEN 3, NYHA New York Heart Association, ASD absolute standardized difference.P-values are from Fisher’s test (2 × 2 comparison), chi-squared test (n x 2 comparisons), or t-tests (continuous parameters).
Follow-up echocardiographic and other clinical data at 1 year, available for 1097 of the 1291 living patients (85.0%), are summarized in Table 3. At the 1-year follow-up, patients in the S3UR group showed significantly better echocardiographic parameters than those in the S3 group (EOA: 1.70 ± 0.45 cm^2^ vs. 1.56 ± 0.44 cm^2^; peak flow velocity: 2.3 ± 0.48 m/sec, vs 2.4 ± 0.48 m/sec; mPG: 11.1 ± 5.5 mmHg vs. 12.5 ± 5.5 mmHg) (all p < 0.001, Fig. 2a). These results were similar for small and large valves in both groups (Fig. 2b, c). At discharge, the incidence of PVL ≥mild was significantly lower in the S3UR group than in the S3 group and 1 year after TAVI, the overall incidence of PVL ≥mild remained significantly lower in S3UR than in S3 (142 [27.1%] vs. 184 [33.9%], p = 0.032). However, when analyzed by valve size, no significant difference was observed in either the small or large sizes (small: 99 [30.7%] vs. 123 [37.2%], p = 0.199; large: 43 [21.3%] vs. 61 [28.6%], p = 0.093). The proportion of patients whose PVL grade increased by one or more points 1 year after TAVI than at discharge was comparable between the S3UR and S3 groups (143 [27.3%] vs. 174 [32.2%], p = 0.086). The number of patients with mPG ≥20 mmHg was significantly lower in the S3UR group than in the S3 group for smaller valves; however, no significant differences between the groups were observed for larger valves (small valve sizes: 22 [6.6%] vs. 47 [14.2%], p = 0.007; large valve sizes: 43 [21.3%] vs. 61 [28.6%], p = 0.093).Table 3. One-year outcomesOverallSmall (20 mm or 23 mm)Large (26 mm or 29 mm)Matched cohortS3URS3S3URS3S3URS3pppLeft ventricular ejection fraction, %63.4 ± 8.163.2 ± 9.30.42965.2 ± 6.664.9 ± 7.80.78260.8 ± 9.460.6 ± 10.80.285Effective orifice area, cm²1.70 ± 0.451.56 ± 0.44<0.0011.53 ± 0.391.41 ± 0.35<0.0011.97 ± 0.421.80 ± 0.47<0.001Index effective orifice area, cm²/m²1.15 ± 0.321.06 ± 0.30<0.0011.09 ± 0.331.00 ± 0.27<0.0011.24 ± 0.291.13 ± 0.32<0.001Peak flow velocity, m/s2.3 ± 0.482.4 ± 0.48<0.0012.4 ± 0.482.5 ± 0.47<0.0012.0 ± 0.402.2 ± 0.41<0.001Mean pressure gradient, mmHg11.1 ± 5.512.5 ± 5.5<0.00112.5 ± 5.914.0 ± 5.7<0.0018.8 ± 3.810.1 ± 4.2<0.001Mean pressure gradient ≥20 mmHg25 (3.2)52 (6.7)0.00622 (6.6)47 (14.2)0.0073 (1.4)5 (2.2)0.237Prosthesis-patient mismatchnone439 (85.9)403 (75.5)<0.001261 (82.1)229 (70.5)0.003178 (92.2)174 (83.3)0.006moderate59 (11.5)101 (18.9)44 (13.8)73 (22.5)15 (7.8)28 (13.4)severe13 (2.5)30 (5.6)13 (4.1)23 (7.1)0 (0)7 (3.3)Paravalvular leakage ≥ mild142 (27.1)184 (33.9)0.03299 (30.7)123 (37.2)0.19943 (21.3)61 (28.6)0.093Increased paravalvular leakage143 (27.3)174 (32.2)0.08695 (29.5)121 (36.7)0.05248 (23.9)53 (25.1)0.770Mitral regurgitation ≥moderate41 (7.8)42 (7.7)0.71126 (7.9)29 (8.8)0.92515 (7.5)13 (6.1)0.314Tricuspid regurgitation ≥moderate51 (9.6)52 (9.6)0.71127 (8.3)34 (10.2)0.67924 (11.9)18 (8.5)0.241NYHA III or IV5 (1.0)14 (2.7)0.0404 (1.3)8 (2.5)0.2481 (0.5)6 (2.9)0.061Brain Natrium Peptide, pg/ml93 [46-189]111 [52–253]0.04094 [46–187]118 [57–264]0.01893 [47–211]101 [48–237]0.706Data are depicted as means with standard deviations ( ± SD) or counts with percentages (%).S3UR SAPIEN 3 Ultra RESILIA, S3 SAPIEN 3, NYHA New York Heart Association.P-values are from Fisher’s test (2 × 2 comparison), chi-squared test (n x 2 comparisons), or t-tests (continuous parameters).
One-year clinical outcomes

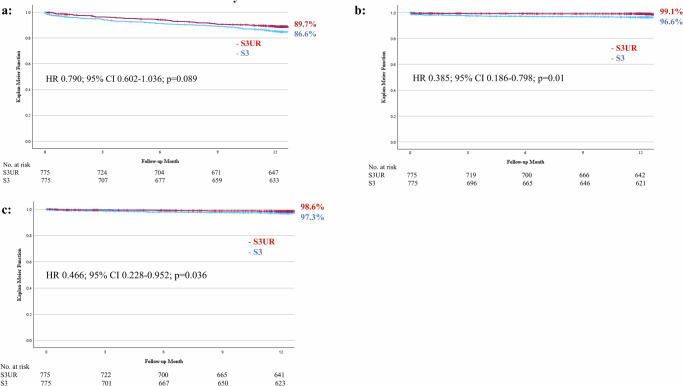

The average follow-up duration for living patients was 469 ± 260 days. Kaplan–Meier curves depicting the clinical outcomes according to the groups are shown in Fig. 3 and Table 4. Throughout the study period, 1-year mortality occurred in 10.3% and 13.4% of patients in the S3UR and S3 groups (p = 0.026), respectively, which tended to be lower in the S3UR group than in the S3 (HR 0.790; 95% CI 0.602–1.036; p = 0.089). Additionally, the incidence of stroke and HFH at 1 year was significantly lower in the S3UR group than in the S3 group, respectively (stroke; 0.9 vs. 3.4%, p = 0.001, HR 0.385; 95% CI 0.186–0.798; p = 0.01) (HFH; 1.4% vs. 2.7%, p < 0.001, HR 0.665; 95% CI 0.228–0.952; p = 0.036). None of the patients underwent aortic valve reintervention during the follow-up period. In S3UR, the rate of new pacemaker implantation excluding the perioperative incidence was 0%, and in S3, it was 3/775 (0.004%). We did not collect the data precisely divided into cardiovascular and non-cardiovascular mortality in this study. In the analyses according to the valve size, 1-year mortality was significantly lower in the S3UR group than in the S3 group for smaller valve sizes (9.7% vs. 14.7%, p = 0.011, HR 0.686; 95% CI 0.483–0.975; p = 0.036) but not for larger valve sizes (10.8% vs. 11.2%, p = 0.734, HR 0.984; 95% CI 0.638–1.516; p = 0.940). Additionally, the incidence of stroke and HFH was significantly lower in the S3UR group than in the S3 group respectively for smaller valve sizes (stroke; 0.9% vs. 4.2%, p = 0.003, HR 0.359; 95% CI 0.152–0.851; p = 0.02, HFH; 1.4% vs. 3.0%, p < 0.001, HR 0.366; 95% CI 0.144–0.932; p = 0.035) but not for larger valve sizes (stroke; 1.0% vs. 2.3%, p = 0.191, HR 0.473; 95% CI 0.119–1.872; p = 0.286, HFH; 1.4% vs. 2.2%, p = 0.191, HR 0.686; 95% CI 0.221–2.128; p = 0.514).Fig. 3. Kaplan–Meier curves comparing 1-year clinical outcomes for S3UR and S3 valves.a All-cause mortality (b) Stroke (c) Heart failure rehospitalization. S3UR SAPIEN 3 Ultra RESILIA, S3 SAPIEN 3, HR hazard ratio, CI confidence interval.Table 4. One-year clinical outcomesOverallSmall (20 mm or 23 mm)Large (26 mm or 29 mm)Matched cohortS3URS3HR95% CIpS3URS3HR95% CIpS3URS3HR95% CIpAll-cause mortality77 (10.3)100 (13.4)0.790.602–1.0360.08944 (9.7)68 (14.7)0.6860.483–0.9750.03633 (9.8)32 (11.2)0.9840.638–1.5160.94Stroke7 (0.9)25 (3.4)0.3850.186–0.7980.014 (0.9)19 (4.2)0.3590.152–0.8510.023 (1.0)6 (2.3)0.4730.119–1.8720.286Heart failure rehospitalization10 (1.4)19 (2.7)0.4660.228–0.9520.0366 (1.4)13 (3.0)0.3660.144–0.9320.0354 (1.4)6 (2.2)0.6860.221–2.1280.514Cumulative even rate (%).S3UR SAPIEN 3 Ultra RESILIA, S3 SAPIEN 3, HR Hazard ratio, CI Confidence interval.P-values, HR, and 95% CI from the COX proportional hazard model.

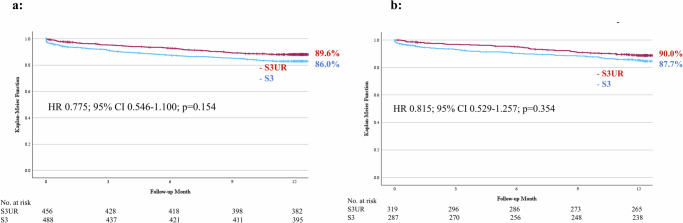

We also compared the all-cause mortality in the S3UR and S3 groups according to the annulus size: <430 mm² and ≥430 mm²; however, no significant difference in all-cause mortality between the groups was observed (<430 mm²: HR 0.775; 95% CI 0.546–1.100; p = 0.154, ≥430 mm²: HR 0.815; 95% CI 0.529–1.257; p = 0.354) (Fig. 4).Fig. 4. Kaplan–Meier curves comparing 1-year clinical outcomes for annulus areas <430 mm² and ≥430 mm².a Area <430 mm² (b) Area ≥430 mm². HR hazard ratio, CI confidence interval.
Discussion
The salient findings of the present study are as follows. (1) S3UR, the latest generation BE-THV, demonstrated better hemodynamic parameters in echocardiography than S3, both at discharge and 1 year after TAVI. (2) Overall, mortality, stroke, and HFH were significantly lower in the S3UR group than in the S3 group during the 1-year follow-up. These differences were more prominent in patients with smaller valve sizes, whereas the outcomes were comparable in those with larger valve sizes. (3) At discharge, the rate of PVL was significantly lower in the S3UR group than in the S3 group; however, it increased over 1 year regardless of the valve size.
Previous studies have reported that S3UR valves demonstrate better hemodynamic performance in echocardiography than the former generations of BE-THVs^4,5,7^. The novelty of this study lies in making the most of this registry, which includes a relatively high proportion of small annuli, to analyze one-year outcomes and hemodynamics separately for small and large sizes. In the era of expanding indications for TAVI for younger and lower-risk patients, clarifying the developmental processes of appropriate treatment strategies is crucial to maximize the advantages of THVs. This study showed that the better early-phase echocardiographic parameters of S3UR compared with those of S3, were maintained even 1 year after TAVI. These findings were consistent for both small and large valves. Notably, the lower incidence of mPG ≥20 mmHg at 1 year after TAVI in the S3UR group was statistically significant for smaller valves but not for larger ones. One of the reasons why clinical outcomes were superior in S3UR than S3 may be that S3UR demonstrated better echocardiographic hemodynamics than S3. Echocardiographic parameters were particularly favorable for smaller valve sizes. This is explained by the fact that the unique modification of the S3UR also changed the sewing maneuvers for each of the 3 leaflets at the commissural positions, especially for the smaller 20 mm and 23 mm valve sizes.
Regarding the higher incidence of stroke in S3 than in S3UR, one reason is that S3 is a historical cohort compared to S3UR, suggesting procedural inexperience and higher surgical risk in patient backgrounds. Furthermore, early intervention for aortic stenosis has the potential to reduce stroke rates long-term after TAVI. The widespread adoption of TAVI in Japan may make it easier for patients to undergo TAVI in S3UR compared to the S3 era.
Regarding PVL after TAVI, the current study demonstrated that S3UR exhibited a lower PVL rate than S3 at discharge. Our registry previously reported that S3UR was associated with lesser PVL than the latest self-expandable THVs, suggesting one of the pivotal advantages of the S3UR^8^. These combined results suggest a potential association between S3UR and improved prognosis, highlighting the remarkable changes in hemodynamic parameters. Recent data from the large-scale Transcatheter Valve Therapy Registry indicated improved 1-year outcomes for S3UR compared with earlier-generation BE-THVs^4^. Therein, the authors attributed the survival benefit primarily to the reduced incidence of mild PVL, in addition to improved hemodynamics. Some previous studies reported that patients with mild PVL had a significantly increased risk of mortality at 1 or more years after TAVI^9–11^. These results confirmed that minimizing PVL severity to less than mild is clinically important. However, PVL progression occurred in approximately 30% of patients in this cohort. Although the S3UR showed a lower incidence of PVL at discharge, this advantage appeared to be attenuated by 1 year. These trends were recognized in the previous Transcatheter Valve Therapy Registry data^4^. In this regard, this study showed that the S3UR group had significantly lower PVL than the S3 group 1 year after TAVI for smaller valves but not for larger ones. The mechanism of worsening PVL in patients undergoing TAVI with S3UR and S3 valves remains unclear. We speculate that one of the mechanisms may be related to the recoil of BE-THVs. The finding that this PVL difference was no longer significant one year after TAVI when we analyzed by valve sizes, suggests that the superior prognosis in S3UR than S3 may have been explained not by improvement in PVL at discharge alone. In any case, given that PVL increased over time and that more than mild PVL was associated with poorer prognosis of patients receiving BE-THVs, further long-term follow-up investigations are needed to elucidate future treatment strategies using S3UR.
Another contributing factor to the better clinical outcomes in the S3UR group may be the significantly lower incidence of PPM in this group. Although the clinical impact of moderate PPM remains inconclusive^12^, severe PPM is considered to be significantly associated with adverse prognosis, especially in patients with a small anatomy^13^. Patients with smaller annulus sizes and those who underwent TAVI with smaller valves, which are often used in those with a smaller body size, are well-known risk factors for PPM after TAVI^14,15^. Despite these anatomical characteristics, the incidence of PPM in this cohort was relatively low, even among patients with smaller valve sizes. Moreover, data from patients who underwent surgical aortic valve replacement revealed better post-procedural hemodynamics with the RESILIA tissue bioprosthesis than with the previous one^16,17^. The 20 mm and 23 mm S3UR valves incorporate a specific design in which each of the three leaflets is individually sewn at the commissural positions to allow for a larger EOA. Although better hemodynamics were observed for the 26 mm and 29 mm S3UR valves, the modifications in the 20 mm and 23 mm S3UR valves may contribute to better hemodynamics compared with previous models. Herein, an important new finding was that S3UR showed superior prognoses compared with S3 for smaller valve sizes but not for larger valve sizes. Some previous papers revealed that the mPG or PG ≥ 20 mmHg was not associated with prognosis^14^. In this study as well, a lower mPG of S3UR itself may not directly lead to improved prognosis. However, the multiple design improvements for 20 mm and 23 mm S3UR valves may have contributed to the enlargement of the indexed EOA, resulting in a lower incidence of severe PPM, fewer cases of mPG ≥20 mmHg, and lower PVL at 1 year after TAVI. These combined improvements in valve performance may have contributed to the improvement in prognosis. Furthermore, given that S3 represents a historical cohort compared to S3UR, we cannot rule out and describe in the limitation section the possibility that learning curves, or changes in anesthesia, may have influenced outcomes.
We speculate that one of the reasons for the favorable clinical outcomes in S3UR may be that the proportion of general anesthesia remained higher in S3 even after PSM. Previous studies have shown that patients who underwent TAVI with general anesthesia demonstrated worse outcomes, including mortality during short- and long-term follow-up, than those with local anesthesia^18,19^. While this finding is not definitive, it cannot be denied that the higher incidence of general anesthesia in S3 may have contributed to the poorer prognosis than S3UR.
This study highlights that the prognostic advantages of newer-generation BE-THVs extend to a broader population, supporting their broader applicability across diverse clinical settings. These findings provide meaningful insights into the ongoing debate regarding THV selection in patients with smaller anatomies.
Due to the use of observational, unblinded, and non-randomized registry data, this study has several limitations. First, as an observational cohort study, our findings may have been influenced by unmeasured variables and should be interpreted with caution. PSM is a useful statistical method for adjusting for confounding factors, but unlike randomized controlled trials, the potential for bias due to confounding factors could not be eliminated. Second, echocardiographic data were systematically collected and evaluated using the VARC-3 criteria; however, no independent core laboratories were included in this registry. Third, data from multi-detector computed tomography after TAVI were not available; thus, the phenomenon of decreasing EOA and increasing PVL could not be investigated in detail. Fourth, S3 is the valve historically used before the introduction of S3UR, and we do not have detailed data on inter-hospital and individual operator variations. Therefore, a learning curve may exist, and it is possible that the performance of S3, which was used earlier, may have impacted on some clinical outcomes. However, we used a database with a large number of cases and performed PSM, successfully matching patient backgrounds. The SAPIEN 3 Ultra (S3U) valve represented an improvement over the S3 valve, with its sealing skirt, which resulted in a reduction of the incidence of mild PVL. However, in the OCEAN-TAVI registry, the S3U valve was not reimbursed, and the next valve after the S3 was the S3UR. A key limitation of this study is that we were unable to determine whether the favorable outcomes resulted from RESILIA tissue itself or from improvements made to the skirt design starting at the S3U stage. Finally, while our cohort reflects the general population that undergoes TAVI in Japan, with a mean age of 85 years, these results may not be generalizable to younger populations with longer life expectancies and greater exercise capacity. However, the registry used herein had high-quality follow-up data, with more than 80% of patients undergoing 1-year echocardiography, enabling us to demonstrate reasonable results.
In conclusion, the S3UR valve demonstrated superior hemodynamic performance compared with the S3 valve 1 year after TAVI, exhibiting lower rates of all-cause mortality and composite adverse outcomes, particularly in patients with smaller valve sizes. Similar findings have previously been reported in Western populations, and the consistency of these results in an Asian cohort, despite notable differences in body size and ethnicity, corroborates the generalizability of the benefits associated with newer-generation BE-THVs.
Methods
Study cohort
The Optimized transCathEter vAlvular intervention-Transcatheter Aortic Valve Implantation (OCEAN-TAVI) registry is an ongoing nationwide prospective multicenter cohort study involving patients with aortic stenosis undergoing TAVI at 22 collaborating centers across Japan. Participating centers were mandated to enroll patients in the registry, adhere to the registry protocol, and provide patient information and clinical outcomes during follow-up. The ethics committee of each center approved the study protocol: Institutional Review Board (IRB) in Keio University School of Medicine, IRB in Toyohashi Heart Center, IRB in Nagoya Heart Center, IRB in Gifu Heart Center, IRB in Kokura Memorial Hospital, IRB in Teikyo University, IRB New Tokyo Hospital, IRB in Shonan Kamakura General Hospital, IRB in Tokyo Bay Urayasu Ichikawa Medical Center, IRB in Toyama University Hospital, IRB in Tokai University, IRB in St. Marianna University School of Medicine, IRB in Tsukuba Medical Center Hospital, IRB in Mitsui Memorial Hospital, IRB in Kinki University, IRB in Saiseikai Utsunomiya Hospital, IRB in IMS Tokyo Katsushika General Hospital, IRB in Nippon Medical School, Tokyo. All patients provided written informed consent for participation. This study was conducted in compliance with the principles of the Declaration of Helsinki. Additionally, the study was registered with the University Hospital Medical Information Network Clinical Trial Registry and accepted by the International Committee of Medical Journal (UMINID:000020423, the registry data from 14/03/2014).
The present analysis included consecutive patients who underwent TAVI with S3UR between March 2023 and September 2023 and a historical cohort of patients who underwent TAVI with S3 between September 2021 and September 2023 at the participating institutes. Patients who underwent TAVI for degenerated surgical bioprostheses or THV were excluded.
Data collection and endpoint definitions
Baseline clinical, procedural, and follow-up data were prospectively recorded in a web-based database at each participating center. Regular follow-ups were scheduled pre-procedure, within 30 days after TAVI, and 1 year post-TAVI. Comprehensive clinical follow-up data were collected from medical records at each center, documentation from referring physicians, and/or telephone interviews. The web-based database was systematically audited by data committee members for completeness and accuracy to ensure data integrity. In cases of incomplete or inaccurate data, all participating centers were required to respond to queries.
Transthoracic echocardiography was performed before TAVI, at discharge, and annually thereafter. In accordance with the updated Valve Academic Research Consortium-3 (VARC-3) criteria^20^, prosthesis-patient mismatch (PPM) was assessed as the prosthesis effective orifice area (EOA) indexed to the body surface area and categorized as severe (≤0.65 cm^2^/m^2^ in the population without obesity [body mass index <30 kg/m^2^]; ≤0.55 cm^2^/m^2^ in the population with obesity [body mass index ≥30 kg/m^2^]) or moderate (>0.65 to 0.85 cm^2^/m^2^ in the population without obesity; >0.55 to 0.70 cm^2^/m^2^ in the population with obesity). All procedural complications were defined according to the VARC-3 criteria and relevant data were systematically collected. The clinical endpoints included all-cause mortality, stroke, and heart failure rehospitalization (HFH). Additionally, the incidence of aortic valve re-intervention was evaluated. A small annulus area was defined as an aortic annulus area ≤430 mm^2^, measured by multidetector computed tomography, based on the definition set by the pivotal SMART (SMall Annuli Randomized To EvolutTM or SAPIENTM Trial) ^21^.
Statistical analysis
Categorical variables are reported as frequencies and percentages, with differences evaluated using the chi-square test or two-tailed Fisher’s exact test. Continuous variables are presented as means ± standard deviations or medians and interquartile ranges, with between-group comparisons performed using the two-sample t-test or the Mann–Whitney U test, as appropriate. For within-group comparisons, means and standard deviations were analyzed using a paired t-test. Time-to-event curves were depicted using the Kaplan–Meier method (censored at death or last valid contact in cases of those awaiting the next follow-up or consent withdrawal). A Cox proportional hazard model was used to calculate hazard ratios (HRs) and 95% confidence intervals (CIs) for clinical endpoints. All p-values were two-sided, and a p < 0.05 was considered significant for all tests.
Herein, we used propensity score matching to control for confounding factors due to baseline differences between patients undergoing TAVI with S3UR and S3. The propensity score was calculated using a multivariate logistic regression model based on the following 28 variables that could have affected study outcomes: age; sex; body mass index; Society of Thoracic Surgeons Predicted Risk of Mortality; clinical frailty scale score ≥4; New York Heart Association (NYHA) heart failure symptoms III or IV; hypertension; diabetes mellitus; peripheral artery disease; dialysis; chronic obstructive pulmonary disease; atrial fibrillation; hemoglobin level (g/dL); history of coronary artery disease; history of stroke; previous pacemaker implantation; echocardiographic variables such as aortic valve area (cm^2^), aortic valve mean pressure gradient (mPG) (mmHg), left ventricular ejection fraction (≥50%: preserved; ≥40% to <50%: mid-range; <40%: reduced), moderate or severe aortic regurgitation, moderate or severe mitral regurgitation, and moderate or severe tricuspid regurgitation; computed tomography variables such as annulus area (mm^2^), annulus perimeter (mm); and procedural variables such as access site (transfemoral approach or non), pre-dilatation, post-dilatation, and valve size (20 mm, 23 mm, 26 mm, 29 mm). Herein, a 1:1 greedy nearest neighbor matching protocol with a caliper of 0.2 was used. Absolute standardized differences were estimated for all baseline variables, and absolute standardized differences <0.10 were considered an indicator of good balance. The results for the overall matched cohort and cohorts comprising patients with small (20 and 23 mm) or large (26 and 29 mm) valve sizes were analyzed. In addition to valve size-based analyses, subgroup analyses were conducted based on annulus size, including small and large aortic annuli. SPSS version 29 (SPSS Inc., Chicago, IL, USA) was used for all statistical analyses.
