MM-GradCAM: an improved multimodal GradCAM method with 1D and 2D ECG data for detection of cardiac arrhythmia
Fatma Murat Duranay, Ender Murat, Özal Yıldırım, Yakup Demir, Ru-San Tan, Niranjana Sampathila, U. Rajendra Acharya
TL;DR
This paper introduces MM-GradCAM, a new method to improve explainability in AI models for detecting cardiac arrhythmia using both 1D and 2D ECG data.
Contribution
MM-GradCAM is the first method to provide explainability for both 1D ECG signals and 2D ECG images in arrhythmia detection.
Findings
The 1D ECG signal form achieved 93.07% accuracy in arrhythmia detection.
The 2D ECG image form achieved higher accuracy at 97.44%.
A cardiologist verified the clinical significance and interpretability of the model's explainability maps.
Abstract
As cardiac arrhythmia remains one of the leading causes of death worldwide, early and accurate diagnosis of cardiac arrhythmia is critical to improving patient outcomes. Electrocardiogram (ECG) analysis plays a critical role in the diagnosis of these diseases, and recent advances in deep learning have led to significant advances in automated ECG interpretation. However, the “black box” nature of these models limits clinical confidence and highlights the need for explainable artificial intelligence methods. This study presents an innovative MM-GradCAM method that combines two different data formats, providing explainability for both 1D ECG signal and 2D ECG image data. Using a dataset of more than 10,000 patients, a 17-layer CNN model capable of four-class arrhythmia detection was developed and separate explainability outputs were obtained for each data form. The resulting explainability…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 15- —Manipal Academy of Higher Education, Manipal
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsECG Monitoring and Analysis · Cardiac electrophysiology and arrhythmias · COVID-19 diagnosis using AI
Introduction
Arrhythmia is an important group of diseases in cardiovascular disorders and can occur on its own or with other cardiovascular diseases^1^. Arrhythmia can be represented by a slow, fast, or irregular heartbeat and can be grouped as life-threatening or non-life-threatening. In the diagnosis of arrhythmia, electrocardiography (ECG) is a commonly used method that records the electrical activity of the heart for a certain period of time^2^. Increased ease of use through digitization of ECG data and the development of algorithms to process the raw data could lead to significant improvements in automated ECG interpretation^3,4^.
The development of intelligent systems in the field of healthcare is very important, considering the processing of large amounts of raw data and the importance of the data they contain^5^. To compensate for visual errors and manual interpretation, researchers began to develop computer-aided design (CAD) systems to automatically diagnose ECGs^6^. In these systems, traditional methods design and select coded features, often by trial and error or by experience. Therefore, these systems tend to generate false positives that can lead to misdiagnosis and inappropriate treatment. Deep learning techniques have been developed to overcome these challenges faced by conventional systems and to provide better detection accuracy without the use of any hard-coded features^3,7,8^. In vital areas such as healthcare, the explainability of the outputs of deep learning models is critical to increase confidence in the model’s recommendations and to ensure acceptance among clinicians. There are many explainable artificial intelligence (XAI) approaches created for this purpose. One of the most popular of these approaches is Grad-CAM (Gradient-weighted Class Activation Mapping), which uses first-order gradients of the input signals^9^. This approach has been used to visualize the focal regions on ECG signals to provide clarity^10–15^. Thus, XAI approaches have increased the level of reliability and transparency as well as automation in medical diagnostics by making the decision processes of the models more understandable and interpretable.
The proposed method combines the explainability of two different data forms by adopting the basic principles of Grad-CAM approaches. Unlike the Grad-CAM methods used in other studies, the Multi-Modal GradCAM (MM-GradCAM) method we developed uses input data in both signal and image form. With this approach, signal-based explainability and pattern-based explainability obtained from time series are combined and a new perspective is brought to the literature. The contributions of our study to the literature are as follows:
- Using a large dataset of more than 10,000 patients’ ECG signals, a four-class arrhythmia detection was performed.
- ECG data were processed and recorded in both signal and image form, which were used together in the analyses.
- Convolutional neural network (CNN) models with 17 layers that can process both data forms were designed and the training of the models was carried out for 100 epochs.
- The trained models were evaluated on the same test patients and explainability outputs were obtained using the Grad-CAM method.
- The obtained explainability outputs were combined with the proposed new method and the results were interpreted by an expert cardiologist to assess the clinical validity of the study.
Material and method

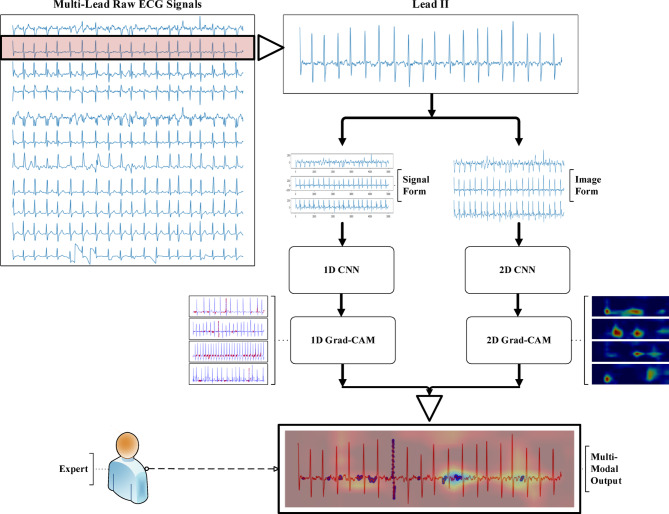

The general schematic representation of the method proposed in this study is presented in Fig. 1. In the first stage, only Lead II was selected from the multi-channel structure in the ECG data set because single-channel studies in the literature show that Lead II is widely used^16–20^. Following this selection, the single lead data were converted into two different forms and discrete operations were performed in parallel for each form. Customized models were designed and trained for each data form. Although the model architectures are kept similar in terms of a number of layers and ordering, the input dimensions of the 1D and 2D signals are different. Of note, the simple structure of the signal form and the relatively low data size enable fast deep model training processes. After the model training, output maps were created for each data form using the Grad-CAM method. Finally, these maps are combined to develop the proposed Multimodal-GradCAM (MM-GradCAM) method. The obtained explanations were interpreted in detail by an expert to evaluate the explainability of the method.Fig. 1. General flow representation of the study.
Dataset and data processing

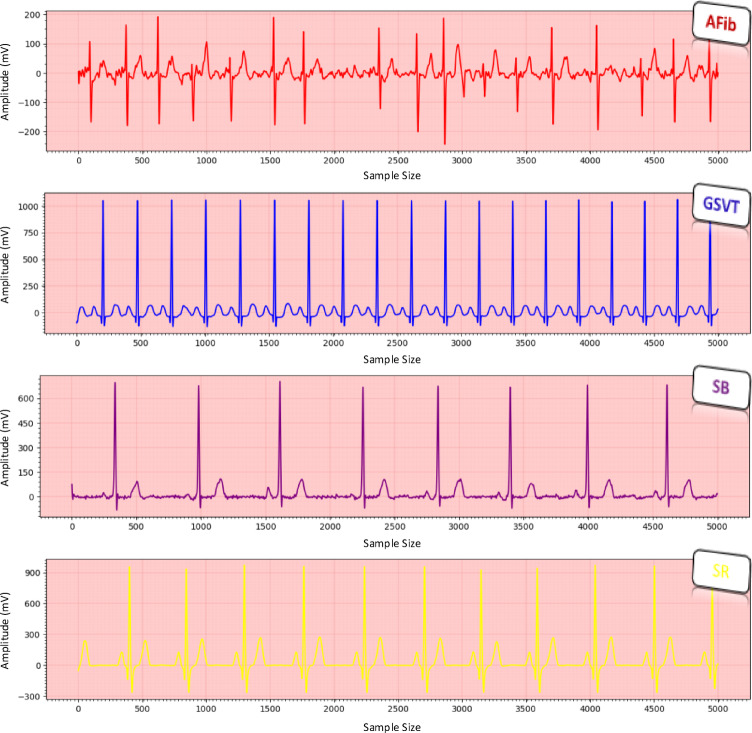

The study dataset was derived from a large public database^21^, which comprises 10-s 12-lead ECG recordings of 10,646 subjects acquired at a sampling frequency of 500 Hz. The ECGs have been labelled by experts into 11 diagnostic classes, which can be merged into 4 classes: (1) “SB” includes sinus bradycardia; (2) “AFib”, atrial fibrillation and atrial flutter; (3) “GSVT”, supraventricular tachycardia, atrial tachycardia, atrioventricular node reentrant tachycardia, atrioventricular reentrant tachycardia and sinus atrium to atrial wandering rhythm; and (4) “SR”, sinus rhythm and sinus irregularity. The original dataset initially included data from 10,646 patients. However, after a thorough review, we excluded 58 patients due to incomplete or missing ECG signals, resulting in a final dataset of 10,588 patients for this study. For the current study, we used Lead II ECG signals—each with a 1D data dimension of 5000 (500 Hz × 10 s)—categorized into SB, AFib, GSVT and SR classes (Fig. 2). The authors did not define the four rhythm classes used in this study but directly inherited from the expert-labelled structure of the original Chapman dataset. Although the database contains 11 diagnostic labels, these labels are clinically consolidated into four major rhythm groups based on physiological similarity and real-world diagnostic practice. Therefore, the class selection follows the dataset’s standardized clinical mapping rather than an author-specific reduction. The novelty of the proposed method lies in the multimodal explainability framework, which is designed to be generalizable across different ECG rhythms, while the four-class structure provides a validated and balanced foundation to demonstrate its effectiveness.Fig. 2. Examples of Lead II ECG signals from each arrhythmia class in the dataset.
Signal form
1D dimensional Lead II ECG signals from the multi-channel source data^21^ were input to the deep learning model without preprocessing. The integration of XAI requires customization of the signal form to facilitate annotability. For this purpose, the 1D Grad-CAM method was applied to input signal data of (10,588, 5000) dimensions using a 1D CNN model.
Image form
We used the Matplotlib library to convert Lead II ECG signals into 2D images. First, to enable XAI visualization, a plot of every signal data was created as a 300 × 600 figure. After plotting, graphic axes were turned off to reduce visual distractions, and marks on the x and y axes were removed to simplify the visuals, bringing the signal into focus. The results were saved as grey-scale 2D images to input into the model. Although incurring more processing power, storage and model training time costs, converting signals into image form will facilitate working with different methods, especially in the heat map generation phase.
Classifier model

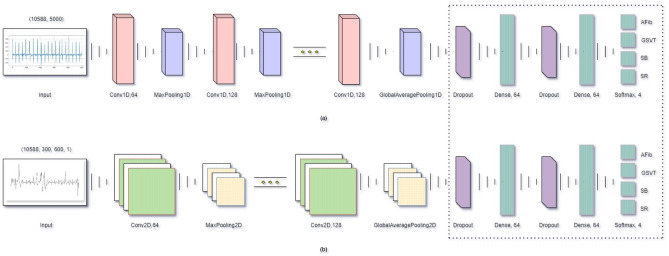

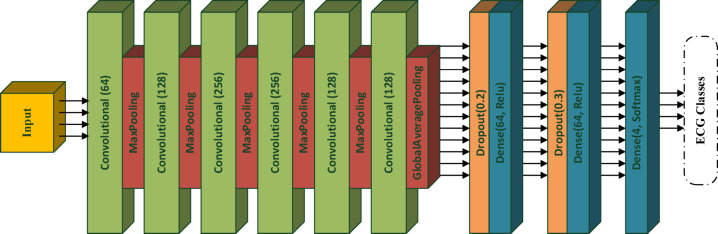

We designed a 17-layer CNN model comprising six convolutional layers with 64, 128, 256, 256, 128, 128, 128- sized filters in sequential order. Max pooling layers are added after the first to fifth convolution layers and the global average pooling layer after the sixth. These are followed by a set of dropout and dense layers, repeated and connected to the final layer, a dense layer finished with a 4-class softmax classifier (Fig. 3).Fig. 317-layer CNN-based model architecture.
This architecture was selected to balance representational capacity, computational efficiency, and generalization performance. The increasing number of filters in the early-to-mid layers enables the network to learn a hierarchical feature representation, starting with basic ECG waveform characteristics and progressing to more complex, rhythm-related patterns. The use of kernel sizes 3 and 5 in convolutional layers supports the extraction of short-range temporal dependencies, which are essential for capturing the morphology of P–QRS–T complexes. Max pooling operations with a pool size of 2 reduce temporal resolution, expand the receptive field, and prevent unnecessary parameter growth, while the GlobalAveragePooling layer significantly decreases the number of trainable parameters and provides structural regularization by summarizing each feature map into a single descriptor. The fully connected layers with 64 units, along with dropout rates of 0.2 and 0.3, were chosen to maintain a strong balance between learning capacity and robustness against overfitting. During optimization, the Adam optimizer with a learning rate of 0.0003 offered stable convergence and consistent validation performance. Overall, the architectural and training decisions were made based on empirical evaluations aimed at achieving optimal accuracy while maintaining a compact, generalizable, and computationally efficient model suitable for ECG-based arrhythmia detection.
The CNN model was tweaked to accommodate the two different input data—(10,588, 5000) sized signal and (10,588, 300, 600, 1) sized image inputs—by adapting the convolution and pooling layers while keeping the base layer architecture and the number of filters in each layer constant, while the kernel shapes differ naturally between the 1D and 2D models. Conv1D layers and 1D pooling layers were used for 1D signal inputs; Conv2D layers and 2D pooling layers, for 2D image inputs. Dropout and dense layers were identical for both inputs (Fig. 4). To maintain comparable model capacity, the number of filters in each convolutional layer was kept the same across the 1D and 2D architectures. However, the kernel shapes naturally differ between 1D (k) and 2D (k × k) filters due to the dimensional characteristics of the input data.Fig. 4. Model structure customized to 1D signal and 2D image inputs.
Explainability with GradCAM
GradCAM is a popular XAI technique that uses gradient information to calculate feature maps, facilitating visualization of model classification decisions. Applied to the final convolution layer of the target model, GradCAM generates a heat map showing the regions of concentration in the input, the densities of which allow experts to interpret the relative importance of information in the input data for the model. Many versions of GradCAM are available, but most have been applied to single data formats either 1D or 2D. We proposed MM-GradCAM, which is the first to combine the combined explainability of 1D signal and 2D image input formats.
Proposed MM-GradCAM explainability method

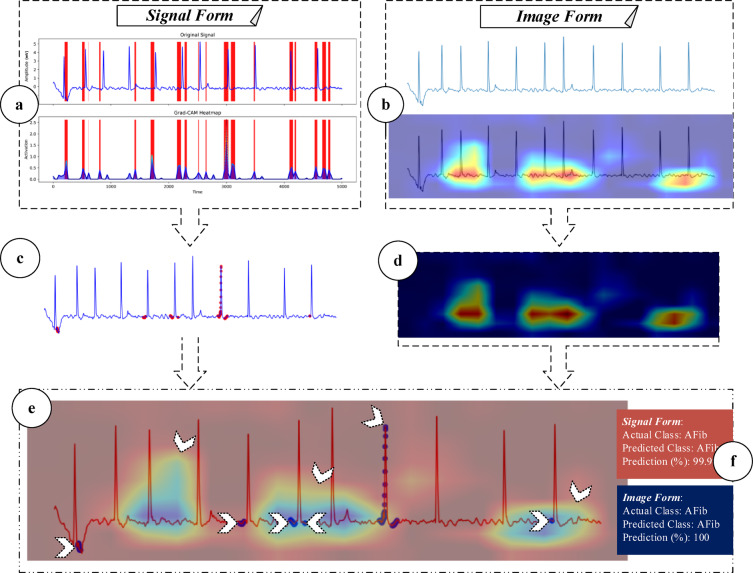

MM-GradCAM was applied in parallel to the signal- and image-based CNN models. To integrate the 1D and 2D Grad-CAM outputs, a multi-stage fusion pipeline was implemented. First, the salient regions from the 1D signal-based Grad-CAM were extracted by threshold-based segmentation. In parallel, the 2D Grad-CAM heat maps were generated and normalized. Both outputs were then temporally aligned according to the original Lead II signal timestamps and spatially co-registered. Finally, the two modalities were merged into a unified MM-GradCAM map, allowing simultaneous visualization of time-series-based and pattern-based explainability. An example illustrating this integration is provided in Fig. 5. By combining the outputs of both forms, both ECG time-series-based explainability and image-based explainability, as well as their respective classification success, could be depicted on the same image.Fig. 5. Flow diagram of the signal and image formats for the proposed MM-GradCAM method. In signal form, Grad-CAM applied to the last layer of the model generates output that highlights dense regions with red frames (a). These frames represent the dense regions taken into account by the final layer of the model and the densities of these regions are expressed with a certain value. According to a threshold value, the areas above this value are marked as red dots on the original signal (c). These heat maps are then separated from the original signal and presented in raw format (d). In image form, the Grad-CAM method applied to the images created from the raw signals generates heat maps of ECG images (b). By combining the outputs of both forms, both ECG time-series-based explainability and image-based explainability were provided on the same image (e). In addition, the softmax outputs of each sample are given together with the MM-GradCAM results and the classification success of the two forms are reported together (f).
Training and experiments
Environment
We created the CNN models in Python language using Keras and TensorFlow libraries and ran the experiments in a Google Colab environment on a personal computer equipped with AMD Ryzen 7 4800H, Radeon Graphics 2.90 GHz, and NVIDIA GeForce GTX 1660 Ti.
Database
From our used 4-class study dataset of Lead II ECGs of 10,588 subjects, approximately 10% were randomly selected to be reserved for testing (Table 1).Table 1. Patient data of the dataset.ClassesData splitTrain dataTest dataTotal dataAFib19962222218GSVT20382222260SB35003883888SR20002222222Total data9534105410,588
Training arguments
Both models in signal and image formats were run with identical compilation settings. Adam optimization algorithm was used. The learning rate was set as 3 × 10^–4^, and the loss function, “categorical_crossentropy”. With accuracy as the performance metric, the models were trained for 100 epochs and the epoch in which maximum accuracy was reached in each training process was recorded.
Testing of signal and image forms

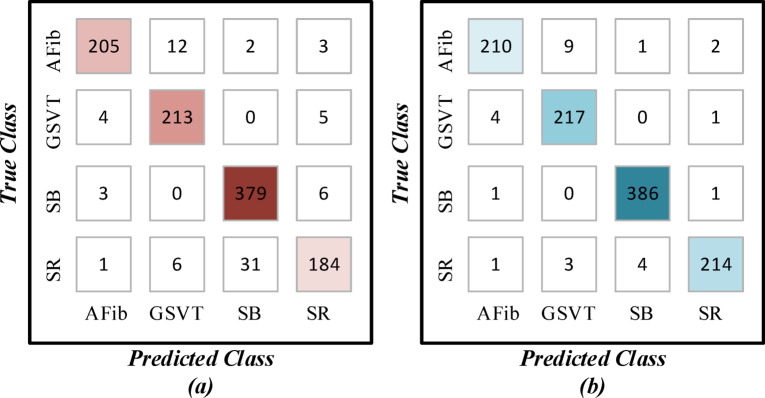

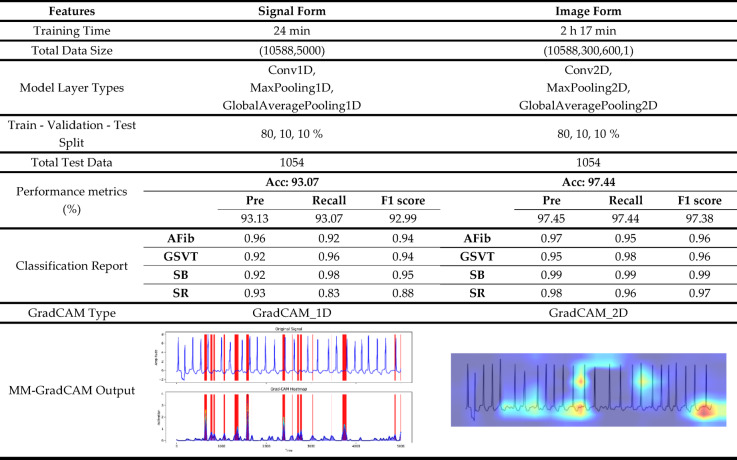

Trained models were applied in the testing phase to test the same unseen test dataset. While training the signal form during the testing phase took less time, the overall accuracy of the image form was superior compared with the signal form, 97.44% versus 93.07%. Table 2 summarizes the characteristics of the two forms and the detailed performance results. In the AFib class, both forms attained accuracy rates, albeit the image form performed better in terms of recall. In the GSVT class, the image form attained superior results across all evaluation metrics. In the SB class, the precision of the signal form was 0.92, 0.07 less than the image form. In the SR class, the signal form performed the worst across all classes, in contrast to the image form, which performed well. The confusion matrices for both forms are also given in Fig. 6.Table 2. Comparison of the test phases of signal and image forms.Fig. 6. Confusion matrix for (a) signal and (b) image forms.
Explainable results and expert assessment

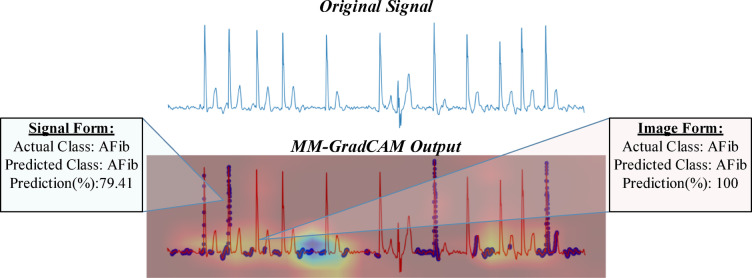

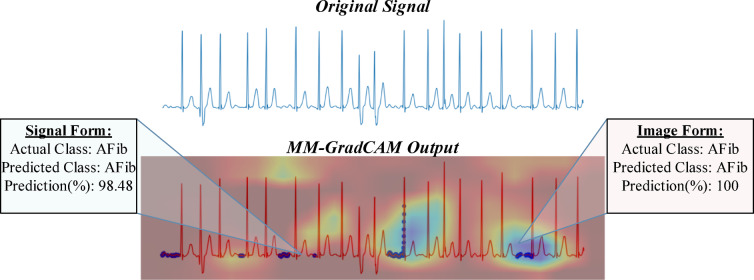

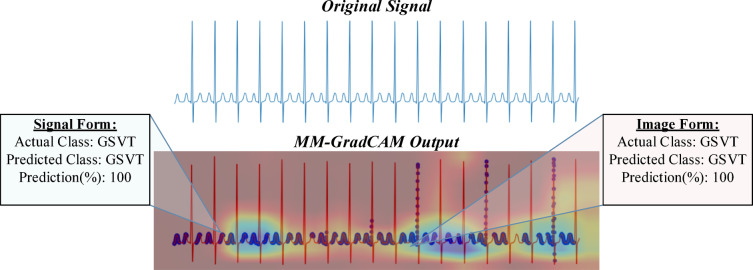

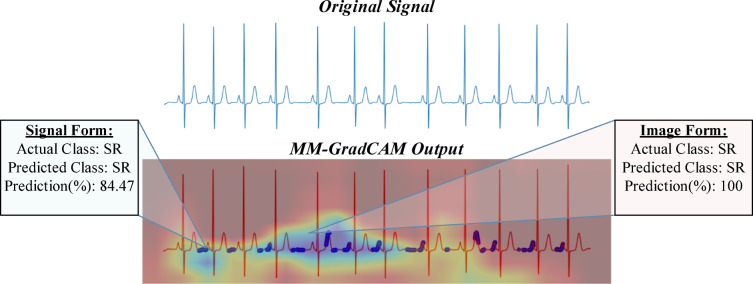

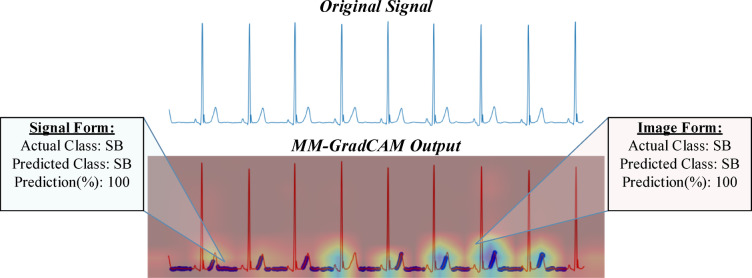

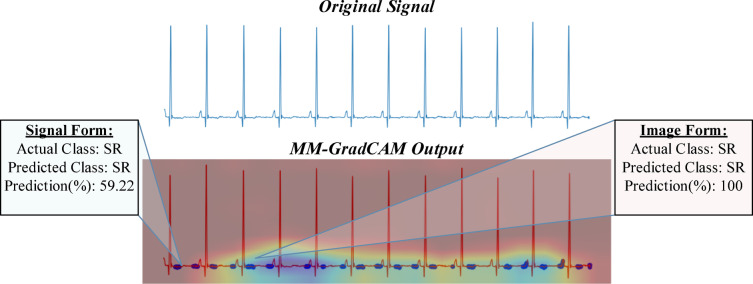

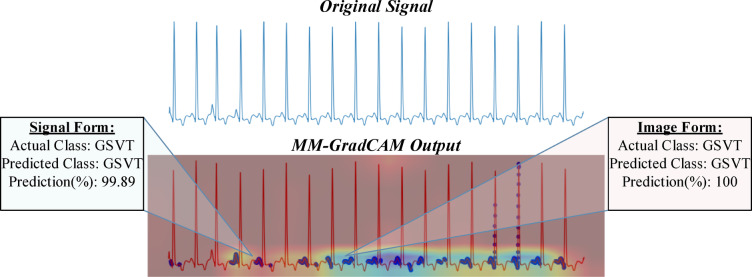

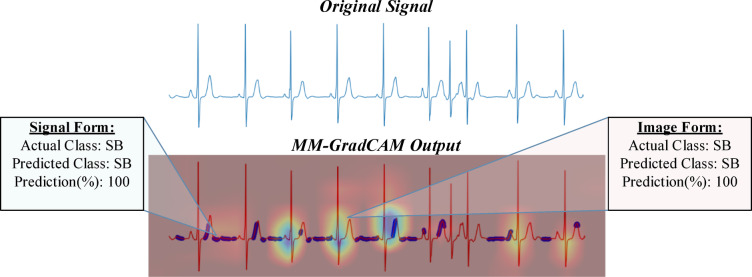

In signal form, GradCAM outputs generated based on a specified threshold value are overlayed on the original signal. In image form, the generated heat maps show regions where the model is focused. The two outputs were combined and saved as the final results of the MM-GradCAM method, which were co-registered at the individual patient level with the corresponding softmax outputs. This facilitates expert interpretation, which is important for verifying the explainability obtained in both signal and image forms of the proposed method. Examples of expert evaluation are provided in Figs. 7, 8, 9, 10, 11, 12, 13 and 14. In each of these figures, the original ECG signal, the combined MM-GradCAM output, and the prediction accuracies for the predicted class for both signal and image form models are depicted, allowing the interpreter to visualize the regions that contribute to model predictions for the example and relate this information to model performance.Fig. 7MM-GradCAM output of example Patient-1 belonging to AFib class. The regions where the signal form is focused largely correspond to the pre-systolic phases, where P waves are expected normally. The areas where the image form is concentrated are generally associated with increasing R-R intervals. At the intersection points of both forms, the absence of P waves and the relative increase in R-R intervals reinforce each other, thereby enhancing model explainability and robustness.Fig. 8MM-GradCAM output of example Patient-2 belonging to AFib class. The signal form generally focuses on a few selected R waves with high voltages. This reduced sensitivity for R waves, in general, likely led to poor model performance for AFib detection. The image form focuses on the regions between the T wave and the QRS complex, where the absence of detected P waves may suggest AFib; this resulted in a higher accuracy for AFib detection.Fig. 9MM-GradCAM output of example Patient-3 belonging to GSVT class. In an example GSVT patient, the signal form is focused on almost all P and T waves, allowing the interpreter to conclude that the pulse is regular and rapid. While useful here, not all GSVT have prominent P waves. In contrast, the image form concentrates on separate discrete areas, running counter to the generalized nature of morphological ECG manifestations associated with GSVT. Here, the behavior and output of the signal form constitute a more logical conclusion and better explainability.Fig. 10MM-GradCAM output of example Patient-4 belonging to GSVT class. In this example, unlike the previous one, T waves appear negative, while P waves are positive. In the previous example, the signal form focused on both P and T waves, whereas here, it seems to focus exclusively on P waves. This indicates that the general characteristic of the waves being focused on is their positive direction, suggesting that the focus is on waves resembling P waves. This approach is logical in terms of rhythm analysis. Additionally, in this example, it can be observed that the image form focuses along a horizontal trace, which is also a reasonable focal approach.Fig. 11MM-GradCAM output of example Patient-5 belonging to SB class. The signal form is focused consistently on the rising arms of T waves and the T-P intervals, allowing recognition of slow regular rhythm with high accuracy. The image form focuses on T-wave morphology, which also contributes to high accuracy.Fig. 12MM-GradCAM output of example Patient-6 belonging to SB class. The signal form focuses on the rising arm of some T waves and most T-P intervals. The image form focuses on QRS complexes. Both forms attain high accuracy despite the presence of atrial extrasystoles, which receive little focus. Here, atrial extrasystoles neither detract from the regions of primary focus nor affect the accuracy of both forms.Fig. 13MM-GradCAM output of example Patient-7 belonging to SR class. The ECG shows sinus arrhythmia (or sinus irregularity, which is included in the merged SR class). The signal form focuses mainly on the T-P intervals, which demonstrate irregular periodicity that probably causes the model to suffer in accuracy. The image form focuses on a relatively long segment of consecutive beats that encompasses P and QRS waves, allowing the model to learn the constant relationship between the 2 waves to make a more accurate prediction despite the mild beat-to-beat variation in heart rate.Fig. 14MM-GradCAM output of example Patient-8 belonging to SR class. The ECG shows sinus rhythm with flat and almost indistinguishable T waves. The signal form focuses on discrete T wave and pre-P wave positions, which appear similarly flat and fortuitously equidistant, rendering heart rate and rhythm class predictions inaccurate. The image form focuses on relatively longer segments containing consecutive P and QRS waves, allowing it to assess the sequence of atrial and ventricular depolarizations more reliably, thereby enhancing model accuracy.
