Anatomical and quantitative analysis of safe entry zones to the lower brainstem through the far-lateral approach
Daniel Dutra Cavalcanti, Eberval Gadelha Figueiredo, Helbert de Oliveira Manduca Palmiero, Mark C. Preul, Robert F. Spetzler
TL;DR
This study provides quantitative data on safe surgical access to the lower brainstem using the far-lateral approach, improving preoperative planning and safety.
Contribution
The study introduces a quantitative anatomical framework for the far-lateral approach to the ventrolateral medulla.
Findings
The far-lateral approach exposes an average area of 856.8 ± 139.7 mm² in the ventrolateral medulla.
Working angles toward the olivary zone were 40.8 ± 10.2° horizontally and 54.8 ± 6.8° vertically.
The vertical linear extent of exposure was 60.0 ± 6.6 mm.
Abstract
Safe entry zones (SEZs) in the medulla oblongata offer consistent anatomical corridors for accessing intrinsic lesions while minimizing damage to nuclei and tracts. Data quantifying the geometric parameters of surgical exposure to the lower brainstem are limited. This study aims to anatomically and quantitatively analyze the exposure area, working angles, and linear extent of access to the medullary SEZs via the far-lateral approach. Ten formalin-fixed human cadaveric heads were dissected using simulated operative positioning. The far-lateral approaches were performed under neuronavigation, with coordinates of seven standardized landmarks on the brainstem surface recorded. Customized software calculated exposure areas, horizontal and vertical working angles, and the vertical linear extent of exposure. The far-lateral route optimized exposure of the ventrolateral medulla and olivary…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —Universidade De São Paulo
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCerebrospinal fluid and hydrocephalus · Meningioma and schwannoma management · Spinal Dysraphism and Malformations
Introduction
The brainstem compresses a dense collection of nuclei and long tracts into a small, thumb-sized structure, so even minimal manipulation carries a risk of significant neurological complications. The medulla oblongata—the caudal part of the brainstem located between the pons and the foramen magnum—houses reticular networks crucial for cardiorespiratory control, is crossed by compact ascending and descending pathways, and is associated with seven cranial nerves at the medullary and pontomedullary levels (VI–XII). Advances in neuroimaging, microsurgical techniques, skull-base approaches, and neurophysiological monitoring have gradually increased the operability of intrinsic brainstem lesions, particularly cavernous malformations and focal gliomas. Current series report acceptable outcomes when approaches and trajectories are carefully chosen [1–4].
When lesions do not present to a pial or ependymal surface, “safe entry zones” (SEZs) guide the points and directions for parenchymal transgression through areas where eloquent nuclei/tracts and perforators are relatively sparse. At the medullary level, several classically described surface corridors (e.g., the anterolateral/pre-olivary sulcus, regions along the lateral medullary surface adjacent to lower cranial nerve rootlets, and the posterior median sulcus) have served as anatomical references for parenchymal entry. Importantly, these are conditional corridors: the selection of an entry point must be individualized based on the lesion’s pathomorphology (growth pattern, pial/ependymal presentation, displacement of tracts/nuclei, and relationship to surface landmarks) and refined using image guidance and neurophysiological monitoring [1, 2]. The choice of exposure depends on the lesion’s topography: a midline suboccipital approach provides direct views of the posterior medullary sulci, while a far-lateral route—often involving partial removal of the C1 arch and limited occipital condyle drilling—optimizes access to the ventrolateral medulla and the olivary region [2, 5, 6]. Although early evidence for specific SEZs was based on cadaveric and small clinical series, larger modern cohorts have confirmed their safety when used to reach deep lesions with careful trajectory planning and monitoring [1, 3, 4, 6].
The present study anatomically defines and quantifies the exposure to the lower brainstem achieved through the far-lateral approach, focusing on the area of exposure and the horizontal and vertical working angles to the ventrolateral medulla (olivary region). By combining qualitative anatomical description with quantitative measurements, we aim to inform preoperative planning and the choice of approach/SEZ for intramedullary medullary pathology, complementing the existing clinical literature on SEZ safety and outcomes.
Methods
This study was designed as an anatomical and quantitative cadaveric investigation of the far-lateral approach to the lower brainstem. The methodological framework and anatomical definitions were informed by established microsurgical literature on brainstem SEZs and skull base approaches. However, no formal systematic literature review or meta-analysis was conducted as part of the study design, but rather to find the anatomical foundations and microsurgical techniques of the far-lateral approach to the medulla oblongata. Following this conceptual grounding, the methodology focused on cadaveric dissection and neuronavigation-based quantitative measurements of exposure area, working angles, and vertical linear extent achieved through the far-lateral corridor.
Anatomical dissection
Anatomical dissections were conducted on 10 human cadaveric heads fixed in formalin and injected with silicone to carefully illustrate the microsurgical anatomy of the lower brainstem and the technical details of the far-lateral approach. All dissections were performed at the Barrow Neurological Institute Skull Base Laboratory (St. Joseph’s Hospital and Medical Center, Phoenix, Arizona, USA). The specimens were provided by the LifeLegacy Foundation (Tucson, Arizona, USA), processed within eight hours after death, and cryopreserved at − 80 °C in liquid nitrogen. None of the donors had any known intracranial conditions. All dissections were limited to approach-based exposure of the brainstem surface; no intrinsic parenchymal dissections of the brainstem were performed. The objective was to preserve anatomical integrity while identifying reproducible surface landmarks relevant to SEZs and quantitative exposure analysis. Anterior medullary SEZs were not included in this analysis, as they are not accessed through the far-lateral corridor and fall outside the geometric exposure evaluated in this study.
Upon arrival at the laboratory, the heads were thawed, and the carotid and vertebral arteries, as well as the internal jugular veins, were identified at the cervical sectioned surface and cannulated with silicone tubing of graded diameters, secured with cotton ties (Ethicon Inc., Somerville, NJ, USA). The vessels were flushed under pressure with a clot-removing solution and filled under pressure with red-pigmented silicone (Dow Corning Corp., MI, USA; Crayola Inc., PA, USA) mixed with Catalyst One. The internal jugular veins were filled with blue silicone to highlight the venous system.
Specimens were then immersed at room temperature in sealed containers containing a custom fixative made of 7.5% formalin, methanol, and 80% glycerol (Sigma-Aldrich, MO, USA). This preparation preserved the near-physiological consistency of the skin, muscle, meninges, and brain tissue, enabling realistic microsurgical manipulation.
Surgical simulation
Each specimen was mounted on a Mayfield head-holder in the operative position according to the planned approach and placed on a surgical table that simulates a standard operating environment. The far-lateral approach was performed on all specimens following surgical steps as in vivo (Figs. 1 and 2). Craniotomies and osteotomies were carried out using an Anspach XMax high-speed drill with various burrs (DePuy Synthes, Palm Beach Gardens, FL, USA). Microsurgical dissections were carried out under an operating microscope—Zeiss OPMI Pentero (up to 40× magnification, Carl Zeiss Meditec, Heidenheim, Germany). Each step was photographed with a Canon Rebel XS 10.1 MP digital SLR camera (Canon, Japan). Selected images were used for publication. The step-by-step progression of the far-lateral approach, from muscular dissection to dural opening and final surface exposure of the medulla and lower cranial nerves, is represented in Fig. 2, which illustrates the sequential anatomical stages used for landmark identification for the measurements. In all specimens, the far-lateral approach was standardized to include partial drilling of the posteromedial one-third of the occipital condyle, a widely accepted modification that optimizes operative freedom while preserving craniocervical stability; no paracondylar, supracondylar, or extreme lateral variants were performed.

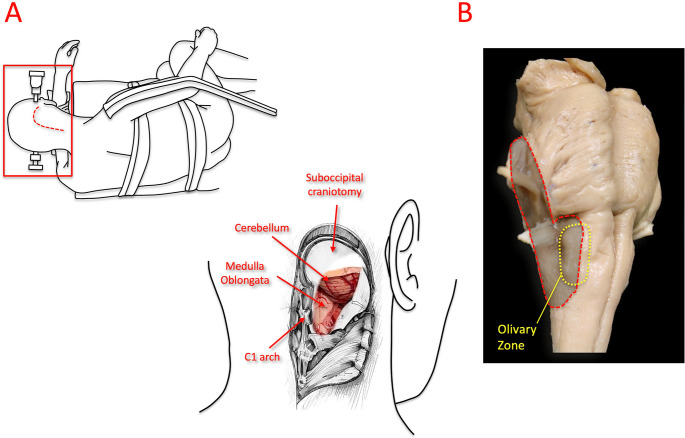

Fig. 1. Positioning and surgical exposure for the far-lateral suboccipital approach. (On Left) Simulated park-bench positioning for the far-lateral suboccipital approach, illustrating the patient’s lateral decubitus position with head fixation and the J-shaped skin incision (red dashed line). Only the head was dissected in this study; however, the operative setup was replicated to simulate clinical positioning, as shown within the red frame. A lateral suboccipital craniotomy with partial removal of the posterior arch of C1 exposes the cerebellum, medulla oblongata, and ventrolateral part of the lower brainstem through the far-lateral corridor. (Upper Right) The olivary zone is indicated as the primary anatomical landmark of this exposure, and the red dashed area marks the region of medullary exposure achieved via the far-lateral approach

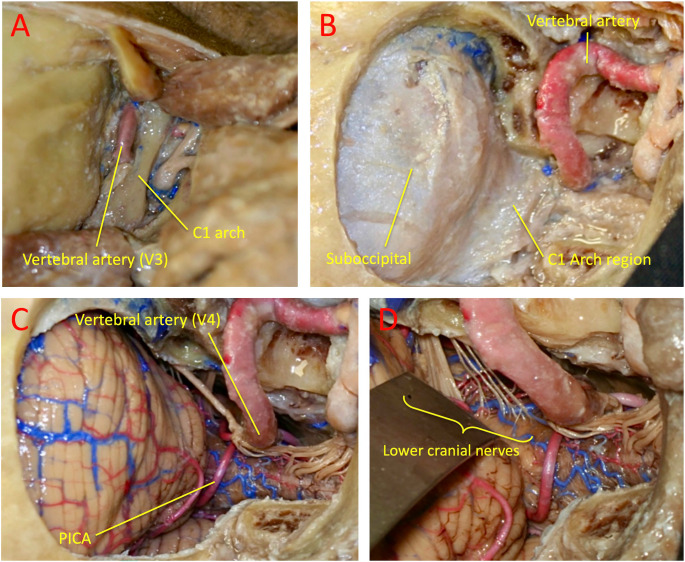

Fig. 2. Stepwise dissection and exposure in the far-lateral suboccipital approach. This approach enables assessment of the horizontal and vertical working angles to the olivary region of the medulla. After positioning in the park-bench (three-quarter prone) position, a hockey-stick, L-shaped, or S-shaped incision is performed, followed by careful muscle dissection to expose the suboccipital muscular triangle formed by the superior and inferior oblique and semispinalis capitis muscles. A: The suboccipital triangle preserves the V3 segment of the vertebral artery, which is exposed over the posterior arch of C1. B: Far-lateral suboccipital craniotomy exposes the posterior margin of the sigmoid sinus and involves partial drilling of the posteromedial third of the occipital condyle. C: Dural opening reveals the cerebellum, lower cranial nerves, V4 segment of the vertebral artery, and the posterior inferior cerebellar artery (PICA). D: Visualization of the cerebellomedullary fissure and the emergence of the lower cranial nerves (IX, X, and XI)
Quantitative measurements
Once the far-lateral approach was performed, three-dimensional (3D) coordinates were obtained using a neuronavigation system (StealthStation Treon Plus; Medtronic Navigation, Louisville, CO, USA) to identify key anatomical landmarks on the brainstem surface. The exposure area was defined by seven reproducible points: (1) the most posterior point behind the CN VII–VIII complex; (2) the most posterior point on the pons; (3) the most anterior and cranial point on the pons; (4) the most anterior and caudal point on the pons; (5) the most cranial point on the ipsilateral medulla; (6) the most caudal point on the ipsilateral medulla; and (7) the ipsilateral mirror of point 6 (Fig. 3).

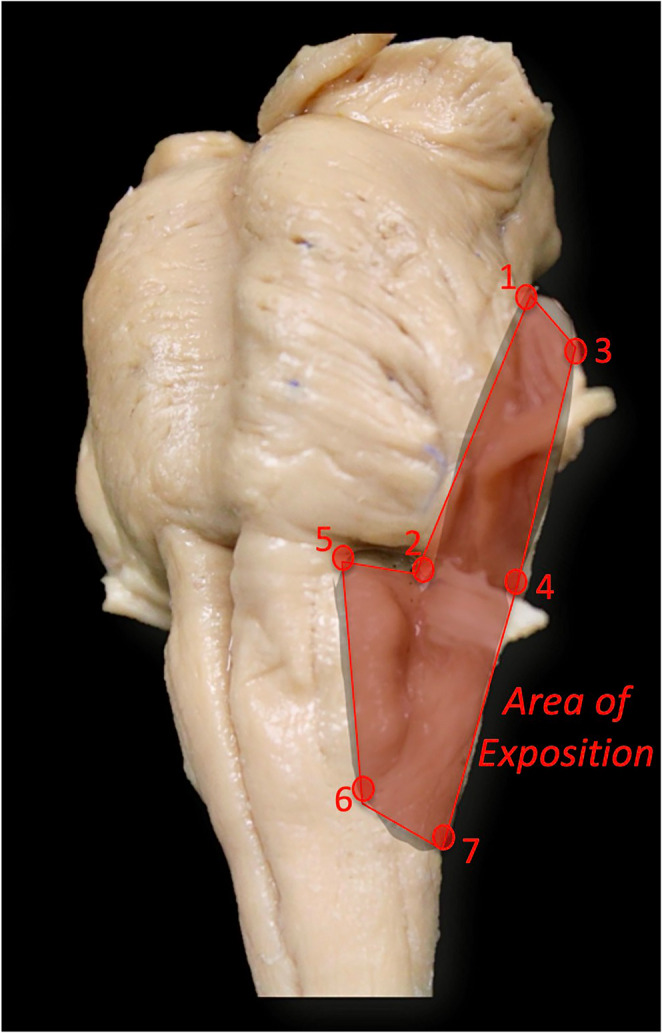

Fig. 3. Definition of the exposure area of the lower brainstem, including the pons and ventrolateral medulla*.* The following landmarks delimit the outlined region: (1) the most posterior point behind the CN VII–VIII complex; (2) the most posterior point on the pons; (3) the most anterior and cranial point on the pons; (4) the most anterior and caudal point on the pons; (5) the most cranial point on the ipsilateral medulla; (6) the most caudal point on the ipsilateral medulla; and (7) the ipsilateral mirror point to landmark 6. Landmark coordinates were obtained by direct placement of the neuronavigation probe on the exposed brainstem surface, without image-based registration, and were used to reconstruct the exposure polygon
Using these coordinates, the surgical working area was calculated with customized Microsoft Excel (Microsoft Corp., Redmond, WA) formulas that created 3D polygons projected onto a two-dimensional plane for area measurement. The horizontal and vertical working angles toward the olivary (ventrolateral medullary) zone were determined using Spherical Area Software (BitWise Ideas Inc., Fredericton, Canada), which allowed for the quantification of trajectories and linear extensions across all three spatial planes. Additionally, the vertical linear extent of exposure—defined as the maximum measurable distance along the vertical working axis from the pontomedullary junction to the caudal limit of the olive—was calculated to represent the superior-inferior reach of the far-lateral approach (Fig. 4).

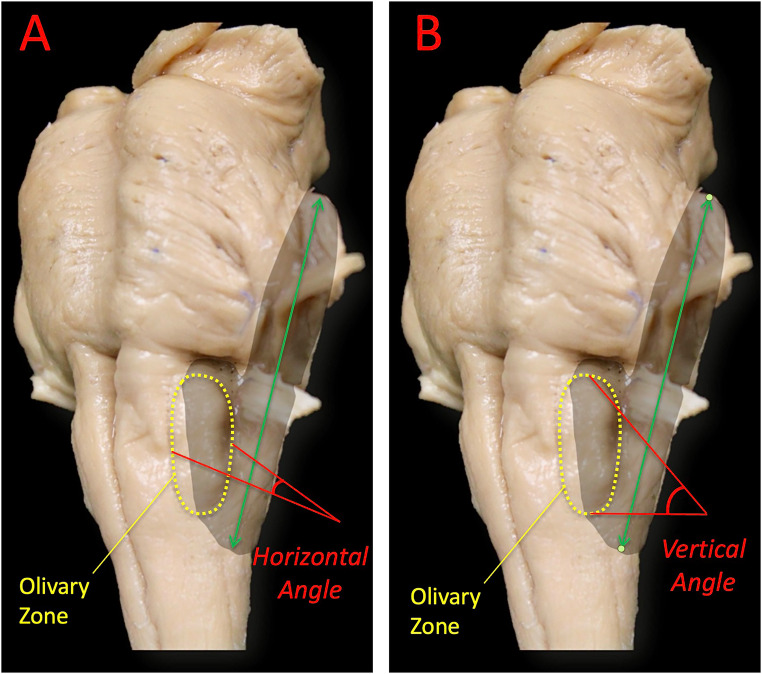

Fig. 4. Microsurgical working angles to the safe entry zone on the medullary olive*.* A: Horizontal working angle defined by the anterior-most and posterior-most limiting points on the olive, representing the optimal mediolateral trajectory for safe exposure. B: Vertical working angle projected along a line from the pontomedullary junction to the most caudal point of the olive, delineating the superior–inferior trajectory for controlled access to the ventrolateral medulla. The green arrow represents the vertical linear extent of exposure achieved through the far-lateral approach
Mean values and standard deviations for the exposure areas and angular measurements were recorded in Excel for subsequent quantitative and comparative analysis.
In this study, neuronavigation was used exclusively as a three-dimensional spatial digitization tool. No MRI or CT datasets were acquired or registered. After completion of the far-lateral exposure, the navigation probe was placed directly on predefined surface landmarks of the exposed brainstem, and the corresponding 3D coordinates were recorded to enable geometric reconstruction of the exposure area, working angles, and linear extent.
The university’s Ethics Committee approved the microsurgical cadaveric dissections. This study was based on cadaveric dissections and previously published studies and did not require informed consent from patients, as no new human or critical data were collected.
Results
Medullary safe entry zones
Based on the literature and our dissections, the principal SEZs of the medulla oblongata relevant to our approaches were the olivary region (ventrolateral medulla), which is anatomically delimited by the pre-olivary sulcus anteriorly, the post-olivary sulcus posteriorly, and the posterior median sulcus. This ‘delimitation’ describes surface anatomy for navigation and exposure mapping; the operative entry point and trajectory remain lesion-dependent (Fig. 5). These corridors were consistently identifiable and provided reproducible surface landmarks for trajectory planning to the ventrolateral and dorsal medulla, respectively [2, 9, 10].

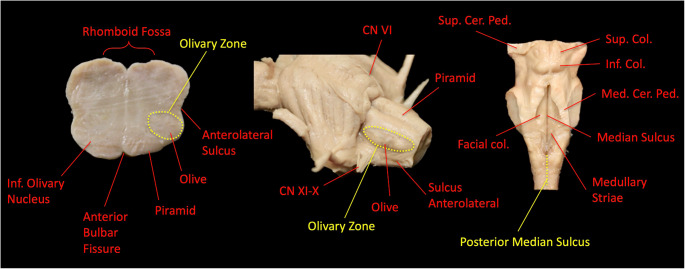

Fig. 5. Anatomical landmarks of the medulla oblongata and identification of safe entry zones. The posterior median sulcus and the olivary zone serve as safe entry pathways to the dorsal and ventrolateral medulla, respectively. The figure illustrates the inferior olivary nucleus, the olive, the anterolateral sulcus, and the bulbopontine sulcus, delineating the relationship between the rhomboid fossa, the pyramid, and surrounding structures relevant to the selection of a surgical approach
