TiFM2.0 – versatile mechanical measurement and actuation in live embryos
Ana R. Hernandez-Rodriguez, Yisha Lan, Fengtong Ji, Susannah B. P. McLaren, Joana M. N. Vidigueira, Ruoheng Li, Yixin Dai, Emily Holmes, Lauren D. Moon, Lakshmi Balasubramaniam, Fengzhu Xiong
TL;DR
TiFM2.0 is a tool that measures and manipulates mechanical forces in live embryos to study how tissues shape during development.
Contribution
TiFM2.0 introduces a double-probe system with improved precision and accessibility for mechanical experiments in embryos.
Findings
TiFM2.0 enables bidirectional mechanical experiments in embryos.
The system was used to study mechanical heterogeneities in chicken embryos.
Simplified protocols allow easier replication of TiFM systems in labs.
Abstract
During development, spatial-temporally patterned tissue-level stresses and mechanical properties create diverse tissue shapes. To understand the mechanics of small-scale embryonic tissues, precisely controlled sensors and actuators are needed. Previously, we reported a control-based approach named tissue force microscopy (TiFM1.0), which combines dynamic positioning and imaging of an inserted cantilever probe to directly measure and impose forces in early avian embryos. Here, we present an upgraded system (TiFM2.0) that uses interferometer positioning to minimise probe holder footprint, enhancing accessibility and imaging signal. This new design enables a double-probe configuration for bidirectional stretching, compression and stress propagation experiments. As proof-of-concept, we showcase a variety of examples of TiFM2.0 applications in chicken and zebrafish embryos, including the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8| Module | Component | Function and notes | Source | Part number or link | Simple TiFM |
|---|---|---|---|---|---|
| Probe head | AFM chip and probes | Inserting into sample as a cantilever | Brukers, NanoWorld, BudgetSensors, Mikromasch | MLCT-O10, ARROW-TL2, AIO-TL, TL-CONT, HQ:CS38 | x |
| Electrical piezo | Controlling chip location in the | Thorlabs | PB4NB2W | x | |
| Custom chip holder | Fitted with reflective mirrors | This study* | x | ||
| Custom piezo holder | – | This study* | x | ||
| Various connecting rods | Selected depending on the configuration | Thorlabs |
| x | |
| (Master) micromanipulator XYZ | Adjusting the overall location of probe 1 and 2 relative to the sample | World Precision Instruments | WPI M3301R | x | |
| (Secondary) micromanipulator YZ | Adjusting the location of probe 2 for alignment | Thorlabs | NF15AP25 | – | |
| Rails and support scan folds | Supporting the probe head construct and connecting to the base microscope | Thorlabs |
| x | |
| Wires and connectors | Connecting the piezo to the voltage controller | Rapid Electronics |
| x | |
| Voltage controller | Sending driving programmes to the electrical piezo, voltages are related to XC although offsets and an error margin exist | Thorlabs | MDT693B | x | |
| Base microscope | Inverted widefield and fluorescence. Axio Observer 7, 2.5/5/10/20× objectives, | Visualisation of the probes (XT) and the sample. Different magnifications are essential for adjusting probe location followed by fine alignment. | Zeiss |
| x (any inverted scope) |
| Goose neck top illumination | Providing side illumination and flexibly enhancing contrast of probe images | VWR | 631-1086 | – | |
| Camera | Depending on applications needed, such as spatial temporal resolution, camera speed and sensitivity are chosen accordingly | Ximea | MQ042RG-CM | x (any camera) | |
| Interferometer | Picoscale interferometer and breakout box | Providing precision measurement of the location of the probe holder (XC) | SmarAct | PS-CTRL-V2.0, PS-BOB-V2.0 | – |
| Sensor head F01, F04 | Working distance and angular tolerance need to be selected to balance the alignment requirement while keeping proper distance from sample and probe holders | SmarAct | PS-SH-F01, PS-SH-F04 | – | |
| Optical fibre cables | SmarAct | PS-ACC-PAT-APC-5M-APC-D | – | ||
| Scaffolds and rails | Selected depending on the configuration | Thorlabs |
| – | |
| Micromanipulator XYZ | Adjusting interferometer sensor head in XYZ | Thorlabs | XR50P | – | |
| Adjustable sensor holder | Adjusting angle of interferometer sensor heads | Thorlabs | MK05 | – | |
| Trigger signal generator, Arduino linking camera and breakout box | Enabling synchronisation of the camera (tip image, XT) and the interferometer sensor (XC) for real time stress dynamics | Rapid Electronics | 75-0999 | – | |
| Incubation | Programmable fluid pump | Providing a steady and slow water flow to maintain sample humidity | World Precision Instruments | AL-4000 | – |
| Heating insert with sensors and feedback control | Maintaining stable temperature for the sample | Warner Instruments | TC-324C, DH-35 | – | |
| Fluid tubing and glass pipette | Guiding water to the required sample area | n/a | – | – | |
| System computer | PC with >10 USB ports | Controlling all components and recording data | Dell |
| x |
| Source of error | Context of error | Magnitude | Mitigation |
|---|---|---|---|
|
| |||
| Manual probe tip identification and tracking | Probe location is identified as the pixel with the sharpest contrast gradient, at low frequencies in air and in tissues. Variability stems from differences in focal plane, insertion depth and sample thickness. | Standard error in manual tracking by an experienced user, thin tissue (e.g. pPSM, <100 µm) ±1.1 µm | Automatic tip position tracking using an algorithm reduces human errors. |
| Sample thickness or opaqueness | Imaging though thick tissue samples result in an increase of light scattering, deteriorates tip contrast and increases signal-to-noise ratio. | Standard error in thick tissues (e.g. closed neural tube, somites, >150 µm), ±2.2 µm | Use fluorescently labelled probes or surgically removing overlaying tissues can improve tip contrast. |
| High frequency movement | The resolution of high frequency probe movement is limited by the camera frame rate (up to 100 frames per second in this study). | Variable, up to ±4.8 µm | Increase imaging frequency. High frequency measurements are less relevant in tissue development contexts. |
| Lighting | Shadows/blight reflections cast by the light source can interfere with the algorithm's probe tracking. | Variable, up to ±5 pixels (3.0 µm) | Carefully ensure optimal lighting, confirm probe position manually if needed. Use the same lightening angles and intensity between control and samples. |
| Use of Epoxy-DiI or other labels on the probe | Use of Epoxy-DiI probe improves the signal-to-noise ratio and improves spatial coverage in thick tissues that obscure probe tips, such as in zebrafish early-stage embryo experiments. | Standard error (thick blastoderm and yolk) ±1.0 µm | Bright fluorescence light source and dim-light background. Sharp focus of the DiI boundary improves signal-to-noise ratio. |
|
| |||
| Voltage output | Use of the voltage controller interface results in a systematic error when setting voltage. | ±0.012 V | The addition of the interferometer provides reliable tracking of piezo position, allowing comparison across samples and removing the need to rely on voltage output. |
| Voltage to piezo movement relationship | Piezo movement when moving in 3 V intervals carry an error. In addition, the voltage-increase step size and voltage-decrease step size are different in certain ranges, data available from manufacturer. | Low voltages (<10 V): ±0.22 µm. Higher voltages (>30 V): ±3 µm | |
| Piezo drift | For long-term experiments piezo position can drift under no force or voltage input changes. | Over an hour, at 20 V drift is 5.4 µm ±3.5 µm. At 40 V drift is 30 µm (±22 µm) | |
|
| |||
| AFM cantilevers | Manufacturers report a typical force constant range. The spring constant of TL-CONT cantilevers was calculated by the manufacturer using optical measurements of length, width and thickness. | Force constant possible range. | Direct measurements of Eigen frequency and spring constant can be requested from the manufacturers. |
| Insertion depth | Insertion depth is controlled by recording the focal plane upon probe contact with the sample, and the desired focal plane. User experience and variability can affect the positioning of these planes. | Variable, up to ±4 µm | Consistent sample mounting, standard criteria for identifying features of the tissue at different depths. |
| Timing synchronisation | We record a timing delay between the interferometer and the camera. This is a hardware systems error that can be determined and corrected via calibration. | 0.6 s (±0.4 s) | The use of air controls to accurately quantify the timing delay is important for real-time force estimations. |
| Reagent | 79 Pa | 369 Pa | 1100 Pa | 3130 Pa | 5220 Pa | Source |
|---|---|---|---|---|---|---|
| 40% Acrylamide [ml] | 0.75 | 0.75 | 0.75 | 1 | 1.875 | Bio-Rad, 1610140 |
| 2% Bis-acrylamide [ml] | 0.18 | 0.3 | 0.5 | 1.125 | 0.375 | Bio-Rad, 1610142 |
| PBS [ml] | 9.005 | 8.885 | 8.75 | 7.875 | 7.685 | – |
|
| ||||||
| TEMED [µl] | 15 | 15 | 1 | 1 | 15 | Thermo Fisher Scientific, 17919 |
| 10% Ammonium persulfate [µl] | 50 | 50 | 10 | 10 | 50 | Thermo Fisher Scientific, 50-995-775 |
- —Royal Societyhttp://dx.doi.org/10.13039/501100000288
- —UK Research and Innovation
- —Engineering and Physical Sciences Research Councilhttp://dx.doi.org/10.13039/501100000266
- —Wellcome Trusthttp://dx.doi.org/10.13039/100010269
- —China Scholarship Councilhttp://dx.doi.org/10.13039/501100004543
- —Tsinghua Universityhttp://dx.doi.org/10.13039/501100004147
- —University of Cambridgehttp://dx.doi.org/10.13039/501100000735
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCellular Mechanics and Interactions · Piezoelectric Actuators and Control · Advanced Materials and Mechanics
INTRODUCTION
Multicellular organisms create tissue shapes throughout development by actively regulating mechanical forces and tissue material properties through patterned cell activities (Adams et al., 1990; Guillot and Lecuit, 2013; Mongera et al., 2019; Moon and Xiong, 2021; Stooke-Vaughan and Campàs, 2018; Sutlive et al., 2022). These mechanical factors also provide feedback to cell behaviours and genetic regulation, forming a close interplay that contributes to the robustness of morphogenesis (Chan et al., 2019; Eritano et al., 2020; Lu et al., 2024; Shyer et al., 2015; Xiong et al., 2020). Such interplays are deeply embedded in the evolution history of development and work across scales, leading to a high degree of complexity. Disentangling these complexities would require quantitative measurement and control of tissue mechanics, integrated with molecular and cellular approaches, such as -omics (van den Brink et al., 2020) and high-resolution live imaging (Xiong and Megason, 2015). These precision mechanical tools are also expected to impact engineering efforts that aim to recreate tissue and organs of functional shapes (Campàs, 2016).
Existing in vivo tissue mechanics approaches can be categorised largely by the presence or absence of direct contact with the sample. Non-contact methods include light and acoustic imaging of the sample and interpretation of the returned signal under certain assumptions, such as tissue geometry, composition and viscoelastic behaviours. The signals range from the expression and dynamics of key cytoskeleton-related molecules (Bertet et al., 2004; Chanet et al., 2017), their associated sensors (Riedl et al., 2008), cell shapes and movements (Merkel and Manning, 2017; Xiong et al., 2014), cell/tissue recoils triggered by laser ablation (Campinho et al., 2013) or optogenetics (Sampayo et al., 2023; Yamamoto et al., 2021), to scattering patterns and spectrum shifts (Dal Molin et al., 2015; Mulligan et al., 2016; Prevedel et al., 2019). These approaches offer accessibility with low-invasiveness and can cover large tissue areas. The disadvantages are that they often do not yield quantitatively definitive results as the measurements usually capture only a fraction of the factors that contribute to the tissue forces and properties, and assumptions used in data interpretation can strongly bias the conclusions. For example, while inferring junctional tension and pressure from modern high-resolution images provides a powerful way to map mechanics in 2D (Roffay et al., 2021) and recently 3D (Ichbiah et al., 2023) tissues, this method relies on assumptions such as equilibrium conditions and sheet-like or foam-like organisation of cells, which simplify yet limit the recoverable mechanical factors. On the other hand, contact methods use an inserted or injected sensor, usually with known and/or controllable mechanical properties, to directly detect its interactions with cells and tissues. An example of this kind of probe-based approach is the optical tweezer, which allows local junctional tension and cellular viscoelasticity to be directly measured (Bambardekar et al., 2015; Ferro et al., 2020). Scaling-up this principle to the tissue level, various probes have been developed and their in situ deformations and deflections along with tissue deformations directly imaged (Campàs et al., 2014; Chan et al., 2023; Dzementsei et al., 2022; Kato and Inomata, 2023; Serwane et al., 2017) or indirectly sensed (Wang et al., 2024). Whilst providing definitive measurements enabling the establishment of the regimes of forces and mechanical properties in which developing tissues operate, the results from these approaches must be interpreted carefully, considering the effective spatial-temporal resolution and scales – in particular, whether the scales are relevant to tissue morphogenesis and how the invasiveness of sensors to the local tissue environment causes mechanical artefacts. Furthermore, considerable probe design and precision engineering expertise (Chan et al., 2023; Ghosh et al., 2018; Lee et al., 2017; McLaren and Xiong, 2024; Serwane et al., 2017) is often required in developing and deploying mechanical sensors for small and soft embryonic tissues, reducing the throughput and applicability of such systems for wide use in the developmental biology community.
The prototype TiFM system (TiFM1.0) (Chan et al., 2023) is a cantilever-based measurement and actuation tool that vertically inserts a soft atomic force microscope (AFM) probe into intact, live embryonic tissues. The probe deflects under the morphogenetic forces from the tissue or imposed forces by the motorised holder. Real-time, precise measurements of the positions of the probe tip and holder allow the force to be quantified and controlled dynamically. TiFM1.0 used charged capacitors to monitor the position of the cantilever holder, which results in a large probe head that limits sample illumination. The capacitors are also sensitive to the humidity in the environment of the embryo sample, where condensations could cause discharges that affect the measurements. Another challenge associated with limited access space on top of the sample is that further modifications, such as multiplexing of the probes, are not allowed. Here, we overcome these challenges by incorporating interferometer-based positioning, greatly reducing the probe head footprint. This new design allows for improved top illumination, a stage mounted incubation chamber, and a double-arm probe holder to be added. These modifications expand the applications possible to include different types of stress loading and rheological assessment, and enhanced coverage and reliability to provide a new generation of tissue force microscopy (TiFM2.0), suitable for studying a variety of tissue mechanics questions in live embryos.
RESULTS
Design and operation of the TiFM2.0 system
TiFM2.0 (Fig. 1A) offers a modular design, using a probe head containing either 1 or 2 electrical piezos in parallel, enabling independent and fine positioning of the probes along the x-axis through a voltage controller (Fig. 1. Bi,Bii). The whole probe head is adjustable by a three-axis micromanipulator, while the second piezo has an additional two-axis (yz) micromanipulator for fine alignment of two probes relative to each other. The overall much smaller probe head construct (compared to TiFM1.0; Chan et al., 2023) can be lowered into an environmental well fitted with a controlled heating holder and a water supply micropipette, where standard glass-bottom sample dishes fit. To maximise the flexibility and range of interactions in the dual-probe setting, we designed the holder for AFM chips on an inclined surface (Fig. 1. Bii). The inner surface (between two holders) has an angle of 11.3° to the vertical plane and the outer surface has a 20° inclination to the vertical plane. This allows the distance between two AFM chips to vary between a few hundred µm on the negative (i.e. the two probes crossing each other) to >1 mm, which provides a wide operating space for different tissue sizes and functions including stretching, compressing and twisting. The mounting surface of the holder supports a mirror for the interferometer lasers to measure probe holder positions from the sides. The probes and sample are imaged from the bottom side via a wide-field fluorescent microscope with a high frame-rate camera (Fig. 1C,D). Similar to TiFM1.0, the theoretical force sensitivity limit is at the order of 10 nN, set by the resolution of probe tip tracking currently at the order of 1 µm; the softest probes we tested at the order of 0.01 N m^−1^. In practice, we detect most embryonic tissue forces between 100 nN and 10 µN (tissues yield at the higher end). The micromanipulators can be further automated for programmable probe alignments, and the microscope can be changed to a high-resolution inverted confocal microscope or a fast oblique plane light-sheet microscope (OPM) (Dunsby, 2008; Sirinakis et al., 2024) depending on the applications required.

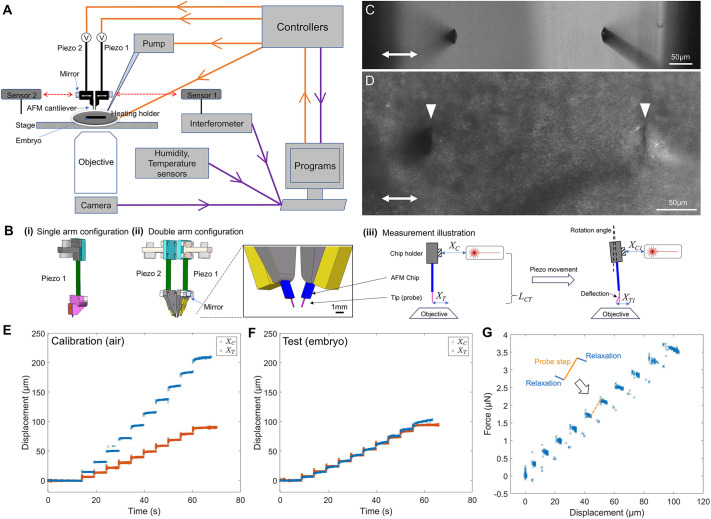

TiFM2.0 design. (A) Schematic of TiFM2.0 highlighting the design logic and main components. (B) Drawing of the single (i) and double (ii) motor probe holder. The blue probe chip and the pink cantilever probes are drawn in exaggerated sizes for illustration purpose. (iii) Illustration of measurement pipeline. LCT marks the distance in z-axis between probe tip and the interferometer target mirror. Because of the rotational nature of the piezo, xT will increase more than xC under no-load as the system moves in one direction, at a ratio given by (LCT+LP) (LP)−1, where LP is the length of the piezo. The rotational angle of the piezo is drawn in exaggerated magnitude for illustration purpose. The z-axis movement of the probe tip resulting from this small rotation is negligible. (C) Example of double probes aligned in z, microscope view in air (no samples), arrows indicate direction of probe movement. (D) Example of double probes inserted in an embryonic tissue (HH4 epiblast). Arrowheads indicate the inserted double probes. (E) Example of a force loading calibration run in air. The holder was driven to make stepwise movements detected by the interferometer (xC), the images provide tracking of the probe tip (xT). (F) Example of a force loading test run in an embryo (∼HH11, medial-to-lateral loading on the body axis), following the control in panel E. Reduced probe movements at each step compared to the trace in panel E indicate sample resistance. (G) Force estimation by comparing data in panels E and F. Stress relaxation is detected by the creep movement of the probe after each step change as a gradual reduction of measured force. See Fig. S1A-F for additional examples.
An experiment on TiFM follows a set-up sequence where probes are aligned with samples in 3D coordinates and a calibration run is performed where probe movement (xT) together with the holder (xC) without resistance is recorded by the microscope and the interferometer (Fig. 1. Biii,E). Because of the rotational movement of the piezo and the difference of heights (LCT, Fig. 1. Biii) at which xT and xC are measured depending on the specific probe holder used, xT and xC change at different rates as a function of LCT (Fig. 1E; Fig. S1A,D). Next, a measurement sequence is performed, where samples are inserted and actuated with the probe(s) under the control of a user-defined programme, producing position data tracks of the holder (xC1) and the probe inside the sample (xT1) (Fig. 1. Biii,F; Fig. S1B,E). The normal force on the probe along the x-axis at any time point is then given by F=kcos*(θ)[f(xC1)−xT1]* (Fig. 1G; Fig. S1C,F), and can be converted to stress as σ=Fw^−1^(z−z0)^−1^, where k is the spring constant, w is the width of the probes, z is the insertion depth, z0 is the upper tissue surface and θ is the insertion angle relative to the z-axis. Note that under the embedded configuration of the probe-tissue interface, the detected force/stress on the probe has multiple sources of origin (such as compressive deformation along the x-axis and shear deformation along the *y-*axis near the probe edge). Therefore, while the results are indicative of the forces and material properties of the tissue location, appropriate models (e.g. finite element models; Agero et al., 2010; Michaut et al., 2025b preprint) are needed to quantitatively interpret them together with the strain field around the probe measured by tracking markers and features from the images, to reveal mechanical heterogeneities and anisotropy of the sample (further discussed in Discussion section).
Local stretching and compression of small embryonic tissues
A key technical challenge in mechanically perturbing early embryonic tissues is to apply controlled, physiologically relevant forces and deformations. Taking advantage of the adhesion between the actuating tools and the connectiveness of epithelial tissues, recent works have allowed small tensions and shear forces to be applied in a minimally invasive manner in the avian embryo (Kunz et al., 2023; Michaut et al., 2025b preprint; Oikonomou et al., 2025). The TiFM system vertical probe-tissue interface provides the additional advantage of applying forces on bulk tissues including mesenchymal ones (Chan et al., 2023). In the example of the pre-somitic mesoderm (PSM), we performed local stretching with TiFM2.0 to compare the tissue responses in the anterior versus posterior PSM (i.e. aPSM versus pPSM), regions known to have a transition of cell state (Chal et al., 2017; Delfini et al., 2005) (mesenchymal posterior to epithelial anterior), cell density (Bénazéraf et al., 2017; Xiong et al., 2020) (low posterior to high anterior) and extracellular matrix (ECM) enrichment (Bénazéraf et al., 2010; Rifes and Thorsteinsdóttir, 2012) and distribution (Michaut et al., 2025a). A course of stepwise stretching along the anterior-posterior axis, followed by probe holding and relaxation by probe retrieval was performed in the mediolateral centres of the aPSM and pPSM (Fig. 2A; Movie 1). The tissues showed distinct responses and dynamics towards the final holding strain. In the aPSM, micro-tearing (Fig. 2A′, arrows, and Fig. 2A‴) appeared on the tissue to the inside of the probe tips, indicating tension build-up around the edges of the probes during stretching. In contrast, in the pPSM no tearing appeared (Fig. 2A″,A⁗). At both locations, an increase of neural tube wall curvature towards the PSM under stretching was observed, indicating close links between the tissues that allow transmission of forces from the transverse contraction of the PSM under stretching to the neural tube. These tissue behaviours are unchanged by the presence of the endoderm, which the probes go through from the ventral side to reach the PSM. We measured the normal strain dynamics of the tissue between the probes effectively as the distance increased between the two probes over the initial distance (Fig. 2B). After each step movement of the motors, the probes in the pPSM were found to stabilise positions more quickly compared to the probes in the aPSM, which showed a more gradual creep. This difference is particularly apparent at higher strains (Fig. 2B, arrows). Upon probe retrieval after 5 min of holding, the tissues (now tracked manually by the insertion wound sites) both started to recover from the deformation, with the aPSM shortening faster and to a larger extent over time (Fig. 2C). To quantitatively compare the mechanical differences between aPSM and pPSM, we fitted the deformation recovery phase across multiple embryos after probe retrieval using a two-term exponential model which captured the fast (1-5 s) and the slow (20-50 s) timescales (Fig. 2D). The model contained a residual strain term as a result of tissue plasticity. We found variability of maximum and residual strains across embryos, but they were consistently higher for the pPSM than the aPSM in paired measurements within one embryo (Fig. 2E,F). The slow relaxation timescale was smaller for the pPSM, suggesting a more compliant tissue (Fig. 2G,H). These simple fittings provide useful quantifications on the differences between tissue locations, but also show that simple viscoelastic models are insufficient to capture all aspects of the tissue behaviour observed (such as plasticity). Overall, these results are consistent with the expectation from recent in vitro measurement (Michaut et al., 2025a) that the aPSM is stiffer and more viscous than the pPSM in their native locations in vivo. Additionally, the deformation of tissues under the imposed forces can be analysed in terms of cell shape and arrangement changes (Fig. 2A′-A⁗). Cells can be observed to elongate along the expected tension patterns (e.g. extensive between the probes and compressive on the outer sides of the probes).

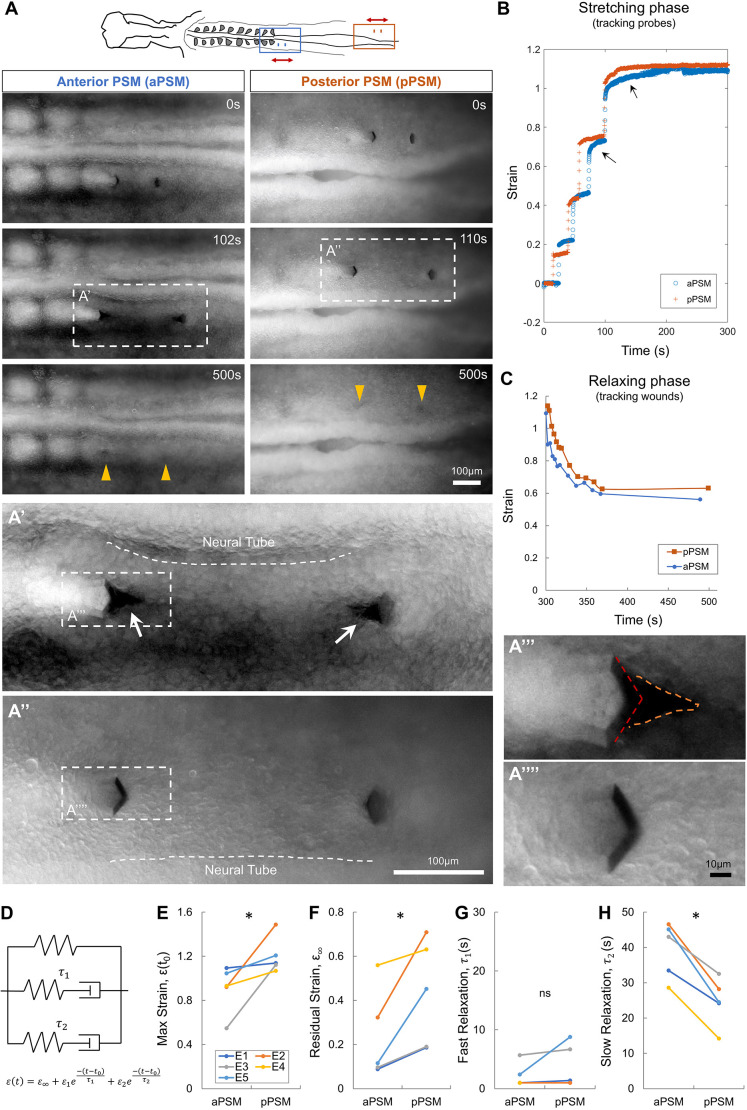

*Local double probe stretching and tissue responses. (A) Stepwise stretching along the anterior to posterior axis with two probes (k=0.2 N m−1; representative of N=5 different embryos, ∼HH11). The schematic marks the locations in the embryo tested, arrows mark direction of probe movement. Dashed line boxes correspond to zoomed-in views in panels A′ and A″. Yellow arrowheads track the probe wounds after probe retrieval. Dashed lines in A′ and A″ mark the lateral side of the neural tube. Arrows in A′ indicate the tissue tears. A‴ and A⁗ correspond to zoomed-in views showing tissue tearing in anterior and not tearing in posterior. Dashed red lines mark the probe outline, dashed orange lines mark the tearing site. See also Movie 1. (B) Strain dynamics following stepwise stretching. Tracked from the data in panel A. The tissue length between two probes at each step is compared with the original length. Arrows highlight the different creep rates between aPSM and pPSM. (C) Strain dynamics following probe retraction. The time-lapse movies continue from panel B. The probe wounds were tracked manually and the tissue length between two probes is compared with the original length. (D) Diagram of a standard linear solid model for a two-term exponential function fitted to the relaxing phase of the PSM stretching experiments. A residual strain term (ε∞) is included to account for the plastic deformation. (E) Initial/holding strain from experiment (comparing five embryos each with an aPSM and pPSM measurement, same for panels F-H). Paired one-tailed t-test; *P=0.029. (F) Residual strain (ε∞) from the model fit. Paired one-tailed t-test; *P=0.022. (G) Fast time scale (τ1) from the model fit. Paired one-tailed t-test; n.s., P=0.28. (H) Slow time scale (τ2) from the model fit. Paired one-tailed t-test; P=0.001.
To further illustrate the potential of combining TiFM2.0 with cellular resolution live imaging, we used the epiblast of HH4 Tg(CAG:memGFP) (Rozbicki et al., 2015) embryos, which allows single cells to be distinguished under the wide-field fluorescent microscope at 200× magnification (Fig. 3A; Movie 2). We performed gradual bi-directional stretching and holding of the epiblast with live imaging, followed by segmentation of the apical surface of epiblast cells using the membrane signal with Cellpose (Stringer et al., 2021) and manual correction. Cells located in the central region between the probes showed an increase in the size and aspect ratio distribution compared to cells in the nearby off-centre region (Fig. 3A-F), consistent with the region between two probes experiencing maximum tension. To examine single cell dynamics during stretching, we tracked individual cells over time. All tracked cells showed an increase in apical surface area (Fig. 3G; Fig. S1G,J; n=10/10, 8/8 and 5/5, respectively). The aspect ratio changes of individual cells were varied (Fig. 3H; Fig. S1H,K), as they depend on the angle between the initial orientation of the cell and the stretching direction. This angle indeed decreased in most cells (Fig. 3I; Fig. S1I,L; n=9/10, 8/8, 4/5, respectively) upon stretching, indicating cell orientation alignment toward the direction of tension. These results show that TiFM2.0 enables cellular dynamics analysis under mechanical perturbations of the tissue.

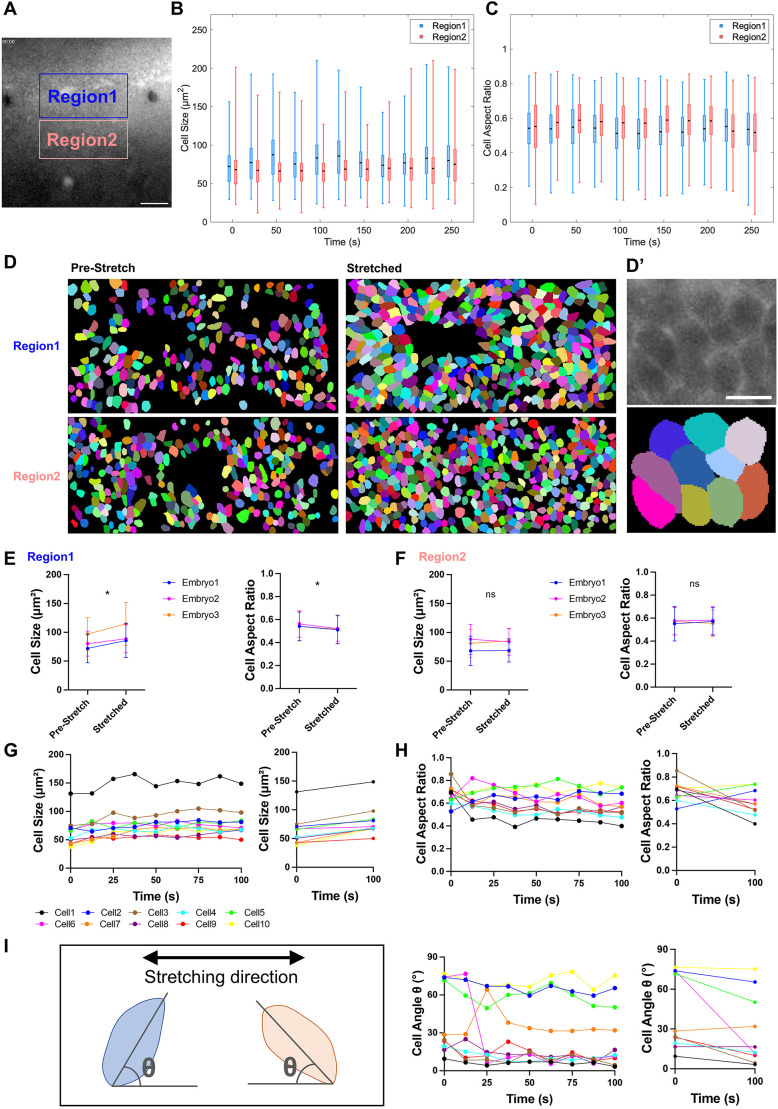

*Cell geometrical changes in response to double probe stretching. (A) HH4 mem-GFP+ anterior neural plate area was imaged through bidirectional stretching. Two regions were selected for further analysis of cell shape changes. Region 1: located on the central line between the two probes. Region 2: positioned away from central line next to Region 1. See also Movie 2. (B,C) Box plots of cell size changes in the two regions indicated in A over time. T=0 indicates the timepoint before stretching. Within each box, black line marks mean, box extends from the 25th to 75th percentiles of data, whiskers indicate the minimum and maximum values of data. (D) Representative example of cell segmentation masks in the two regions indicated in A before and after stretching. An example of zoomed-in original image and its corresponding cell segmentation mask are shown in D′. (E) Comparison of cell shape changes before and after stretching in Region 1. Left, average cell size changes in each embryo, mean±s.d., *P=0.0378 (n=3). Right, average cell aspect ratio changes, mean±s.d., P=0.0205 (n=3). Two-tailed paired t-tests. (F) Same as panel E for Region 2. Left, mean±s.d., n.s. P=0.9319 (n=3). Right, mean±s.d., n.s. P=0.8527 (n=3). Two-tailed paired t-tests. (G) Cell size changes after stretching for ten randomly selected individual cells in Region 1 of a single embryo. Left, cell size changes over time after stretching. Right, comparison of cell size changes before and after stretching. (H) Cell aspect ratio changes for the same cells in G. (I) Cell angle changes for the same cells in G. The schematic defines cell angle (θ) as the angle between the cell major axis and stretching direction. Scale bars: 100 µm (A); 10 µm (D′). See also Fig. S1G-L.
To test the capacity of TiFM2.0 to modulate key morphogenetic events, we sought to promote or undo the folding process of the epithelial neural tube (Fig. 4A). During neurulation, the neural plate bends dorsally towards closure at the midline to form the tube, driven by a combination of tissue-intrinsic and -extrinsic forces (Moon and Xiong, 2021), such as apical constriction (Nishimura et al., 2012), apoptosis (Roellig et al., 2022), ectoderm tension (Alvarez and Schoenwolf, 1992; Kunz et al., 2023) and PSM compression (Xiong et al., 2020). The probes are first calibrated through synchronised control in both compressive and expansive directions (Fig. 4B,C). After anchoring the probes on both sides of the neural fold edge, a sequence was performed to push the neural folds closer together and then to split them (Fig. 4D; Movie 3), using the same conditions as the control sequence (Fig. 4C). Comparing the probe positions in the tissue with the expected no-resistance positions from the calibration curve yields the forces at different folding states (Fig. 4E). The measured forces on the probes are at the 1-10 µN scale between overly-apposed to widely-open neural folds, providing information of the resistance to deformation of the neural plate tissue in its native environment in the folding and unfolding directions (Fig. 4F). These forces are one to two orders of magnitude higher than recently measured native forces that drive folding, such as the compressive force from the pPSM (∼100 nN) measured by TiFM1.0 (Chan et al., 2023) and the net compressive forces inside the anterior neural folds (∼100 nN) measured by an iMeSH cylinder (Maniou et al., 2024), which drive comparatively much slower tissue deformation (order of 1 h as compared to ∼10 s here) during normal morphogenesis of the neural tube.

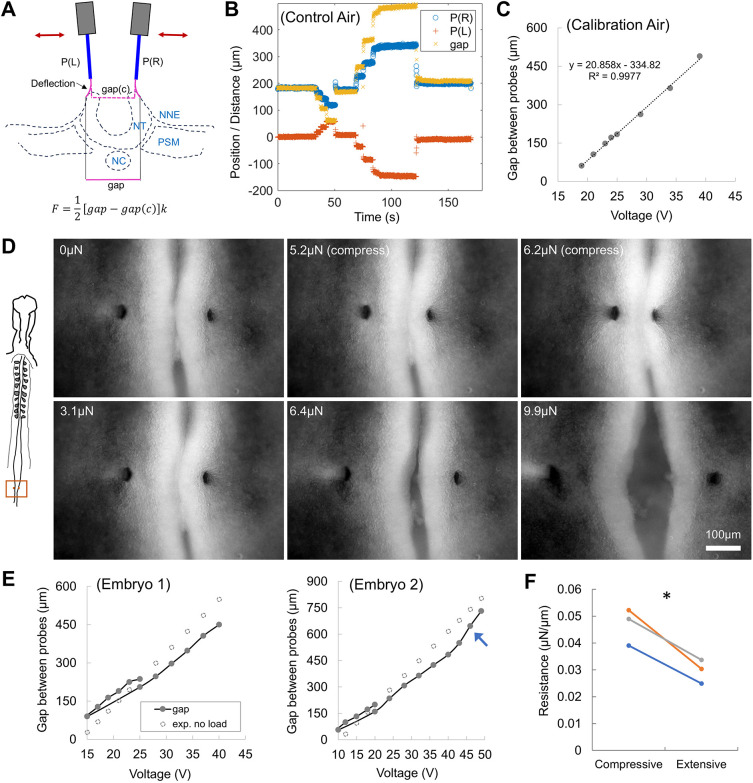

*Compression and pulling of the neural folds. (A) Diagram representing experimental design. P(L) and P(R) are the synchronised left and right probes. Gap(c) is the gap between two probes in control/no-resistance condition, compared to the experimental Gap for force measurement. NC, notochord; NNE, non-neural ectoderm; NT, neural tube; PSM, presomitic mesoderm. (B) Double probe tracks from a control time-lapse movie. (C) Calibration of probe gaps with the driving programme to establish the no-force gap curve. (D) Images of the compressed and pulled neural folds under the driving programme. Representative sample from N=4 embryos, ∼HH11. The parallel bright tissues in the middle are the two neural folds. Forces labelled (in µN) represent force exerted on the probes (k=0.2 N m−1) by the neural folds during compression and pulling. See also Movie 3. (E) Probe gaps over the course of the perturbation for two representative embryos. Black line links the steps, starting from 25 V. A roughly linear resistance increase is seen in both folding and unfolding directions. Arrow marks tissue yielding when the force exceeds the elastic regime. (F) Tissue resistance fitted from the force-displacement relationship. The neural tube shows more per unit displacement resistance in the folding direction compared with the unfolding direction. Paired two-tailed t-test, P=0.019.
Using TiFM2.0 we can analyse the heterogeneity of tissue mechanical properties spatially, for example by pulling or compressing the posterior body axis and following its subsequent relaxation (Lu et al., 2024). When driving the probe from posterior to anterior (A-P), we observed higher levels of tissue compression occurring near the probe (close), whilst tissues further anterior (far) showed a decreased amount of deformation (Fig. 5A,E). This is in contrast to driving the probe laterally from left to right (Lateral), where both close (the probe side) and far (the contralateral side) tissue regions showed similar and smaller compression (Fig. 5B,E). Upon probe retrieval after a 5-min holding period, the posteriorly compressed tissues close to the probe partly recovered but retained a significant amount of deformation, in contrast to the tissue far from the probe, which recovered a larger fraction (Fig. 5C-F). In comparison, in the lateral compression, both close and far tissue regions showed recovery (Fig. 5C-F). Despite the difference of the extent of recovery, the timescales were similar (Fig. 5G). These results show that the developing body axis is deformable along the anterior-posterior axis while resistant along the medial-lateral axis. This pattern favours tissue elongation in a bilaterally symmetrical manner. To test this mechanical pattern further in a developmentally relevant timescale, we performed the lateral bending on a cultured embryo using a notochord-anchored probe and held the deformation for 1 h (Fig. 5H; Movie 4). Unlike the 1-min control that elastically restored most of the initial tissue shape, the 1-h embryos exhibited a slow creep (several µm over the hour) during holding and showed significant residual deformations (∼50 µm) after probe retraction (Fig. 5H,I). This is far less than the extra elongation along the anterior-posterior axis achievable by a 1-h pulling (∼150 µm) under a similar force in our previous study (Chan et al., 2023). These findings suggest that the body axis is less deformable along the medial-lateral direction at longer, developmentally relevant timescales as well.

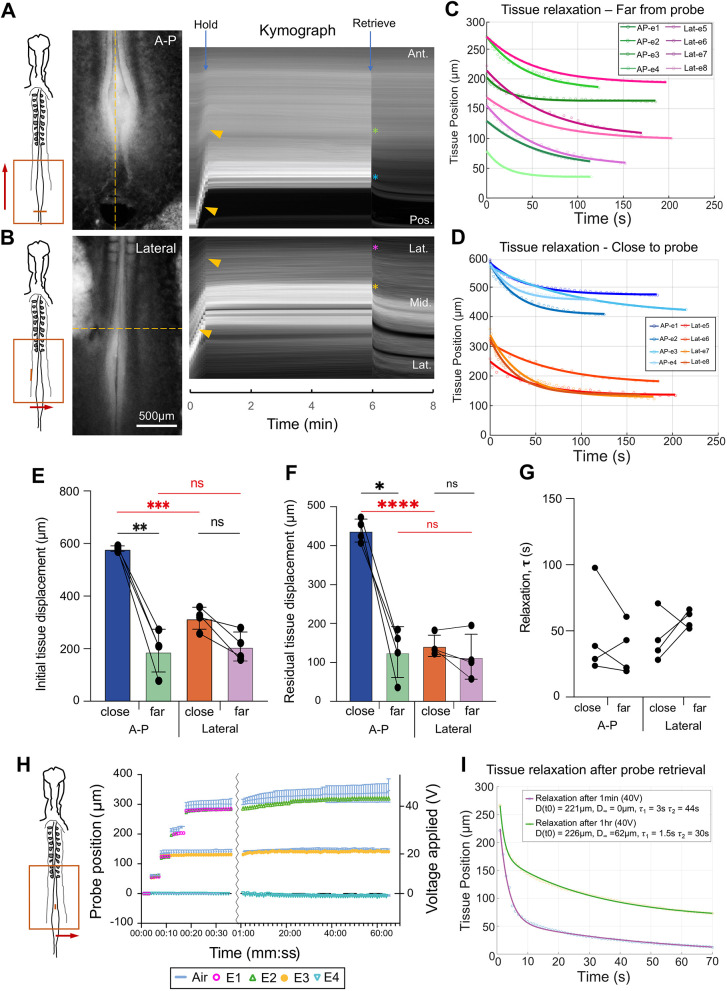

*Mechanical anisotropy of anteroposterior and mediolateral axes. (A,B) Posterior body axis anteroposterior (A) and mediolateral (B) compression using an aluminium foil probe (∼400 µm wide) on ∼HH10 embryos. The probe was inserted just posterior to the neural tube and moved in the anterior direction ∼600 µm (A) or inserted at the PSM-lateral plate mesoderm (LPM) border and moved ∼400 µm towards the midline (B). The yellow lines indicate the axes used for kymograph plotting (shown on the right). The kymograph is labelled with the points at which the maximum compression was achieved (Hold) and when the probe was retrieved (Retrieve), ∼5 min 30 s later. Arrowheads in each image compare the extent of deformation under the probe at different distances from the probe, where A shows more drop of slope between bottom and top arrowheads compared to B. Asterisks compare the extent of recoil close and far from the probe. (C,D) Position of tissues tracked following probe retrieval after holding compression in anteroposterior (A-P) and lateral (Lat) directions. One term exponential decay with a residual term (line) was fitted to the deformation tracks (dots). Tracks of tissue far (C) and close (D) to probe are compared. (E-G) Maximum tissue displacement before retrieval (E), fitted residual tissue displacement (F) and relaxation timescale (τ) after compression and hold for ∼5 min (G) in A-P and lateral compressions, close and far from the probe. Mean±s.d. In black, two-tailed paired ANOVA; **P=0.0069 (E) *P=0.0137 (F). In red, two-tailed Welch's t-test; ***P=0.0007 (E) ***P≤0.0001 (n=4) (F). ns, not significant. (H) Mediolateral compression using a notochord anchored probe (∼50 µm wide) in ∼HH11 embryos. Air controls show normal probe movement (n=20, mean±s.d). E1 shows compression for ∼1 min. E2 shows 40 V of compression for 1 h. E3 shows 20 V compression for 1 h. E4 shows no compression for 1 h. Embryo resists probe movement. During compression, images taken at 1 s interval. During holding, images taken at 1 min interval. Also see Movie 4. (I) Tissue relaxation of E1 (after 1 min of compression) versus E2 (after 1 h of compression). Curves obtained from fitting a two-term exponential function with a residual displacement to the tracks. D(t0) maximum tissue displacement, D∞ residual tissue displacement, fast (τ1) and slow (τ2) tissue relaxation estimation. The difference in D∞ indicates plastic deformation in longer-term.
Dynamic mechanical measurements
In addition to imposing forces and deformations, TiFM2.0 also enables a variety of dynamic mechanical measurements. For tissue forces, in addition to previously reported single-direction stalling stress measurement (Chan et al., 2023), the second parallel probe allows pinning and clamping of tissues that are not normally held down by other structures. In the example of the early blood vessels, which lay elevated on the ventral side of the embryo above the yolk sac, the probes were used to clamp the vessel in place and measure blood pressure (Fig. 6A-D). The heartbeats were unaffected by the presence or engagement of the probes (Fig. 6E). The rhythmic change of blood pressure was absorbed by the expansion of the vessel and was not detectable while the probes were not clamping onto the vessel (Fig. 6C,F). During clamping, the probe tip was observed to move with the vessel wall. The peak-valley difference varied between 5-10 µm, which provided an estimate of pressure differential at 23±4 Pa (n=3, probe force constant k=0.03 N m^−1^, and the contact area A=10^−8^ m^2^).

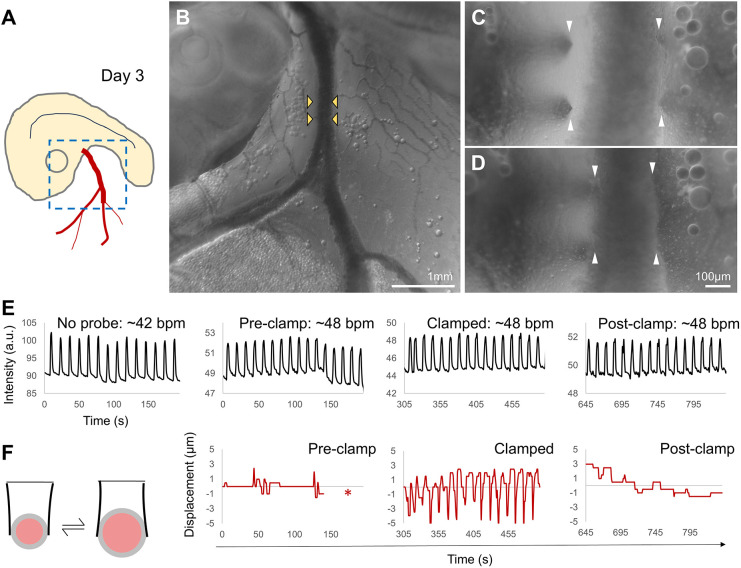

Blood pressure in the embryonic artery. (A) Diagram of a day-3 embryo showing the imaged region and the right omphalomesenteric artery leading off the body. (B) Zoomed out image of the region and the artery. Yellow arrowheads mark the insertion points of the double-pronged probes on both sides of the artery. (C) Probes pre-clamp. The right-side probes are in contact with the artery wall. (D) Probes clamping the artery after the left-side probes are moved to engage. (E) Monitored heart rate of the embryo through the experiment. (F) Diagram and measurement of probe movement. Heartbeats send a surge of blood flow through the artery and expand the vessel, generating a transient pressure on the probes. Asterisk in the Pre-clamp plot marks the time period when the probes are being moved with no displacement measurements.
TiFM2.0 also enables in situ probing of tissue mechanical properties, taking advantage of accurate dynamic positioning and sensitive soft probes. The concept is that a small local motion of the probe tip inside the tissue is locally resisted and also its propagation is gradually dissipated from the source (Fig. 7A). The dynamics of these deformation signals encode the viscoelastic properties of the tissue location. To test this capacity, we inserted the probes into water and a series of poly-isobutylene in hexadecane solutions (PIB, a reference viscoelastic fluid) of increasing storage modulus (Fig. S2A-C). The sending probe was then driven to oscillate using a sine function with a given maximum voltage and frequency while the tip was tracked (Fig. 7A-C). Measuring the amplitudes of xT in both sending and receiving probes, we resolved differences in the range of 300-3000 Pa in storage modulus of the PIB (Fig. 7. Bii), a key range that spans the expected values of embryonic tissues as measured by methods introducing larger deformations (Marrese et al., 2020). At lower frequencies, we increased the measurement sensitivity to the 100 Pa range; however, this sensitivity was lost at higher frequencies (Fig. 7. Cii). To further assess the information in the mechanical signal, we fitted xT to a sinusoidal function and aligned the interferometer signals to the same time axis, allowing phase differences of probe movement between samples to be observed. For example, the probe showed a smaller amplitude and more phase shift in 18.5% PIB compared to water (Fig. S2D), indicating stronger viscoelastic resistance to probe movement in PIB. To test this in epithelial-tissue-like solids, we compared the amplitude of oscillation between PBS and a series of hydrogels of increasing stiffness at two different depths that are representative of experimental conditions in embryos (Fig. 7D; Fig. S2B; Movie 5). Overall, we observed lower amplitudes as stiffness increased in a quantitative relationship that would allow differences in amplitudes to be related back to differences in the material properties of the samples. Probes with lower force constants (e.g. k=0.03 N m^−1^) can be used for samples at the softer ranges. Of note, at deeper insertions in stiffer gels, the oscillation of the probe tip was antiphase to the imposed sinewave motor motion and was represented as negative, due to the strong resistance bending the probe at a higher z-axis point. Together, these data show that TiFM2.0 can sensitively resolve the mechanical differences of viscoelastic materials in comparable ranges of the embryonic tissues. However, it is important to note that embryonic tissues in their native environment are small and anisotropic, connecting with other tissues through ECM links. The mechanical property and xT relationships established in the homogenous control materials above cannot be directly used as calibration to estimate values at the tissue location. Extensive mapping using TiFM2.0 in conjunction with proper multi-tissue models are required to quantitatively solve tissue mechanical properties of intact embryos (further discussed in Discussion section).

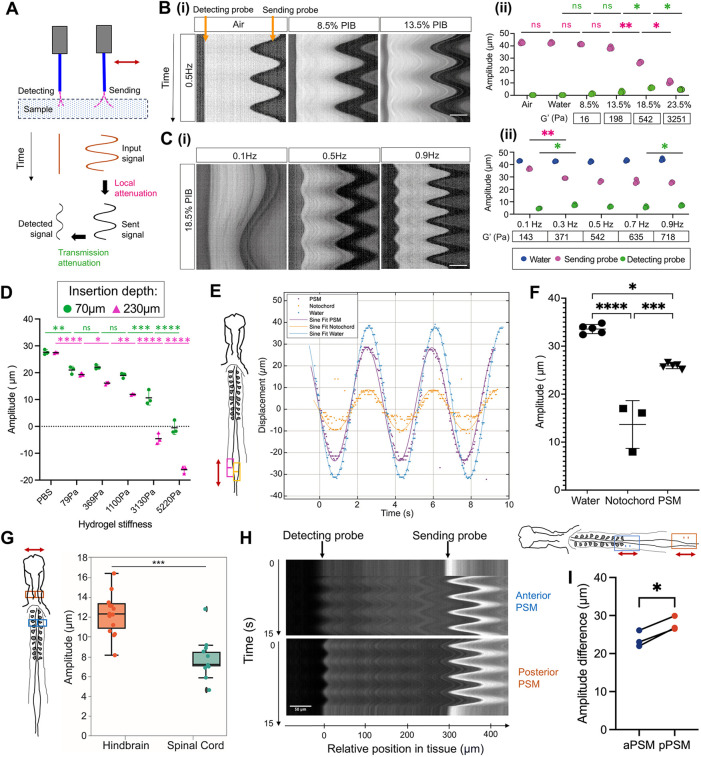

*Tissue mechanical evaluation with oscillatory probe movements. (A) Diagram of oscillatory motion used to assess the mechanical properties from the displacement response. The input signal is attenuated by tissue resistance at the origin as well as through transmission. The spatial-temporal dynamics of the signal (e.g. magnitude and phase) encode viscoelastic information of the tissue location. (Bi,Ci) Representative kymographs showing sending and detecting probe movement. Scale bars: 50 µm. (Bii) Amplitude of sending and detecting probes (k=0.5 N m−1) in different PIB concentrations. Input signal: 10 V, 0.5 Hz sinewave frequency. Probe insertion depth 70 µm (±20 µm). Tukey's multiple comparison test (n=3). Sending probe: 13.5% versus 18.5%, **P=0.0032; 18.5% versus 23.5%, *P=0.0162. Detecting probe: 13.5% versus 18.5%, *P=0.0290; 18.5% versus 23.5%, *P=0.0379. (Cii) Amplitude of water, sending and detecting probes (k=0.5 N m−1) in 18.5% PIB at different frequencies. Input signal: 10 V. Tukey's multiple comparison test (n=3). Sending probe: 0.1 Hz versus 0.3 Hz, **P=0.0087. Detecting probe: 0.1 Hz versus 0.3 Hz, *P=0.0442; 0.7 Hz versus 0.9 Hz, *P=0.0288. G′ values of PIB samples were measured using a rheometer. See also Fig. S2C. (D) Amplitude of probe (k=0.2 N m−1) differences for PBS and hydrogels of varying stiffness. Input signal: 10 V, 0.5 Hz. Insertion depths: circle 70 µm and triangle 230 µm. Negative amplitude is defined as tip movement in the opposite direction of the driving motor. Black line marks mean±s.d. Two-tailed Tukey's multiple comparison test (n=3). At 70 µm: ns 79 Pa versus 369 Pa, P=0.9685; ns 369 Pa versus 1100 Pa, P=0.3101; **P=0.0051; ***P=0.0008; ****P<0.0001. At 230 µm: *P=0.0258; **P=0.0037; ****P<0.0001. See also Movie 5. (E) Representative example of probe tip position tracking (marked by dots) and sine fitting (marked by line) across Water, PSM and notochord measurements (HH9-10 embryos). Sine fitting over n=2.5 periods. See also Movie 6. (F) Amplitude differences between Water (n=5), Notochord (n=3) and PSM (n=5) in HH9-10 embryos. Probe force constant k=0.2 N m−1, 10 V, 0.5 Hz. Mean±s.d shown. Tissue insertion depth=70 µm. Two-tailed Tukey's multiple comparison test: *P=0.0152, ***P=0.0007, ****P<0.0001. (G) Amplitude of probe (k=0.02 N m−1) movement driven at 0.2 Hz and 5 V in the hindbrain (n=14) and spinal cord (n=10) of HH11-12 chicken embryos. Mann–Whitney U-test, ***P<0.001. Box plots show median line and the first and third quartiles (box bounds), whiskers show 1.5× interquartile range. (H) Kymographs representing double probe movement tracks for anterior (aPSM) and posterior (pPSM) locations. Representative of N=3 samples, HH10 embryos. Sending and detecting probe amplitude tracked by high contrast lines. k=0.03 N m−1, 10 V, 0.5 Hz. Scale bar: 50 µm. See also Movie 7. (I) Amplitude difference between sending and detecting probes in anterior PSM (aPSM) and posterior PSM (pPSM). A smaller amplitude difference shows the detecting probe oscillates more in response to the sending probe, suggesting the tissue is stiffer. A large amplitude difference indicates the detecting probe does not respond to the imposed oscillation from the sending probe, suggesting a softer tissue. Two-tailed paired t-test; P=0.0176, n=3.
Nonetheless, TiFM2.0 is readily available to assess developmentally-important mechanical property patterns in vivo and in situ. Using the oscillatory input as described above, we tested distinct chicken embryo body axis tissues following the parameters of Fig. 7D. The notochord showed a strong restriction on probe movement, whereas PSM was much less resistant (Fig. 7E,F; Movie 6). In the dorsal neural tube, the hindbrain showed less resistance to probe movement compared with the spinal cord (Fig. 7G). These results are consistent with previous studies assessing the deformability of these tissues using other methods (Marrese et al., 2019; McLaren et al., 2025). However, it should be noted that keeping track of the spatial range of tissue deformation by the probe is important for the interpretation of these results. For solid tissues, the resistance to probe movement measured could indicate the neighbouring tissue connections and boundaries rather than local properties around the probe, which can be much stronger. Using the second probe helps to provide a defined spatial range. We tested this in the PSM where small mechanical differences between the anterior and posterior exist, as shown by stretching experiments (Fig. 2B-H). Indeed, the mechanical wave propagated with a smaller magnitude loss in the aPSM compared with the pPSM, indicating that aPSM is more solid-like while pPSM is more liquid-like relatively (Fig. 7H,I; Movie 7). These results are consistent with the reported cell and ECM organisation of the PSM along the anterior-to-posterior axis (Bénazéraf et al., 2010; Michaut et al., 2025a), and recent magnetic-droplet-based rheological measurements in the zebrafish PSM (Mongera et al., 2018), showing conservation of the PSM mechanical property gradient among vertebrates despite distinct tissue sizes and ECM organisations. Assuming local homogeneity similar to control materials near the probe, we estimated the notochord and anterior neural tube stiffness to be in the 1-3 kPa range, whereas the pPSM was in the 0.1-0.4 kPa range. At 0.5 Hz, the storage modulus of the PSM tissue was ∼300 Pa, and shows a small but consistent difference between the aPSM and pPSM. Together, our results demonstrate the capacity of TiFM2.0 for direct in vivo, in situ tissue mechanical property assessment.
To expand the capacity of TiFM2.0 beyond the thin, flat avian early embryo tissues, we extended the back end of the probe with a DiI bead (Fig. 8A), which provides high-contrast fluorescent signal and additional spatial coverage when the probe front becomes obscured by thicker or less transparent tissues. Using zebrafish blastula-stage embryos, which have a spherical geometry with the yolk and consequently form a thick tissue to image from the side, we tapped the trailing probe on the animal pole tissue, using fish medium and a later somitogenesis-stage embryo as controls (Fig. 8B,C; Movie 8). Shortly after probe contact with the animal pole, the front became obscured by the tissue and could no longer be tracked, but the extended dye was clearly trackable (Fig. 8C). This allowed an accurate determination of the animal pole blastoderm deformation to the probe (Fig. 8D-F), which suggests that it is softer than the dorsal tissue of the later-stage embryo, as evidenced by the consistently larger probe displacements observed at each loaded voltage (10 V, 30 V and 50 V). These experiments show the feasibility of TiFM2.0 for side measurements of thicker tissues and a different model organism following probe modifications.

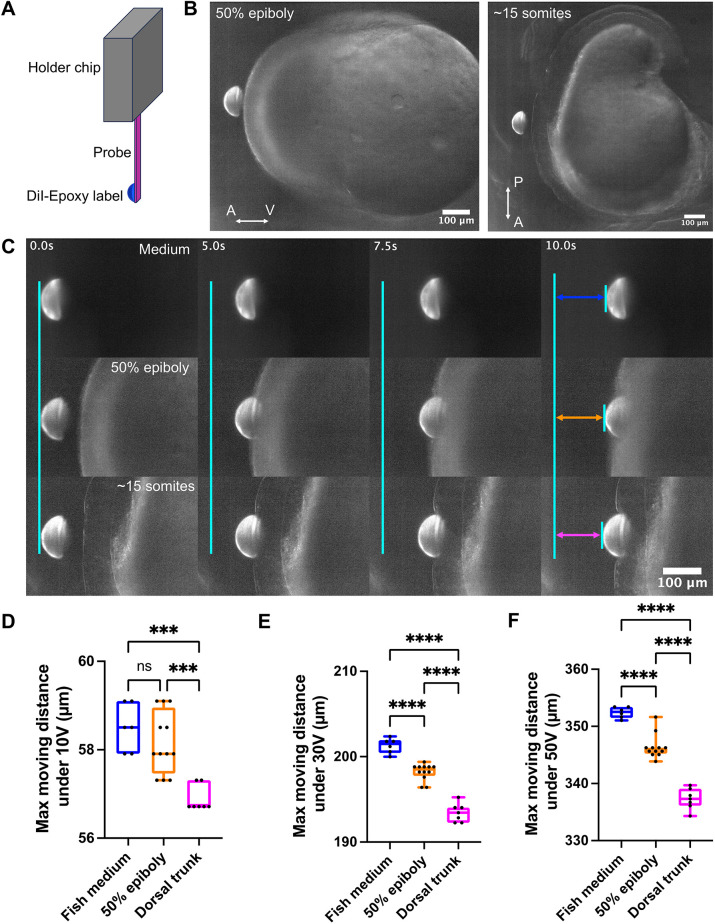

*Tracking modified probe in thick tissues in zebrafish embryos. (A) Diagram of the probe with a DiI-Epoxy label. (B) Example images of the labelled probe and the sample embryo. The animal pole at 50% epiboly (left) and the dorsal trunk during somitogenesis (right). Movies are taken with red fluorescence and a low level of background light to visualise the embryo tissues. A-V axis indicates animal-vegetal; P-A axis indicates posterior-anterior. (C) Imaging of the probe movement when pushing different tissues under the voltage load on the probe of 20 V, 0.1 Hz and Ramp function (linear movement of the motor). Fish medium (1st row), animal pole at 50% epiboly (2nd row) and dorsal trunk at ∼15 somite stage (3rd row) are shown here as representative examples. Images show the probe position at the beginning of loading the voltage (1st column), starting to touch the tissue edges (2nd column), continuing to push the tissues (3rd column) and the final position when the maximum voltage is reached (4th column). The blue, orange, and magenta arrows indicate the maximum moving distance of the probe under pushing in fish medium, epiboly and dorsal trunk, respectively. See also Movie 8. (D) Resistance comparison (shown by maximum moving distance of the probe, tracked by the bright edge kymograph of the backend of the probe, same as panel E and F) of fish medium, animal pole at 50% epiboly and dorsal trunk at 10 V maximum displacements. Ordinary one-way ANOVA multiple comparison test. Fish medium (n=6) versus 50% epiboly (n=12), n.s=0.4581; fish medium (n=6) versus dorsal trunk (n=7), ***P=0.0001; 50% epiboly (n=12) versus dorsal trunk (n=7), ***P=0.0003. (E) Resistance comparison of 30 V maximum displacements in the same embryos shown in D. Ordinary one-way ANOVA multiple comparison test, ****P<0.0001. (F) Resistance comparison of 50 V maximum displacements in the same embryos shown in D. Ordinary one-way ANOVA multiple comparison test, ***P<0.0001.
