Enhanced Pyroelectric Response of Lithium Niobate Crystals for Infrared Detection Applications

TL;DR

Researchers improved lithium niobate crystals to make more efficient infrared detectors by boosting their pyroelectric response.

Contribution

A new method for enhancing the pyroelectric coefficient of lithium niobate crystals through reduction annealing treatment was developed.

Findings

The pyroelectric coefficient of lithium niobate crystals was increased to 3.362 × 10−4 C/m2K.

Voltage responsivity and detectivity figures of merit improved more than three-fold at room temperature.

Detectors made from treated crystals showed 2.8 times higher response voltage than commercial PZT detectors.

Abstract

What are the main findings?
The figures of merit of lithium niobate crystals were enhanced approximately four-fold at room temperature.The response voltage of a pyroelectric infrared detector was increased eight-fold, making it suitable for practical applications.

The figures of merit of lithium niobate crystals were enhanced approximately four-fold at room temperature.

The response voltage of a pyroelectric infrared detector was increased eight-fold, making it suitable for practical applications.

What are the implications of the main findings?
A simple and efficient method for significantly enhancing the pyroelectric coefficient of lithium niobate crystals was devised.The method provides an environmentally friendly pyroelectric material with excellent performance.

A simple and efficient method for significantly enhancing the pyroelectric coefficient of lithium niobate crystals was devised.

The method provides an environmentally friendly pyroelectric material with excellent performance.

This work addresses the low pyroelectric coefficient that limits the practical application of lithium niobate (LN) crystals. A defect modulation process based on reduction annealing treatment is proposed. This reduction annealing treatment increased the pyroelectric coefficient of LN crystals maximally to 3.362 × 10−4 C/m2K. At room temperature, the voltage responsivity figure of merit (FV) and detectivity figure of merit (FD) were both improved more than three-fold. All material properties exceeded those of commercial lead zirconate titanate (PZT) ceramic. This process achieves the simultaneous modulation of high pyroelectric coefficients and low impedance in LN crystals. Based on the LN crystals with optimized properties, pyroelectric infrared detectors (center wavelength 9.4 μm) without external matching resistors were prepared. The response voltage of the detector reached 2.8 times that of commercial PZT detectors while exhibiting lower noise, and has achieved practical applicability. This work provides a simple and efficient method for developing environmentally friendly, low-cost, high-sensitivity pyroelectric infrared detectors. It also establishes the foundations for the application of LN crystals in emerging pyroelectric detection fields.

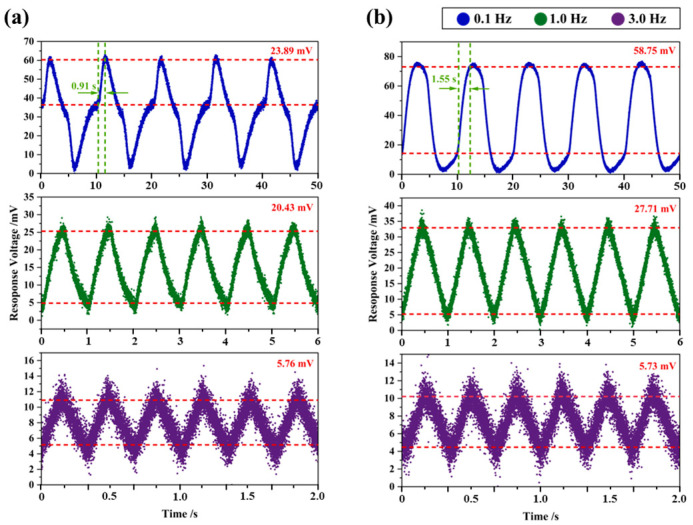

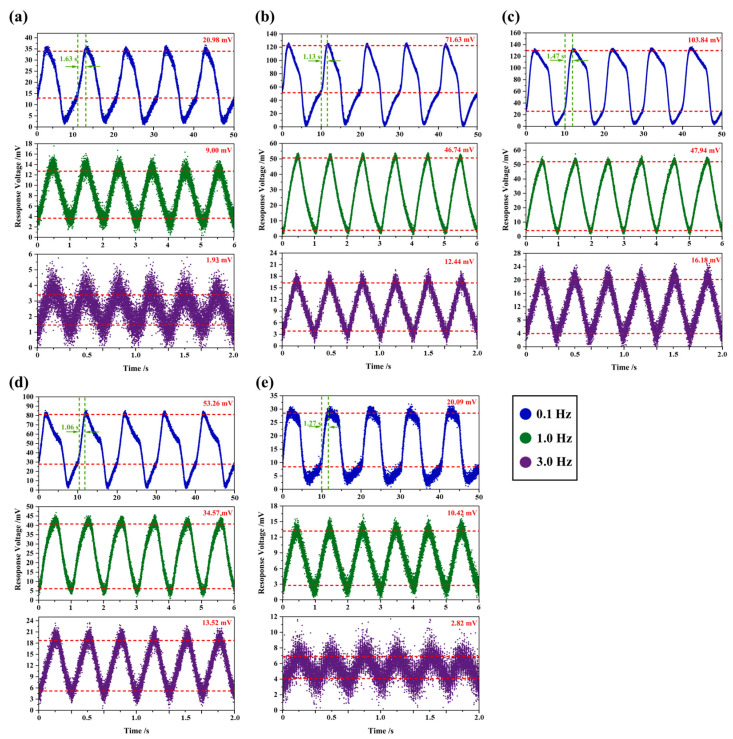

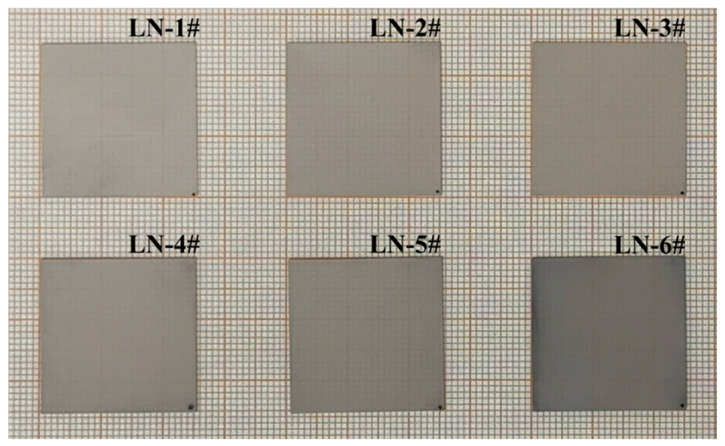

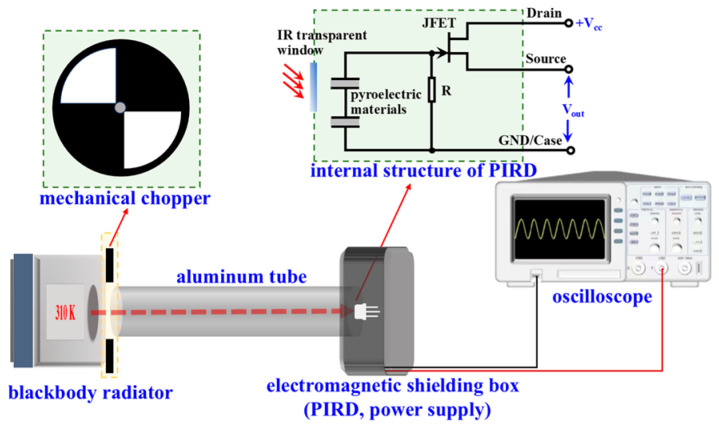

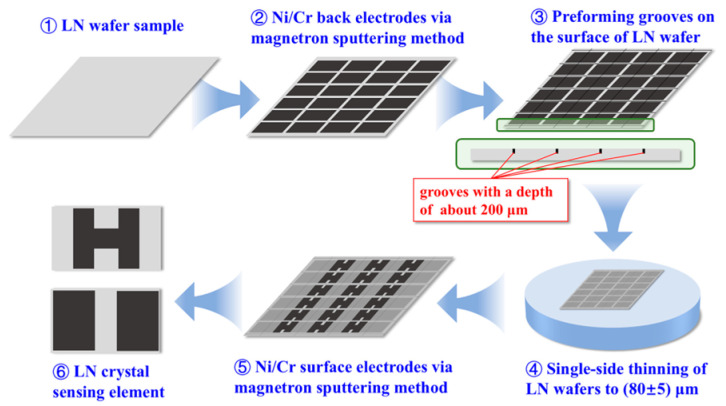

Figures
