Environmental Impact of PUR- and Polystyrene-Based Structural Insulated Panels

TL;DR

This study evaluates the environmental impact of polyurethane-based insulation used in building panels, focusing on how material formulation and end-of-life management affect sustainability.

Contribution

The study provides a detailed life cycle assessment of PUR-based insulation, incorporating formulation variations and end-of-life scenarios to inform sustainable material design.

Findings

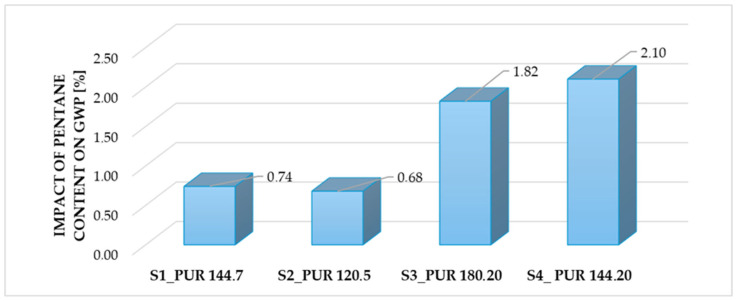

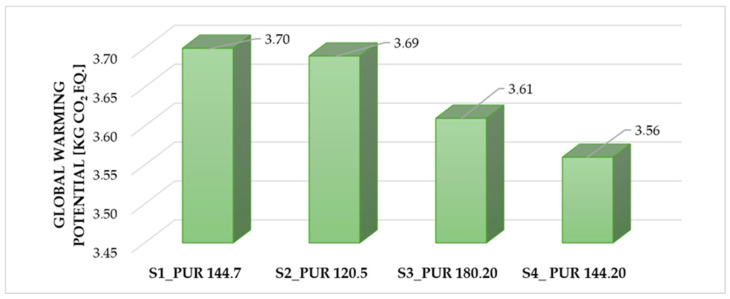

Higher pentane content in PUR foams increases global warming potential.

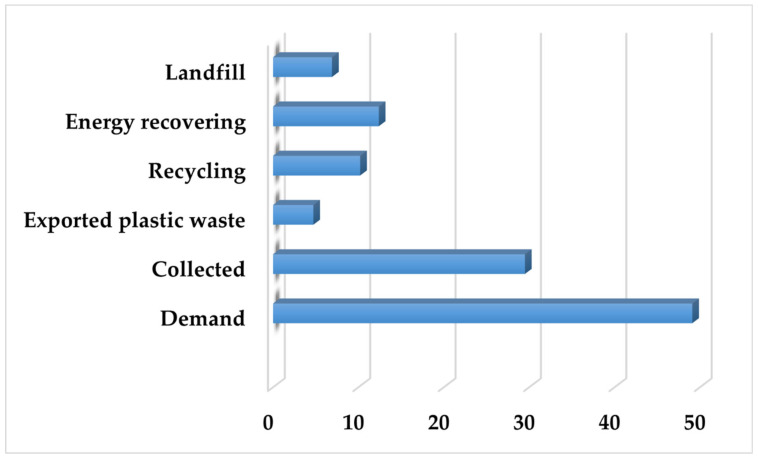

End-of-life scenarios like recycling and energy recovery significantly affect environmental outcomes.

Formulation changes, such as diisocyanate content and foam density, influence environmental impact.

Abstract

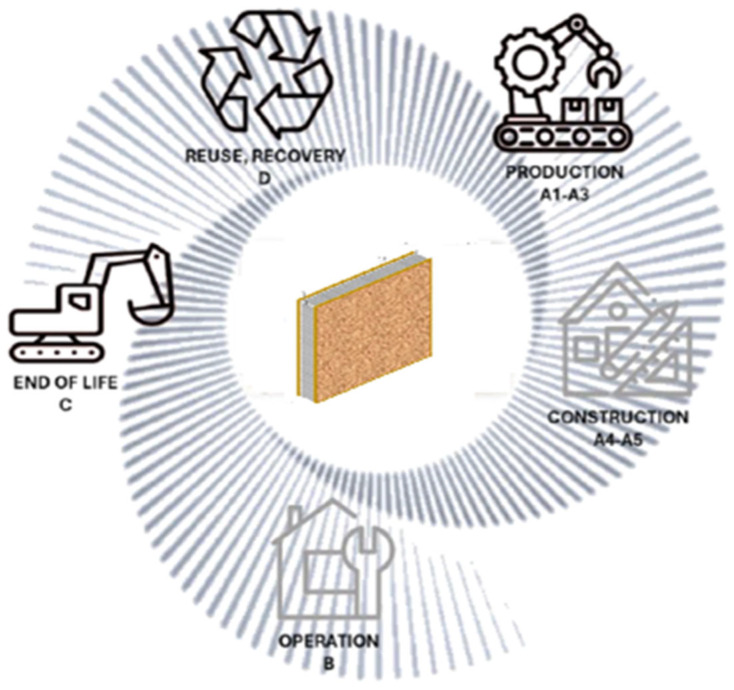

Polymer-based insulation materials are widely used to enhance the energy efficiency of buildings; however, their growing application raises concerns related to resource use and end-of-life management. Rigid polyurethane (PUR) foams are key core materials in structural insulated panels due to their favorable thermal and mechanical performance, yet their life cycle environmental impacts—particularly at end-of-life—remain insufficiently quantified. In this study, a cradle-to-grave life cycle assessment (LCA) of PUR-based insulation used in structural insulated panel systems is conducted in accordance with ISO 14040/44 and EN 15804 standards. The assessment is performed using Sphera LCA software (version: GaBi 10.5) and the CML 2016 impact assessment method. Formulation-level variations in rigid PUR foams, including changes in methylene diphenyl diisocyanate content and pentane blowing agent ratio, are explicitly incorporated to evaluate their influence on key environmental impact categories. The results indicate that increasing pentane content leads to higher global warming potential, while this effect may be mitigated or intensified by concurrent changes in diisocyanate content and foam density in fully formulated systems. Three end-of-life scenarios—landfilling, incineration with energy recovery, and mechanical recycling—are analyzed. The findings provide material-level, decision-relevant insights that support environmentally informed formulation strategies and contribute to the development of more circular polymer-based insulation solutions for the built environment.
