A Dual-Mode Near-Infrared Optical Probe and Monte Carlo Framework for Functional Monitoring of Rheumatoid Arthritis: Addressing Diagnostic Ambiguity and Skin Tone Robustness

TL;DR

A new low-cost near-infrared probe and simulation framework are developed to monitor rheumatoid arthritis inflammation, offering a functional alternative to traditional imaging methods.

Contribution

A dual-mode NIR probe and Monte Carlo framework for functional RA monitoring, addressing diagnostic ambiguity and skin tone variability.

Findings

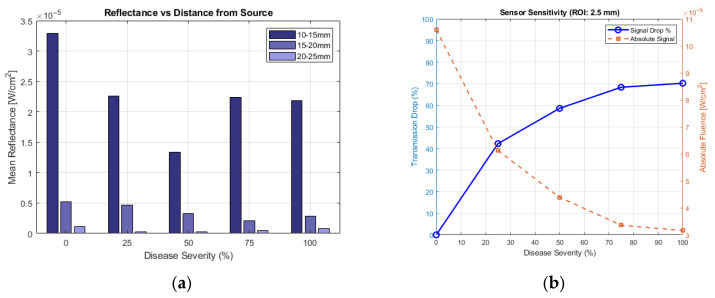

Reflectance geometry detects synovial turbidity onset, while transmission flux correlates with pannus volume.

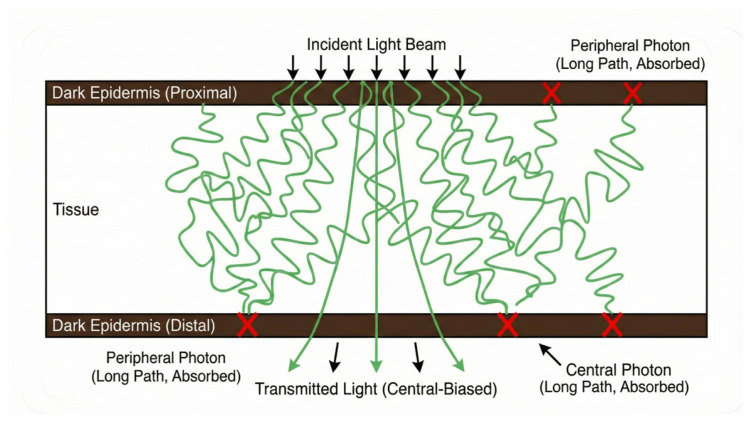

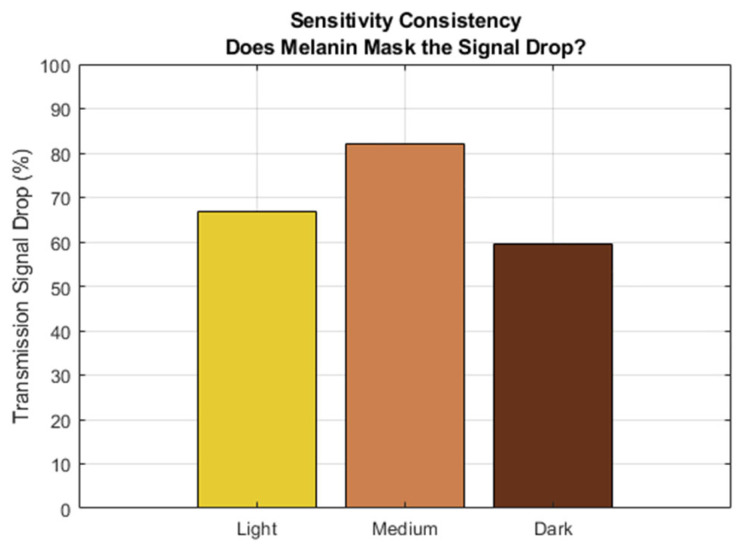

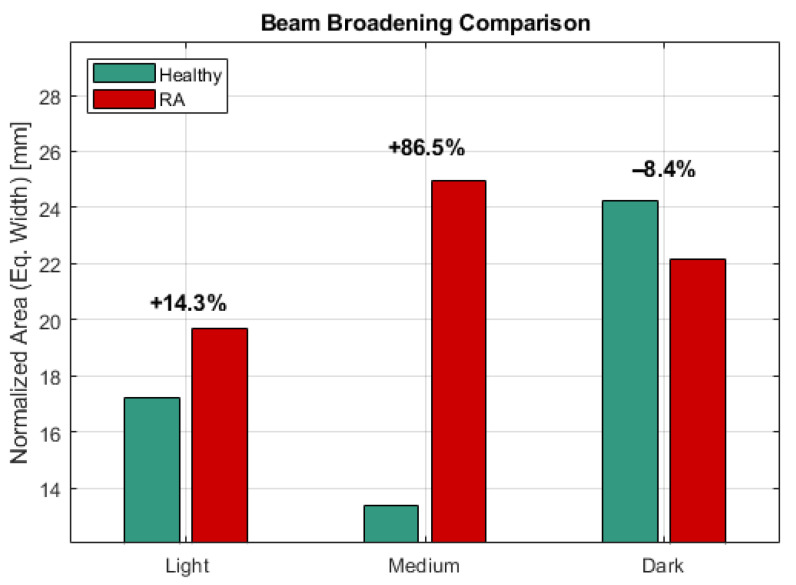

Transmission flux remains robust across diverse skin tones, unlike beam-shape metrics in darker skin phenotypes.

The effective attenuation coefficient increased significantly in RA subjects compared to healthy baselines.

Abstract

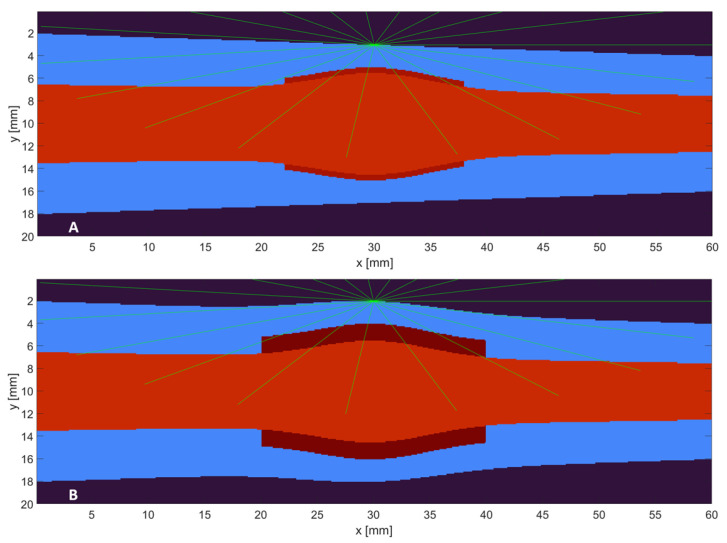

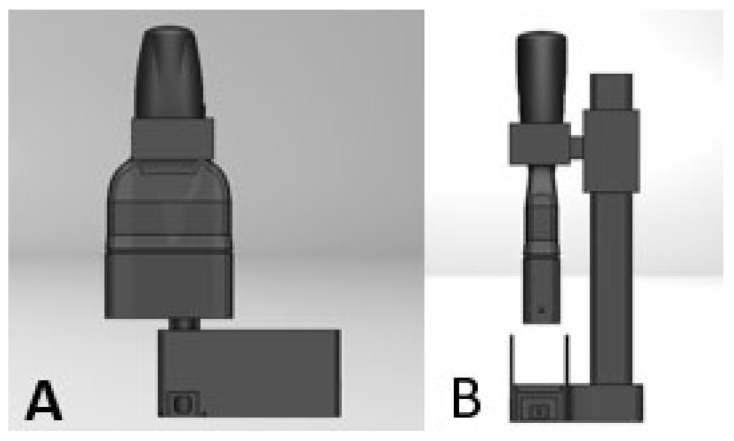

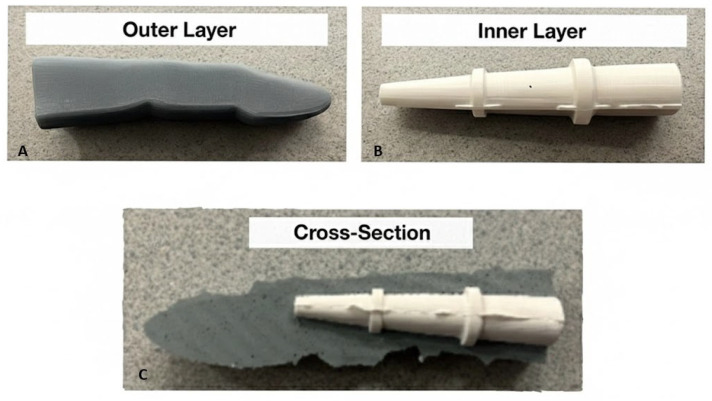

Current diagnostic modalities for rheumatoid arthritis (RA), such as Magnetic Resonance Imaging (MRI) and ultrasound (US), excel at visualizing structural pathology but are either resource-intensive or often limited to morphological assessment. In this work, we present the design and technical validation of a low-cost continuous-wave near-infrared (NIR) dual-mode optical probe for functional monitoring of joint inflammation. Unlike superficial imaging, NIR light penetrates approximately 3–5 cm and is tissue and wavelength dependent, enabling trans-illumination of the synovial volume. The system combines reflectance and transmission geometries to resolve the ambiguity between disease presence and disease severity. To validate the diagnostic logic, we employed mcxyzn Monte Carlo (MC) simulations to model the optical signature of RA progression from early onset to EULAR-OMERACT grade 2 pannus hypertrophy on a simplified finger model, based on several tissue models in the literature and supported by physical measurements on a multilayer silicone phantom and in vivo signal verification on human volunteers. Our results demonstrate a distinct functional dichotomy: reflectance geometry serves as a binary discriminator of synovial turbidity onset, while transmission flux serves as a monotonic proxy for pannus volume, exhibiting a quantifiable signal decay consistent with the Beer–Lambert law. Signal verification on a subject with confirmed RA pathology demonstrated a significant increase in the effective attenuation coefficient (µeff ~ 0.59 mm−1) compared to the healthy baseline (µeff ~ 0.47  mm−1). Furthermore, simulation analysis revealed a critical “metric inversion” in darker skin phenotypes (Fitzpatrick V–VI), where the standard beam-broadening signature of inflammation is artificially suppressed by epidermal absorption. We conclude that while transmission flux remains a robust grading metric across diverse skin tones, morphological beam-shape metrics are not robust, particularly in high-absorption populations. By targeting the hemodynamic precursors of structural damage, this dual-mode probe design offers a potential pathway for longitudinal, quantitative monitoring of disease activity at the point of care, while the systematic use of the Monte Carlo framework provides insight into the measurement geometry most suitable for a given clinical endpoint, whether that be detecting the presence or severity of rheumatoid arthritis.

Figures
