Load-Bearing Increase and Damage Progression in CF/PEEK Thermoplastic Laminates Under Repeated Low-Velocity Impacts

TL;DR

This paper studies how repeated low-velocity impacts affect the strength and damage in carbon fiber-reinforced PEEK composites used in aerospace.

Contribution

The study reveals new mechanisms of load-bearing increase and damage progression in CF/PEEK laminates under repeated impacts.

Findings

Repeated impacts cause matrix plastic deformation and compaction, leading to increased peak load.

Initial impacts cause internal damage that worsens during subsequent impacts.

Fiber failure becomes significant at higher impact energy levels.

Abstract

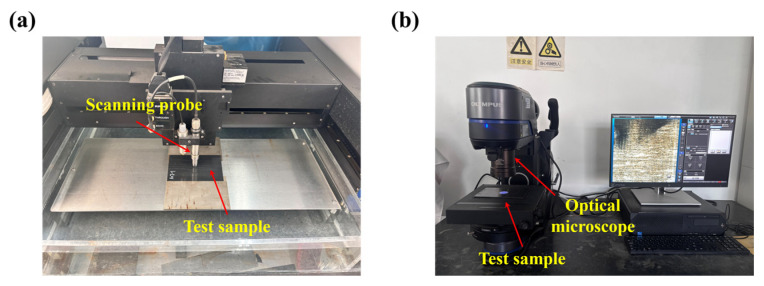

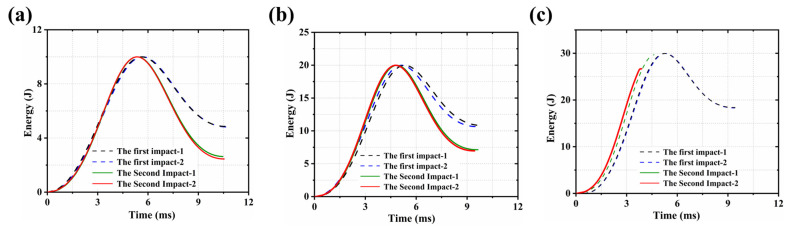

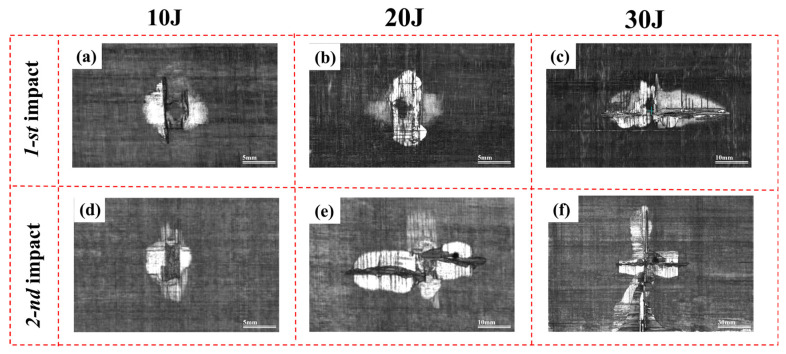

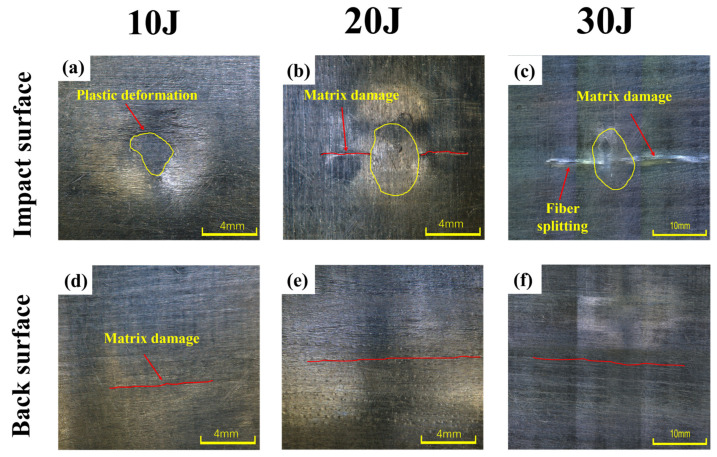

Carbon fiber-reinforced polyetheretherketone (CF/PEEK) thermoplastic composites are increasingly applied in aerospace structures due to their outstanding mechanical and thermal properties. However, their strengthening mechanism and damage evolution under repeated low-velocity impacts remains inadequately explored. This study systematically investigates the mechanical response and failure mechanisms of CF/PEEK laminates subjected to sequential single and second impacts at energy levels of 10 J, 20 J, and 30 J. Through comprehensive analysis of impact parameters (peak load, energy absorption, residual displacement), optical microscopy and ultrasonic C-scan, this study reveals that the load-bearing increase under repeated low-velocity impacts results from the combined effects of multiple mechanisms, including matrix plastic deformation, local compaction, matrix damage, and interlaminar failure. Under initial impacts, laminates exhibit high load-bearing capacity and energy dissipation, which are dominated by plastic deformation and matrix failure at 10 J and 20 J, whereas the 30 J impact causes pronounced fiber failure. An anomalous increase in peak load is observed during secondary impacts, which is attributed to matrix compaction-induced strengthening resulting from the initial impact. Optical microscopy and C-scan quantification demonstrate that, while the initial impact induces compaction-related strengthening, it also causes internal damage, which leads to aggravated damage evolution during the subsequent impact. The findings provide fundamental insights into damage accumulation in thermoplastic composites and directly inform impact-resistant design strategies.
