Integrative Spatial Transcriptomics and Immunoinformatics for Prognostic Multi-Epitope Vaccine Construct Prediction Against Synovial Sarcoma

TL;DR

This study designs a multi-epitope vaccine targeting FKBP10 in synovial sarcoma, using transcriptomic data and immunoinformatics to predict a stable and immunogenic vaccine candidate.

Contribution

The novel contribution is the integrative approach combining spatial transcriptomics and immunoinformatics to design a multi-epitope vaccine against synovial sarcoma.

Findings

FKBP10 is significantly upregulated in synovial sarcoma with strong statistical significance.

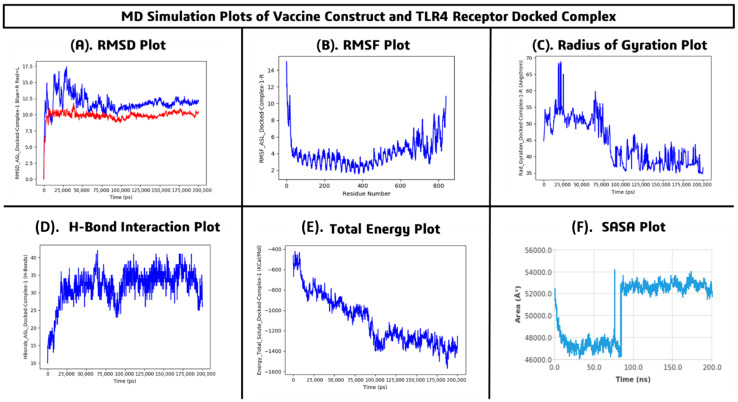

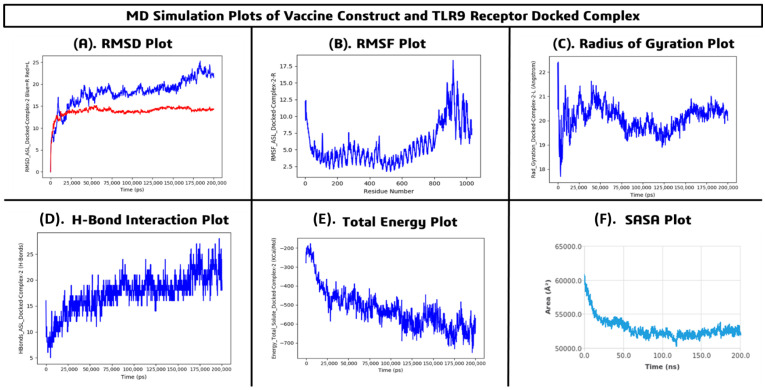

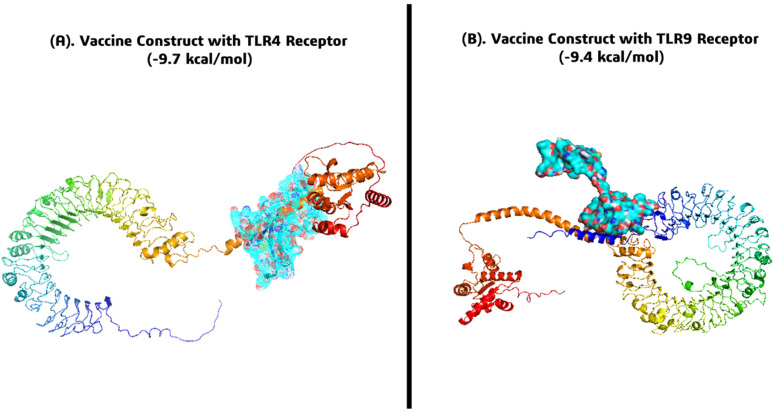

The constructed vaccine shows strong binding to TLR4 and TLR9 with stable molecular dynamics simulations.

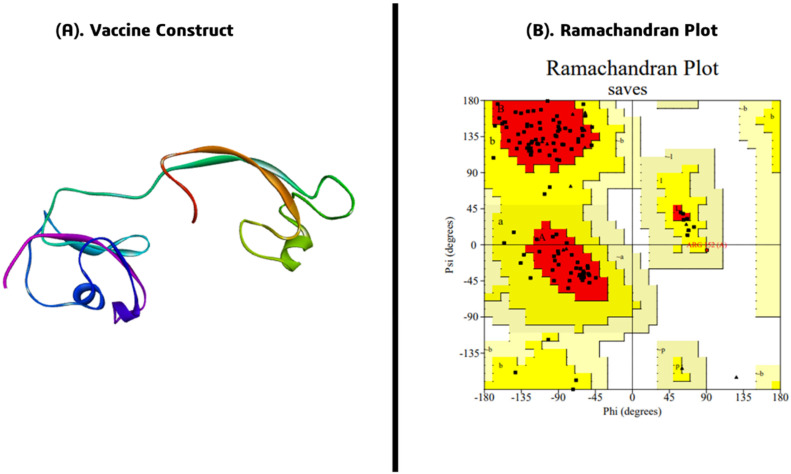

The vaccine is antigenic, non-allergenic, and structurally stable with favorable physicochemical properties.

Abstract

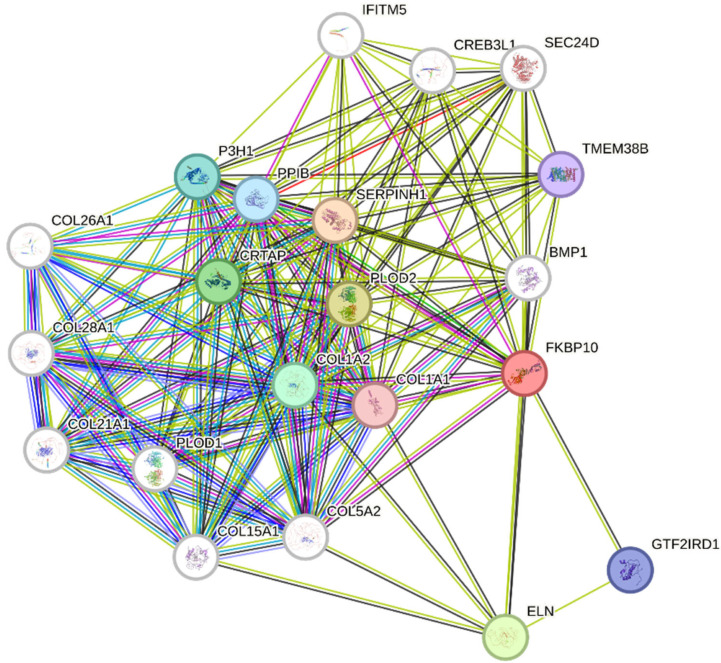

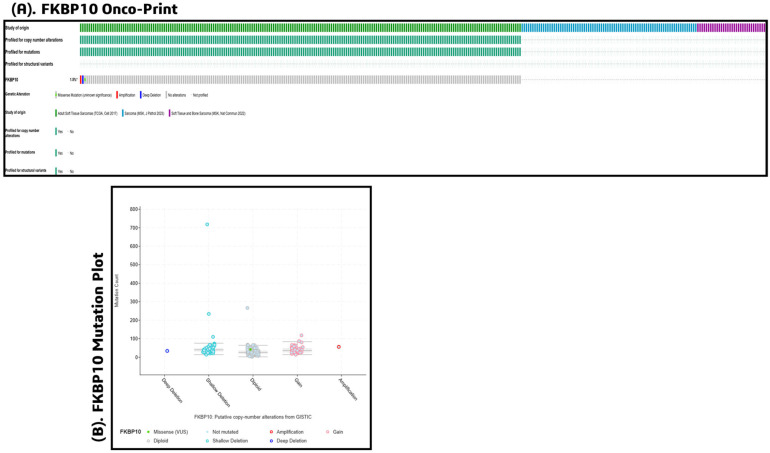

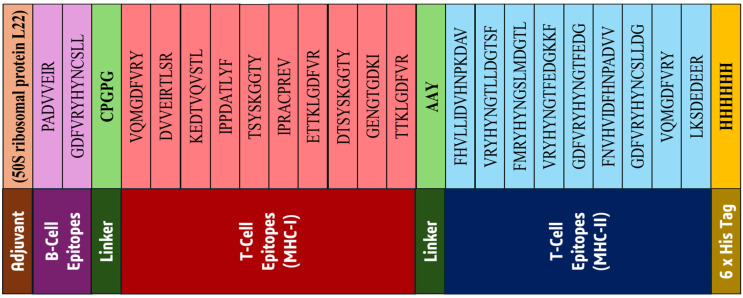

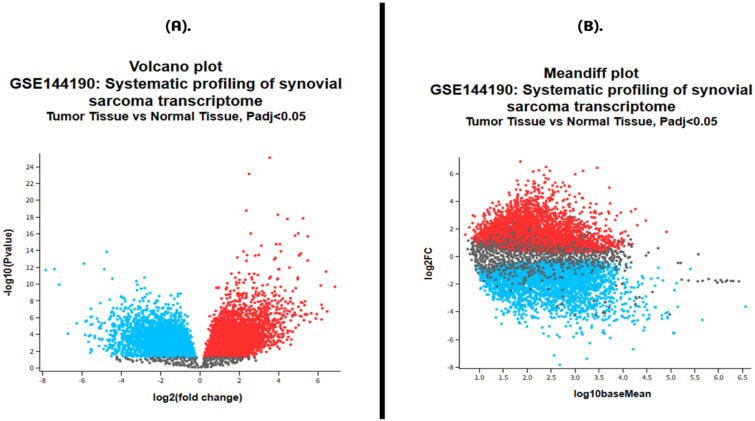

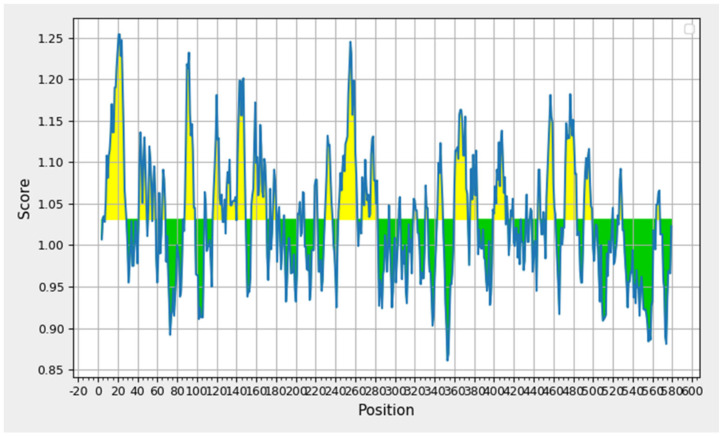

Background/Objectives: Synovial sarcoma (SS) is a rare and aggressive soft-tissue malignancy characterized by complex molecular alterations and poor prognosis, highlighting the need for targeted immunotherapeutic strategies. This study aimed to design a rational multi-epitope vaccine targeting the FKBP10 oncoprotein to elicit effective immune responses against SS. Methods: Transcriptomic data from the GEO dataset GSE144190, comprising 10 tumor and 9 normal tissue samples, were analyzed to identify differentially expressed genes (DEGs). Results: Our findings revealed significantly upregulated FKBP10 with a log2 fold change of 3.55, baseMean expression of 1521.84, and adjusted p-value of 8.37 × 10−26. Mutational analysis across 7782 sarcoma samples indicated a low alteration frequency of ~1.5%, primarily missense variants. Functional mapping showed FKBP10 as a hub interacting with multiple collagen chains and chaperone proteins, implicating its role in extracellular matrix organization and protein folding. Linear B-cell epitope prediction identified 17 epitopes (6–21 amino acids), while T-cell mapping yielded 10 MHC class I and 9 MHC class II high-affinity epitopes, all antigenic (VaxiJen > 0.5) and non-allergenic. A multi-epitope vaccine was constructed incorporating a 50S ribosomal protein L22 adjuvant, linkers, and a 6× histidine tag. Physicochemical analysis showed a molecular weight of 36.43 kDa, pI 6.97, instability index 31.79, aliphatic index 64.88, and GRAVY −0.509, indicating stability and hydrophilicity. Structural modeling validated 82.5% residues in favored regions. Molecular docking revealed strong binding with TLR4 (−9.7 kcal/mol) and TLR9 (−9.4 kcal/mol), and 200 ns molecular dynamics simulations confirmed stable RMSD trajectories, low RMSF at binding residues (<4 Å), persistent hydrogen bonding, compact radius of gyration (38–42 Å for TLR4; ~20 Å for TLR9), favorable total energy (−1400 to −1500 kcal/mol for TLR4; −650 to −720 kcal/mol for TLR9), and stable SASA (~52,000–54,000 Å2). Conclusions: These findings demonstrate that the FKBP10 multi-epitope vaccine is structurally stable, immunogenic, and capable of engaging key innate immune receptors, supporting its potential as a promising immunotherapeutic candidate for synovial sarcoma.
