Broadband Sub-Micron Moth-Eye Anti-Reflection Coatings on Silicon for Wafer-Level CMOS–SOI–MEMS Thermal Infrared Sensors
Moshe Avraham, Yael Nemirovsky
TL;DR
This paper introduces a new method to reduce light reflection in silicon-based infrared sensors using moth-eye coatings, improving their performance and sensitivity.
Contribution
The contribution is an end-to-end framework for designing moth-eye coatings compatible with CMOS manufacturing for infrared sensors.
Findings
Fabricated structures showed a 46.7% responsivity boost in thermal sensors compared to bare silicon.
Simulations predict up to 85.1% transmission and 57.1% responsivity enhancement with double-sided patterning.
Moth-eye metasurfaces are shown to be a scalable solution for wafer-level infrared sensor manufacturing.
Abstract
Silicon windows in wafer-level packaged LWIR sensors suffer ~30% Fresnel reflection per interface, limiting optical throughput and detector sensitivity. We present an end-to-end design, fabrication, and validation framework for CMOS-compatible moth-eye anti-reflection coatings patterned directly on silicon wafers. Our approach integrates the effective medium theory, a transfer matrix analysis, full-wave FDTD simulations, and experimental Fourier-transform infrared (FTIR) measurements to optimize subwavelength pillar arrays for broadband (8–14 μm) and angle-tolerant performance. Fabricated structures demonstrate a 46.7% responsivity boost in CMOS–SOI–MEMS thermal sensors compared to bare silicon windows, while simulations predict up to 85.1% transmission and 57.1% responsivity enhancement for double-sided patterning. These results establish moth-eye metasurfaces as a scalable,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4

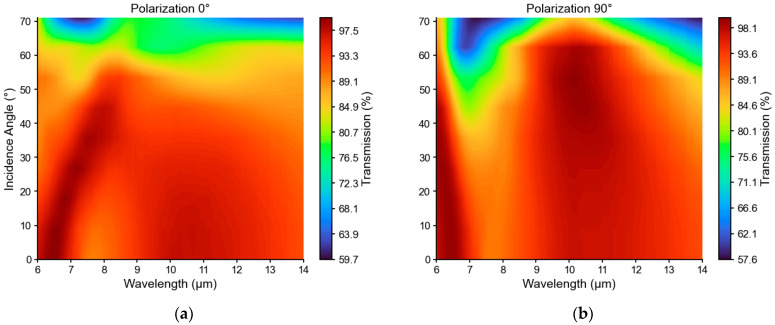

Figure 5
Figure 6
Figure 7
Figure 8

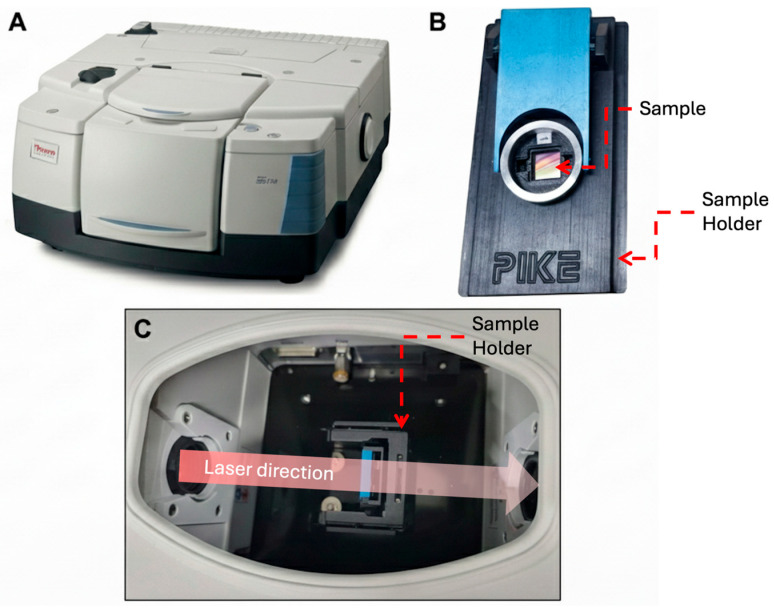

Figure 9
Figure 10

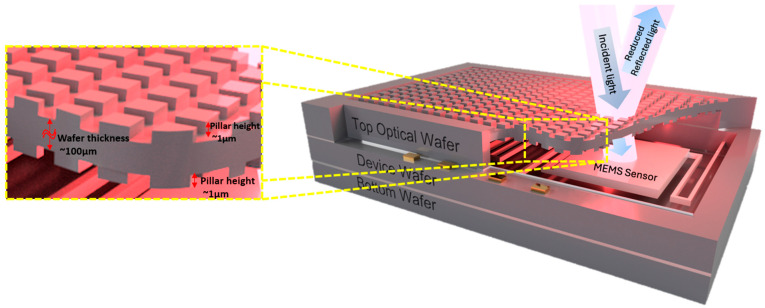

Figure 11

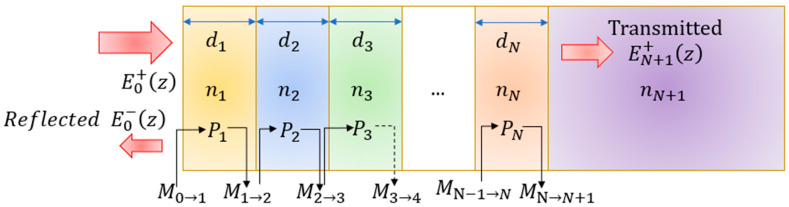

Figure 12Peer Reviews
