Development and Application of Carbon Deposition State Diagram for H-C-O Systems

TL;DR

This paper introduces a new diagram to predict and prevent carbon deposition in hydrogen production processes, helping reduce costs and improve efficiency.

Contribution

A novel carbon deposition state diagram for H-C-O systems is developed, enabling precise prediction and prevention of carbon deposition.

Findings

Critical carbon deposition point coordinates were determined across various temperatures, pressures, and H2/CO ratios.

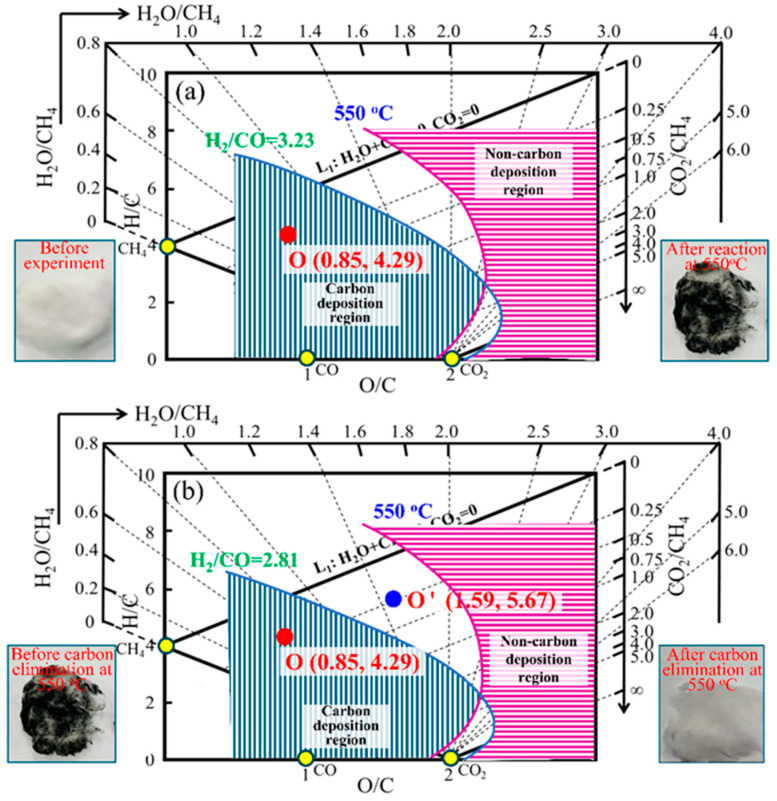

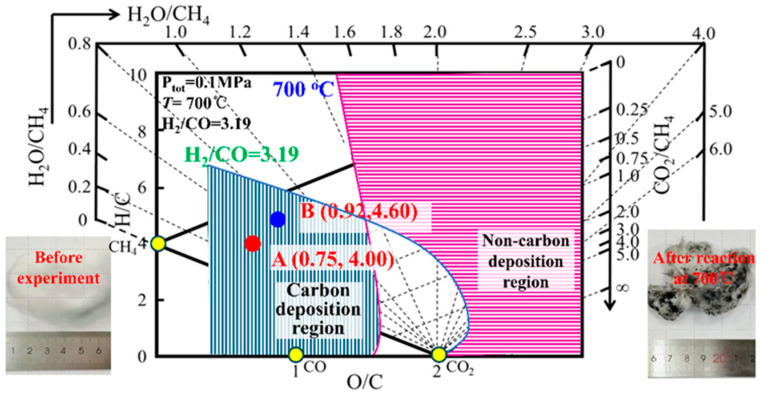

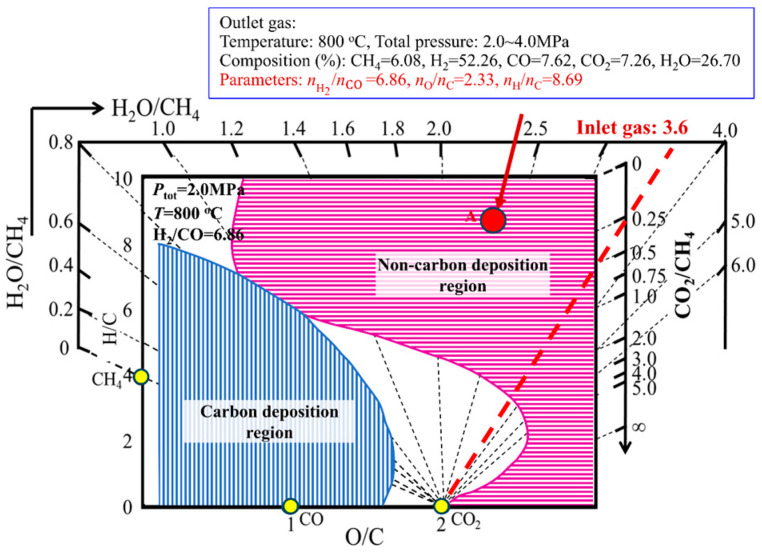

The carbon deposition state diagram was validated with experimental and industrial data, showing its practicality.

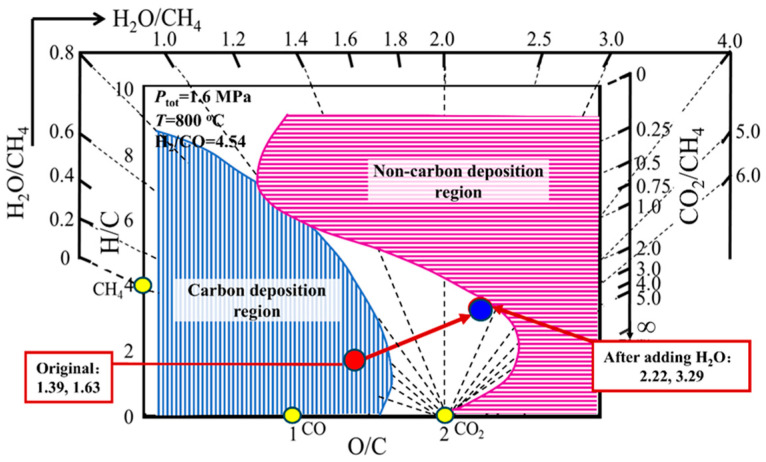

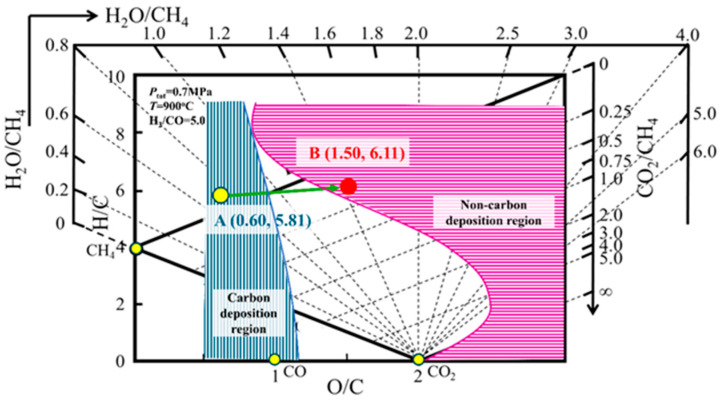

The diagram provides a theoretical basis for optimizing process parameters to avoid carbon deposition.

Abstract

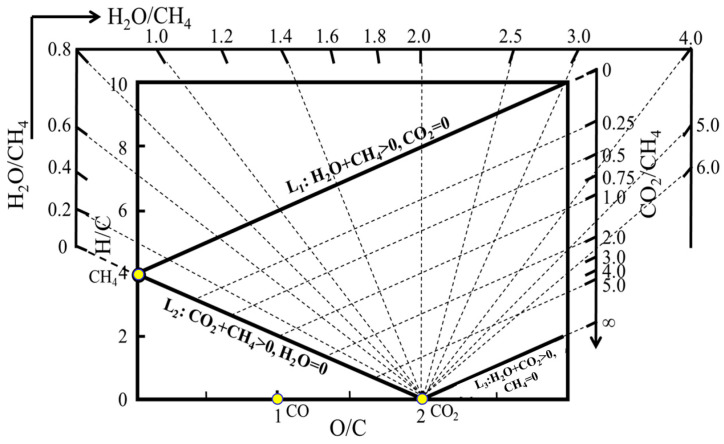

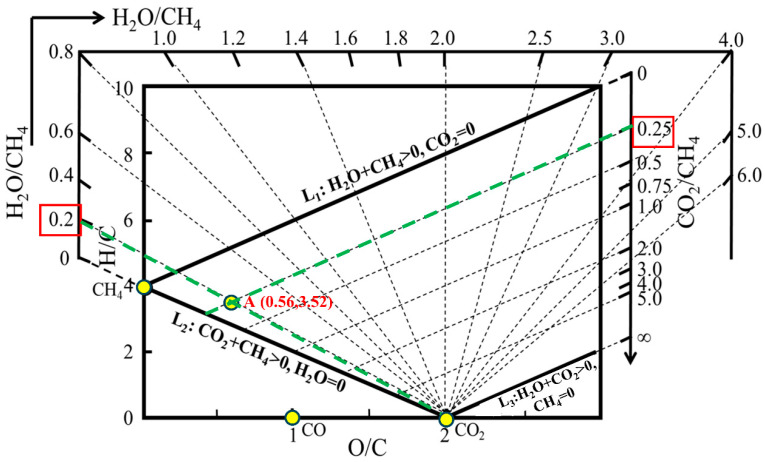

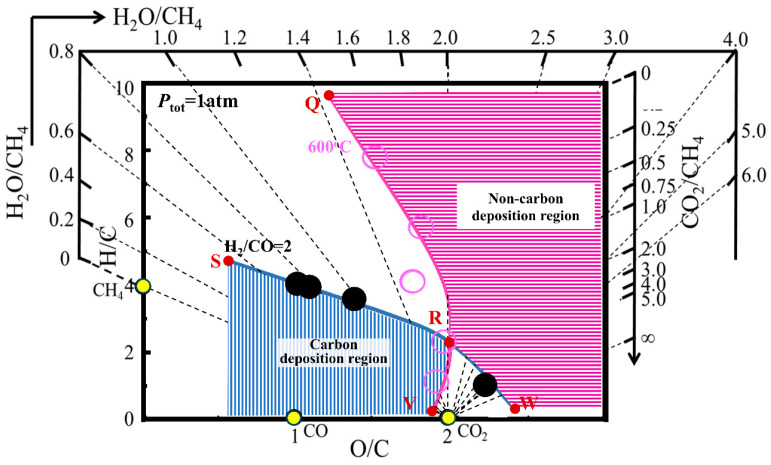

In both preparing and using hydrogen-rich reducing gas (H2RG) in direct reduction, carbon deposition occurs if operating parameters are improperly controlled, affecting the entire process. Therefore, a universally applicable method is needed to determine carbon deposition in the CH4-H2-CO-H2O-CO2 system, especially the broader H-C-O system. This study establishes a novel method based on the H-C-O system’s mass balance and chemical equilibrium diagram, alongside multi-phase/multi-reaction equilibrium principles. Critical carbon deposition point coordinates (O/C, H/C) were determined under varying conditions including temperatures typically ranging from 550 °C to 900 °C, total pressures from 0.1 to 2.0 MPa, and H2/CO ratios of approximately 2.0–6.9. Connecting points under identical parameters generated critical carbon deposition curves, forming a comprehensive “carbon deposition state diagram for H-C-O system”. This diagram allows precise determination of system state and carbon deposition occurrence, providing a theoretical basis for optimizing process parameters to avoid deposition. To overcome complex diagram calculations, specialized analysis software was developed. Validation using experimental and industrial data confirmed the diagram’s rationality and practicality. The diagram offers a simple, rapid, and accurate means to predict carbon deposition under specified conditions. Crucially, it guides efforts to prevent deposition while simultaneously minimizing energy consumption and costs in natural gas-based hydrogen production processes. Consequently, the “carbon deposition state diagram for H-C-O system” effectively guides actual production towards cost reduction, lower consumption, stability, and smooth operation.
