Recent Advances in κ-Carbide Precipitation Behavior and Its Influence on Mechanical Properties in Austenite-Based Fe-Mn-Al-C Lightweight Steels

TL;DR

This paper reviews how κ-carbide precipitation affects the strength and toughness of lightweight Fe-Mn-Al-C steels used in automotive applications.

Contribution

The paper provides a systematic review of κ-carbide behavior and strategies to optimize mechanical properties through composition and processing.

Findings

Coarse κ-carbides at grain boundaries reduce toughness, while nanoscale κ’-carbides enhance strength and ductility.

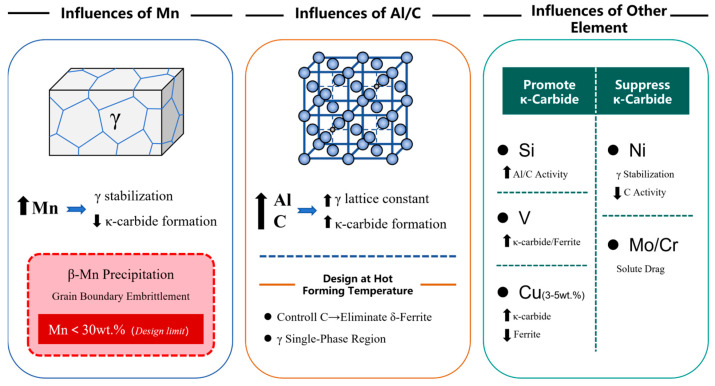

Al and C promote κ’-carbide formation, while Mn suppresses it.

Rapid cooling and aging treatments influence κ-carbide distribution and mechanical performance.

Abstract

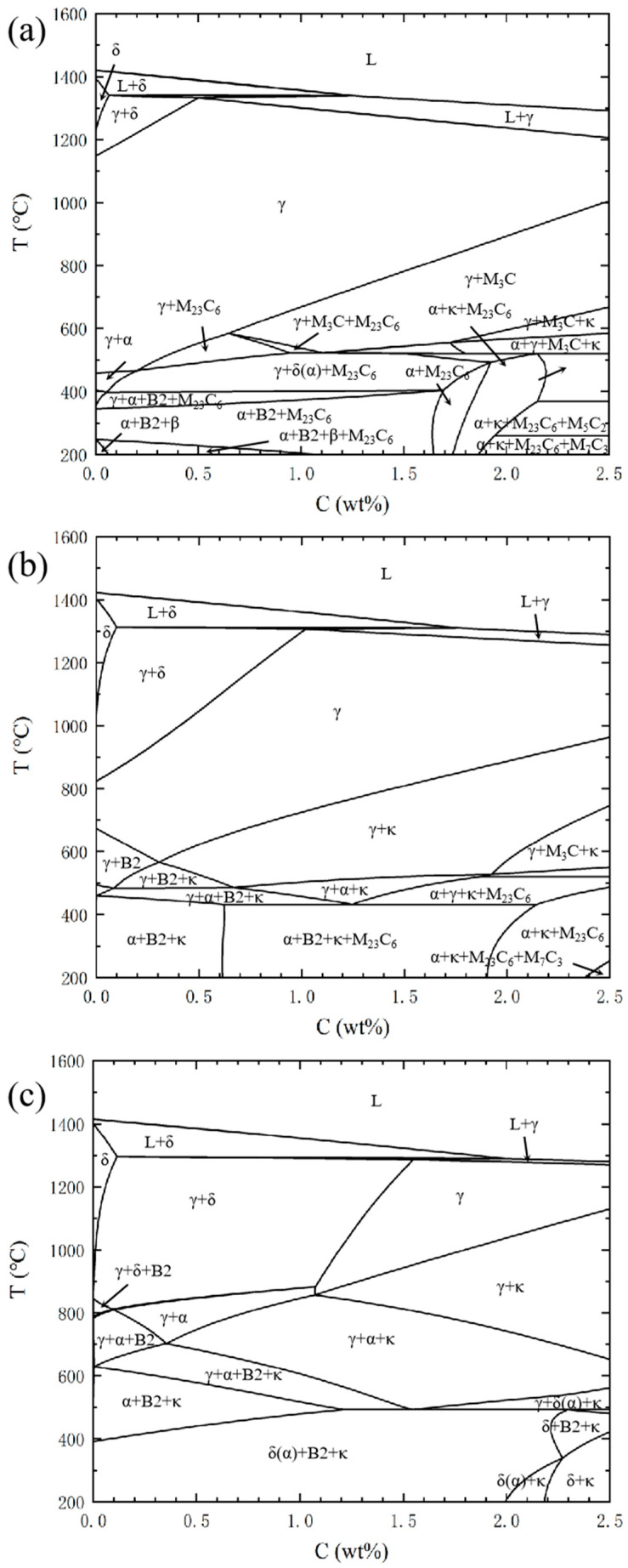

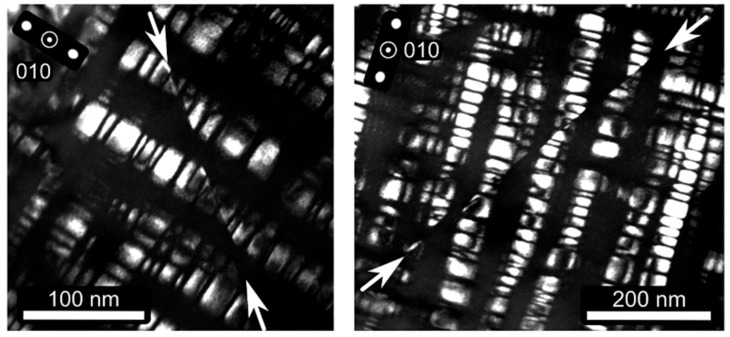

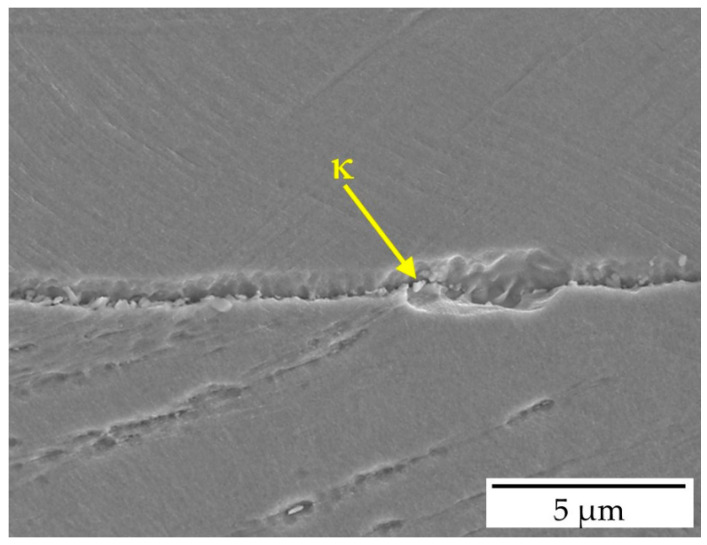

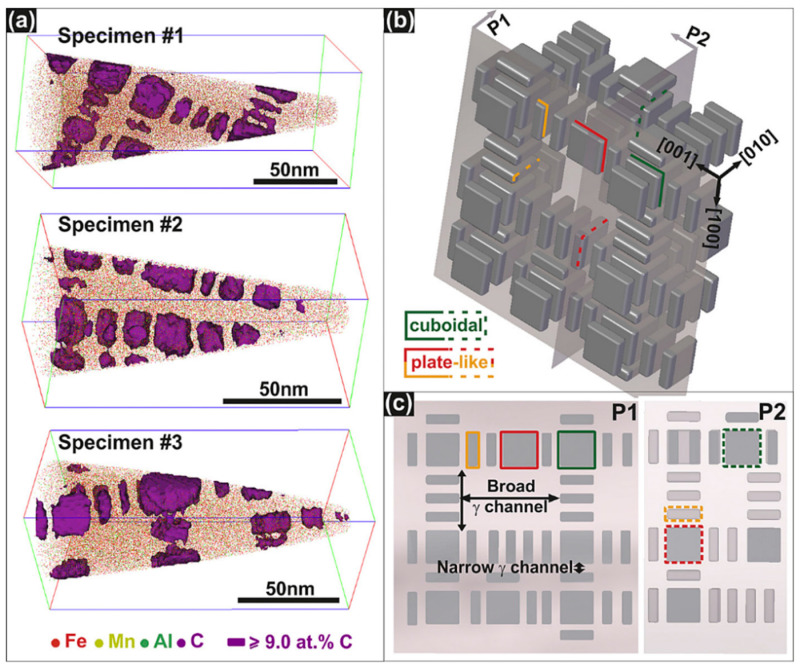

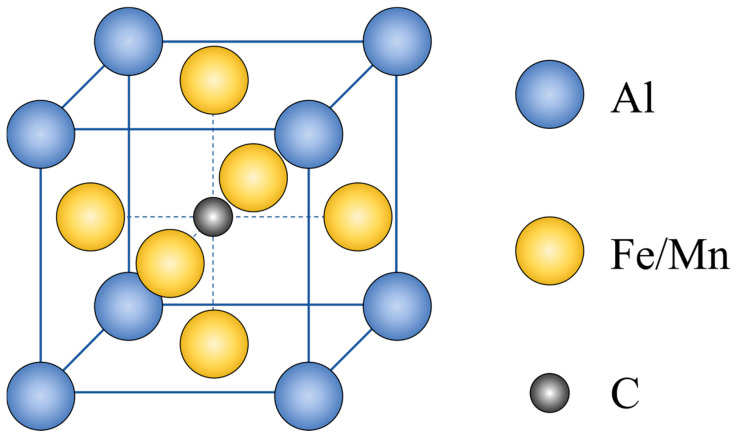

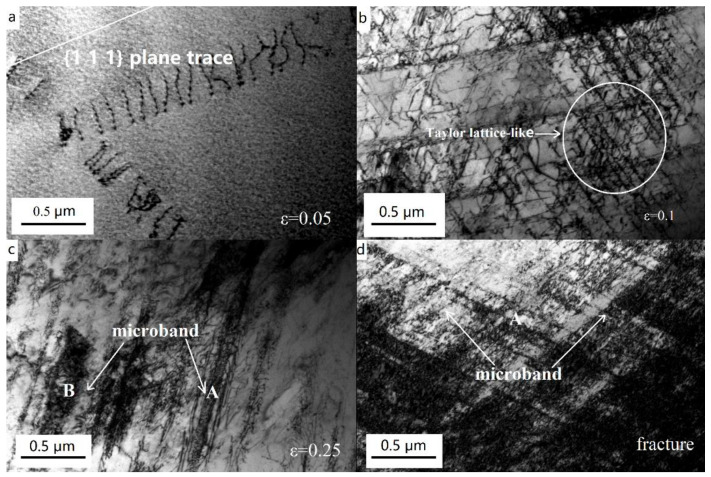

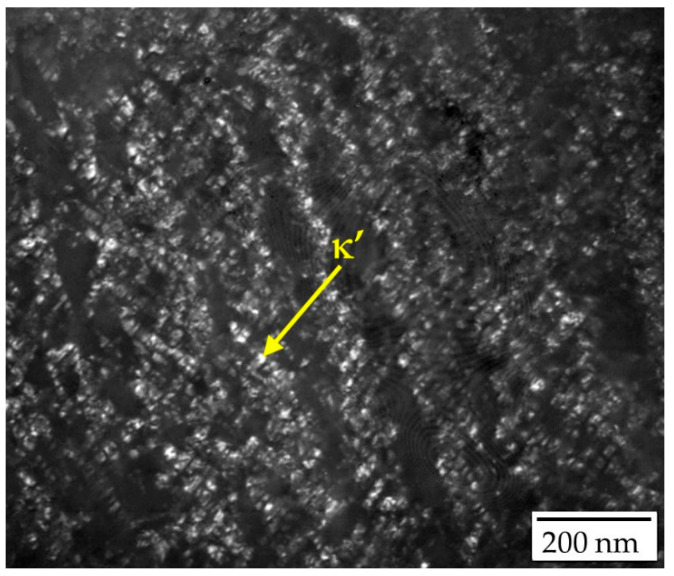

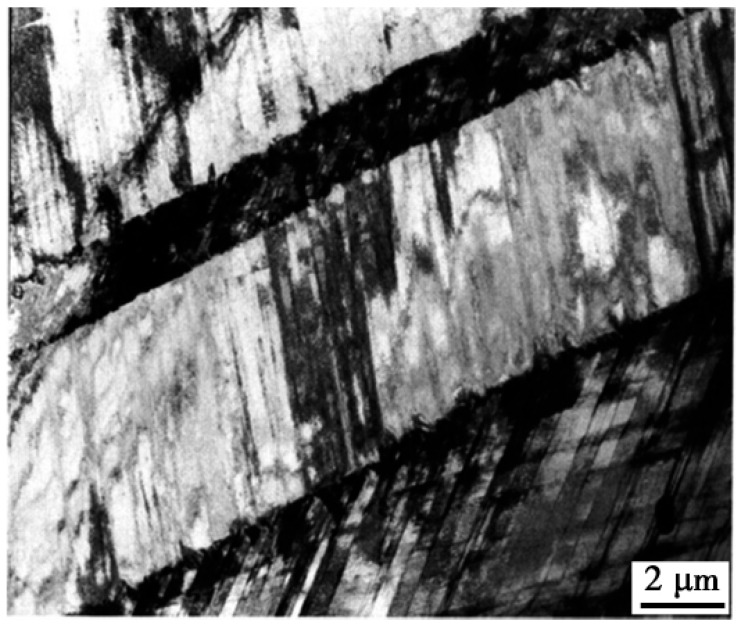

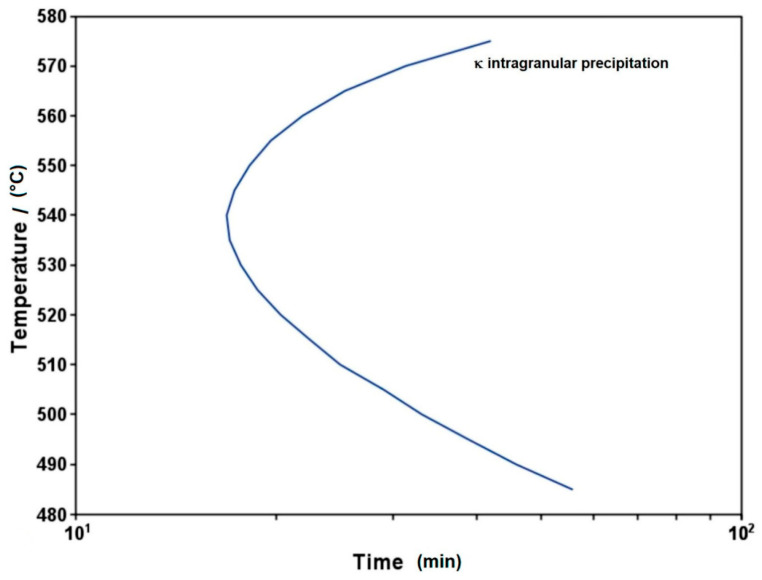

Austenitic Fe-Mn-Al-C lightweight steels have attracted considerable interest for automotive applications due to their exceptional specific strength, where κ-carbides precipitation critically influences mechanical properties. This review systematically examines the crystal structure, classification, and precipitation kinetics of κ-carbides, emphasizing their spatial distribution-dependent effects: coarse κ-carbides at austenite grain boundaries induce embrittlement and degrade toughness, while nanoscale κ’-carbides within grains enhance strength and ductility through dislocation interactions (e.g., Orowan bypassing and shearing), activating deformation mechanisms such as Dynamic Slip Band Refinement (DSBR), Shear Band-Induced Plasticity (SIP), and Microband-Induced Plasticity (MBIP). Thermodynamic calculations guide alloy design to ensure a single-phase austenite structure at the typical hot-rolling finishing temperature (~900 °C), avoiding harmful phases while promoting beneficial precipitates. Mn suppresses κ-carbide formation, whereas Al and C act as promoters, with intragranular κ’-carbides favoring higher Al/C concentrations (e.g., >6.2% Al and >1.0% C). Heat treatment parameters critically influence κ-carbide distribution, where rapid cooling (e.g., water quenching) suppresses κ-carbides, and subsequent aging (500–700 °C) enables homogeneous precipitation of κ’-carbides. Pre-deformation prior to annealing further accelerates κ-carbide nucleation by introducing crystal defects. Optimal performance requires integrated composition-processing-microstructure optimization to achieve a nnanoscaleκ’-carbide-strengthened austenite matrix through controlled composition and thermo-mechanical processing to achieve an optimal strength-ductility balance.

Figures
