Influence of Hydroxyethylmethyl Cellulose Admixture on the Hydration Process and Mechanical Properties of Modified Gypsum Composites

TL;DR

This study examines how adding hydroxyethyl methylcellulose affects the hydration and strength of gypsum composites used in construction.

Contribution

The study provides new insights into how hydroxyethyl methylcellulose modifies gypsum hydration and enhances mechanical properties.

Findings

Hydroxyethyl methylcellulose delays gypsum hydration and prolongs crystallization.

Higher dosages of hydroxyethyl methylcellulose increase compressive and bending strength.

No new phases form in gypsum paste with hydroxyethyl methylcellulose addition.

Abstract

Gypsum is one of the main binding materials used in the construction industry. Its properties can be modified by the addition of chemical admixtures that may influence the hydration process and the microstructure of the hardened material. An important group of such admixtures comprises cellulose ethers. The aim of this study was to conduct an in-depth analysis of the effects of hydroxyethyl methylcellulose (HEMC) on the hydration and mechanical properties of gypsum. HEMC was applied in various amounts (ranging from 0.5 to 7% by mass of gypsum); the water-to-gypsum ratio was 0.75. The hydration process was investigated using calorimetry, thermal analysis, and infrared spectroscopy. Compressive and bending strength tests were also performed. The results of calorimetric measurements show that the presence of HEMC led to delayed hydration and prolonged gypsum crystallization, particularly at higher admixture dosages. No formation of new phases in the gypsum paste was observed in the presence of HEMC. However, the admixture modified the microstructure of the hardened material, as reflected by increased compressive and bending strength. This effect is most likely associated with the slower precipitation of gypsum crystals in the presence of HEMC.

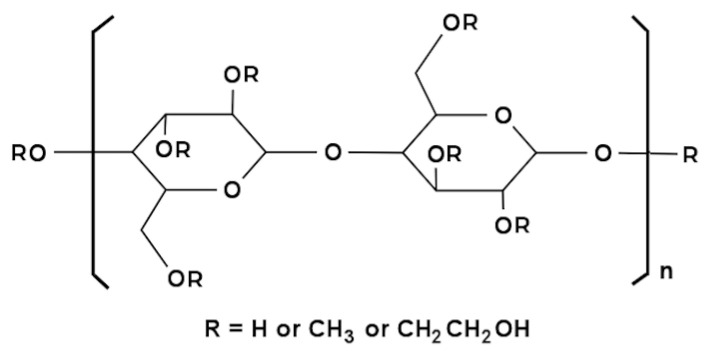

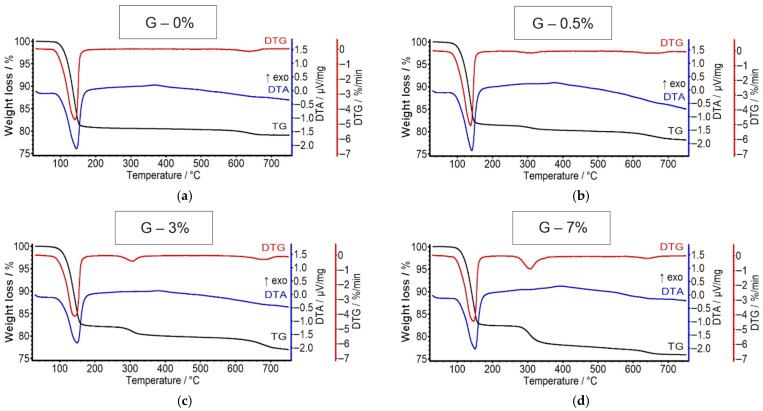

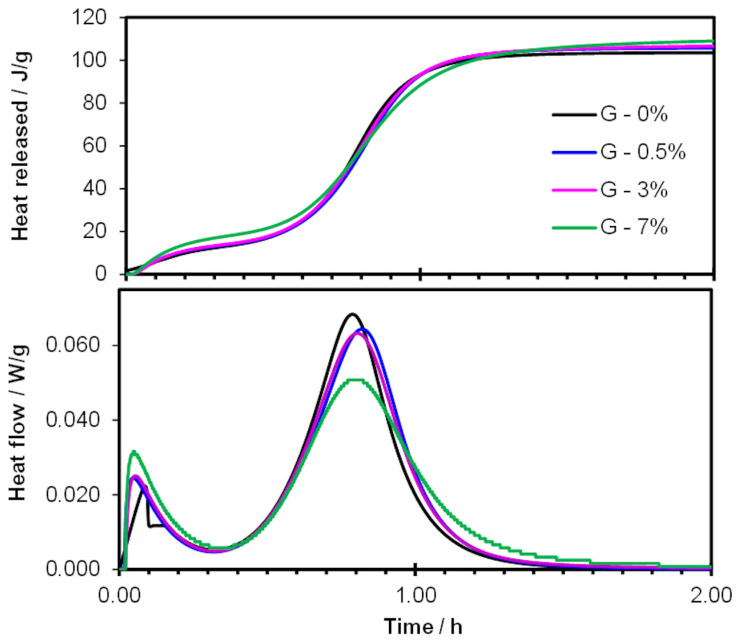

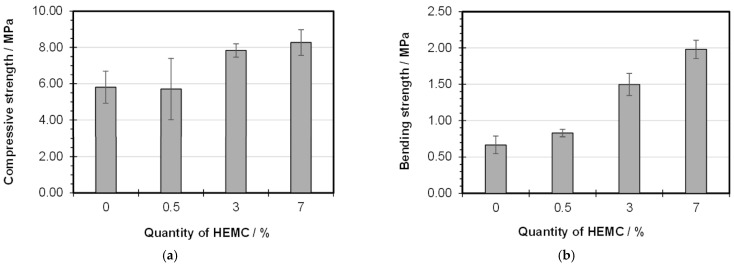

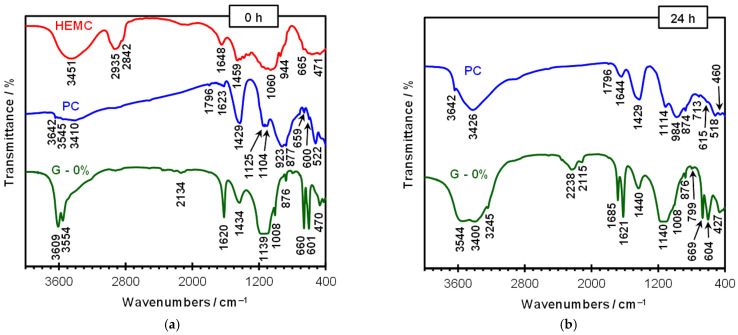

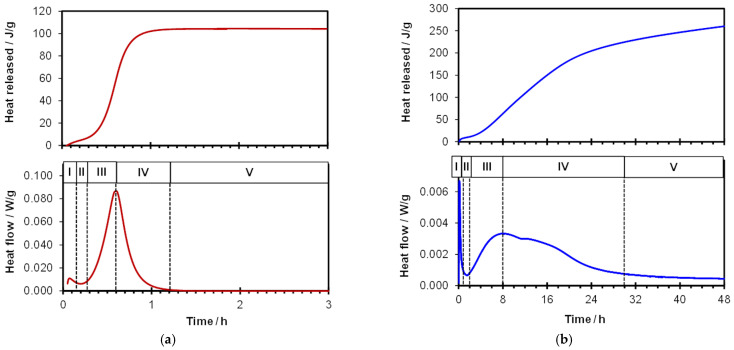

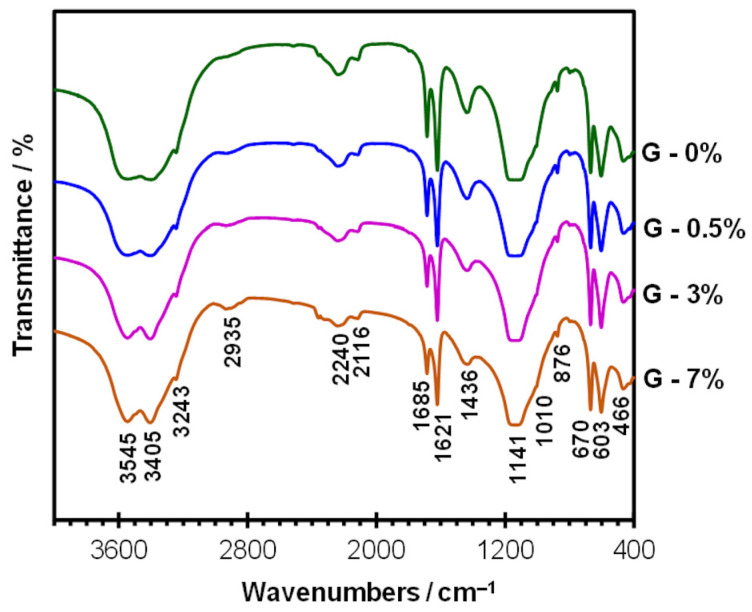

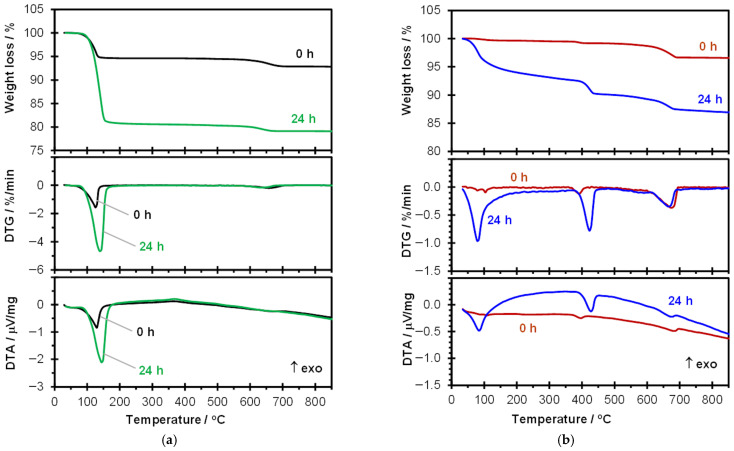

Figures
