Orthogonal Design Optimisation of the Sintering Process for MnZn Ferrites with Step-Sintering Verification
Mengrui Li, Shuyu Sun, Boon Xian Chai, Yuqi Wang, M. Akbar Rhamdhani, Shanqing Xu, Li Wang
TL;DR
This paper uses an orthogonal design to optimize the sintering process of MnZn ferrites, balancing magnetic permeability and power loss for power electronics.
Contribution
A novel orthogonal-screening-plus-verification strategy is introduced for optimizing MnZn ferrite sintering parameters.
Findings
Optimal sintering conditions for high permeability: 1250°C, 4h holding time, 3.5% oxygen partial pressure.
Optimal sintering conditions for low power loss: 1250°C, 3.5h holding time, 5% oxygen partial pressure.
XRD, SEM, and magnetic-loss separation confirm process-structure-property relationships.
Abstract
MnZn ferrites for power electronics require a well-controlled sintering window to balance high initial permeability (µi) with low power loss (Pcv). Here, an L9 (33) orthogonal design was employed to quantify the main effects of sintering temperature, holding time, and oxygen partial pressure on µi and Pcv within the investigated processing window, enabling rapid mapping of feasible sintering windows. The orthogonal analysis identifies the relative significance of each factor and reveals a clear performance trade-off between µi and Pcv. For maximising µi, the optimal sintering condition was 1250 °C, 4 h holding time, and 3.5% oxygen partial pressure, yielding a µi of 3453 and a Pcv of 466 mW/cm3 at 100 kHz/200 mT. For minimising Pcv, the optimal condition was 1250 °C, 3.5 h holding time, and 5% oxygen partial pressure, resulting in a µi of 2678, with Pcv of 400 mW/cm3 at 100 kHz/200 mT…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

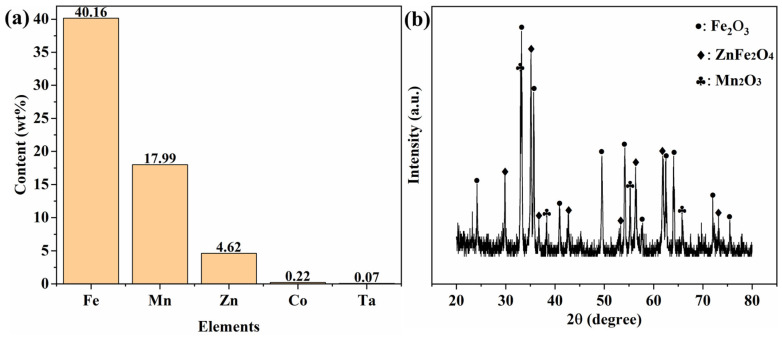

Figure 1

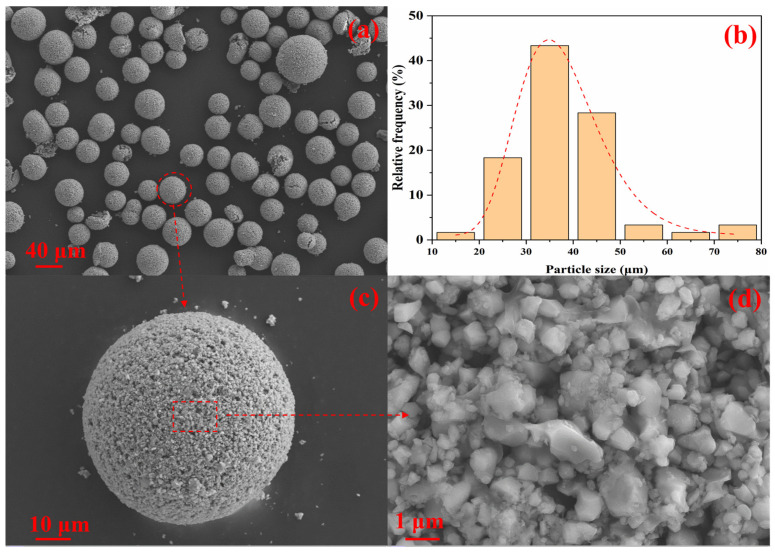

Figure 2

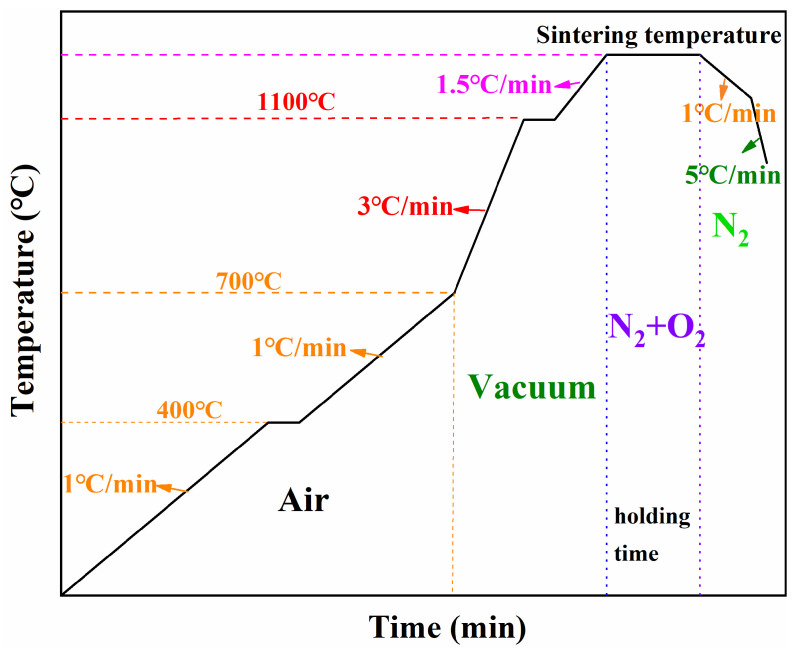

Figure 3

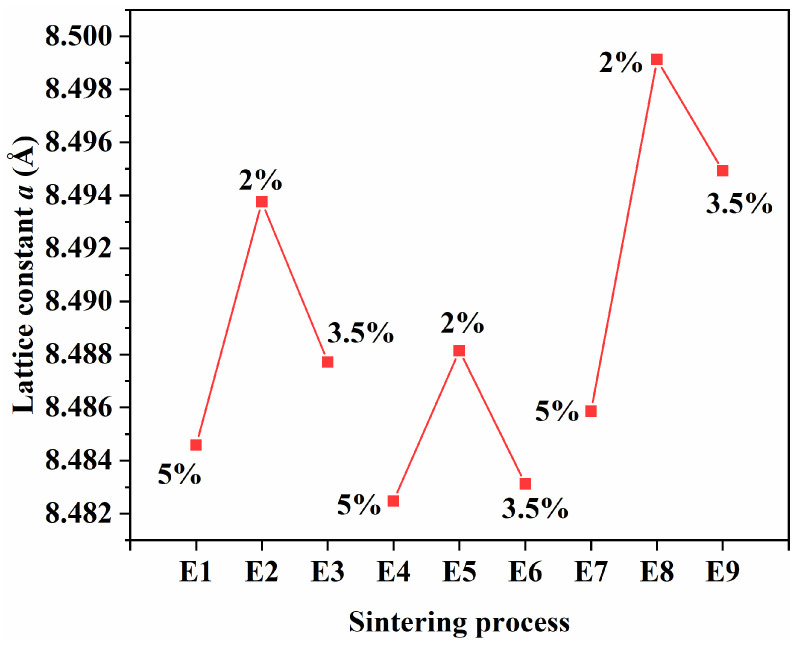

Figure 4
Figure 5

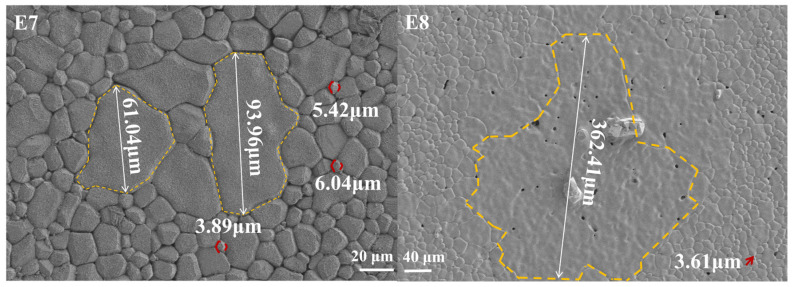

Figure 6

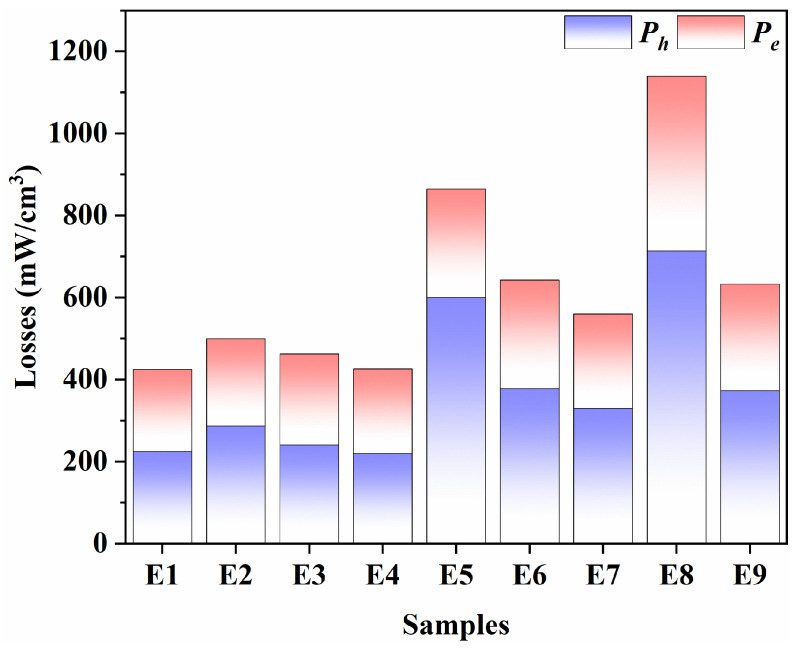

Figure 7

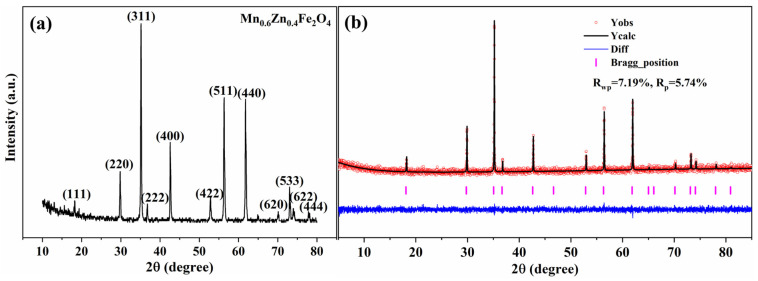

Figure 8

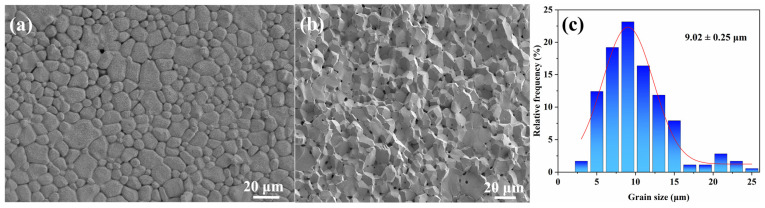

Figure 9

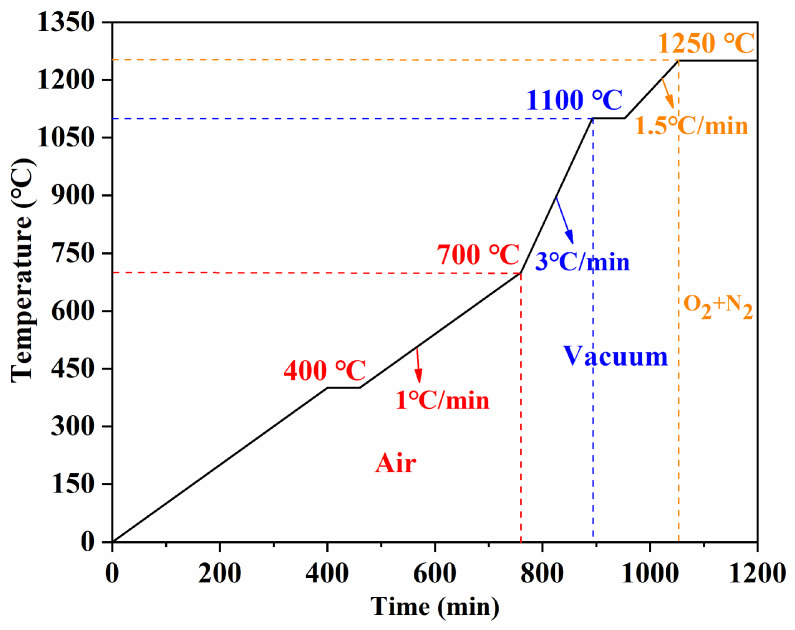

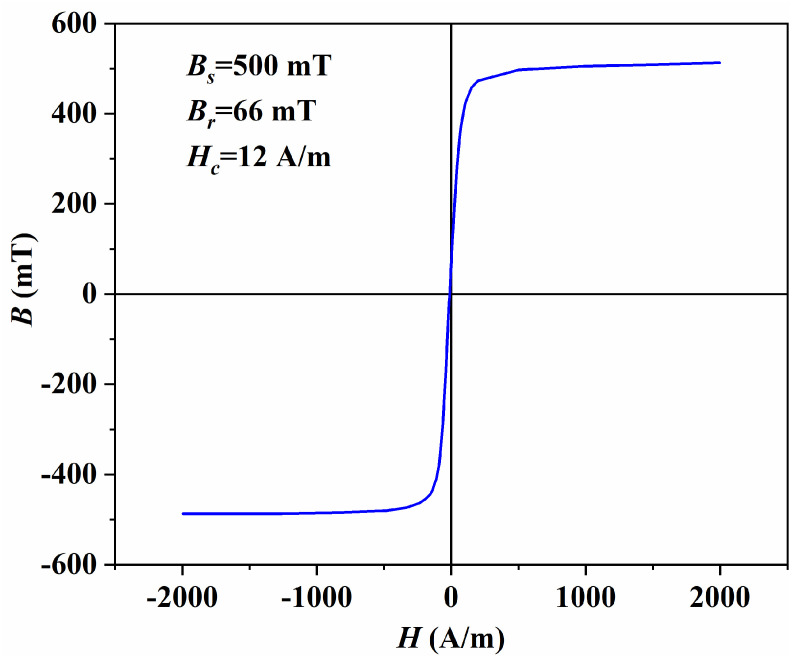

Figure 10

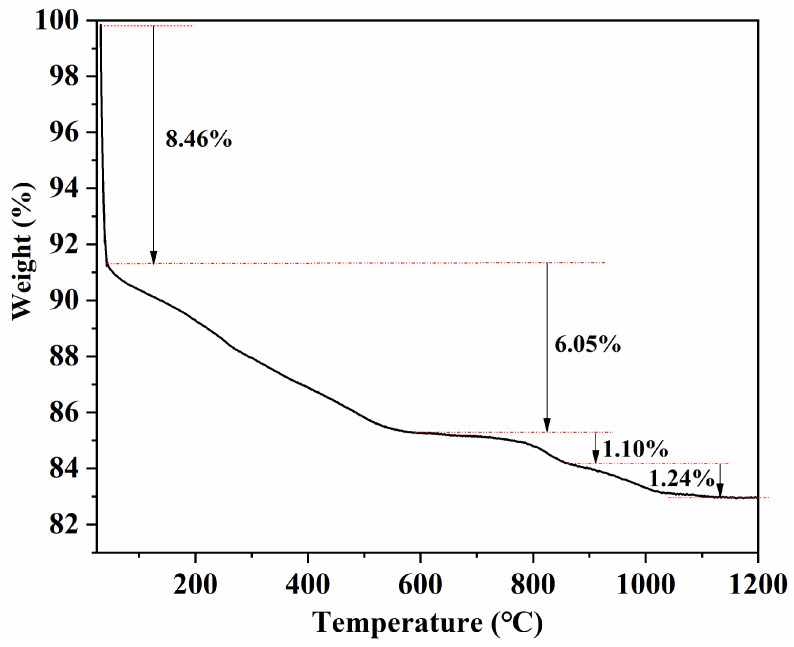

Figure 11
Figure 12

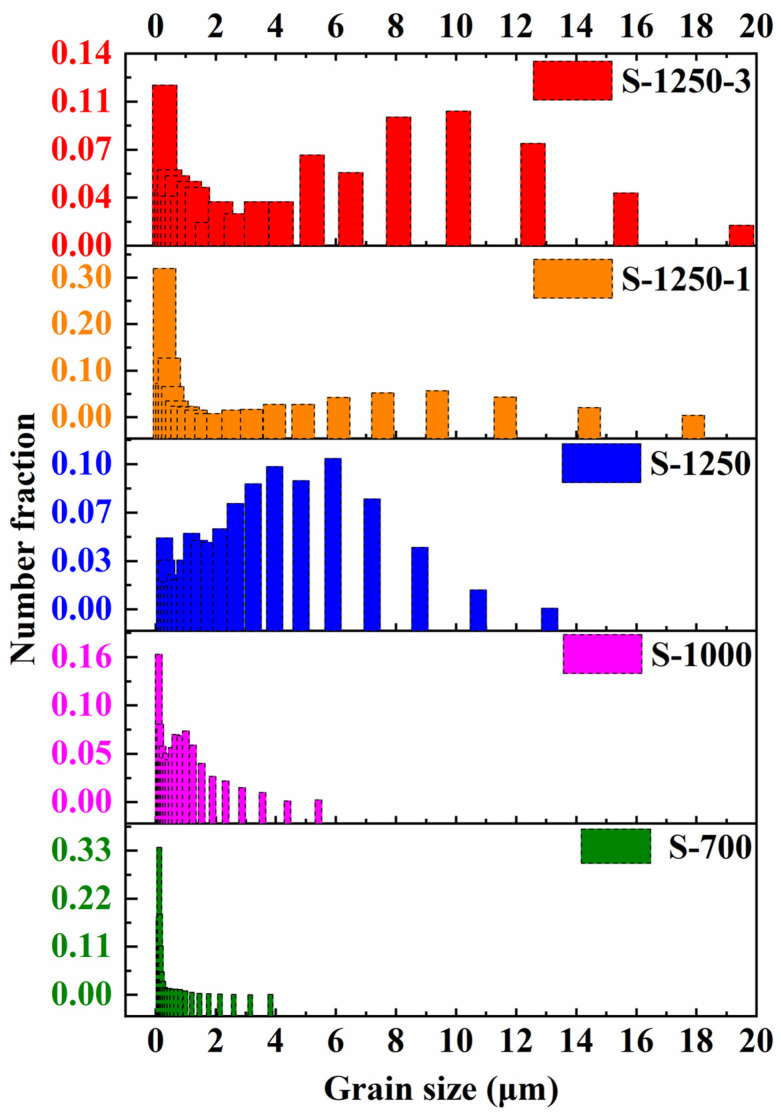

Figure 13

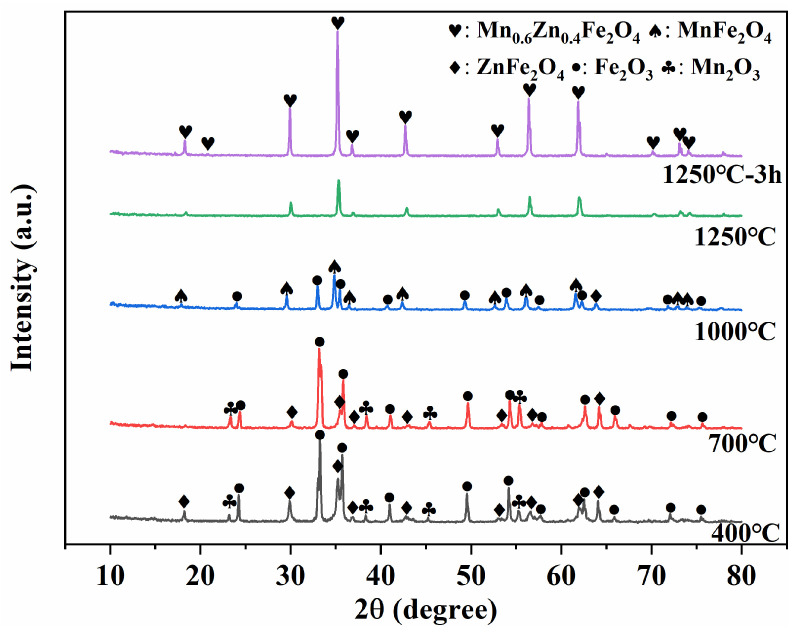

Figure 14
Figure 15

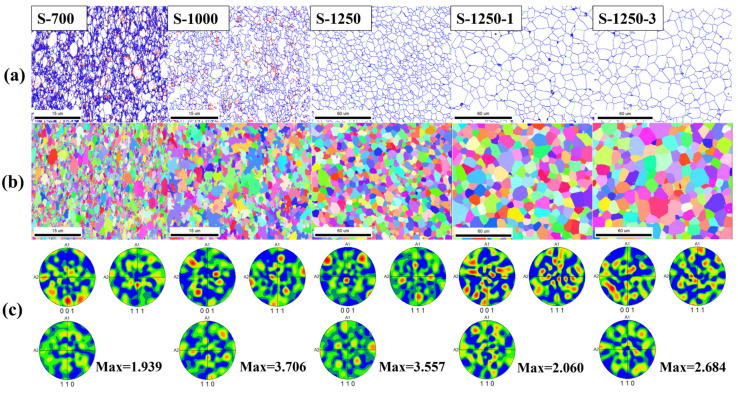

Figure 16

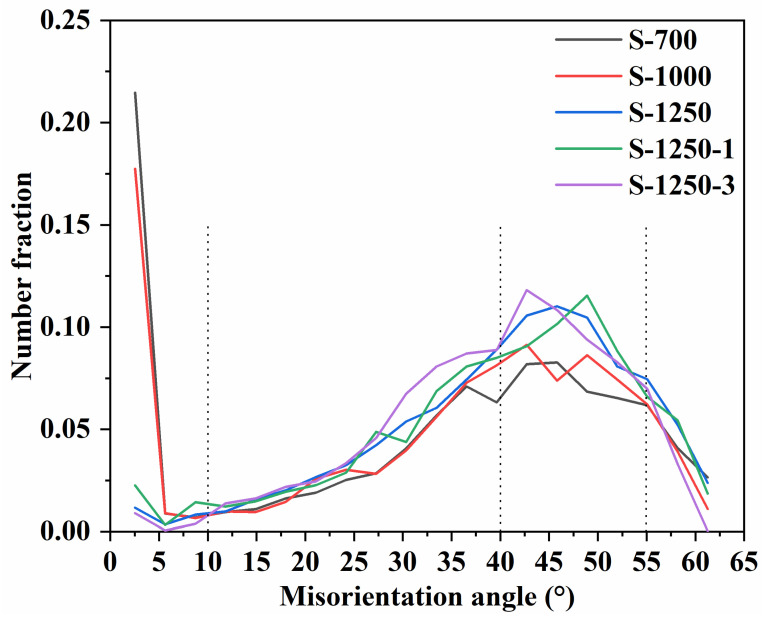

Figure 17Peer Reviews
