Research on Intelligent Thermal Optimization for Chiplet-Based Heterogeneously Integrated AI Chip Embedded with Leaf-Vein-Inspired Fractal Microchannels

TL;DR

This paper introduces a leaf-vein-inspired cooling system for AI chips that efficiently manages heat and prevents hotspots.

Contribution

The novel fractal microchannel design with adaptive flow and machine learning optimization significantly improves thermal management in AI chips.

Findings

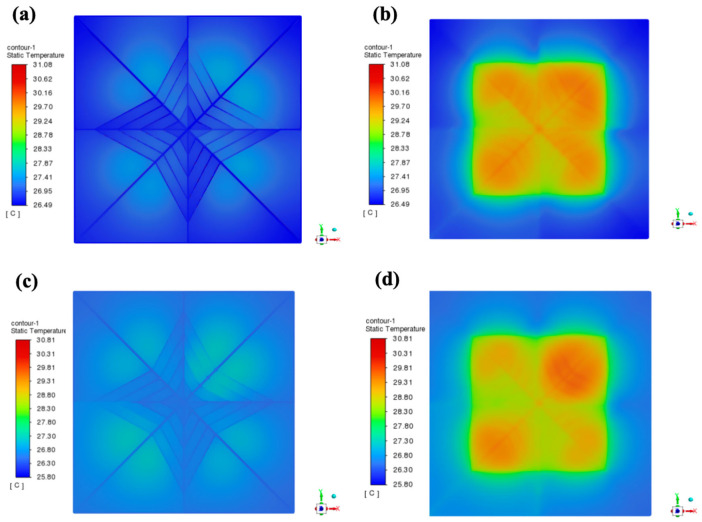

The fractal microchannel design reduced AI chip junction temperature by 76%, from 127.80°C to 30.97°C.

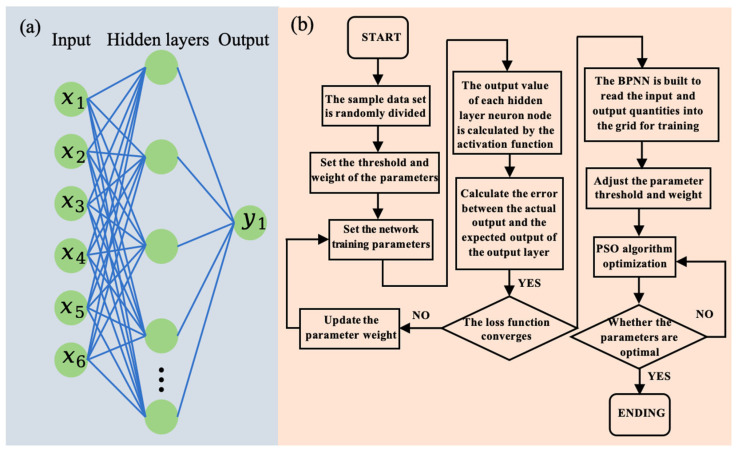

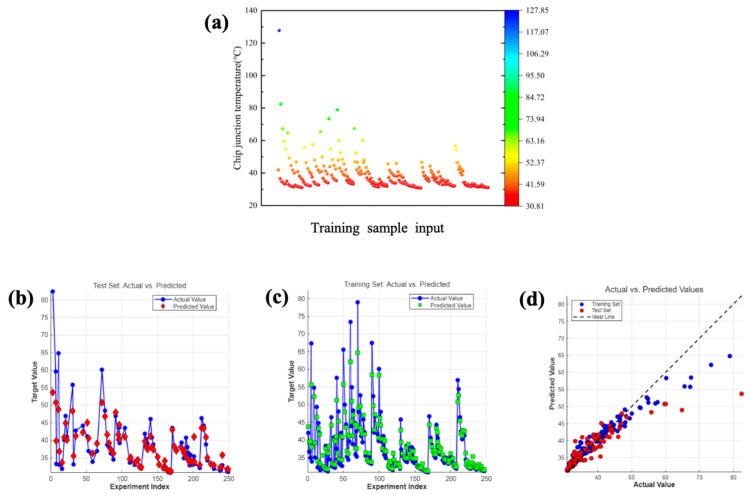

Optimal thermal performance was achieved through multi-parameter optimization using a machine-learned model and PSO.

Abstract

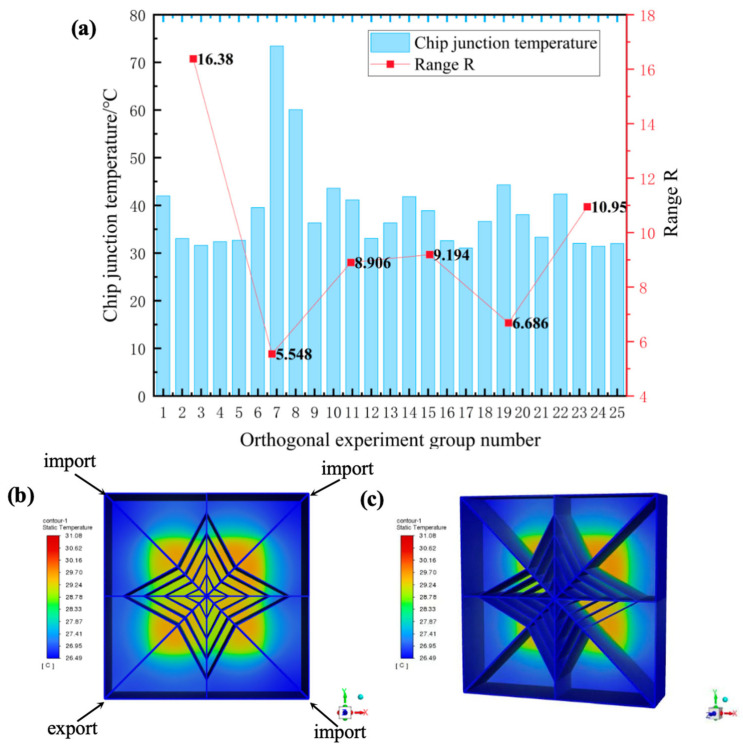

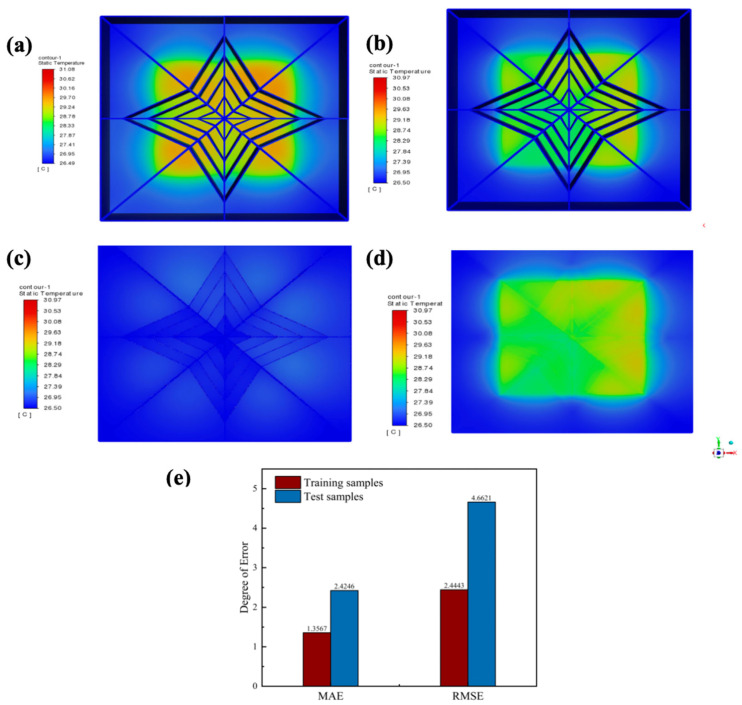

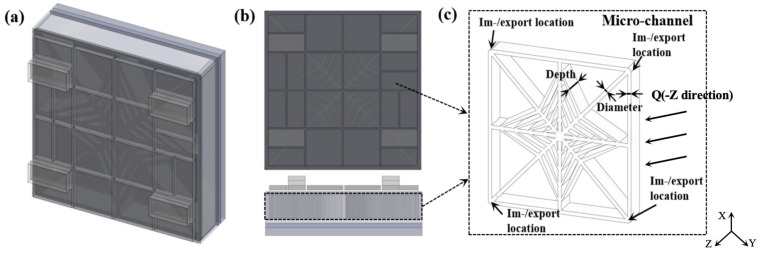

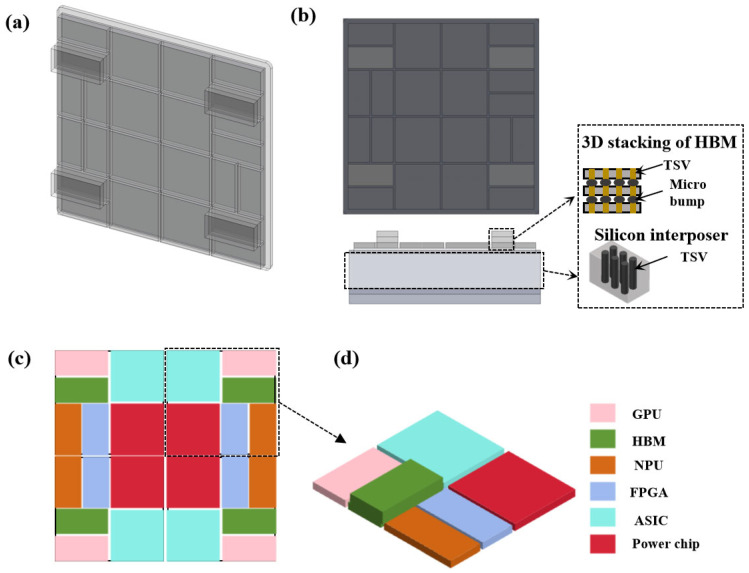

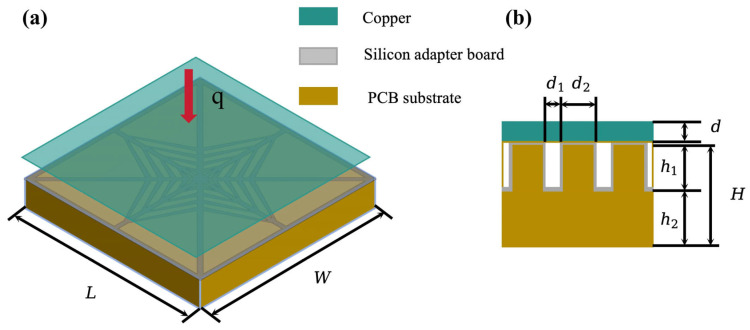

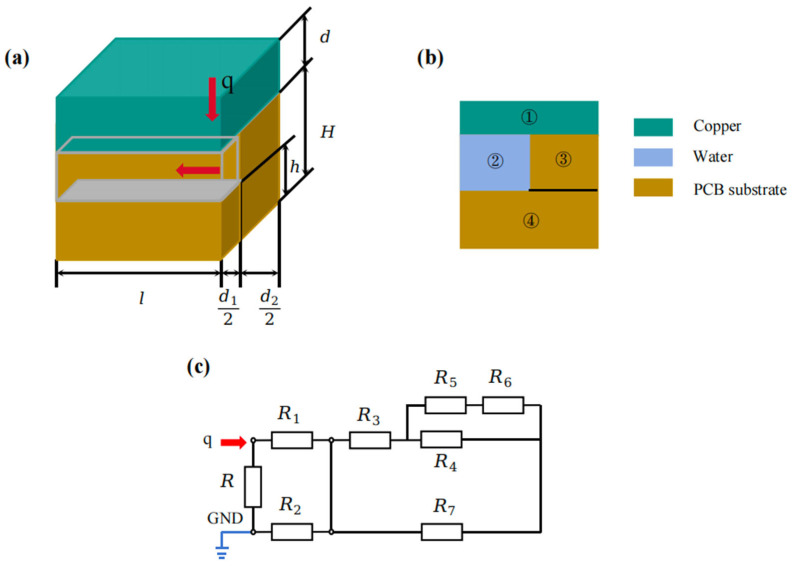

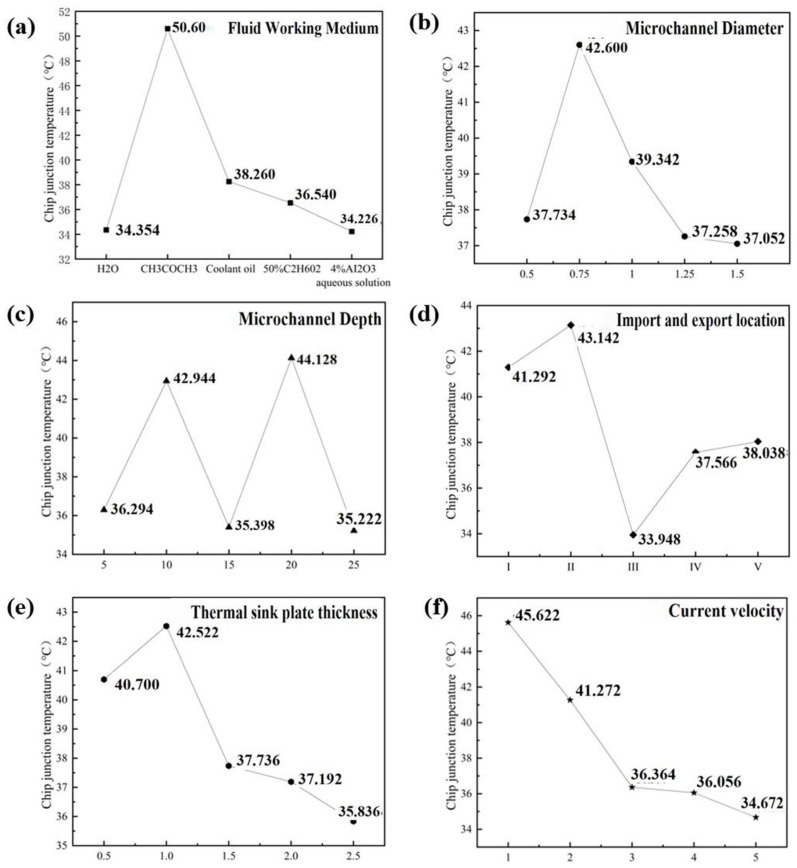

Conventional cooling schemes that rely on rigid heat-sink-to-die coupling in vertical stacks fail to track the dynamic, non-uniform heat map of high-performance artificial-intelligence (AI) chips employing chiplet-based heterogeneous integration, giving rise to local hot spots. To eliminate this mismatch, we present a leaf-vein-inspired fractal microchannel tailored for such AI processors. Its hierarchical bifurcation–confluence topology adaptively reshapes the flow field, delivering ultra-low thermal resistance, high heat-transfer coefficients, and uniform dissipation. Coupled with reconfigurable chiplet placement, the design is evaluated through FEM-based orthogonal experiments that rank the influence of coolant, channel diameter/depth, inlet/outlet position, substrate thickness, and flow rate via range analysis and Analysis of Variance (ANOVA). A machine-learned surrogate model of junction temperature is then fed to Particle Swarm Optimization (PSO) for multi-parameter optimization. When re-simulated with the optimal parameter set, the symmetric fractal network lowered the AI chip junction temperature from 127.80 °C to 30.97 °C, a 76% improvement, offering a theoretical basis for hotspot mitigation in advanced heterogeneous AI packages.
