Plasma-Enhanced Graphene Coatings on Ti-6Al-4V: Insights from Non-Destructive Characterization

TL;DR

This paper explores using plasma-enhanced graphene coatings on titanium alloys to improve surface properties for biomedical applications.

Contribution

The study introduces a novel non-destructive characterization approach for graphene-coated titanium using thermoelectric and eddy current techniques.

Findings

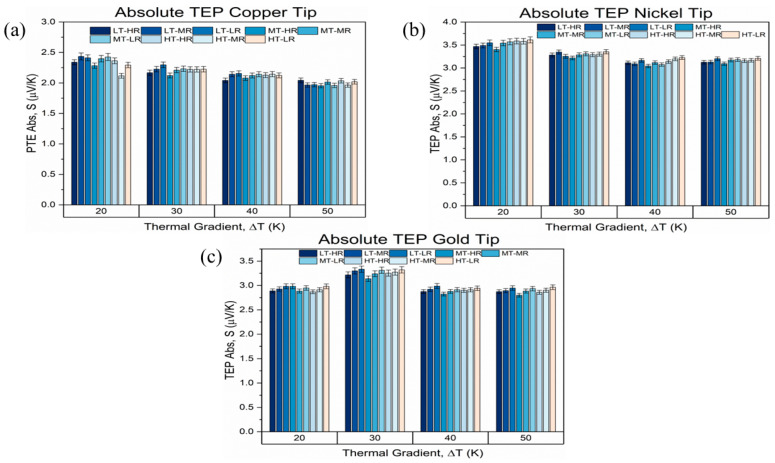

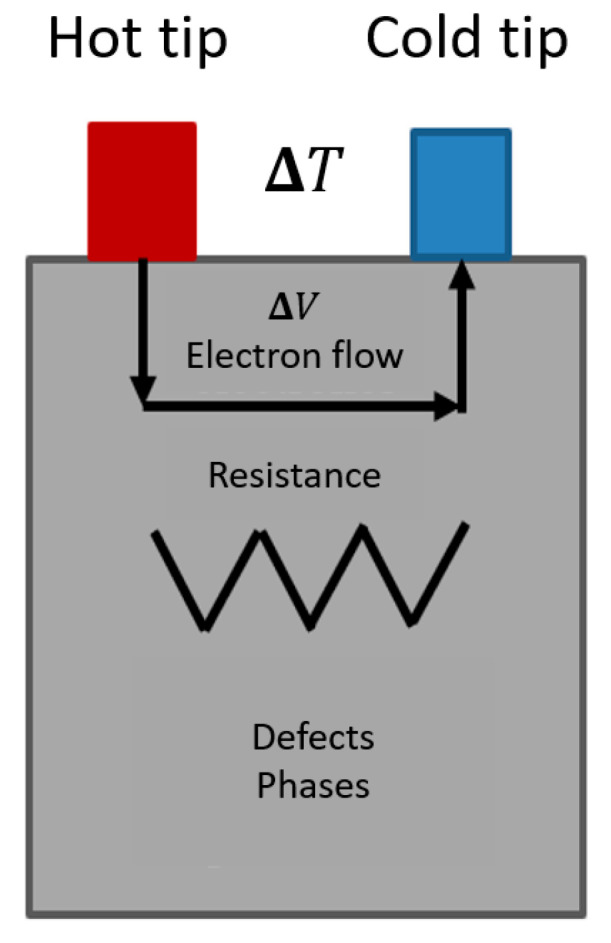

Graphene coatings on Ti-6Al-4V showed metallic-like thermoelectric behavior suitable for sensing.

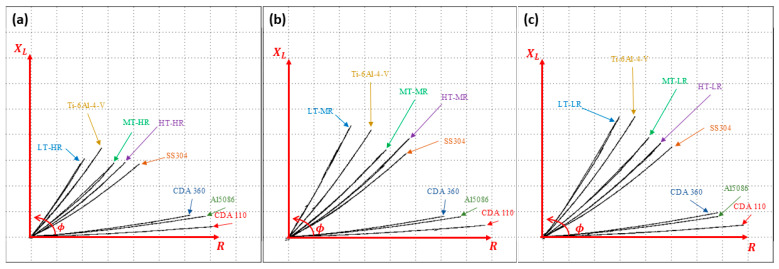

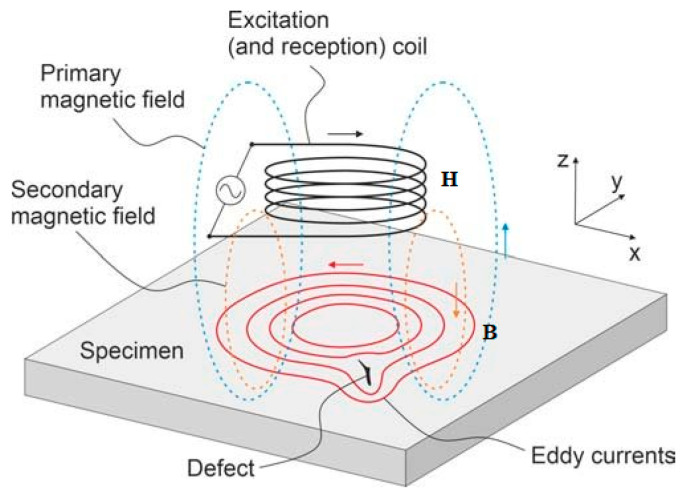

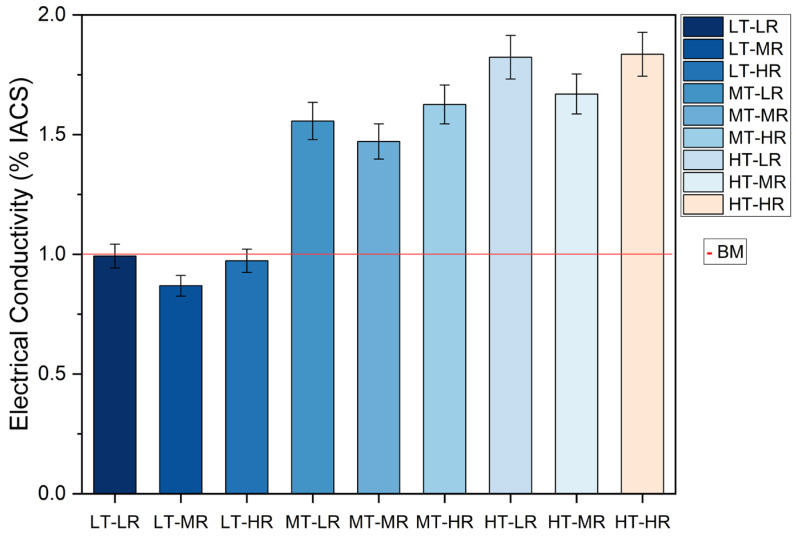

Low-frequency eddy current testing best differentiated coated and uncoated samples.

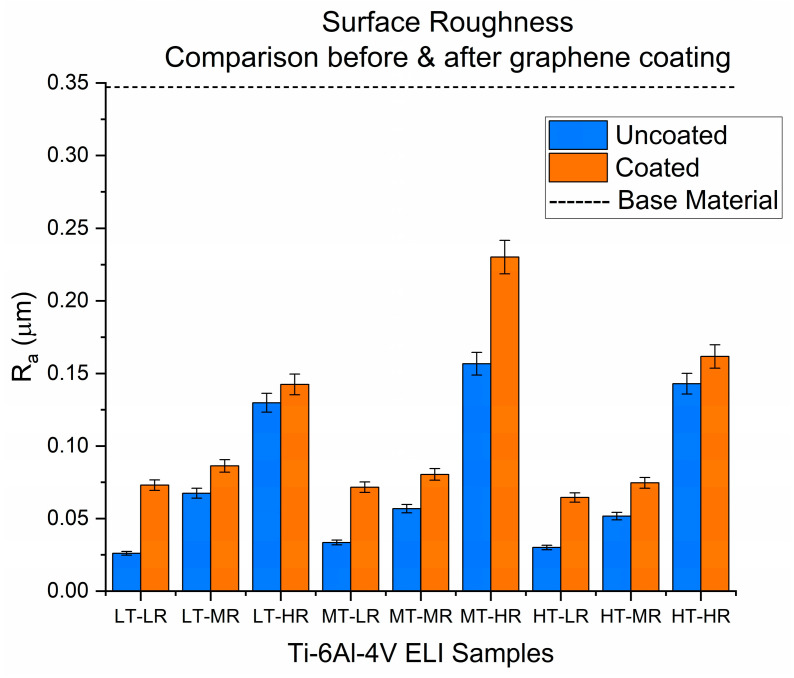

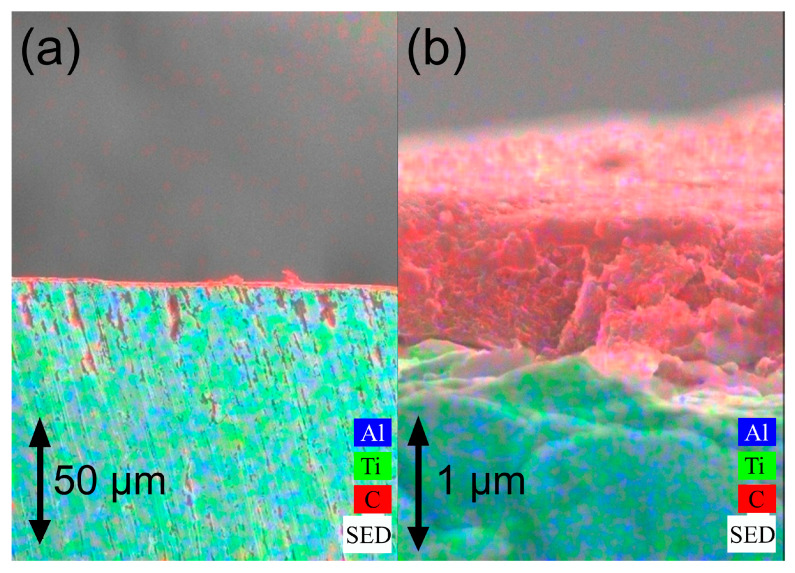

Graphene coatings were about 1 micron thick and maintained surface roughness similar to the base alloy.

Abstract

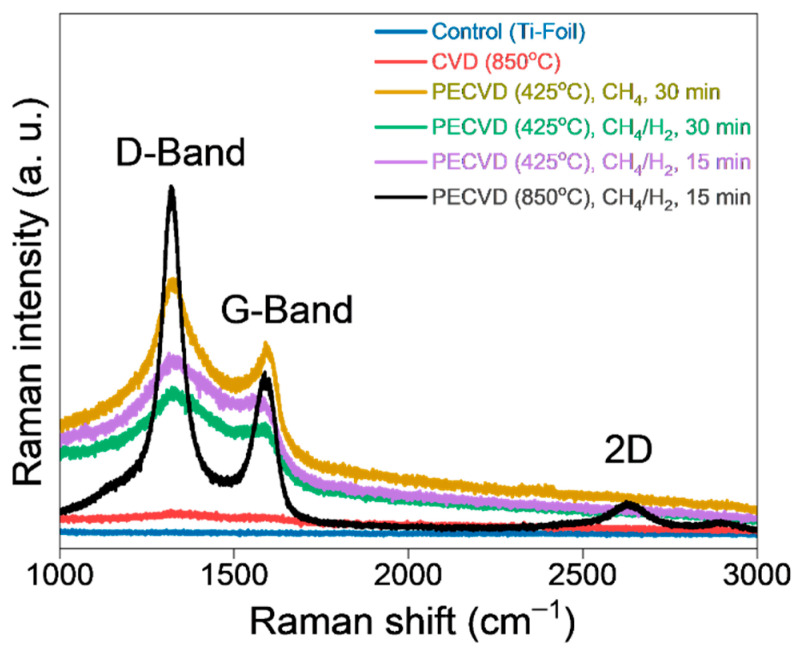

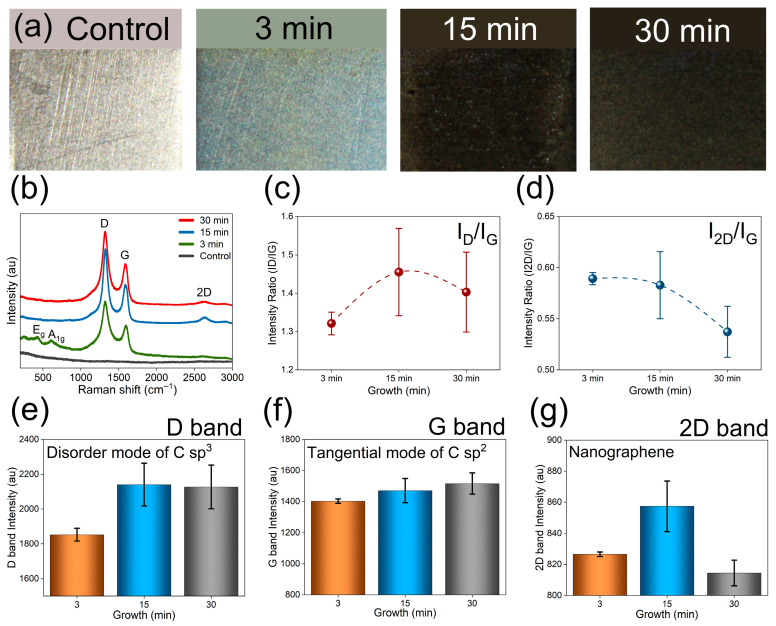

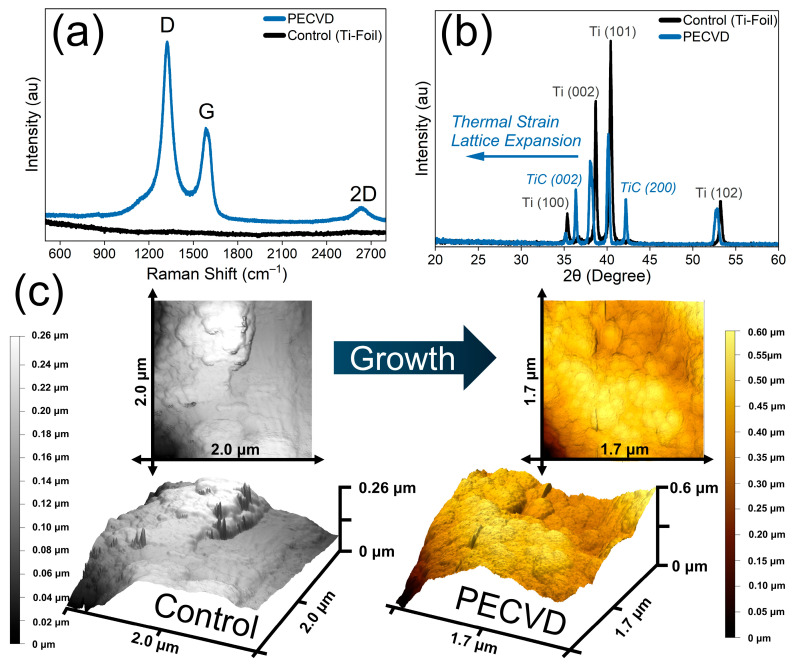

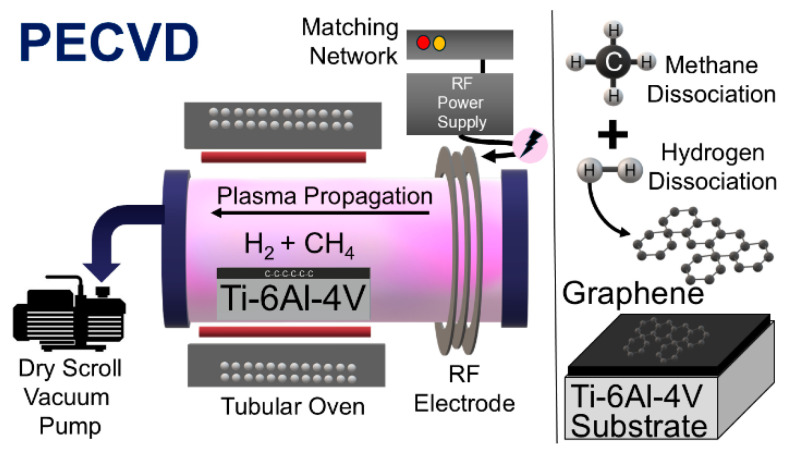

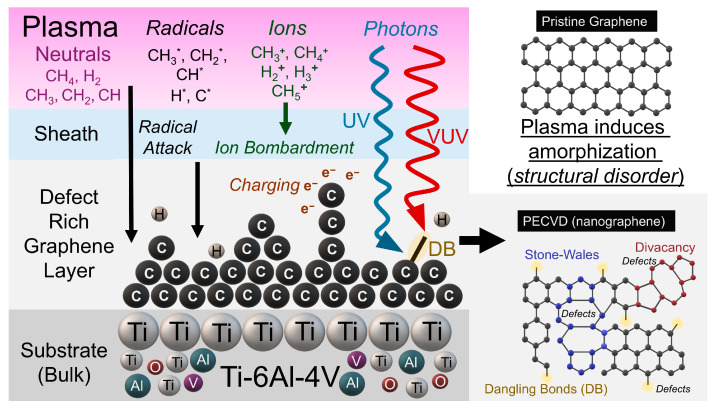

In this work, the deposition of graphene coatings on substrates of an ELI grade Ti-6Al-4V alloy was carried out using the Plasma Enhanced Chemical Vapor Deposition (PECVD) technique. The purpose of this study was to improve the surface properties of the material. The characterization of the material was carried out by non-destructive techniques, such as Raman Spectroscopy and Thermoelectric Potential. A preliminary characterization of Ti substrates was carried out by Raman spectroscopy. Conversely, thermoelectric potential tests were conducted using three distinct tip systems and four different temperature gradients. Lastly, some surface roughness measurements were conducted on all samples, both coated and uncoated. Graphene micro-structured coatings were obtained using a plasma-activated mixture of hydrogen and methane gases with an equimolar feed ratio (1:1 H2:CH4) at a temperature of 850 °C and a plasma exposure of 150 Watts and duration of 15 min. Raman spectra verified the presence of uniform micrometric graphene on the surface of Ti substrates. Graphene-coated Ti-6Al-4V ELI substrates exhibited Seebeck coefficient values indicating metallic-like behavior and suitability for thermoelectric sensing. In the eddy current analyses, it was found that low frequencies provided the highest sensitivity for differentiating between samples. An inverse relationship was identified between substrate thickness and phase angle, and a direct relationship with calculated electrical conductivity was also identified. This direct relation is attributed to penetration depth and interactions due to the chemical nature of the substrate and coating. Despite a slight increase in surface roughness after graphene deposition, values remained comparable to the base alloy, preserving compatibility for biomedical integration. Thermoelectric potential measurements revealed enhanced sensitivity to surface morphology and interfacial effects when high-sensitivity probe configurations were employed. These results support potential applications in implantable or wearable temperature sensors, energy harvesting devices, and smart biomedical interfaces. The thickness of the graphene coating was also characterized by SEM, which showed that the films deposited by PECVD are about 1 micron thick.
