Novel Acetal Rotating Tool Improving Surface Quality in Incremental Sheet Forming
Hongsong Song, Kai Han, Peng Xu, Jinxin Zang, Xiaoqiang Li, Shaohua Wang
TL;DR
A new acetal rotating tool improves surface quality in sheet forming by up to 40% and reduces tool wear.
Contribution
A novel acetal wheel-type rotating tool is introduced, offering improved surface quality and reduced wear in incremental sheet forming.
Findings
The acetal tool improves surface quality by 32–40% compared to conventional metal ball tools.
The wheel-type tool reduces contact stress by over 37.5% and improves surface quality by 21.1%.
The acetal rotating wheel eliminates tool wear while achieving a 32.0% surface quality enhancement.
Abstract
Surface quality remains a critical factor limiting the widespread adoption of incremental sheet forming (ISF). This study proposes a novel acetal wheel-type rotating tool and systematically investigates the influence of tool structure and material on surface quality through experimental and numerical analyses. The results demonstrate that the acetal tool significantly improves surface quality by 32–40% compared to conventional metal ball tools, primarily due to enhanced sheet–tool contact area that effectively suppresses the formation of surface waviness topography. Furthermore, the wheel-type tool reduces contact stress by over 37.5% while improving surface quality by 21.1% relative to traditional metal ball tools. Notably, the acetal rotating wheel achieves a 32.0% surface quality enhancement while eliminating tool wear, highlighting its industrial applicability. These findings…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

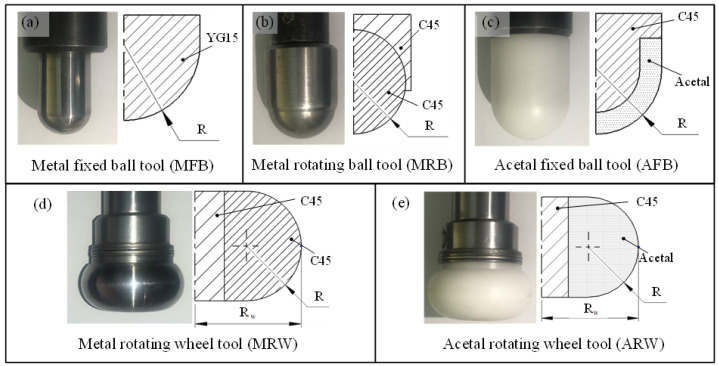

Figure 1

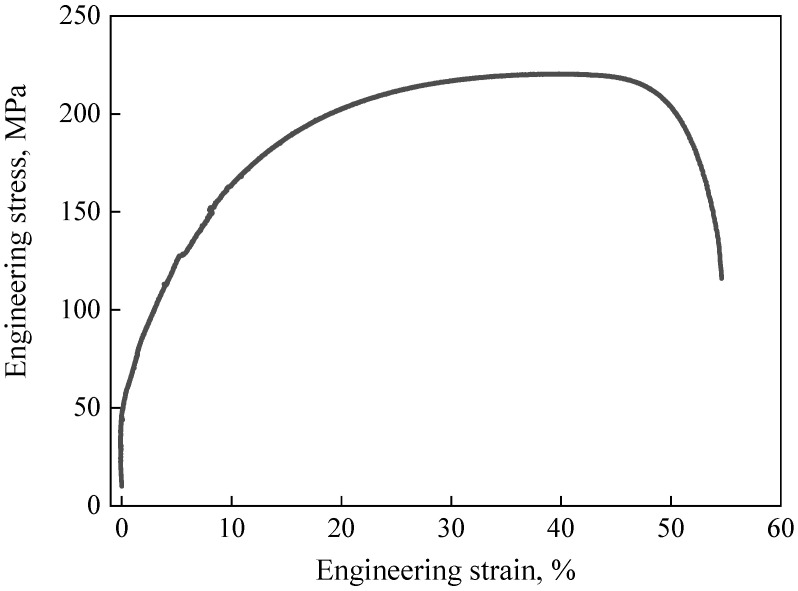

Figure 2

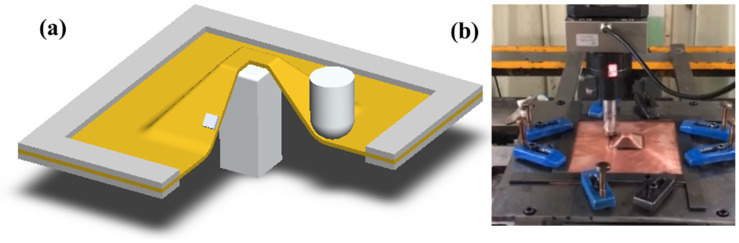

Figure 3

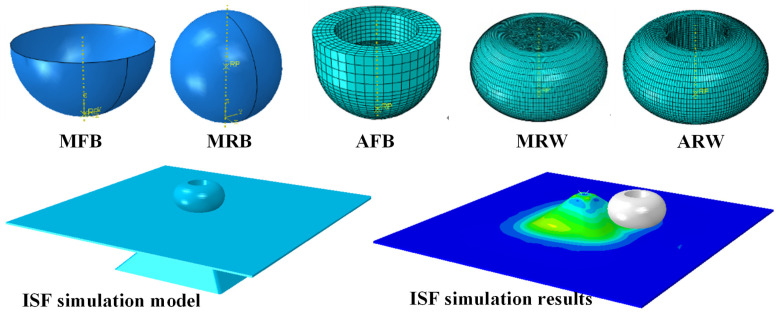

Figure 4

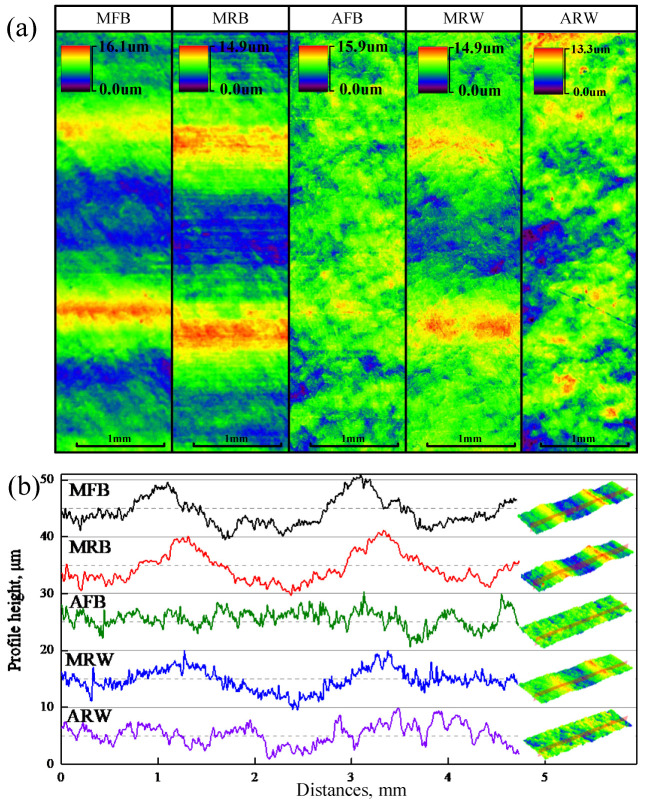

Figure 5

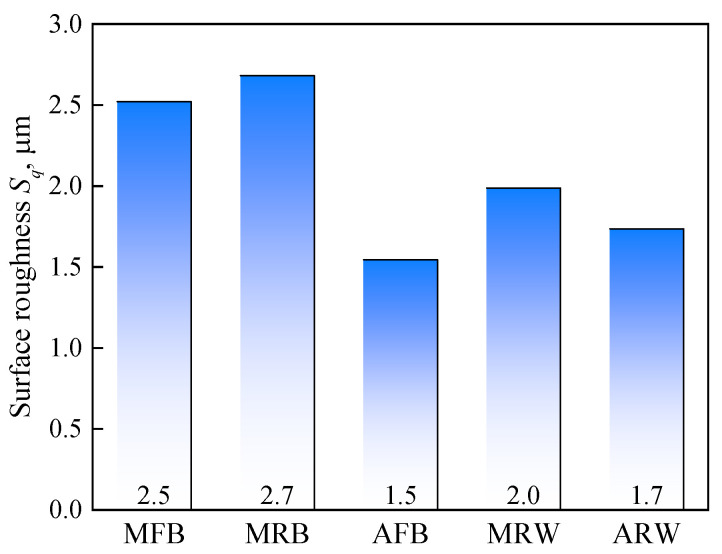

Figure 6

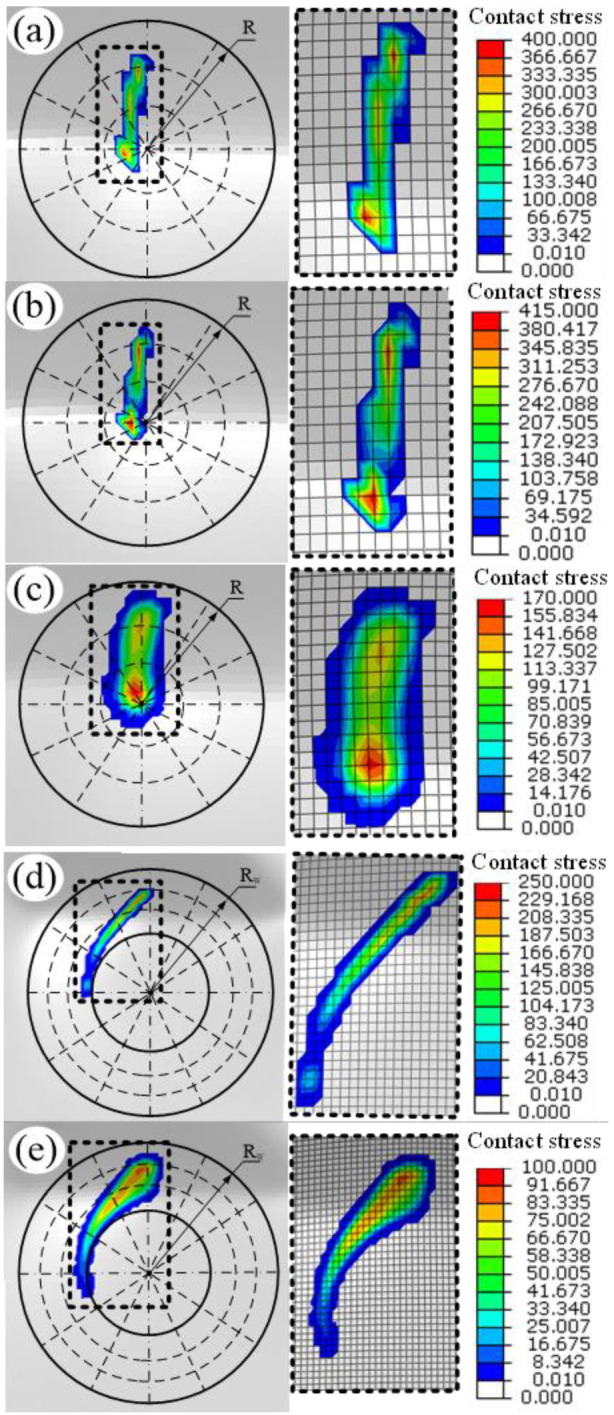

Figure 7

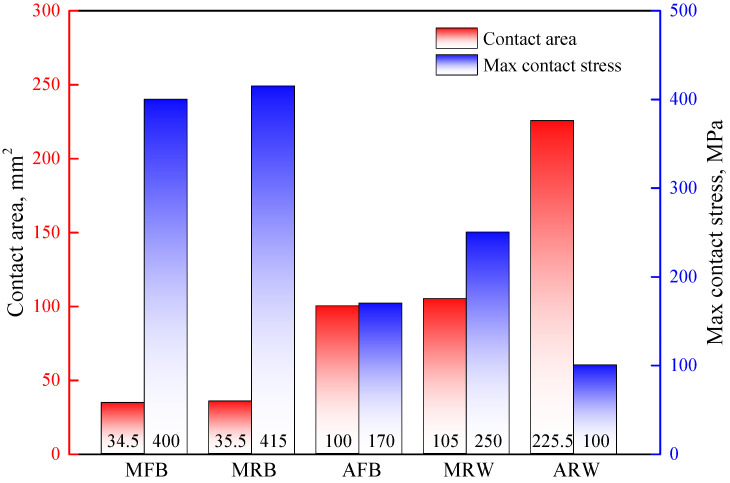

Figure 8

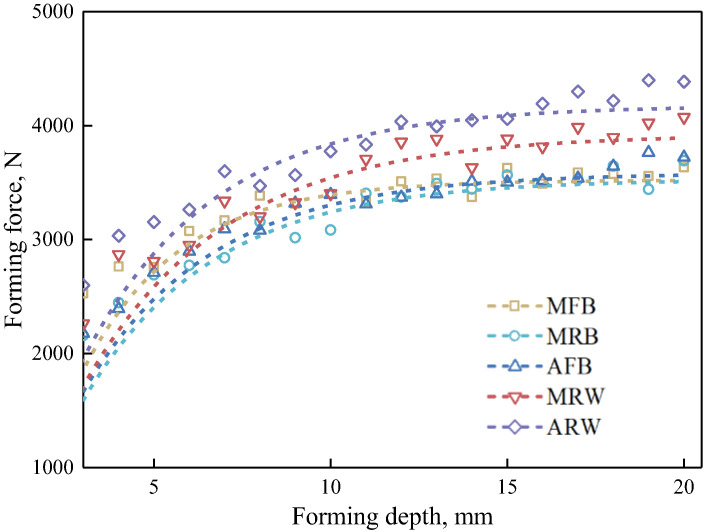

Figure 9

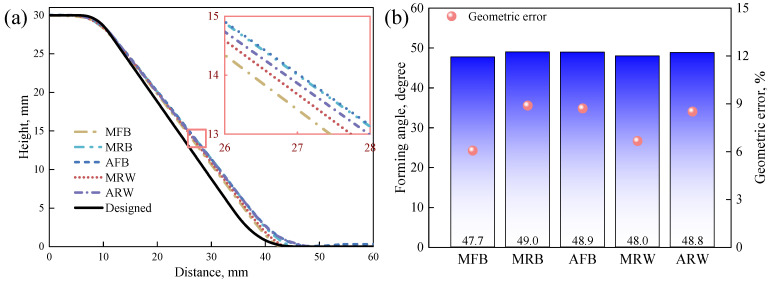

Figure 10

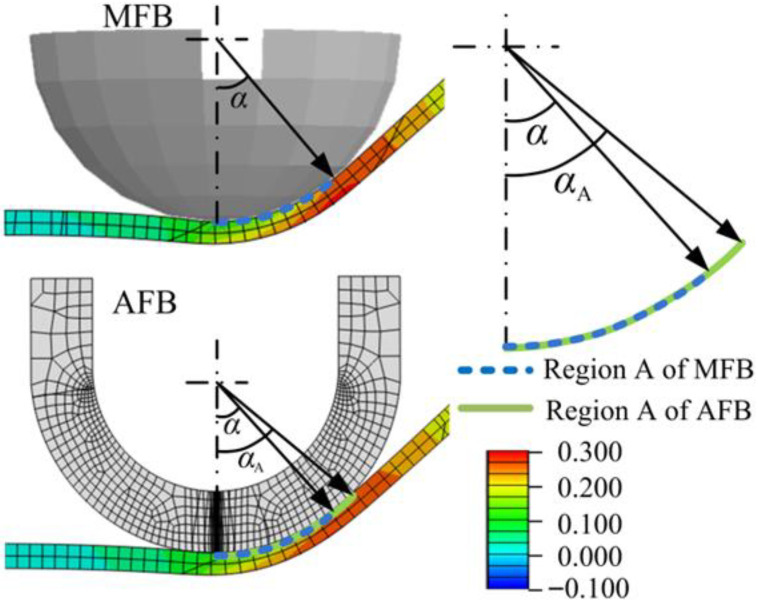

Figure 11

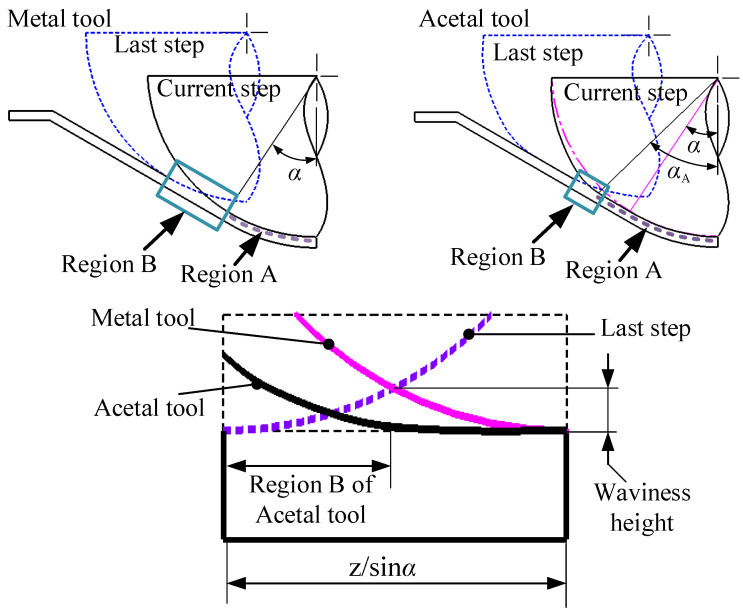

Figure 12

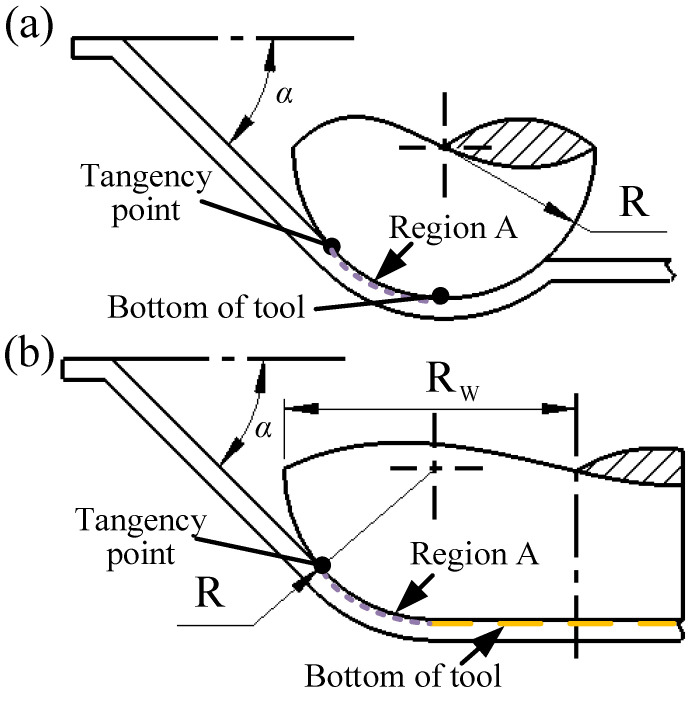

Figure 13

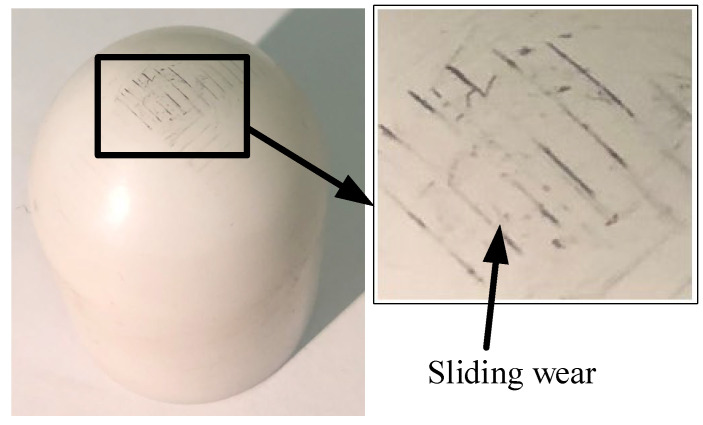

Figure 14Peer Reviews
